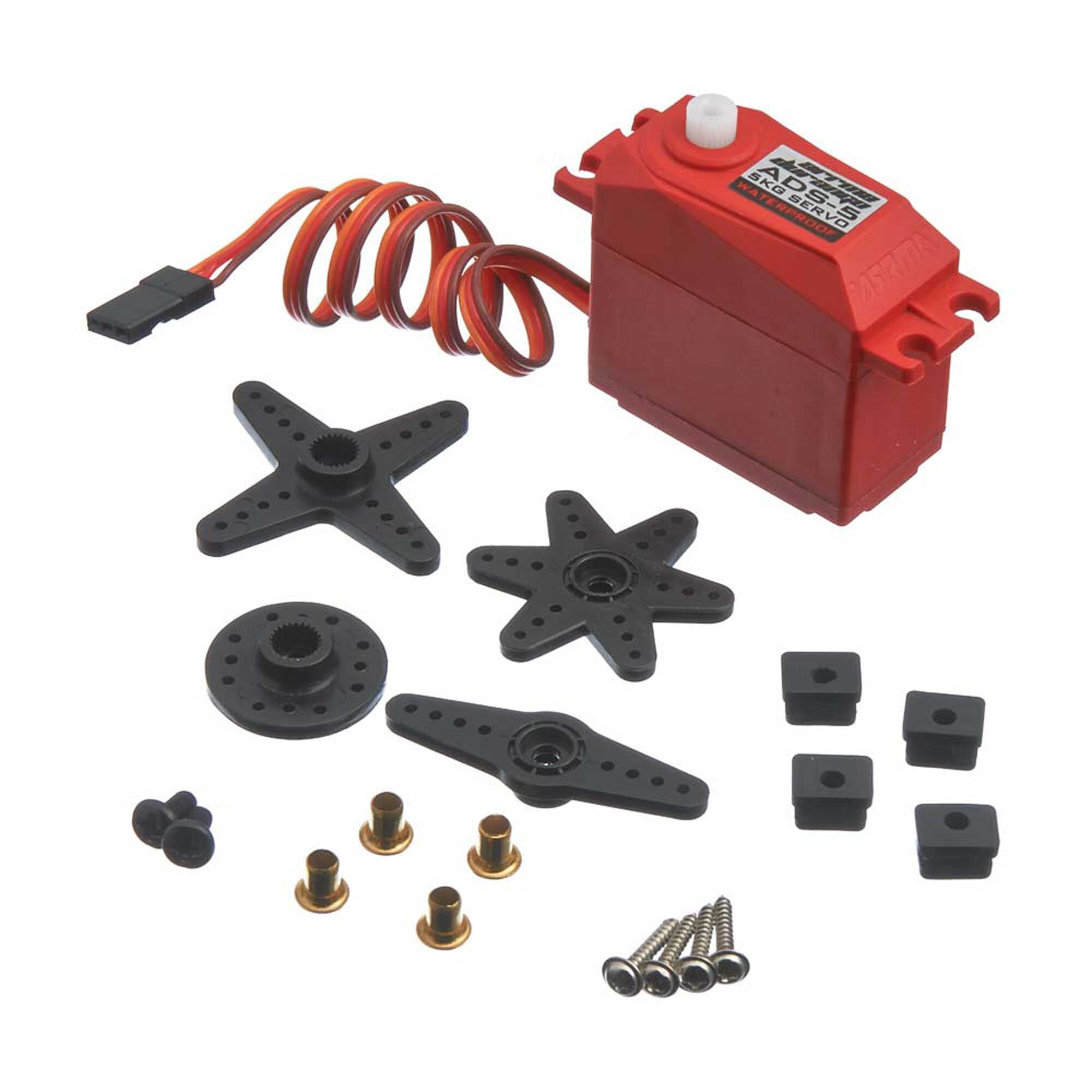

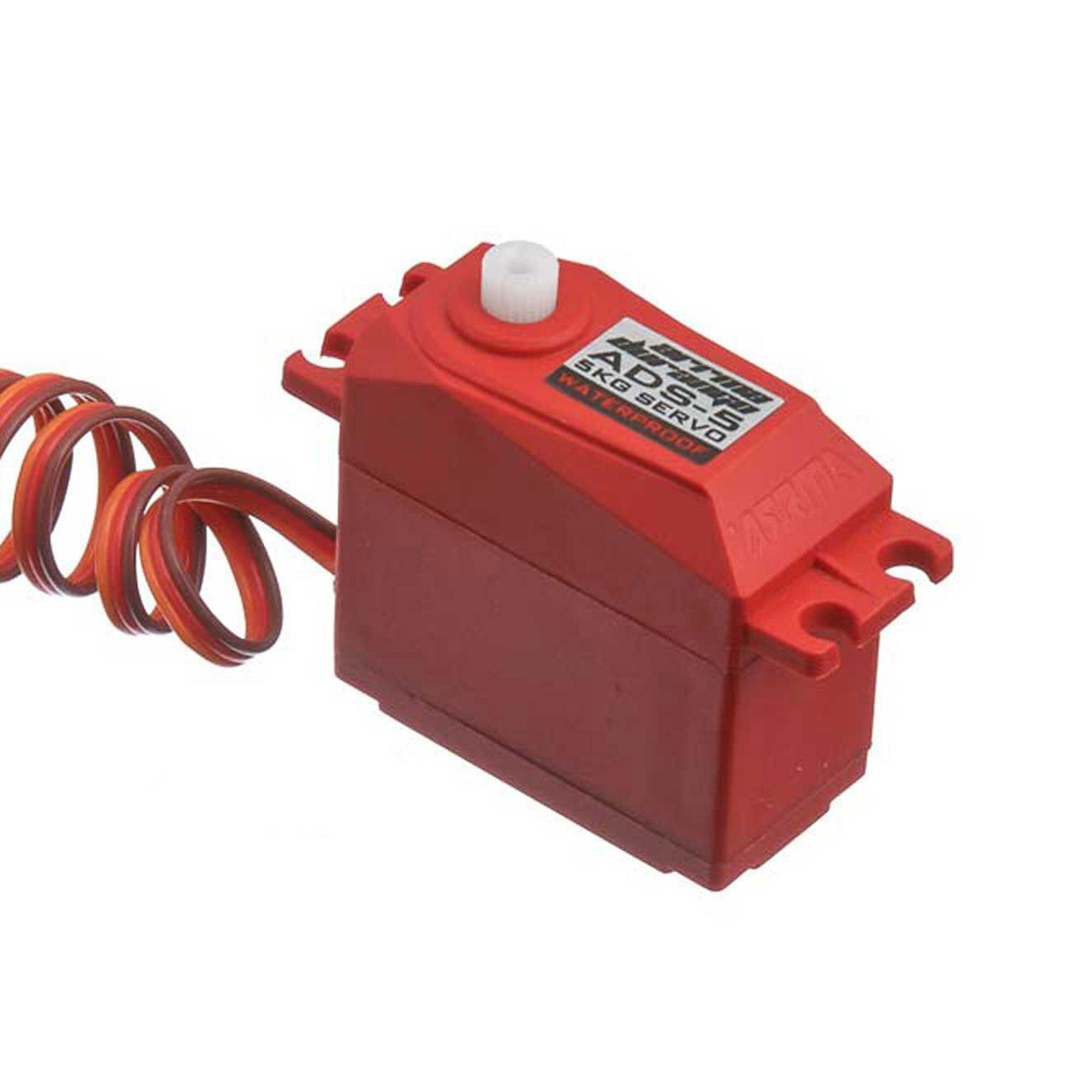

ARRMA ADS-5 V2 4.5kg Waterproof Servo, Red

The ADS-5 V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.


Specification:

Case – Red, Water-proof & dust-proof

Bearing – Dual ball bearing

Connector – ‘Futaba style’ 3 pin connector

Gears – HD Composite

Spline – 25 Tooth

Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry standard size

Wire length: 300mm

Torque – ADS-5: 5kg/cm (70oz/inch) at 6V

Speed – 0.14 sec/0.12 sec 4.8V/6V

Signal – Analogue
