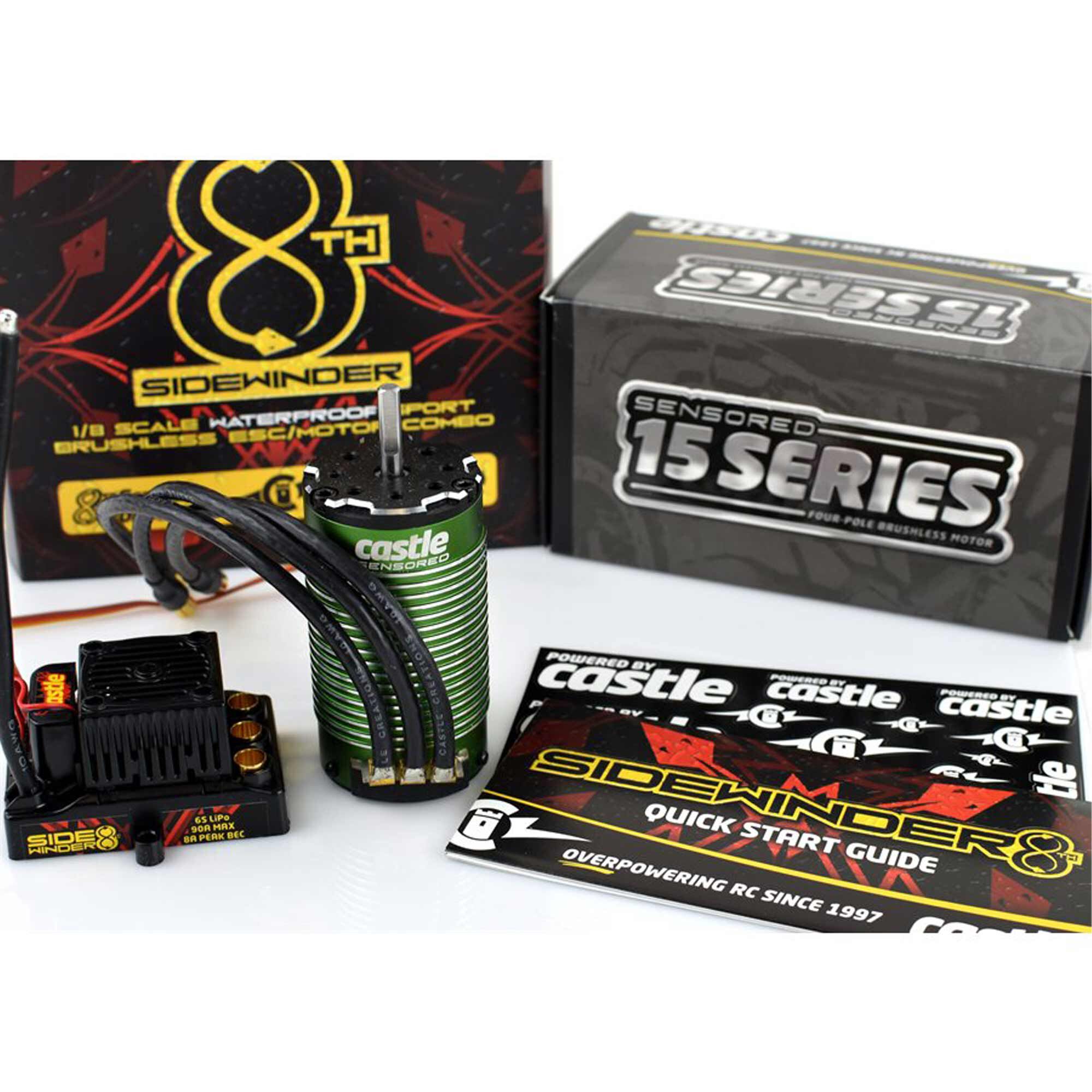

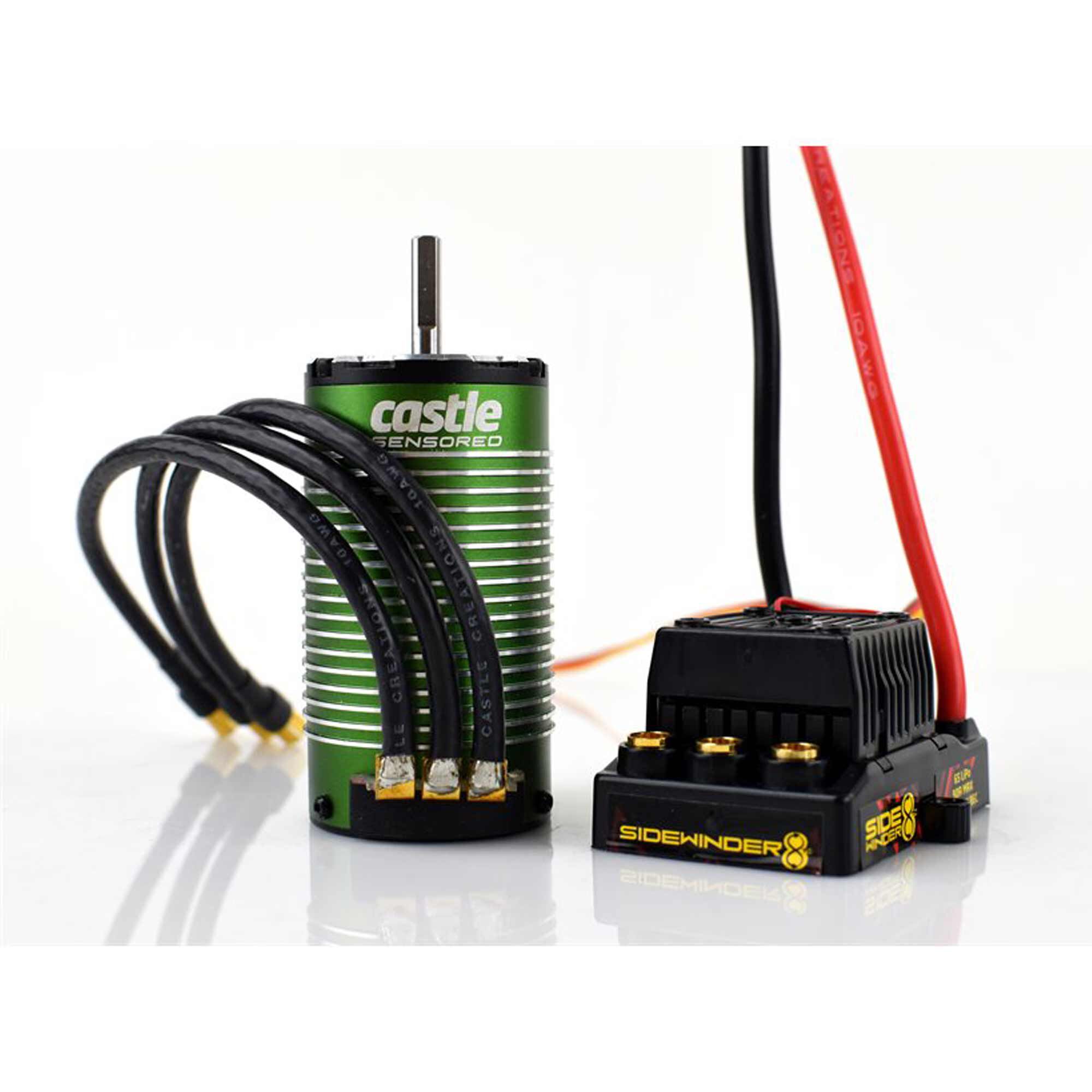

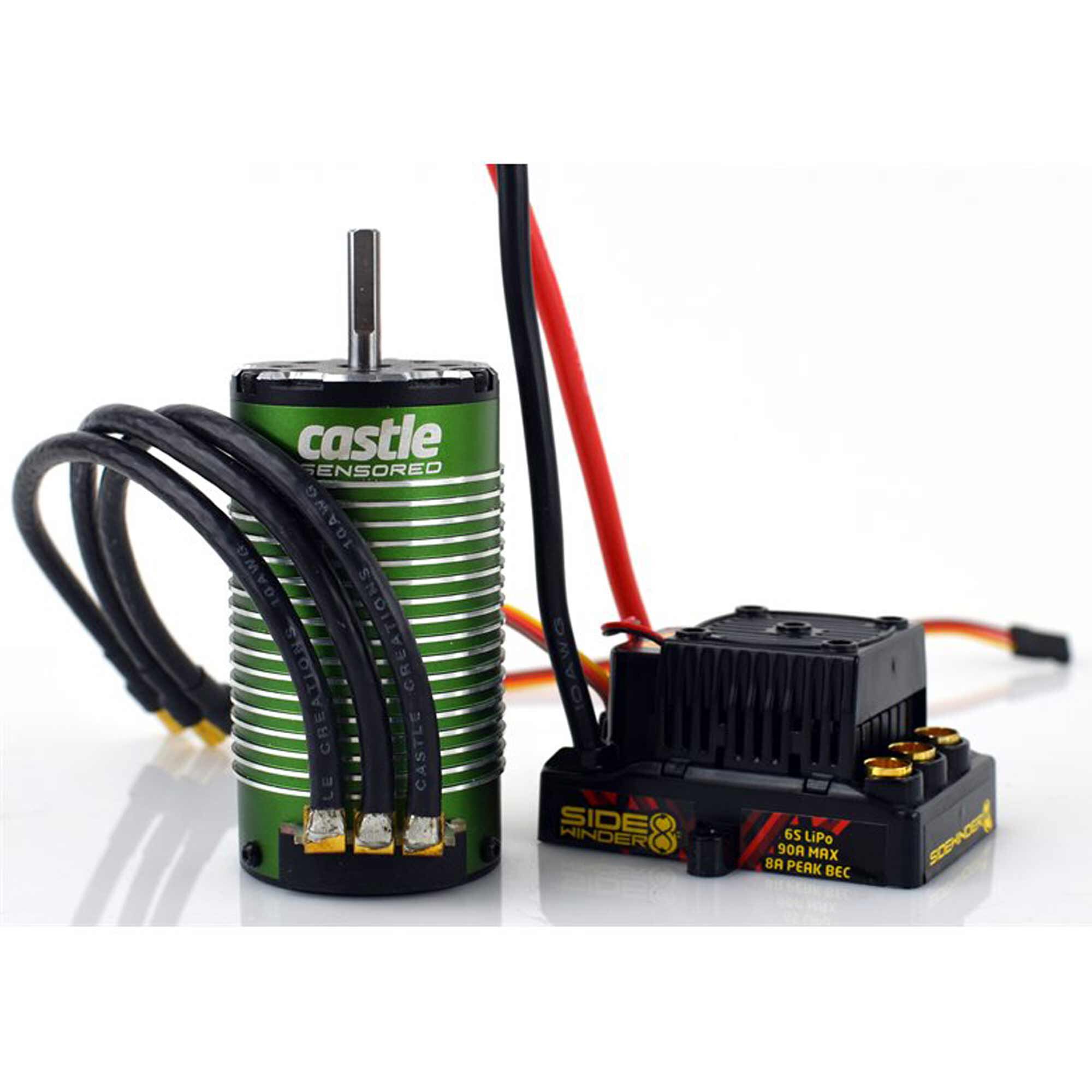

Castle Creations 1/8 Sidewinder ESC / 2200Kv V2 Motor Combo

$55.00

In stock

- +
SKU: hh-12214 Category: Tags: ,

Overview

Affordable Waterproof Brushless Power System!

Sidewinder 8th is our sport 1:8 scale waterproof* combo capable of 2-6S LiPo, with an 8 amp peak BEC. This is the perfect upgrade for 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 11 lbs. It can also work as a great upgrade for some 4WD short course trucks for 3s or 4s operation. It also comes standard with a highly efficient ESC cooling fan.

  • Smooth Sensorless Motor Operation
  • Waterproof Design ESC
  • Convenient Transmitter Programming
  • Oversized NMB Bearings
  • Proudly Designed and Supported in Kansas, USA

ESC Features

  • 2s – 6s LiPo (25.2V) use in vehicles up 11.lbs with battery, ready-to-run.
  • Smooth sensorless motor operation with included 1515-2200kv sensored brushless motor
  • Large 6.5mm female motor bullet connectors (male connectors sold separately)
  • Waterproof design ESC and splash resistant 30MM fan
  • Powerful 5.5 volts fixed, 8 amps Peak BEC
  • LED error codes for common error conditions
  • Convenient transmitter programming for nine common adjustable settings
  • Full compatible with the Castle Link Programming Suite to modify settings and download software updates
  • Proudly Designed, Assembled and Supported in Olathe, KS USA

1515-2200Kv V2 Features

  • Input Voltage range: 2s-6s LiPo
  • Redesigned stator and rotor resulting in improved magnetic flux.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.

Specs

Product Specs

BEC
Yes
BEC Continous Current
5.5V
BEC Maximum Burst Current
8A
Brakes
Proportional
Connector Type
6.5mm Bullet
Input Voltage
2-6S Lipo
Product Height
1.33″ (34 mm)
Product Length
2.45″ (62 mm)
Product Weight
3.52 oz. (100g)
Product Width
2.2″ (56 mm)
Reverse
Yes
RPM/Volt (Kv)
2200 kv
Shaft Diameter
0.19685″ (5 mm)
Shaft Length
0.787402″ (20 mm)
Water-Resistant
Yes
Weight 5 kg
