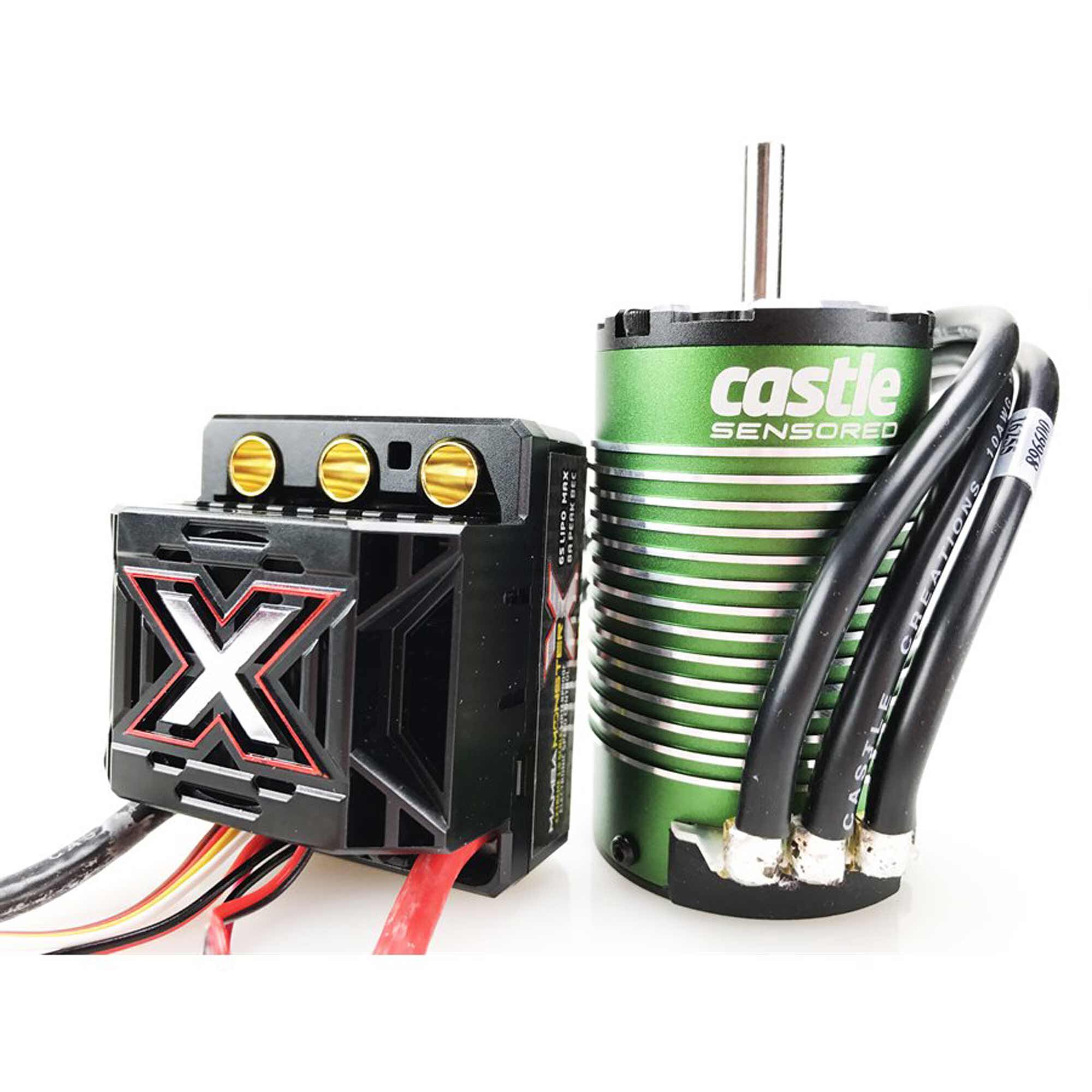

Castle Creations Mamba Monster X 25.2V ESC / 1515-2200Kv V2 Motor

$67.00

In stock

- +
SKU: hh-12136 Category: Tags: ,

Overview

Putting The X In Extreme!

The Mamba Monster X ESC and 1515-2200Kv V2 performs incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary ??monster?? performance to a whole new level.

New 1515-2200Kv V2 Motor Now Included!

Castle’s commitment to excellence drives them to refine the user experience, optimize performance, and ensure that every aspect of their products are meticulously designed to provide the utmost satisfaction. Let’s face it, even the best products have room for refinement, which is why they are introducing the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we’ve ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

  • Auxiliary Wire Functionality
  • Housed In a Durable Injection Molded Case
  • Removable 30mm Fan
  • Compatible with S.BUS2 Telemetry Link
  • Convenient Transmitter Programming

Mamba Monster X Features

  • Input Voltage Range : 2s-6s LiPo (ESC Only)
  • SMARTSENSE, SENSORED ONLY and BRUSHED Running Modes
  • Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
  • Auxiliary Wire Functionality allows for ??on-the-fly?? adjustments such as Max Power and Max Brake.
  • ESC is housed in a durable injection molded case and potted in WATERPROOF epoxy to protect the electronics and promote efficient heat transfer.
  • Removable 30mm fan
  • Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
  • DATA LOGGING to capture and record performance data from your vehicle
  • AUDIBLE ALERTS for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff.
  • Convenient TRANSMITTER PROGRAMMING for six common adjustable settings inlcuding cutoff voltage and drag brake.
  • SMARTSENSE? uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability. Once the motor is turning, the ESC seamlessly transitions to Castle’s ultra-efficient sensorless mode.
  • CASTLE LINK USB programming kit (coupon included with purchase)
  • Optional smartphone-based programming with the B-LINK? BLUETOOTH ADAPTER (sold separately) and Castle Link App available on Google Play or Apple App Store
  • PROUDLY DESIGNED, ASSEMBLED AND SUPPORTED IN KANSAS, USA

1515-2200 V2 Motor Features

  • Input Voltage range: 2s-6s LiPo
  • Redesigned stator and rotor assemblies to improve magnetic flux.
  • Reduced magnetic cogging, producing less residual drag brake.
  • Increased efficiency, resulting in lower temperatures and longer run times.
  • Smoother start-up, reducing cogging or stuttering when starting from a stop.
  • Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
  • High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
  • Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
  • High-Performance 0.2mm Steel Lamination Stacked Stator
  • Oversized, low-resistance, gold-plated solder tabs
  • Sensor board with High Quality Temperature-Stabilized Sensors
  • T6 Aluminum CNC Machines Front/Rear End bell
  • Proudly Designed and Supported in Kansas, USA.
  • Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Date Logging

Mamba Monster X can capture and record performance data from your last couple of runs, commonly referred to as data logging. This data can be downloaded via the Castle Link USB programmer; you can use the Quick Connect Duo (sold separately) to allow you to access both wires into a single Castle Link connection. You can then analyze this data and make adjustments to the ESC to maximize both performance and battery life.



Auxiliary Functionality

Mamba Monster X features the addition of a new, programmable AUX wire that allows you to make ??on-the-go?? adjustments to several settings such as torque control, and max throttle, and fine-tune the performance of your ESC right from the transmitter using an auxiliary channel on the receiver. The AUX wire function is disabled by default but is programmable via Castle Link or the Castle Link iOS App. Once you have programmed the functionality of the AUX wire, that setting can then be adjusted on-the-go from a compatible transmitter.



Programmability

Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software or the Castle Link iOS App and a B-LINK Bluetooth Adapter. (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).



Firmware Updates

Users will receive free access to all firmware updates, including added features sets using the Castle Link USB Programming Kit.

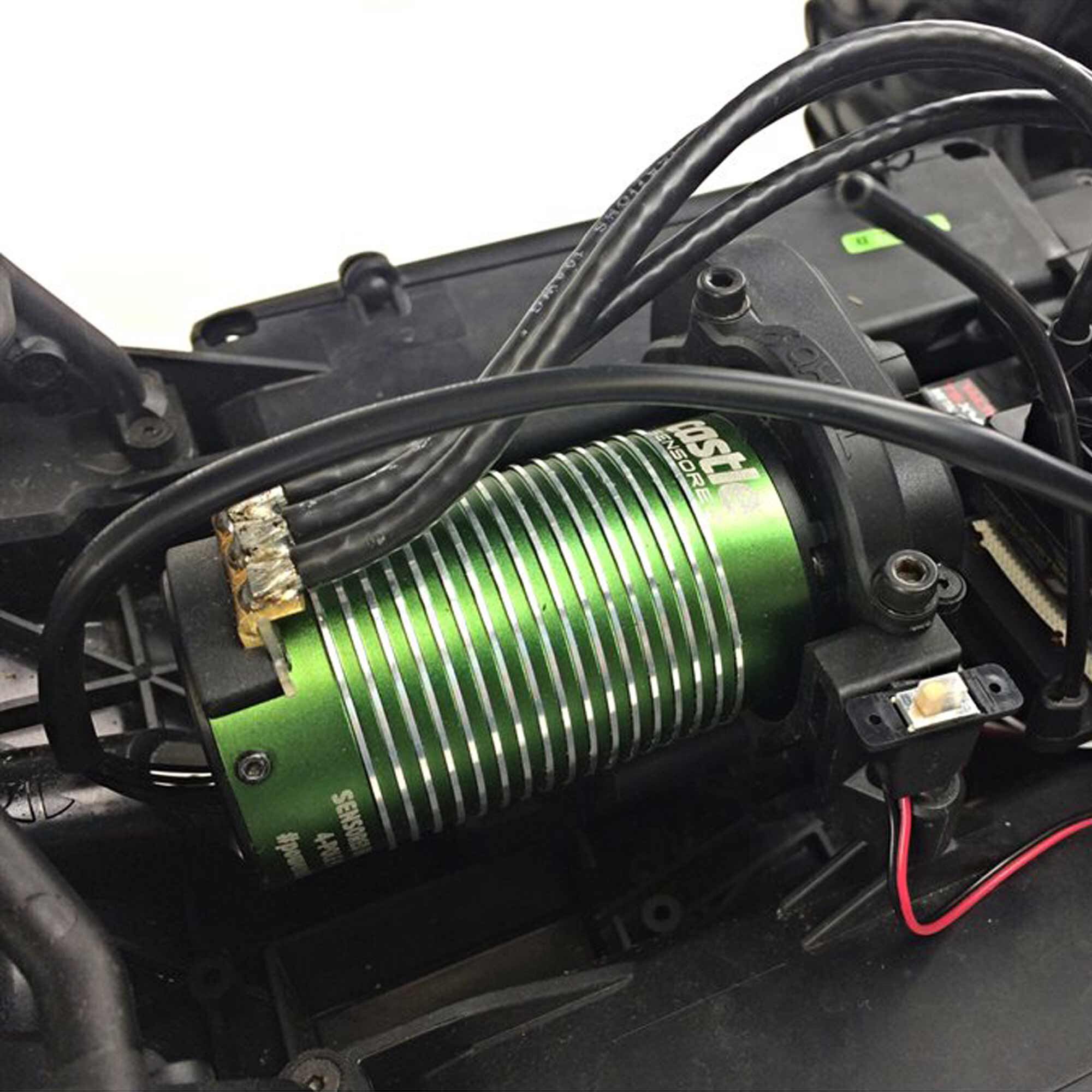

1515-2200Kv V2 Motor

The IMPROVED 4-POLE 12-SLOT sensored design boasts exceptional EFFICIENCY and produces LESS HEAT.



Power System Alerts

Mamba Monster X also features updated Audible Alerts that will notify you of possible issues with calibrations and error conditions to help diagnose problems in the field.



Telemetry Capable

Mamba Monster X is telemetry ready, which means owners of Futaba T4PX Transmitters will be able to purchase the Castle Creations Telemetry Link for S.BUS2. Real-time data such as ESC temperature, voltages, and RPM can be monitored to ensure performance advantages and spare you the ??unknown?? parameters that all R/C enthusiasts experience at some point. Telemetry data provides another level of protection and can increase performance.



Specs

Product Specs

BEC
Yes
BEC Continous Current
Adjustable
BEC Maximum Burst Current
8A
Brakes
Proportional
Connector Type
6.5mm Bullet
Input Voltage
2S
Product Height
1.44″ (37 mm)
Product Length
2.09″ (53 mm)
Product Weight
3.92 oz. (111.g)
Product Width
1.93″ (49 mm)
Reverse
Yes
RPM/Volt (Kv)
2200 kv
Shaft Diameter
0.19685″ (5 mm)
Shaft Length
0.787402″ (20 mm)
Water-Resistant
Yes
Weight 5 kg
