Overview
Overview

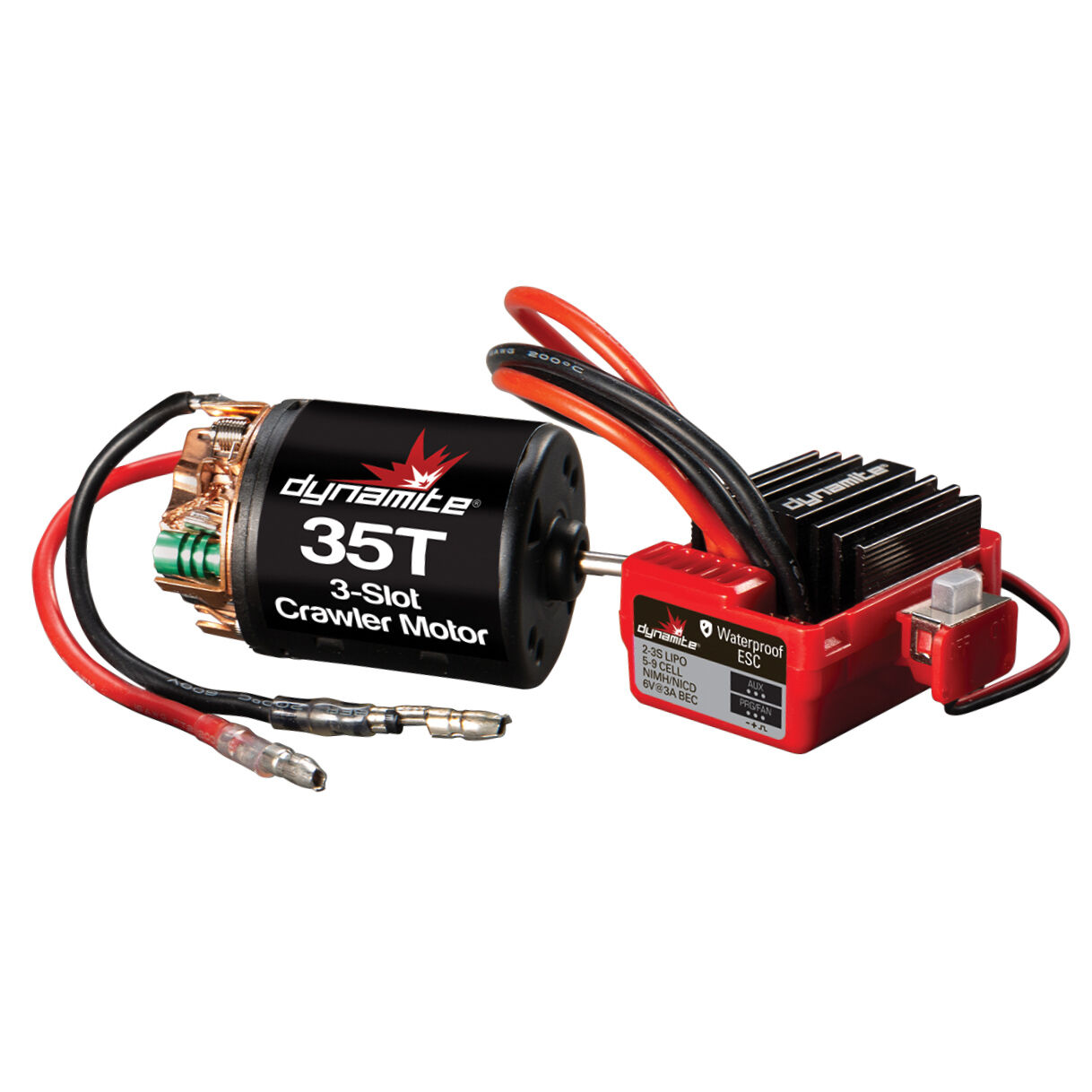

This Dynamite? brushed crawler motor/ESC combo offers price sensitive enthusiasts the perfect arrangement for their crawlers. Additionally, the system is a great completion item for both kits and rollers. The combo includes a powerful, rebuildable 540 size 35 turn motor and a waterproof, NiMH/LiPo compatible, brushed ESC offering forward/brake/reverse, forward/brake and crawler drive modes. Additionally, it features “On the Fly” adjustable drag brakes with specific 3 channel radios. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC. As with all Dynamite power systems, motors and ESC’s are available separately.
Component Specifications
Motor:
- Motor dimensions:??36mm dia x 53mm L
- Shaft dimensions:??1/8??/3.12mm x 12.5mm
- Input voltage limit:??2S-3S LiPo/6-9cell NiMH
- Bearings/Bushings:??Ball bearings
ESC:
- Input Voltage:??2-3S LiPo, 6-9 Cells NiMH/NiCd
- Size:??46.5x34x28.5mm
- Weight:??68g
- Motor Limit:??>12T 2S/ >18T 3S
- On-Resistance FET:??.002
- Continuous current:??40A
- Rated/Peak Current:??180A
- Braking Current:??90A
- BEC Voltage:??6.0V 3.0A Peak
- Connector:??IC3
- PWM Frequency:??1KHz
