Overview
Overview

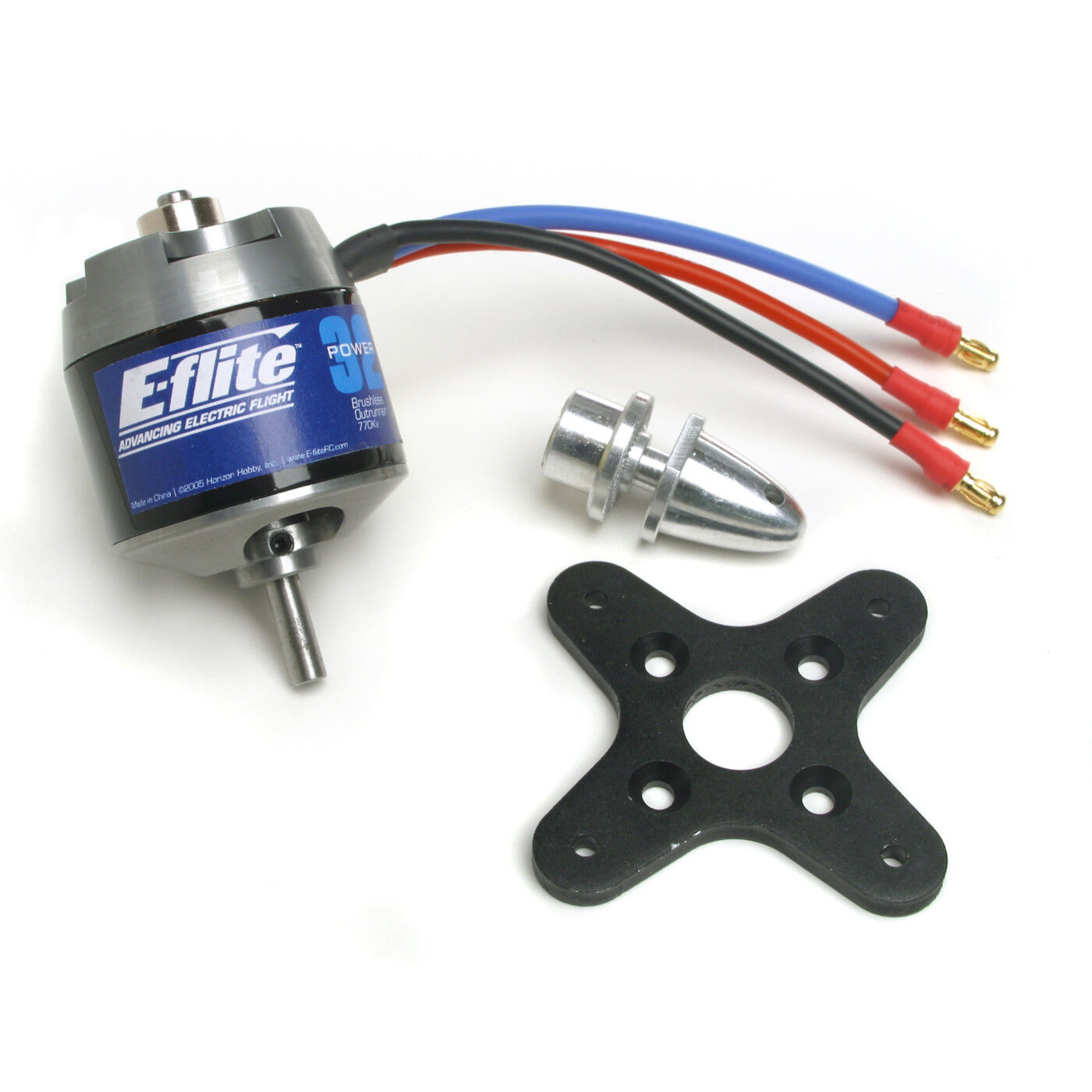

The Power 32 is designed to deliver clean and quiet power for?30- to 36-size sport and scale airplanes weighing 3.5 to 6 pounds (1.6 to 2.7 kilograms), 25- to 36-size 3D airplanes up to 4.5 pounds (2 kilograms), or models requiring up to 800 watts of power. It’s an especially?good match for the Gee Bee Tiger Moth, TopFlite DC-3, Phoenix Sonic 25 and 3D airplanes such as the?E3D.
Needed To Complete
– 60A brushless ESC
– 3?C5S Li-Po or 10- to 16-cell Ni-MH/Ni-Cd?
– 11×7 to 14×10 prop; 10x10E tested on 5S in Sundowner 36
Key Features
- Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5?C6 lb (1.6?C2.7 kg)
- Ideal for 25- to 36-size 3D airplanes up to 4.5 lb (2 kg)
- Ideal for models requiring up to 800 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors

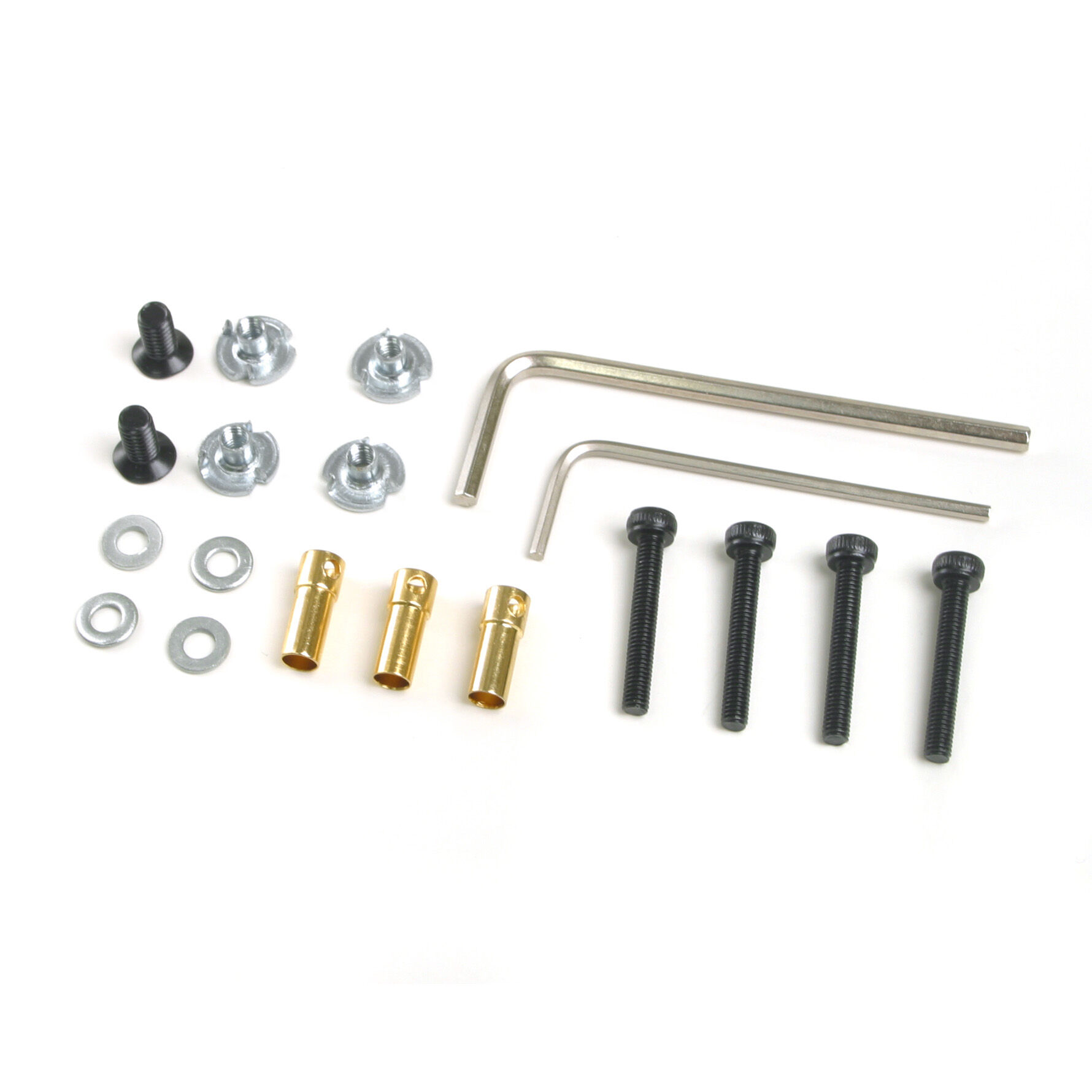

- Includes mount, prop adapter and mounting hardware
- Quite, lightweight operation
- External radial rotor design-5mm shaft can easily be reversed for alternative motor installations
- High-quality construction with ball bearings and hardened steel shaft
- Slotted 14-pole outrunner design
Specs
Product Specs
Adjustable Timing
Bushing Or Bearing
Connector Type
Idle Current (Io)
Motor Design
Motor Type
Outer Diameter
Recommended Prop Range
RPM/Volt (Kv)
Shaft Diameter
Voltage
Wire Gauge
| Weight | 5 kg |
|---|
