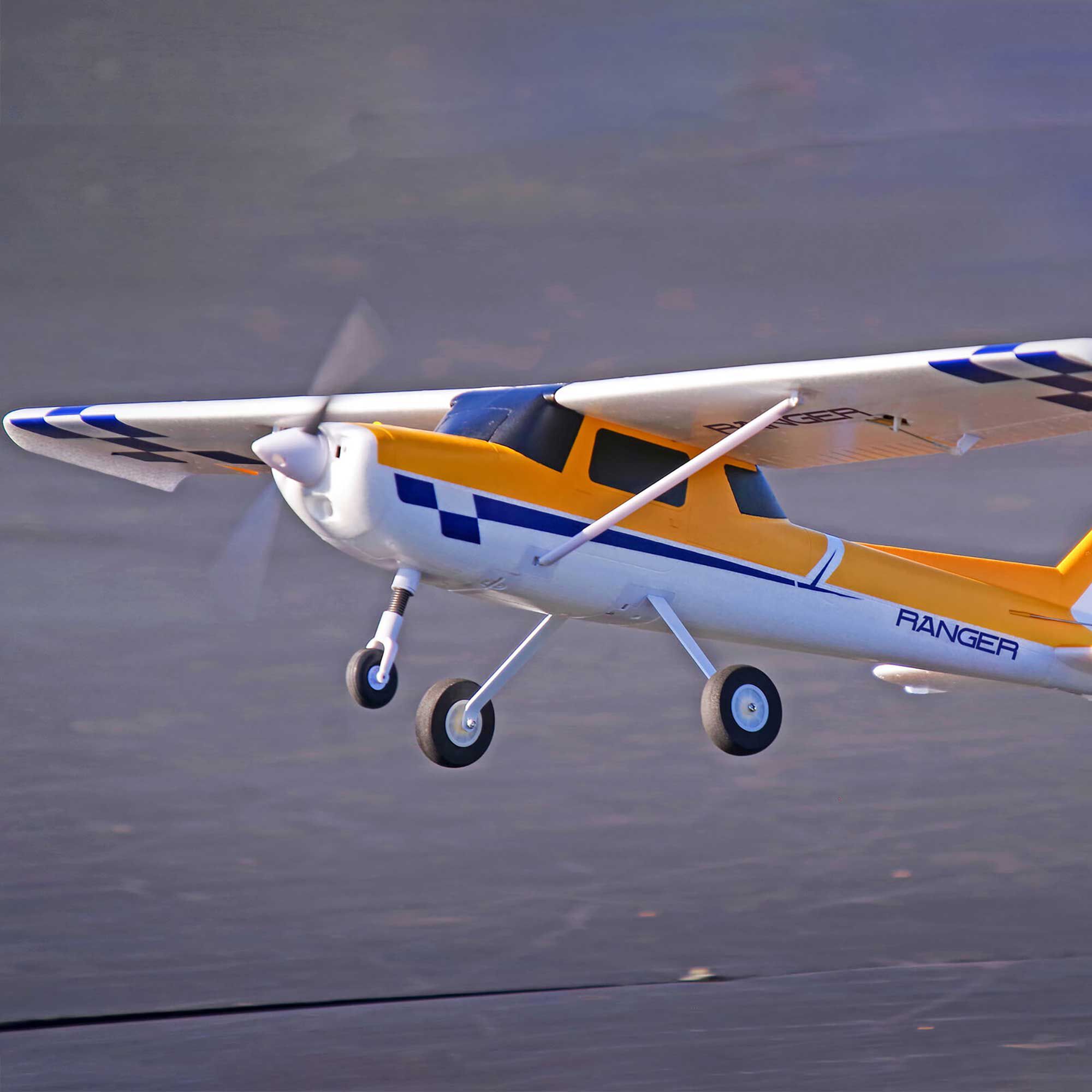

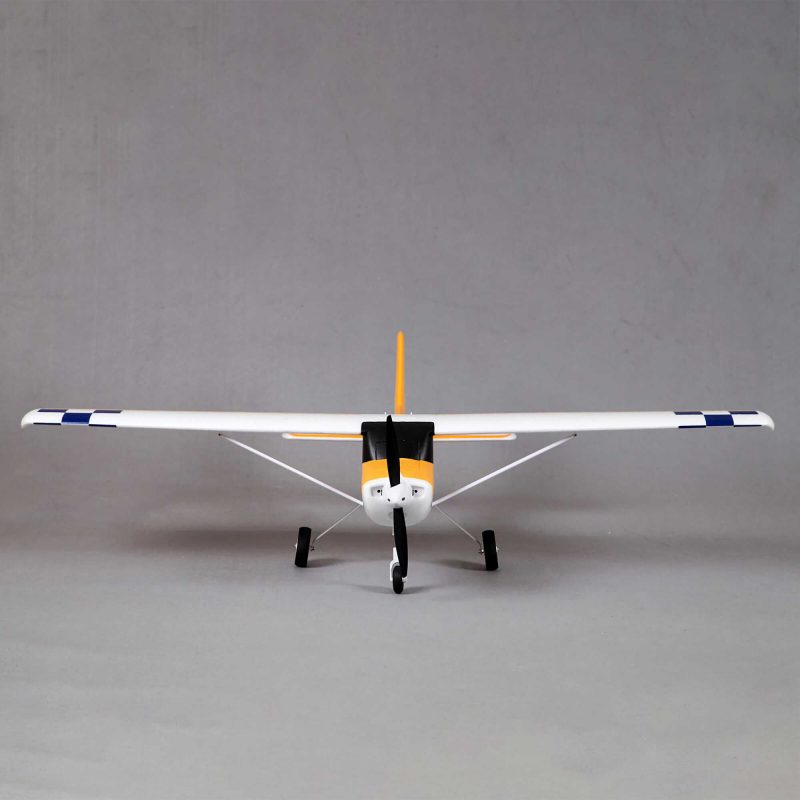

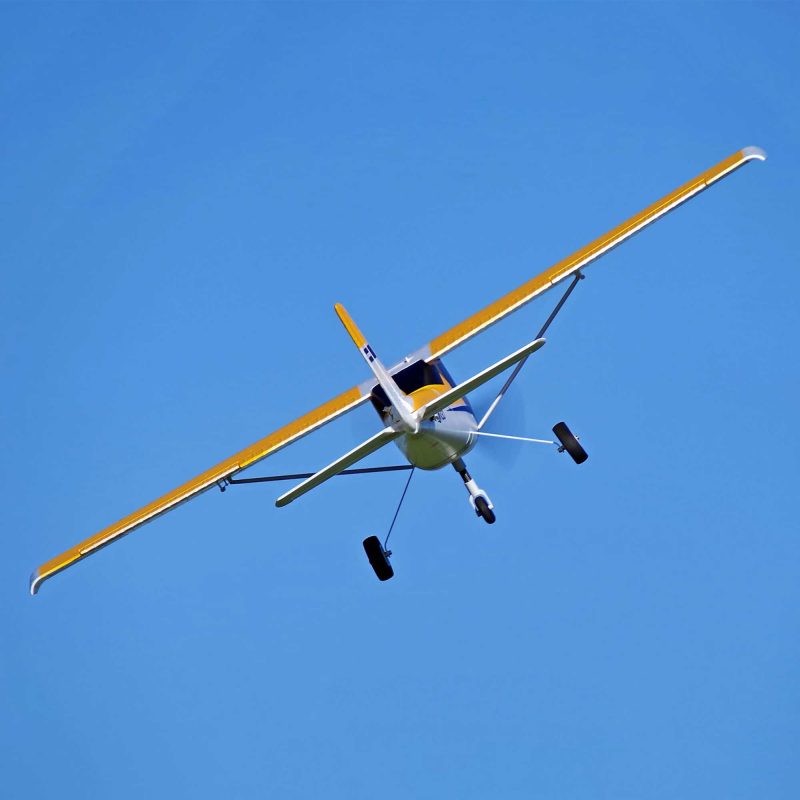

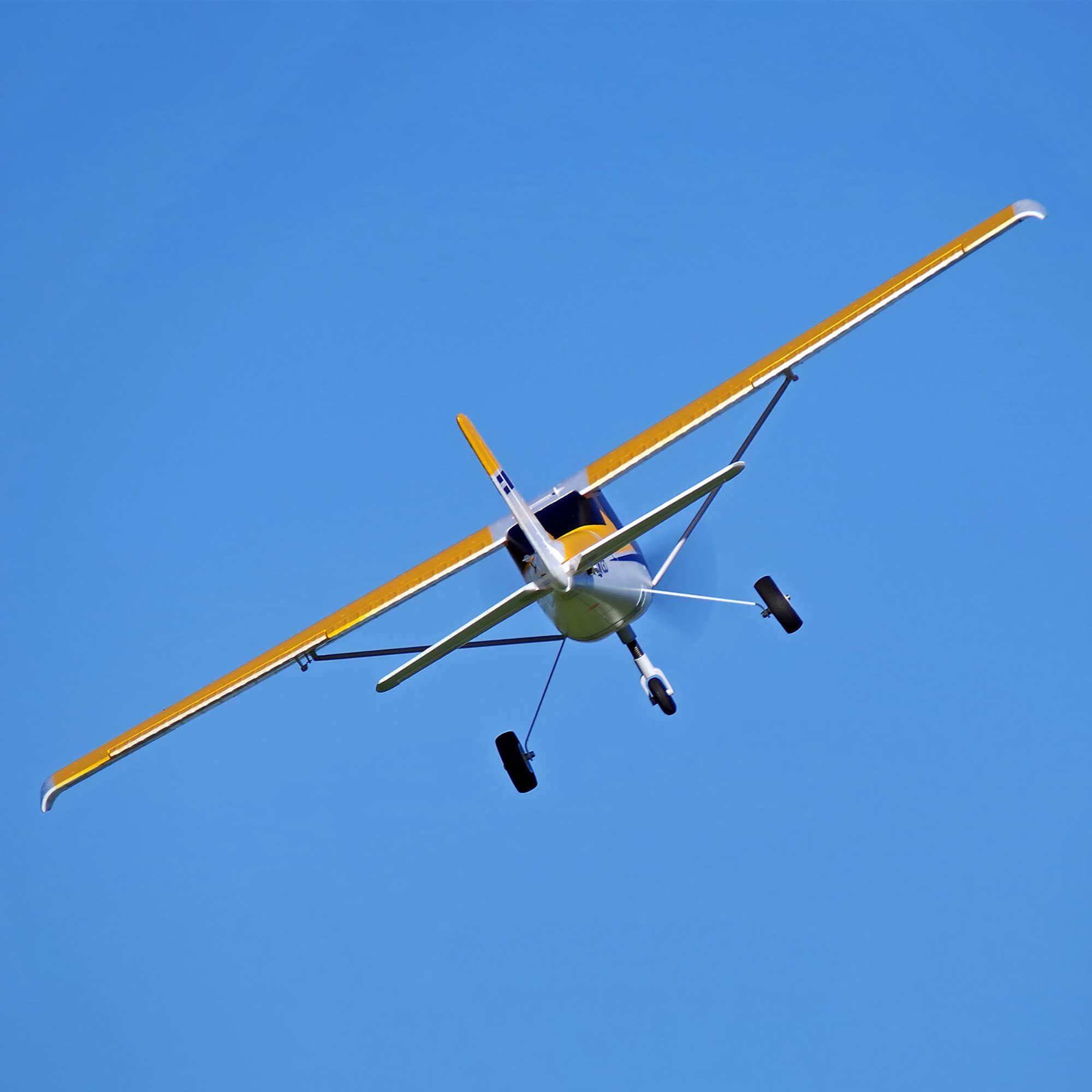

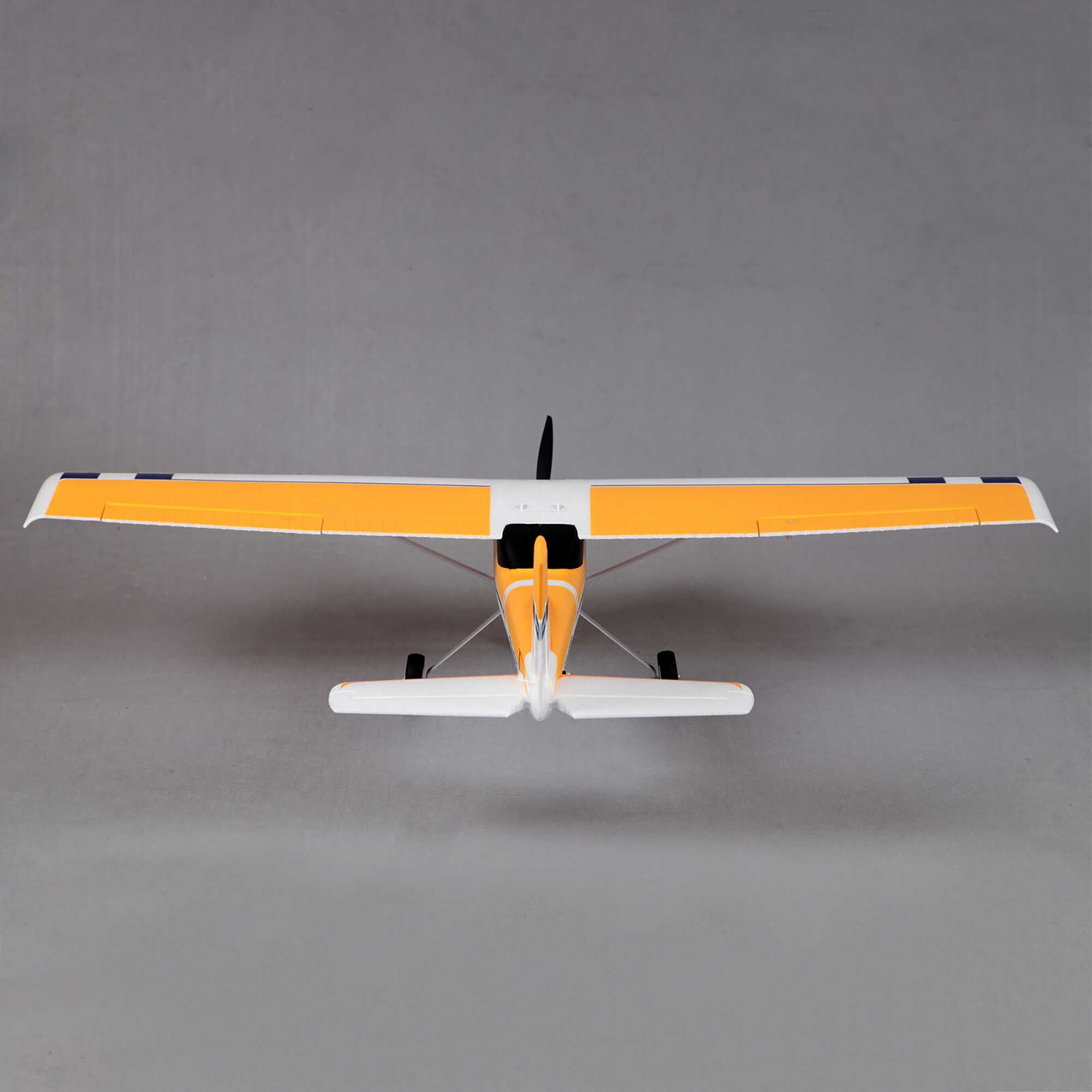

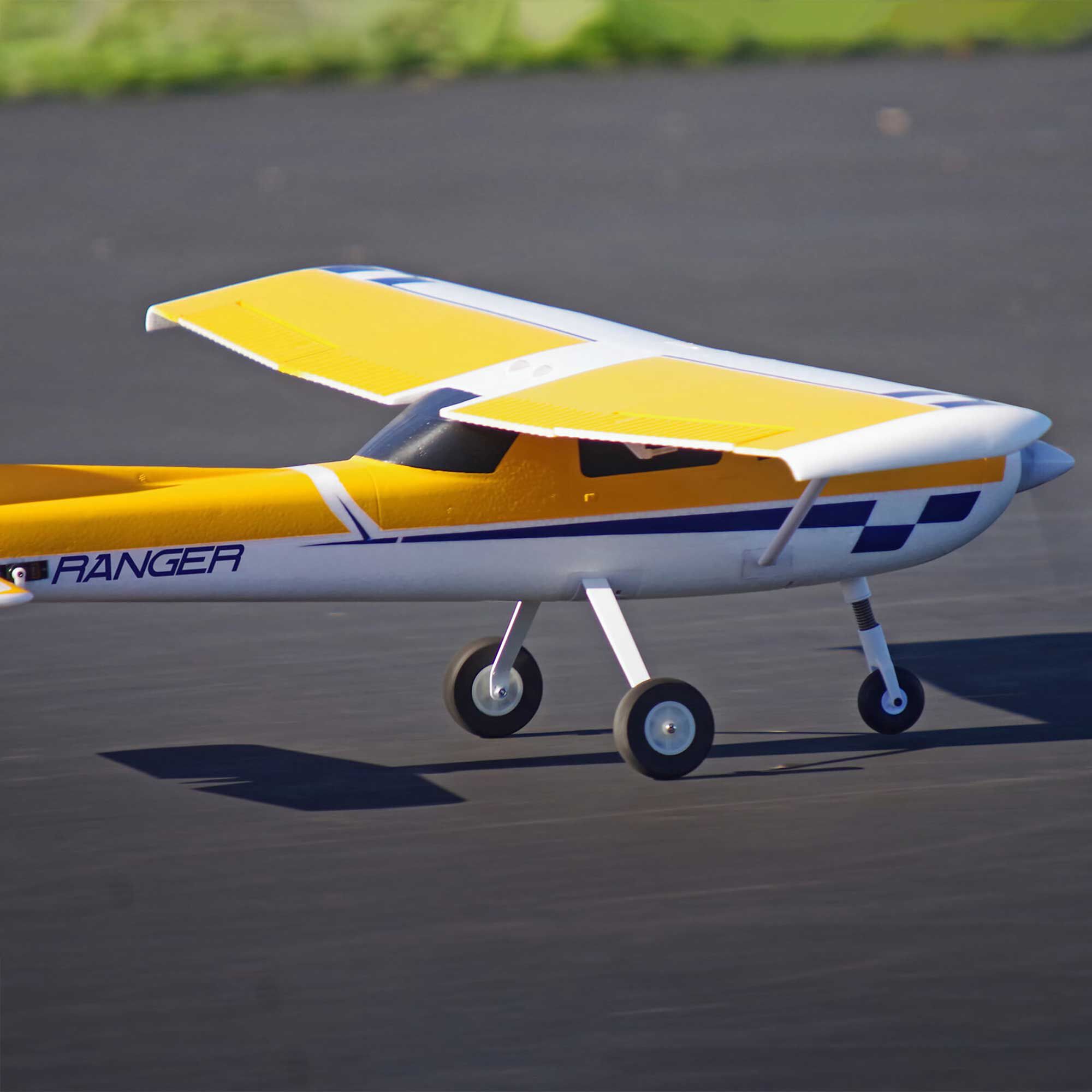

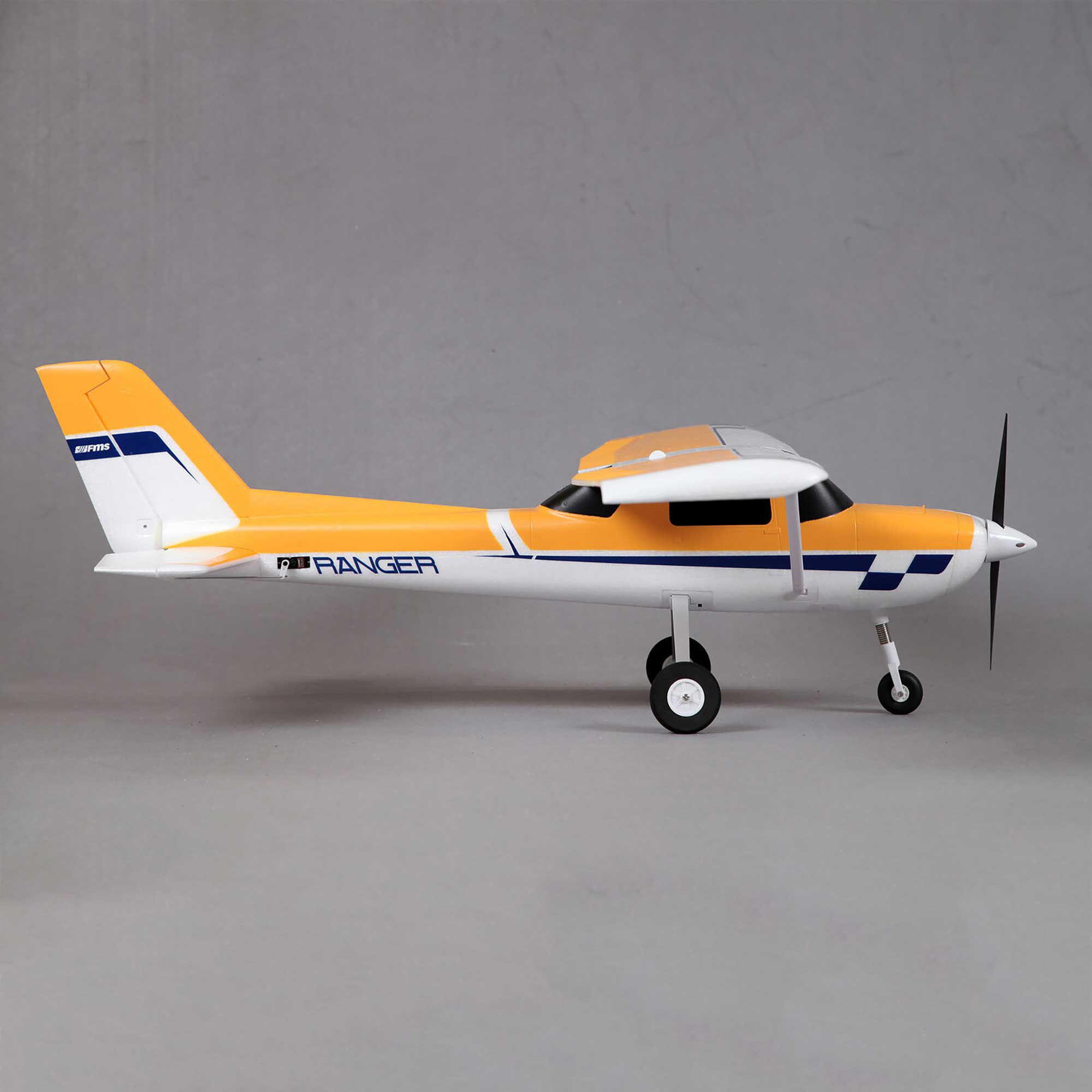

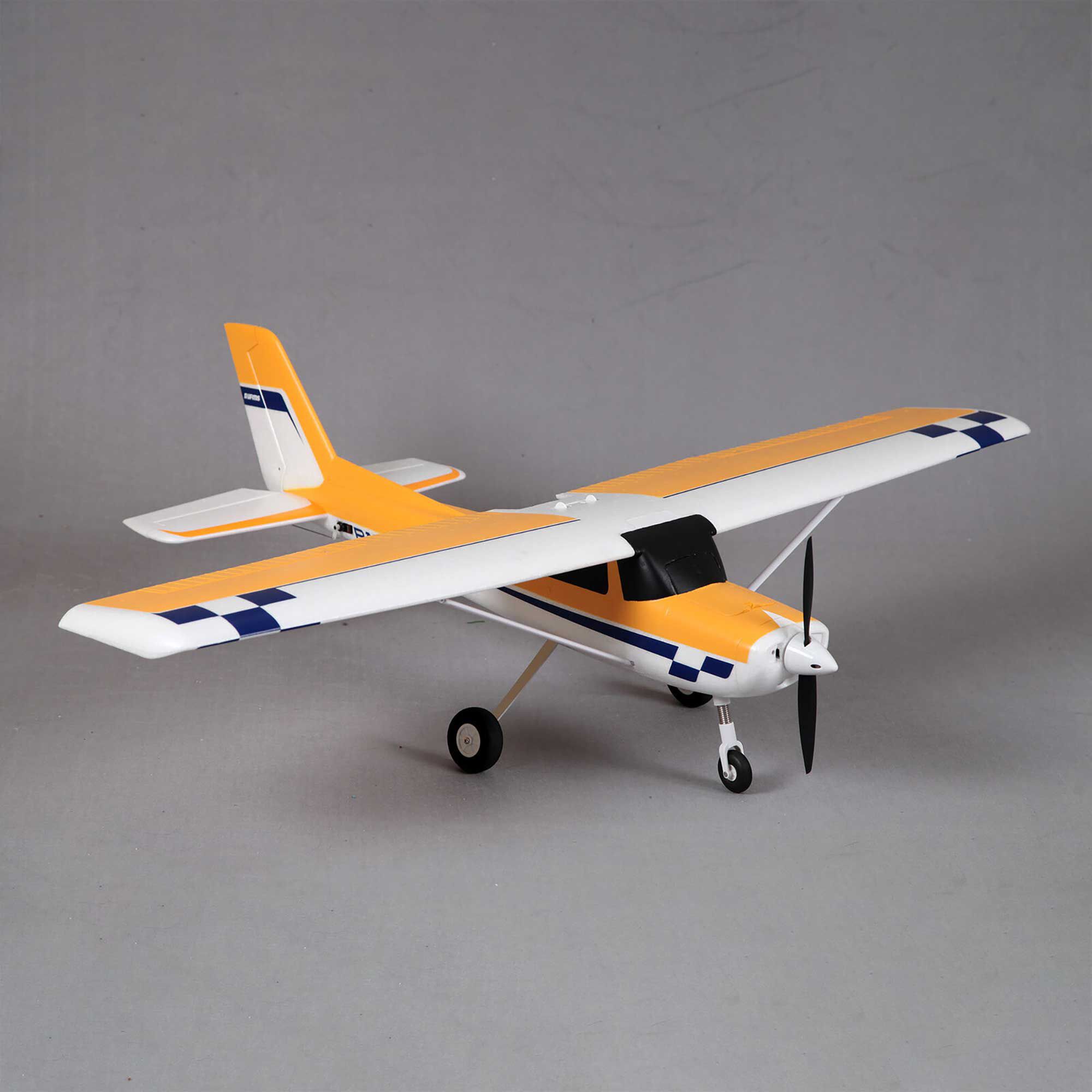

FMS Ranger 1220mm PNP Overview

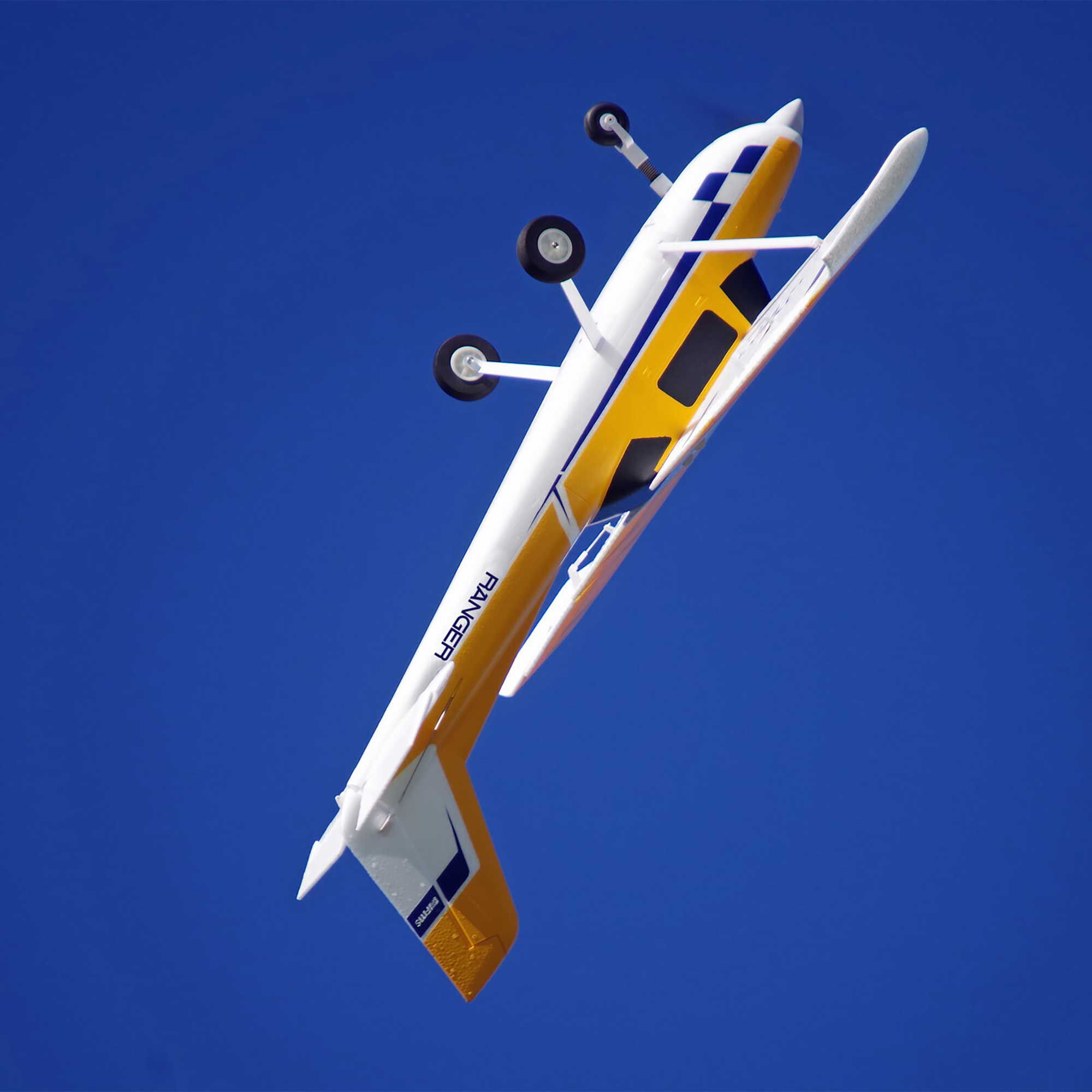

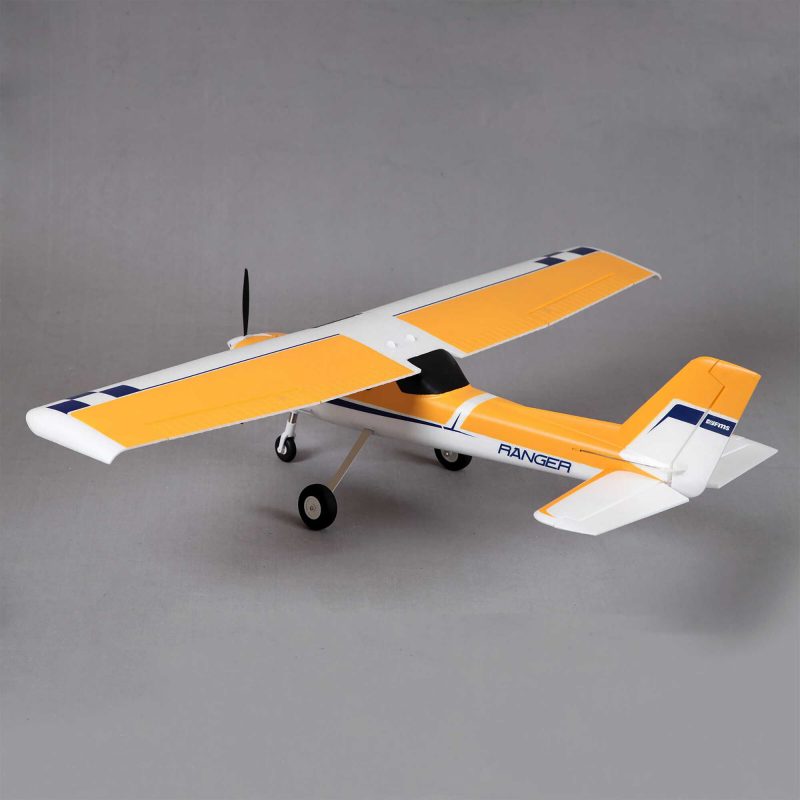

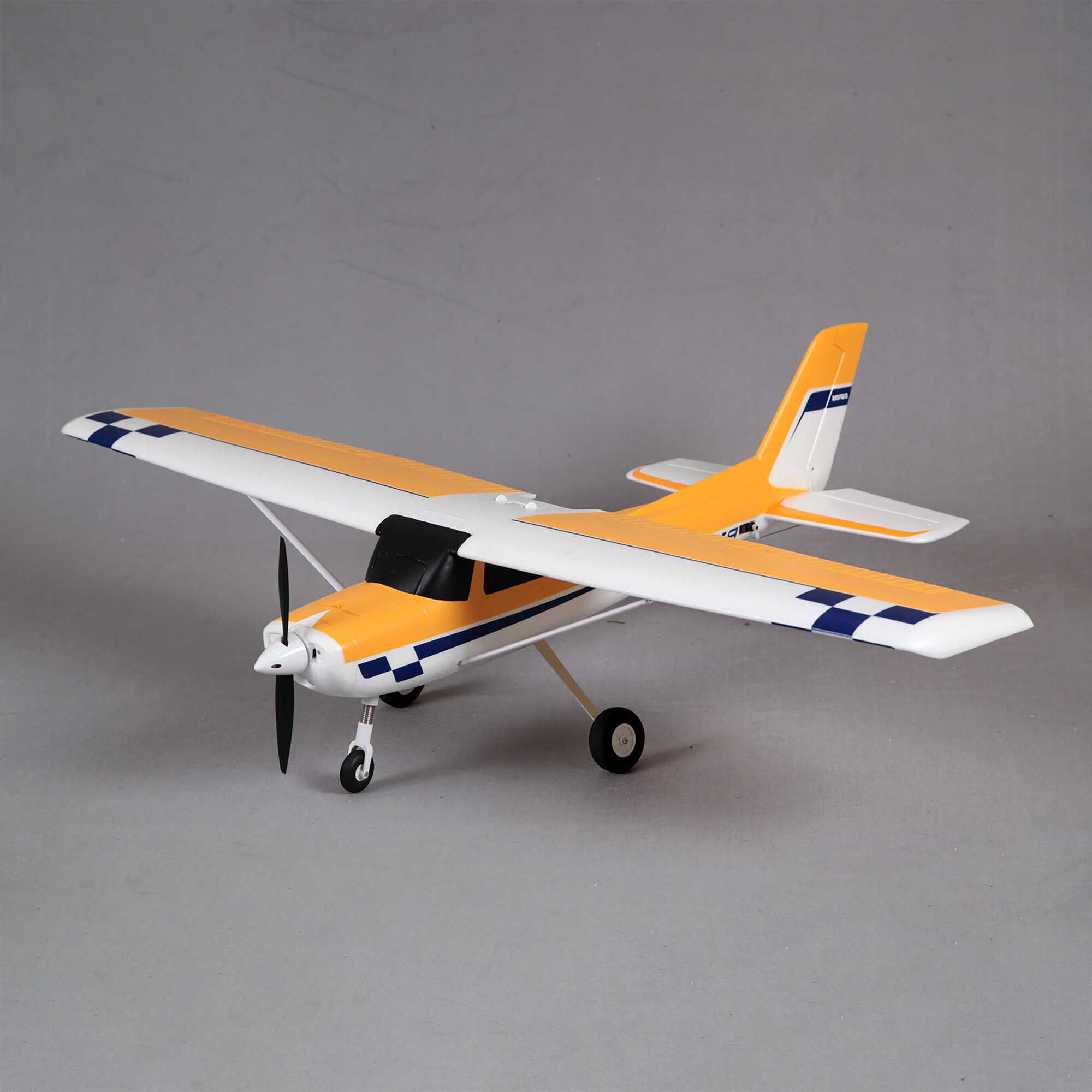

Built with ultra-light EPO foam, the large, high-winged airframe configuration gives the Ranger low wing-loading and extraordinary amounts of lift, even at slow speeds. Robust plastic struts give extra strength to the wings during aerobatic maneuvers and the patented high-strength tricycle landing gear makes ground handling a breeze.

A great aircraft is nothing without a great, dependable power system- FMS has equipped the ranger with a 3136-1200Kv outrunner motor with 20A Predator ESC, which allows the Ranger 1220mm to climb almost vertically on demand!

Designed with a yellow and white high-visibility color scheme, the Ranger can always be easily orientated even in gloomy, overcast weather.

Like many other FMS models, the Ranger is designed with ease of assembly in mind. Requiring only six screws to completely assemble, the longest wait time is the time it takes to charge the battery!

Reflex V3, an onboard flight stabilization system, is factory installed. The Reflex system features Stabilized, Optimized and Manual flight modes. Reflex V3 is a trusty co-pilot that is perfect for pilots of any skill level.

FMS Ranger 1220mm PNP Features

  • Two-piece fuselage and main wing structure reducing packaging size by thirty percent, facilitating easy transport and storage
  • Reflex V3 flight control system included and installed
  • High-spec power system: 3136/1200Kv motor, Predator 20A ESC
  • High strength, lightweight metal landing gear for all-terrain operations

  • Less than 3m short takeoff and landing capabilities
  • Patented high-strength ??crash-proof?? spring-cushioned nose landing gear
  • Screw and twist-lock assembly, completed in 3-10 minutes
  • One piece horizontal stabilizer for precise flight characteristics
  • Reflex V3 Flight Controller

Specs

Product Specs

Approximate Assembly Time
Less than one hour
Approximate Flight Time
10 minutes
Battery
Sold Separately
CG (Center of Gravity)
50-60mm from leading edge
Charger
Sold Separately
Connector Type
XT-60
Material
EPO
Minimum Required Radio
4+ Channel radio system
Minimum Speed Control
20A
Motor Size
3136-1200Kv
Motor Type
Brushless
Product Length
37.3″ (947 mm)
Product Weight
1100g
Propeller Size
10 x 5 2-blade
Radio
Sold Separately
Recommended Motor Battery
3S 1300mAh LiPo
Servos
Included
Speed Control
Included
Trim Scheme Colors
Yellow, White
Wing Area
25.4dm2 (393.7in2)
Wingspan
48″ (1219 mm)
