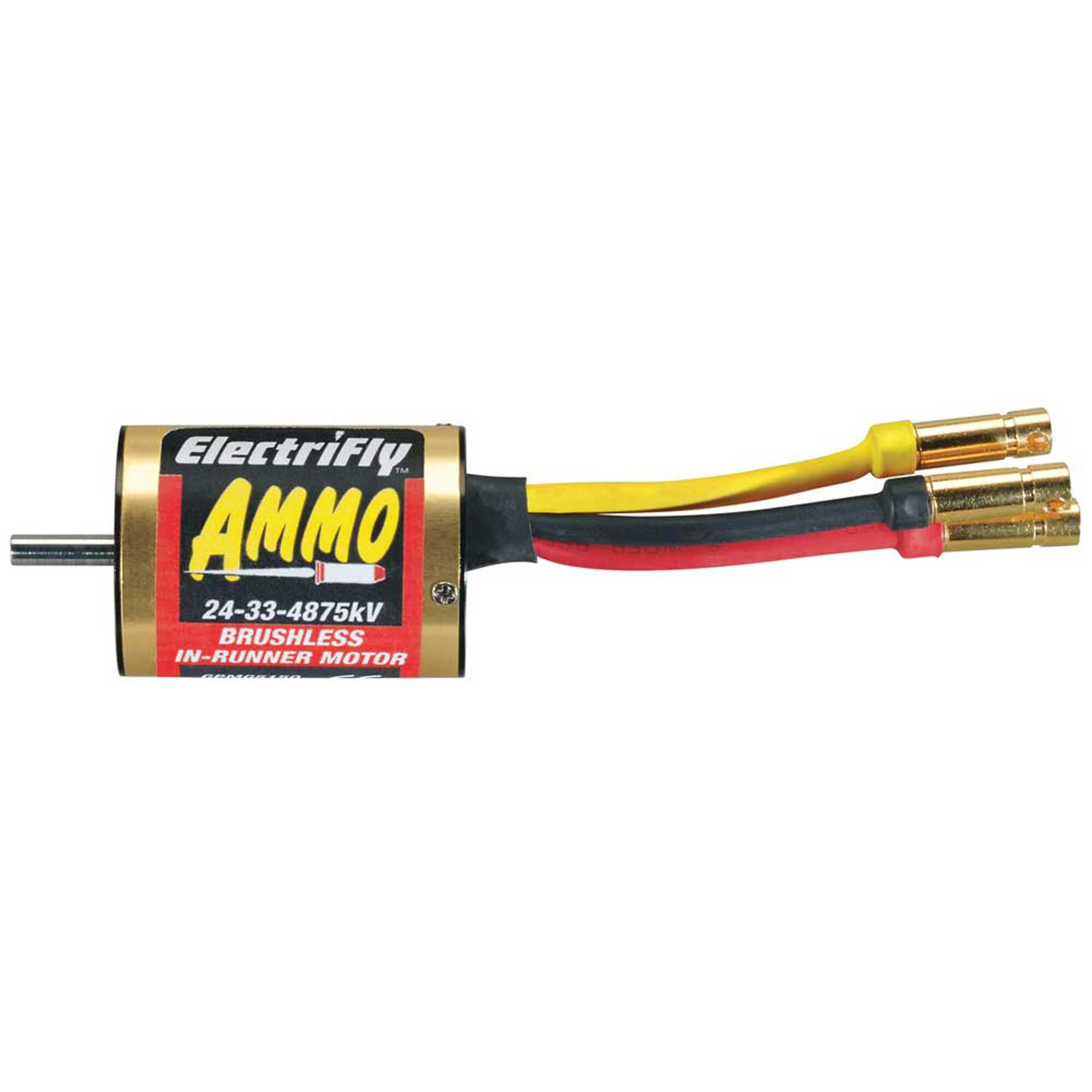

  • Brushless, slotless Ammo In-Runner Motors offer an incredible power-to-weight advantage and almost twice the efficiency of Brushed motors
  • Ideal for direct or gear drive use
  • Up to 89% efficient and virtually maintenance-free; no brushes to wear out
  • Powered by "rare earth" Neodymium magnets for high torque and unmatched heat resistance
  • Pre-installed gold plated connectors for plug and play operation when used with compatible ElectriFly Silver Series Brushless speed controls
  • Double sealed bearings
  • Two year warranty

Specs

Product Specs

Adjustable Timing
No
Application
Airplane
Connector Type
3.5mm Bullet
Input Voltage
7.4-11.1V
Motor Design
Inrunner
Motor Type
Brushless
Number of Poles
2
Outer Diameter
0.945″ (24 mm)
Product Length
1.3″ (33 mm)
Product Weight
2.4oz (67g)
Recommended Prop Range
8x4E-10x7E
RPM/Volt (Kv)
4875 rpm/V
Shaft Diameter
0.118″ (3 mm)
Shaft Length
0.472″ (12 mm)
Weight 5 kg
