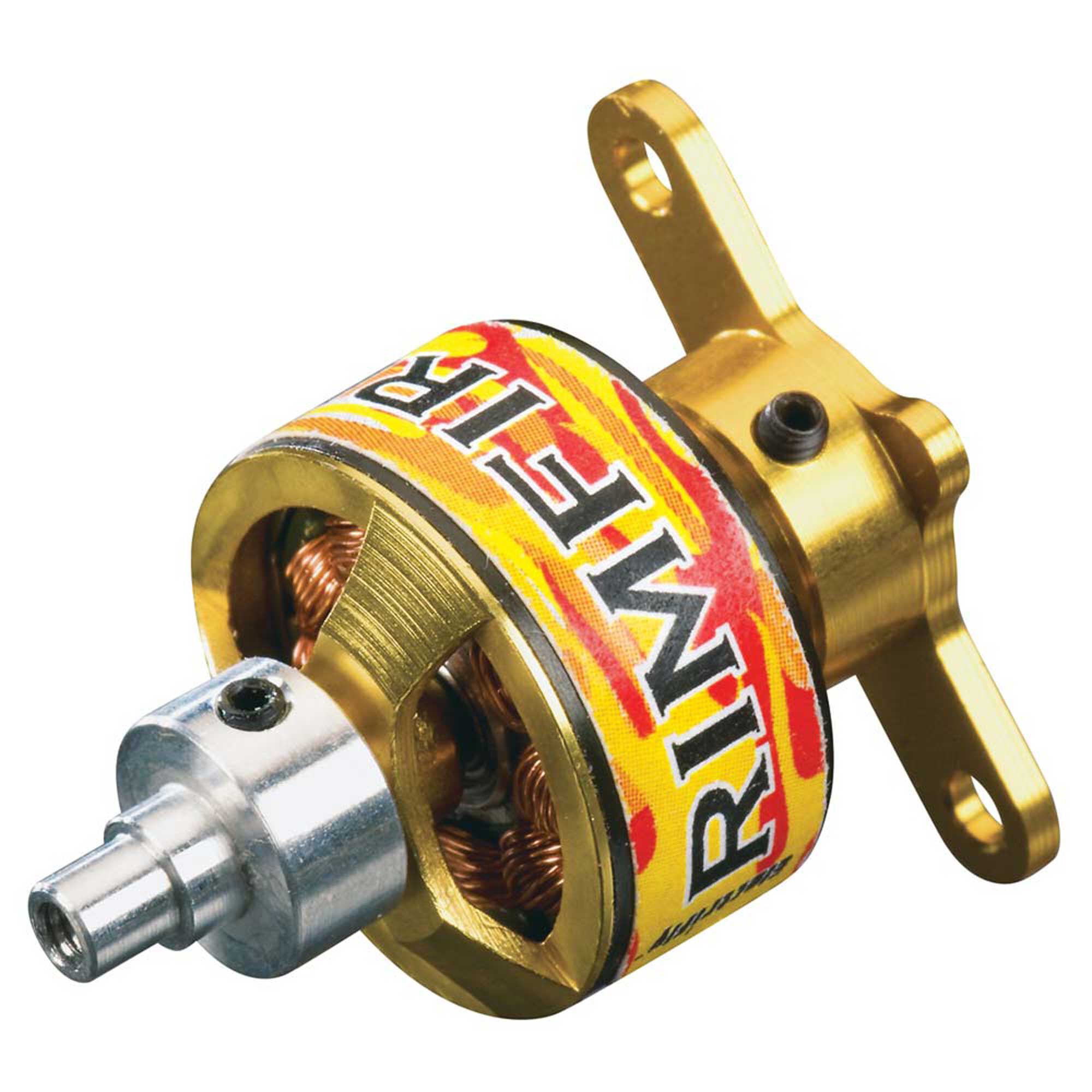

  • Ideal for use with 6A Brushless ESC’s, 7.4v LiPo packs and 7×3.5 GWS electric props
  • Lightened aluminum motor can with high-torque, rare-earth Neodymium magnets
  • Double-shielded ball bearings
  • Maintenance free-no commutators or brushes to change

Specs

Product Specs

Adjustable Timing
No
Application
Airplane
Battery Input Lead
1.57″ (40mm)
Bushing Or Bearing
Bearing
Connector Type
Open Ends
Idle Current (Io)
0.25A
Input Voltage
7.4V
Maximum Burst Current
6.3A
Maximum Continuous Current
4.9A
Motor Design
Outrunner
Motor Type
Brushless
Number of Poles
14
Outer Diameter
0.71 in (18mm)
Product Length
0.74″ (19 mm)
Product Weight
0.38oz (10.7g) motor only, 0.44oz (12.4g) motor, mount & prop adapter
Recommended Speed Control
6A
RPM/Volt (Kv)
2400/7.4V
Shaft Diameter
0.079″ (2.0mm)
Shaft Length
0.20″ (5mm)
Weight 5 kg
