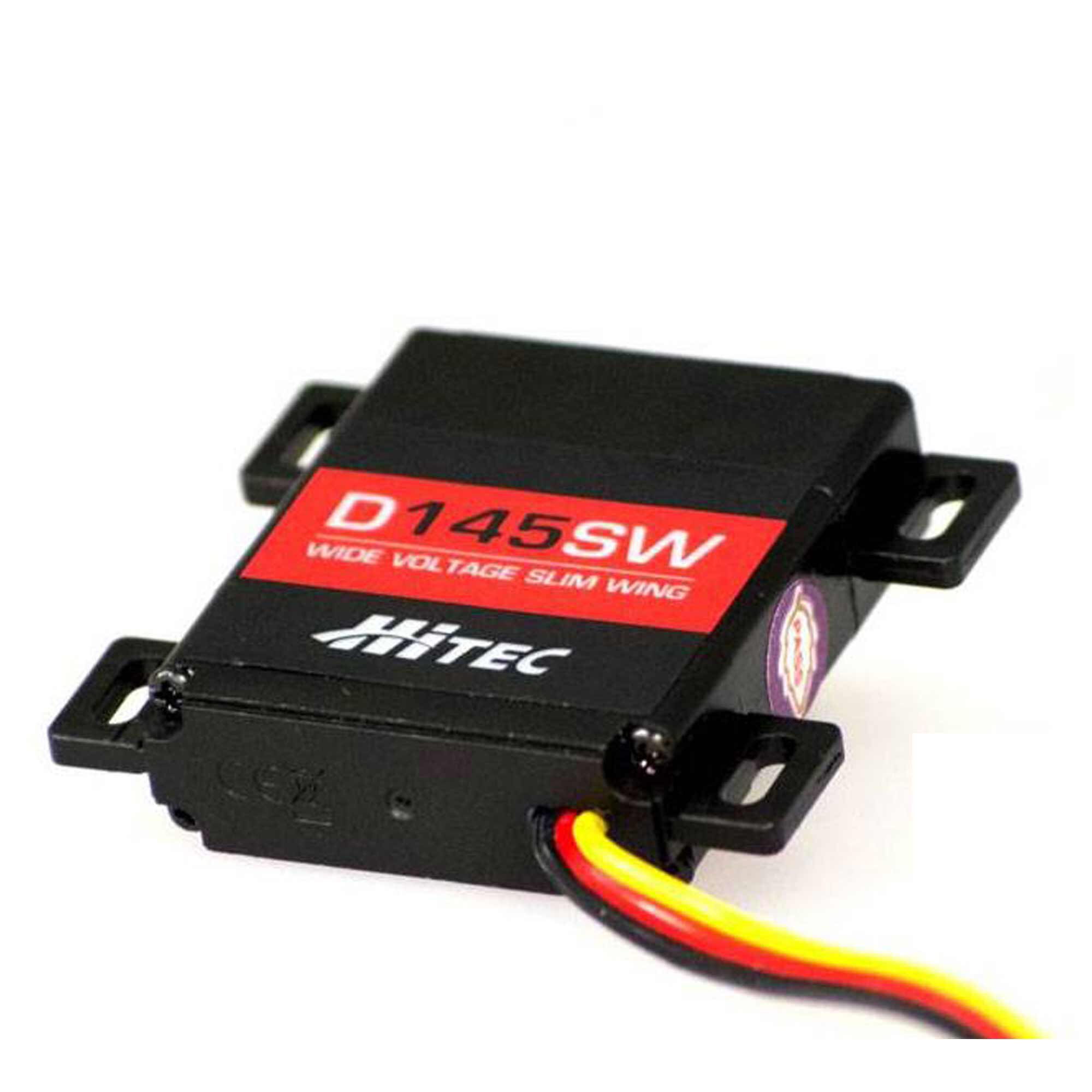

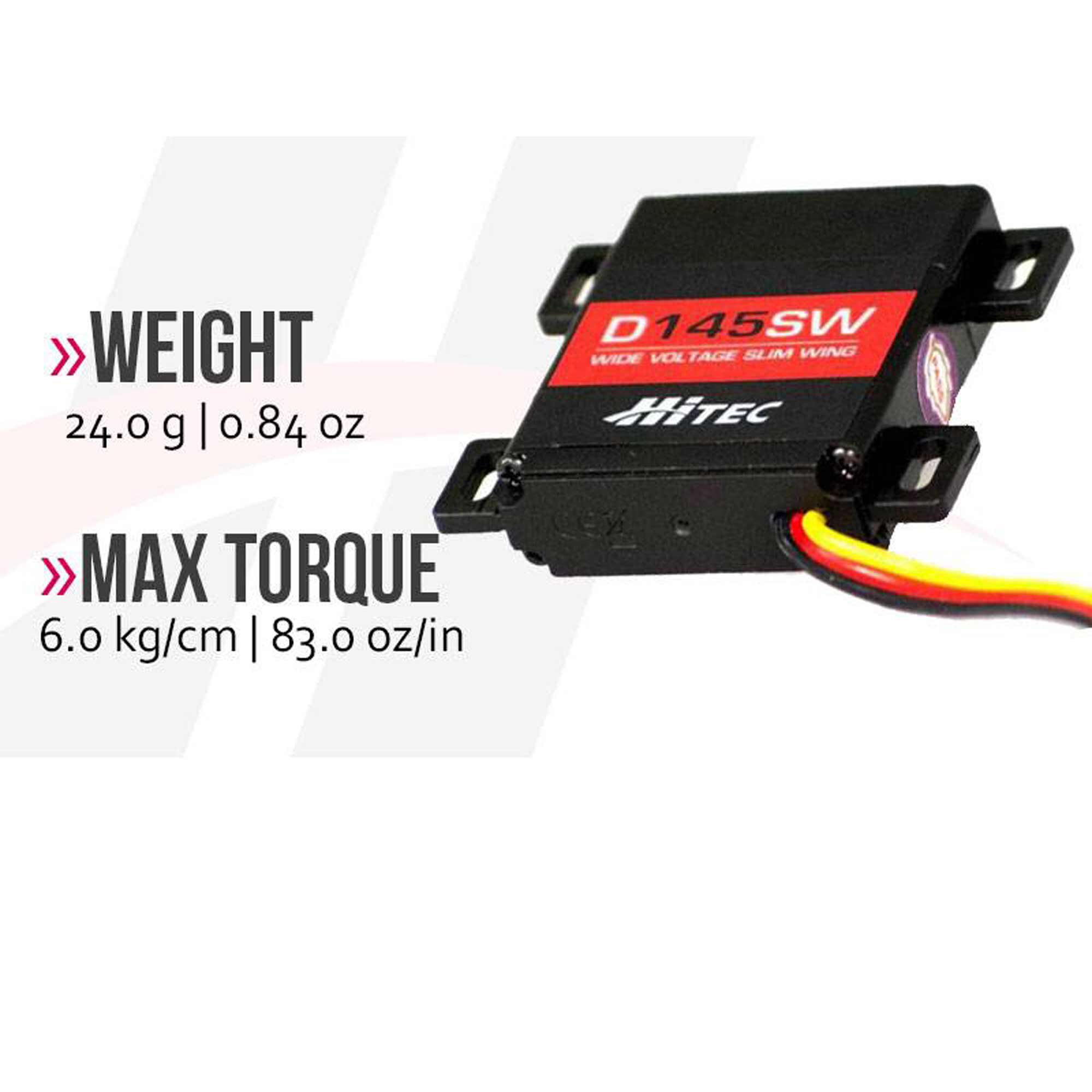

Hitec RCD Inc. D145SW Thin Digital Voltage Steel Gear Slim Wing Servo

$13.20

In stock

- +
SKU: hh-14526 Category: Tags: ,
  • Speed: @4.8V .21sec/60′ / @6.0V .14sec/60′
  • Torque: @4.8V 54oz/in / @6.0V 83oz/in

Specs

Product Specs

Application
Sailplanes
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
30 mA
Current Draw Stall
2,500mA
Deadband
1??s
Gear Type
Metal
Input Voltage
4.8V ~ 7.4V
Maximum Servo Speed
0.21 sec/60 deg @ 4.8V, 0.14 sec/ 60 deg @ 7.4V
Maximum Servo Torque
54oz/in @ 4.8V, 83oz/in @ 7.4V
Motor Type
Brushed
Product Height
1.45″ (37 mm)
Product Length
1.18″ (30 mm)
Product Weight
0.84oz (24g)
Product Width
0.39″ (10 mm)
Programmable
Yes
Servo Operating Voltage
4.8 – 7.4V (HV)
Servo Size Category
Thin
Servo Type
Digital
Water-Resistant
No
Wire Gauge
25 AWG
Weight 5 kg
