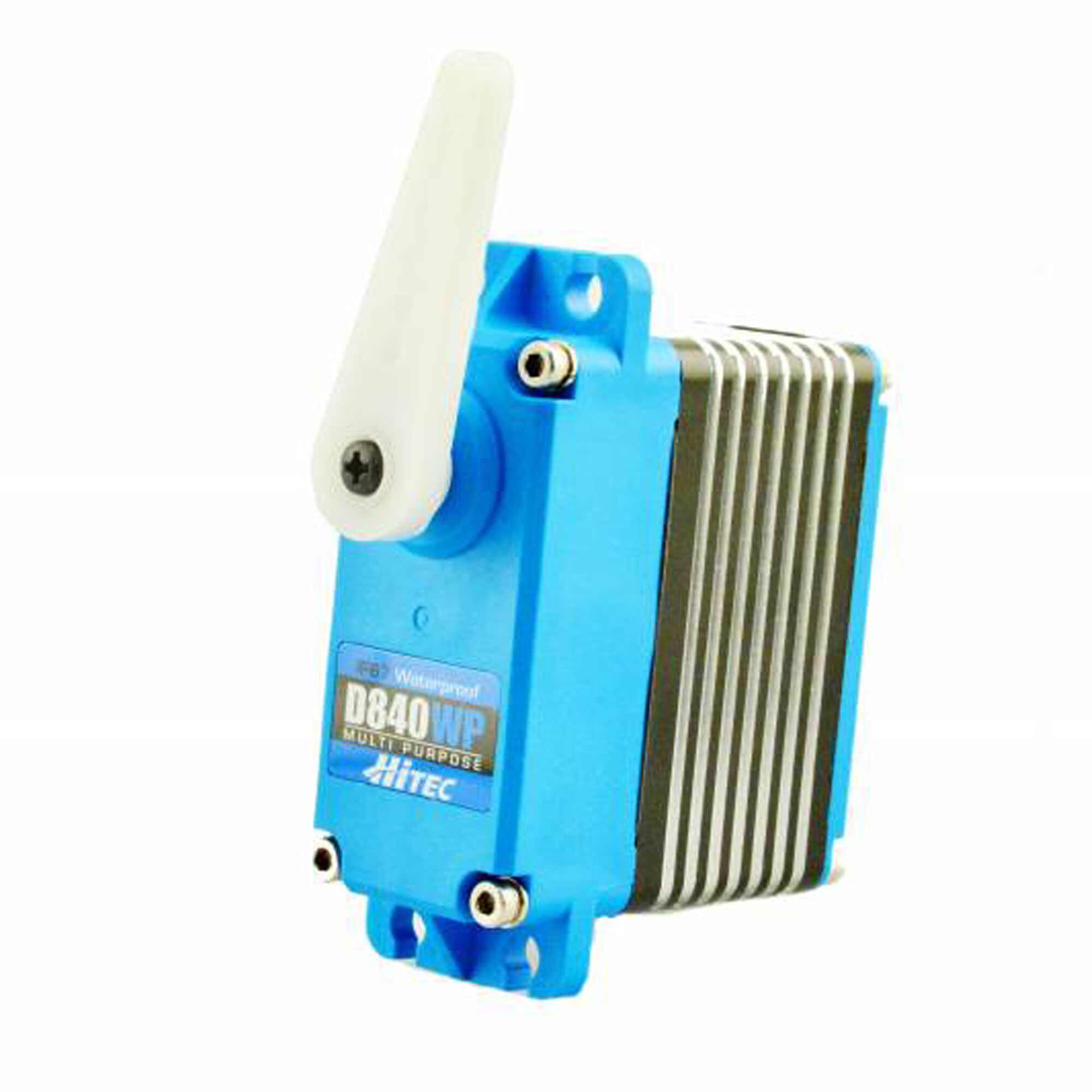

Hitec RCD Inc. D840WP Giant Scale Digital Waterproof Metal Gear Servo

$23.00

In stock

- +
SKU: hh-14778 Category: Tags: , ,
  • Speed: @4.8V .17sec/60′ / @6.0V .14sec/60′
  • Torque: @4.8V 265oz/in / @6.0V 335oz/in

Specs

Product Specs

Application
Giant Scale Cars
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
30 mA
Current Draw Stall
9,000 mA
Deadband
2??s
Gear Type
Metal
Input Voltage
4.8V ~ 6.0V ~ 7.4V
Maximum Servo Speed
0.17 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V, 0.11 sec/60 deg @ 7.4V
Maximum Servo Torque
265oz/in @ 4.8V, 335oz/in @ 6.0V, 419oz/in @ 7.4V
Motor Type
Brushed
Product Height
2.44″ (62 mm)
Product Length
2.59″ (66 mm)

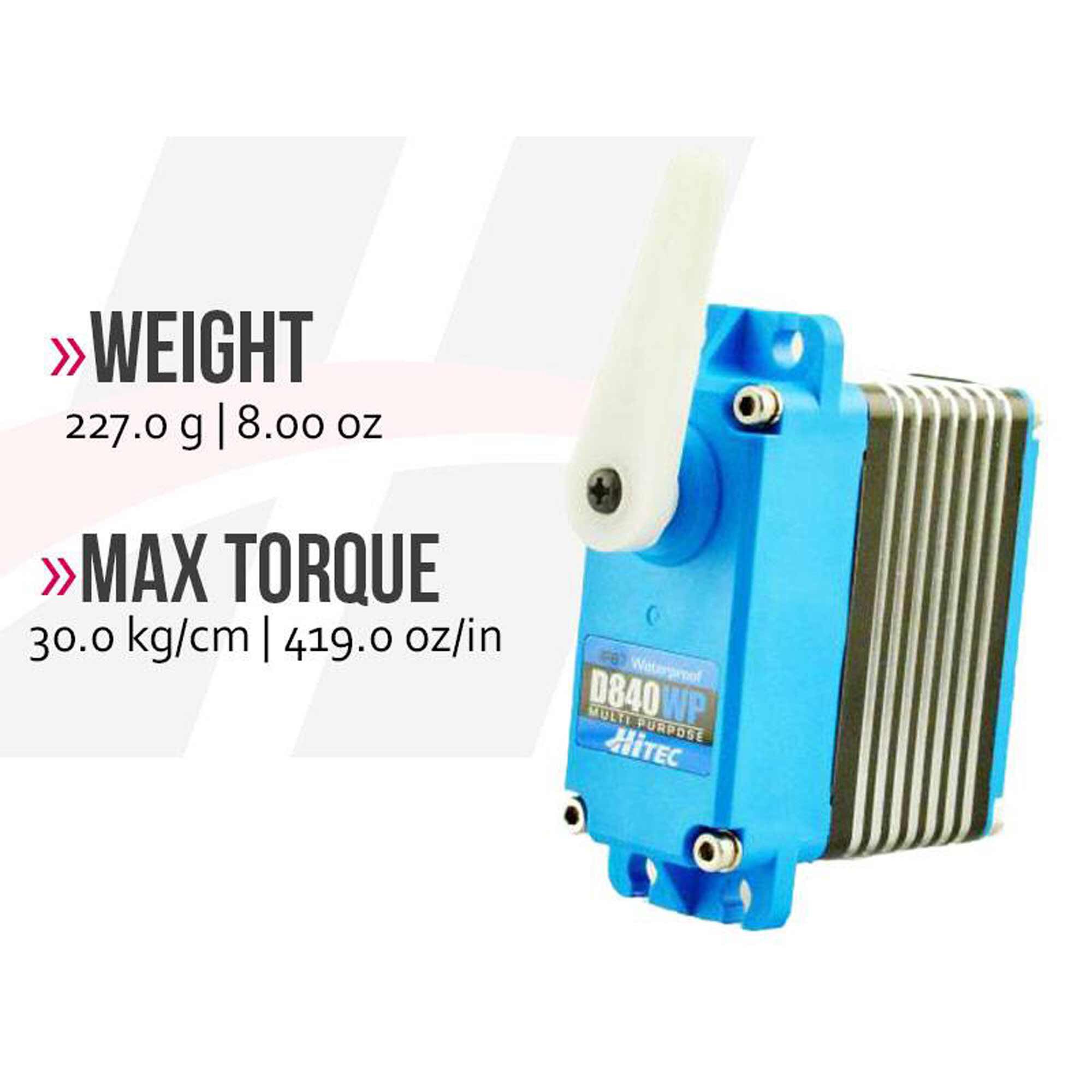

Product Weight
8.0oz (227g)
Product Width
1.26″ (32 mm)
Programmable
Yes
Servo Operating Voltage
4.8 – 8.4V (HV)
Servo Size Category
Giant Scale
Servo Type
Digital
Spline Count
15 – Tooth
Water-Resistant
Yes
Wire Gauge
25 AWG
Weight 5 kg
