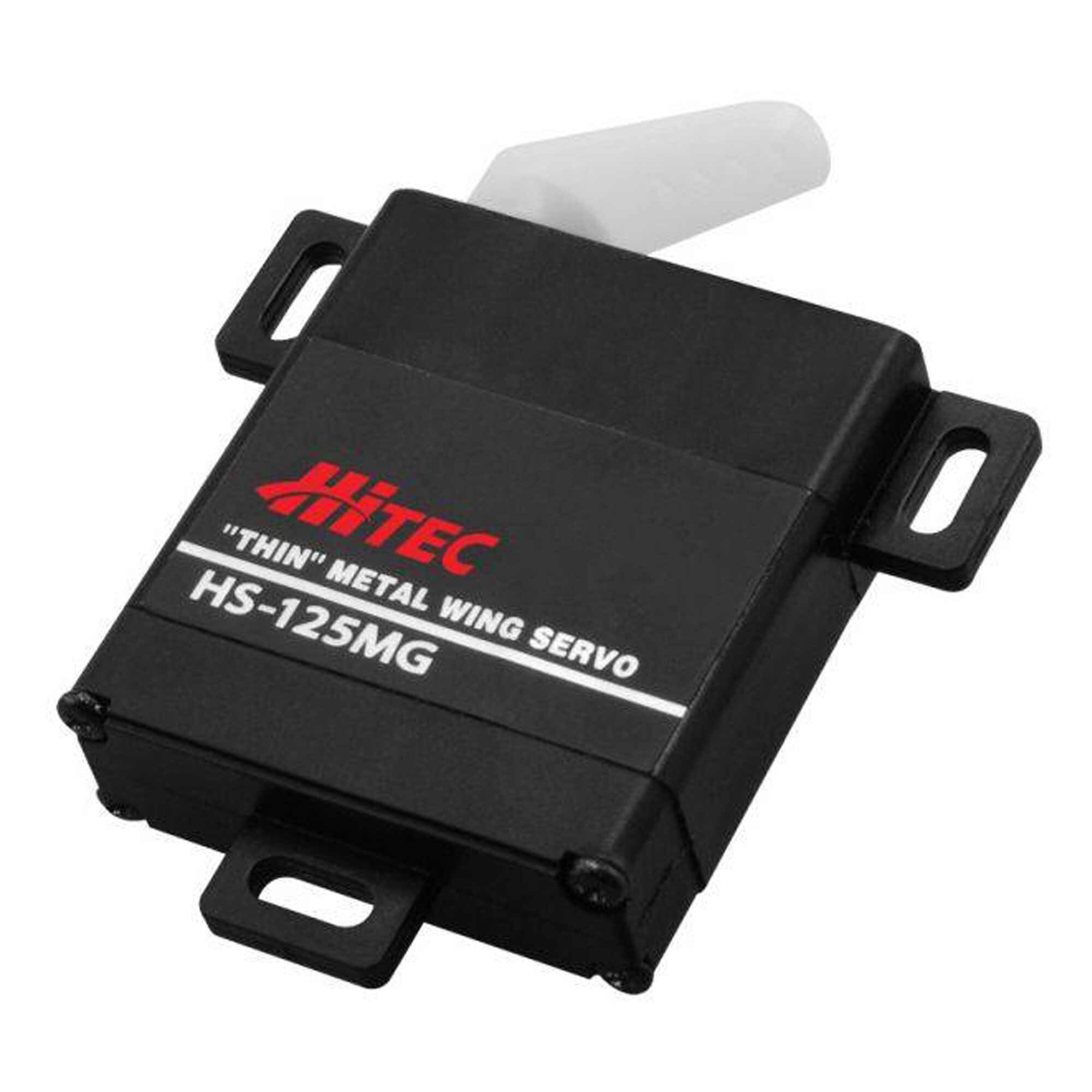

Hitec RCD Inc. HS-125MG Thin Standard Analog Metal Gear Wing Servo

$8.00

In stock

- +
SKU: hh-14496 Category: Tags: ,
  • Super Thin Wing Servo
  • Strong Metal Gears
  • Dual Ball Bearings
  • Perfectly Designed to Fit in Slim Aircraft and Glider Wings

Specs

Product Specs

Application
Sailplanes
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
8 mA
Current Draw Stall
1,200 mA
Deadband
1??s
Gear Type
Metal
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
0.17 sec/60 deg @ 4.8V, 0.13 sec/60 deg @ 6.0V
Maximum Servo Torque
42oz/in @ 4.8V, 49oz/in @ 6.0V
Motor Type
Brushed
Number of Poles
3

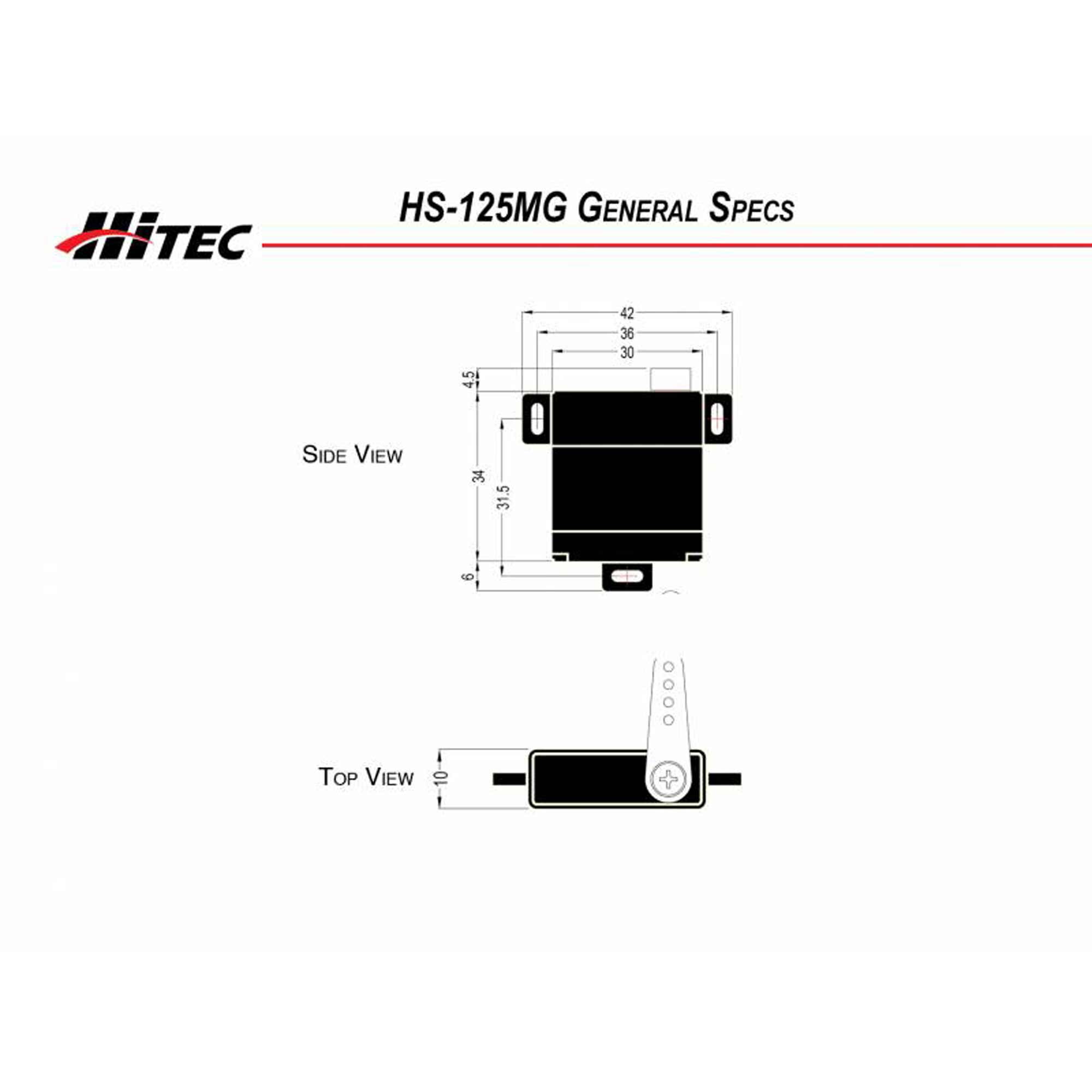

Product Height
1.33″ (34 mm)
Product Length
1.18″ (30 mm)

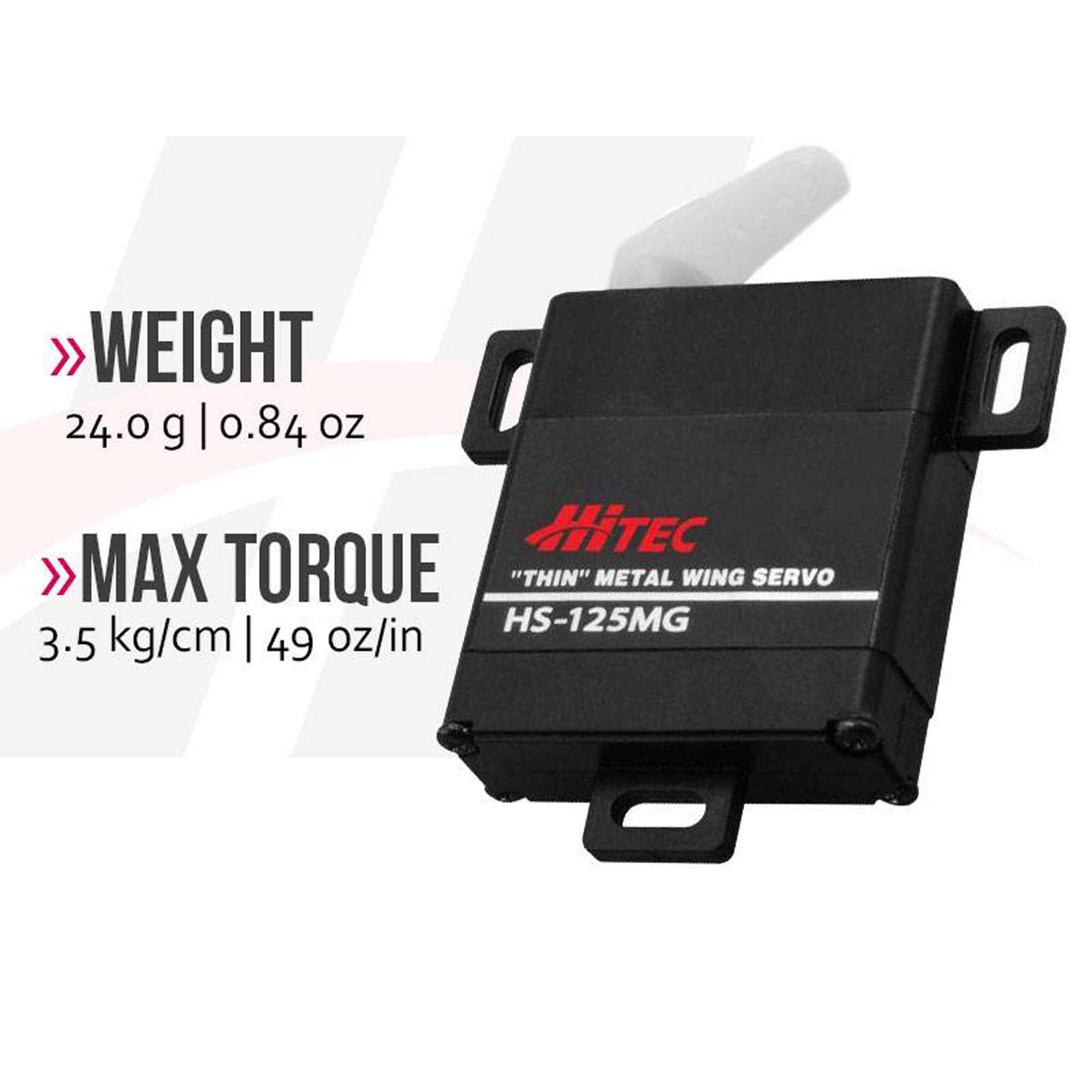

Product Weight
0.84oz (24.0g)
Product Width
0.39″ (10 mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Thin
Servo Type
Analog
Water-Resistant
No
Wire Gauge
25 AWG
Weight 5 kg
