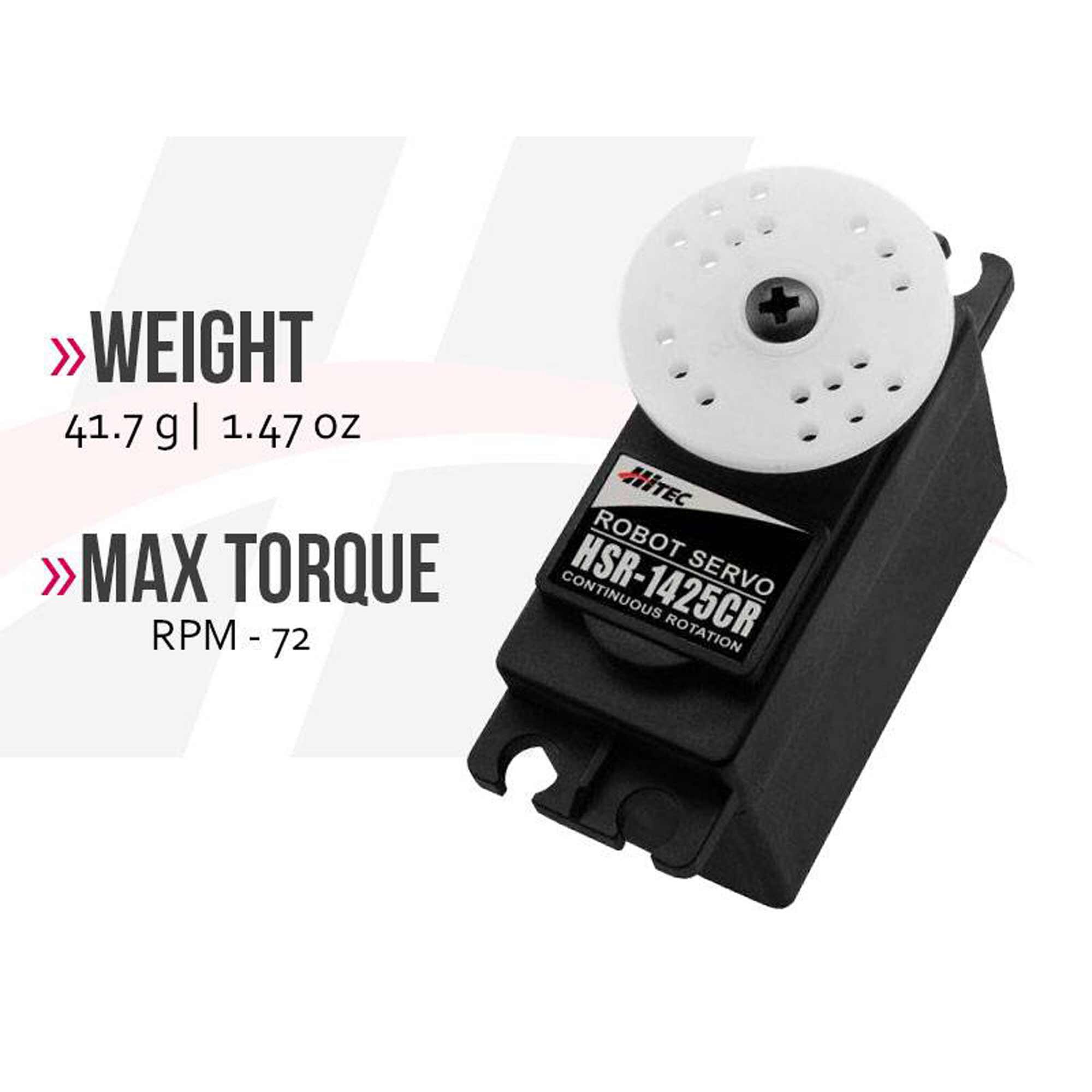

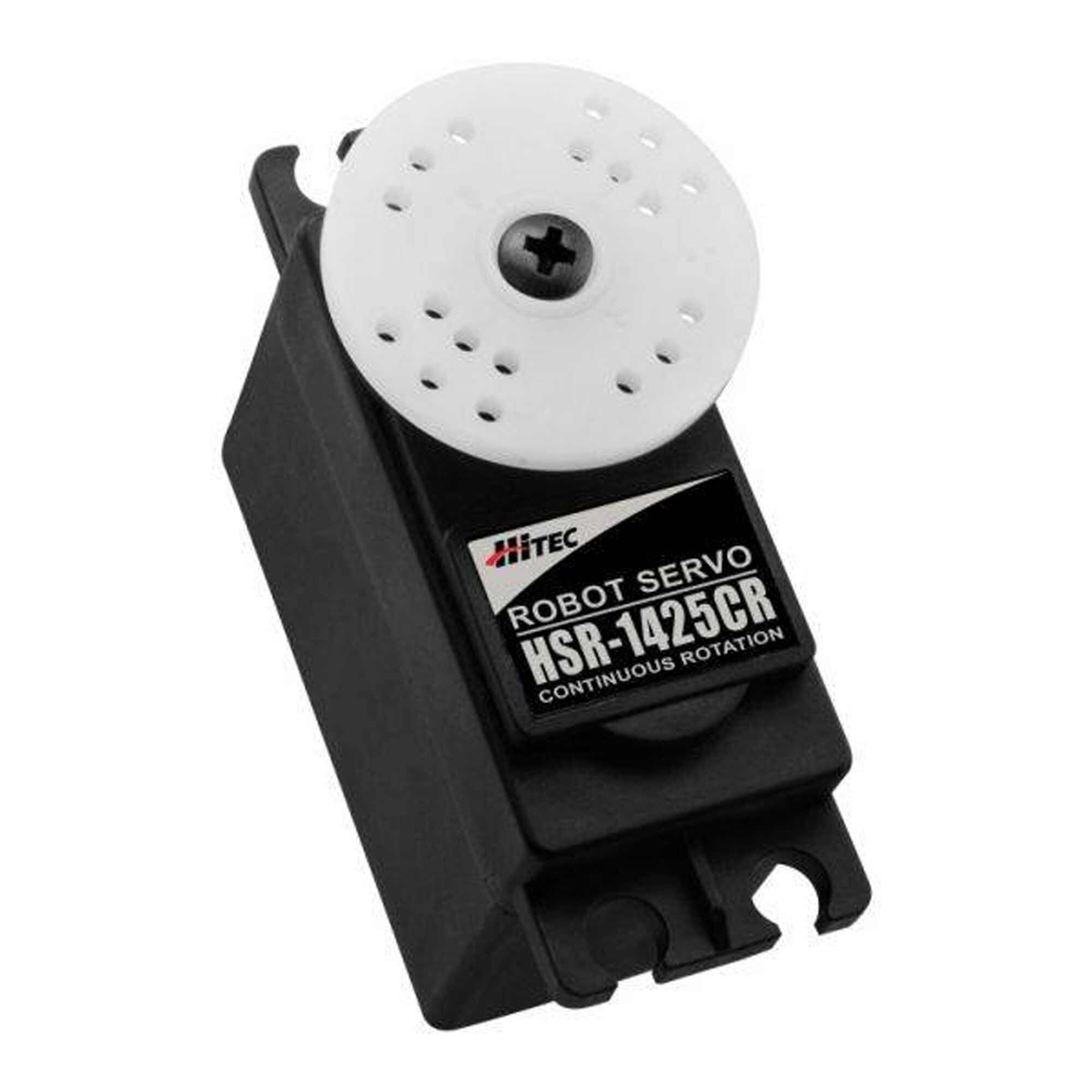

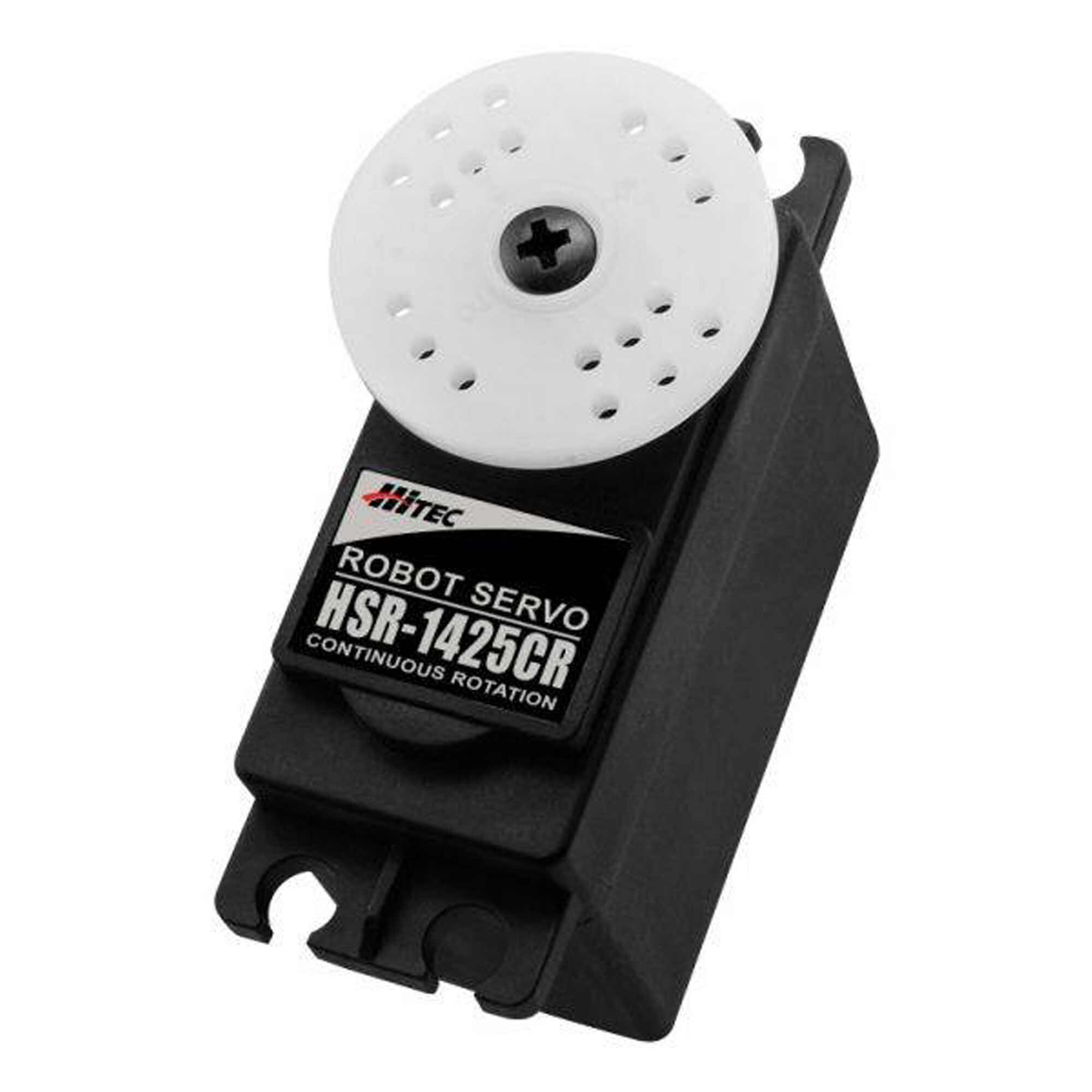

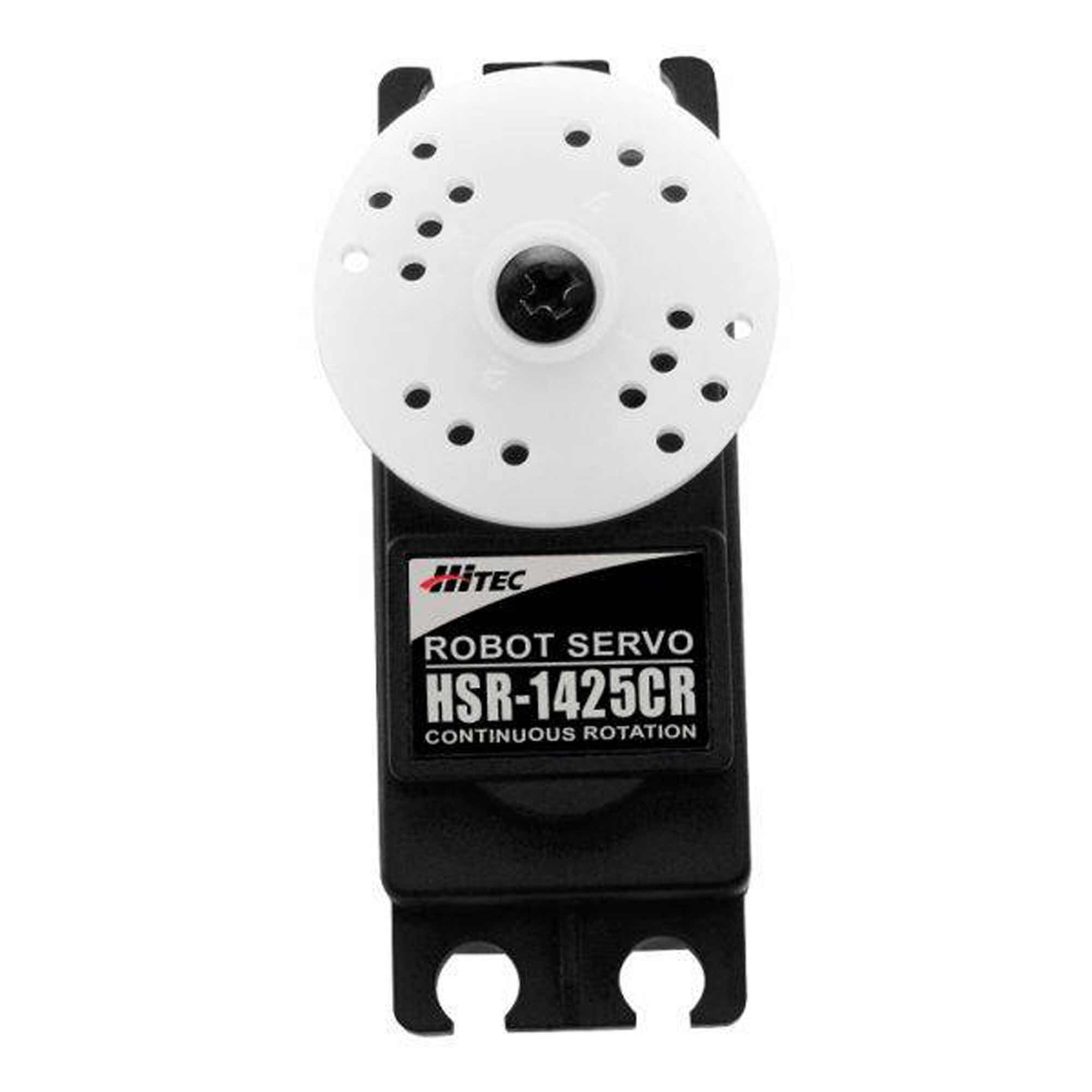

Hitec RCD Inc. HS-1425 Standard Analog Continuous Rotation Robot Servo

$4.40

In stock

- +
SKU: hh-14541 Category: Tags: , ,

Specs

Product Specs

Application
Robotics
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
8 mA
Current Draw Stall
640 mA
Deadband
>5??s
Gear Type
Nylon
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
43 rpm @ 4.8V, 52 rpm @ 6.0V
Maximum Servo Torque
39o/in @ 4.8V, 57oz/in @ 6.0V
Motor Type
Brushed

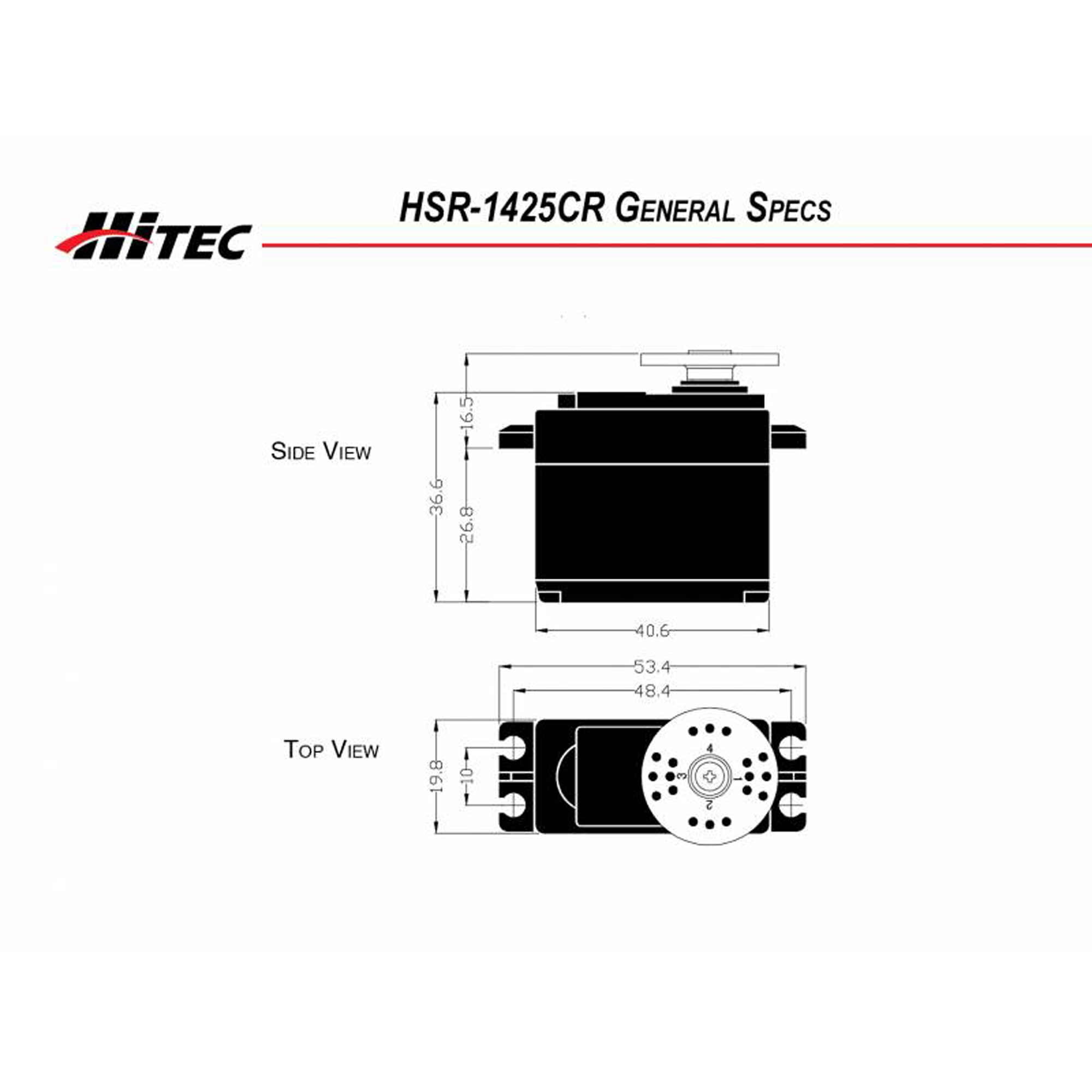

Product Height
1.44″ (37 mm)
Product Length
1.59″ (40 mm)
Product Weight
1.47oz (41.7g)
Product Width
0.77″ (20 mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Standard
Servo Type
Analog
Spline Count
24 – Tooth
Water-Resistant
No
Wire Gauge
25 AWG
Weight 5 kg
