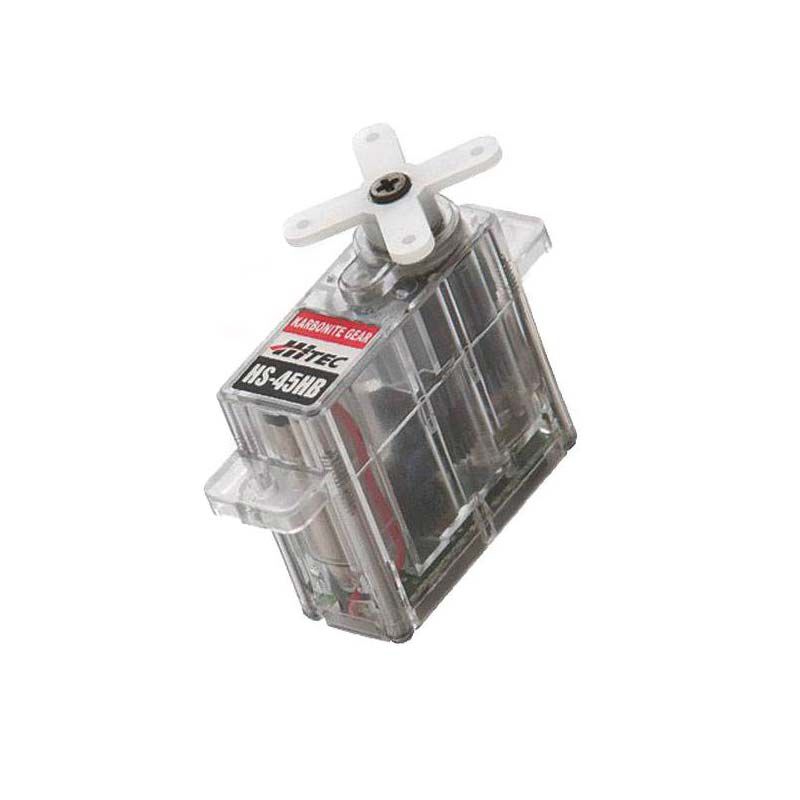

Hitec RCD Inc. HS-45HB Sub-Micro Analog Premium Feather Karbonite Gear Servo

$3.60

In stock

- +
SKU: hh-14546 Category: Tags: ,
  • Speed: @4.8V .14sec/60′ / @6.0V .12sec/60′
  • Torque: @4.8V 14oz/in / @6.0V 17oz/in

Specs

Product Specs

Application
Small Electric Aircraft
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
8 mA
Current Draw Stall
440 mA
Deadband
5??s
Gear Type
Karbonite
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
0.14 sec/60 deg @ 4.8V, 0.12 sec/60 deg @ 6.0V
Maximum Servo Torque
14oz/in @ 4.8V, 17oz/in @ 6.0V
Motor Type
Brushed

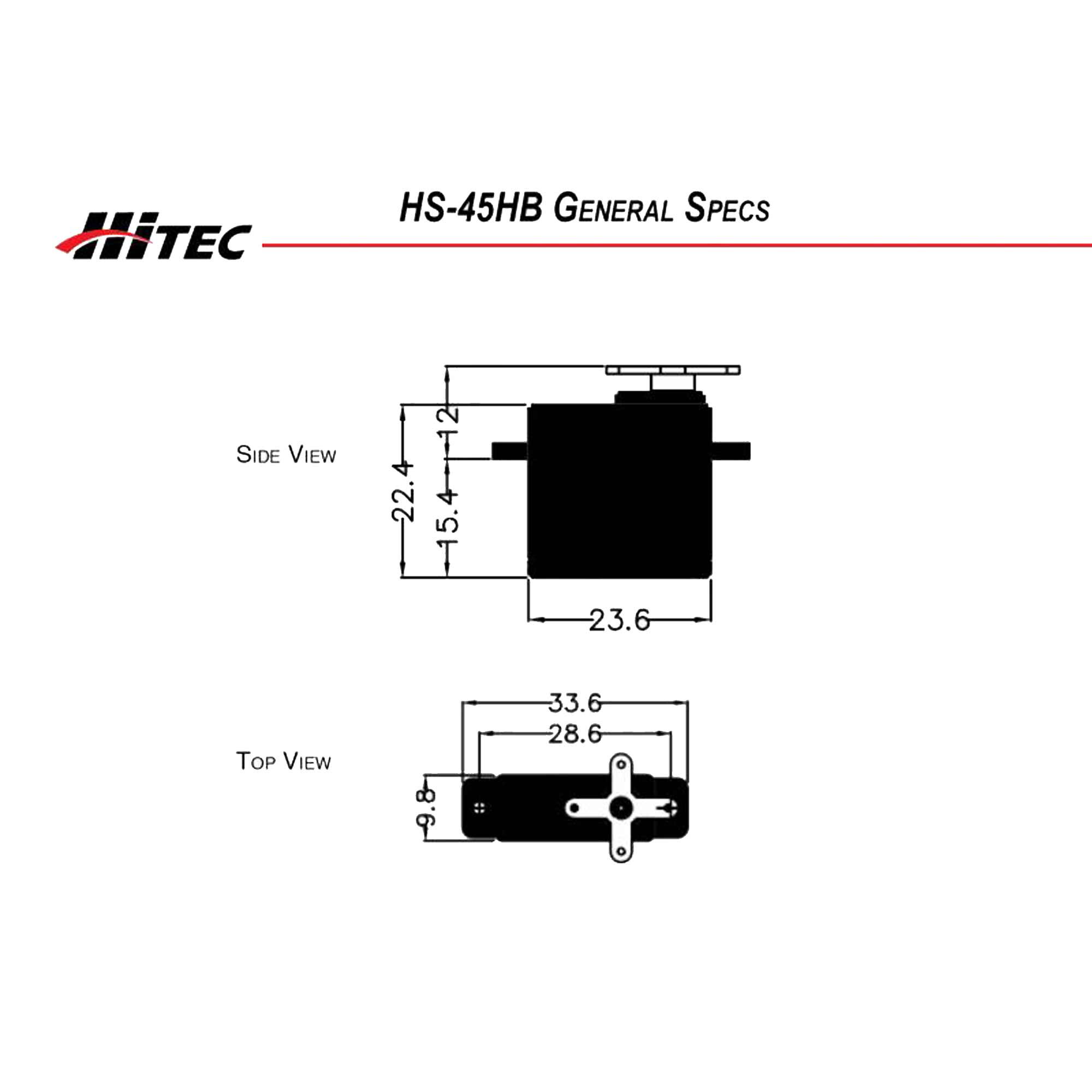

Product Height
0.88″ (22 mm)
Product Length
0.92″ (23 mm)

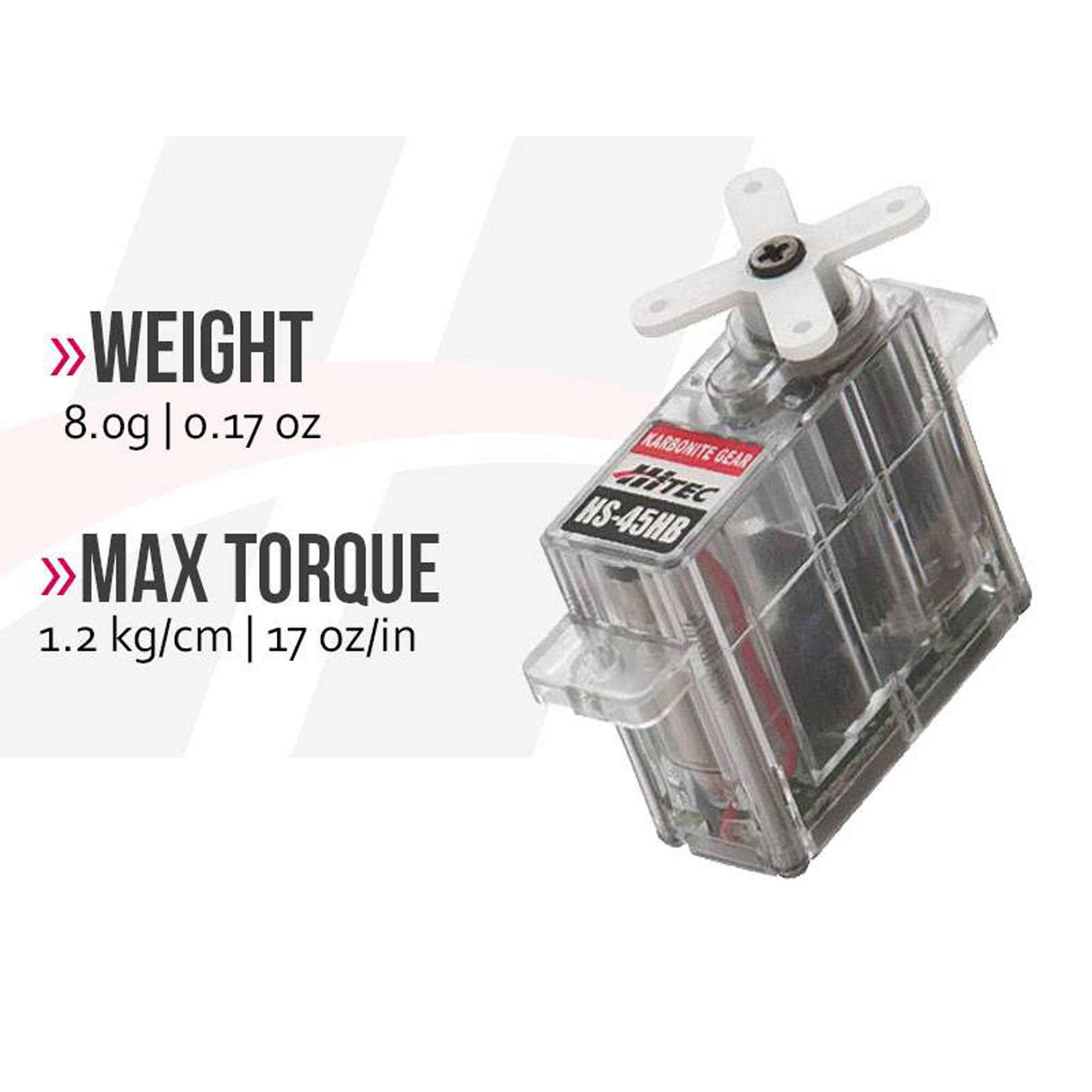

Product Weight
0.28oz (8.0g)
Product Width
0.38″ (10 mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Sub-Micro
Servo Type
Analog
Water-Resistant
No
Wire Gauge
28 AWG
Weight 5 kg
