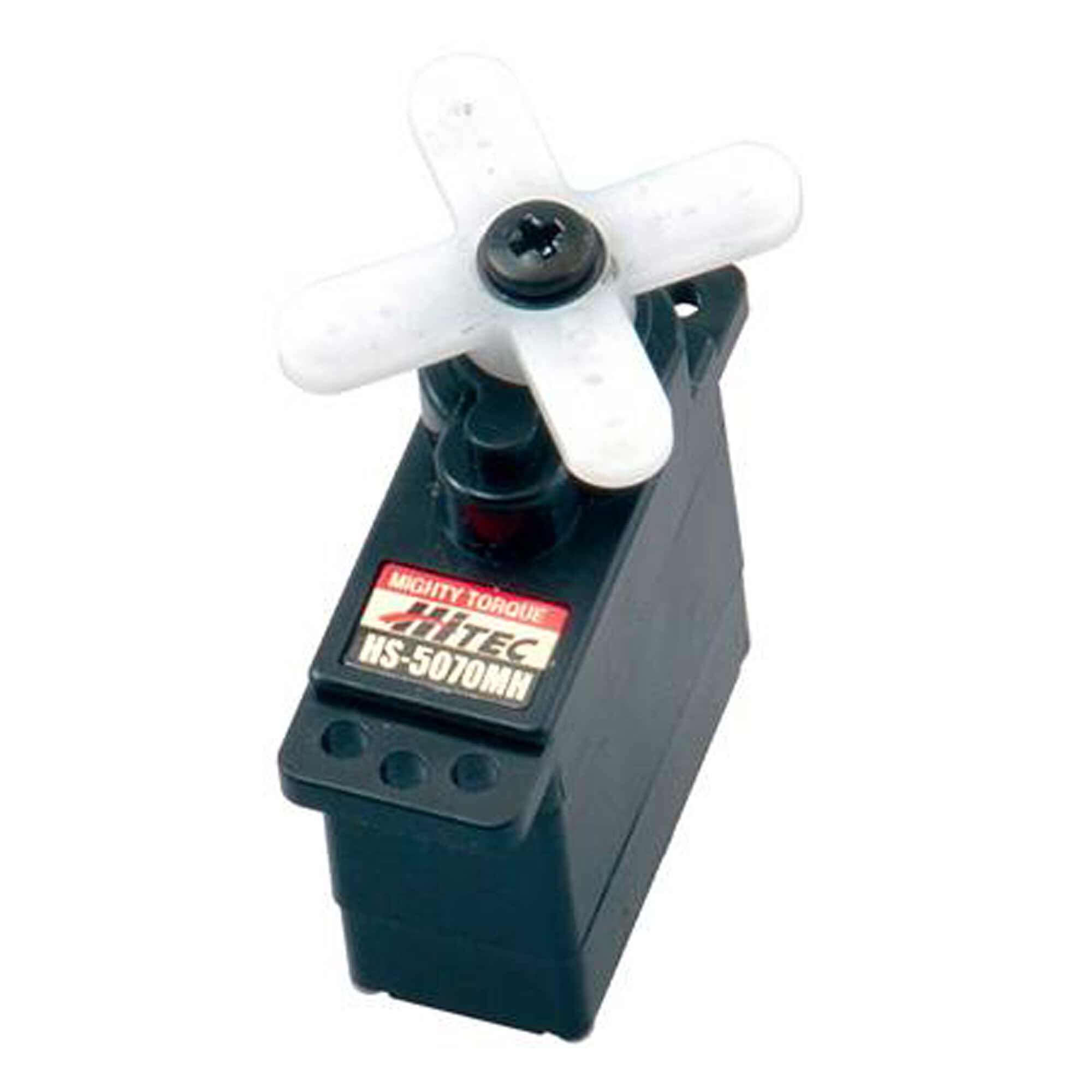

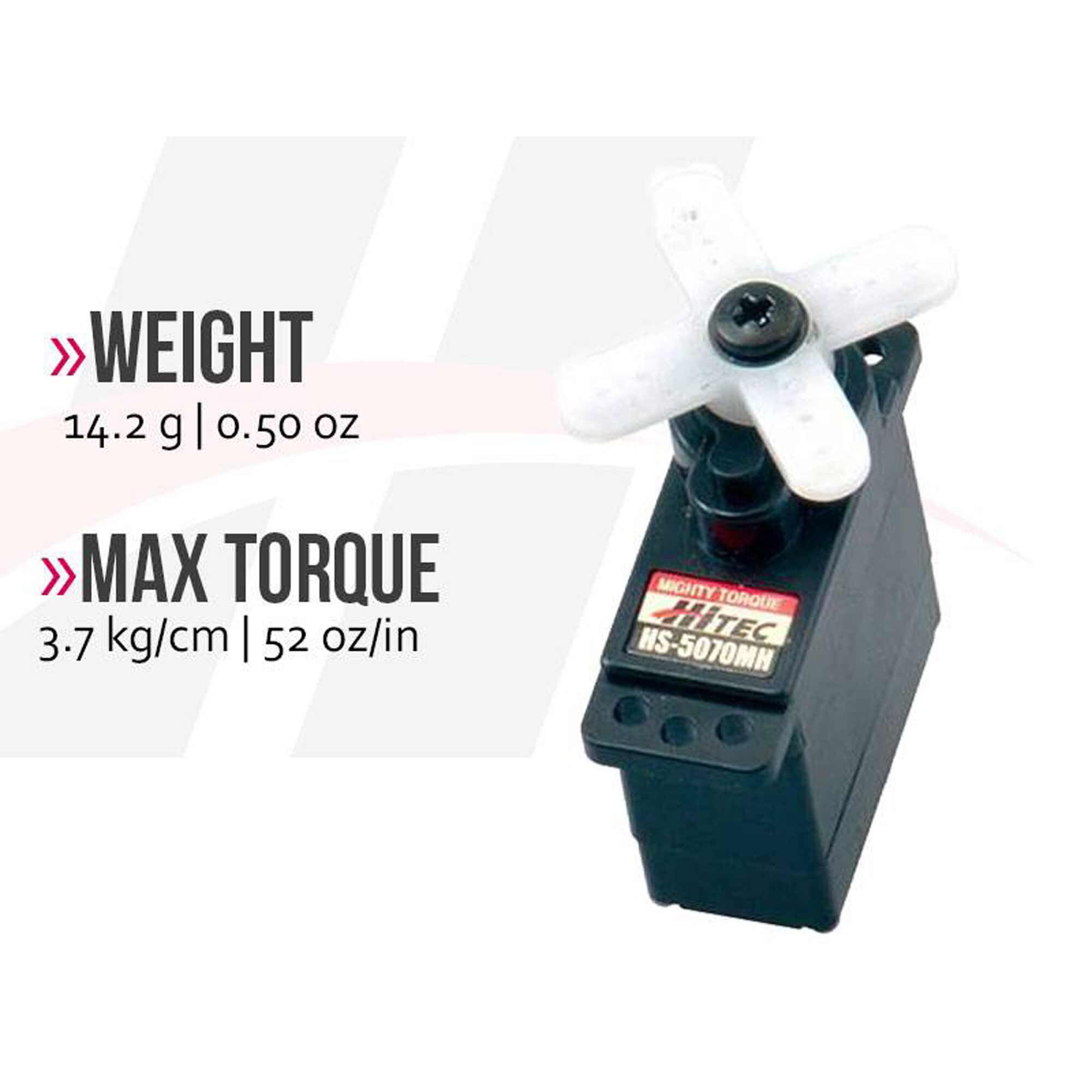

Hitec RCD Inc. HS-5070MH Micro Digital HV Ultra Torque Metal Gear Feather Servo

Application

65oz or less parkflyers, 36-41oz sport planes, 2M/DLG sailplanes, 500-750mm electric helis, 30-39 class gas helis, 1:16 scale power boats, buggies & on-road vehicles

Bearing

Top Ball Bearing

Bushing Or Bearing

Bearing

Connector Type

Universal

Current Draw Idle

3 mA

Current Draw Stall

1,300 mA

Deadband

2??s

Gear Type

Metal

Input Voltage

6.0V ~ 7.4V

Maximum Servo Speed

0.14 sec/60 deg @ 6.0V, 0.12 sec/60 deg @ 7.4V

Maximum Servo Torque

42oz/in @ 6.0V, 53oz/in @ 7.4V

Motor Type

Brushed

Number of Poles

3

Product Height

1.14″ (29 mm)

Product Length

0.92″ (23 mm)

Product Weight

0.50oz (14.2g)

Product Width

0.45″ (11 mm)

Programmable

Yes

Servo Operating Voltage

6.0 – 7.4V (HV)

Servo Size Category

Micro

Servo Type

Digital

Water-Resistant

No

Wire Gauge

28 AWG
