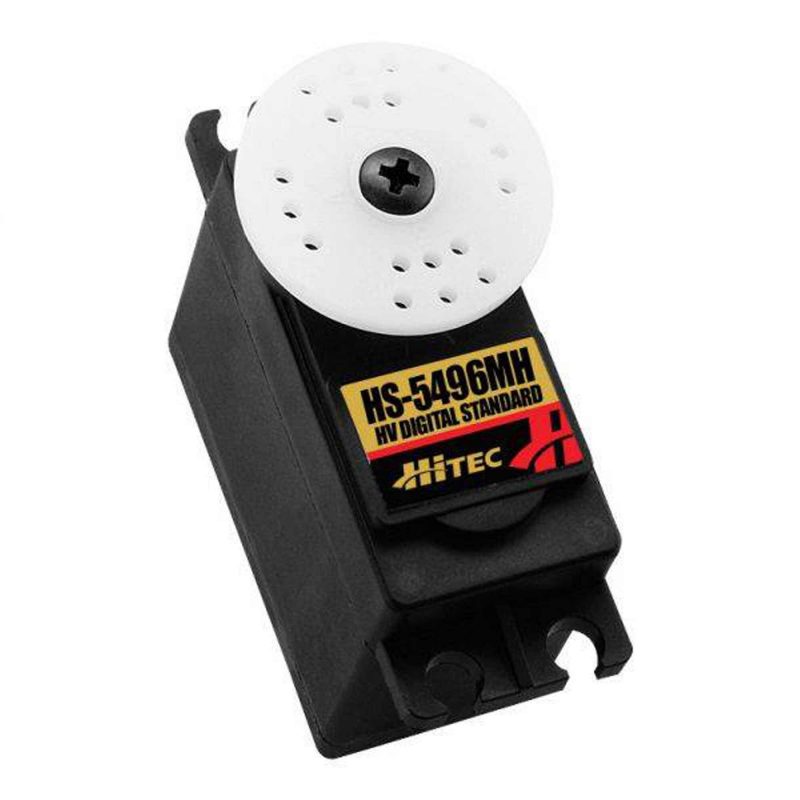

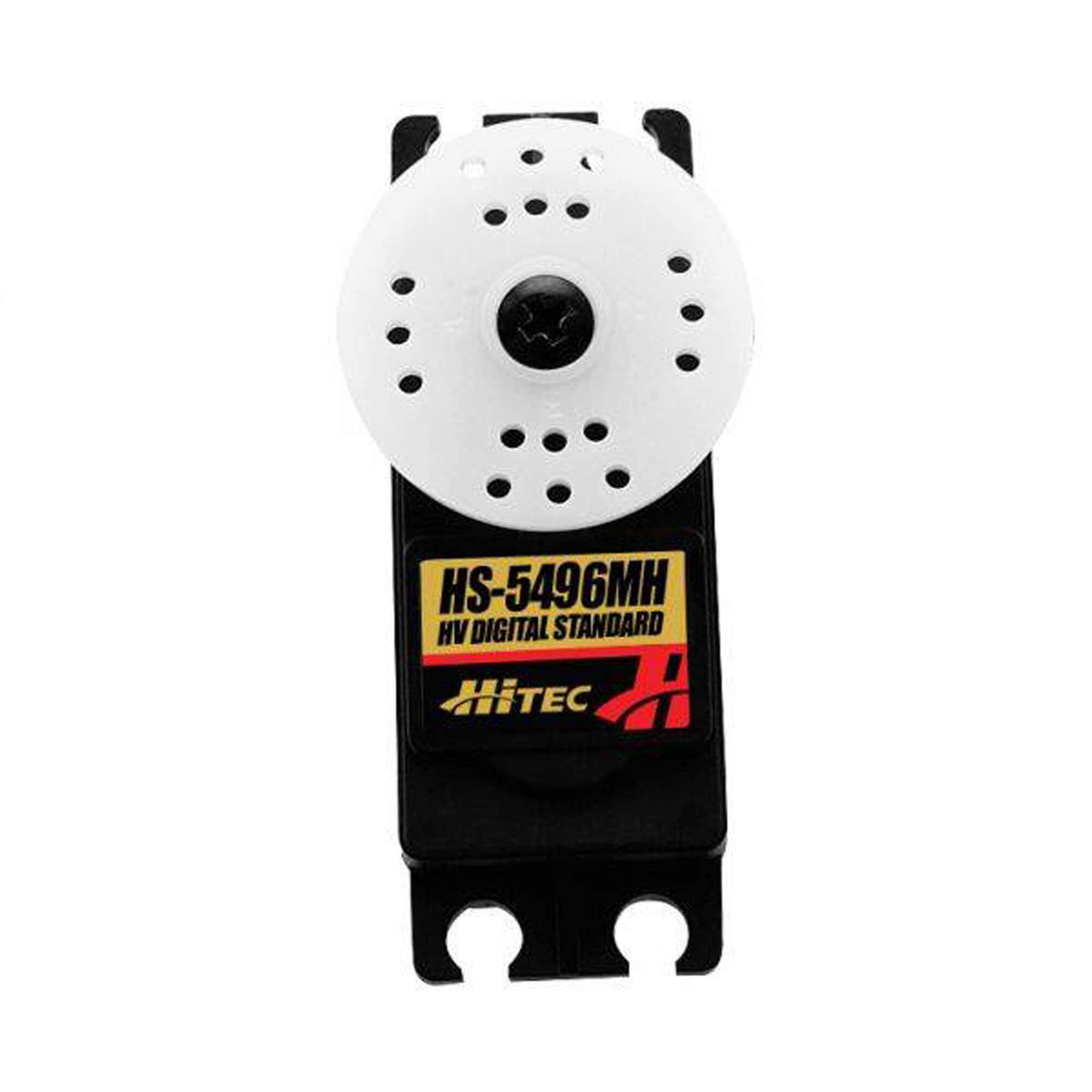

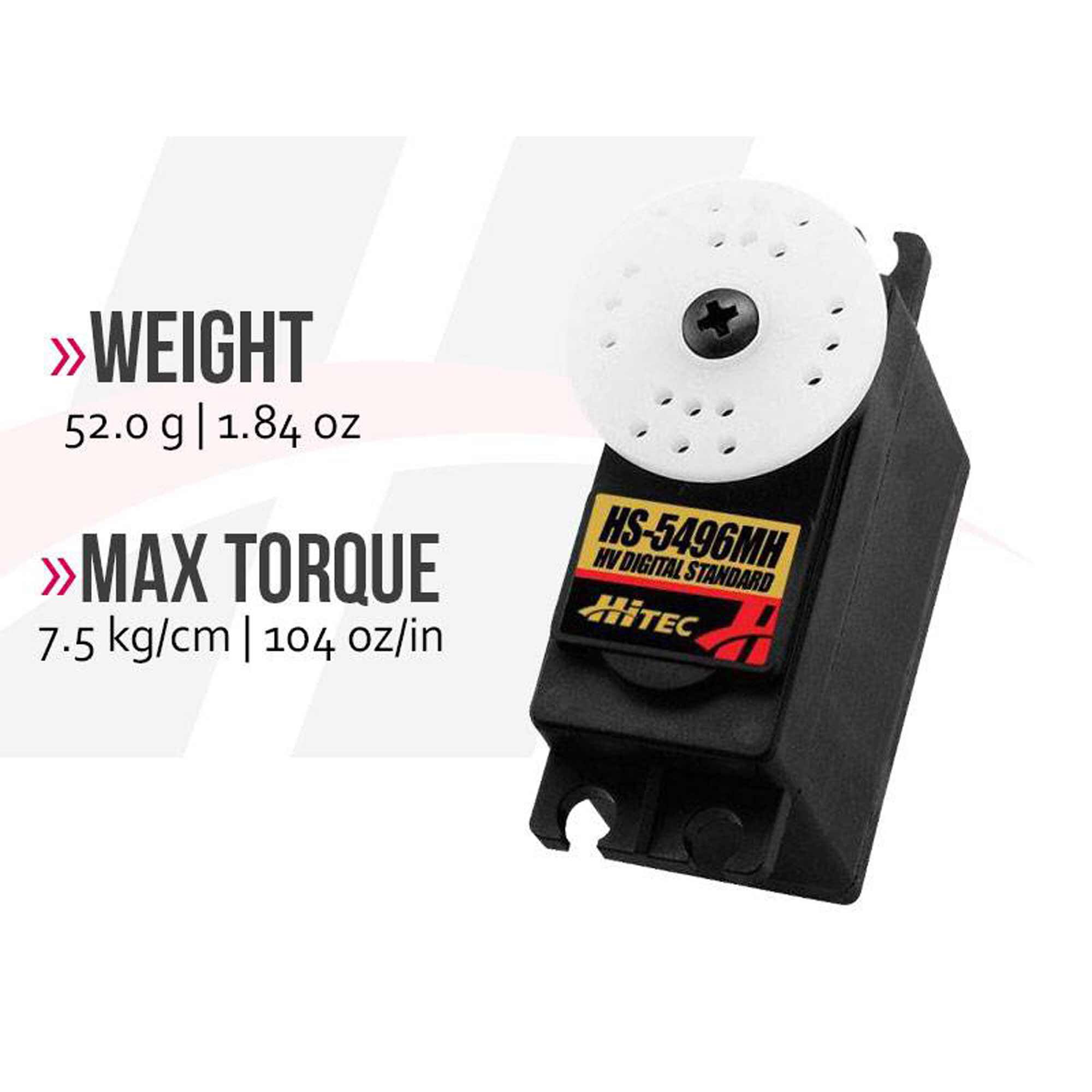

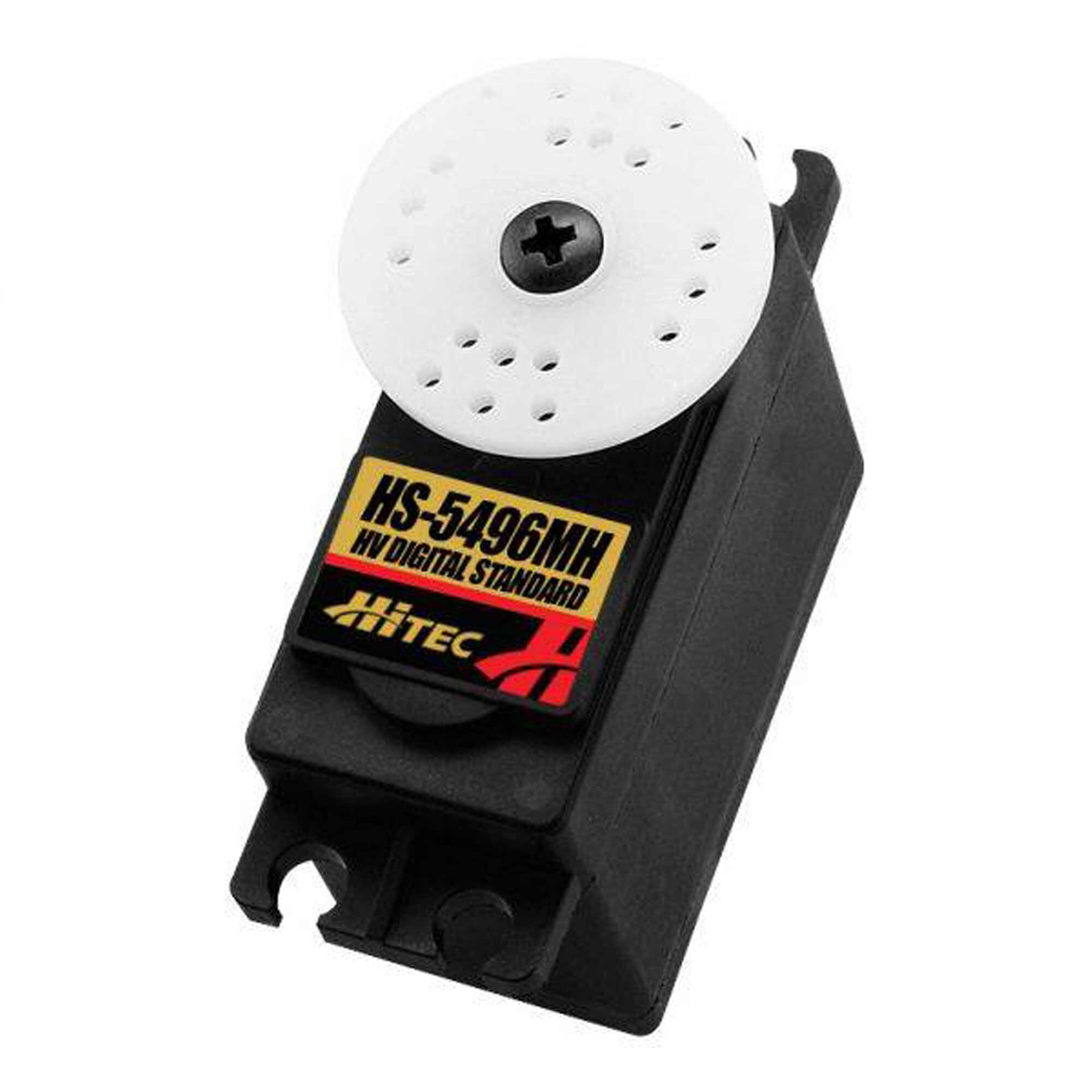

Hitec RCD Inc. HS-5496MH Standard Digital HV Metal Gear Servo

$8.00

In stock

- +
SKU: hh-14788 Category: Tags: , ,
  • Speed: @4.8V .17sec/60′ / @6.0V .15sec/60′
  • Torque: @4.8V 89oz/in / @6.0V 104oz/in

Specs

Product Specs

Application
50-64oz sport & scale planes, 2M & up sailplanes, 1M sailboat, 1:10 scale power boat
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
12 mA
Current Draw Stall
1,400 mA
Deadband
4??s
Gear Type
Metal
Input Voltage
6.0V ~ 7.4V
Maximum Servo Speed
0.17 sec/60 deg @ 6.0V, 0.15 sec/60 deg @ 7.4V
Maximum Servo Torque
89oz/in @ 6.0V, 104oz/in @ 7.4V
Motor Type
Brushed

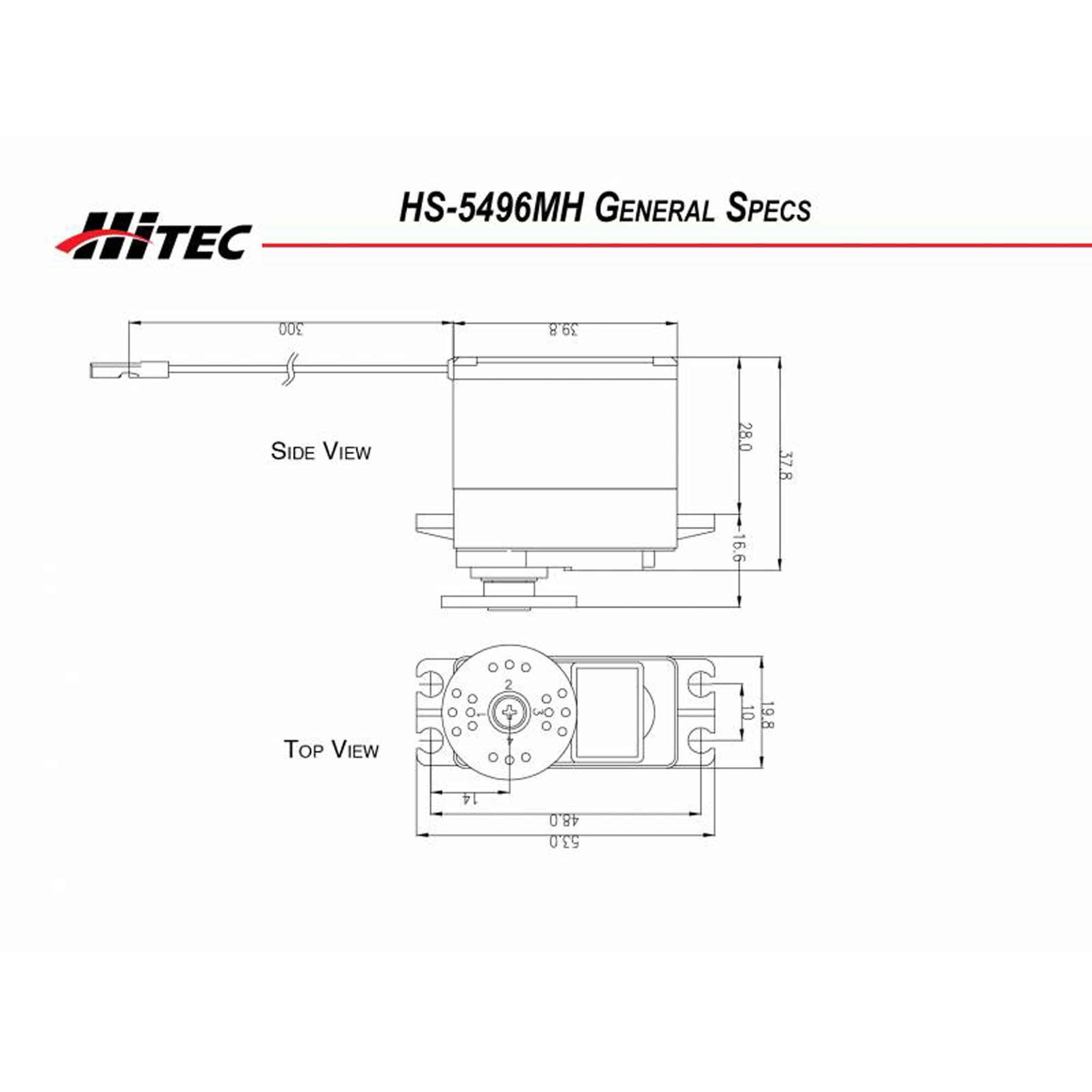

Product Height
1.49″ (38 mm)
Product Length
1.57″ (40 mm)
Product Weight
1.84oz (52.0g)
Product Width
0.78″ (20 mm)
Programmable
Yes
Servo Operating Voltage
6.0 – 7.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
24 Teeth
Water-Resistant
No
Wire Gauge
25 AWG
Weight 5 kg
