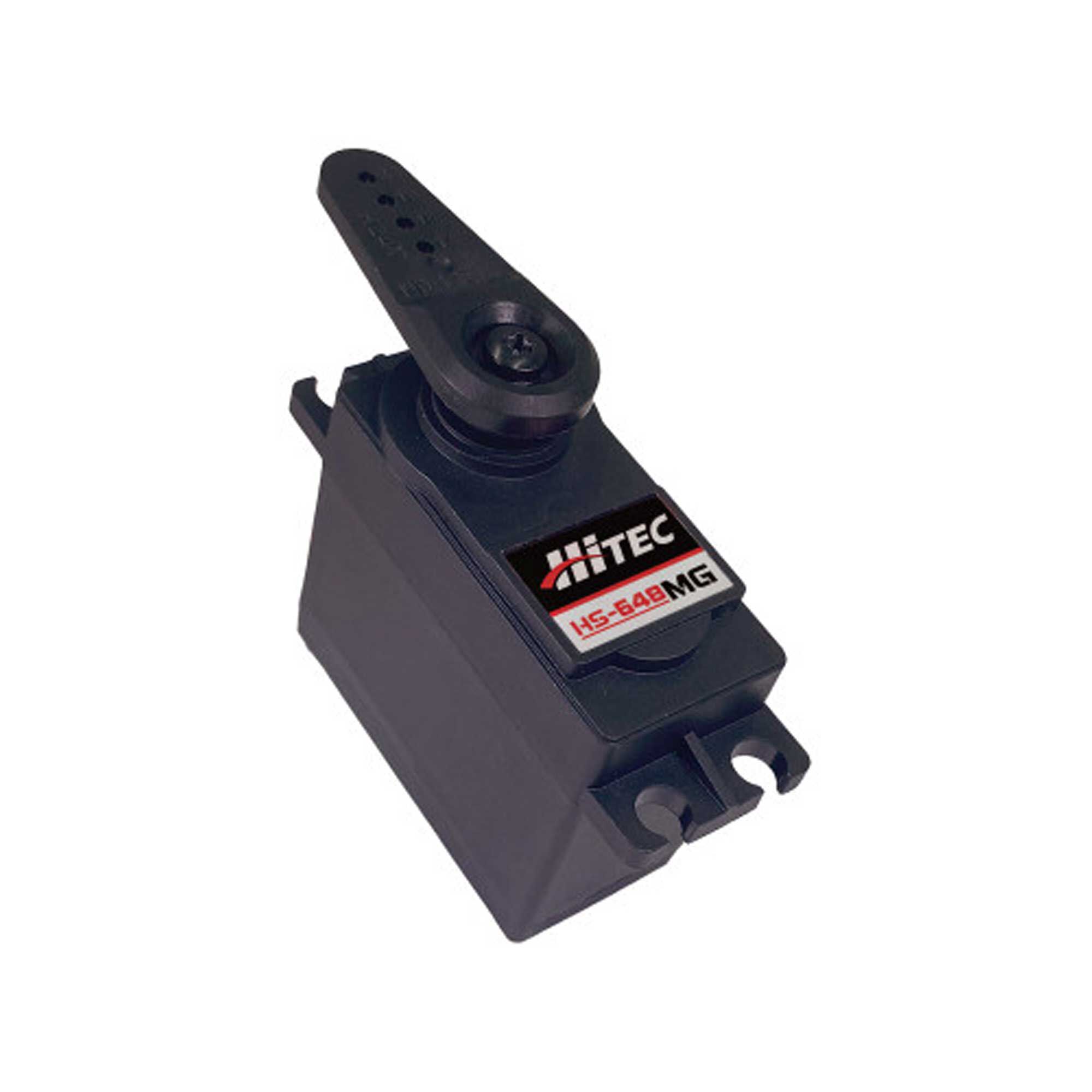

  • High Torque Metal Gear Servo
  • 25 Tooth Output Spline
  • Revolutionary Metal/Plastic First Gear (MP Gear)
  • Cored Metal Brush Motor
  • Dual Ball Bearing Supported Output Shaft
  • Top Selling High Torque Metal Gear Servo

Specs

Product Specs

Bearing
2 Ball Bearing
Connector Wire Length
11.81″ (300 mm)
Current Draw Idle
9mA
Deadband
>5??s
Gear Type
Metal and Plastic
Input Voltage
3.5 ~ 6.8V
Motor Type
Brushed
Product Height
1.48″ (38 mm)
Product Length
1.59″ (40 mm)
Product Weight
1.94 oz (55.2g)
Product Width
0.78″ (20 mm)
Servo Type
Analog
Spline Count
25 – Tooth
Torque
106.93 oz??in/ 133.32 oz??in
Water-Resistant
Yes
Wire Gauge
24 AWG
Weight 5 kg
