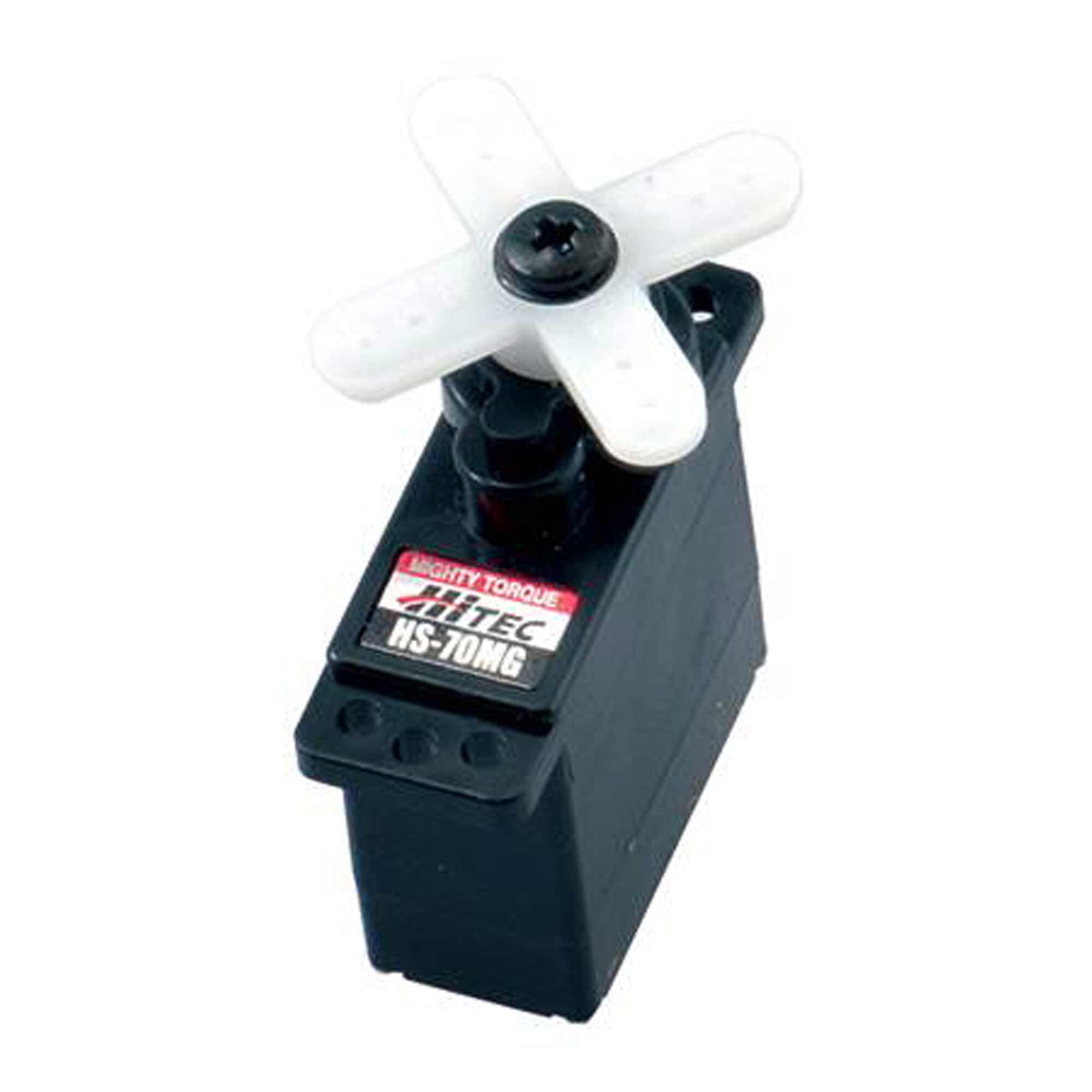

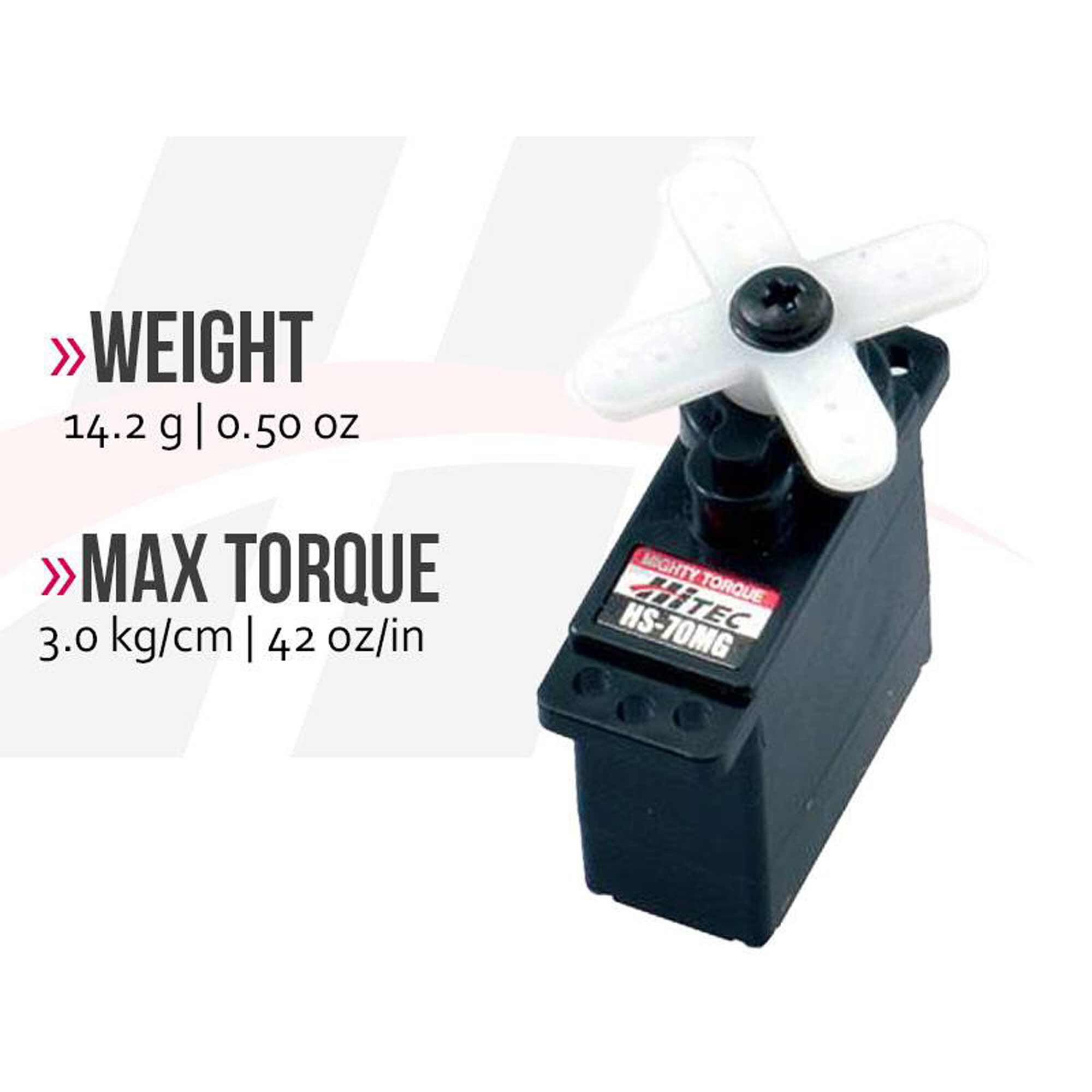

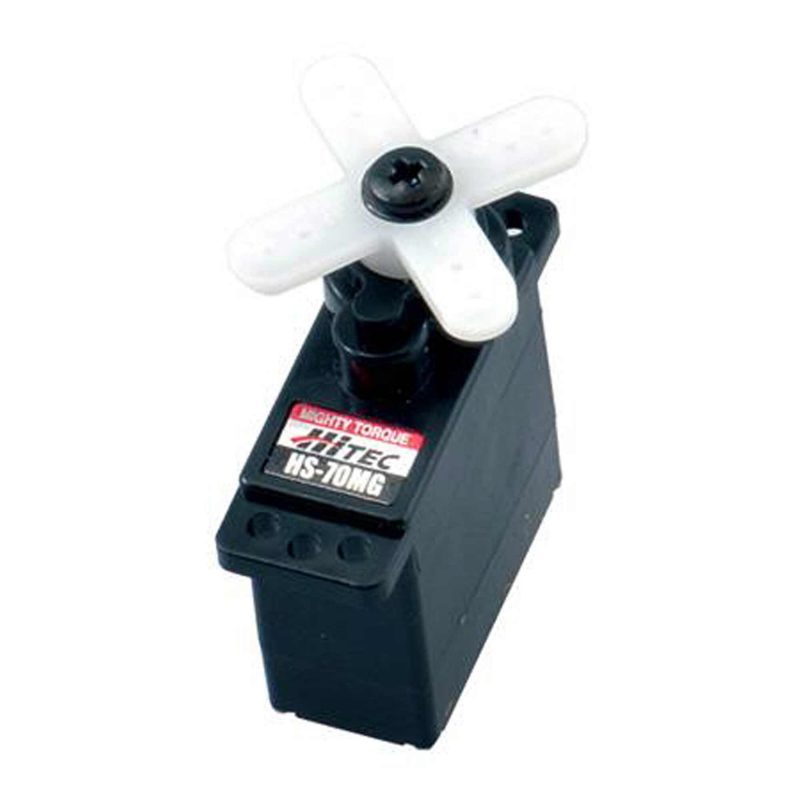

Hitec RCD Inc. HS-70MG Micro Analog Ultra Torque Metal Gear Feather Servo

$7.00

In stock

- +
SKU: hh-14675 Category: Tags: ,
  • Torque: @4.8V 33.33oz/in / @6.0V 41.66oz/in
  • Speed: @4.8V .17sec/60′ / @6.0V .14sec/60′

Specs

Product Specs

Application
36-41oz sport plane, 2M/DLG sailplane, 400-500mm electric heli, 30-39 class gas heli, 1:8 scale SC trucks, 1:8 scale power boats
Bearing
Top Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
8 mA
Current Draw Stall
1,250mA
Deadband
5??s
Gear Type
Metal
Input Voltage
4.8V ~ 6.0V
Maximum Servo Speed
0.17 sec/60 deg @ 4.8V, 0.14 sec/60 deg @ 6.0V
Maximum Servo Torque
33oz/in @ 4.8V, 42oz/in @ 6.0V
Motor Type
Brushed
Number of Poles
3
Product Height
1.14″ (29 mm)
Product Length
0.92″ (23 mm)
Product Weight
0.50 oz (14.2g)
Product Width
0.45″ (11 mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Micro
Servo Type
Analog
Water-Resistant
No
Wire Gauge
28 AWG
Weight 5 kg
