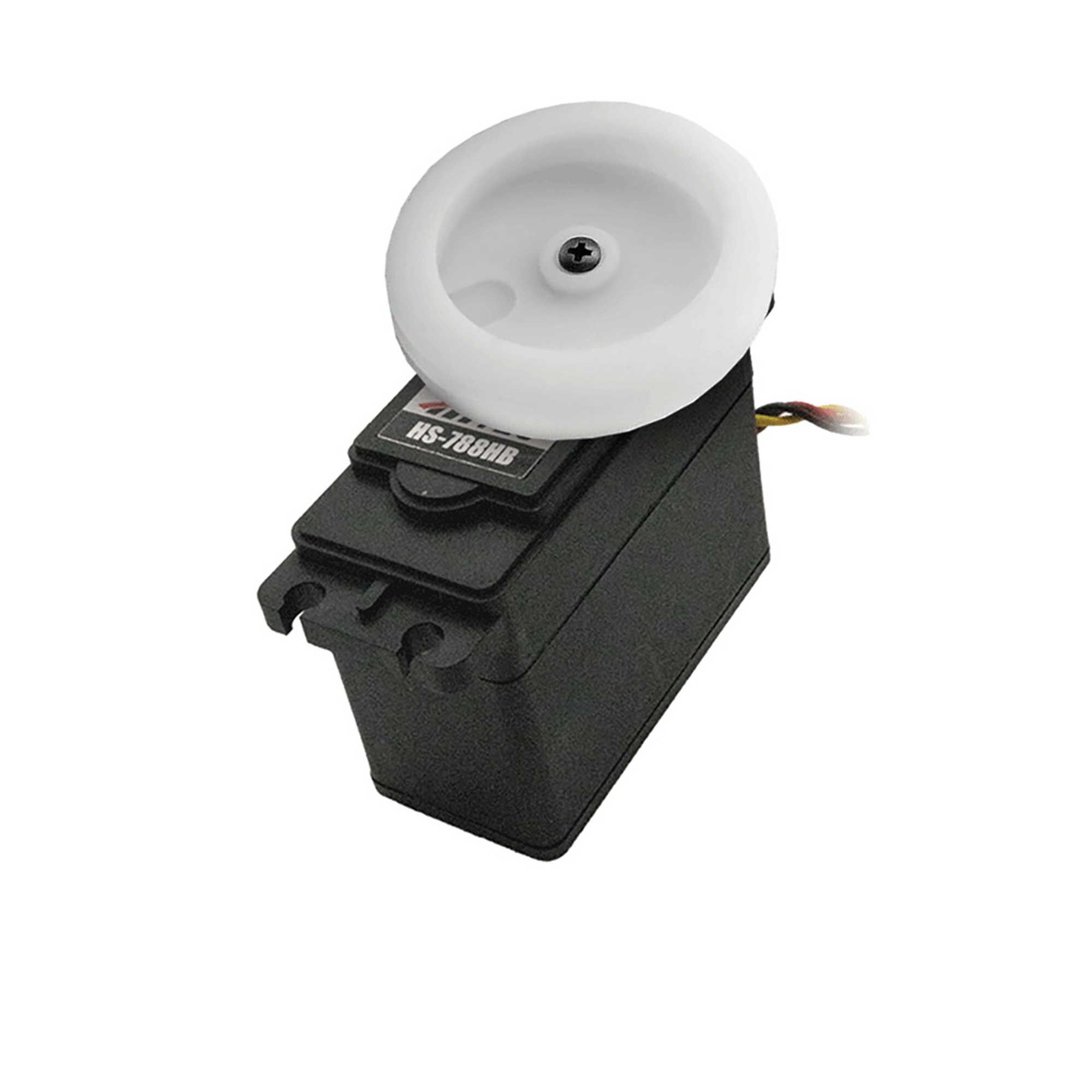

  • Large Drum Wheel with 3.5 Revolutions of Travel
  • 25-Tooth Output Spline
  • Strong Karbonite Gear Train
  • Dual Ball Bearing-Supported Output Shaft
  • Water and Dust-Resistant Case

Specs

Product Specs

Bearing
2 Ball Bearing
Bushing Or Bearing
Bearing
Connector Wire Length
11.811″ (300 mm)
Current Draw Idle
8mA
Current Draw Stall
1,500mA
Deadband
>5??s
Gear Type
Metal
Input Voltage
3.5 ~ 6.8V
Motor Type
Brushed
Product Height
1.96″ (50 mm)
Product Length
2.32″ (59 mm)
Product Weight
3.88 oz (110g)
Product Width
1.14″ (29 mm)
Servo Type
Analog
Spline Count
25 – Tooth
Torque
152.76 oz??in/ 183.31 oz??in
Water-Resistant
Yes
Wire Gauge
22 AWG
Weight 5 kg
