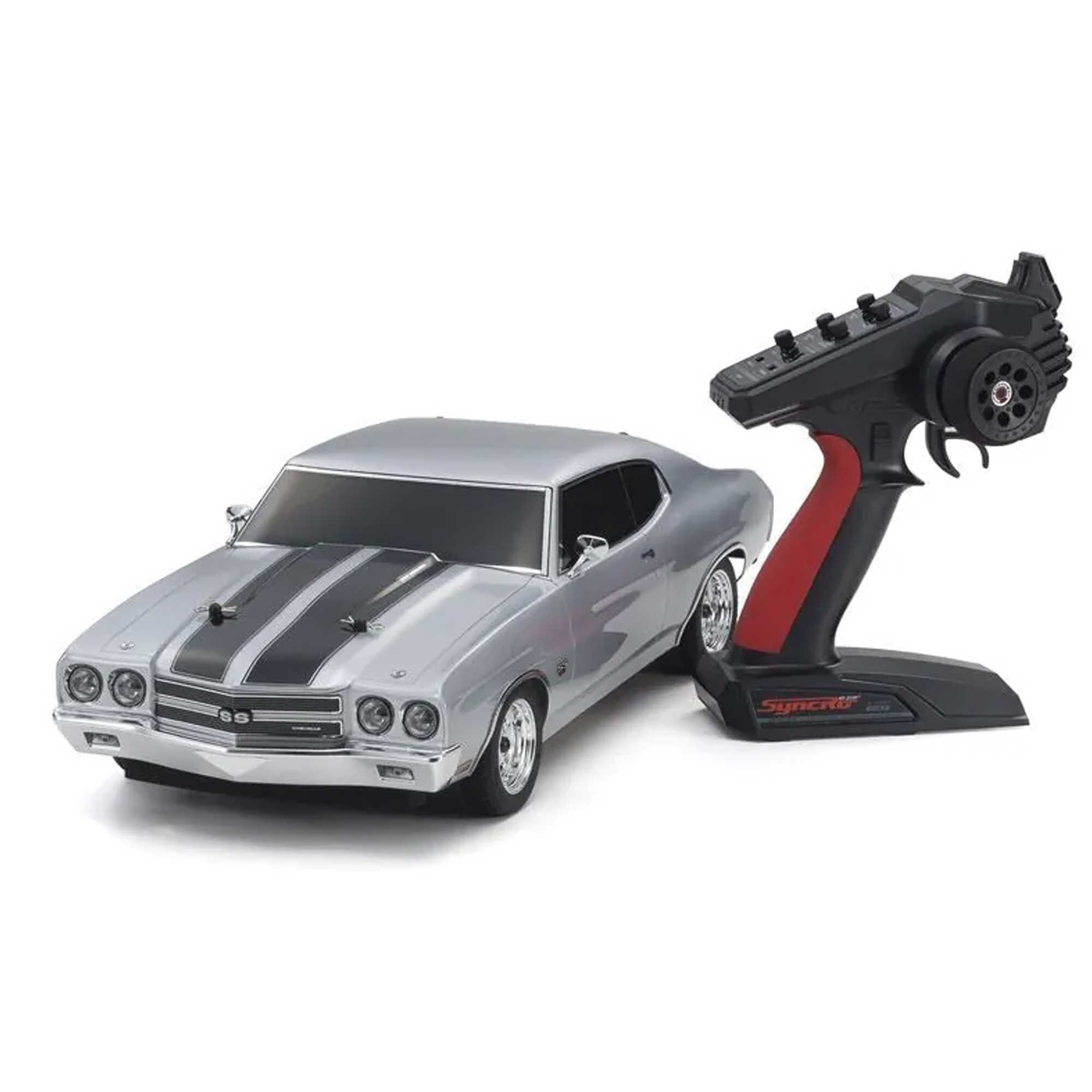

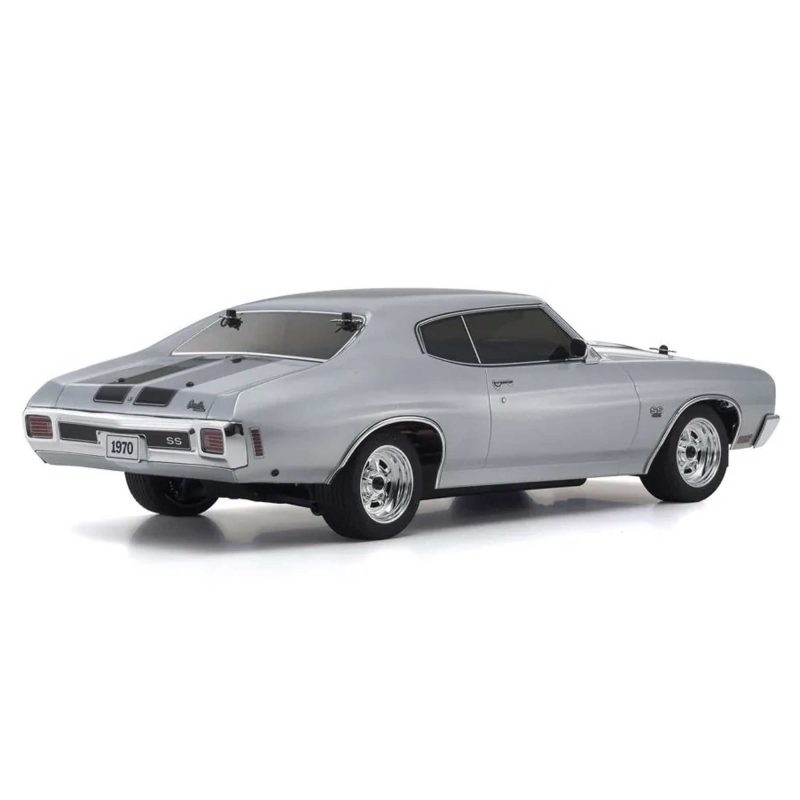

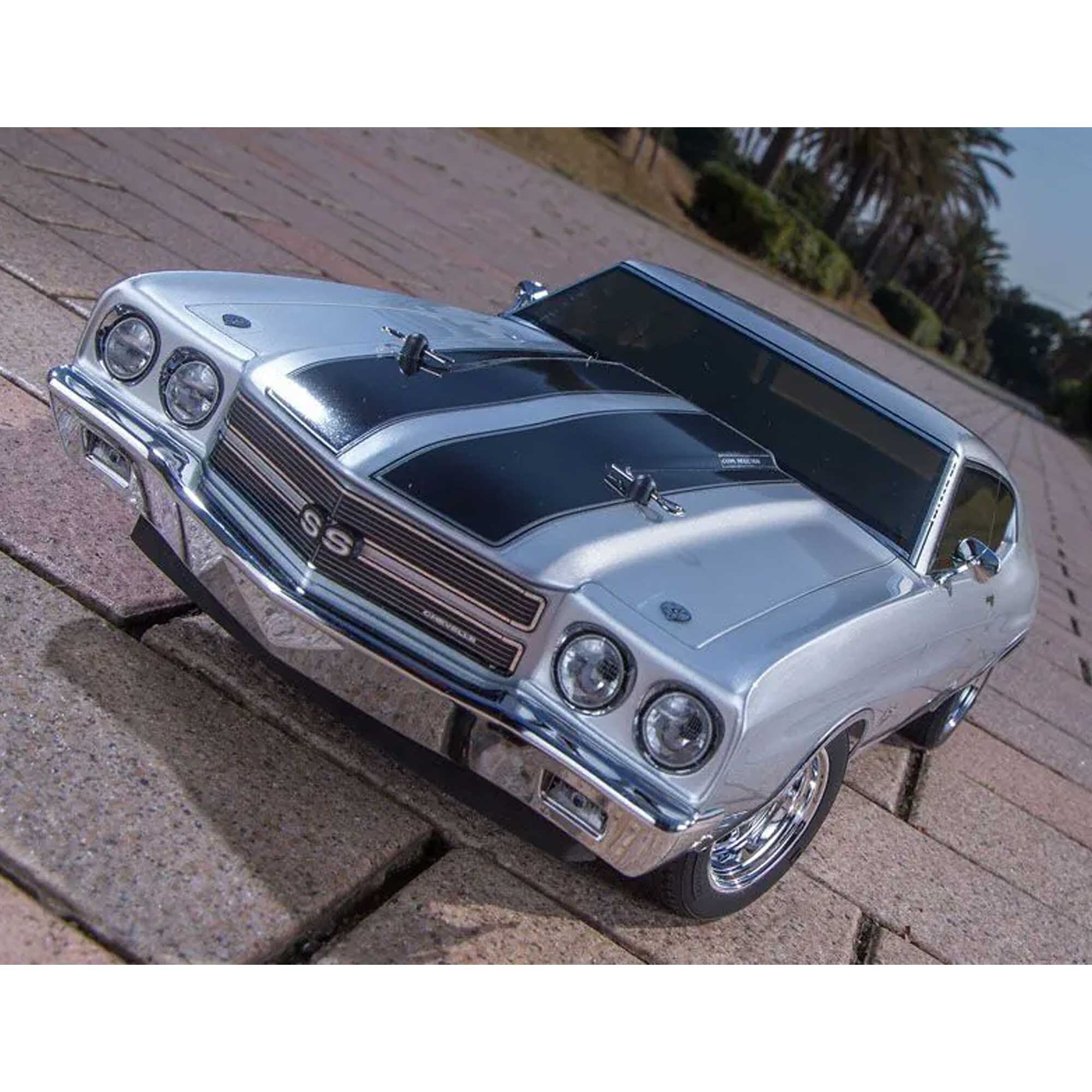

Kyosho 1/10 Fazer Mk2 1970 Chevy Chevelle SS 454 4×4 Electric Touring RTR, Cortez Silver
$240.00 $48.00
In stock
Overview
Overview

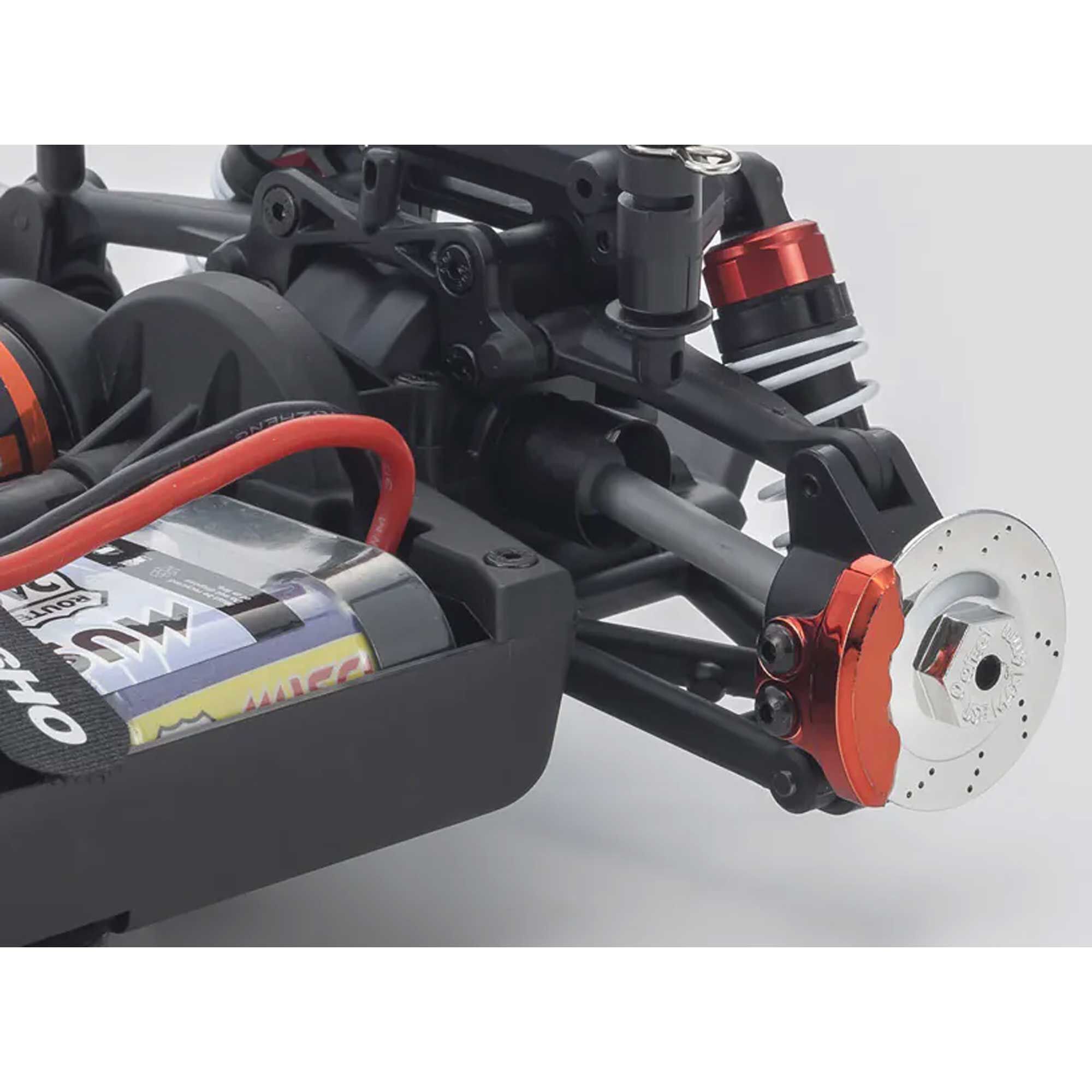

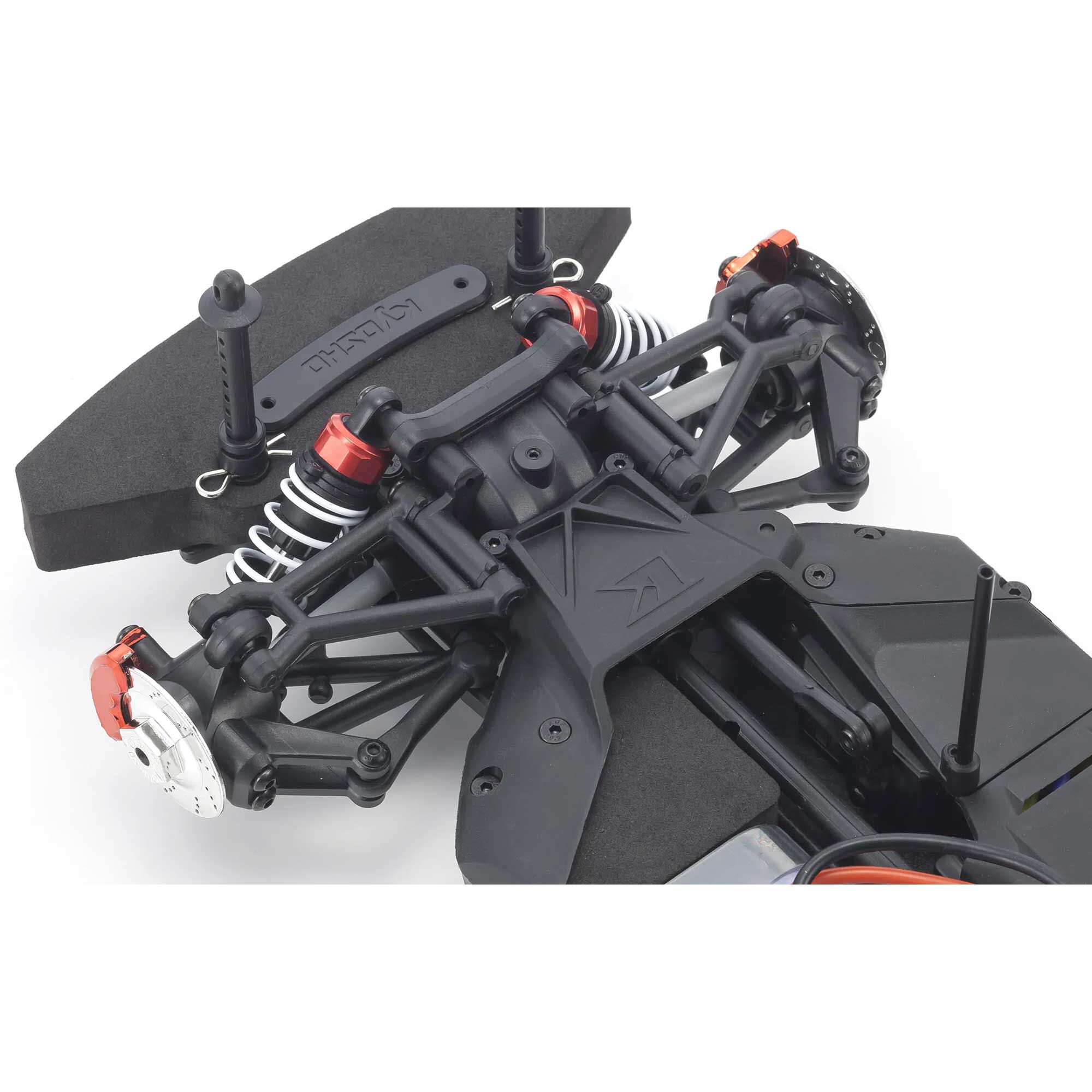

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials with ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring front and rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition to the included body. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.
- Ultra Scale Body
- Factory-Assembled RTR Package
- Equipped With 2-Bevel Gear Diffs
- Full Ball Bearings
- KS202W Waterproof Steering Servo
Features

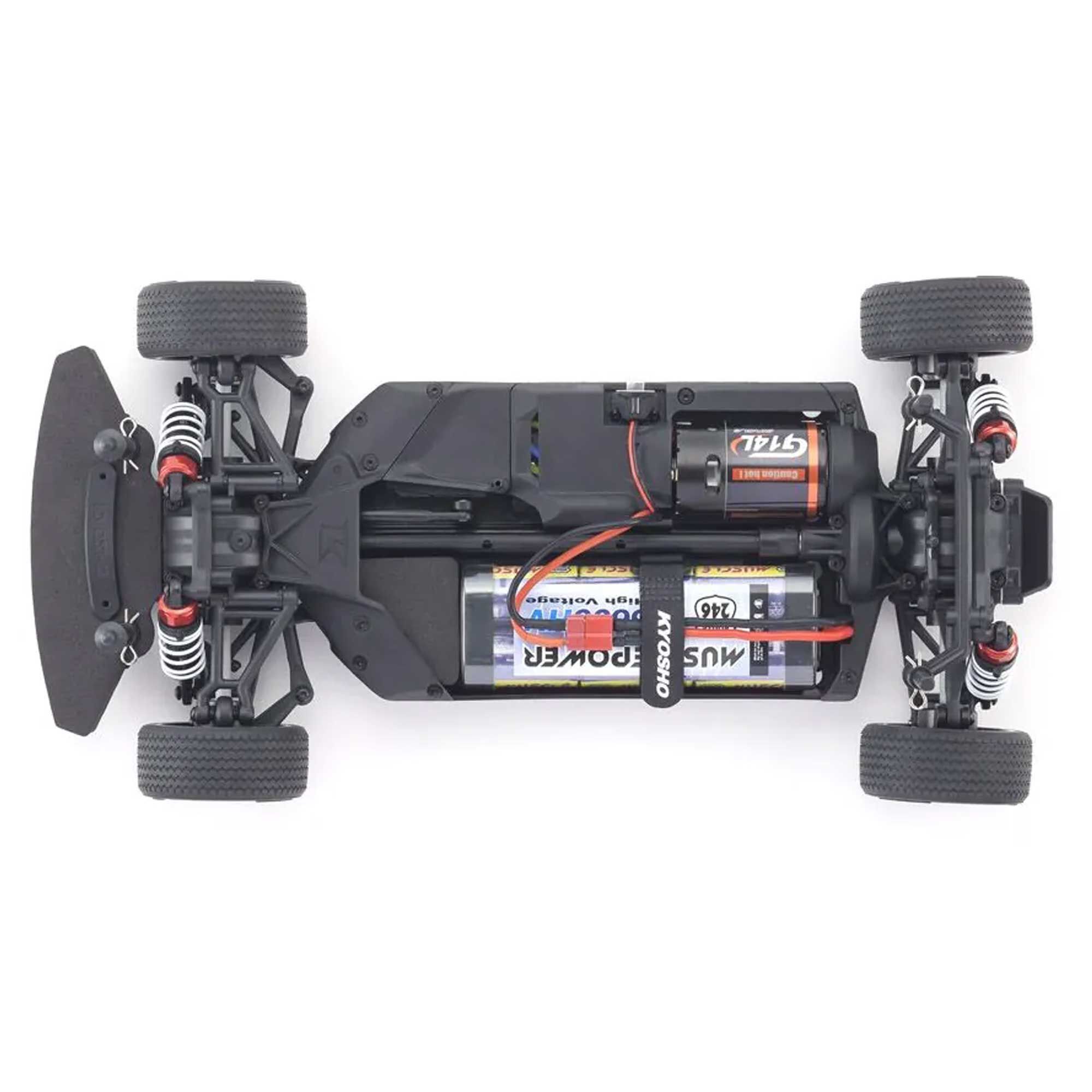

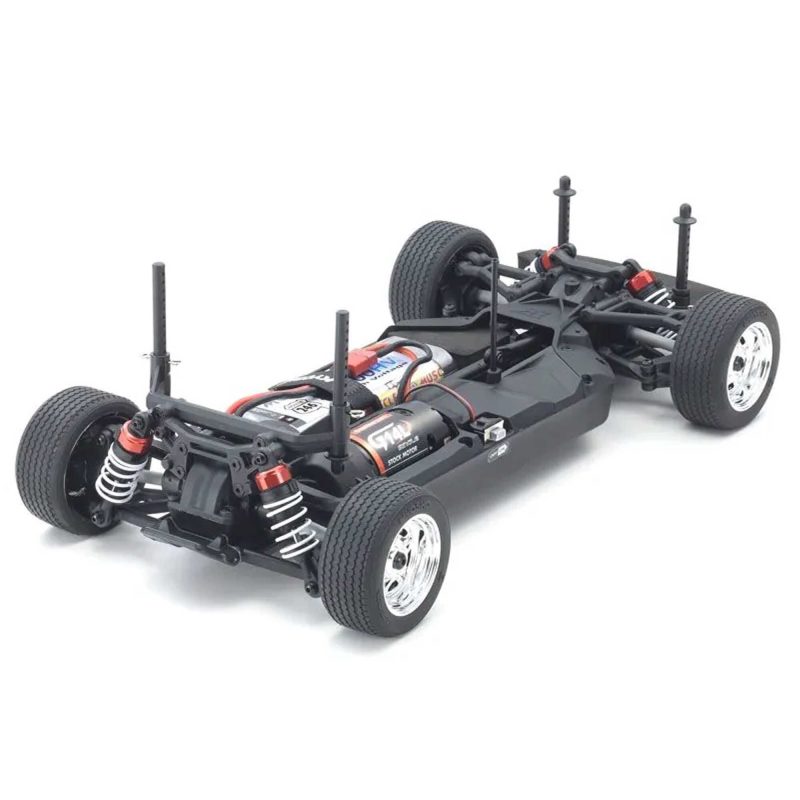

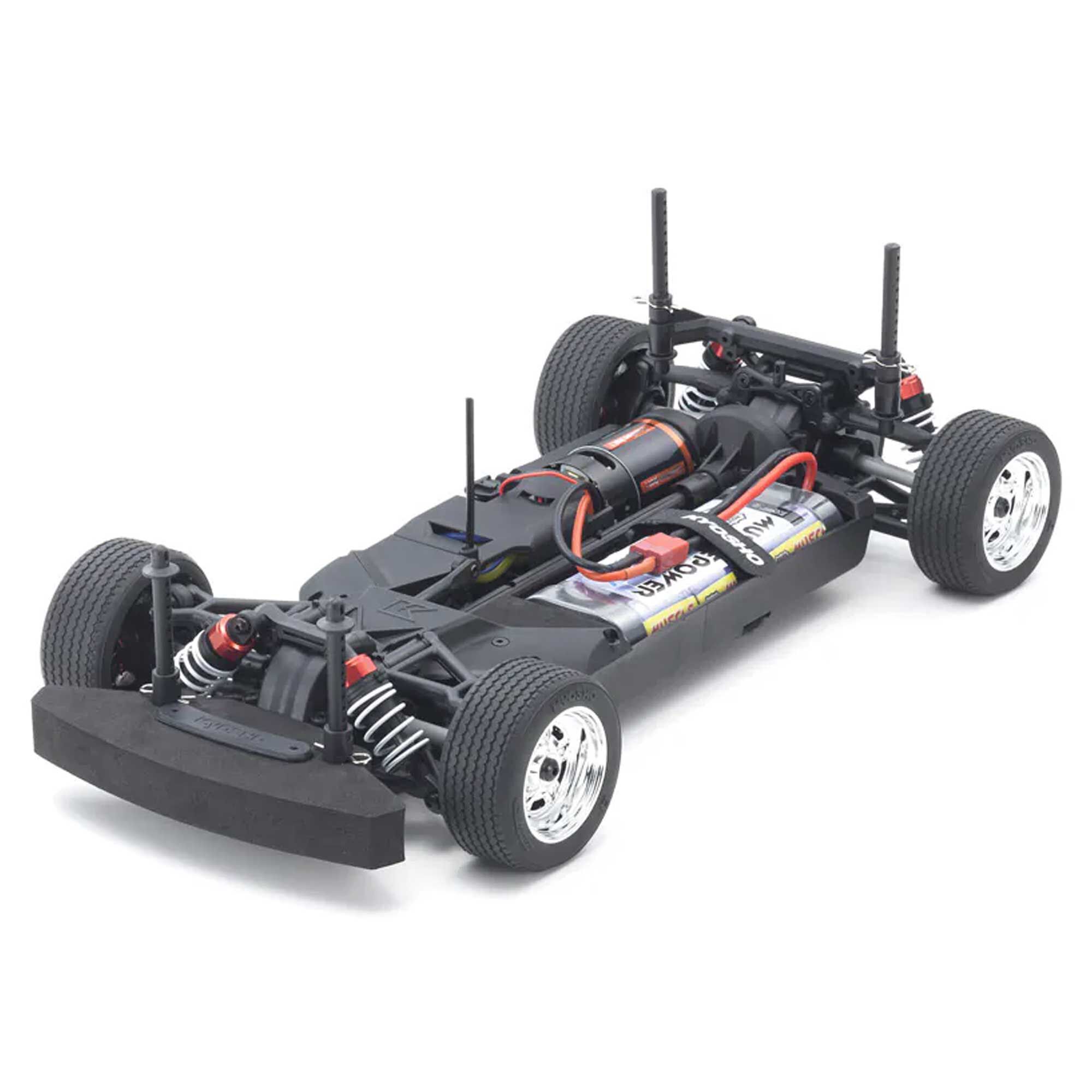

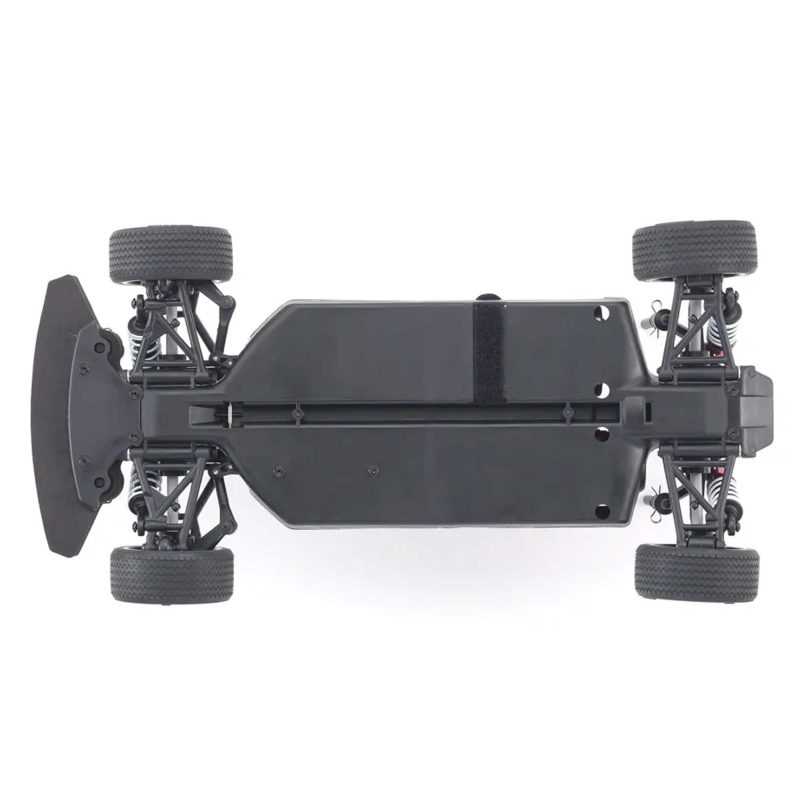

- Shaft drive full-time 4WD touring chassis.
- Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.

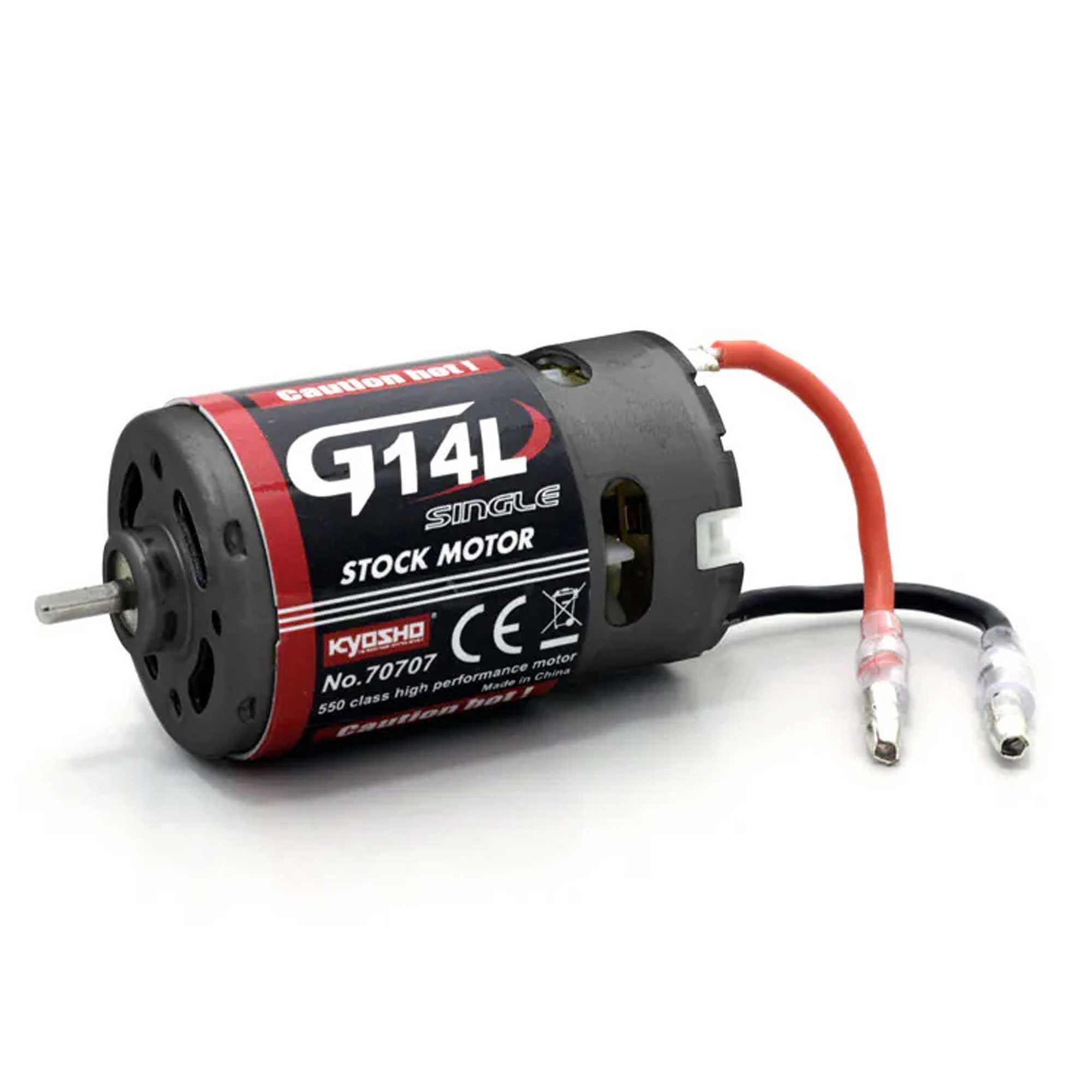

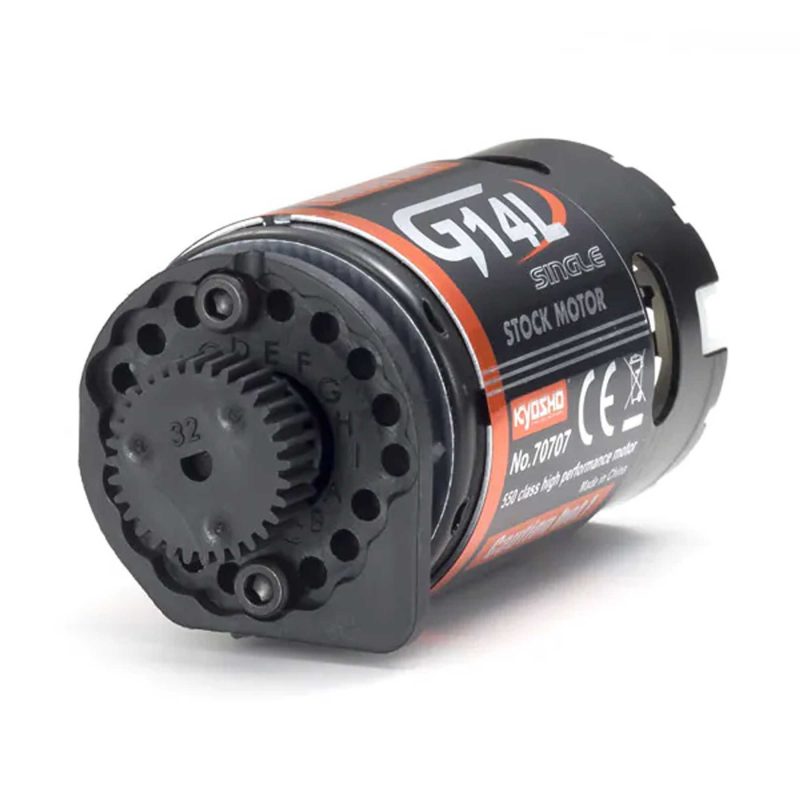

- Comes with the powerful 550 size 14T brushed motor(G14L). The long can with Steel ring and internal cooling fan provides efficient torque and high speeds.
- Equipped with 2-bevel grease-filled gear diffs on front and rear.
- Large sized dog bones and cup joints provide excellent reliability and durability.
- Strap battery mounting allows for various battery types to be used.
- Full ball bearings equipped throughout the drive system.
- Features KS202W waterproof steering servo.

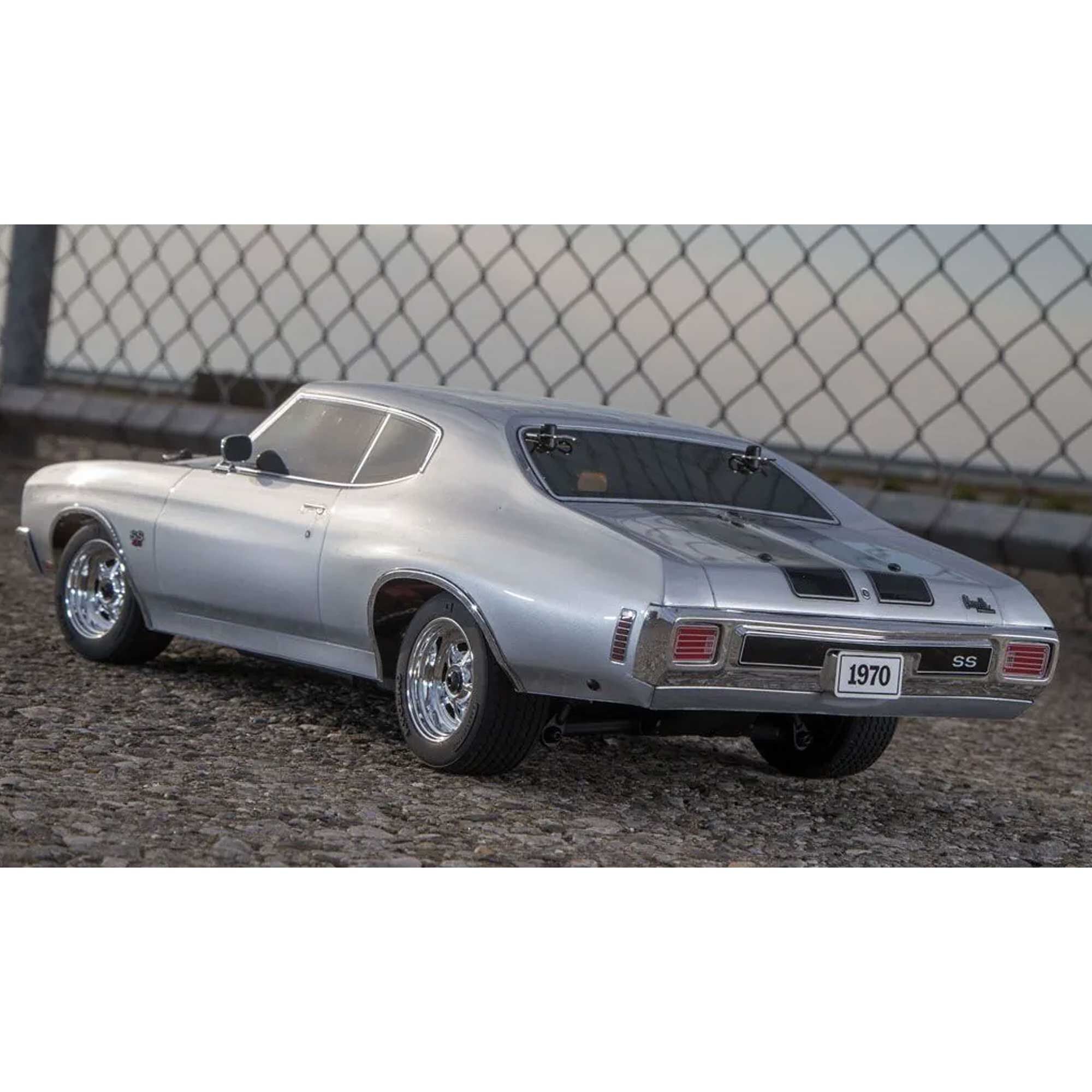

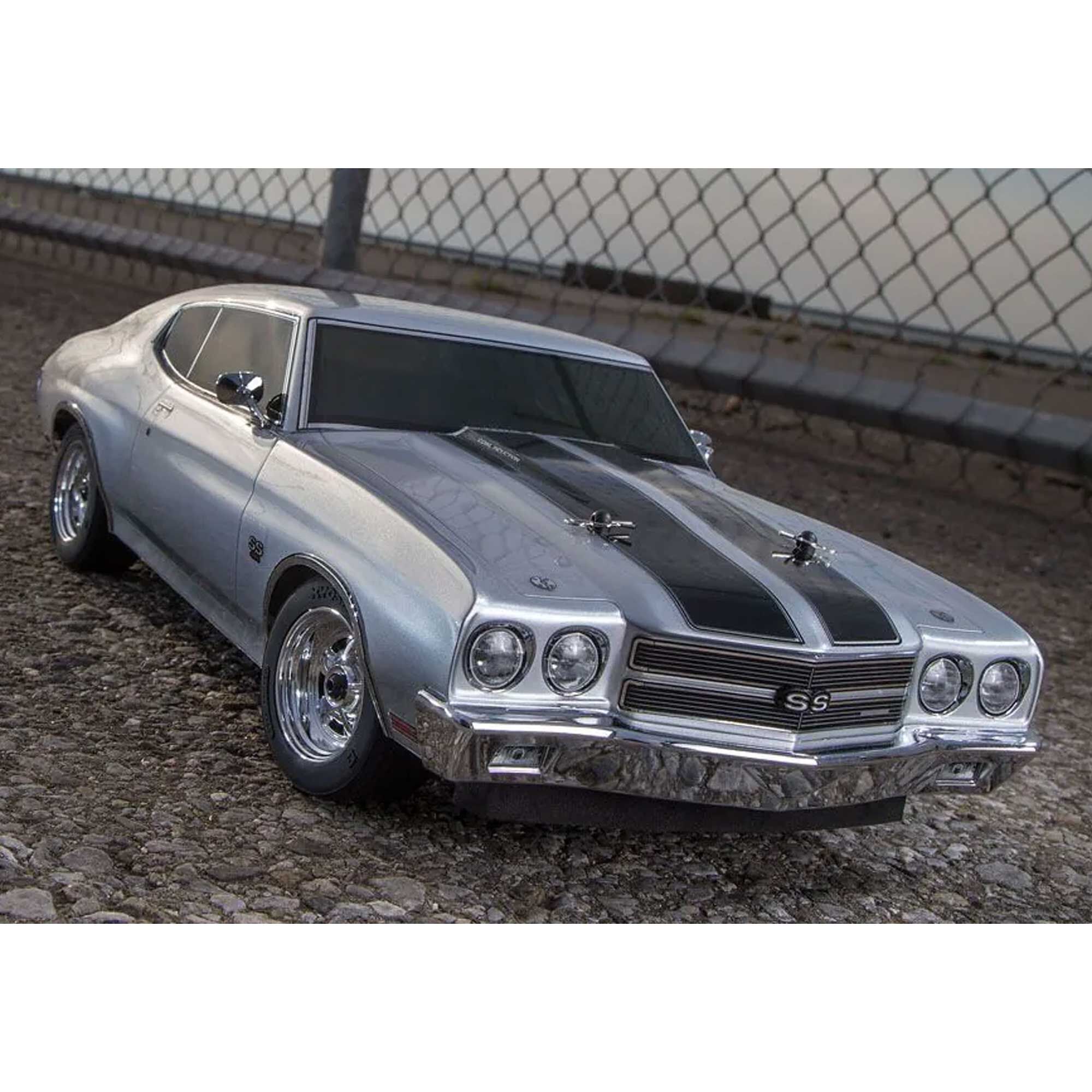

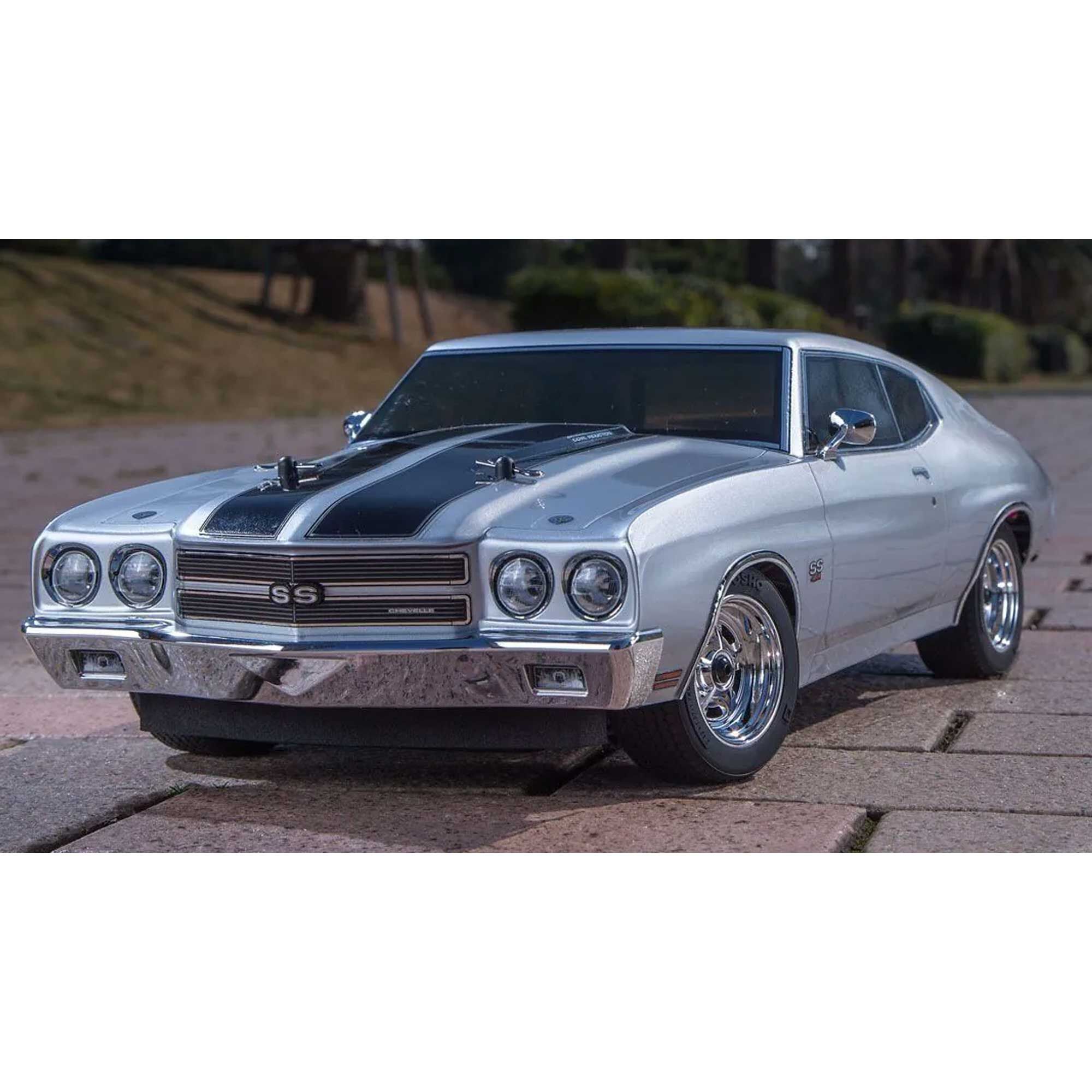

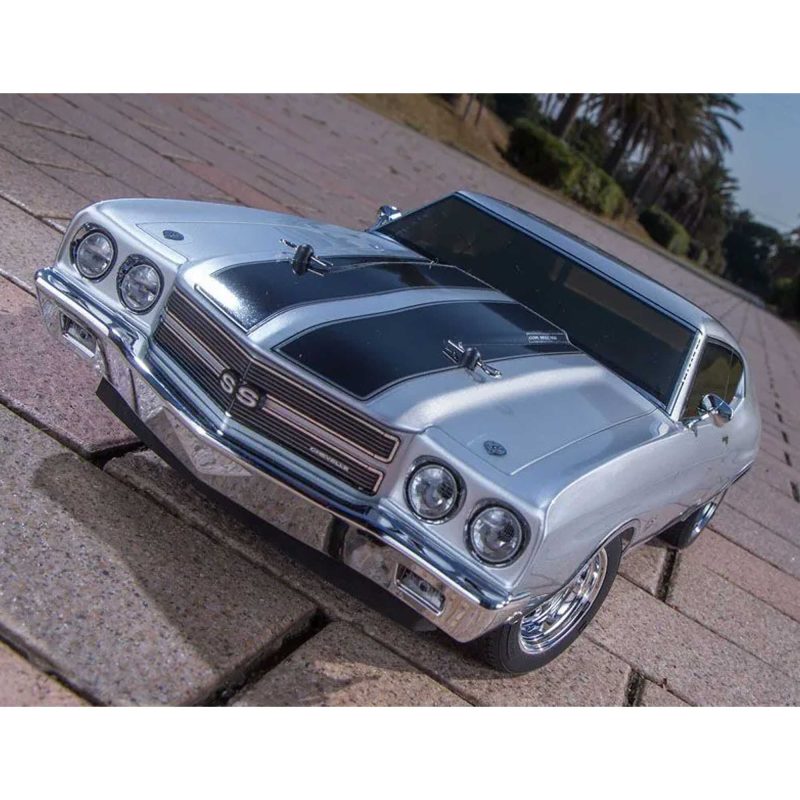

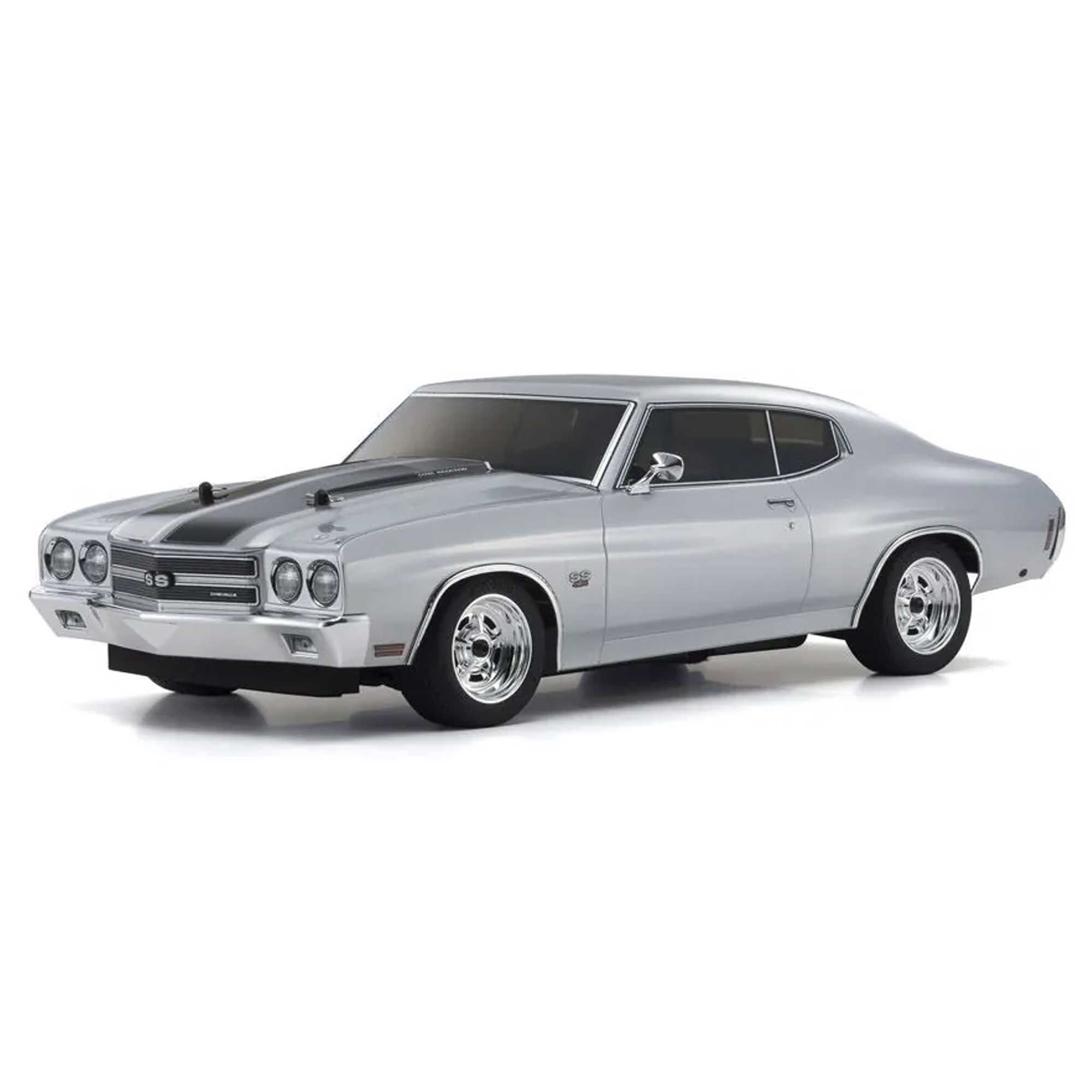

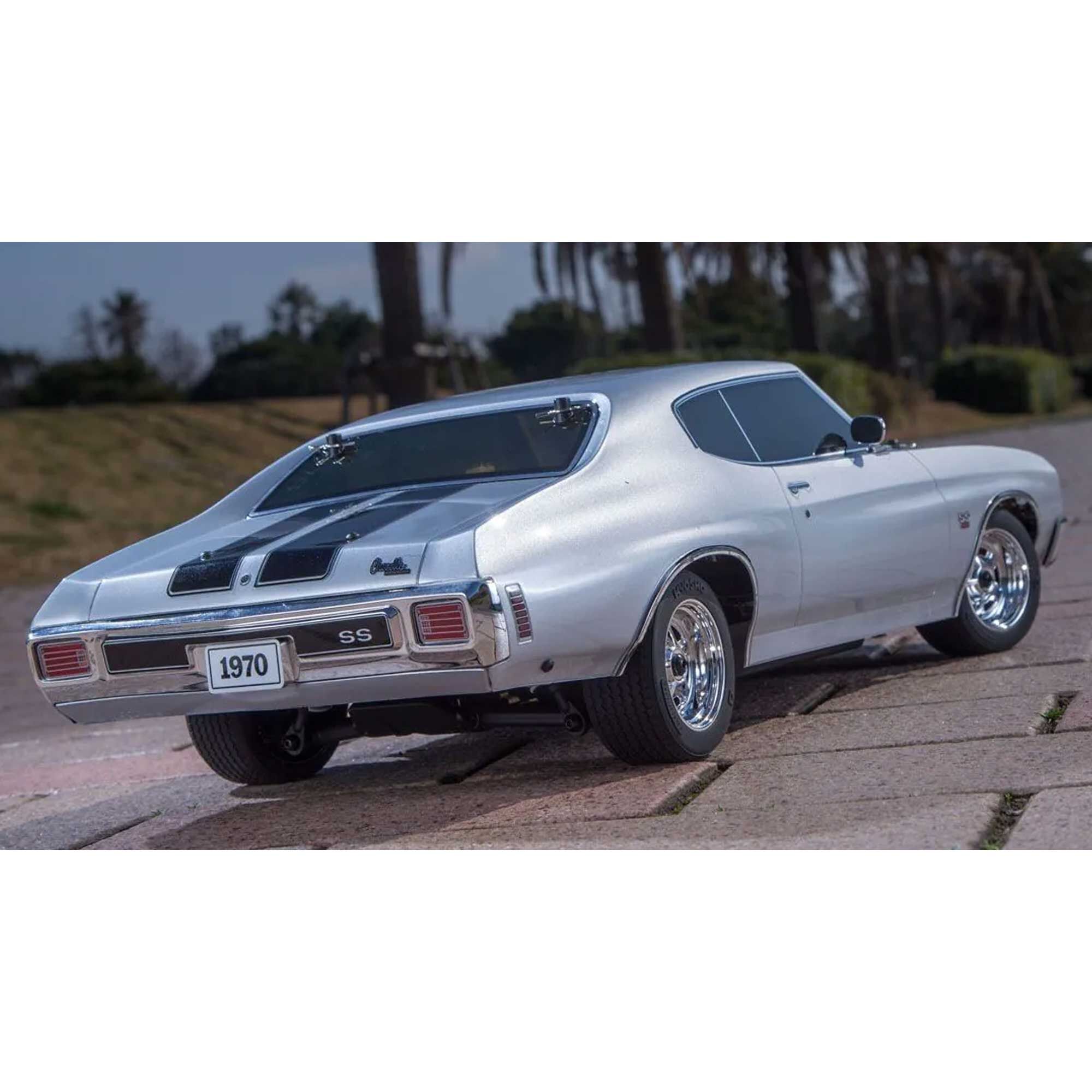

- Includes completely finished body with color scheme and decals applied.
- Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.
- Performance can be further enhanced by installing various optional parts.
Specs
Product Specs
Approximate Assembly Time
No assembly required |
Ball Bearings
Full bearings in driveline |
Battery
2S LiPo, or 7.2 – 8.4V NiMH or NiCd (sold separately) |
Body
Trimmed and painted |
Bushing Material
Metal |
Charger
Sold Separately |
Chassis
FAZER plastic bathtub type |
Completion Level
Ready-To-Run |
Differential
Sealed bevel gear type |
Drivetrain
4WD |
Final Drive Ratio
6.5:1 |
Ground Clearance
Approximately 0.39″ (10mm) |
Manufacturer #
34416T1C |
Max Battery Dimensions
6.5 x 2.1″ (165 x 54mm) |
Motor Size
550 |
Motor Type
Brushed |
Outer Diameter
2.6 in (66mm) |
Pinion
32T |
Power Type
Electric |
Product Height
5.2″ (132mm) |
Product Length
19.1″ (486mm) |
Product Weight
3.3lbs (1500g) |
Product Width
7.9″ (200mm) |
Radio
Included |
Receiver
Included |
Scale
1/10 |
Servos
Kyosho KS202W waterproof |
Shock Type

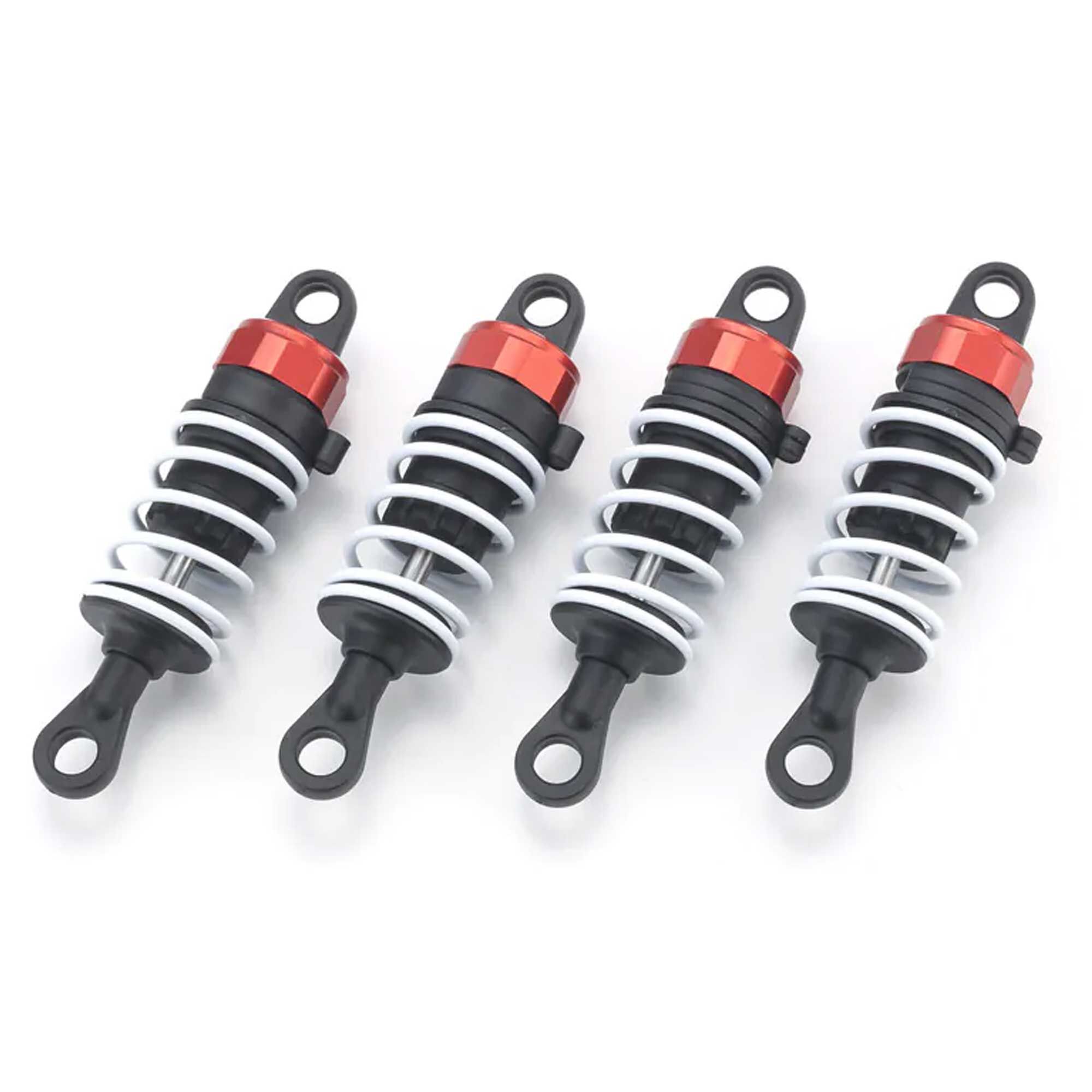

Oil-filled coil over, rebuildable |
Speed Control
Included |
Spur Gear
68T |
Suspension
Four wheel independent |
