Overview

Introduction

In 2019 the world’s most popular mini RC series, known as the Kyosho MINI-Z, celebrated more than 20 years of unmatched performance and scale realism in the hobby-grade RC category. The continuous pursuit of performance and evolution has led to the creation of a completely-new ??MINI-Z 4×4′ design that delivers an all-new driving experience for RC fans of all stripes, with superior overall design, driving performance and high-quality injection-molded scale body construction. A significant feature of the MINI-Z 4×4 series is the greater emphasis of body detail and quality of finish that even surpasses existing benchmarks set by the MINI-Z. The body is also molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is 8 x AAA alkaline batteries (sold separately). Enjoy driving under any conditions, from normal driving to rock crawling while appreciating the stunning visual appearance. The Kyosho Mini-Z 4×4 is the only mini crawler that delivers a full range of crawling performance in a smaller package.

Since 1948 this British cross-country legend has been active for more than 60 years. As the saying goes all good things come to an end, and the Defender 90 Adventure is one of three models created to commemorate the end of the Defender era. As its name suggests, this is one of the toughest models in the series and is fully equipped for the great outdoor adventure.

  • Highly-Detailed Body And a Completely New 4×4 Chassis Design
  • Uses a Ladder Frame Design With Steel Vertical Plates
  • Solid Front And Rear Axles Feature Metal Ring And Pinion gears
  • Coil Over Shocks Feature a 360 Degree Spring Retainer
  • The Gearbox Features Molded Covers, Ball Bearings, And 6 Pinion Gears

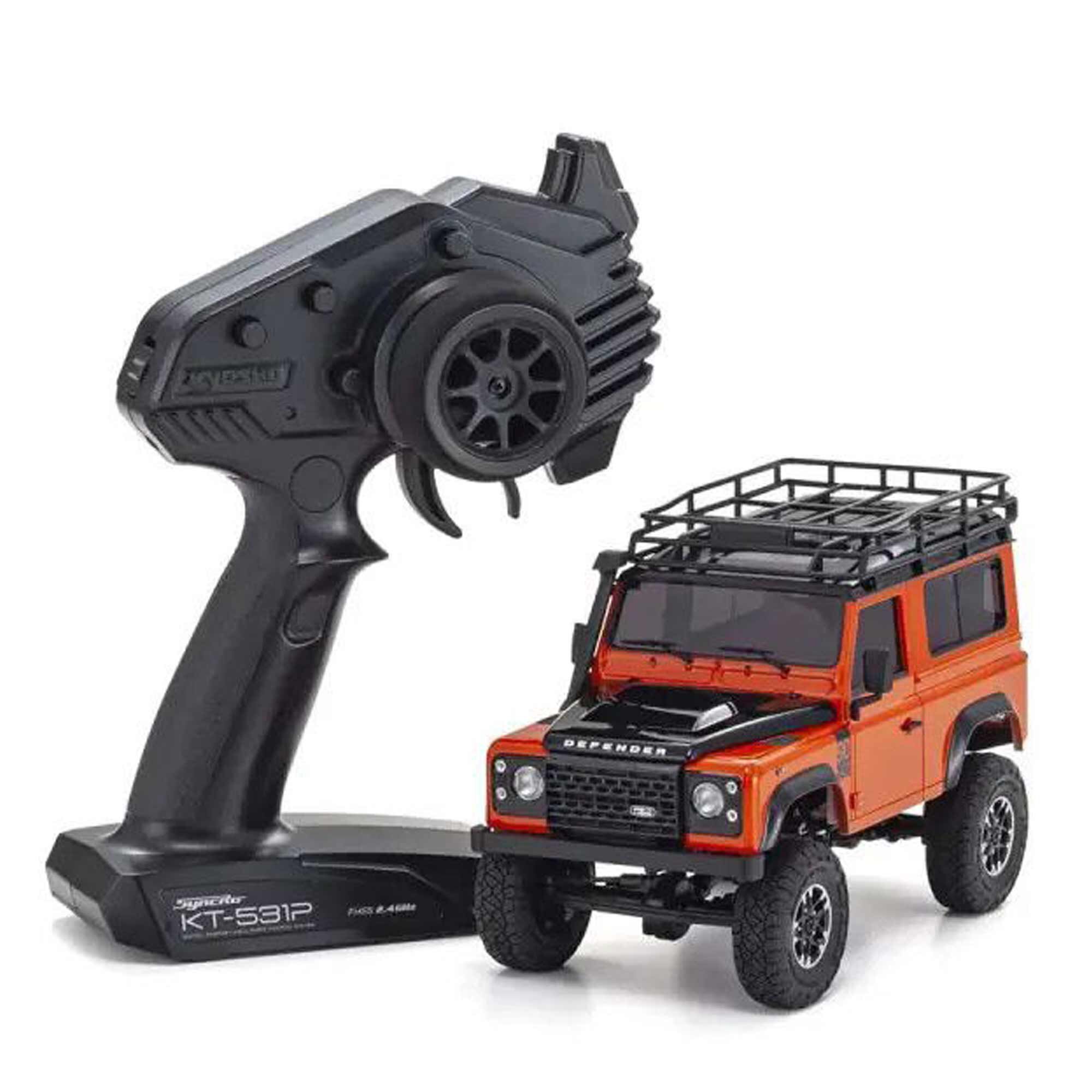

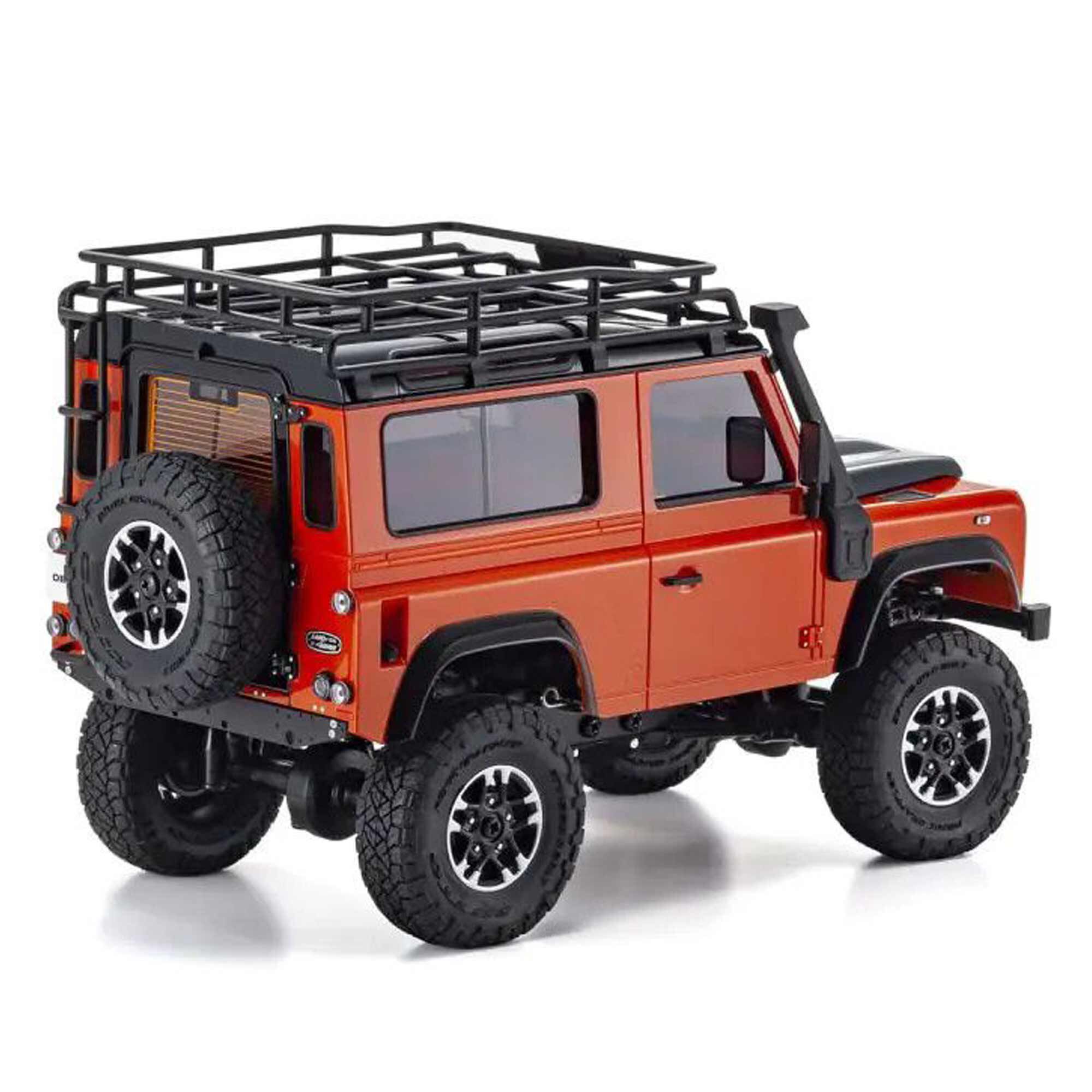

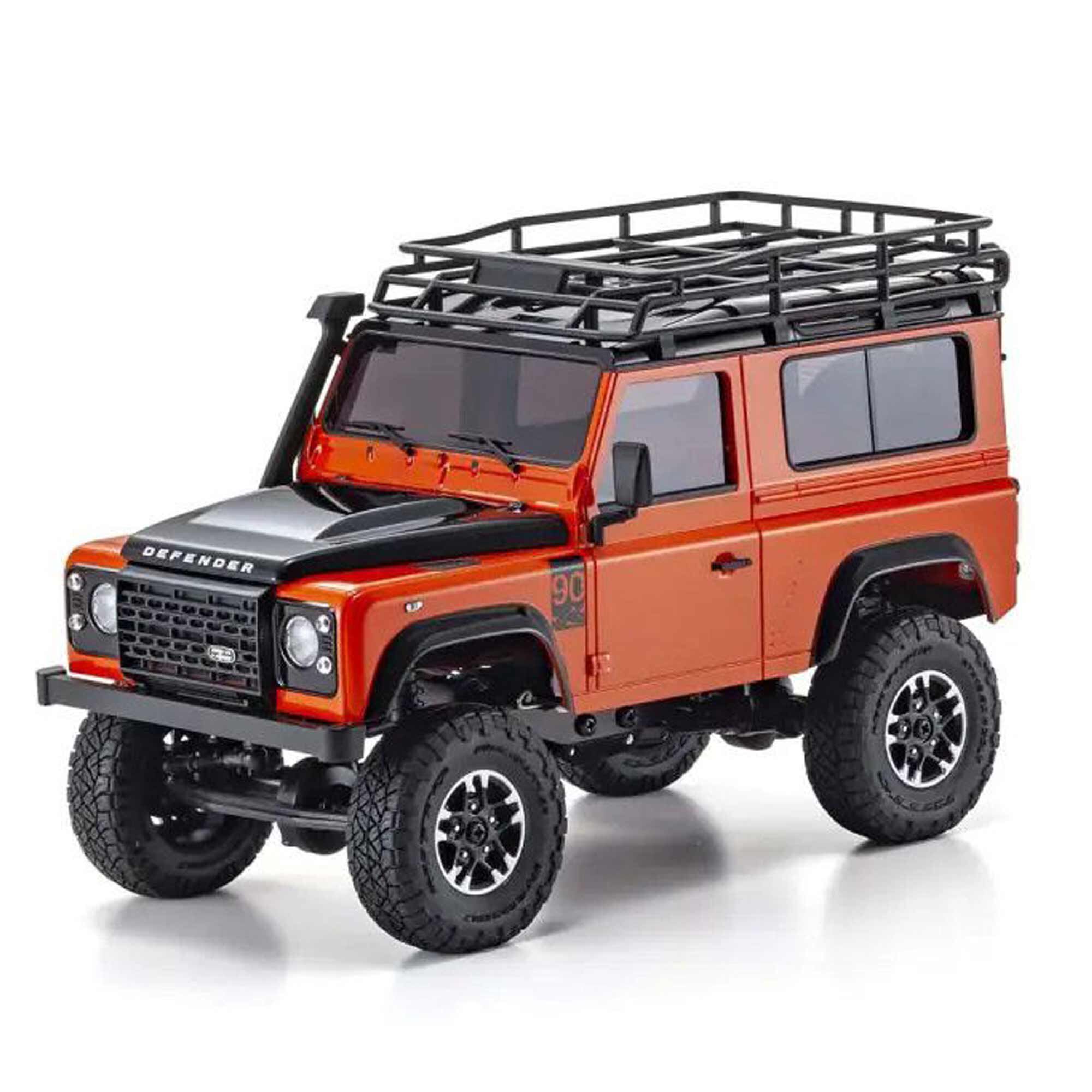

Defender 90 Adventure

Defender 90 Adventure

The combination of the highly-detailed body and a completely new 4×4 chassis design opens up new levels of performance, well beyond anything RC enthusiasts have ever seen from a mini crawler. The Defender 90 Adventure is one of three models created to commemorate the end of the Defender era. As its name suggests, this is one of the toughest models in the series and is fully equipped for the great outdoor adventure. With black over-fenders, front grille, roof rack, ladder, and snorkel are immaculately reproduced in a model that rests on the palm of your hand.

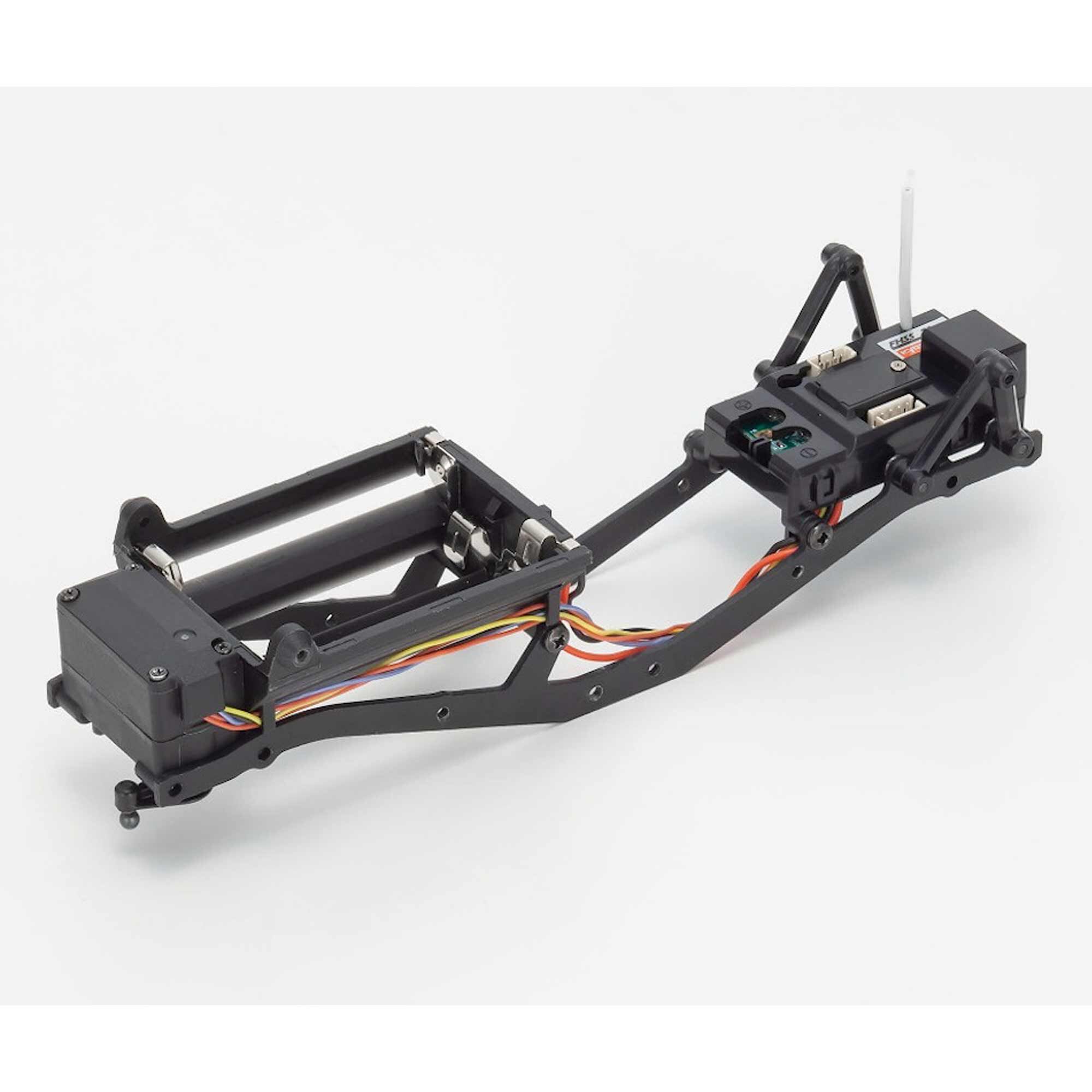

Ladder Frame

Ladder Frame

The Mini-Z 4X4 uses a ladder frame design with steel vertical plates to deliver the ultimate balance of rigidity and flex for superior performance and durability.

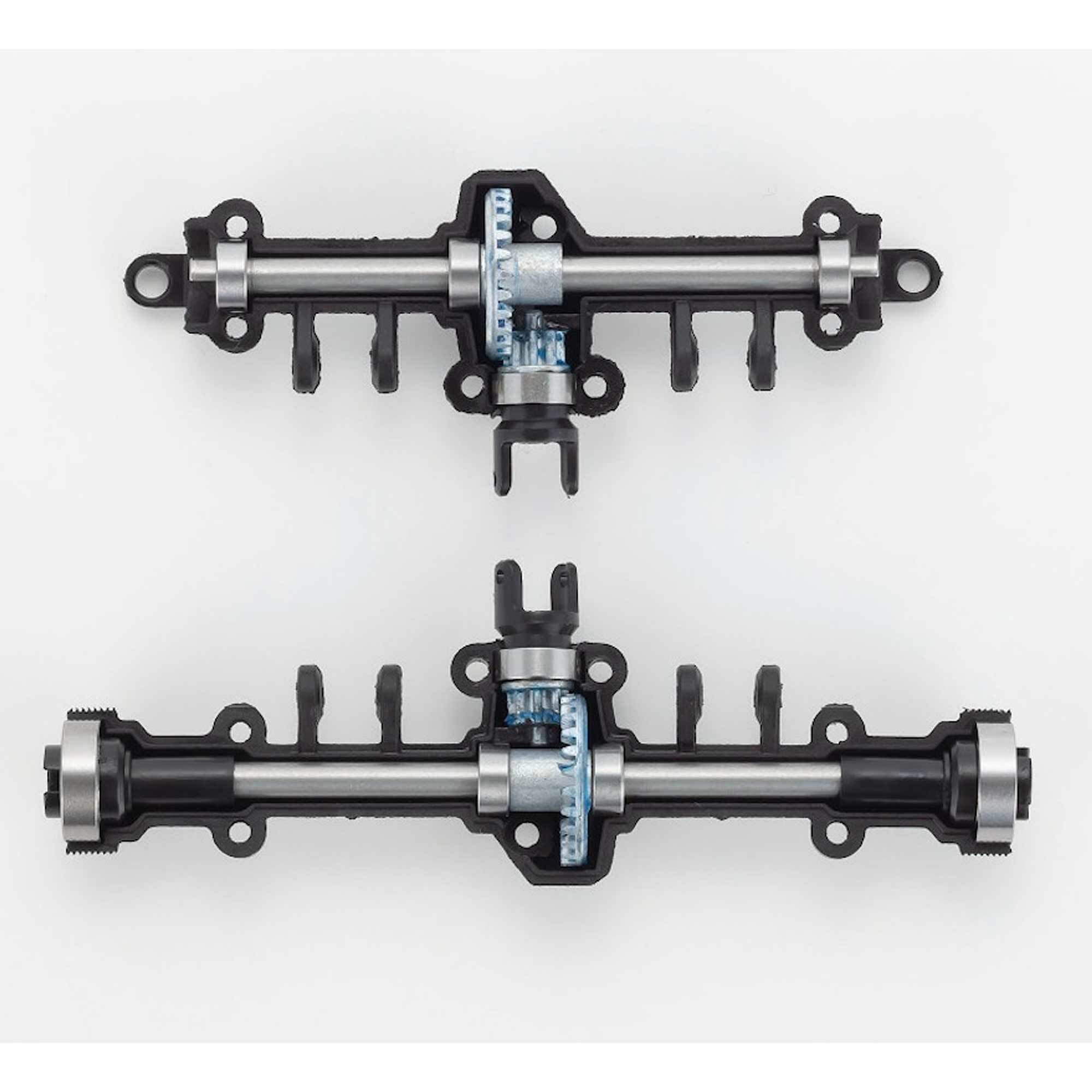

Front and Rear Axles

Front and Rear Axles

Solid front and rear axles feature metal ring and pinion gear for durability and consistent performance.

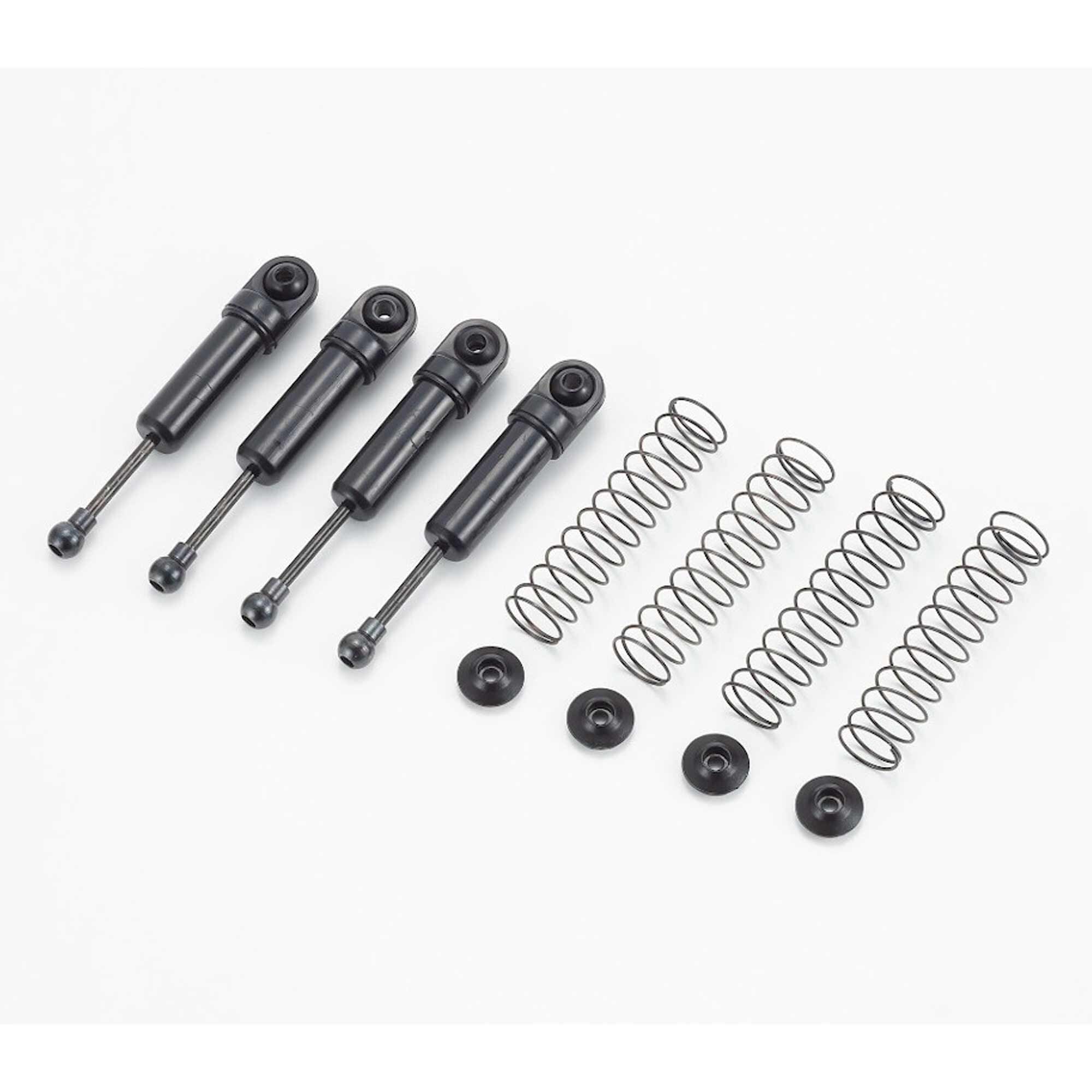

Coil-Over Shocks

Coil-Over Shocks

Coil over shocks feature a 360 degree spring retainer that cannot be lost on the trail and keep the springs where they need to be while operating at the limits of the suspension.

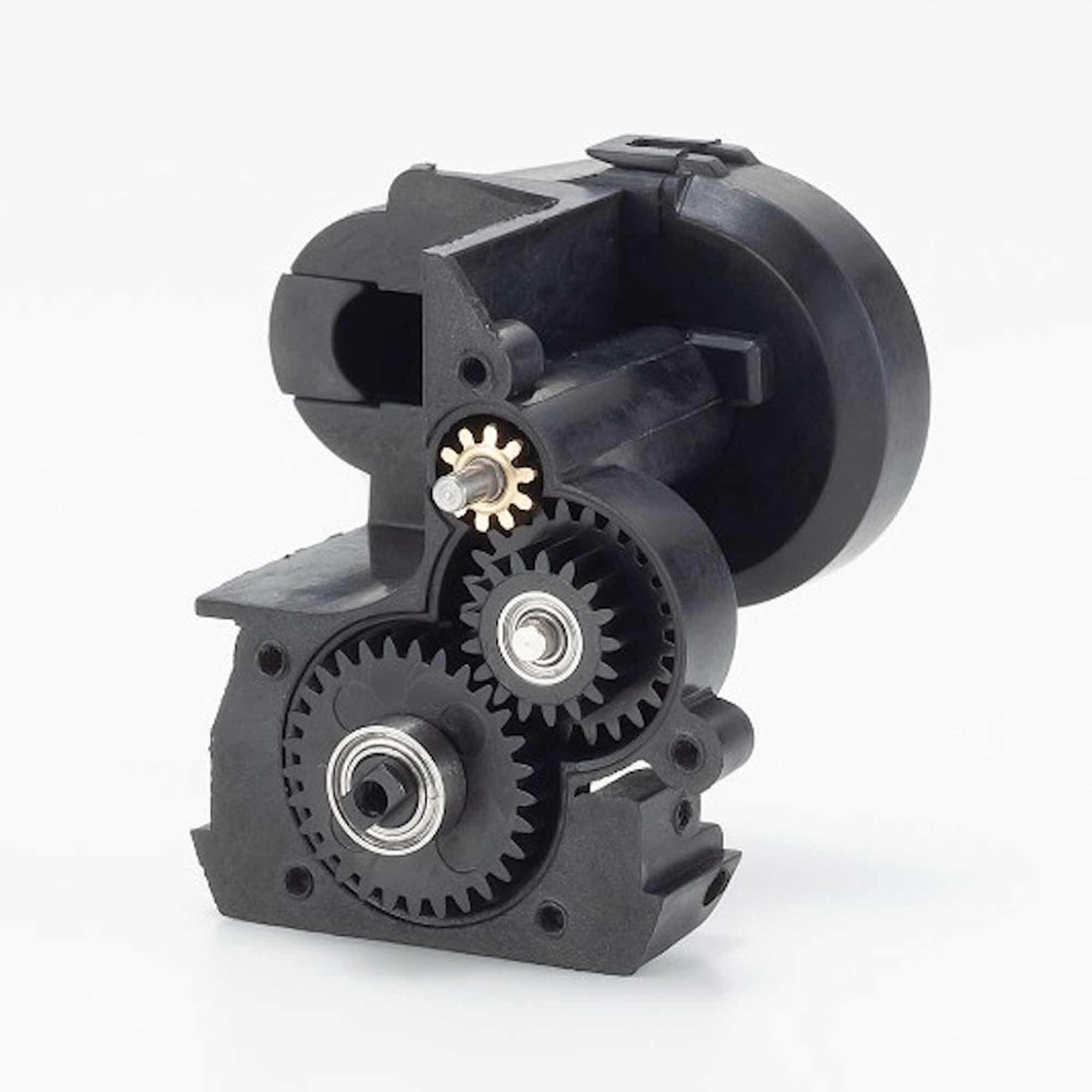

Gearbox

Gearbox

The gearbox features molded covers, ball bearings, and 6 pinion gears that allow a full range of adjustment according to your chosen terrain. As with all Mini-Z models the gear mesh is easily set using the provided spacers.

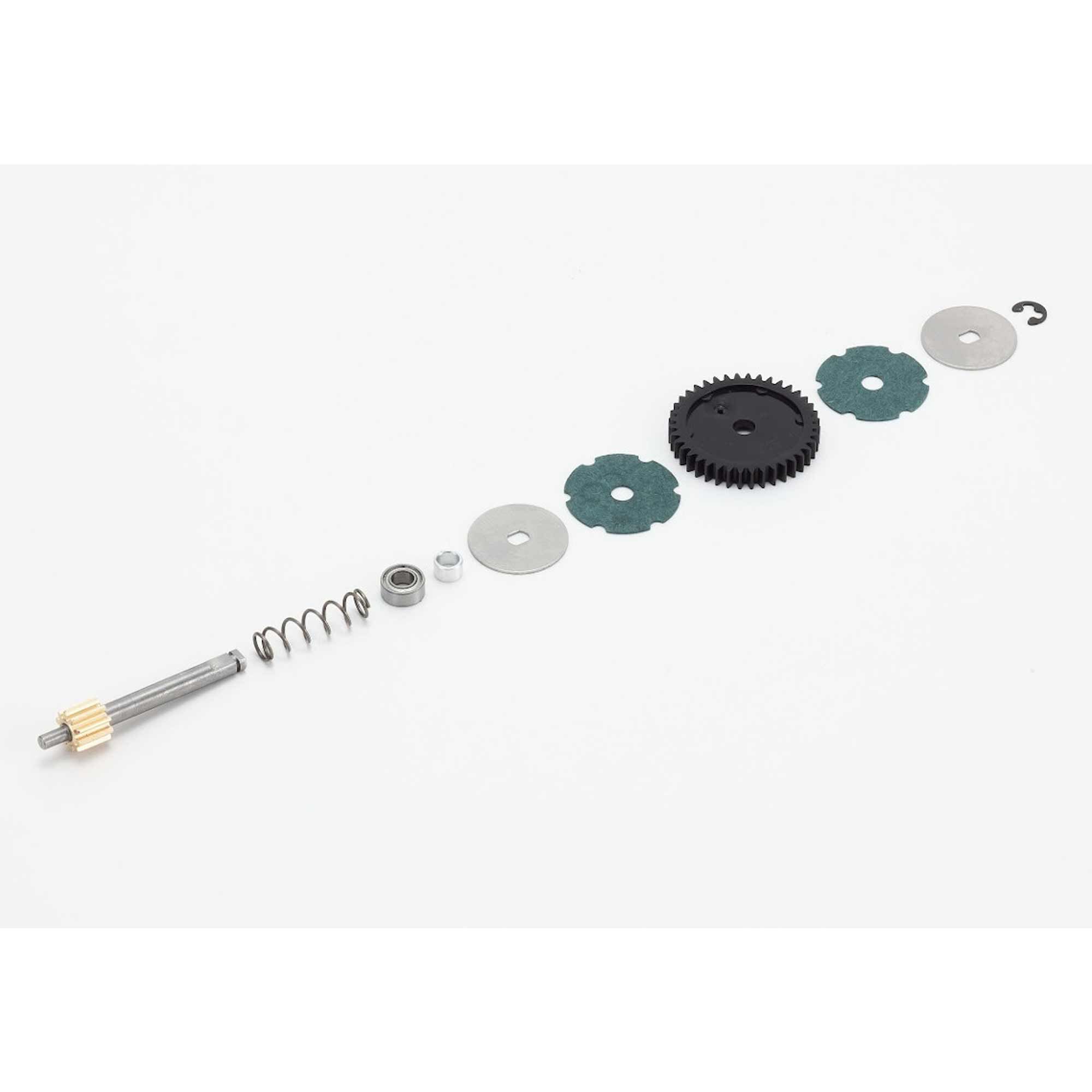

Slipper Clutch

Slipper Clutch

A standard slipper clutch protects the drive system and features a metal shaft and primary gear for durability.



Specs

Product Specs

Ball Bearings
Full Ball Bearings
Battery
Sold Separately
Body
Pre-Painted Hard Plastic
Charger
Sold Separately
Chassis
MX-01
Completion Level
Ready-To-Run
Differential
Gear Diffs
Drive Type
Forward/Brake/Reverse
Drivetrain
4WD
Front Track
2.86″ (72.7mm)
Gear Ratio
Adjustable
Motor Size
130
Motor Type
Brushed
Power Type
Electric
Product Height
4.4″ (112 mm)
Product Length
7.31″ (186 mm)
Product Weight
8.81 oz (250g)
Product Width
3.26″ (83 mm)
Radio
Included
Rear Track
2.86″ (72.7mm)
Receiver
Included
Scale
1/28
Servos
Included
Shock Type
Coil-Over
Speed Control
Included
Suspension
Solid Axle
Vehicle Type
Rock Crawler
Wheelbase
4.33″ (110 mm)
Weight 5 kg
