Overview

Perfect for 3D, precision and sport flying!

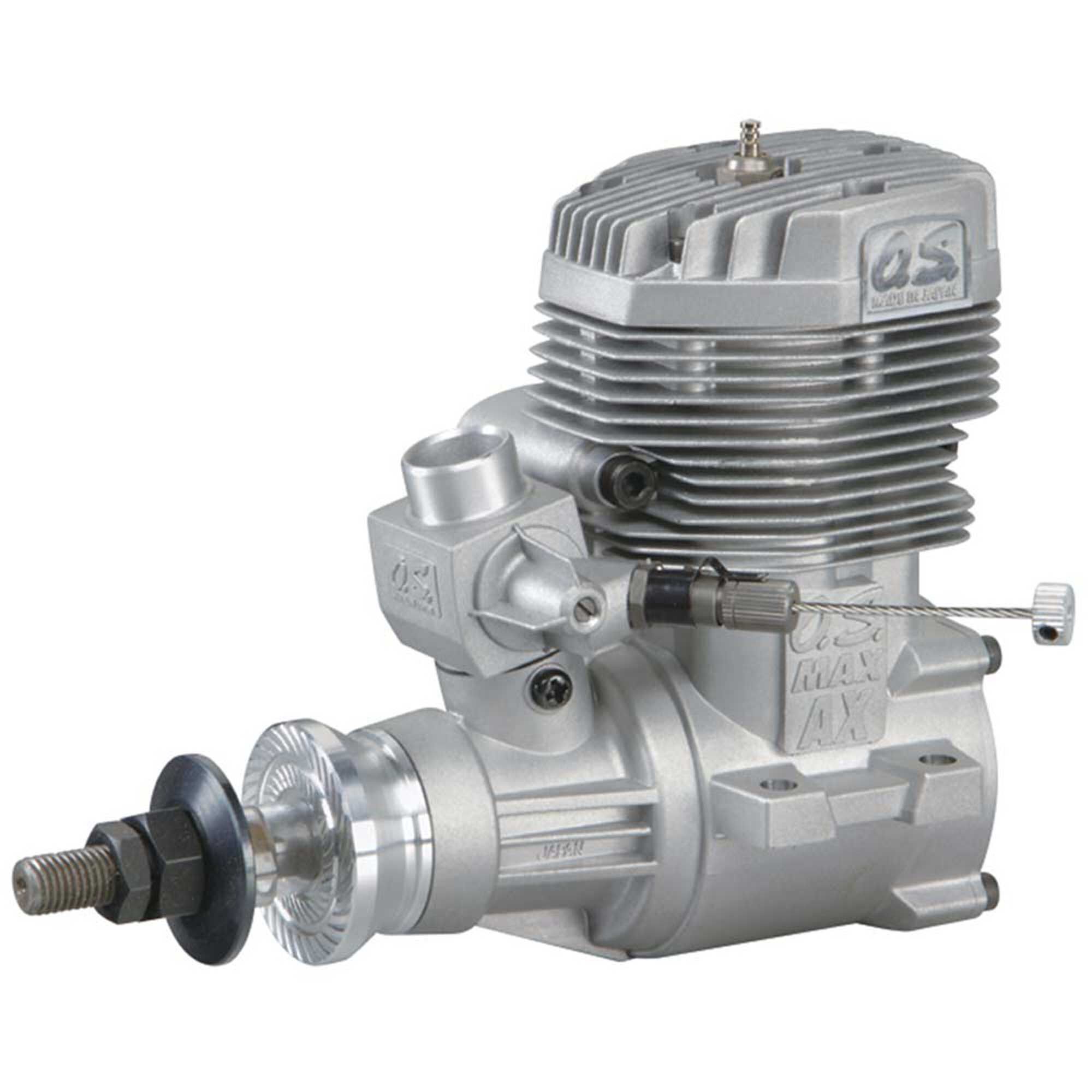

Admit it: if you could ratchet up horsepower without having to increase the mounting space, you’d probably jump at the chance. Well, here it is. The 120AX boasts 25% more displacement than a .91 (think of the bigger props you can swing!) — and bolts into the same space, with almost no extra weight. Here’s a golden opportunity to boost your airplane’s flying capabilities — with almost no modification!
  • Model Application: Ideal for 3D, Precision and Sport flying
  • Mounting Application: Mounts in same space as the .91FX
  • Construction: Steel piston ring and liner, aluminum piston
  • Carburetor: 70D with rearward angled needle valve for safety
  • Glowplug: O.S. #8 supplied with engine, A5 (OSMG2693) will also work

Specs

Product Specs

Bore
1.197″ (30.4mm)
Crankshaft Threads
UNF5/16-24
Crankshaft Type
Threaded
Cylinder Type
Steel liner and piston
Cylinders
Single
Displacement
1.218 cu in (19.96cc)
Engine (Only) Weight
20.88 oz (647 g)
Plug Type
O.S. #8
Power Type
Glow
Product Height
4.3″ (109.2mm) from bottom of crankcast to top of cylinder head
Product Length
3.9″ (100.2mm)
Product Width
2.6″ (67mm) at mounting tabs
Prop Range
15×10-12, 16×8-10
RPM Range
1,800 – 9,500 RPM
Starter Type
Hand Held Starter
Stroke
1.083″ (27.5mm)
Weight 5 kg
