Overview

Introduction

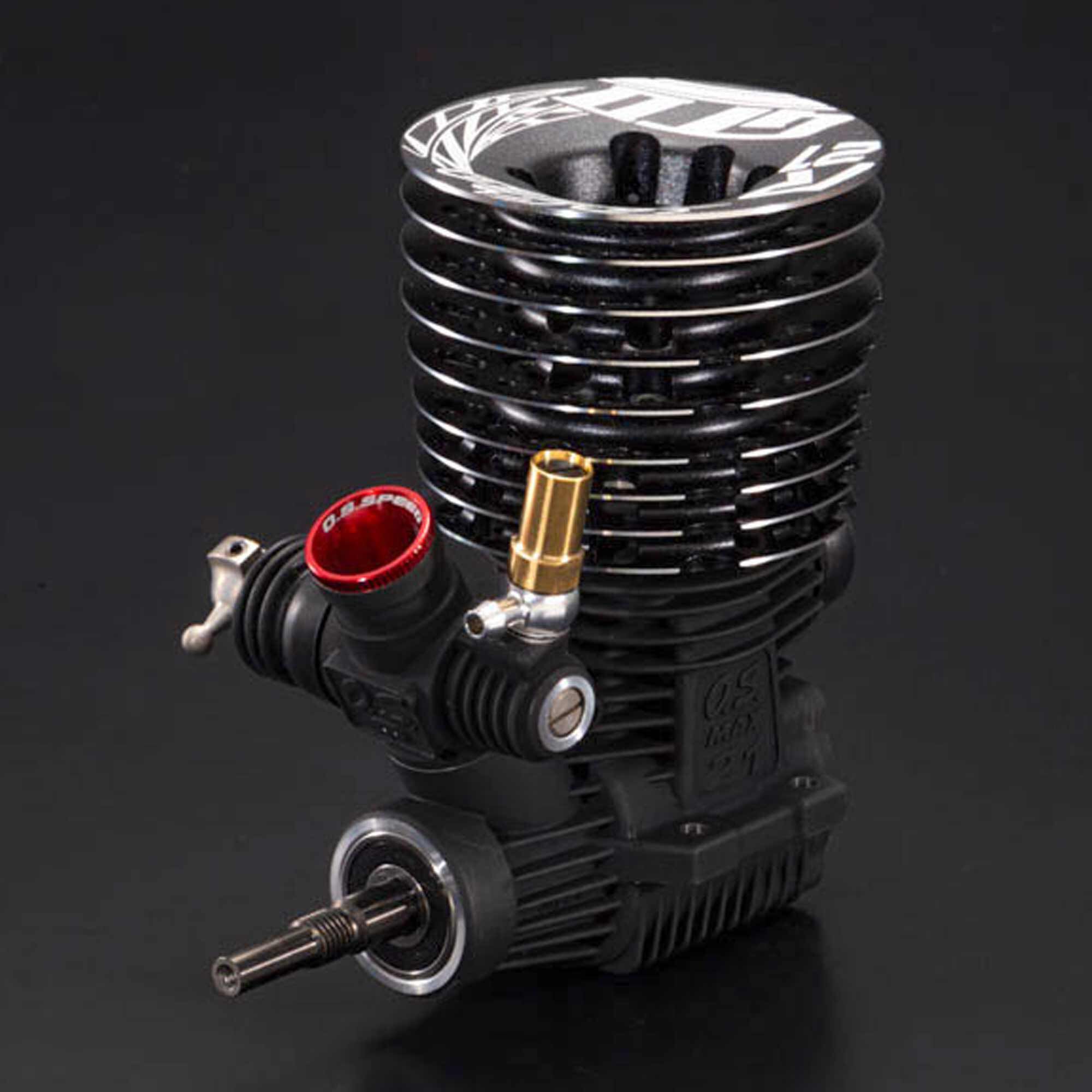

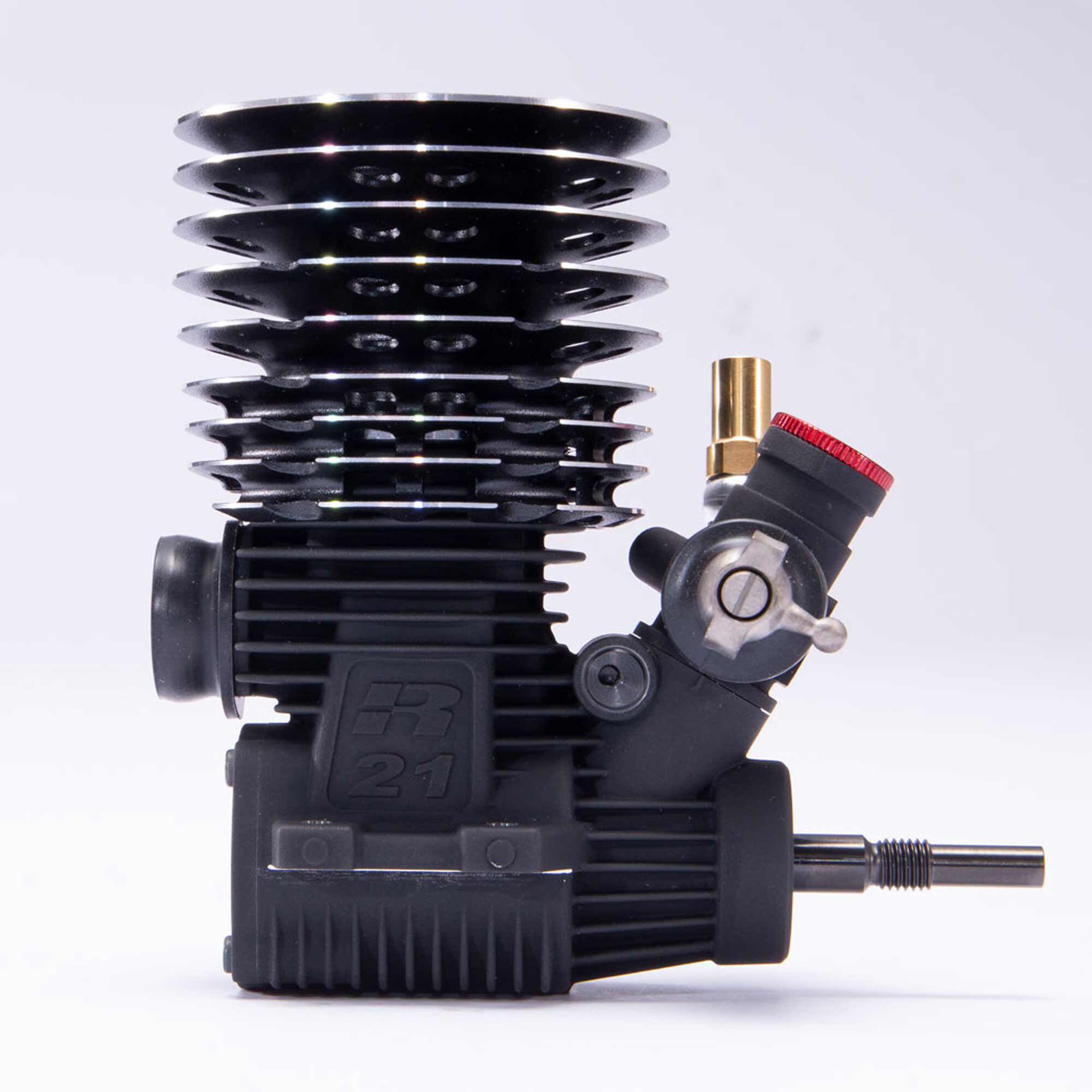

While inheriting the smooth feeling and good fuel efficiency of the previous model O.S.SPEED R21GT, which was well received in the European market, the home of GT cars, the power feeling in the medium and low speed ranges has been improved by revising the counterbalance of the crankshaft. In addition, the newly designed inner head improves idling performance, and an inner head O-ring is used to reduce vibration and improve dust resistance. The outer head has been made lighter, and has evolved into the O.S.SPEED R21GT II with attention to the detail. O.S. Engines also has a combo set with TB01 (EFRA2042) tuned silencer and MB01-70 manifold.

  • Inner Head Improves Idling Performance
  • Outer Head Has Been Made Lighter
  • Crankshaft Uses Two Tungsten Counterweights
  • 5 Scavenging Ports And 3 Exhaust Ports
  • Equipped With A Double-Adjust Type 22E(B) GT Carburetor

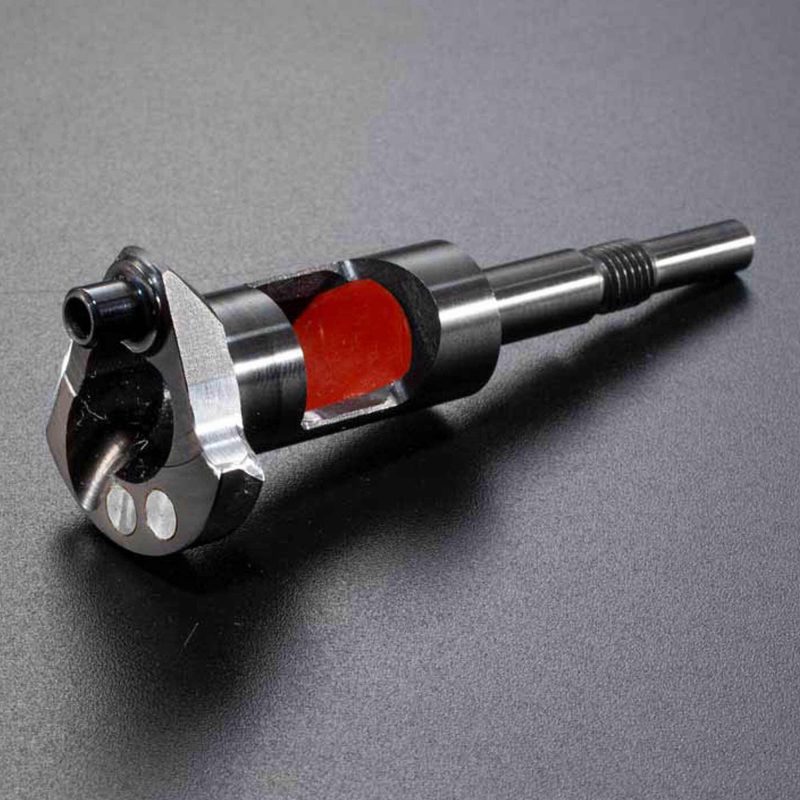

Crankshaft

Crankshaft

The crankshaft uses two tungsten counterweights. We have optimized the mass balance by reviewing the detailed dimensions.

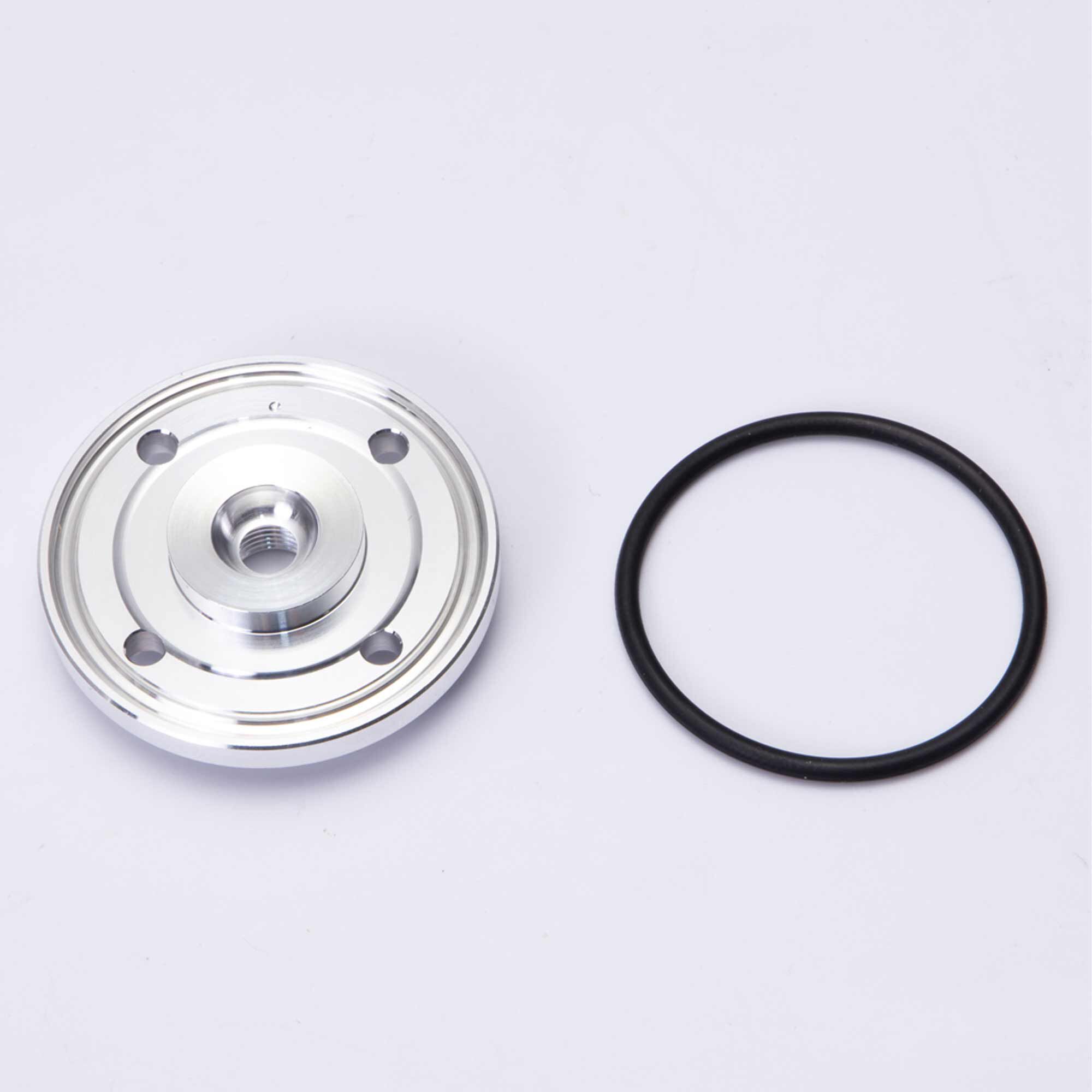

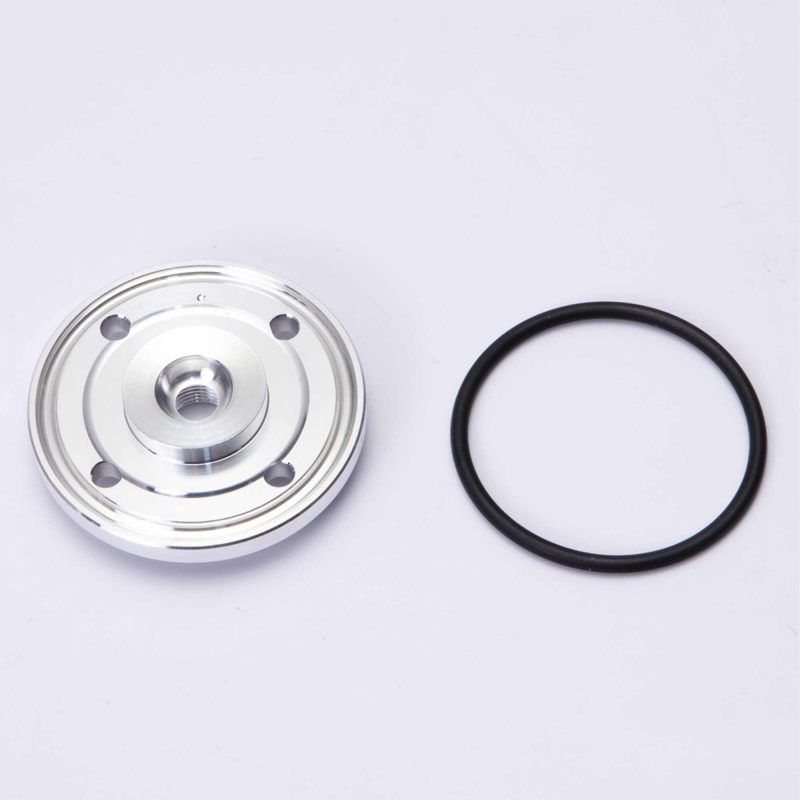

Inner Head

Inner Head

The inner head has been revised. Improved low and medium speed feeling and idling performance. An O-ring is also used to reduce vibration and improve dust resistance.

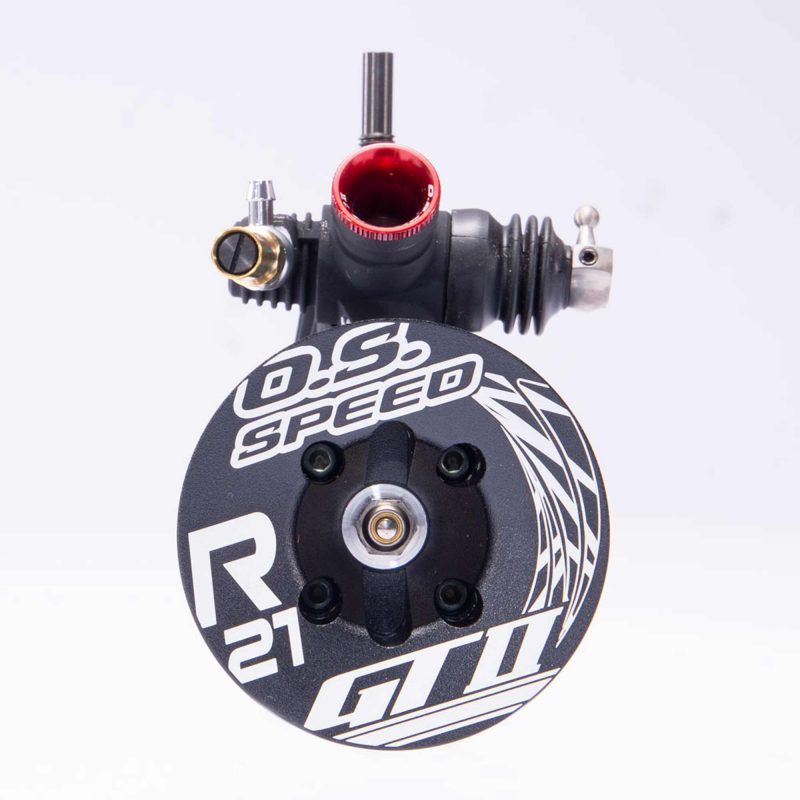

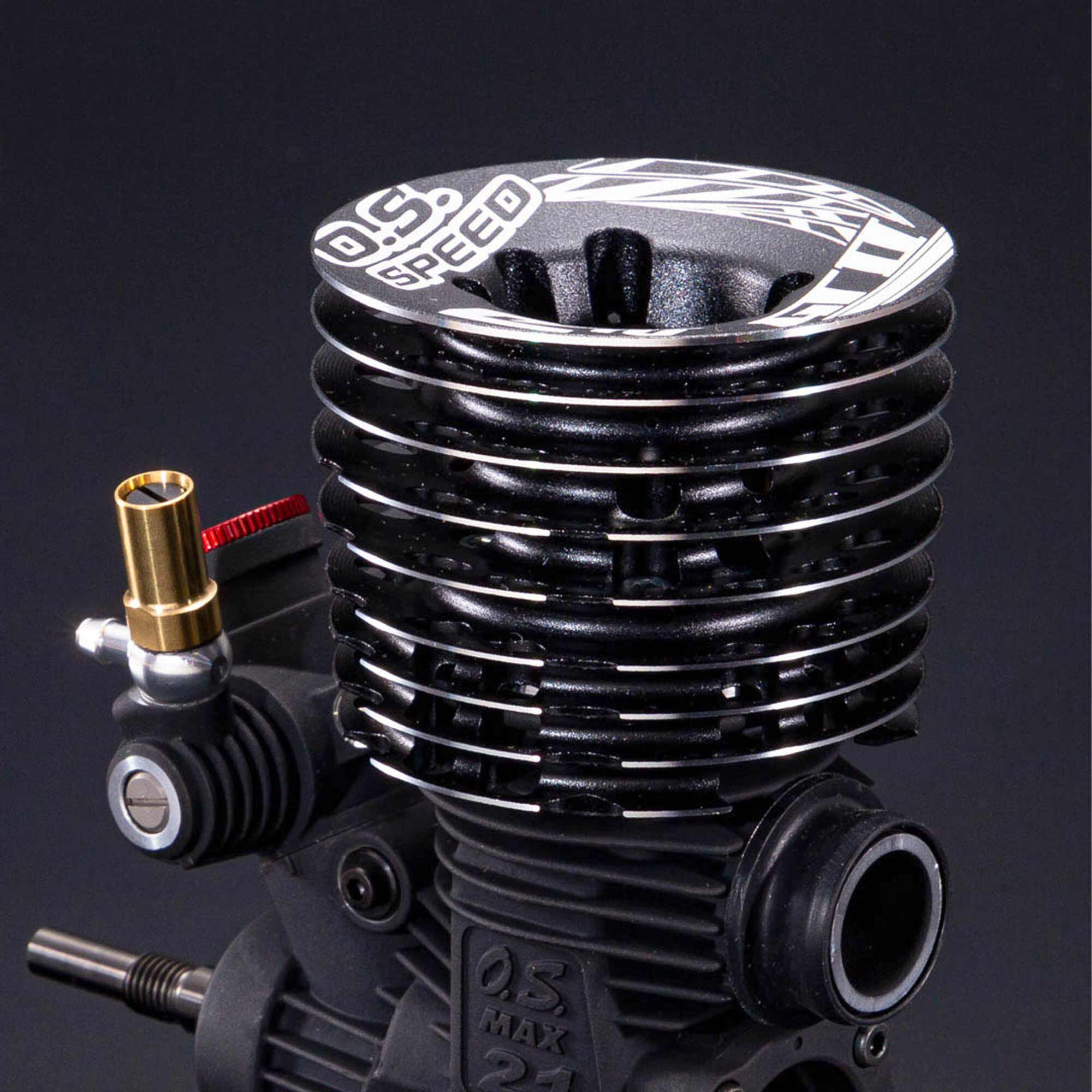

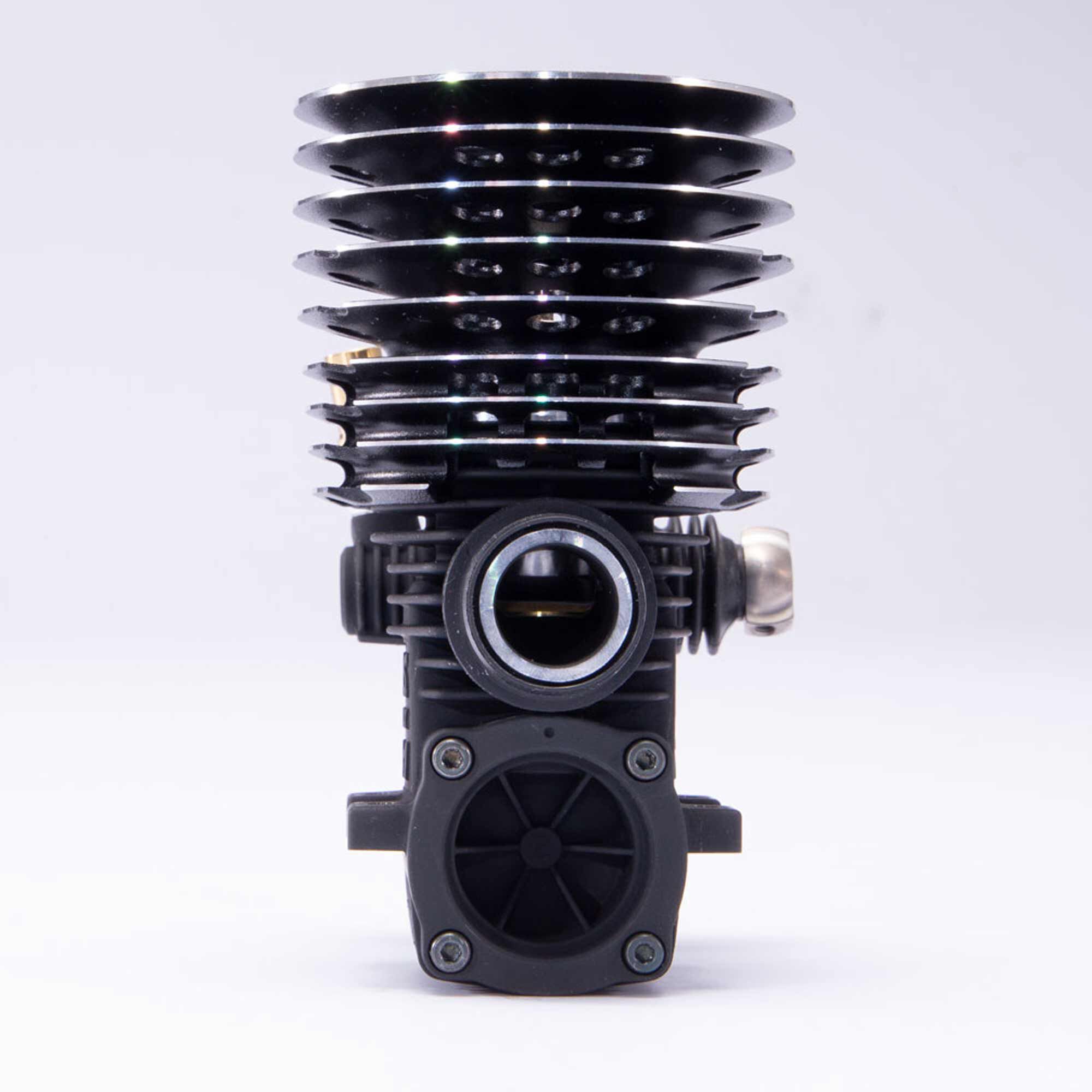

Outer Head

Outer Head

The weight of the new outer head, compared to previous model has been reduced. Fins of outer head has been machined.

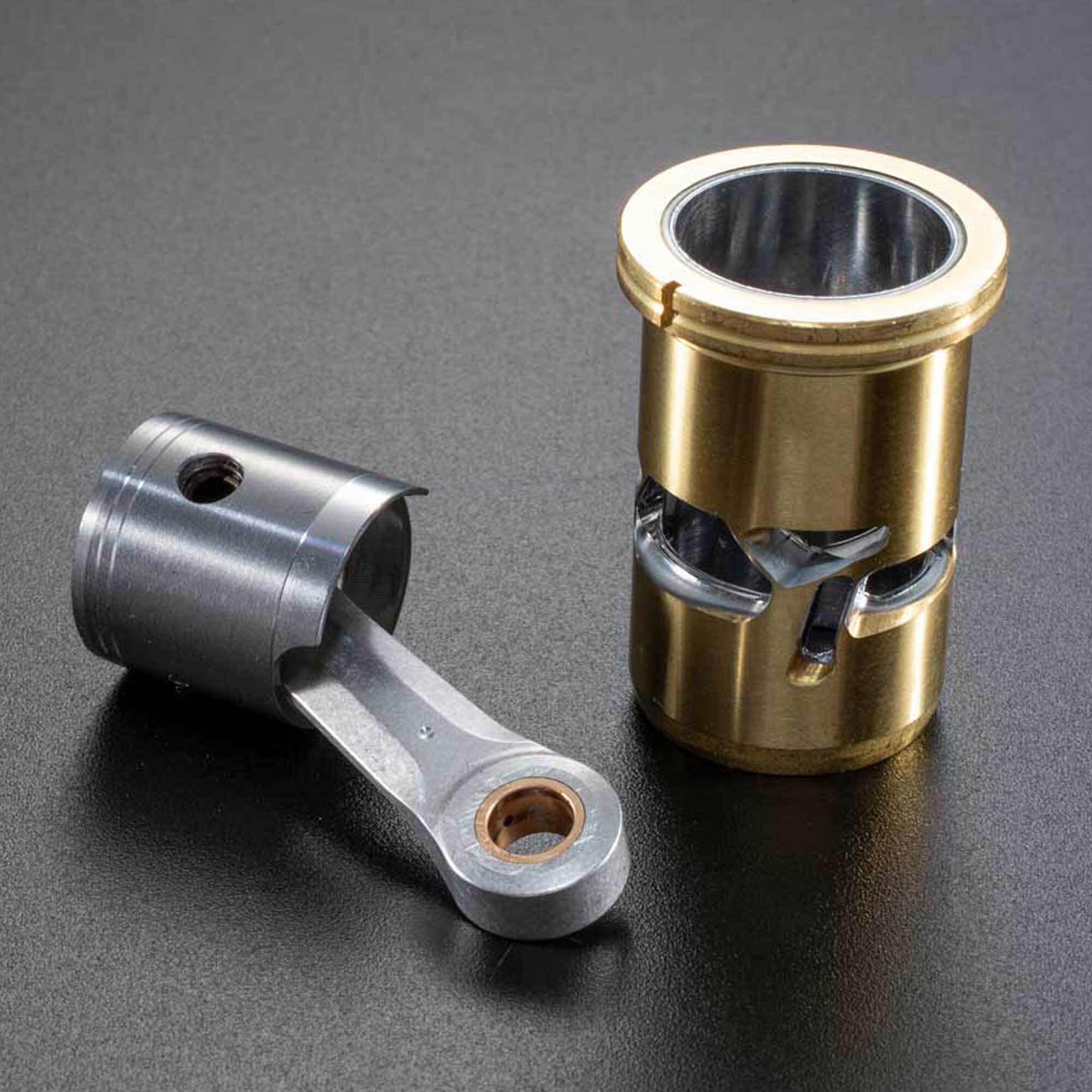

Ports

Scavenging and Exhaust Ports

Equipped with 5 scavenging ports and 3 exhaust ports to meet IFMAR regulations.

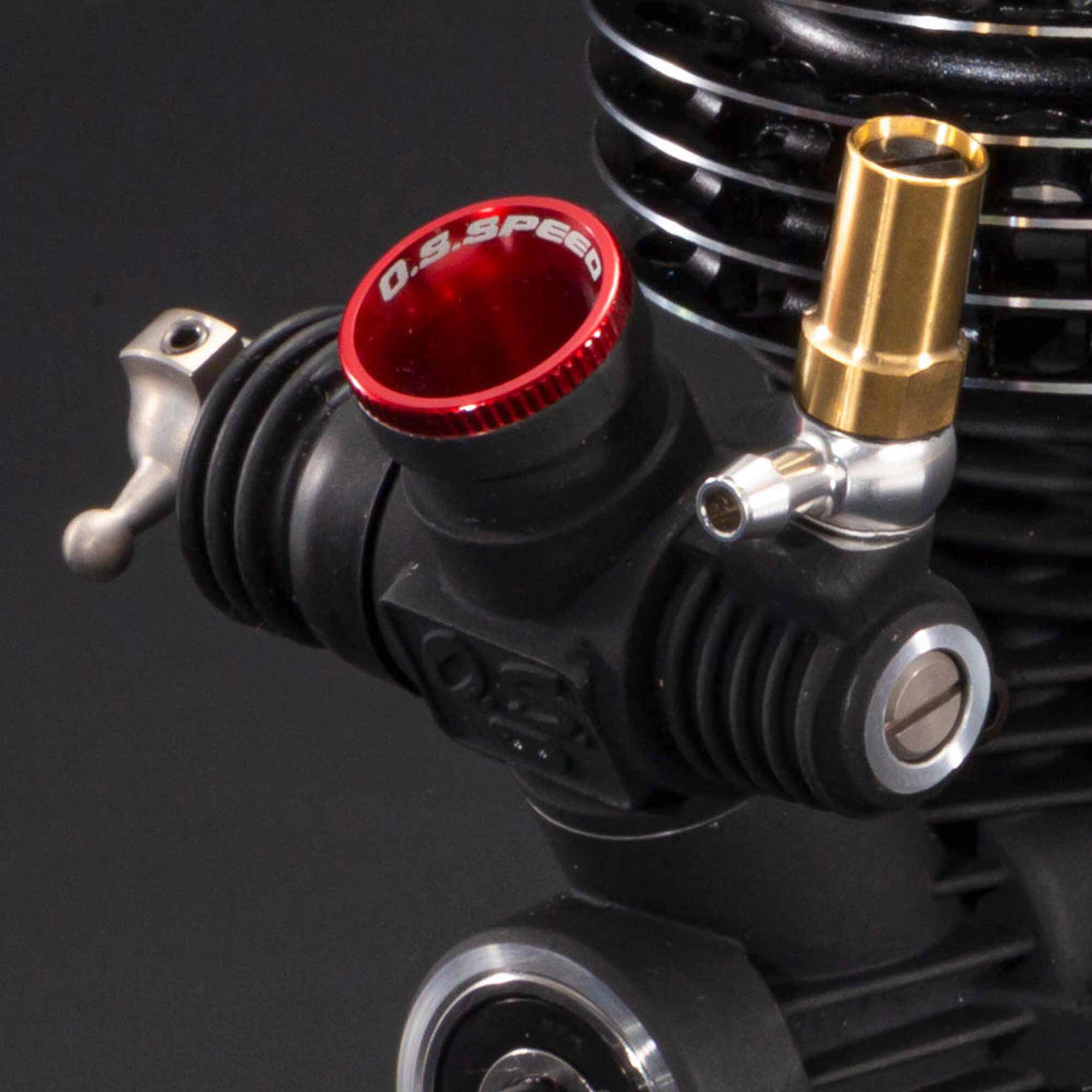

Carburetor

Carburetor

Equipped with a double-adjust type 22E(B) GT carburetor. The new venturi is 7.0MM(RED) AL2.

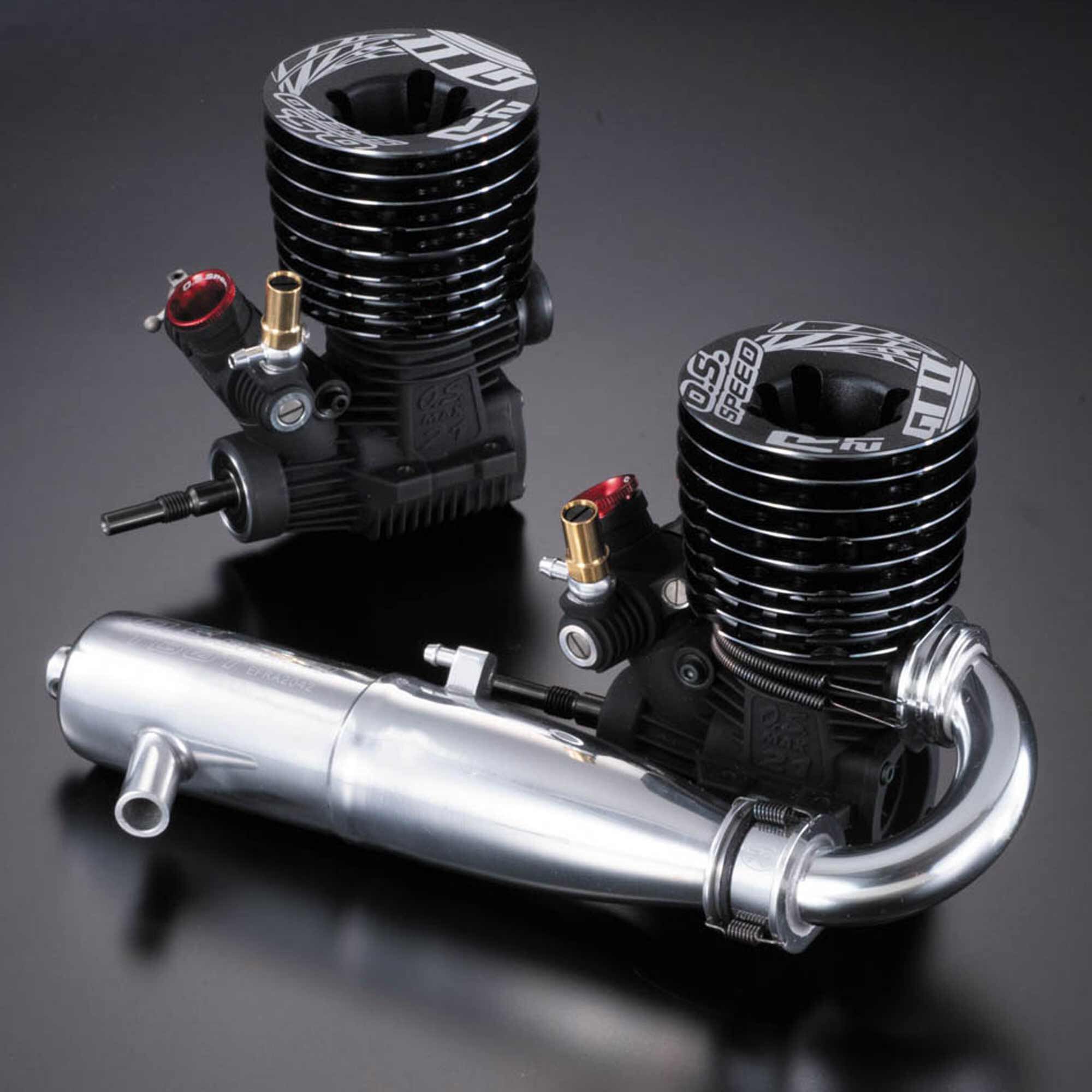

Combo Set

Combo Set

COMBOSET comes with TB01 EFRA2042 (T-2060SC) + MB01-70 (M2003SC).



Specs

Product Specs

Bore
0.633″ (16 mm)
Cylinders
Single
Displacement
3.49 cc / 0.213cu.in.
Product Weight
362g / 12.77 oz.
RPM Range
4,000-42,000 r.p.m.
Stroke
17.20mm / 0.677 in.
Weight 5 kg
