REEFS RC 179 Smart Micro Digital Metal Gear Waterproof Programmable Winch Servo, Black

$17.00

In stock

- +
SKU: hh-17808 Category: Tags: , ,
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • REEFS LINK required for Programming

Specs

Product Specs

Application
1/16 – 1/18 Cars, Trucks
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
150mA @ 4.8V, 180mA @ 6.0V, 240mA @ 7.4V, 300mA @ 8.4V
Current Draw Stall
1.6A @ 4.8V, 2A @ 6.0V, 2.2A @ 7.4V, 2.4A @ 8.4V
Deadband
2??s
Maximum Servo Speed
0.09 sec/60 deg @ 6.0V, 0.07 sec/60 deg @ 7.4V, 0.06 sec/60 deg @ 8.4V
Maximum Servo Torque
135oz/in @ 6.0V, 159oz/in @ 7.4V, 179oz/in @ 8.4V

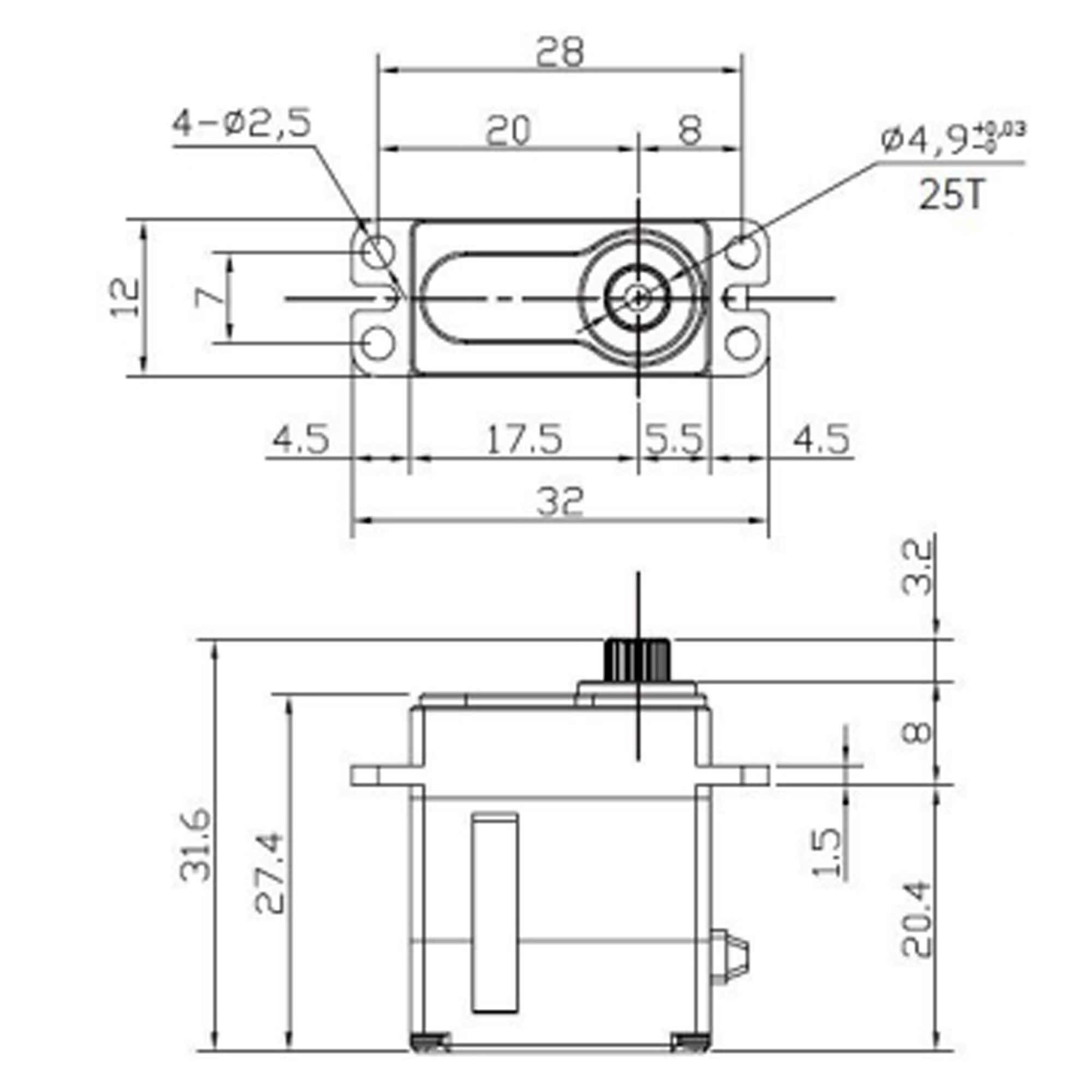

Product Height
0.47″ (12 mm)
Product Length
1.08″ (27 mm)
Product Weight
0.74oz (21g)
Product Width
0.9″ (23 mm)
Programmable
Yes
Servo Operating Voltage
6.0 – 8.4V (HV)
Servo Size Category
Micro
Servo Type
Digital
Spline Count
25 – Tooth
Water-Resistant
Yes
Weight 5 kg
