  • Water Resistant
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Fully Programmable with REEFS Software

Specs

Product Specs

Application
1/10 Cars, Trucks
Bearing
Dual Ball Bearings
Bushing Or Bearing
Bearing
Connector Type
Universal
Deadband
2??s
Gear Type
Metal
Input Voltage
4.8V ~ 8.4V
Maximum Servo Speed
0.07 sec/60 deg @ 6.0V, 0.06 sec/60 deg @ 7.4V, 0.057 sec/60 deg @ 8.4V
Maximum Servo Torque
278oz/in @ 6V, 299oz/in @ 7.4V, 313oz/in @ 8.4V

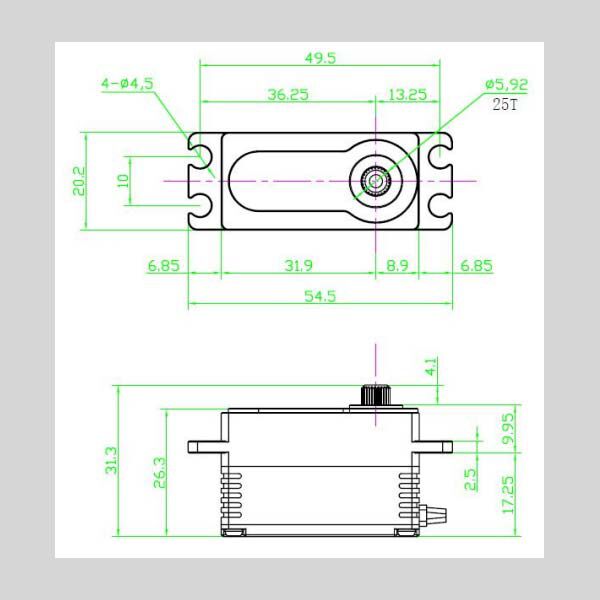

Product Height
1.5″ (38 mm)
Product Length
1.57″ (40 mm)
Product Weight
2.0oz (57g)
Product Width
0.78″ (20 mm)
Programmable
Yes
Servo Operating Voltage
4.8 – 8.4V (HV)
Servo Size Category
Low Profile
Servo Type
Digital
Spline Count
25 – Tooth
Water-Resistant
Yes
Weight 5 kg
