Overview

WARNING!: DOES NOT FIT THE GEN8 WINCH MOUNT!

Features

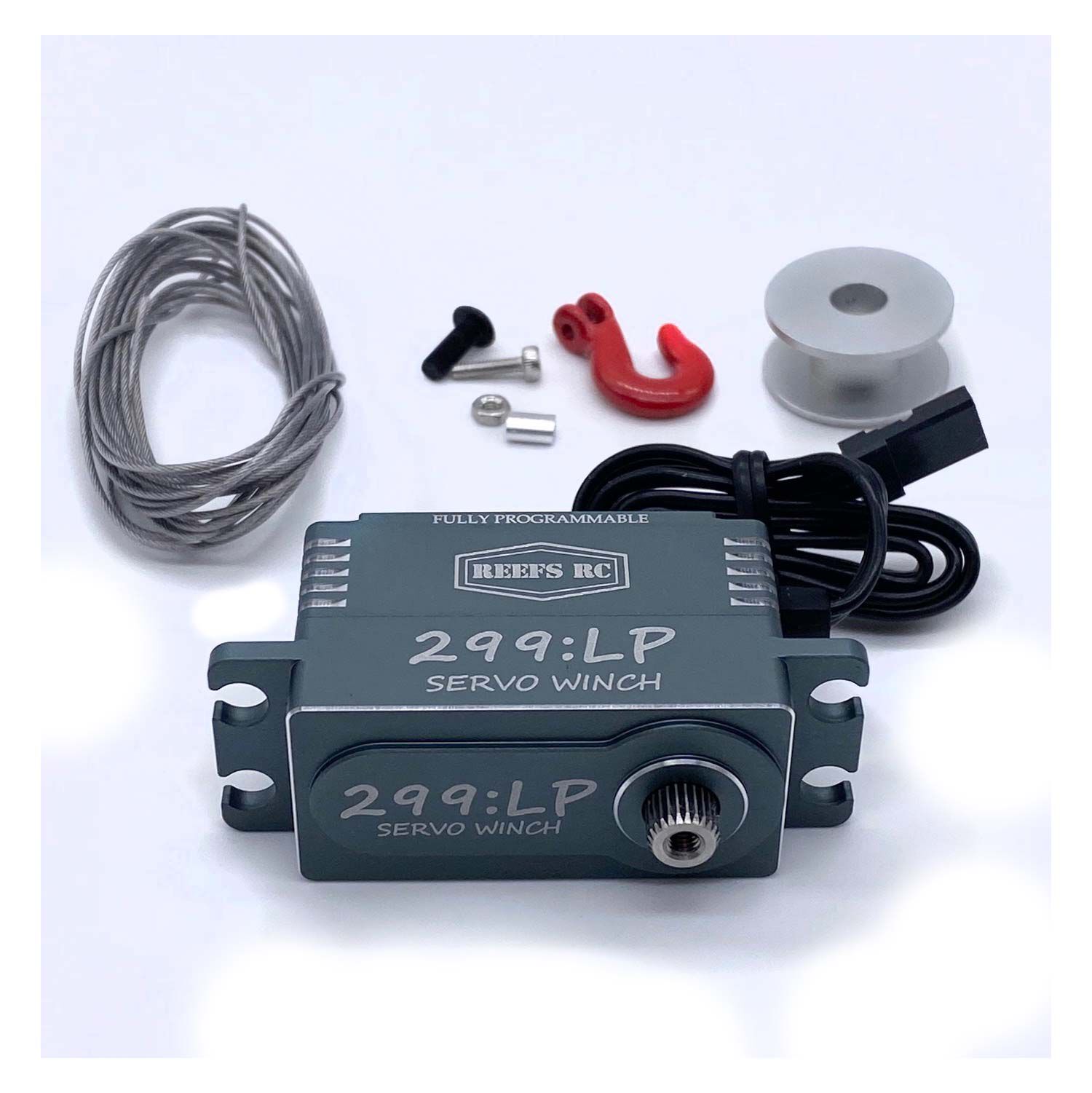

  • Programmable winch with REEFS Software
  • Small Footprint! Ideal for Comp & Scale builds.
  • High Torque Brushless Servo Winch
  • Waterproof
  • Voltage 4.8-8.4V

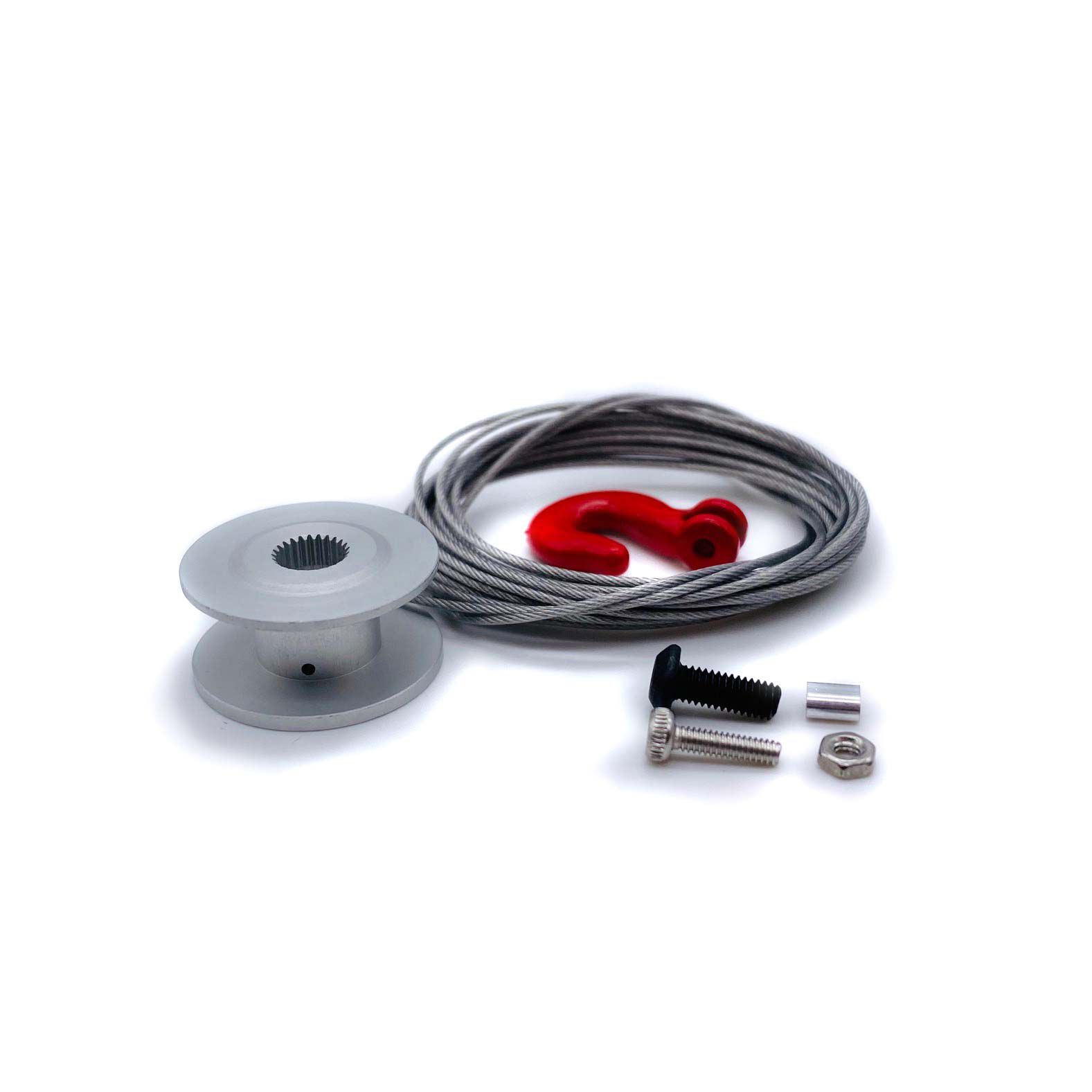

  • 7075 LOWPRO CNC Machined Spool With Clear Finish
  • 5FT Silicone Coated Steel Braided Line With Scale Recovery Hook
  • Internal: Steel Gears
  • All CNC Aluminum Casing
  • Anodized Color: REEFS Gray
  • Bearing Type: 2BB
  • BEC Not Required

Specs

Product Specs

Application
1/10 Rock Crawlers- Winch
Bearing
Dual Ball Bearings
Bushing Or Bearing
Bearing
Connector Type
Universal
Deadband
2??s
Gear Type
Metal
Input Voltage
4.8V ~ 8.4V
Maximum Servo Speed
0.07 sec/60 deg @ 6.0V, 0.06 sec/60 deg @ 7.4V, 0.057 sec/60 deg @ 8.4V
Maximum Servo Torque
280oz/in @ 6.0V, 300oz/in @ 7.4V, 320oz/in @ 8.4V
Product Height
1″ (25 mm)
Product Length
1.6″ (41 mm)
Product Weight
2.0oz (57g)
Product Width
0.79″ (20 mm)
Programmable
Yes
Servo Operating Voltage
4.8 – 8.4V (HV)
Servo Size Category
Low Profile
Servo Type
Digital
Spline Count
25 – Tooth
Water-Resistant
Yes
Weight 5 kg
