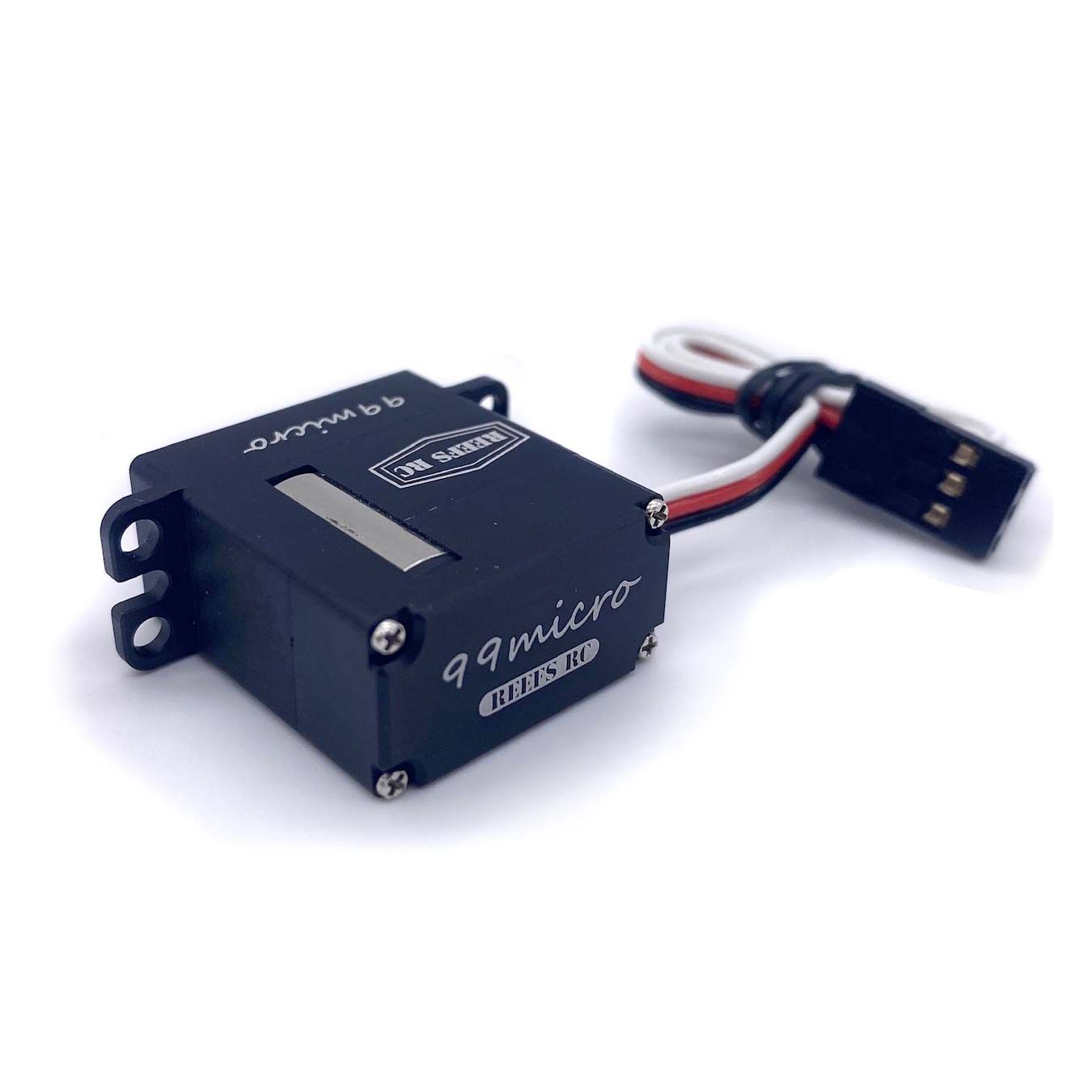

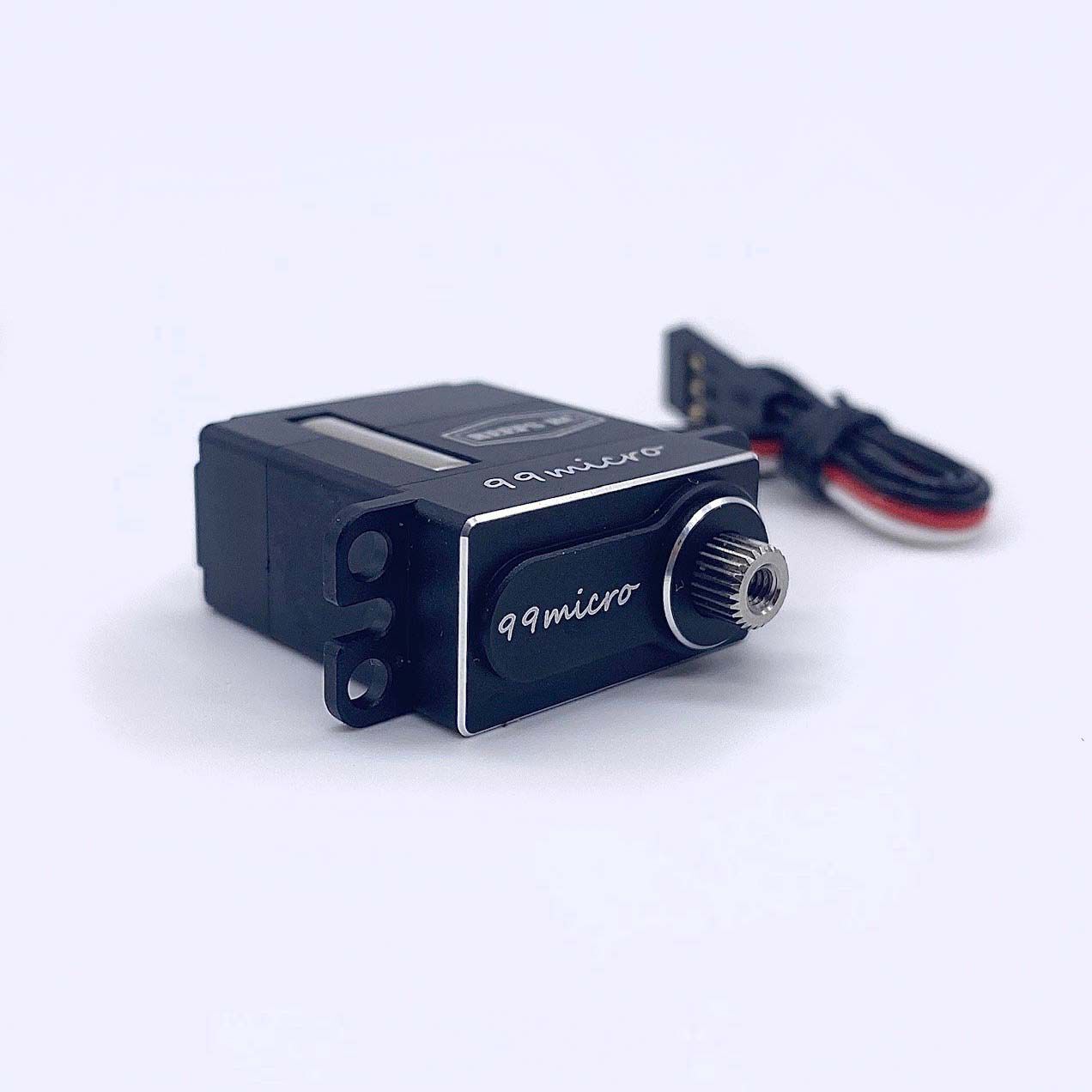

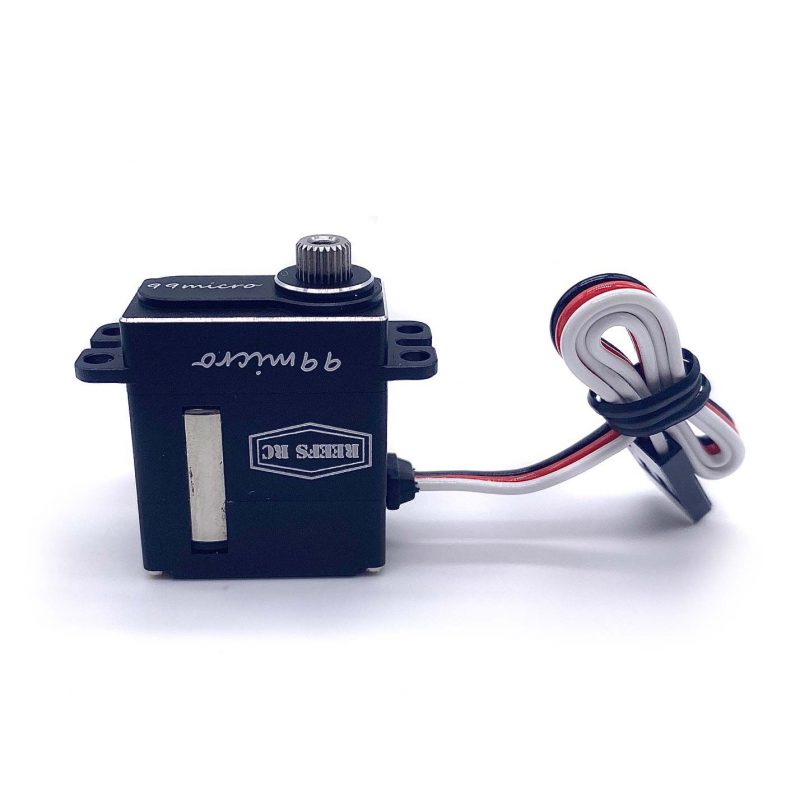

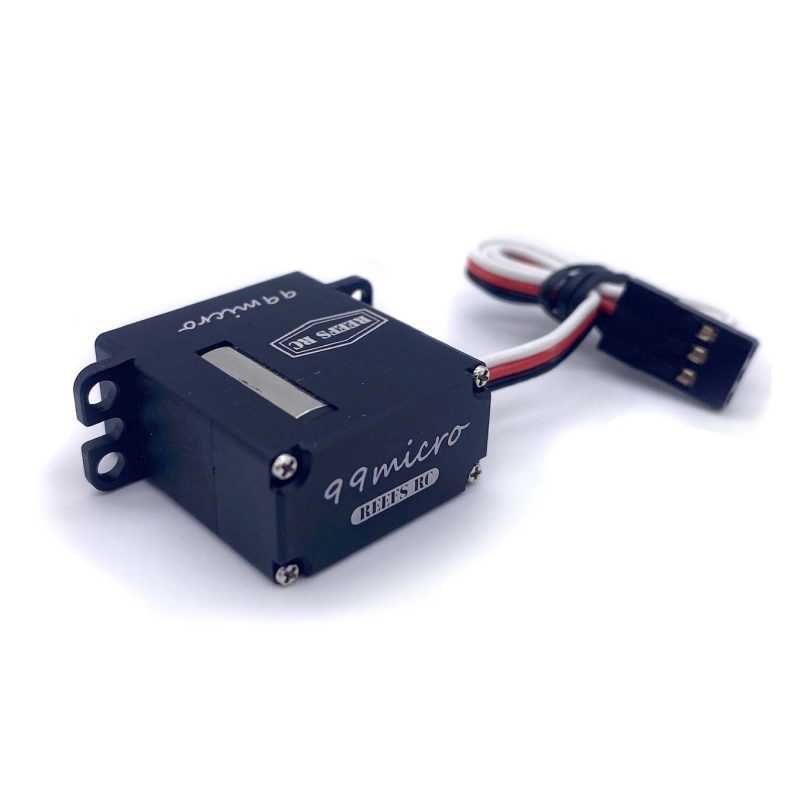

REEFS RC 99 Micro Digital Metal Gear Waterproof Servo, Black

$12.00

In stock

- +
SKU: hh-17778 Category: Tags: , ,
  • Precision Metal Gears / All CNC Alum. REEFS Case
  • High Torque High Speed Micro Servo
  • WATERPROOF

Specs

Product Specs

Application
1/24 Rock Crawlers
Bearing
Dual Ball Bearing
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
200mA
Current Draw Stall
2400mA
Deadband
2??s
Input Voltage
6.0V ~ 8.4V
Maximum Servo Speed
0.11 sec/60 deg @ 6.0V, 0.09 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V
Maximum Servo Torque
89oz/in @ 6.0V, 99oz/in @ 7.4V, 115oz/in @ 8.4V
Product Height
1.08″ (27 mm)
Product Length
0.9″ (23 mm)
Product Weight
0.70oz (19.8g)
Product Width
0.47″ (12 mm)
Programmable
No
Servo Operating Voltage
6.0 – 8.4V (HV)
Servo Size Category
Mini and Micro
Servo Type
Digital
Spline Count
25 – Tooth
Water-Resistant
Yes
Weight 5 kg
