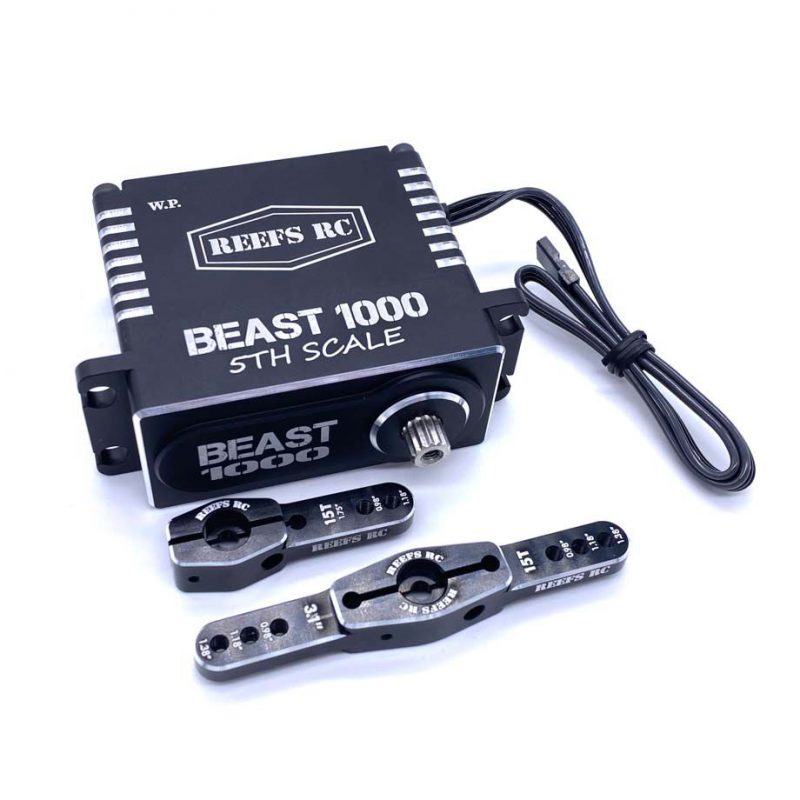

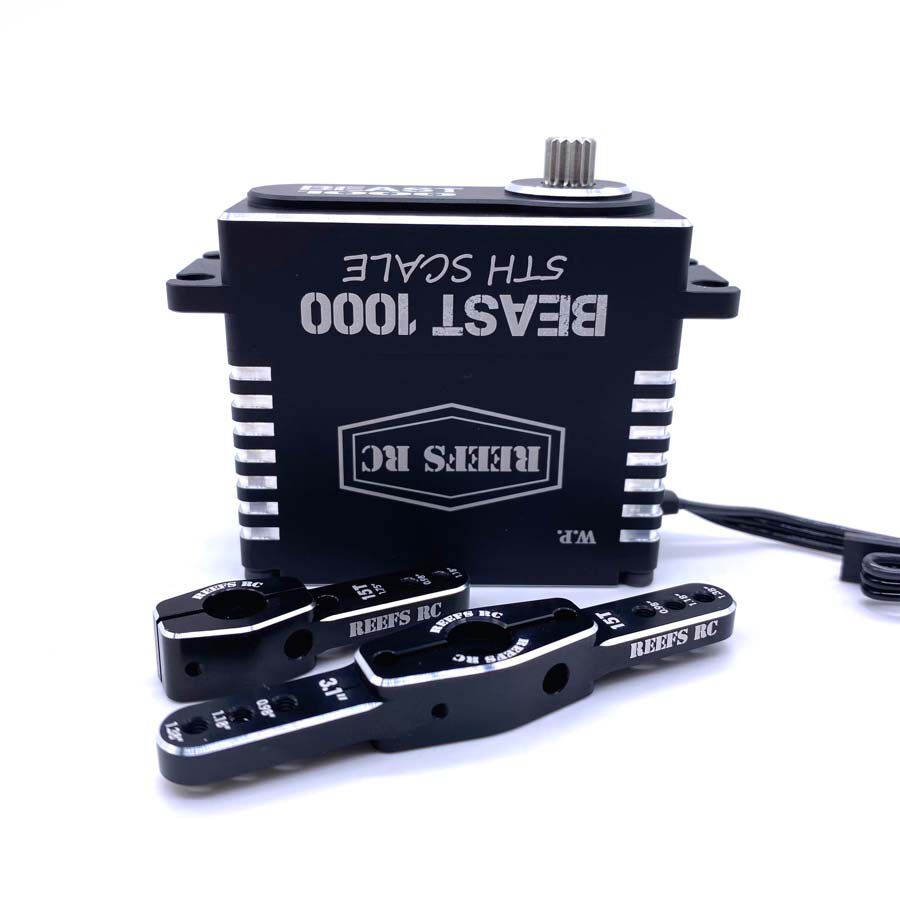

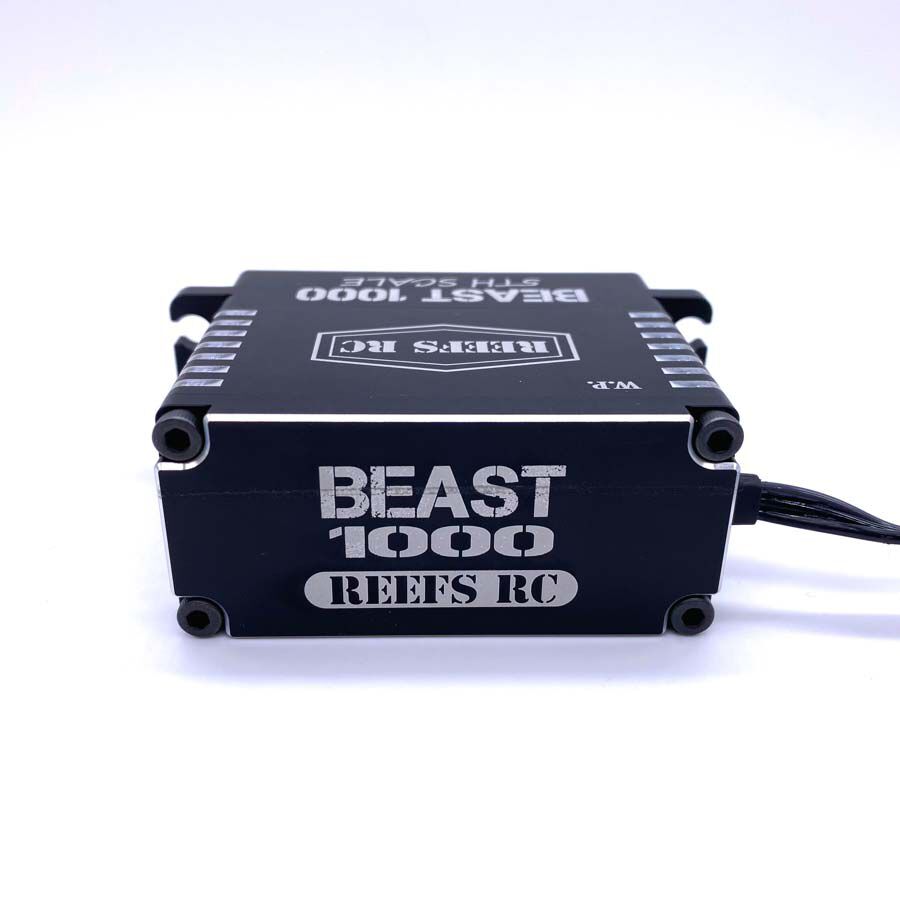

REEFS RC Beast 1000 1/5 Scale Digital Metal Gear Waterproof Servo, Black

$78.00

In stock

- +
SKU: hh-17899 Category: Tags: , ,
  • SUBMARINE WATERPROOF: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control

Specs

Product Specs

Application
1/5 Cars, Trucks
Bearing
5 Ball Bearings
Bushing Or Bearing
Bearing
Connector Type
Universal
Current Draw Idle
550mA @ 4.8V, 600mA @ 6.0V, 700mA @ 7.4V, 820mA @ 8.4V
Current Draw Stall
8.8A @ 4.8V, 9.8A @ 6.0V, 10.5A @ 7.4V, 11A @ 8.4V
Deadband
2??s
Gear Type
Metal
Input Voltage
4.8V ~ 8.4V
Maximum Servo Speed
0.11 sec/60 deg @ 6.0V, 0.095 sec/60 deg @ 7.4V, 0.08 sec/60 Deg @ 8.4V
Maximum Servo Torque
800oz/in @ 6V, 900oz/in @ 7.4V, 1080oz/in @ 8.4V
Product Height
2.32″ (59 mm)
Product Length
2.59″ (66 mm)
Product Weight
10oz (285g)
Product Width
1.18″ (30 mm)
Servo Operating Voltage
4.8 – 8.4V (HV)
Servo Size Category
Giant Scale
Servo Type
Digital
Spline Count
15 – Tooth
Water-Resistant
Yes
Wire Gauge
22 AWG
Weight 5 kg
