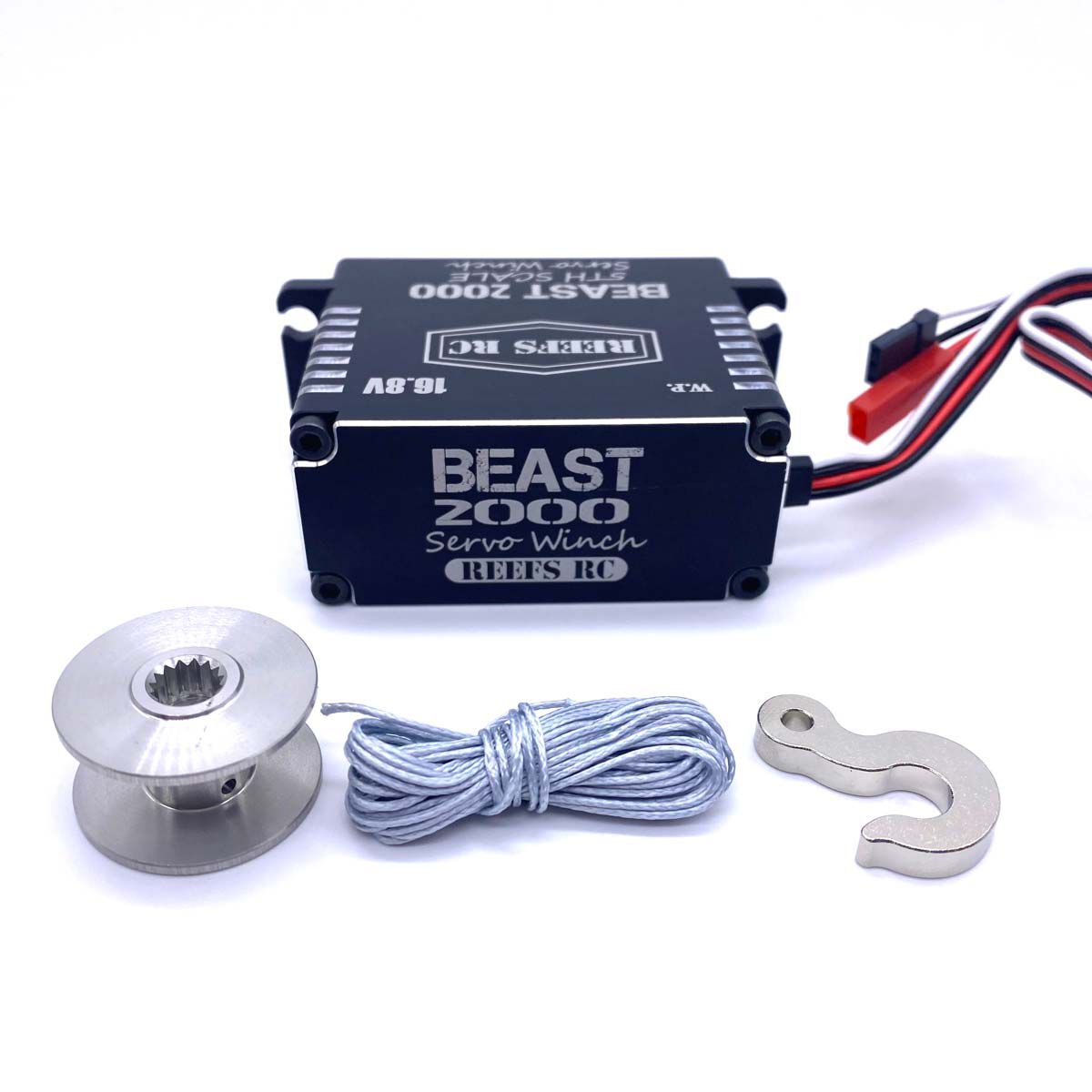

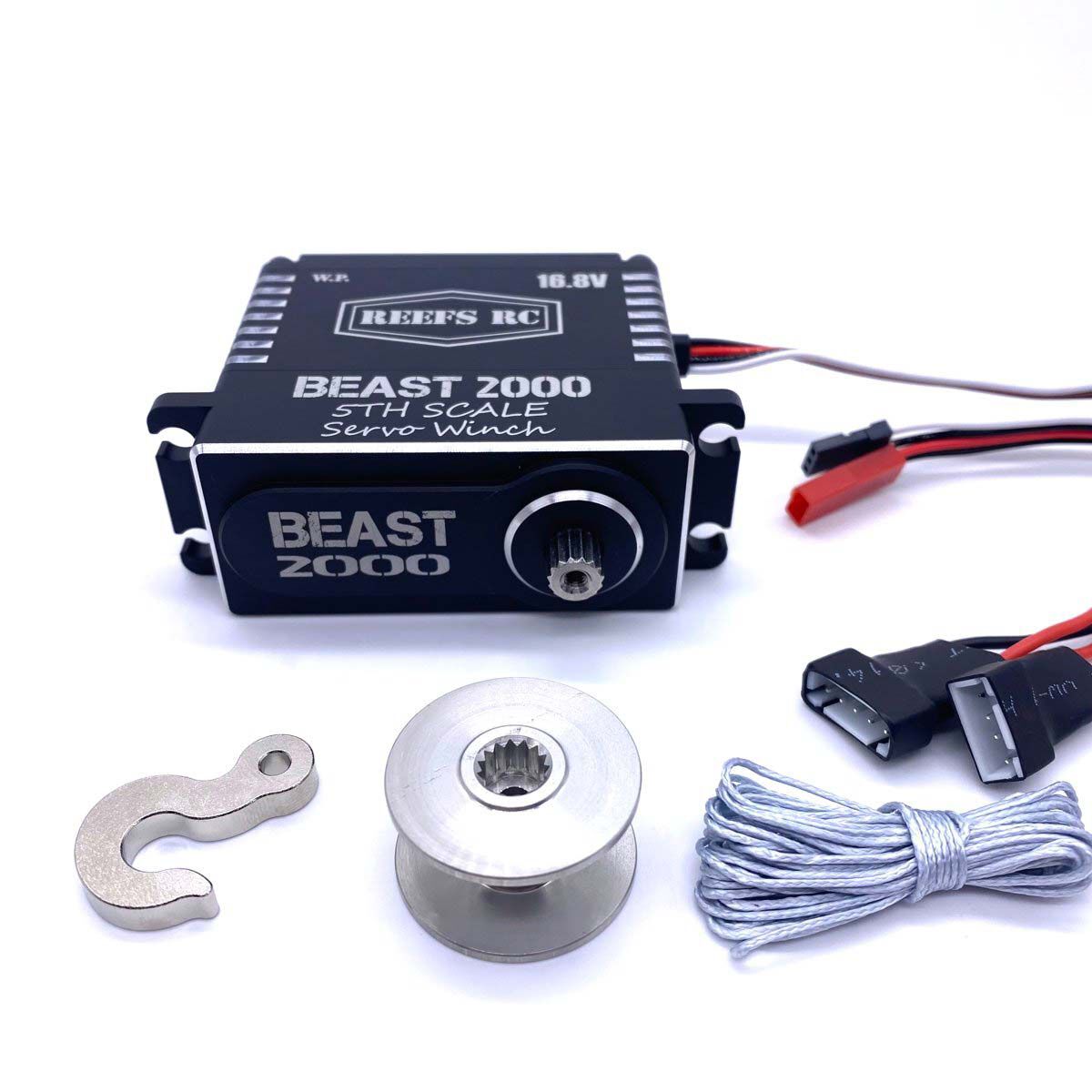

REEFS RC Beast 2000 1/5 Scale Digital Metal Gear Waterproof Winch Servo, Black

$89.80

In stock

- +
SKU: hh-17650 Category: Tags: , ,
  • SUBMARINE WATERPROOF: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control

Specs

Product Specs

Application
1/5 Cars, Trucks- Winch
Bearing
5 Ball Bearings
Bushing Or Bearing
Bearing
Connector Type
JST-RCY, Universal
Deadband
2??s
Gear Type
Metal
Input Voltage
7.4V ~ 16.8V
Maximum Servo Speed
0.11 sec/60 deg @ 10.0V, 0.105 sec/60 deg @ 11.1V, 0.10 sec/60 deg @ 12.0V, 0.09 sec/60 deg @ 14.4V, 0.08 sec/60 deg @ 16.0V
Maximum Servo Torque
1000oz/in @ 10V, 1250oz/in @11.1V, 1450oz/in @12V, 2000oz/in @ 16.8V
Part Type
Electronics
Product Height
2.32″ (59 mm)
Product Length
2.59″ (66 mm)
Product Weight
10oz (285g)
Product Width
1.18″ (30 mm)
Servo Operating Voltage
10.0V – 14.0V (HV)
Servo Size Category
Giant Scale
Servo Type
Digital
Spline Count
15 – Tooth
Water-Resistant
Yes
Wire Gauge
22 AWG
Weight 5 kg
