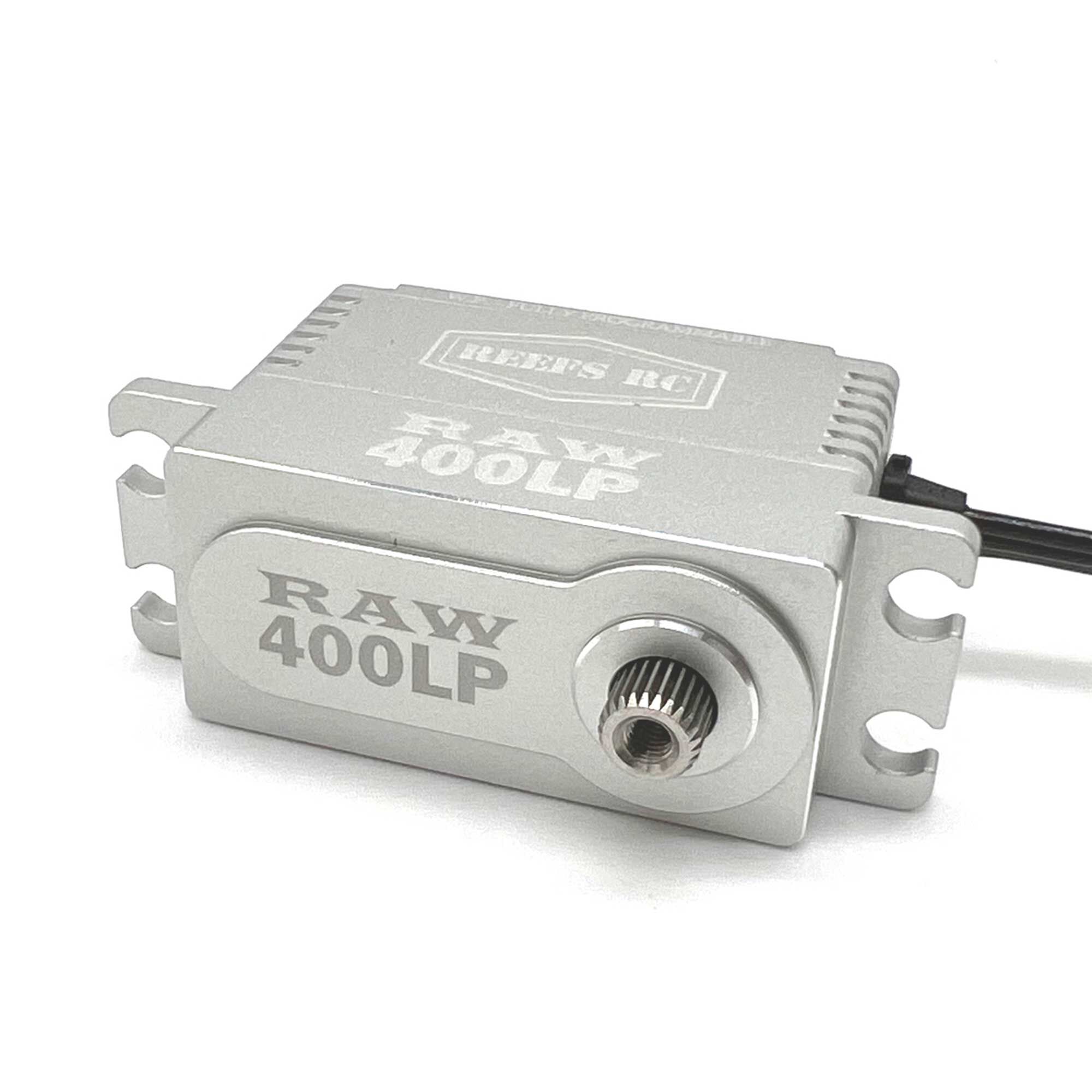

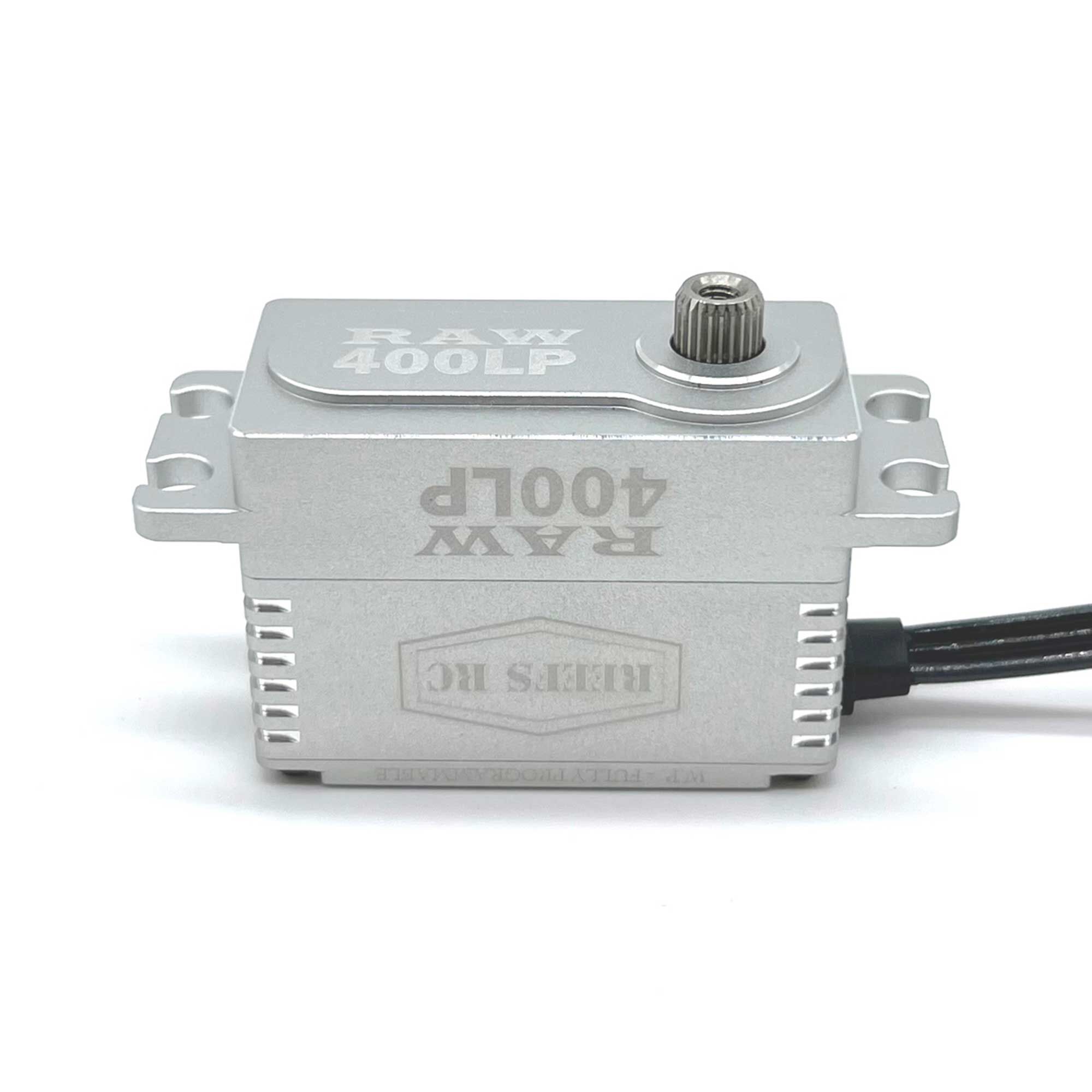

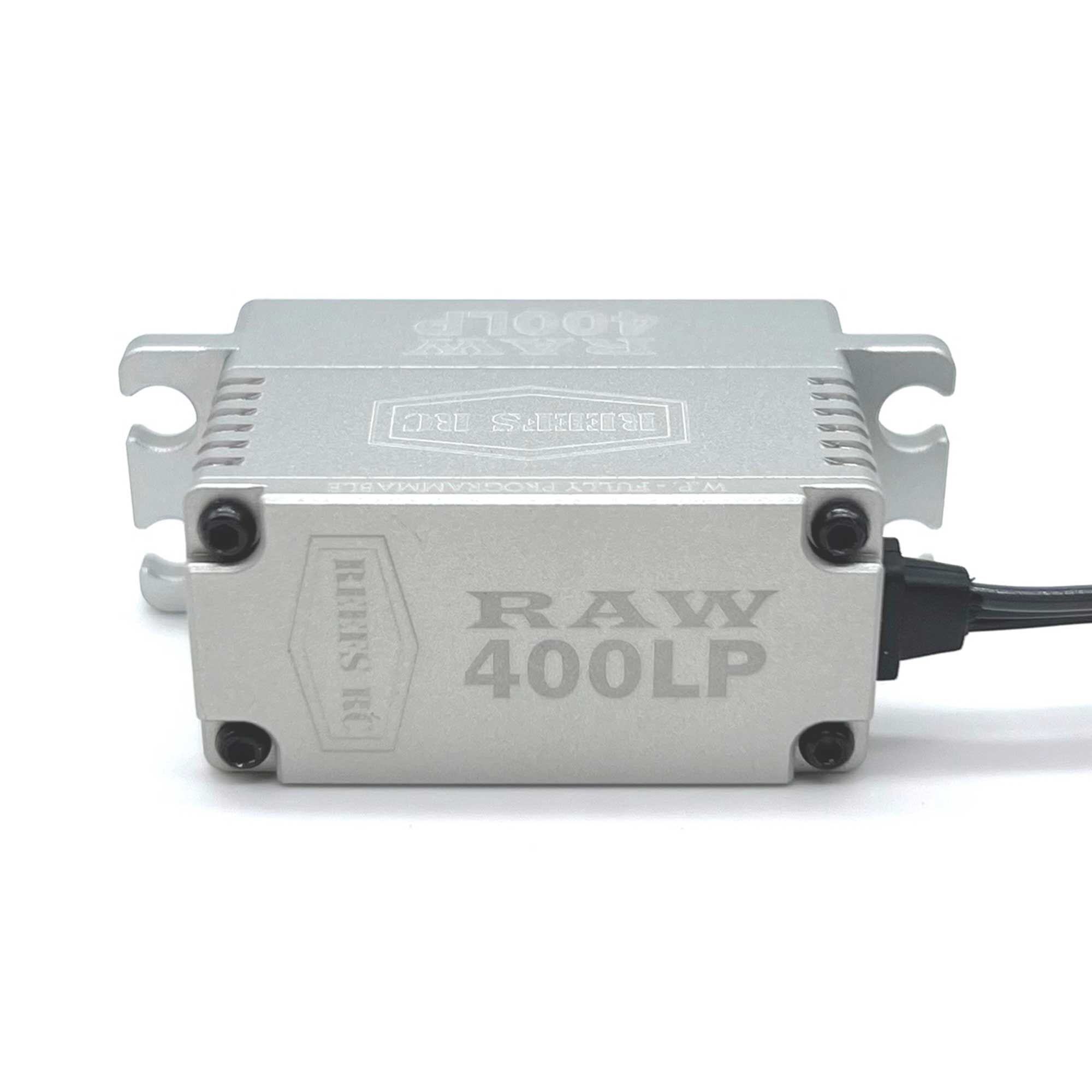

Features
- FULLY PROGRAMMABLE
- High Torque High Speed
- Brushless Low Pro Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Voltage 4.8V – 8.4V
- REEFS LINK required for Programming (Optional)
- Internal: Steel Gears
- CNC Aluminum Casing
- Bearing Type: 2 Ball Bearings
- Weight: 2.3oz

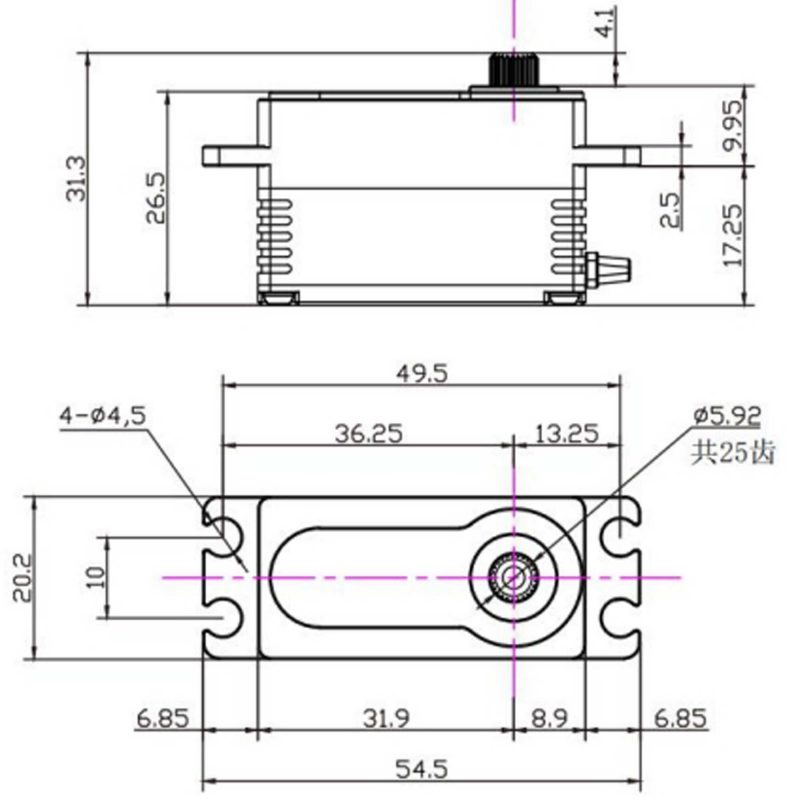

- Dimension: 1.6″ x 0.79″ x 1.16″ (LWH)
- Torque: 350oz @ 6v/ 420oz @7.4v/ 460oz @8.4v
- Speed: .09sec @6v/.08sec @7.4v/.065sec @8.4v
- Spline: 25T / Dead Band Width: 2??s
- BEC not required, but recommended for max performance
Specs
Product Specs
Application
Bearing
Bushing Or Bearing
Connector Type
Deadband
Maximum Servo Speed
Maximum Servo Torque
Product Height
Product Length
Product Weight
Product Width
Programmable
Servo Operating Voltage
Servo Size Category
Servo Type
Spline Count
Water-Resistant
