Overview

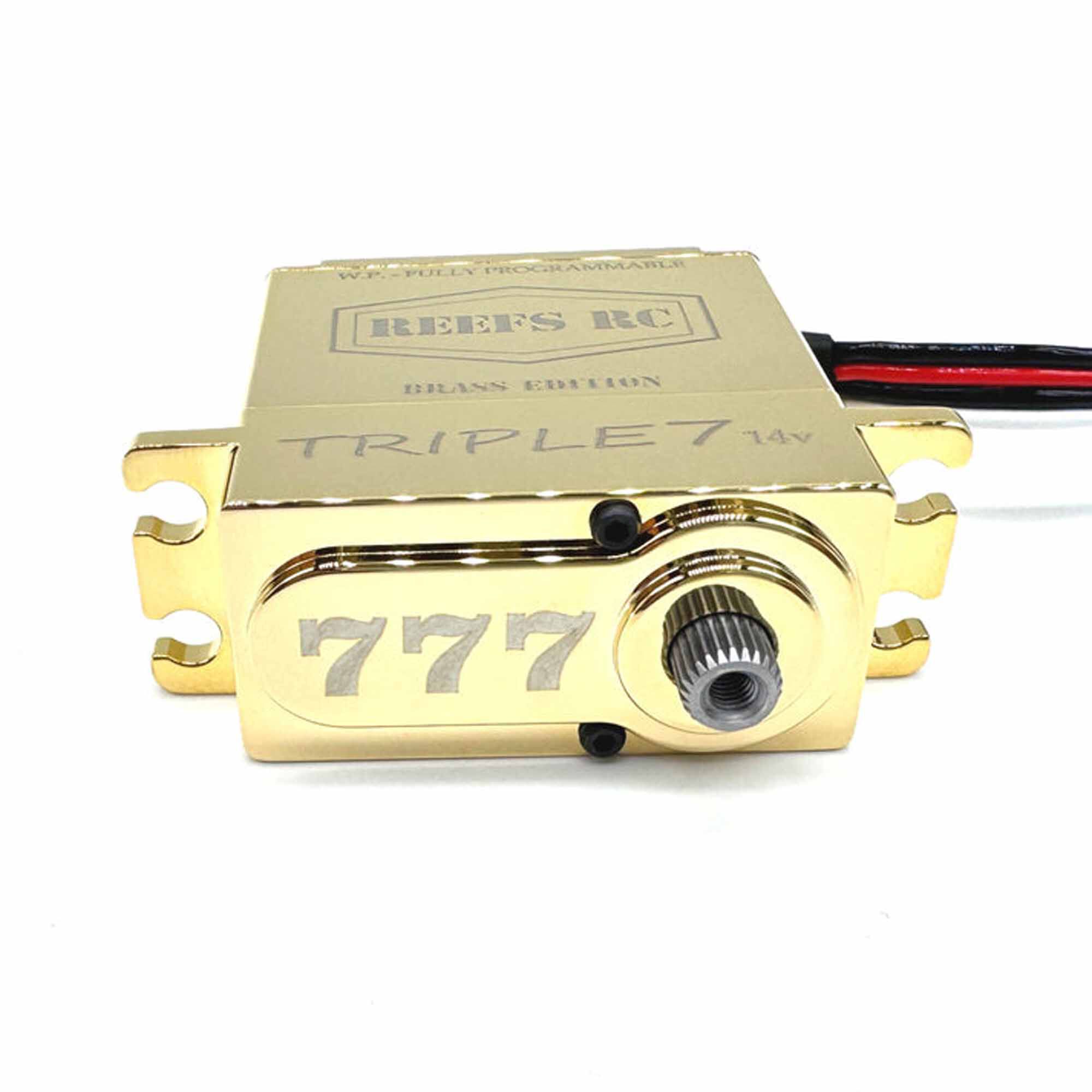

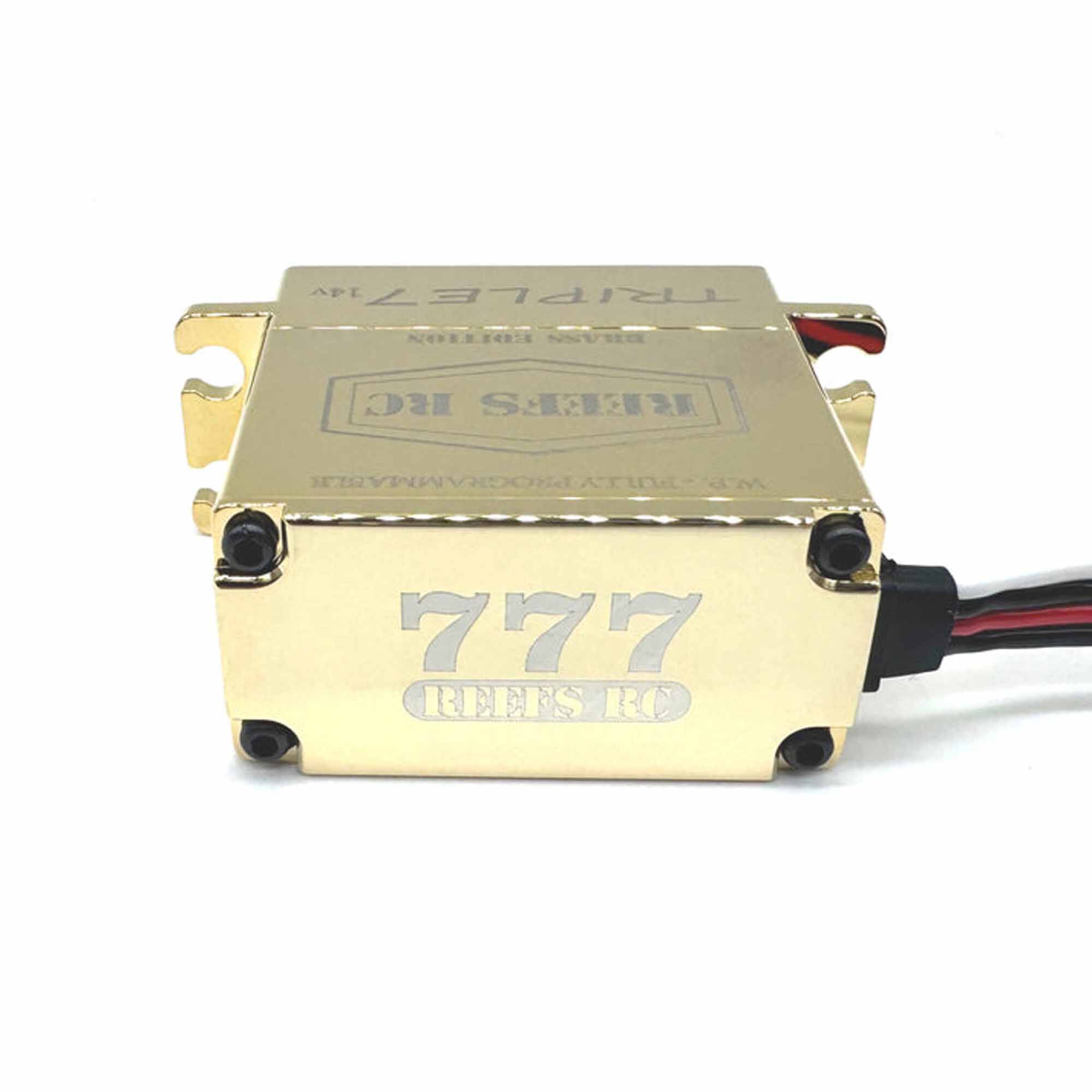

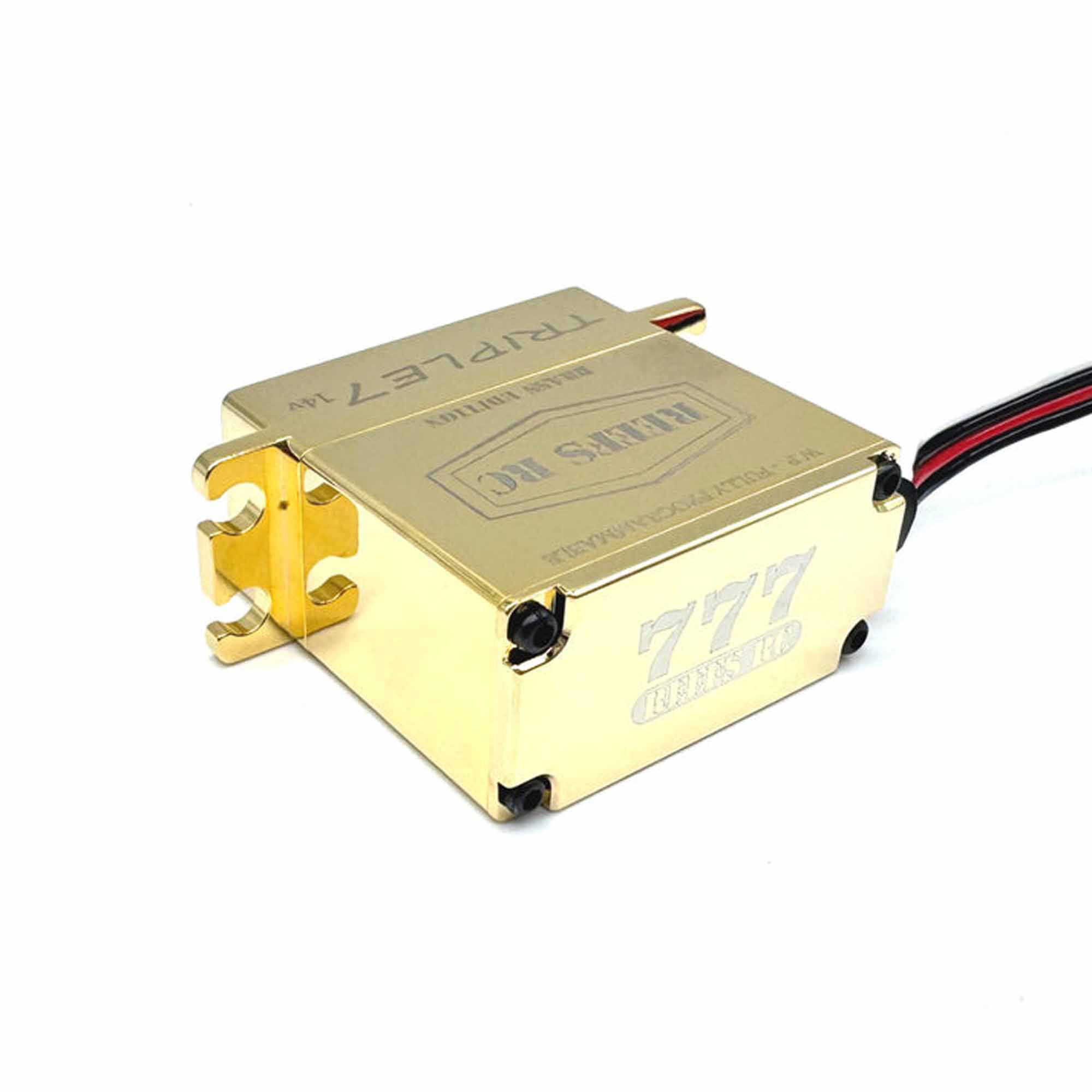

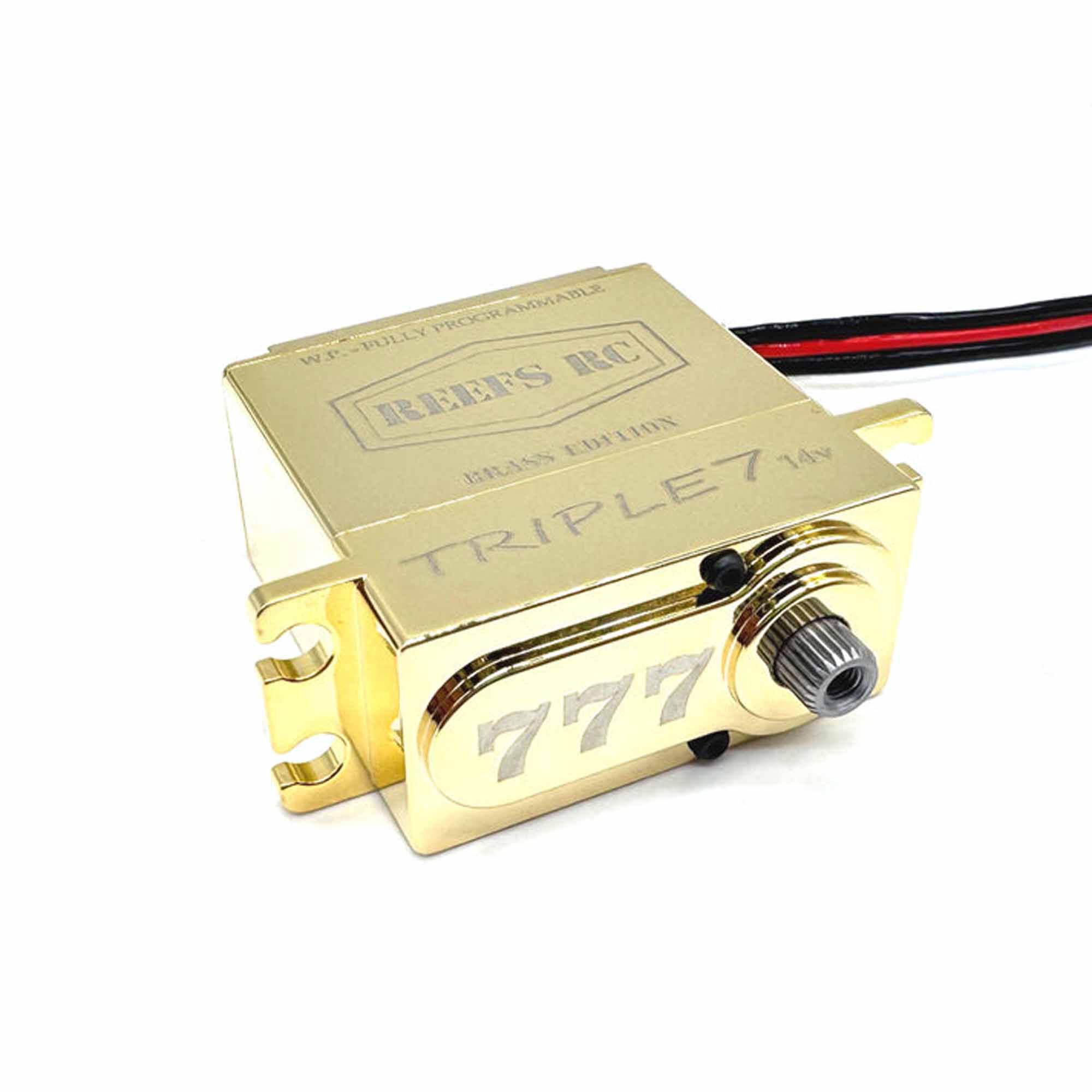

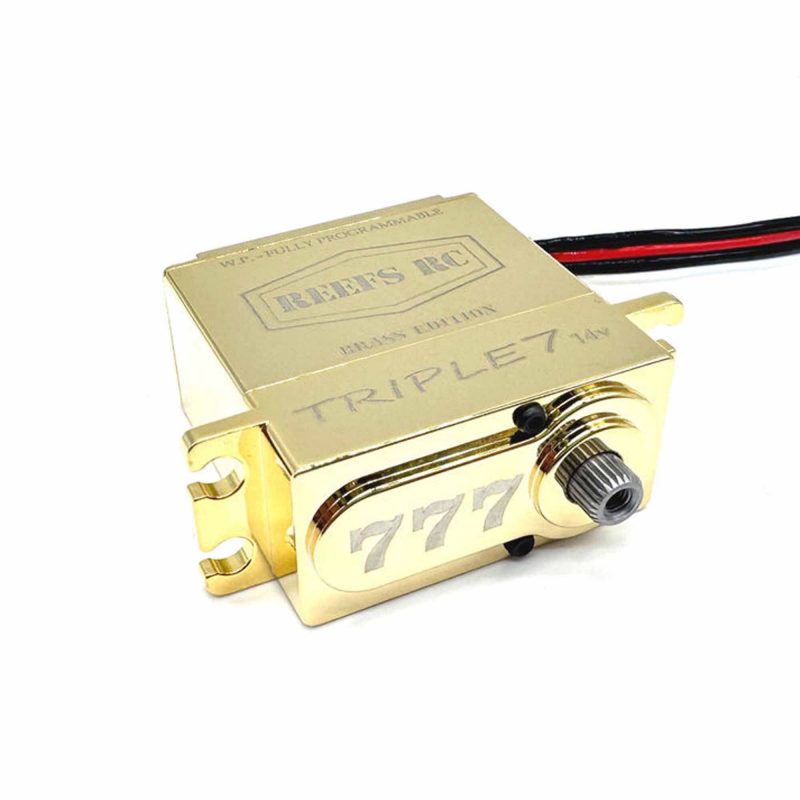

Triple 7 Overview

Fully submersible IP67 Waterproof rating. Highly efficient (PWM) Pulse Width Modulation control along with Steel gears and a Magnetic angle sensor make this servo super smooth, precise, and robust.

Best part about the High Voltage capability is that you can run your 3S battery straight to it!

The Triple 7 Brass ULTRA Finish edition is ready to be showcased in your next build as some serious bling and as some substantial weight right were you want it.

  • High Torque High Speed Brushless Servo
  • Submarine Waterproof with 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Fully Programmable with Reefs Link
  • CNC Brass Casing with ULTRA Finish

Specs

Product Specs

Bearing
3 Ball Bearings
Bushing Or Bearing
Bearing
Deadband
2??s
Gear Type
Metal
Input Voltage
10V – 14V MAX

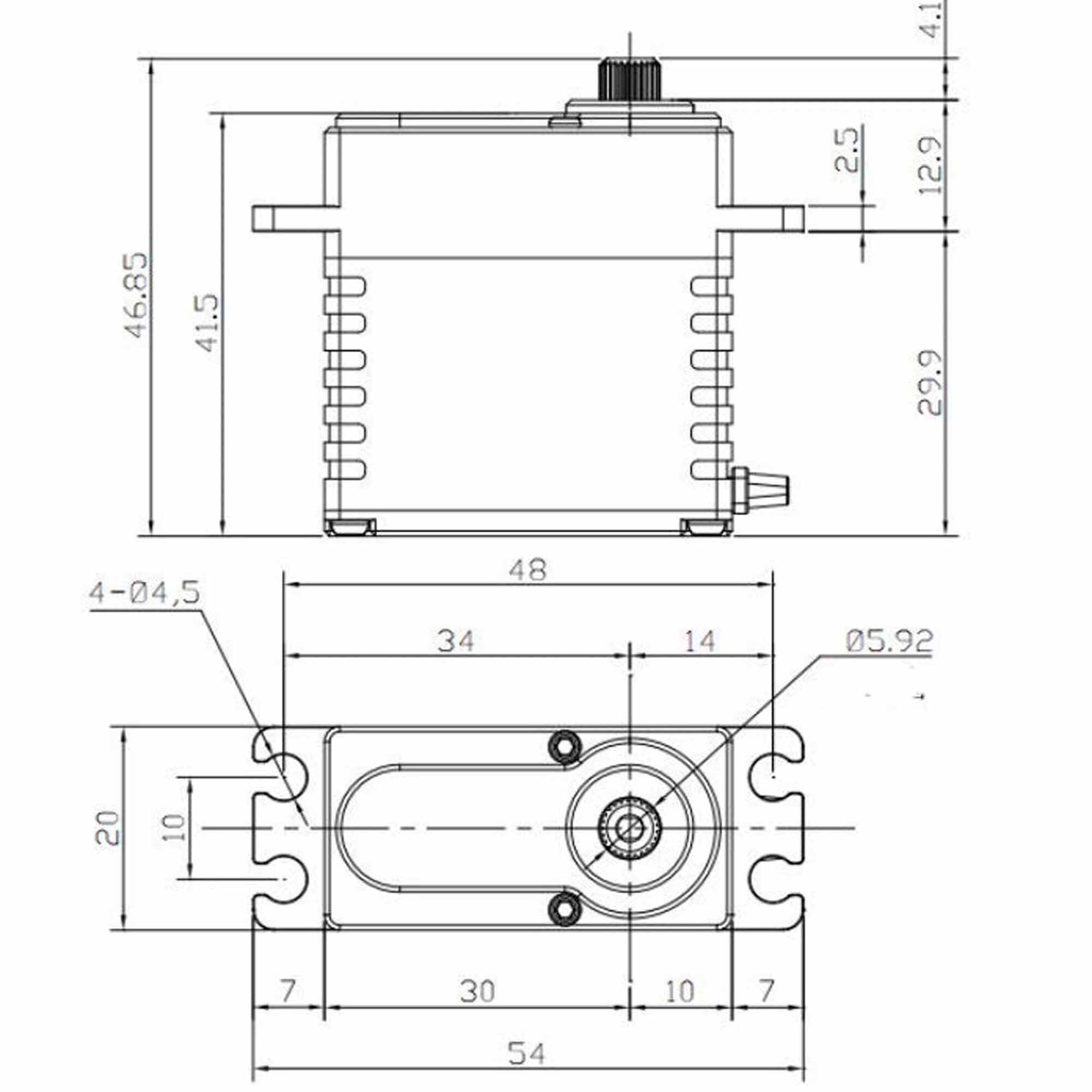

Product Height
1.63″ (41 mm)
Product Length
1.57″ (40 mm)
Product Weight
5.65 oz (160g)
Product Width
0.78″ (20 mm)
Programmable
Yes
Servo Operating Voltage
10.0V – 14.0V (HV)
Spline Count
25 – Tooth
Torque
666oz (48kg) @11.1v / 700oz (50.4kg) @12.0v / 777oz (56kg) @14v
Weight 5 kg
