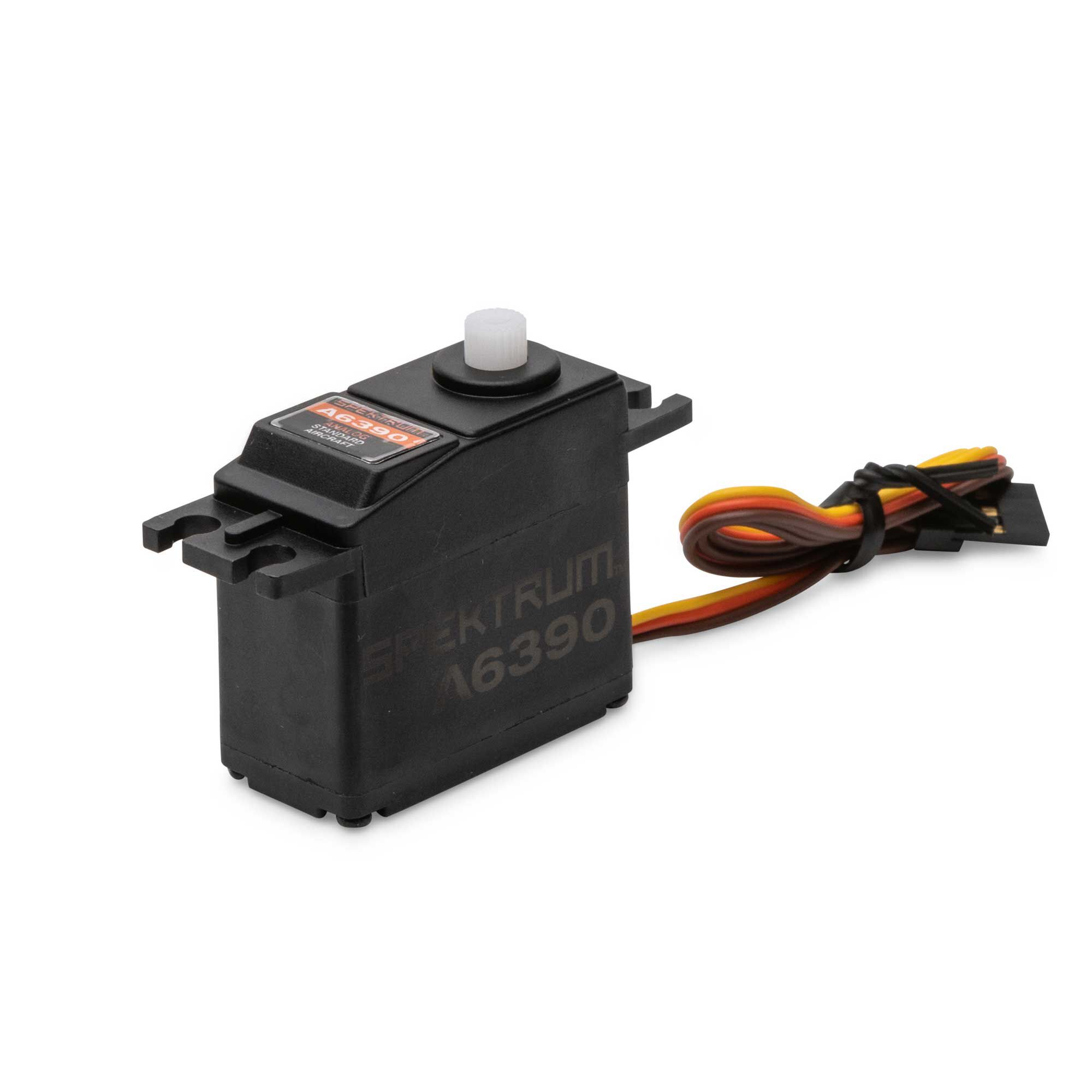

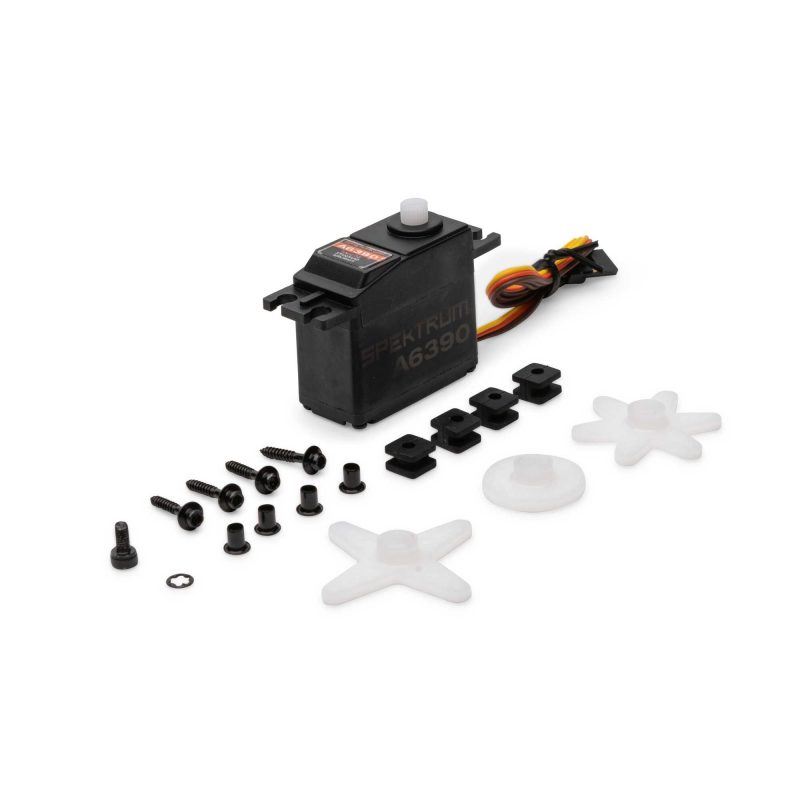

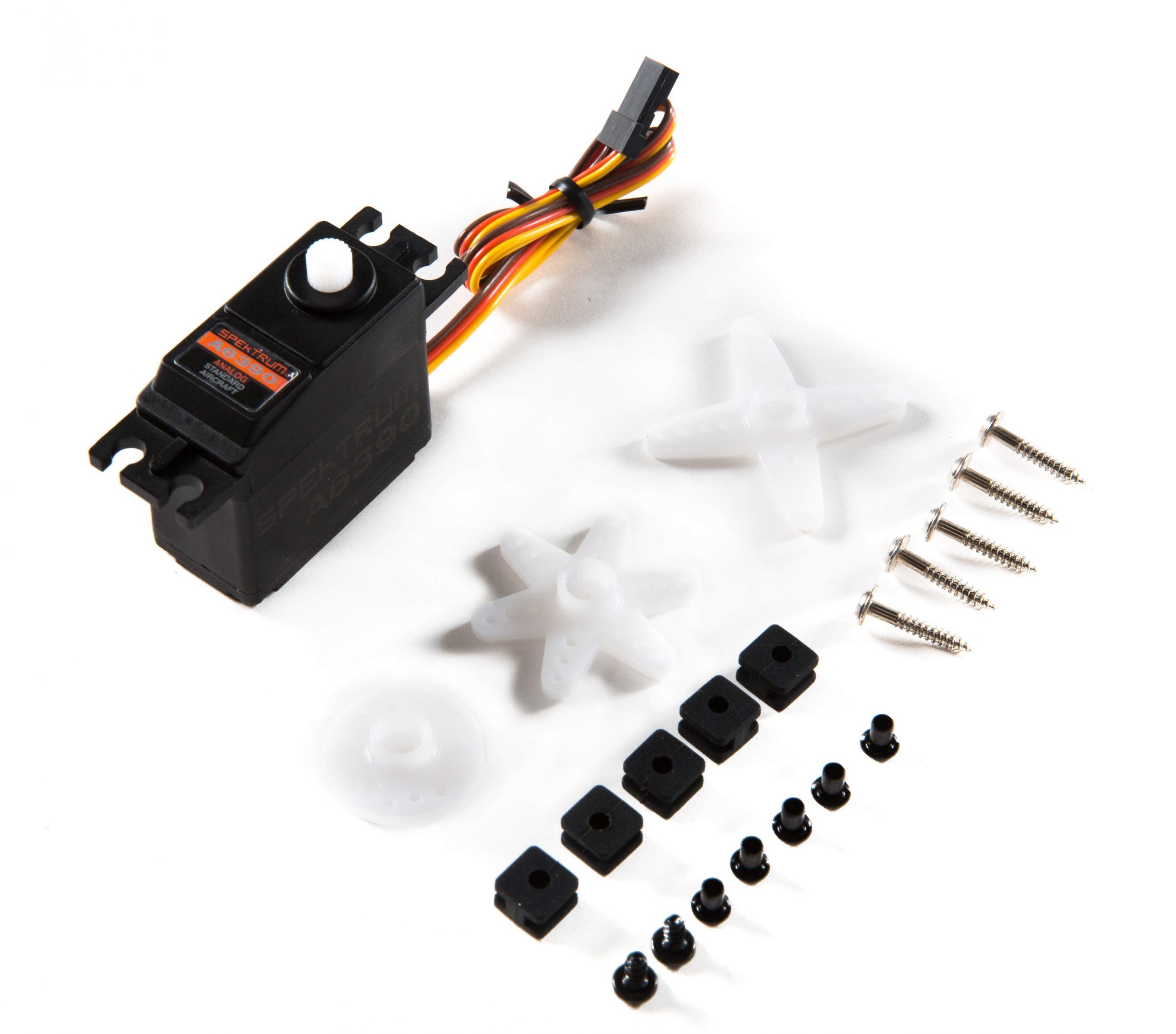

The Spektrum A6390 standard size analog sport servo is the perfect budget solution that offers a lightweight plastic gear train, a budget class leading torque rating of 66 oz/in and quick transit speed of 0.14/60. Single ball bearing output shaft and a robust composite plastic case offers durability you can depend on in your 60 size or smaller trainer and sport models. Includes all the mounting hardware and 3 Heavy Duty plastic arms needed for your project.
Specs
Product Specs
Application
Air |
Bearing
Single |
Bushing Or Bearing
Bearing |
Connector Type
Universal |
Connector Wire Length
12″ (305 mm) |
Deadband
3??s |
Gear Type
Nylon |
Input Voltage
4.8V to 6.0V |
Material
Plastic |
Maximum Servo Speed
0.17 sec/60 deg @ 4.8V | 0.14 sec/60 deg @6.0V |
Maximum Servo Torque
48.6 oz-in (3.5kg-cm) @ 4.8V | 66.7 oz-in (4.8kg-cm) @ 6.0V |
Product Application
Air |
Product Height
1.36″ (35 mm) |
Product Length
1.52″ (39 mm) |
Product Weight
1.3oz (37g) |
Product Width
0.74″ (19 mm) |
Programmable
No |
Rotation Range
120 deg |
Servo Operating Voltage
4.8 – 6.0V |
Servo Size Category
Standard |
Servo Type
Analog |
Spline Count
23 – Tooth |
Water-Resistant
No |
Wire Gauge
22 AWG |
