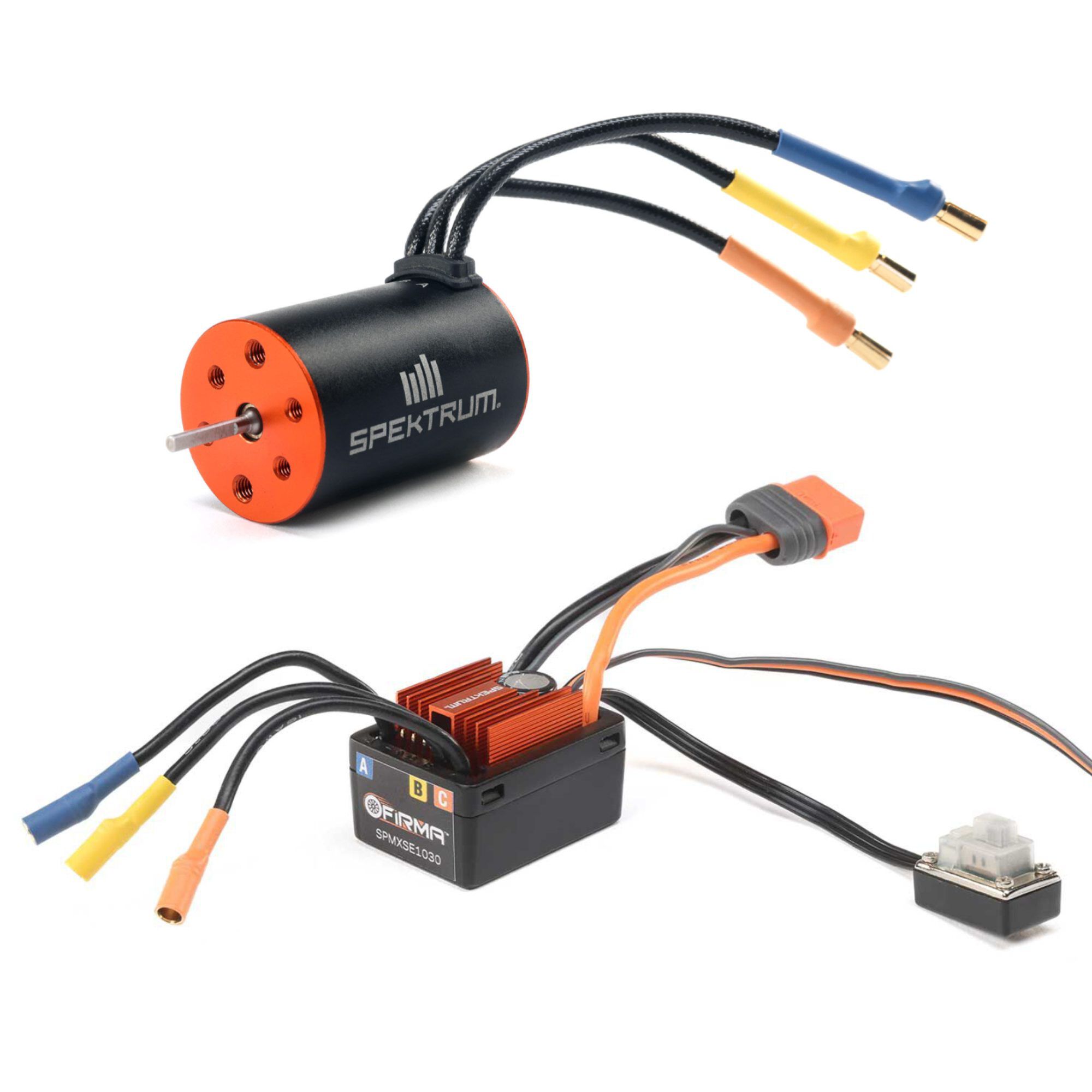

Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Overview

Feature-packed Spektrum? Firma? Smart ESCs deliver power and intelligence all-in-one, with no additional modules or links required. This waterproof, 30A brushless marine ESC drives your mini through almost any condition imaginable, with explosive acceleration and ultra-smooth performance ?? while feeding real-time telemetry straight to your Spektrum? transmitter! The 4500Kv Motor offers impressive torque, speed, and excellent efficiency.

  • Designed for the Losi Mini-T, Mini-B, Mini Drag, and Mini JRX2*

Spektrum Firma 30A Brushless Smart ESC / 4500Kv Motor Combo Features

  • Smart all-in-one telemetry
  • Waterproof (see instructions for details)
  • Multiple programming options
  • Multi-point protection

The Smart data wire on the innovative IC3? connector replaces sensors, sending telemetry information to the transmitter directly from the Firma? Smart ESC.

*Please note: A compatible battery adapter and/or battery connector may be required (sold separately).


Product Specs

Amperage
30A

Application
1/16 to 1/18th scale mini sized vehicles

BEC
Yes

BEC Continous Current
3A

BEC Type
Linear

BEC Voltage
6V / 7.4V

Brakes
Yes

Bushing Or Bearing
Bearing

Connector Type
IC3

ESC Type
Brushless

Forward
Yes

Input Voltage
2S – 3S LiPo | 5C – 9C NiMH

Low-Voltage Cutoff Programmable
Yes

Maximum Burst Current
100A

Maximum Continuous Current
30A

Motor Output Lead
3.5mm Bullet

Motor Type
Brushless

Number of Poles
4

Output Connector
3.5mm Bullet

Overload Protection
Yes

Programmable
Yes

Reverse
Yes

RPM/Volt (Kv)
4500Kv

Sensored
No

Shaft Diameter
0.08″ (2 mm)

Shaft Length
0.47″ (12 mm)

Speed Control
Included

Technology
Smart

Weight 1.5 kg
Color

Size
