Overview

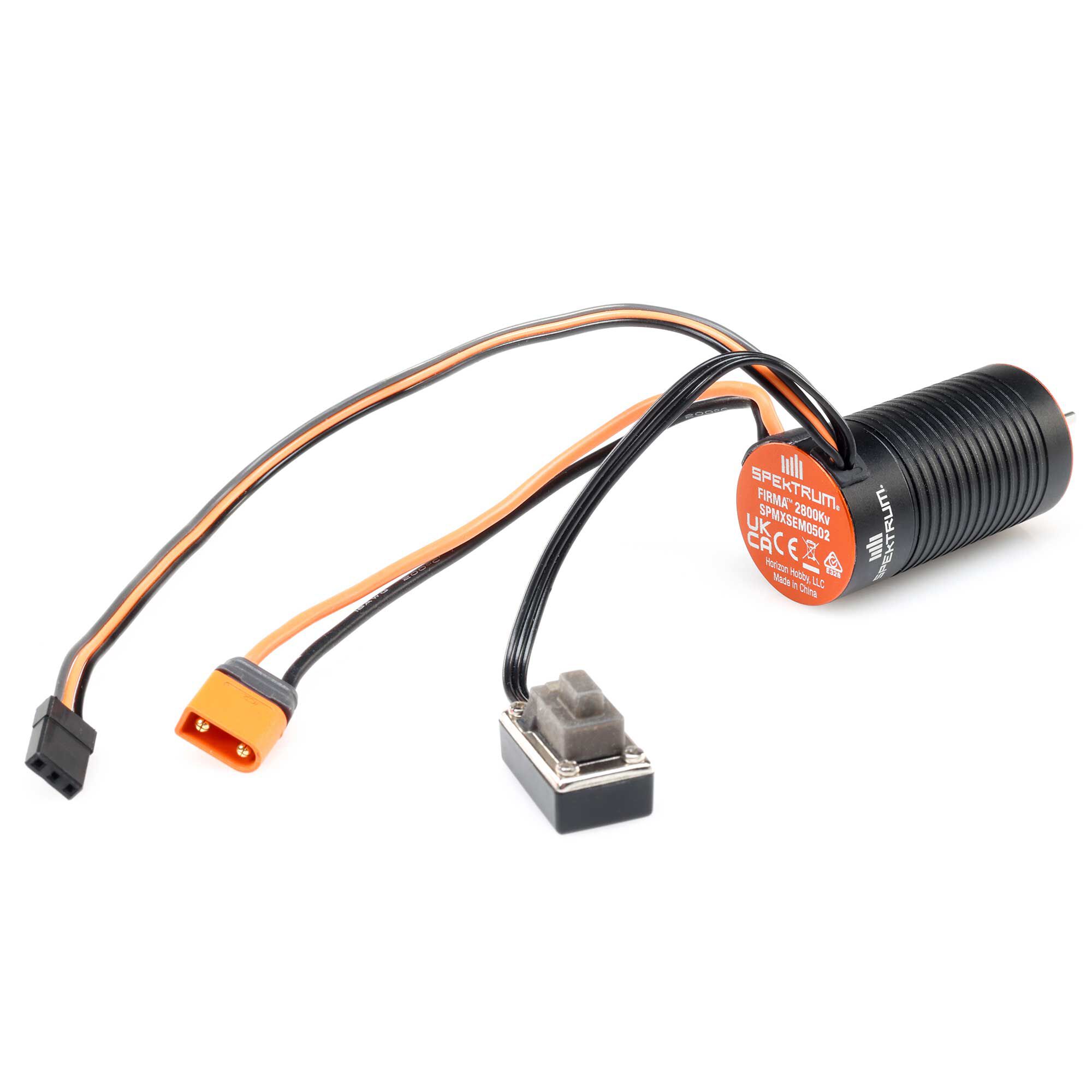

The Spektrum? Firma? 30-amp Sensored Brushless ESC and Motor 2-in-1 Combo is waterproof* and designed specifically for the Axial UTB18 Capra 4WS, 1/18 4WD. It features a high-precision magnetic encoder and rotor position sensor that provides an excellent one-to-one control feel when driving at any speed and at any angle. This advancement in sensored motor control allows the ESC to match the throttle input to the motor’s RPM with unmatched precision.

This ESC and motor 2-in-1 combo is an excellent choice to upgrade your Axial UTB18 Capra 4WS, 1/18 4WD running 2S or 3S LiPo power. This combo is the perfect system whether you are adventuring on trails or entering in competition.

*See instructions for details.

Features

  • Developed and designed by Spektrum? engineers in partnership with the industry’s leading ESC manufacturer
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection

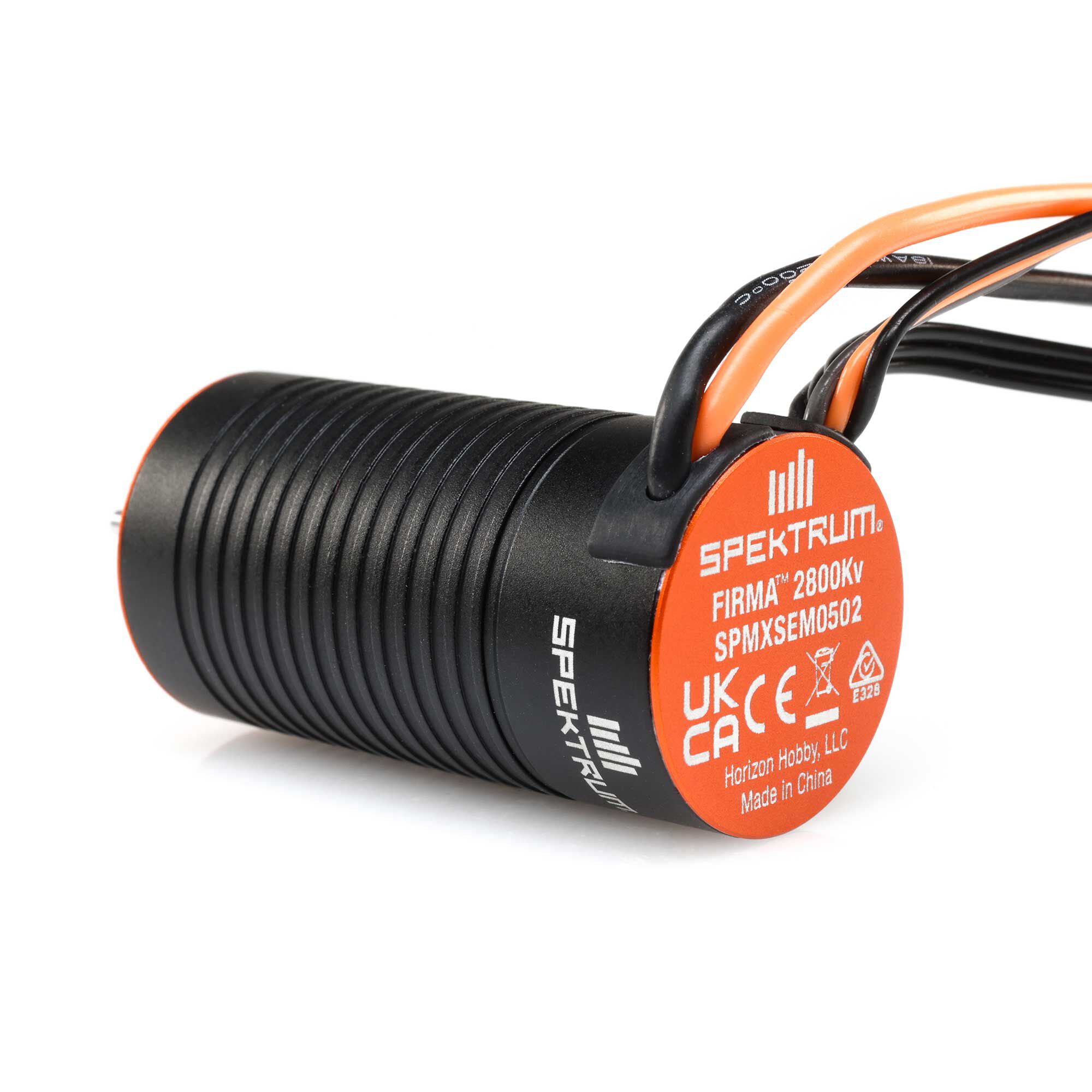

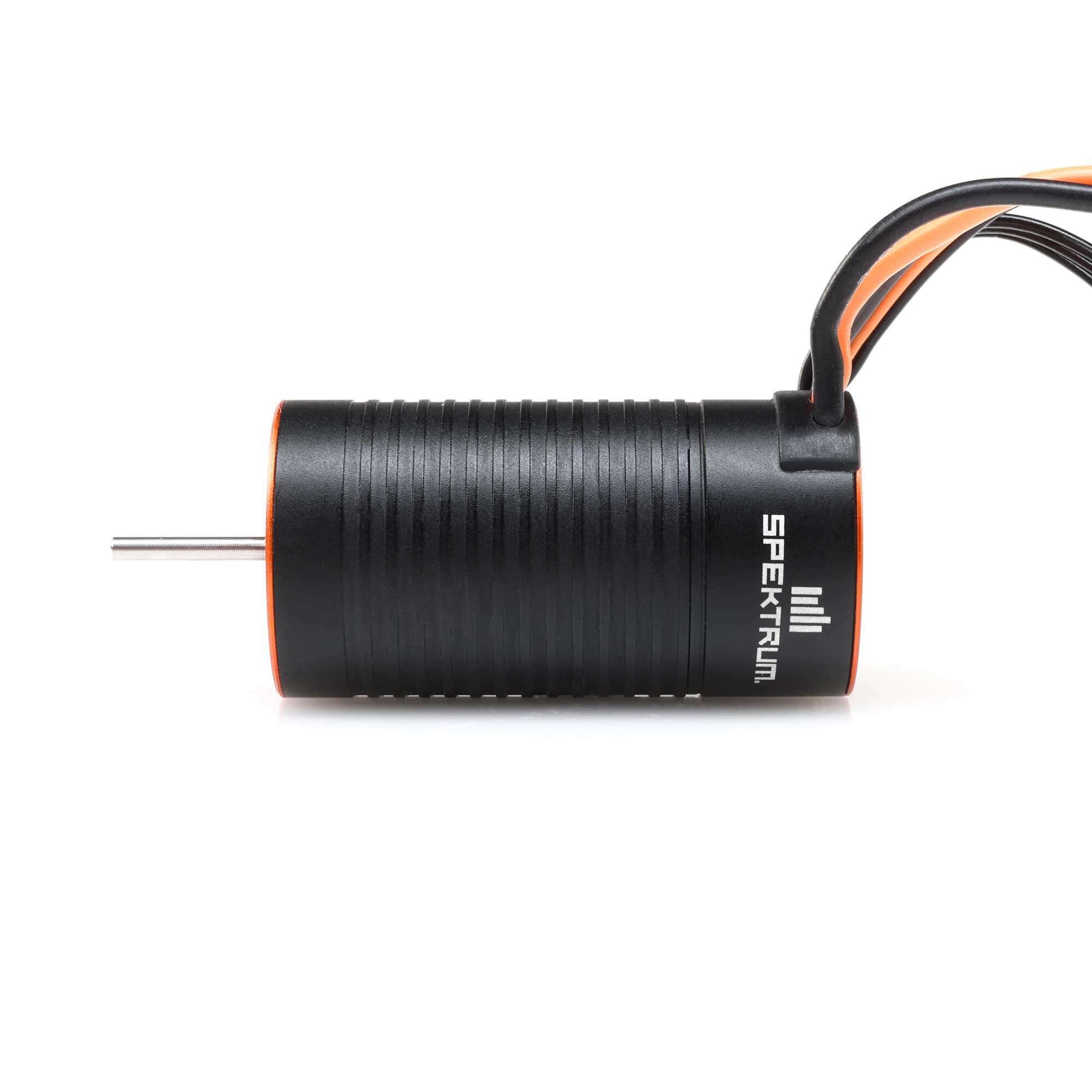

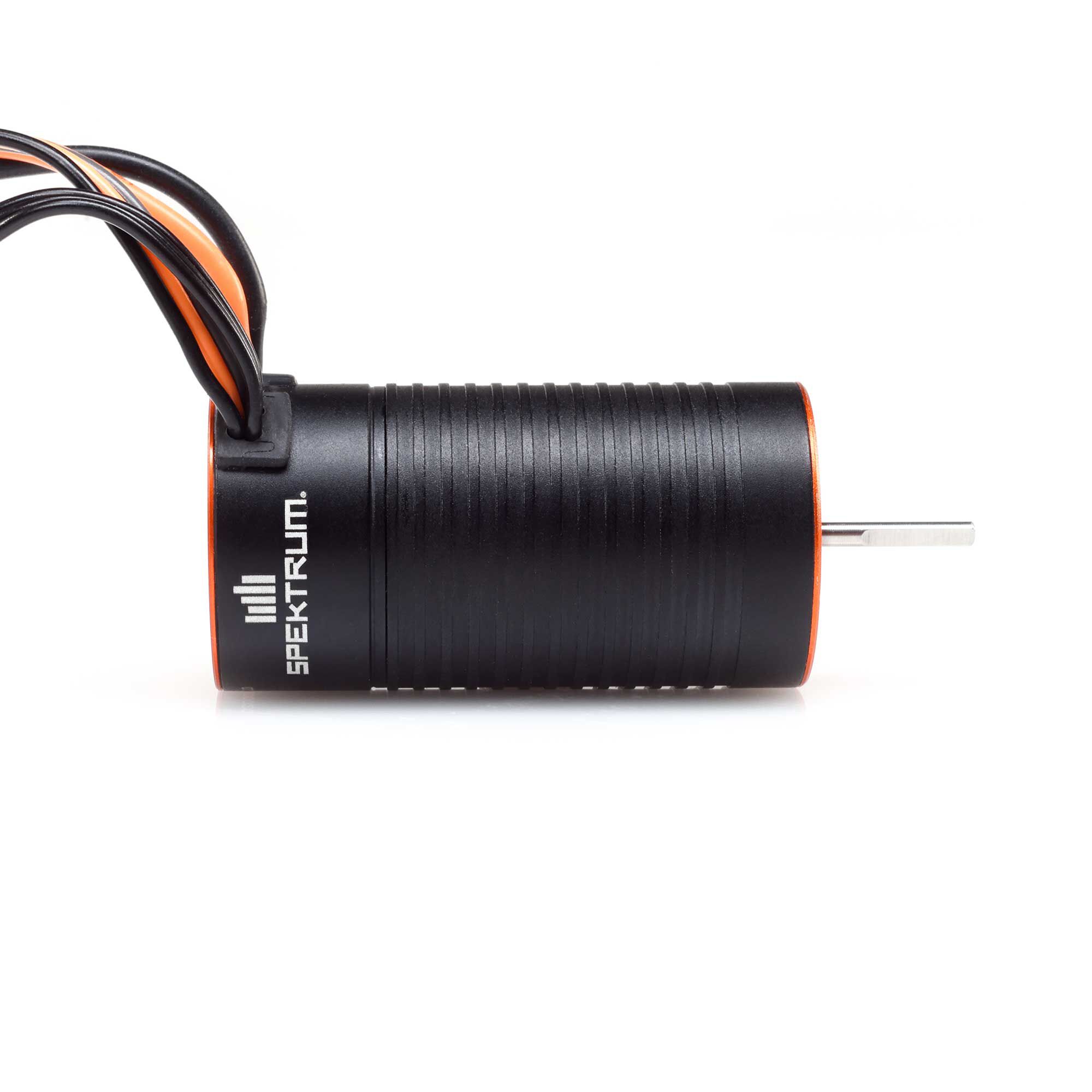

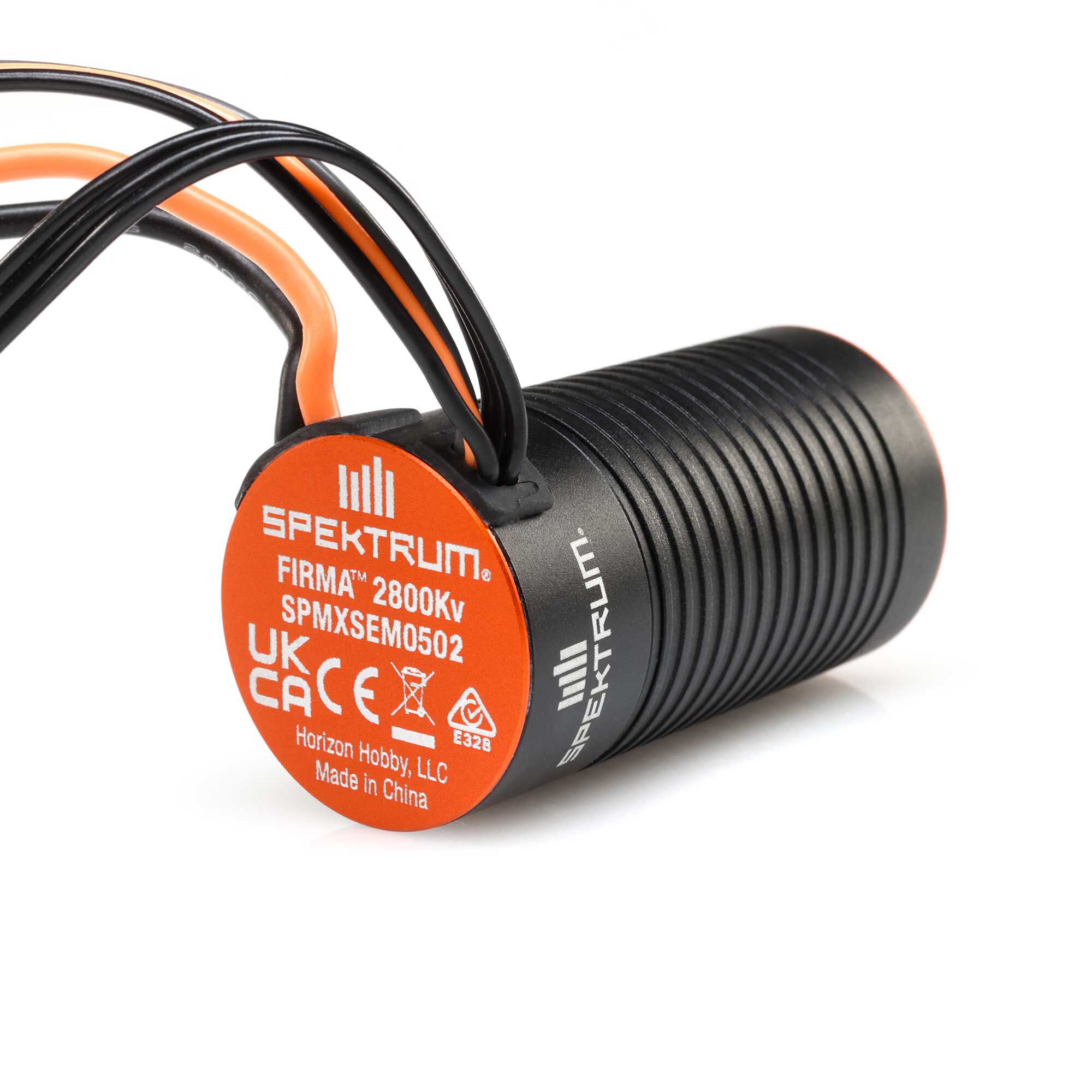

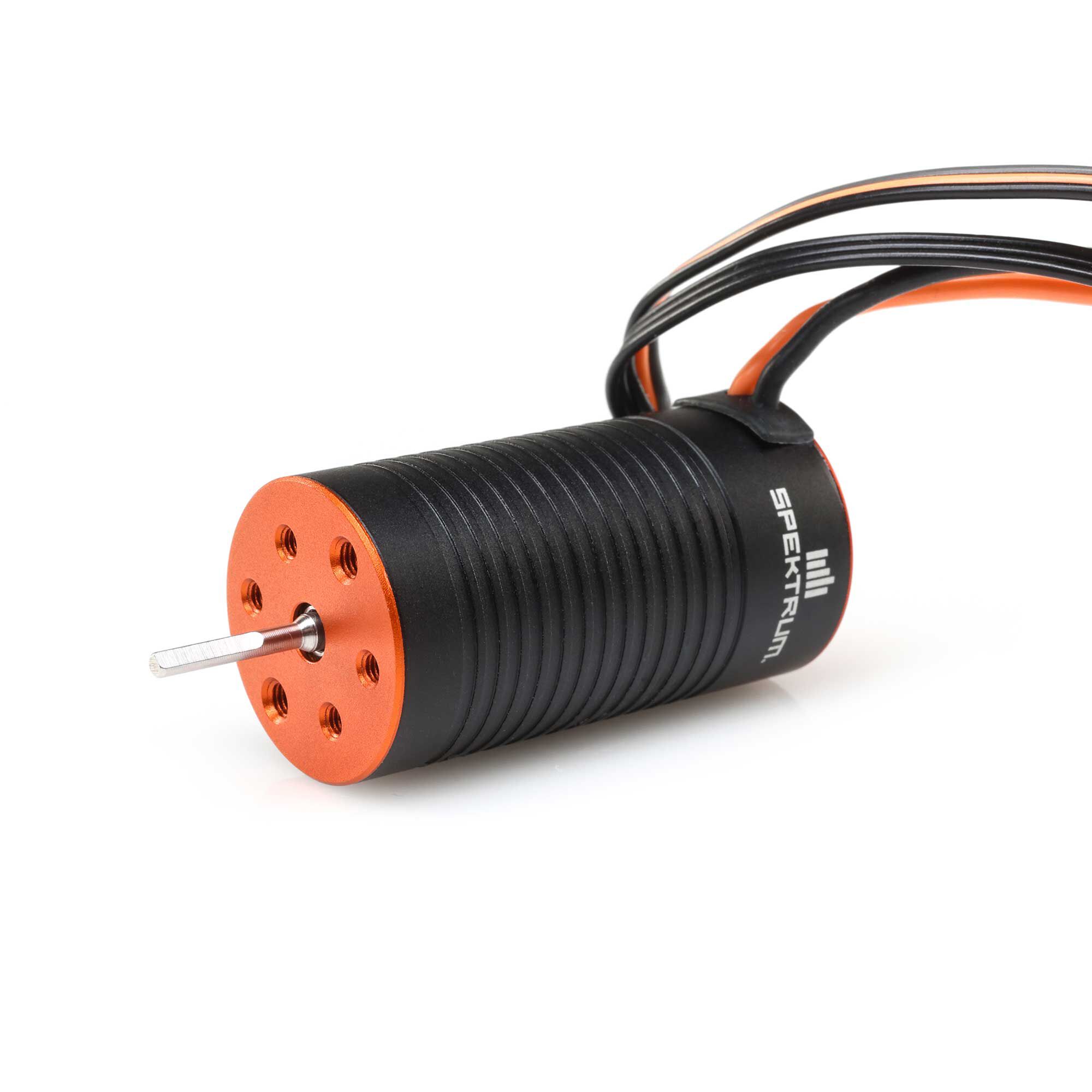

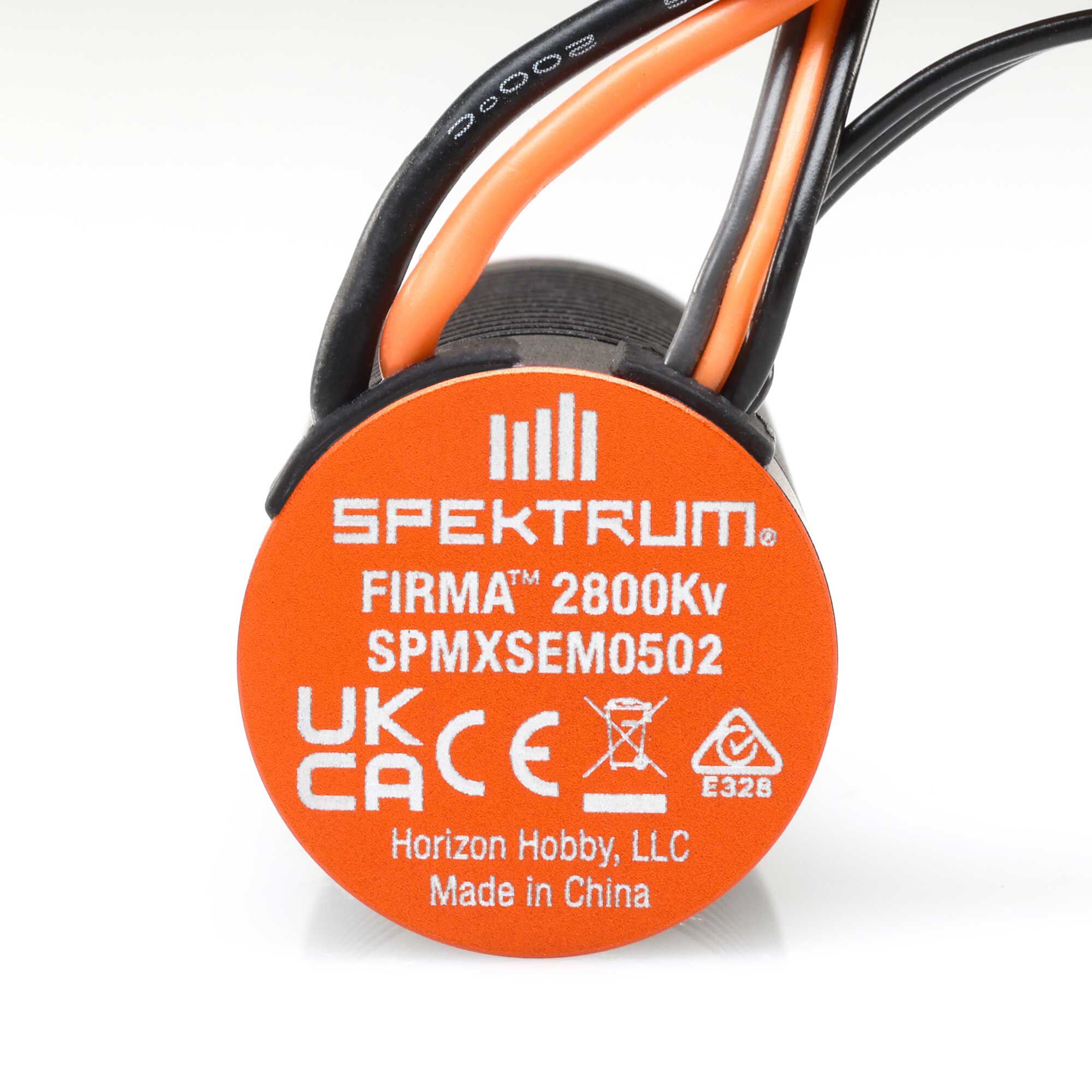

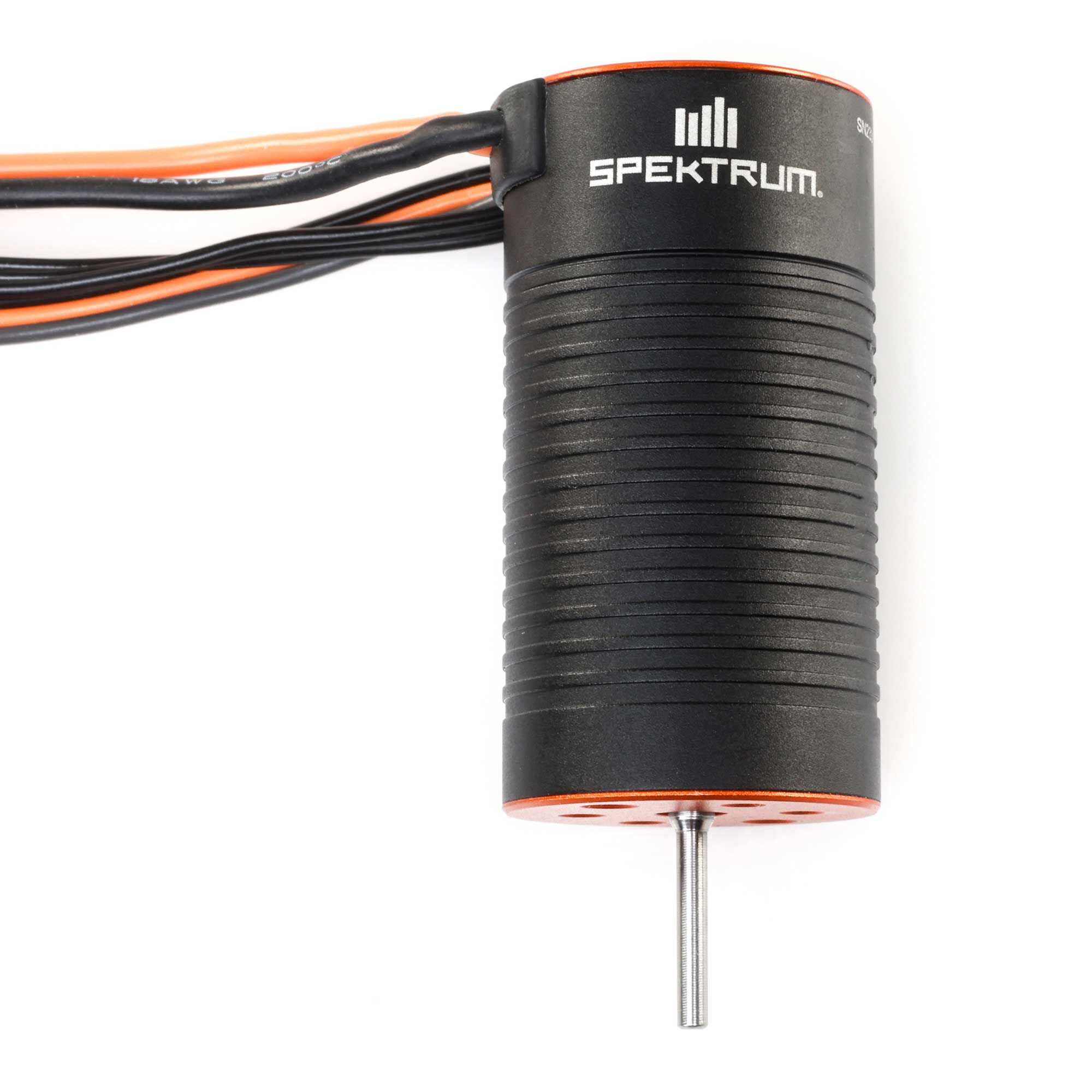

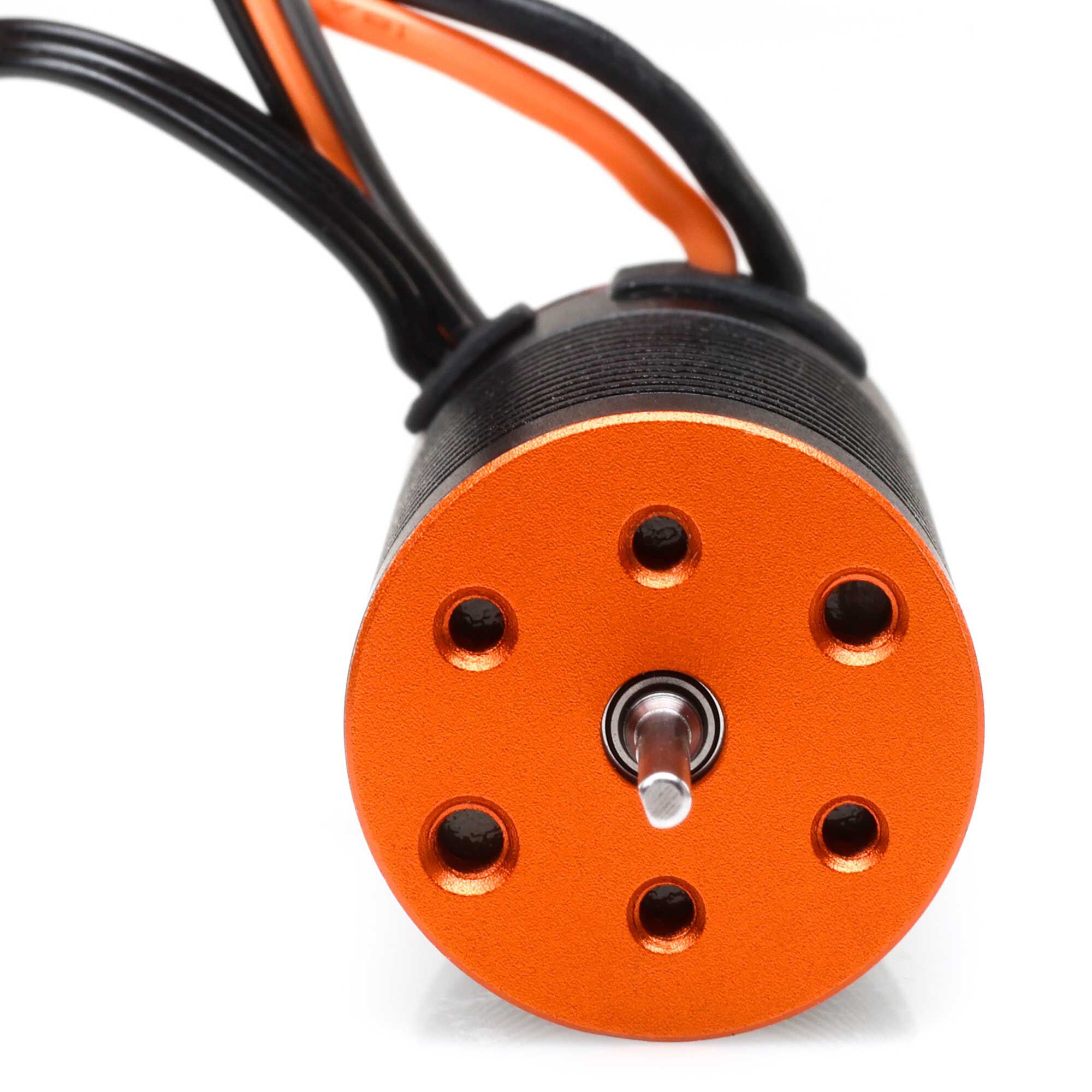

  • Includes high-performance Spektrum Firma 2800Kv Sensored Brushless Motor
  • Waterproof* (See instructions for details)
  • Compact for easy installation in most applications
  • Ready to install ?? no soldering required
  • Aluminum construction helps with heat dissipation
  • Adjustable high-power BEC


Product Specs

Application
1/16-1/18 Rock Crawler

BEC Continous Current
4A

BEC Voltage
6V/7.4V Adjustable

Connector Type
IC2

LiPo Compatibility
2S, 3S

Maximum Continuous Current
30A /80A

Motor Size
Motor Diameter: 24 mm Length: 45.8 mm

Motor Type
Brushless

Number of Cells
2-3S LiPo, 6-9 Cells NiMH

Number of Poles
4

Product Application
Crawling

Product Height
2″ (51 mm)

Product Length
4.2″ (107 mm)

Product Weight
2.7oz

Product Width
3″ (76 mm)

RPM/Volt (Kv)
2800Kv

Sensored
Yes

Shaft Diameter
2.3″ (58 mm)

Shaft Length
0.54″ (13.7 mm)
