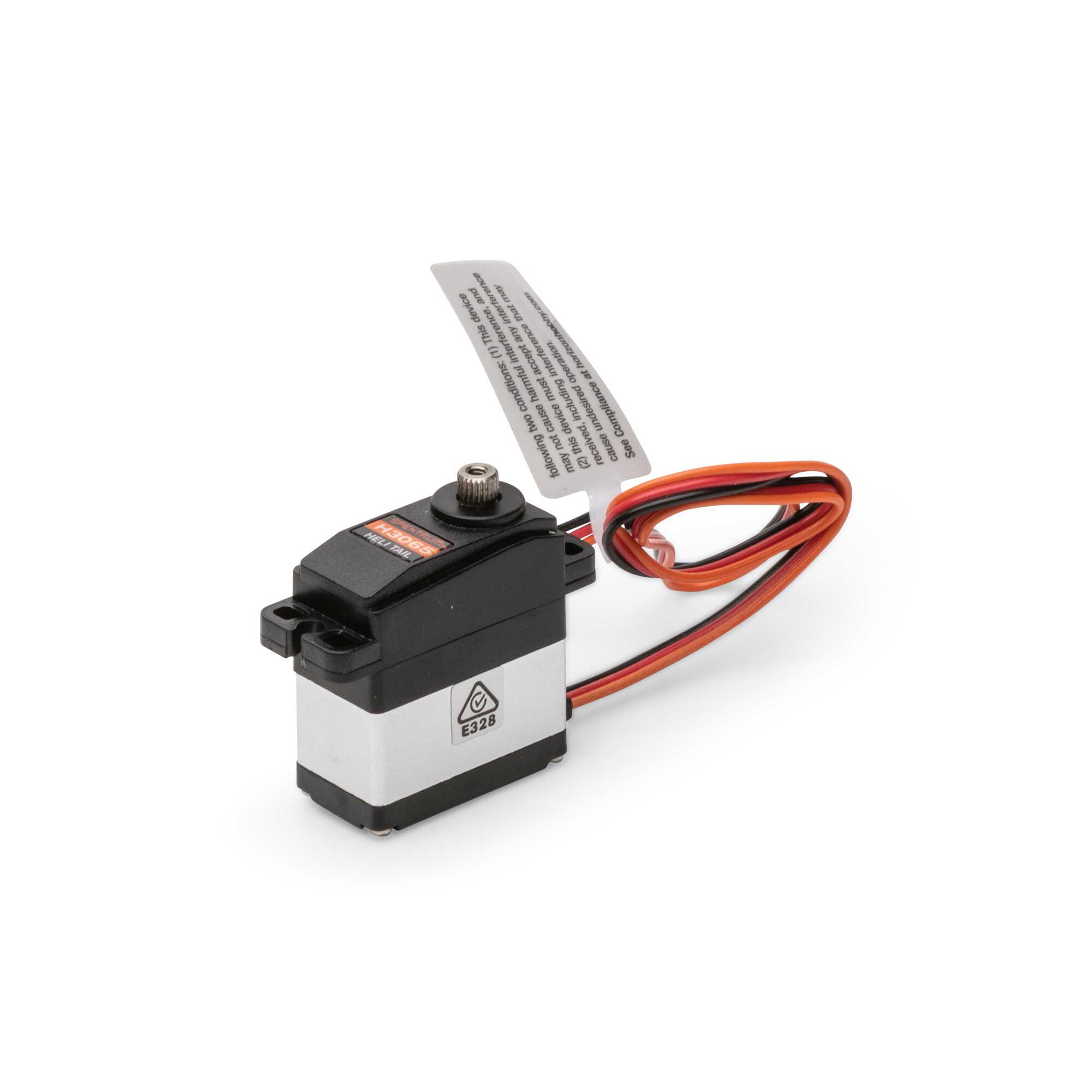

Upgrade your 250-450 size heli tail servo with the high speed and accurate H3065 Servo. Touting a blazing fast .029 transit speed and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz

Specs

Product Specs

Application
250 – 450 size heli, tail
Bearing
Single
Bushing Or Bearing
Bearing
Connector Wire Length
7.87″ (200mm)
Deadband
2
Gear Type
Metal
Maximum Servo Torque
15.75 oz-in (1.1kg-cm) @ 6.0V,
Product Height
1.17″ (29.6mm)
Product Length
0.91″ (23mm)
Product Weight
0.46 oz (12.9 g)
Product Width
0.47″ (12mm)
Programmable
No
Servo Operating Voltage
4.8 – 6.0V
Servo Size Category
Sub-Micro
Servo Type
Digital
Wire Gauge
22 AWG
