Features

  • Sleek black and silver anodized metal case
  • Brushless power and reliability
  • High Voltage (HV) Capable (6.0V-8.4V)
  • 23T output Spline
  • Water Resistant
  • Hardened steel gears
  • Precision engineered gear train for tight and low wear mesh
  • Ultra-fast transit speed (0.062sec at 8.4V)
  • Impressive torque (30kg-cm / 416oz-in at 8.4V)
  • Engineered to excel in 1/8th Scale Racers, RC Crawlers and Scalers
  • Removable standard size servo connector for easy lead swaps
  • Soft-Start puts less strain on steering components during start up
  • Advanced failsafe and protections

Specs

Product Specs

Connector Type
Universal
Gear Type
Metal

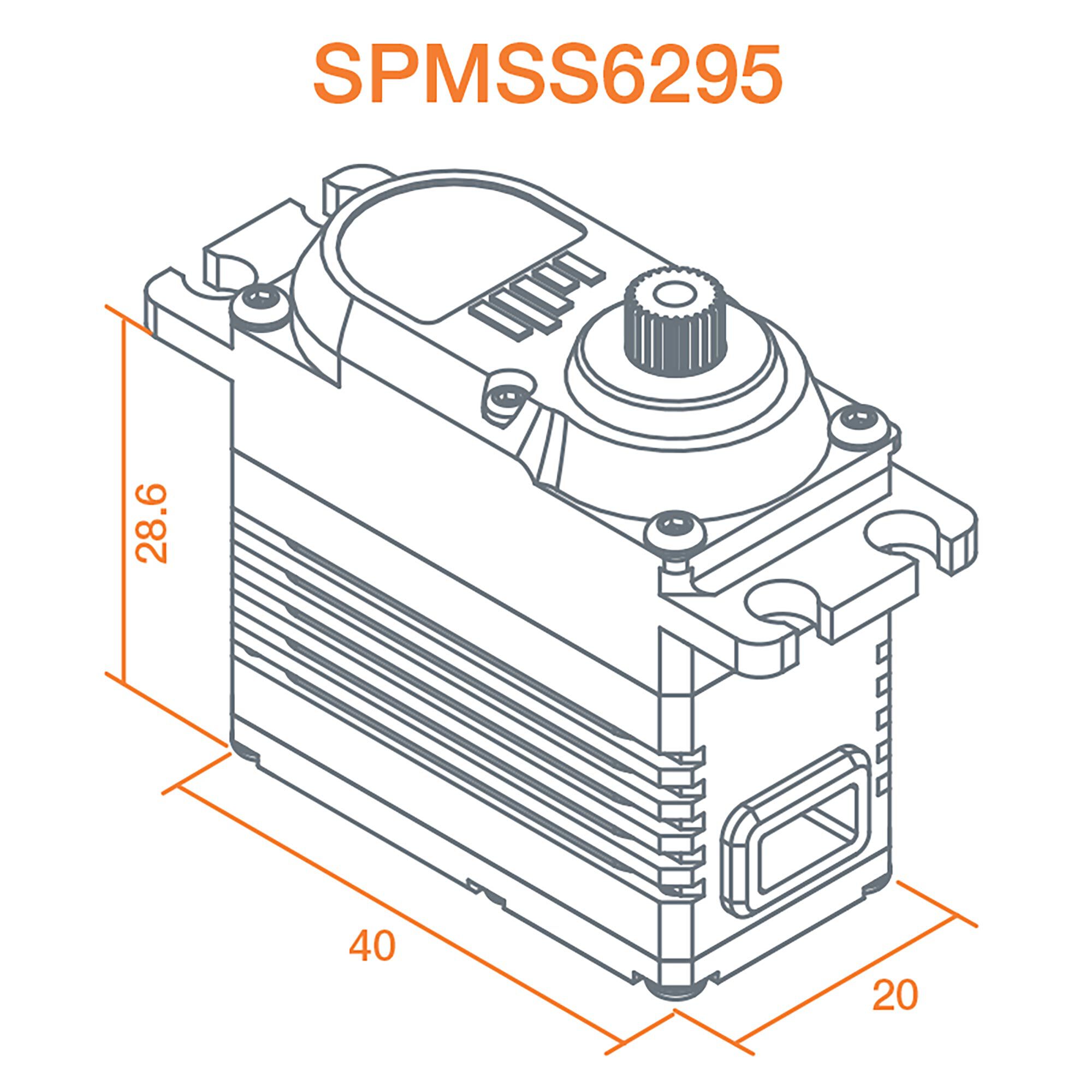

Product Height
1.12″ (28 mm)
Product Length
1.57″ (40 mm)
Product Width
0.78″ (20 mm)
Servo Operating Voltage
6.0 – 8.4V (HV)
Servo Size Category
Standard
Servo Type
Digital
Spline Count
23 – Tooth
Torque
416oz-in (30kg-cm) at 8.4V
Water-Resistant
Yes
Weight 5 kg
