Tamiya 1/10 M-08R 2WD Rally Chassis Kit (LIMITED EDITION)
$266.00 $53.20
In stock
Overview
About the M-08 Standard Edition

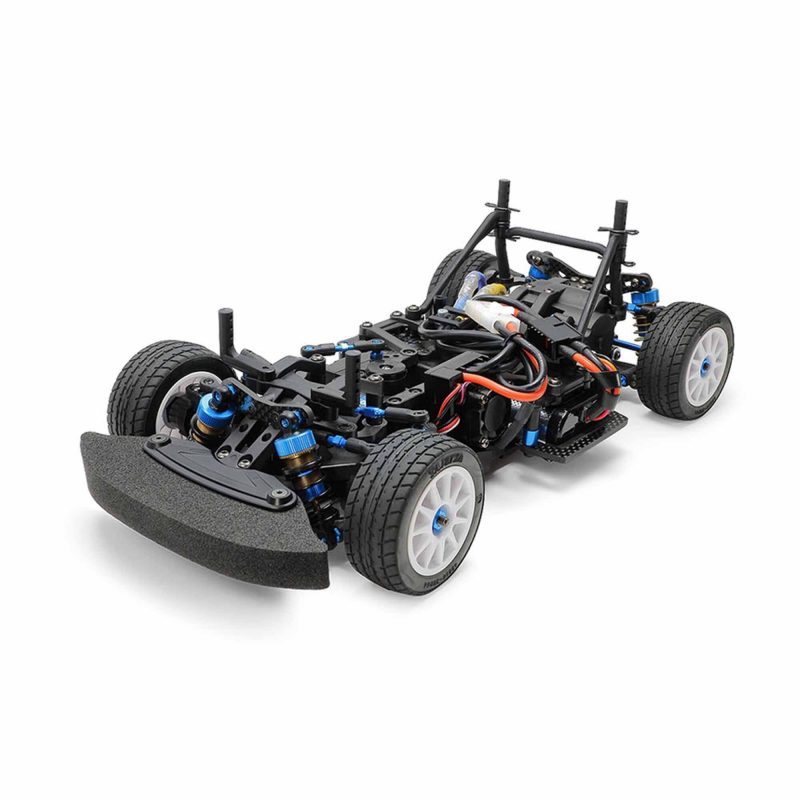

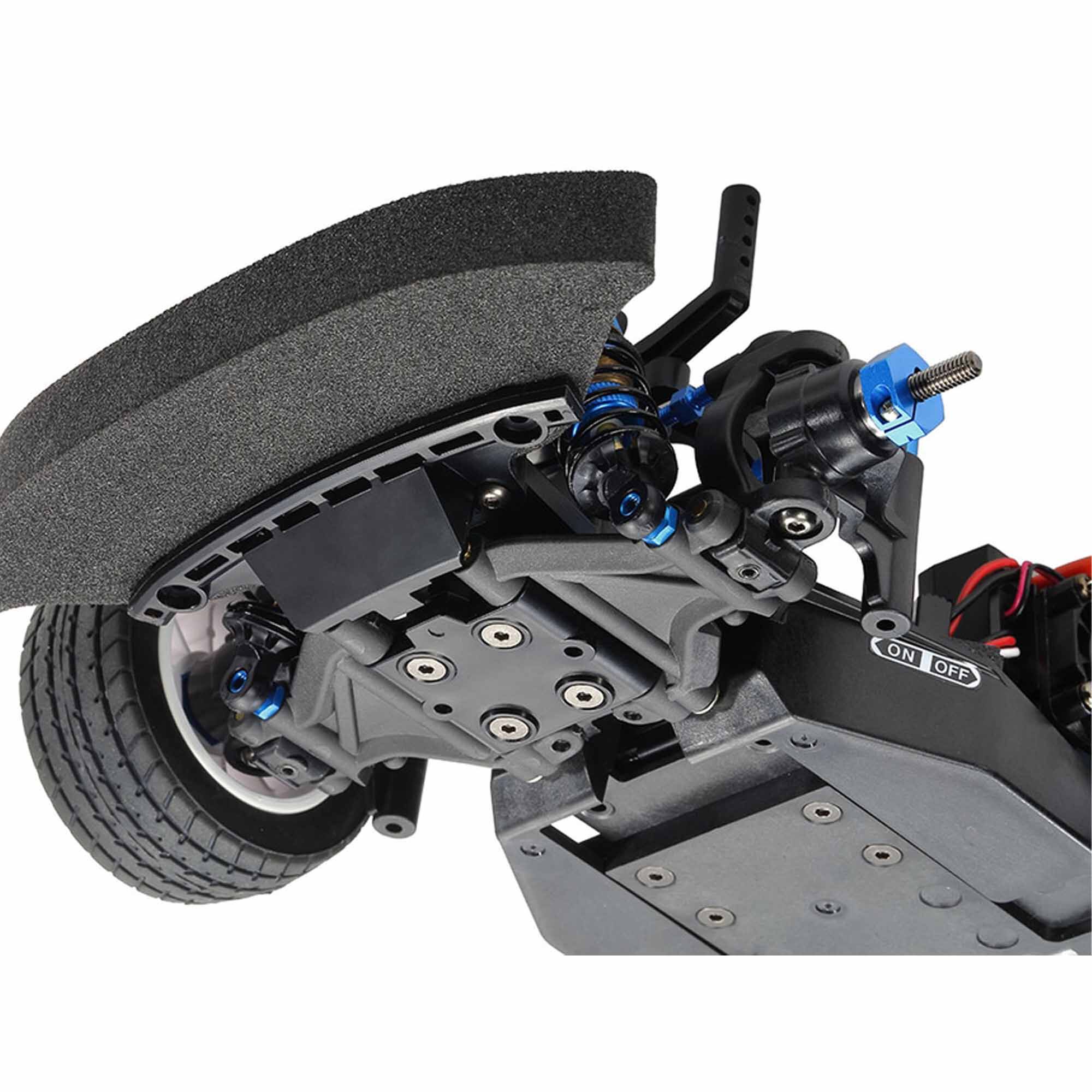

This assembly kit creates the M-08 Concept high performance R/C chassis, which employs a midship motor, rear-wheel drive layout for superior rear traction, plus a main frame split into front and rear sections that allow 3 different wheelbase selections. Smooth 4-wheel double wishbone suspension utilizes CVA oil dampers and long suspension arms for ground hugging performance, and front caster with a pairing of 0-degree suspension mount and 2-degree hub carrier. An oil-filled gear differential provides smooth drive, while motor and gearbox are positioned to ensure powerful drive under acceleration.
- Utilizes Twelve 3/32-Inch Balls To Give Superb Stability
- Includes Carbon Fiber Components
- M-08 Concept Reinforced Gearbox Parts
- Comes With Dedicated Chassis Weight
- Suspension Parts Feature Carbon Fiber-Reinforced Resin
Features
- 1/10 scale R/C model assembly kit.
- The TA06 Rear Ball Differential Set (Item 54306) utilizes twelve 3/32-inch balls to give superb stability.

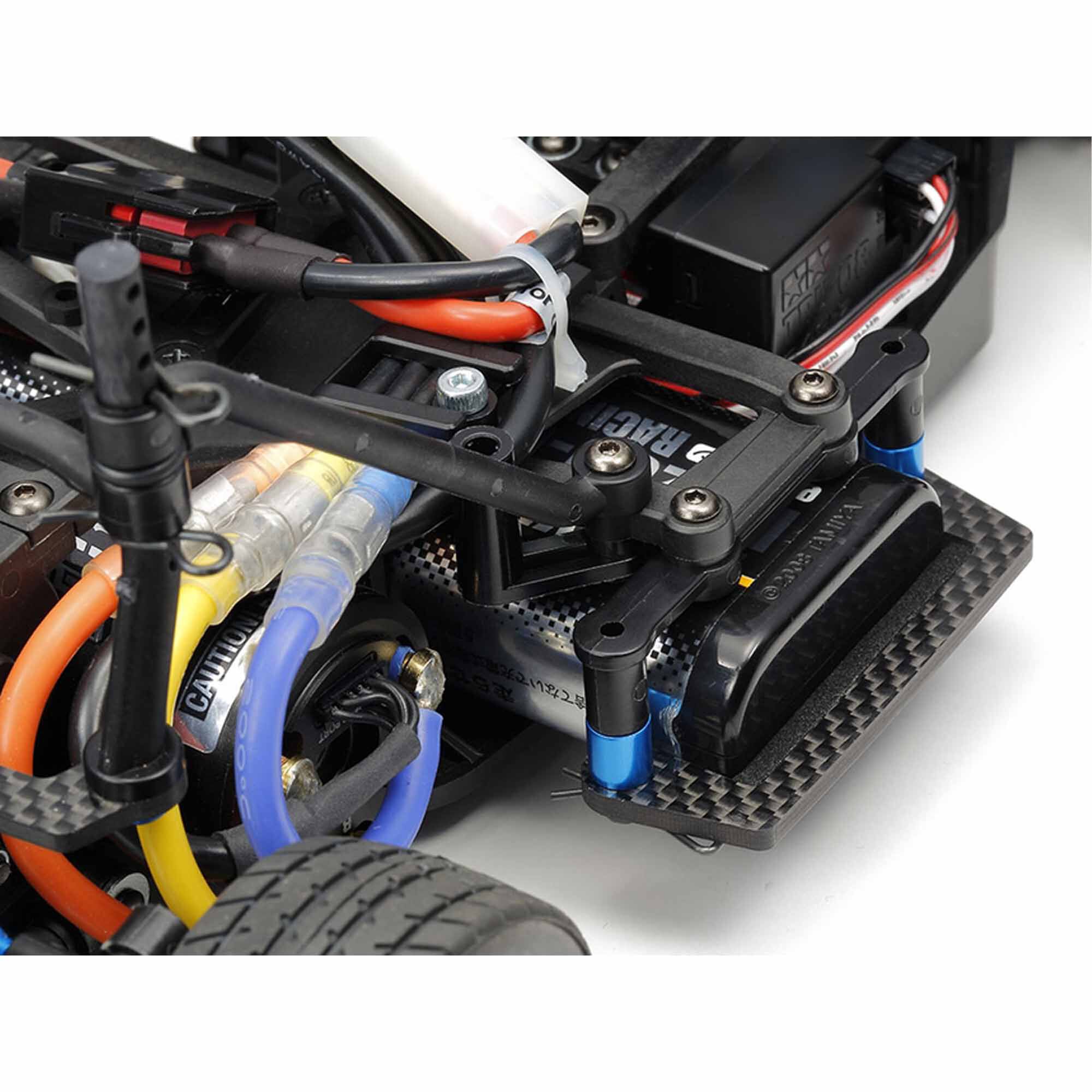

- Includes carbon fiber components such as battery holders and body mount base

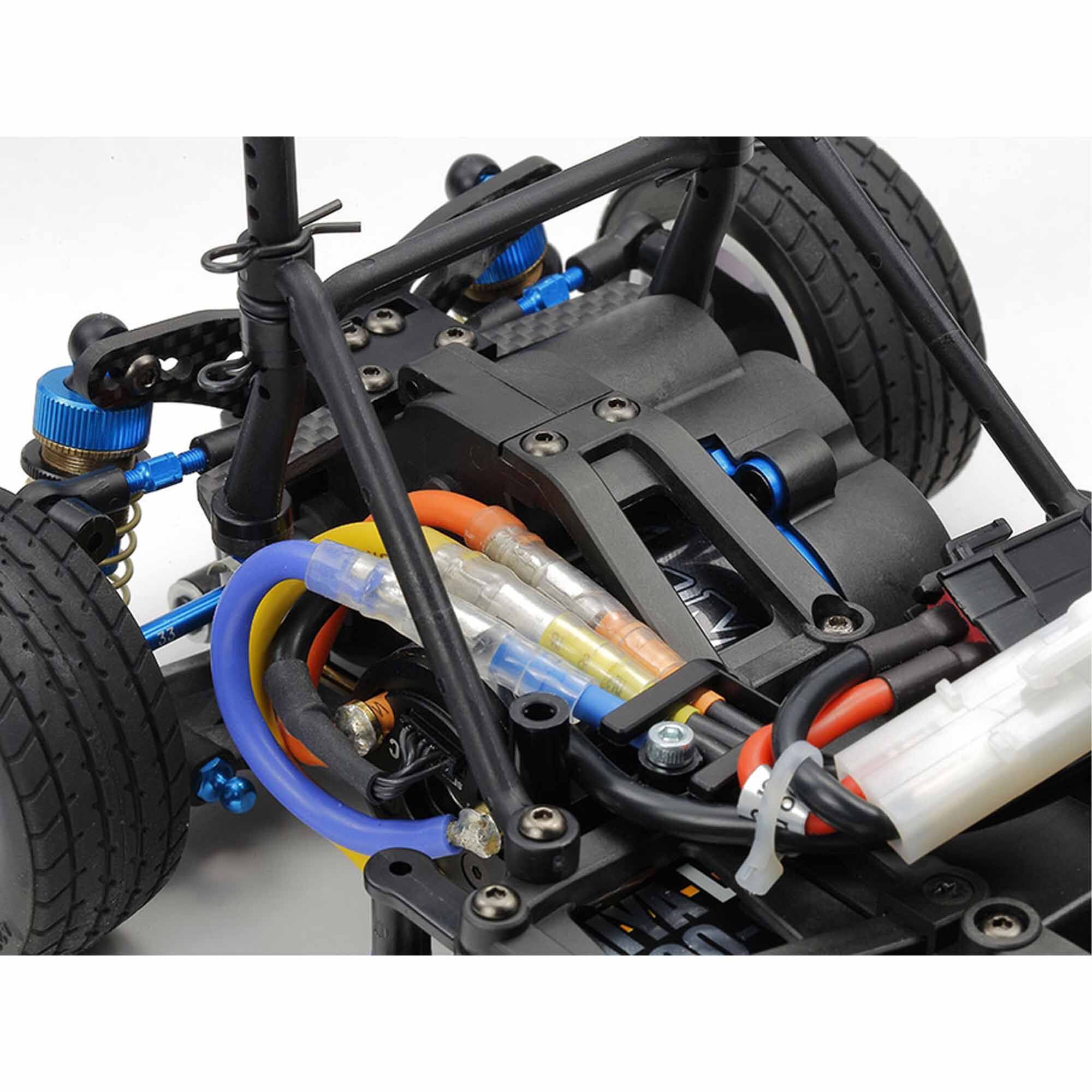

- M-08 Concept Reinforced K Parts (Gearbox) (Item 54983) give sturdier gearbox and steering setups, for more efficient drive and improved steering feel.
- Comes with the dedicated chassis weight (20g).
- Features hex head screws.
- M-07 Concept Reinforced D Parts (Suspension Arms) (Item 54811) featuring carbon fiber-reinforced resin allow superior cornering ability.

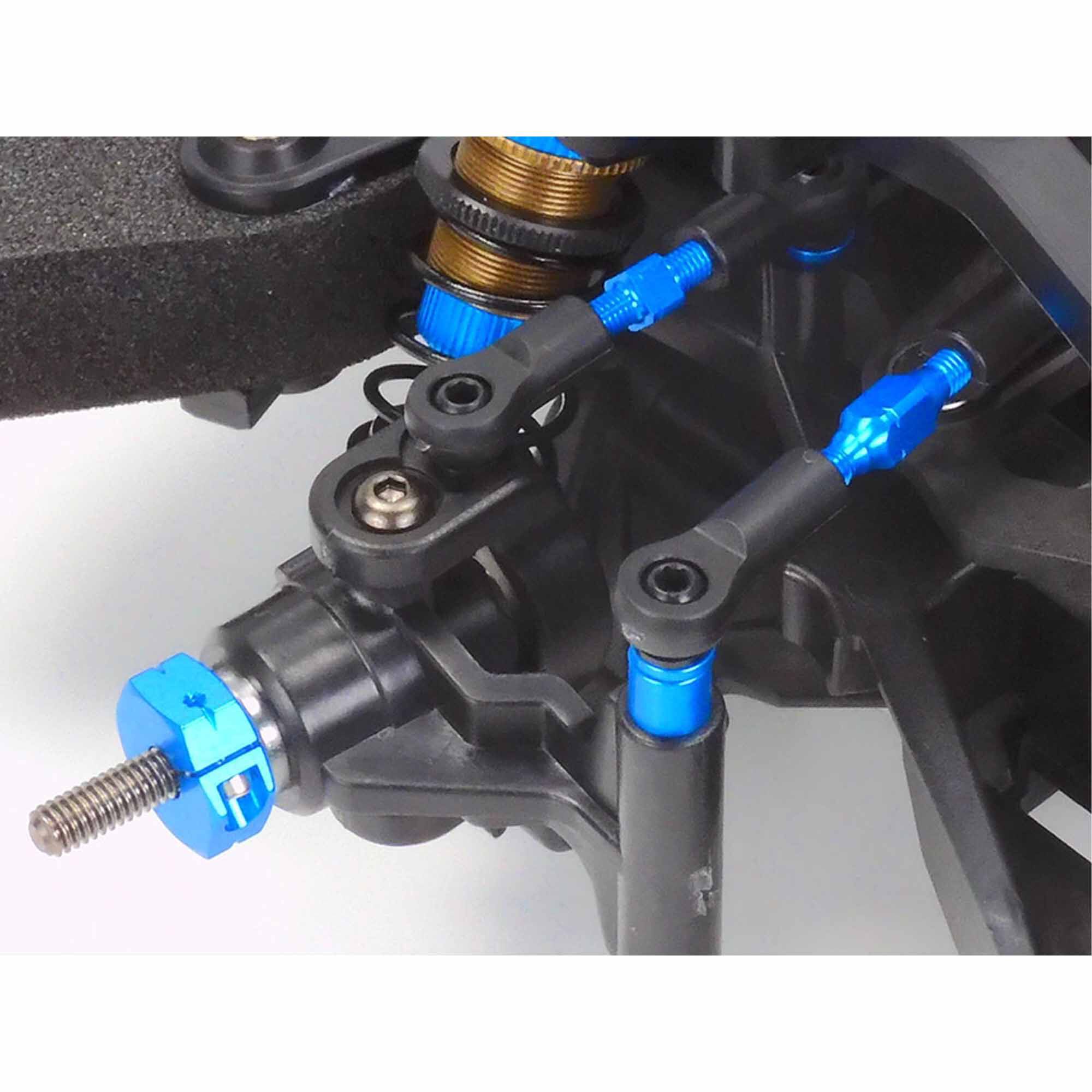

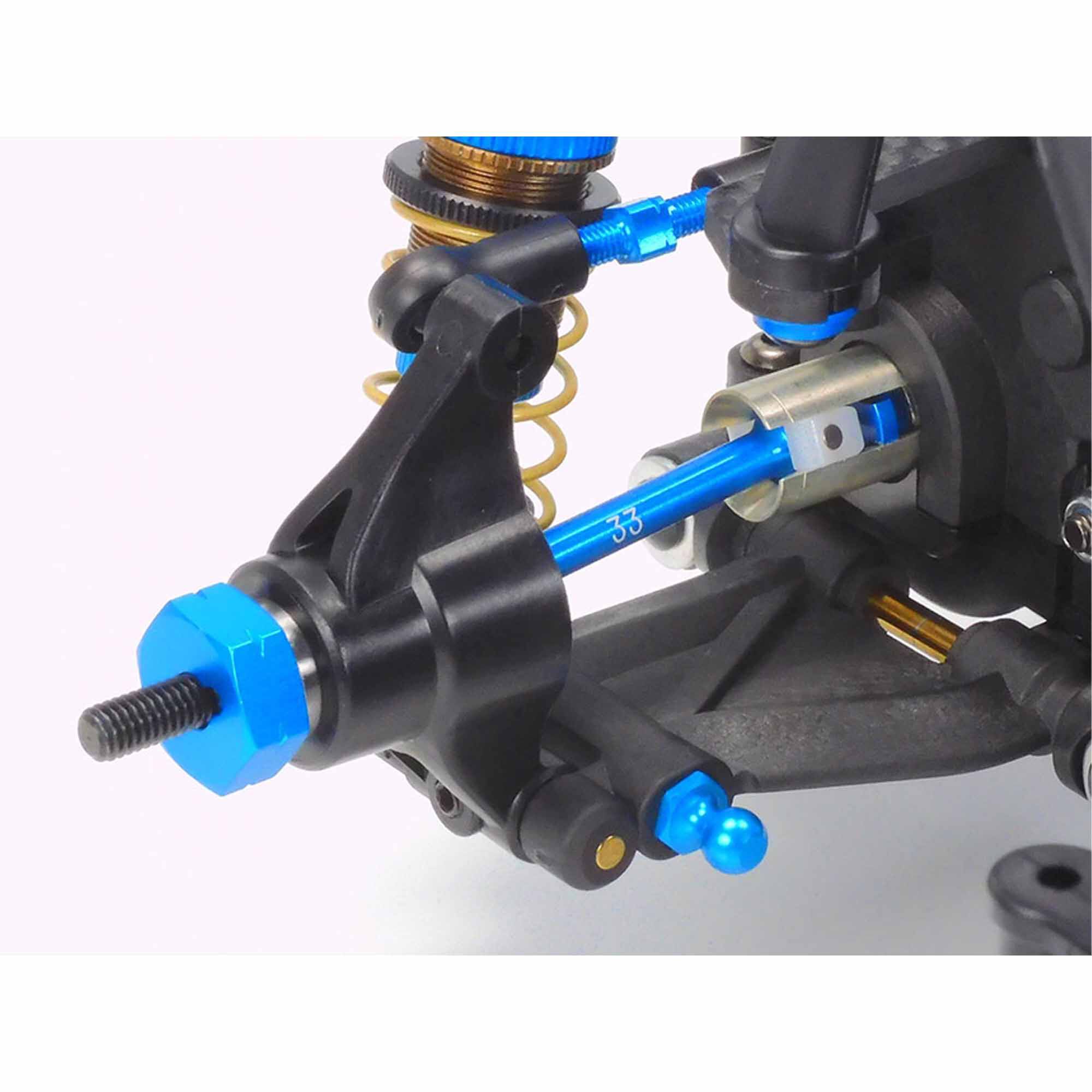

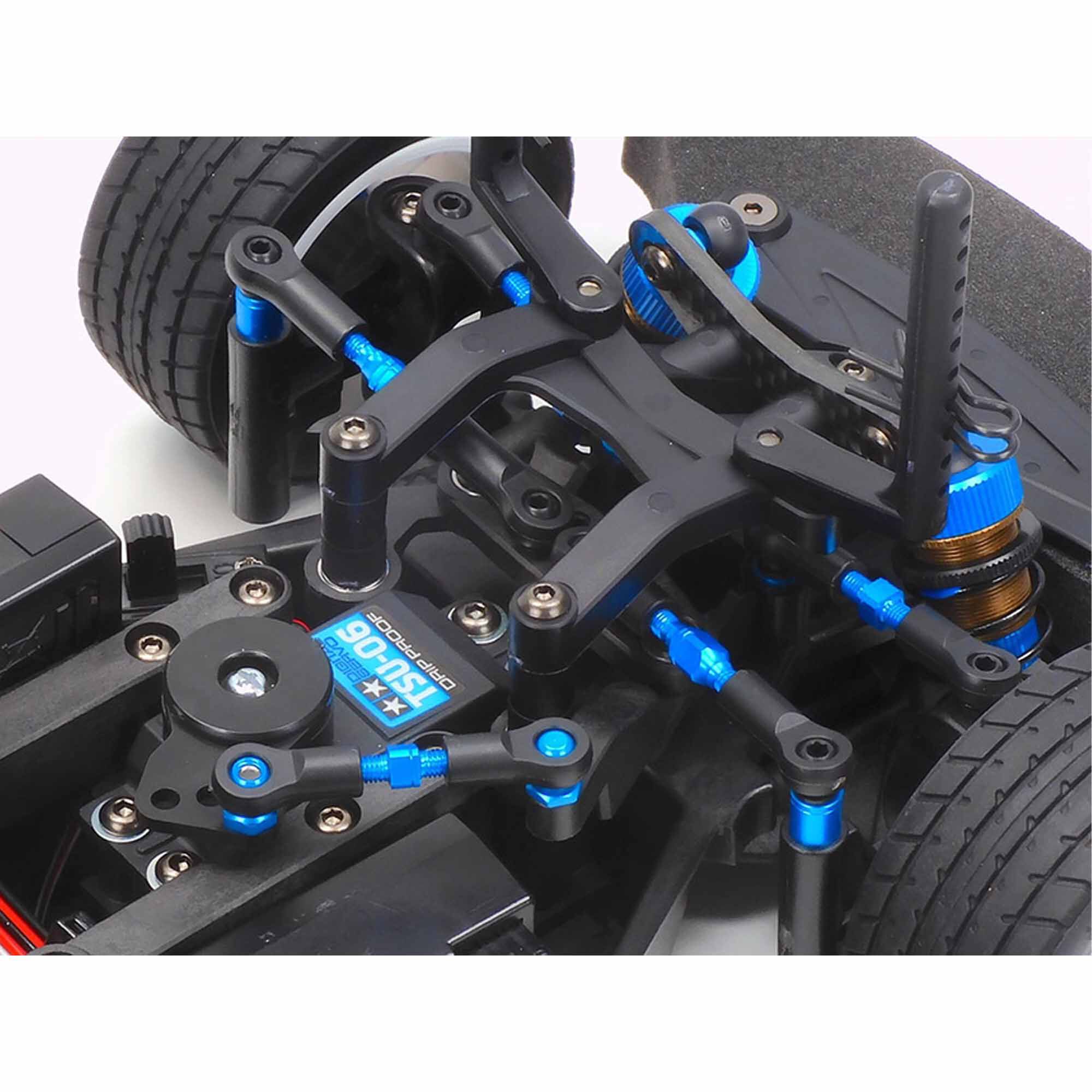

- Durable, lightweight aluminum turnbuckle shafts (3x18mm; Item54247, 3x23mm; Item 54248, and 3x32mm; Item 54249) allow adjustment of length without removing adjusters.

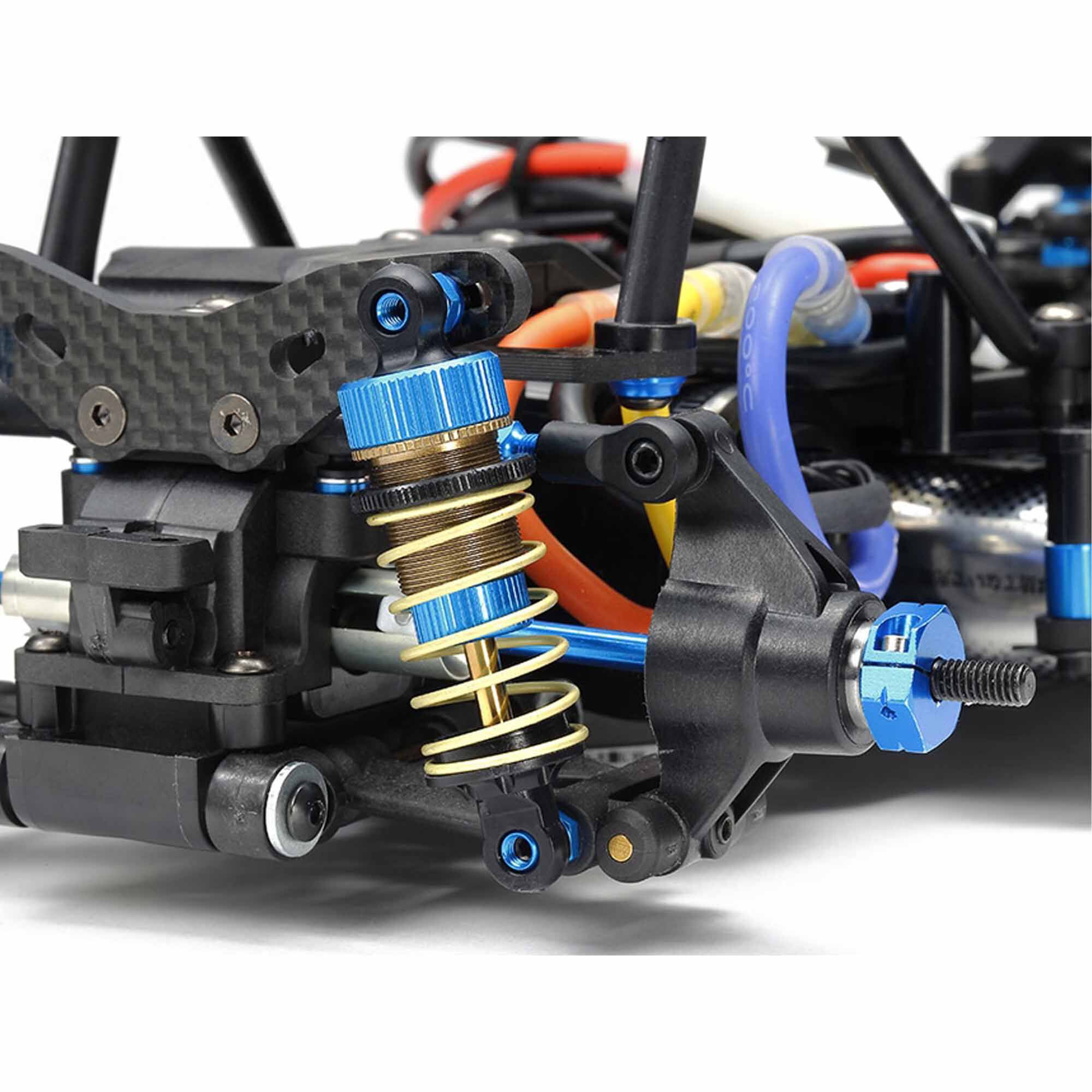

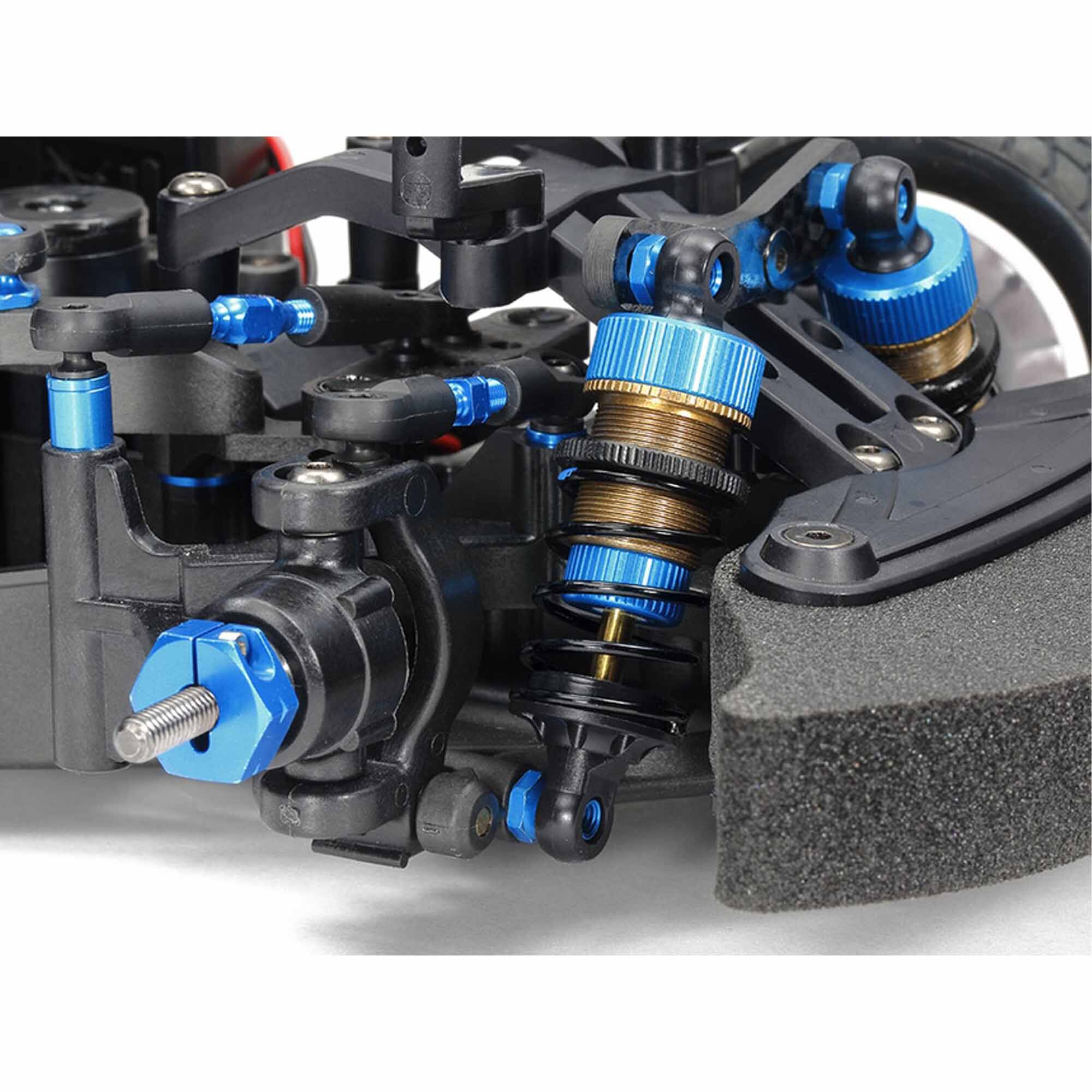

- Includes a blue anodized finish version of the TRF Super Short Big Bore Dampers+ (4pcs.)
- The 1.3mm diameter damper pistons (x3) give smooth oil flow and facilitate more flexible suspension.
Specs
Product Specs
Ball Bearings
Full Ball Bearings |
Battery
Sold Separately |
Bushing Material
Metal |
Charger
Sold Separately |
Chassis
FRP Fiberglass Reinforced Plastic |
Completion Level
Kit |
Differential
Ball Pressure Plate |
Drive Type
Forward/Brake/Reverse |
Drivetrain
2WD |
Gear Ratio
Adjustable |
Manufacturer #
47480 |
Motor Size
540 |
Power Type
Electric |
Radio
Sold Separately |
Receiver
Sold Separately |
Scale
1/10 |
Servos
Sold Separately |
Shock Type
Aluminum Oil Filled |
Speed Control
Sold Separately |
Suspension
Fully Independent Double Wishbone |
Vehicle Type
On-Road |
