Overview

Introduction

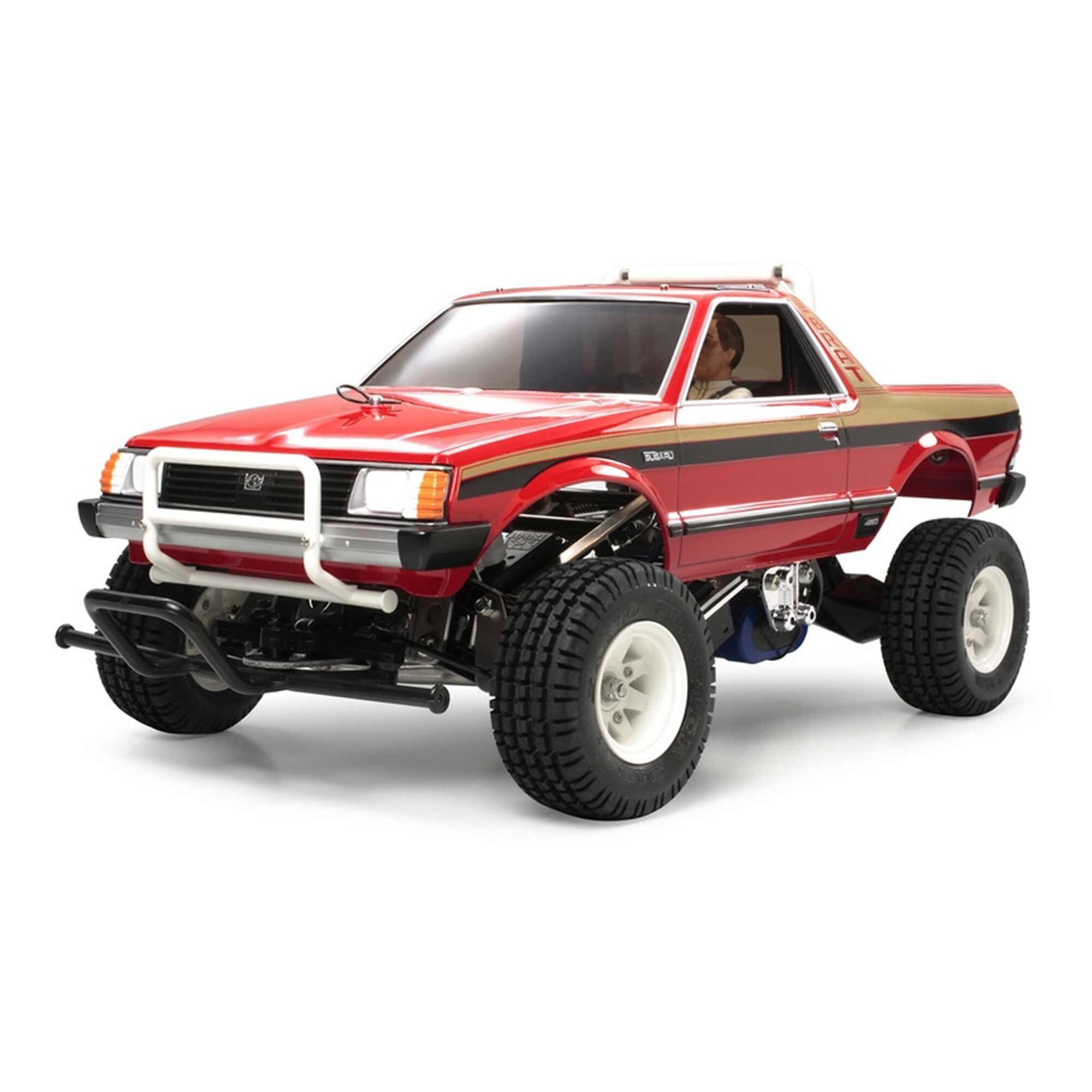

Tamiya first produced an R/C version of this popular little truck back in 1983, and is now proud to present an updated, improved re-release of this classic R/C truck. Aside from the upgraded internal parts, this assembly kit comes with a driver figure for a nostalgic feel. In addition, both a super-detailed resin body for shelf display and a lightweight durable polycarbonate body for racing are included.

About the Chassis

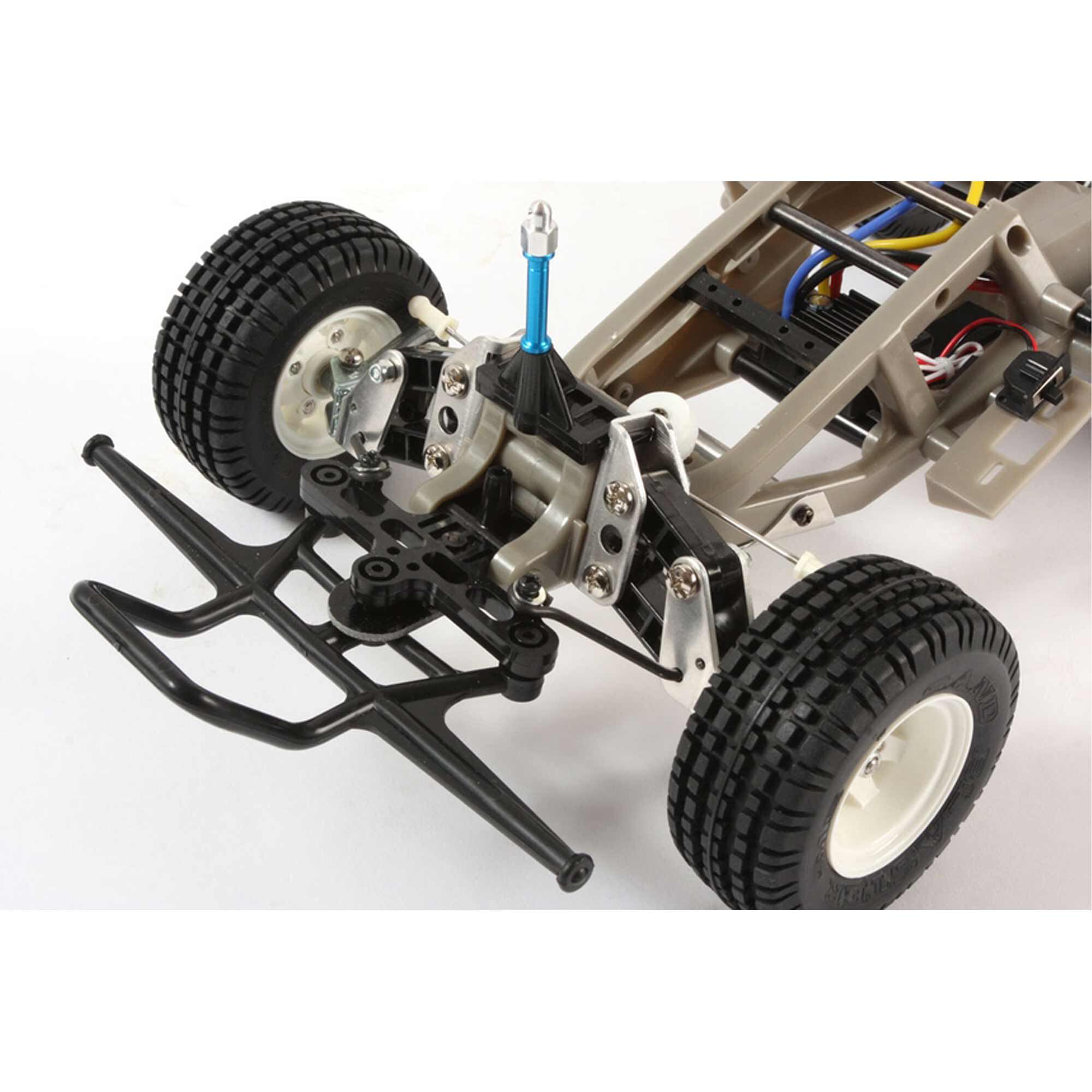

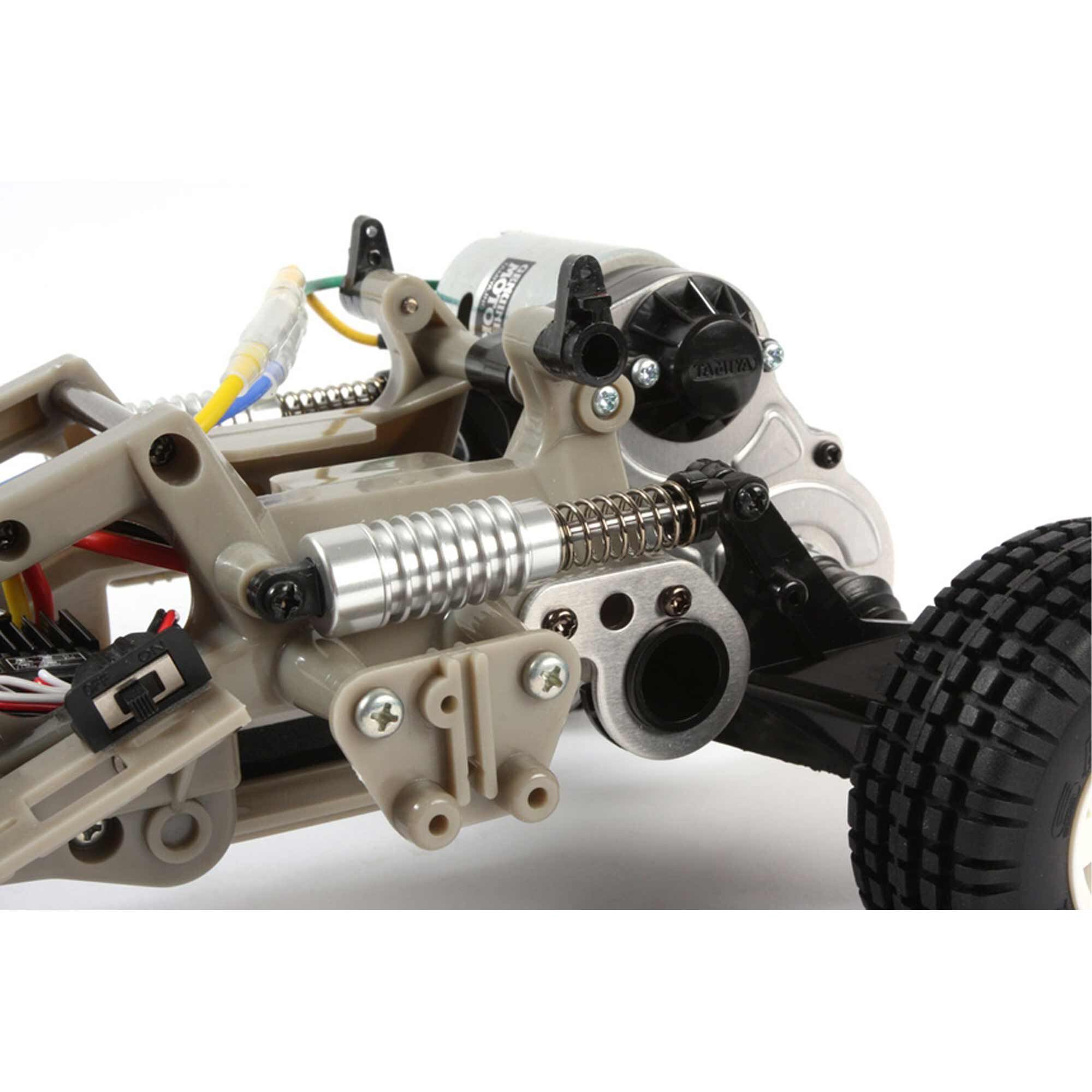

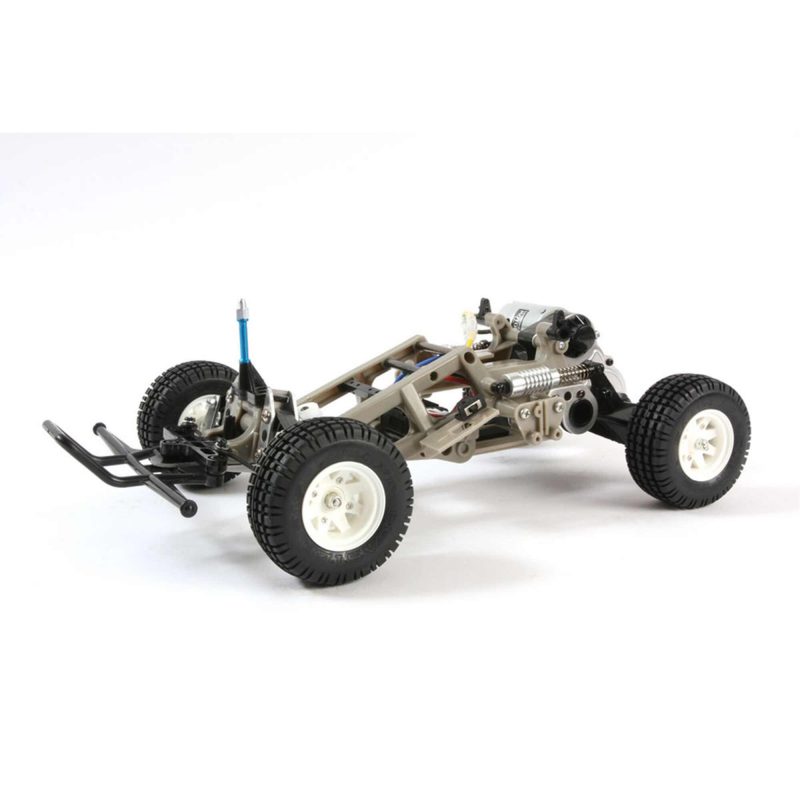

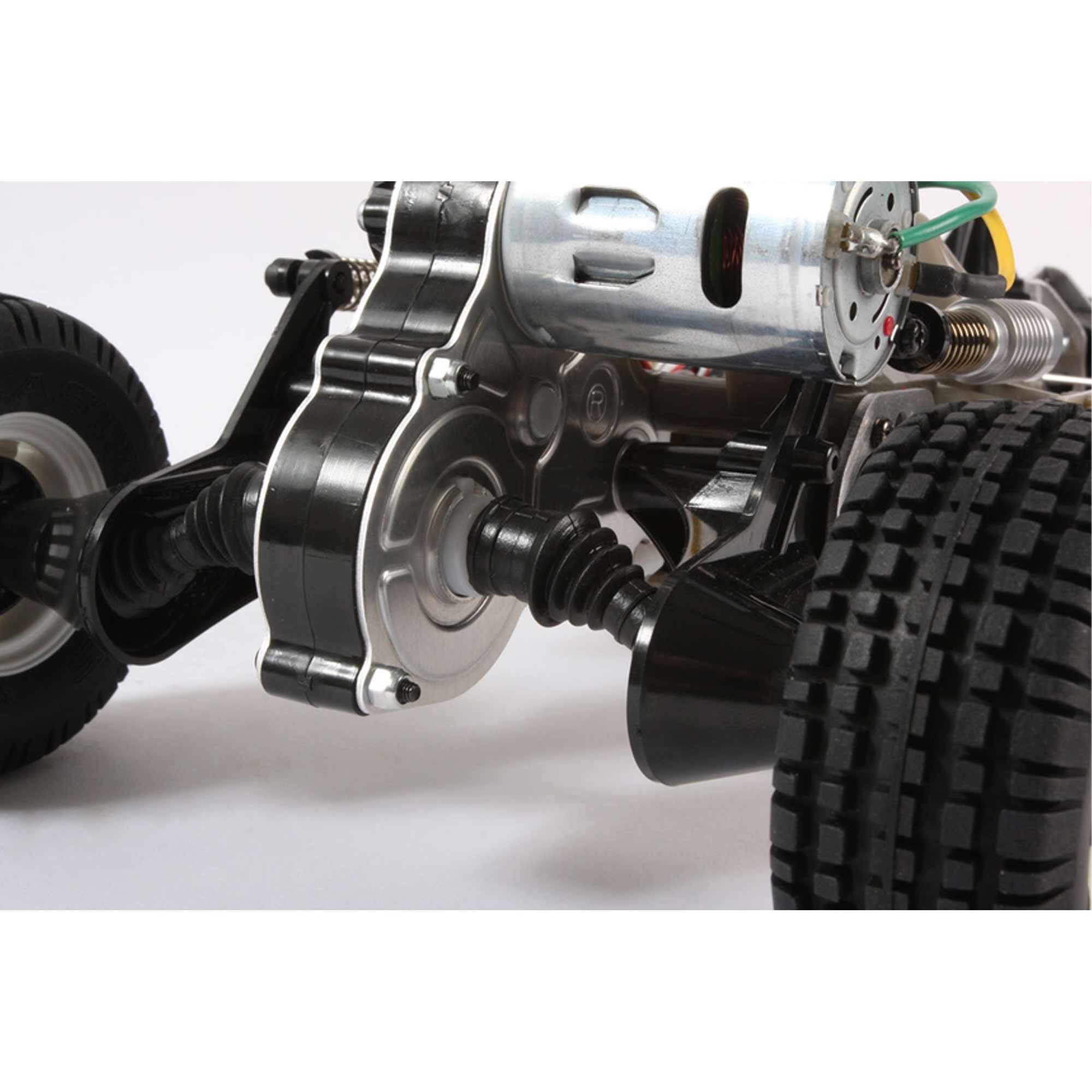

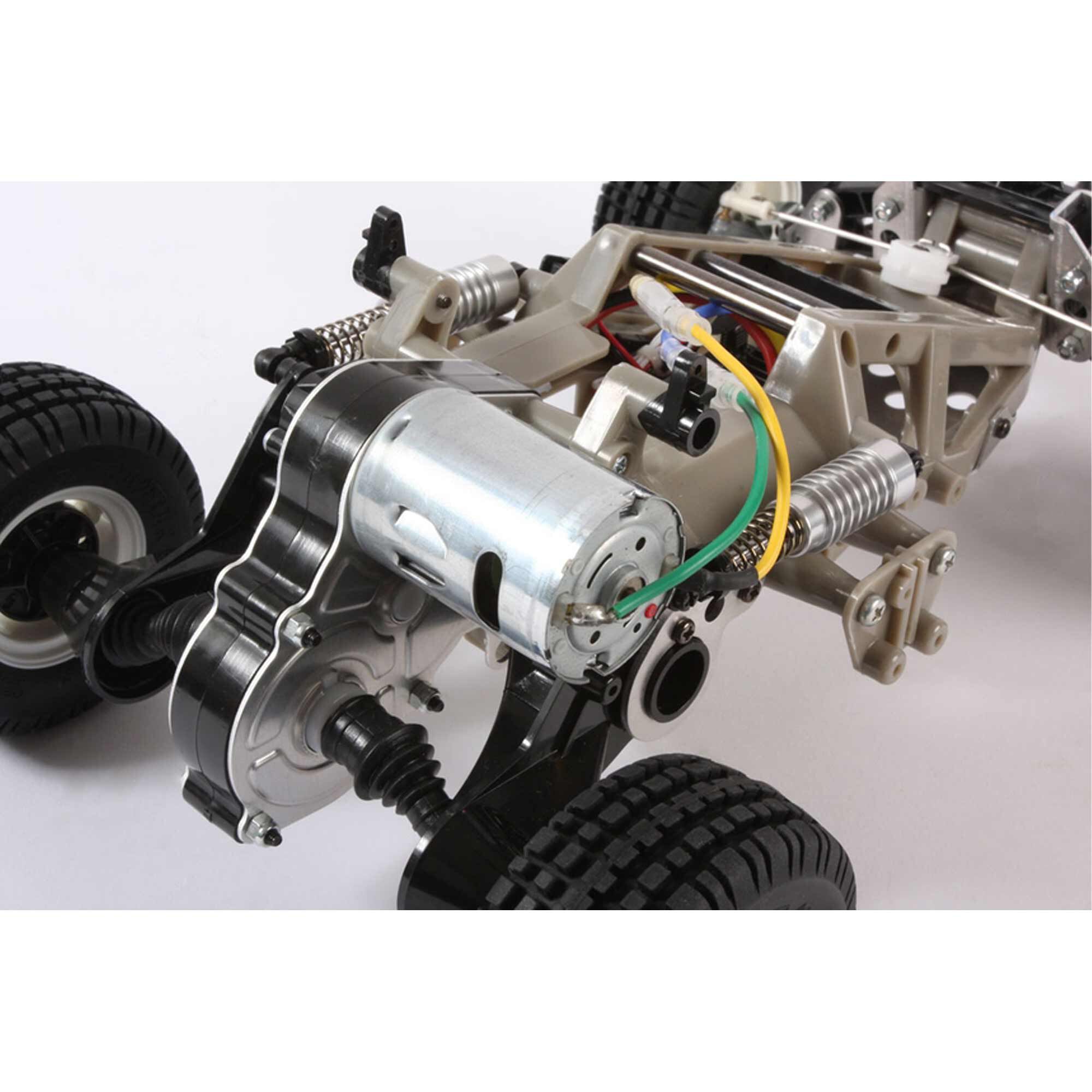

The unique space frame chassis features 4-wheel independent suspension system with front double wishbones and rear trailing arms. The rear suspension in particular has been updated with the diaphragm type oil dampers and coil springs. A 540 Type motor drives the differential-equipped gearbox, and the drive shaft features a dog bone joint for optimum transmission efficiency. Block pattern tires mounted on the realistic 8-spoke wheels rounds out this stylish package.

Specs

Product Specs

Ball Bearings
Plastic bushing
Battery
Sold Separately
Body
ABS Plastic
Bushing Material
Plastic
Charger
Sold Separately
Chassis
ABS Plastic
Completion Level
Kit
Connector Type
Tamiya
Differential
Gear Diffs
Drive Type
Forward/Brake/Reverse
Drivetrain
2WD
Front Track
7.75″ (197mm)
Gear Ratio
6.7:1, 7.3:1, 8.5:1
Motor Size
RS540
Motor Type
Brushed
Power Type
Electric
Product Height
6.88976″ (175 mm)
Product Length
17.8346″ (453 mm)
Product Weight
64.9 oz (1,840g)
Product Width
8.66142″ (220 mm)
Radio
Sold Separately
Rear Track
7.0″ (178mm)
Receiver
Sold Separately
Scale
1/10
Servos
Sold Separately
Shock Type
Oil-filled damper
Speed Control
Included
Steering Type
2WS
Suspension
Front double wishbone with in-board spring, Rear trailing arm with oil damper
Vehicle Size
Standard
Vehicle Type
Buggy
Weight 5 kg
