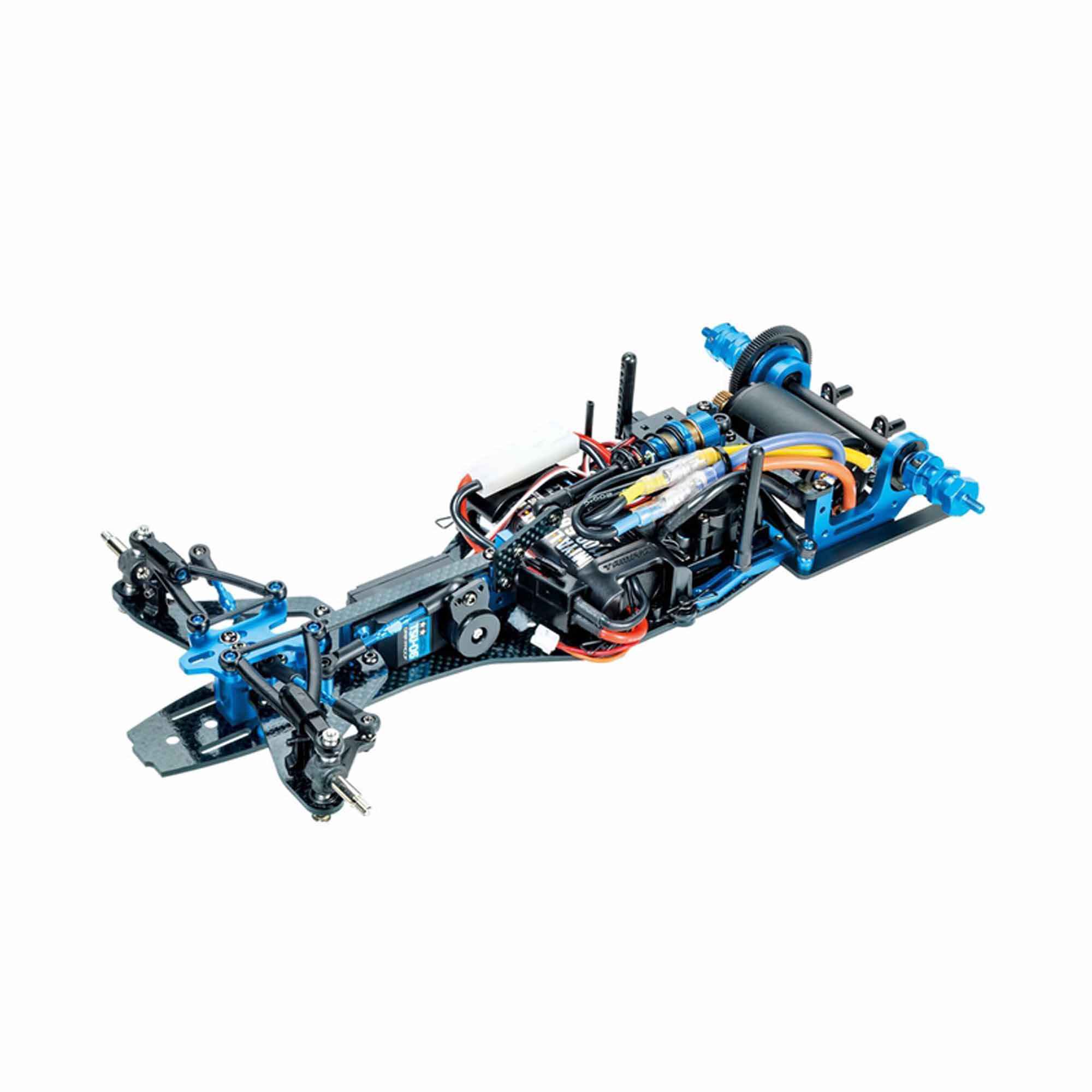

Tamiya 1/10 TRF104 2WD Formula-1 Chassis Kit
$379.00 $75.80
In stock
Overview
Overview
This hi-spec 2WD formula chassis, built around carbon fiber and aluminum chassis components, with the front lower arms crafted from carbon fiber plate, makes it a formidable opponent on the racetrack! Furthermore, the chassis features updated front and rear suspension, plus an updated R/C equipment layout which is compatible with Li-Po batteries.
- Full Ball Bearings
- Square-Shaped Battery Holder
- Laid Down Steering Servo Position
- Camber Angle Is Freely Adjustable
- Caster Angle Is Also Adjustable
Features
- Features plastic upper A-arms
- Camber angle is adjustable freely from +1 to -3 degrees (approximate) using a 2mm hex wrench
- Caster angle is also adjustable at 6, 9 and 12 degrees
- Ball connectors are equipped at motor mount front and rear, and suspension roll is placed at the center of the chassis
- The model centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount allow adjustment of roll speed
- The pitching is controlled by FRP suspension plate flex and a TRF damper
- Battery pack, receiver and servo are positioned at the center of chassis to ensure better rear grip
- A square-shaped battery holder is included, for Li-Po battery packs to comply with U.S. open-class regulations
- 5 types of ground clearances are adjustable in 0.8mm steps and two wheelbases can be chosen with a difference of 2.5mm
- The laid down steering servo is positioned about 30mm backwards compared to the TRF103 chassis and ensures a low center of gravity
- Features a choice of 4 types of steering linkage adjustments over a range of about 1.8mm length by changing Ackerman plate position to keep direct steering
- Lightweight and durable carbon fiber shaft limits weight and ensures compatibility with rubber tires which are relatively heavy
- The rear wing is connected to the motor mount, and it moves along with rear suspension
- 2.5mm thick carbon fiber front lower suspension arms have two attachment positions to adjust its width and attach wheels with different offsets
Specs
Product Specs
Ball Bearings
Full Ball Bearings |
Battery
Sold Separately |
Body
Sold Separately |
Charger
Sold Separately |
Chassis
Carbon Fiber Chassis |
Completion Level
Kit |
Differential
Pressure Plate Ball Differential |
Drive Type
Forward/Brake/Reverse |
Drivetrain
2WD |
Gear Ratio
Adjustable |
Ground Clearance
Adjustable |
Manufacturer #
42389 |
Motor Size
540 |
Power Type
Electric |
Product Height
1.83″ (46 mm) |
Product Length
12.79″ (325 mm) |
Product Width
6.65″ (169 mm) |
Radio
Sold Separately |
Receiver
Sold Separately |
Scale
1/10 |
Servos
Sold Separately |
Shock Type
Oil Shocks |
Speed Control
Sold Separately |
Suspension
CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension |
Vehicle Size
Standard |
Vehicle Type
On-Road |
