Overview
Introduction
The XV-01 Pro incorporated a 4WD belt drive system with clever positioning of the RC electronic components with debris protection compartments. The all-new XV-02 Pro takes its 4WD drivetrain into a different direction by using a shaft-driven system with front mid-ship motor placement that incorporates equal length front and rear propeller shafts!
- Features Newly-Designed Parts
- Features A Longitudinal Battery Pack Position
- Long Aluminum Dampers Are Employed
- Polycarbonate Chassis Cover With Wheel Well Liners
- Comes With Rally Block Tires And Wheels

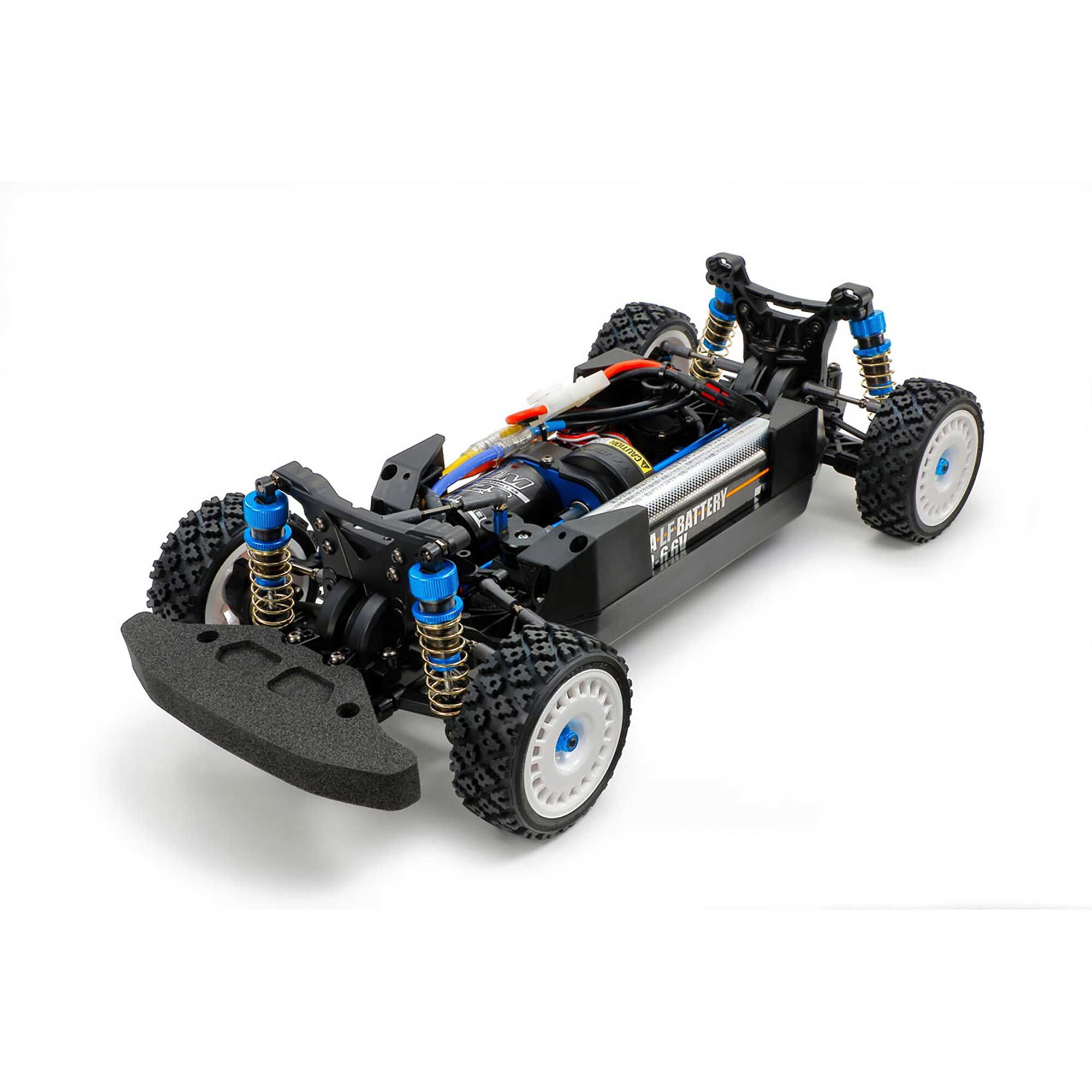

XV-02 Chassis at a Glance

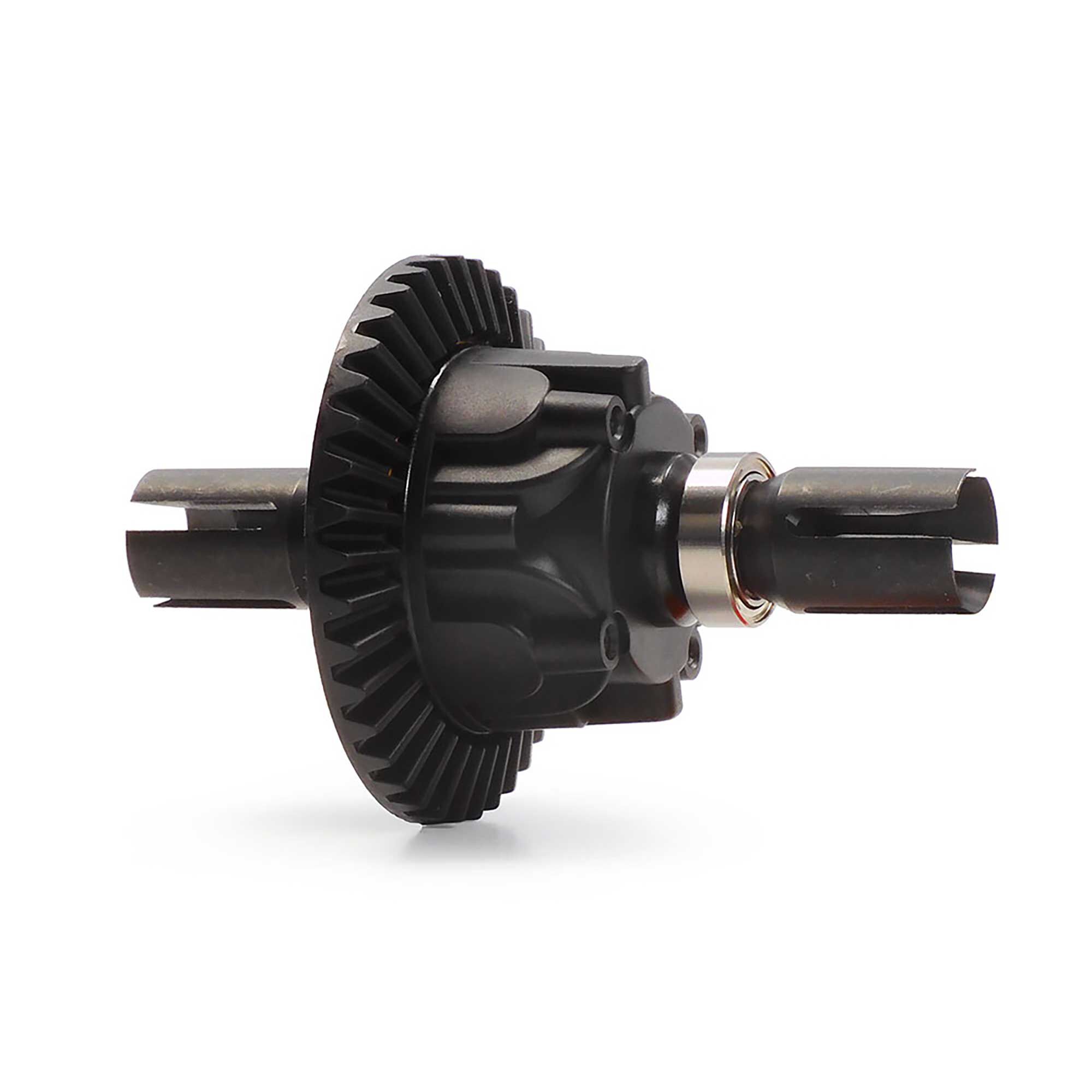

- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear.

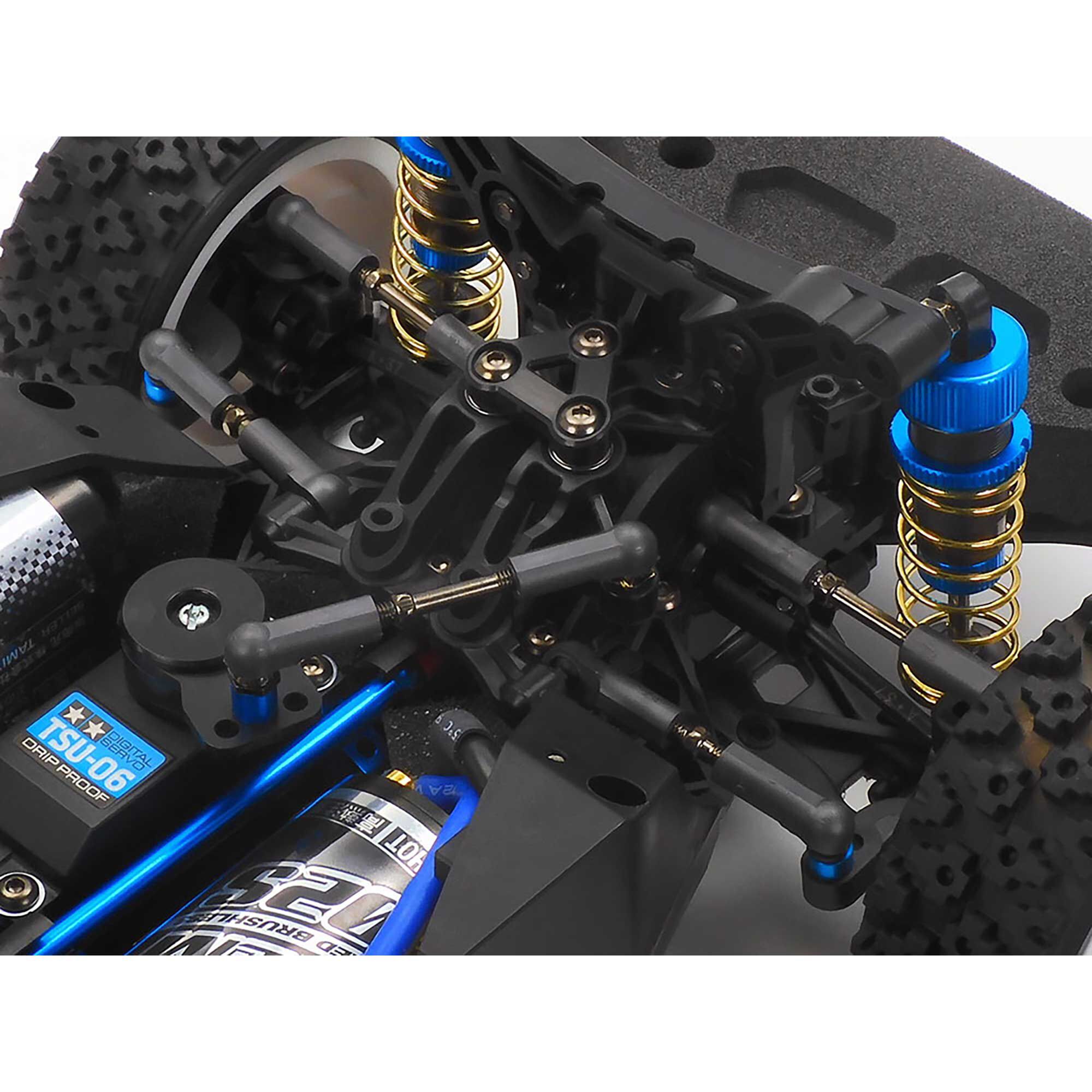

- Features newly-designed parts such as gears, bathtub frame chassis, chassis cover, caster blocks featuring 6-degree caster angle, and bumpers with skid angles to reduce surface contact.

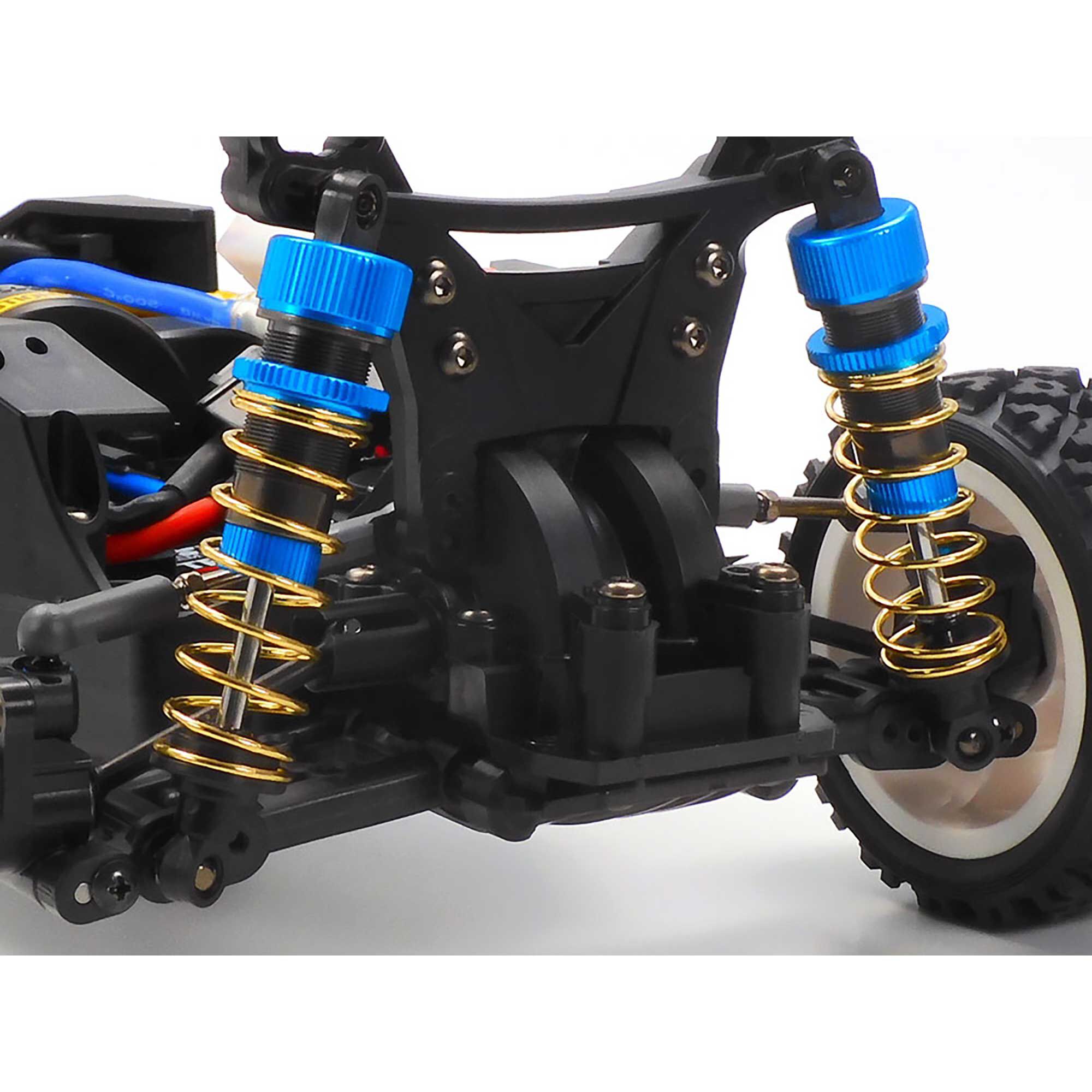

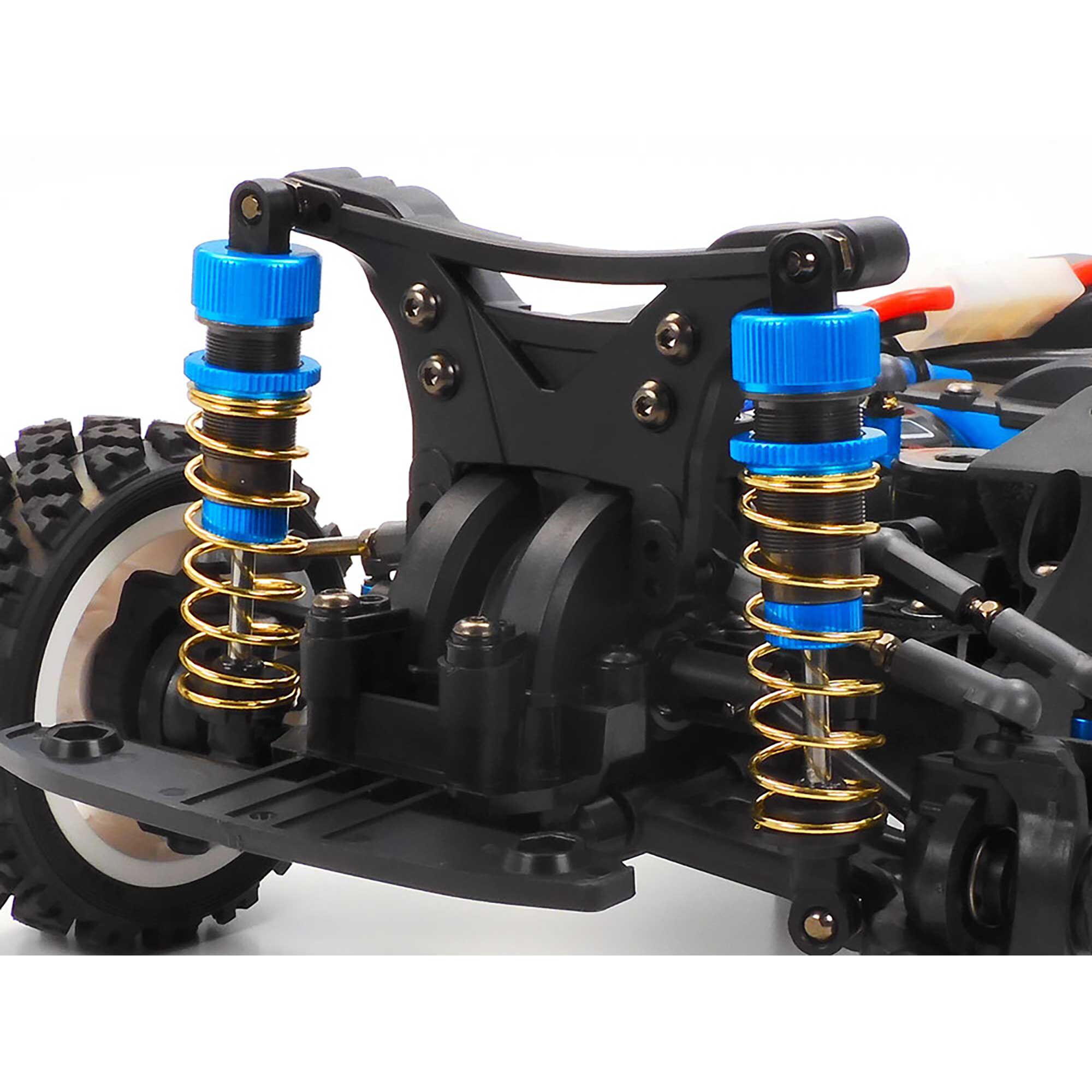

- Long aluminum dampers are employed at front and rear.

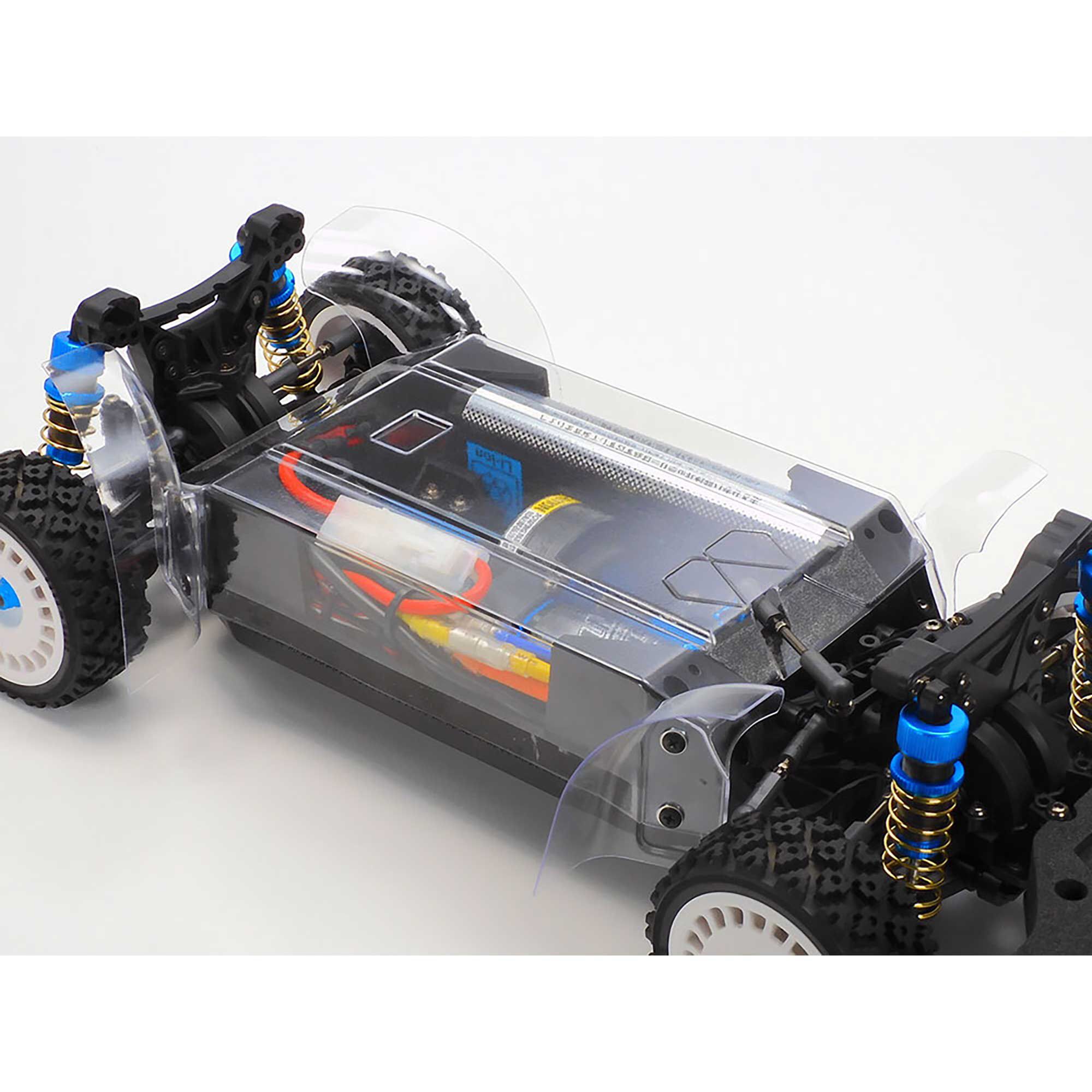

- A polycarbonate chassis cover with wheel well liners help prevent dirt and dust from getting inside.

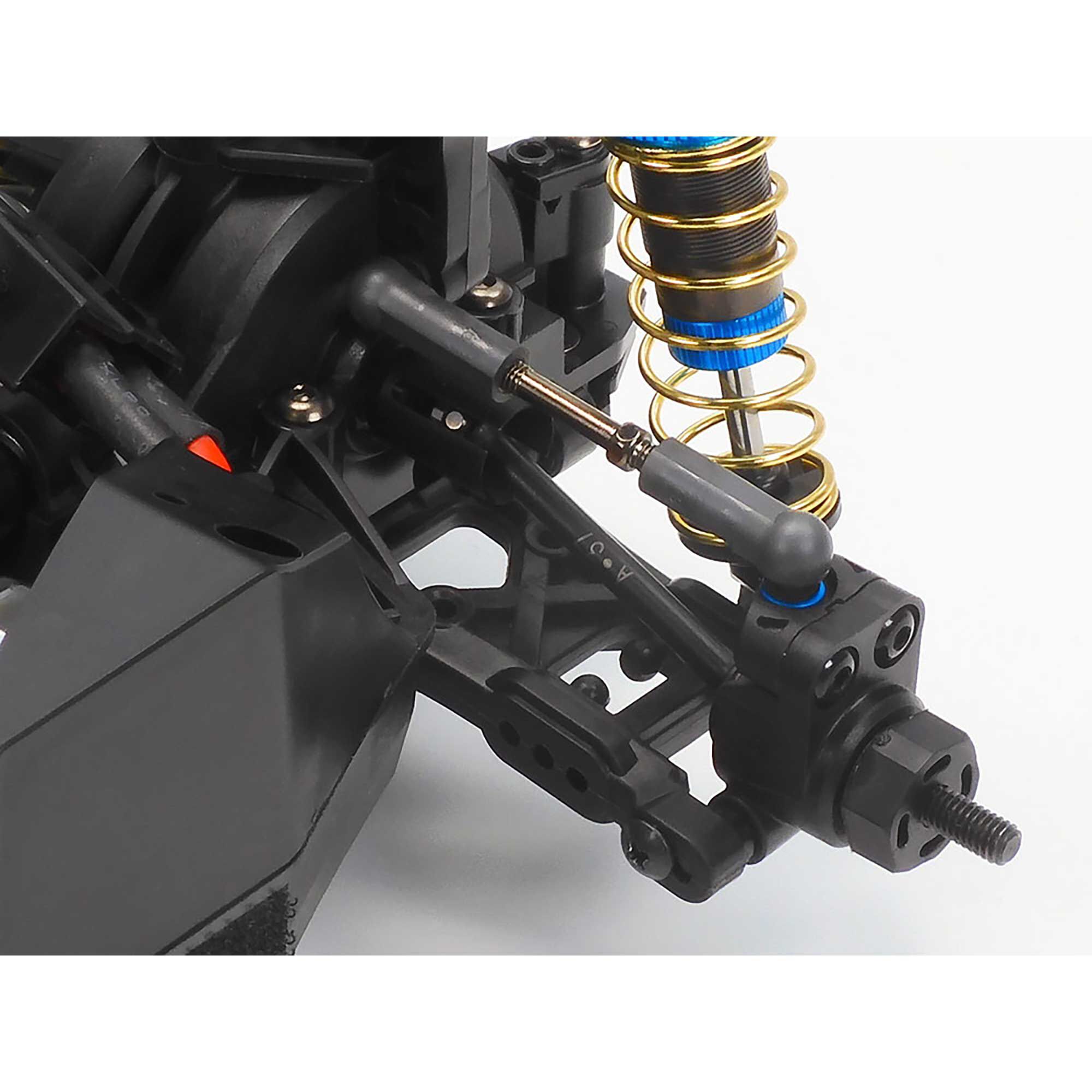

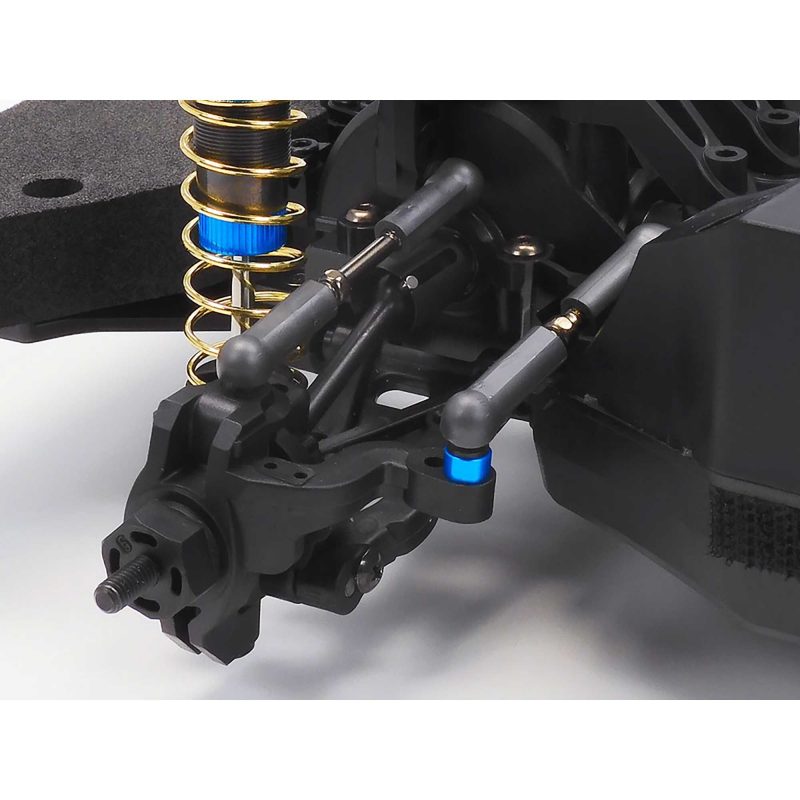

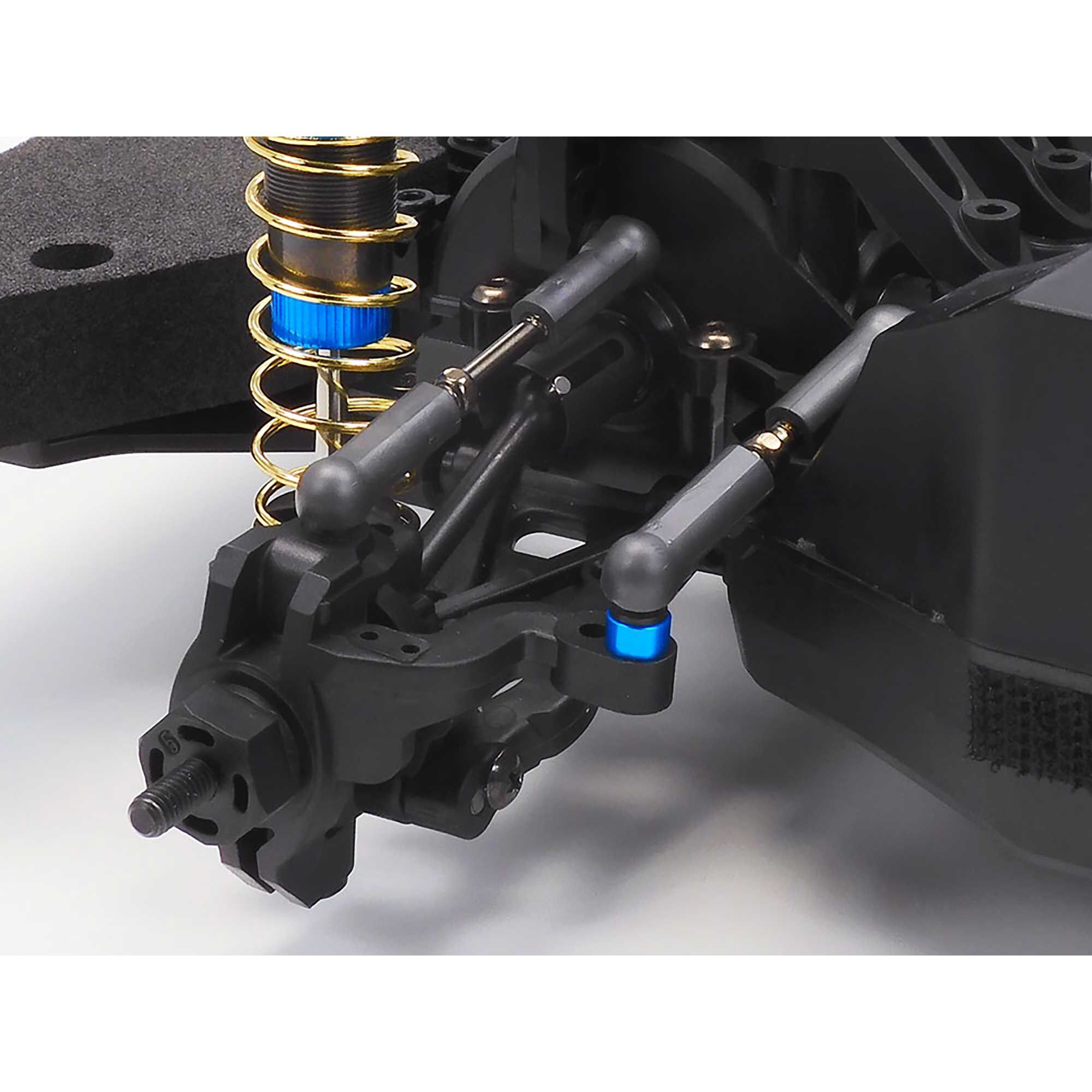

- Suspension arms and front uprights are based upon the XV-01 chassis kit.

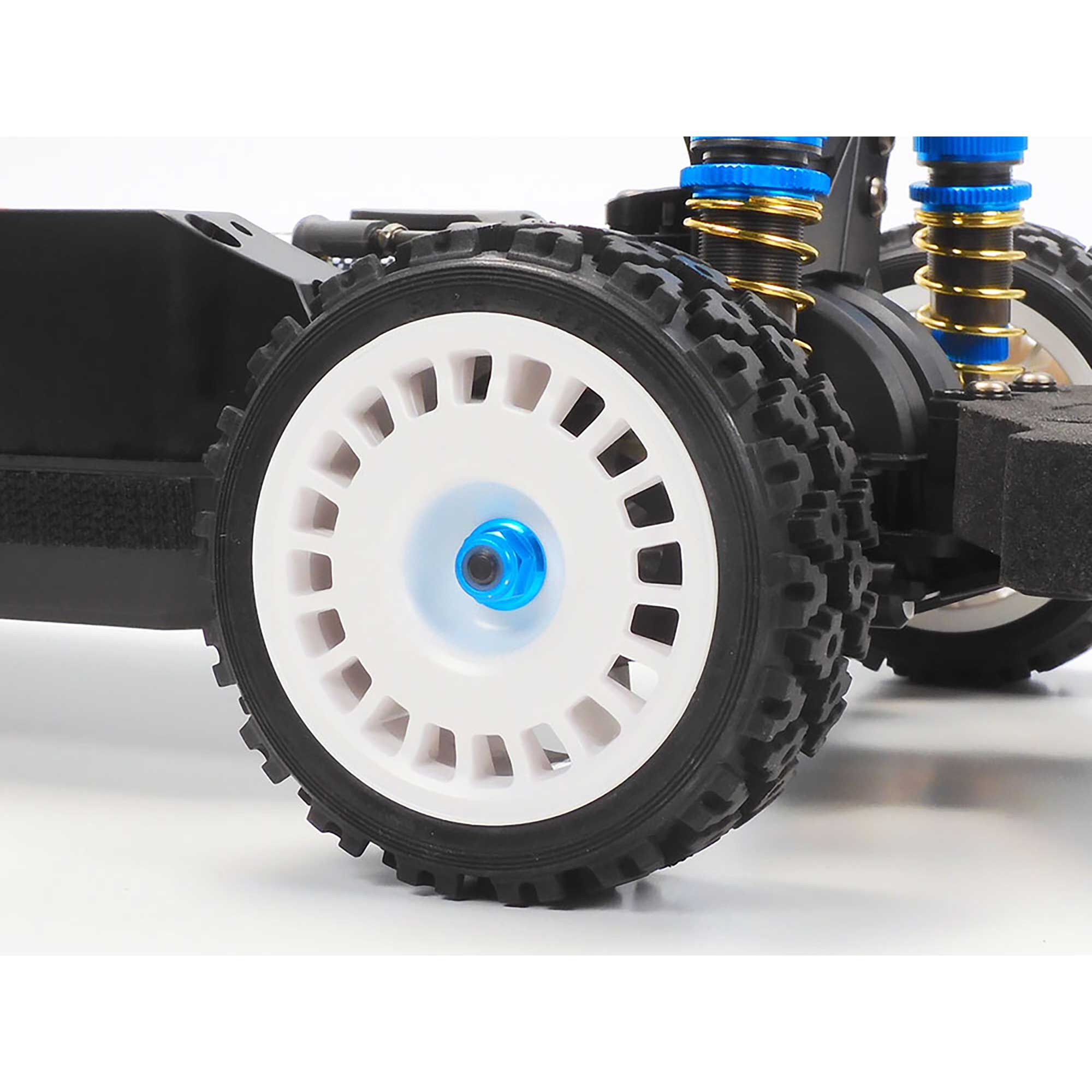

- Comes with rally block tires and wheels.

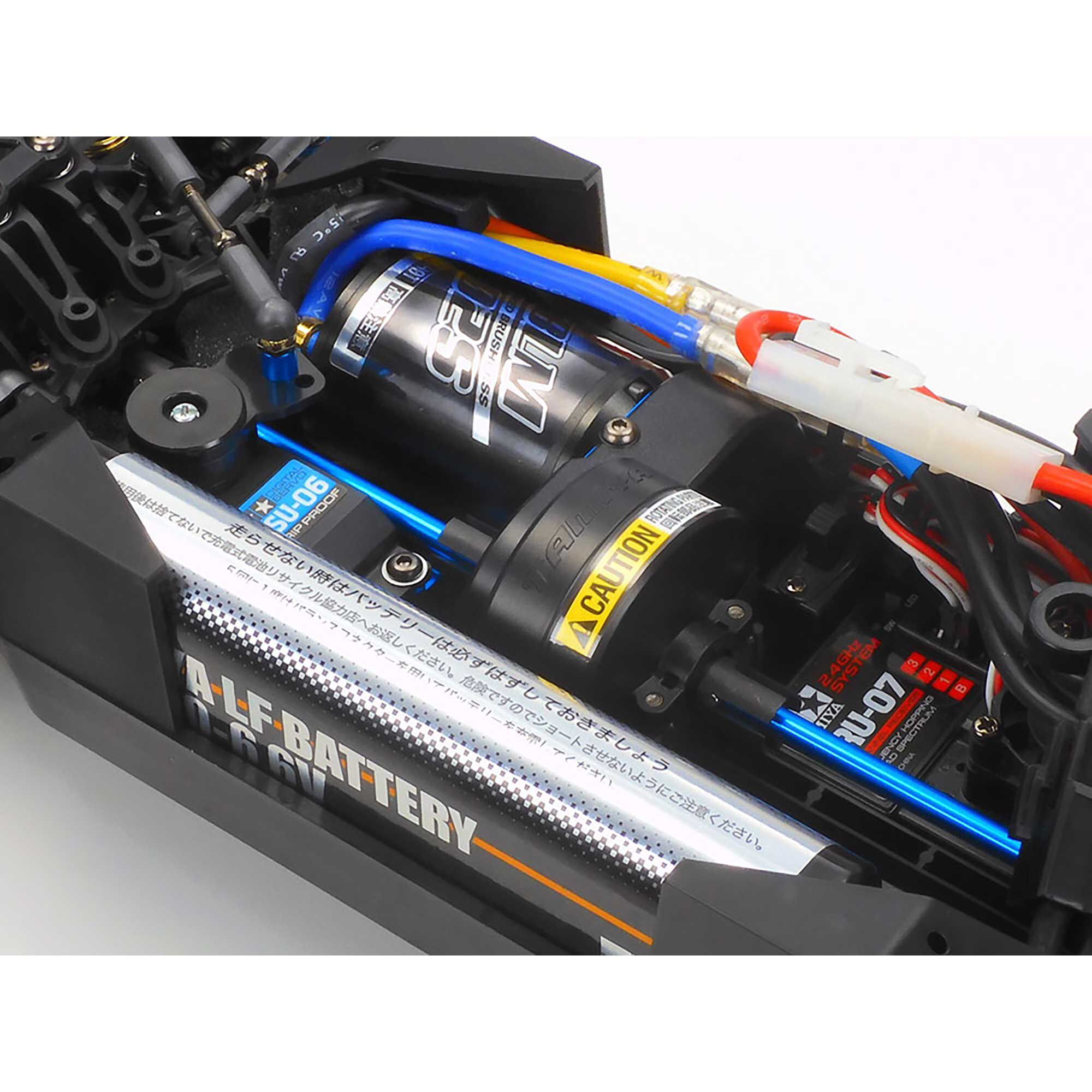

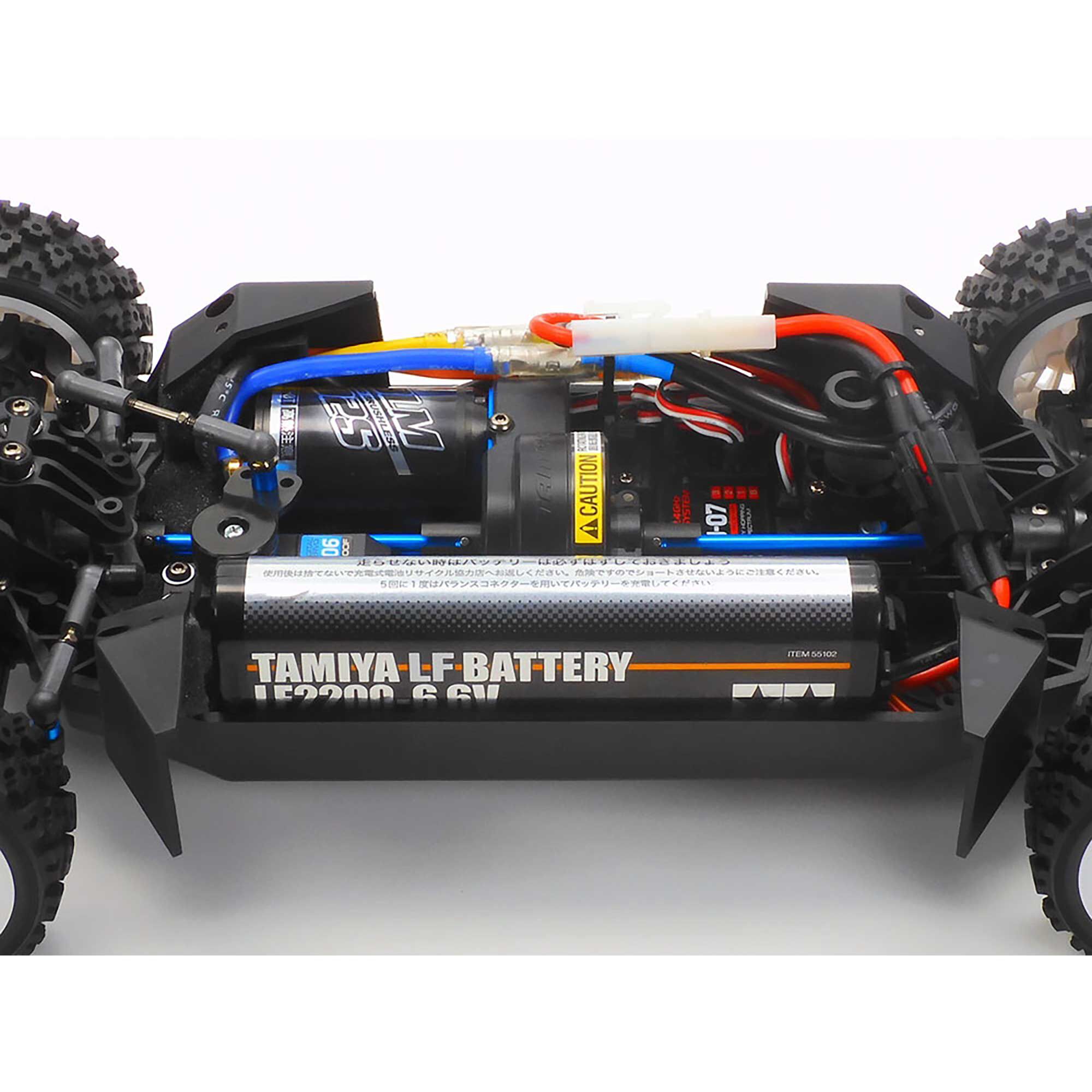

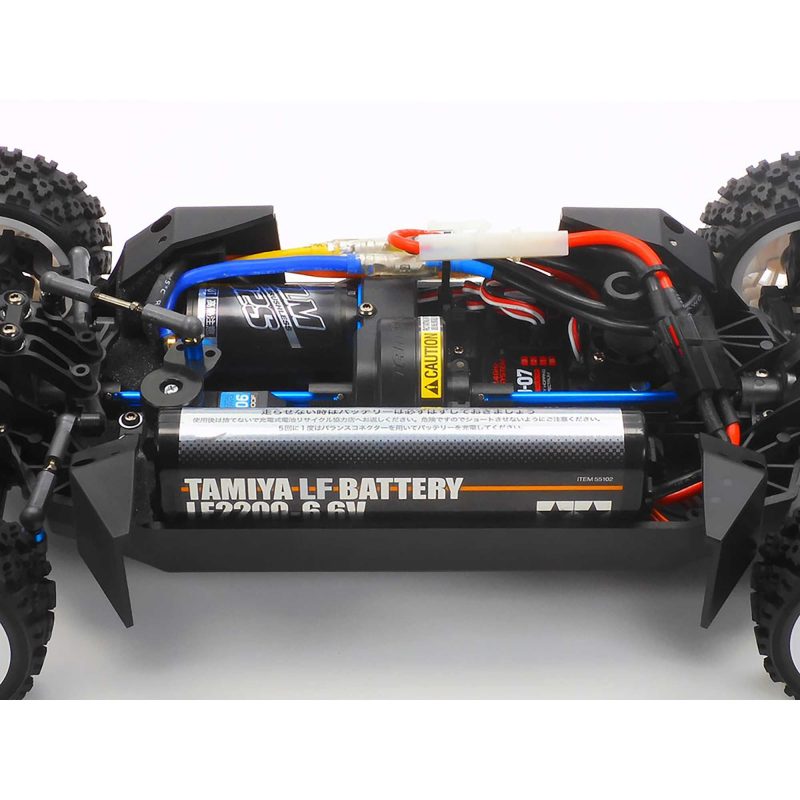

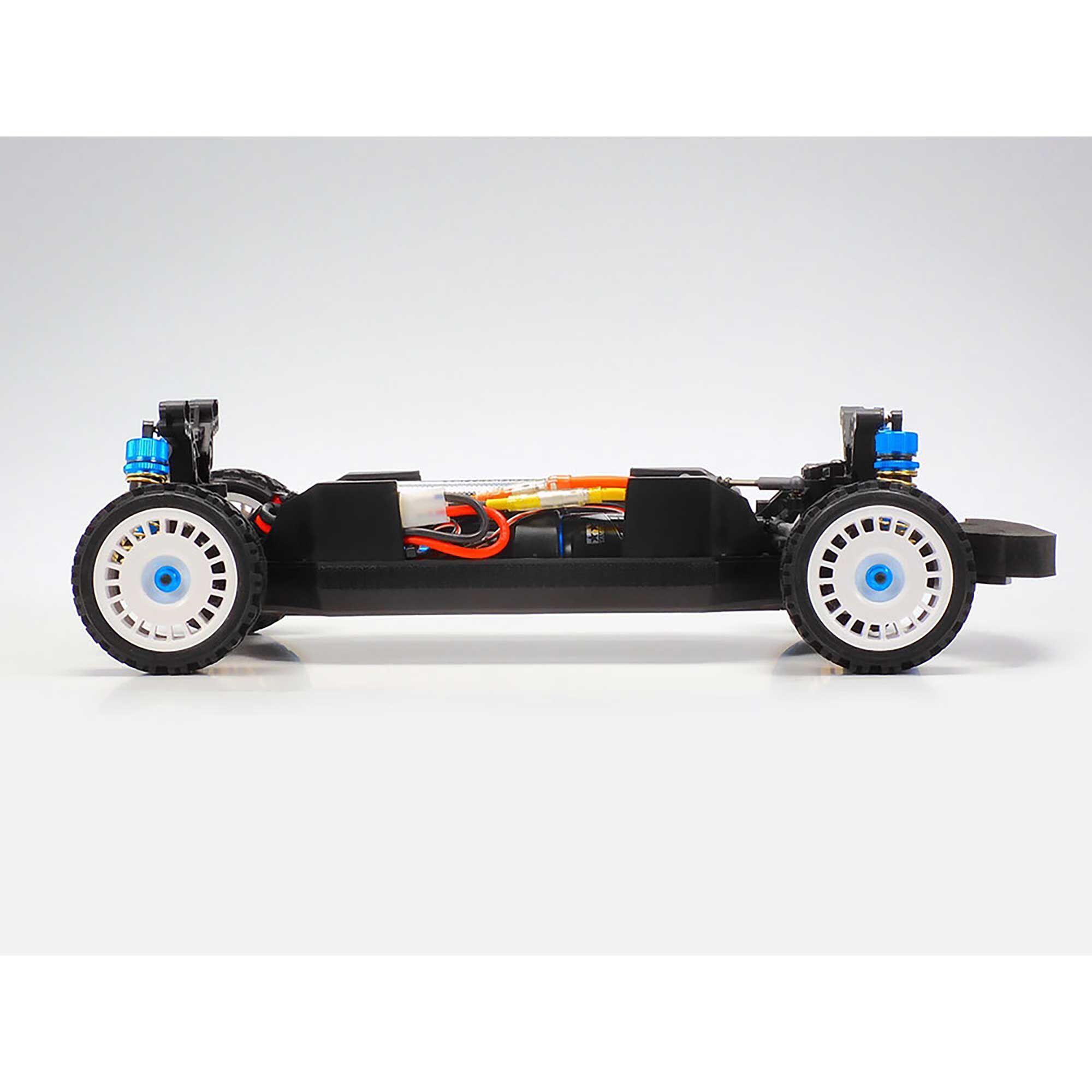

- Features a longitudinal battery pack position in the center-left for optimum balance.
- The motor mount, propeller shafts, input and center shafts, and urethane bumpers have new metal parts.
Specs
Product Specs
Ball Bearings
Includes full ball bearings |
Battery
Sold Separately |
Charger
Sold Separately |
Chassis
Bathtub Chassis, FRP Fiberglass Reinforced Plastic |
Completion Level
Kit |
Differential
oil-filled gear differential for both front and rear |
Drive Type
Forward/Brake/Reverse |
Drivetrain
4WD |
Gear Ratio
9.58: 1 |
Power Type
Electric |
Product Length
14.4882″ (368 mm) |
Product Width
7.08661″ (180 mm) |
Radio
Sold Separately |
Receiver
Sold Separately |
Scale
1/10 |
Servos
Sold Separately |
Shock Type
Aluminum cylinder long oil damper |
Speed Control
Sold Separately |
Suspension
4-wheel double wishbone |
Vehicle Size
Standard |
Vehicle Type
Rally Car |
Wheelbase
10.1181″ (257 mm) |
