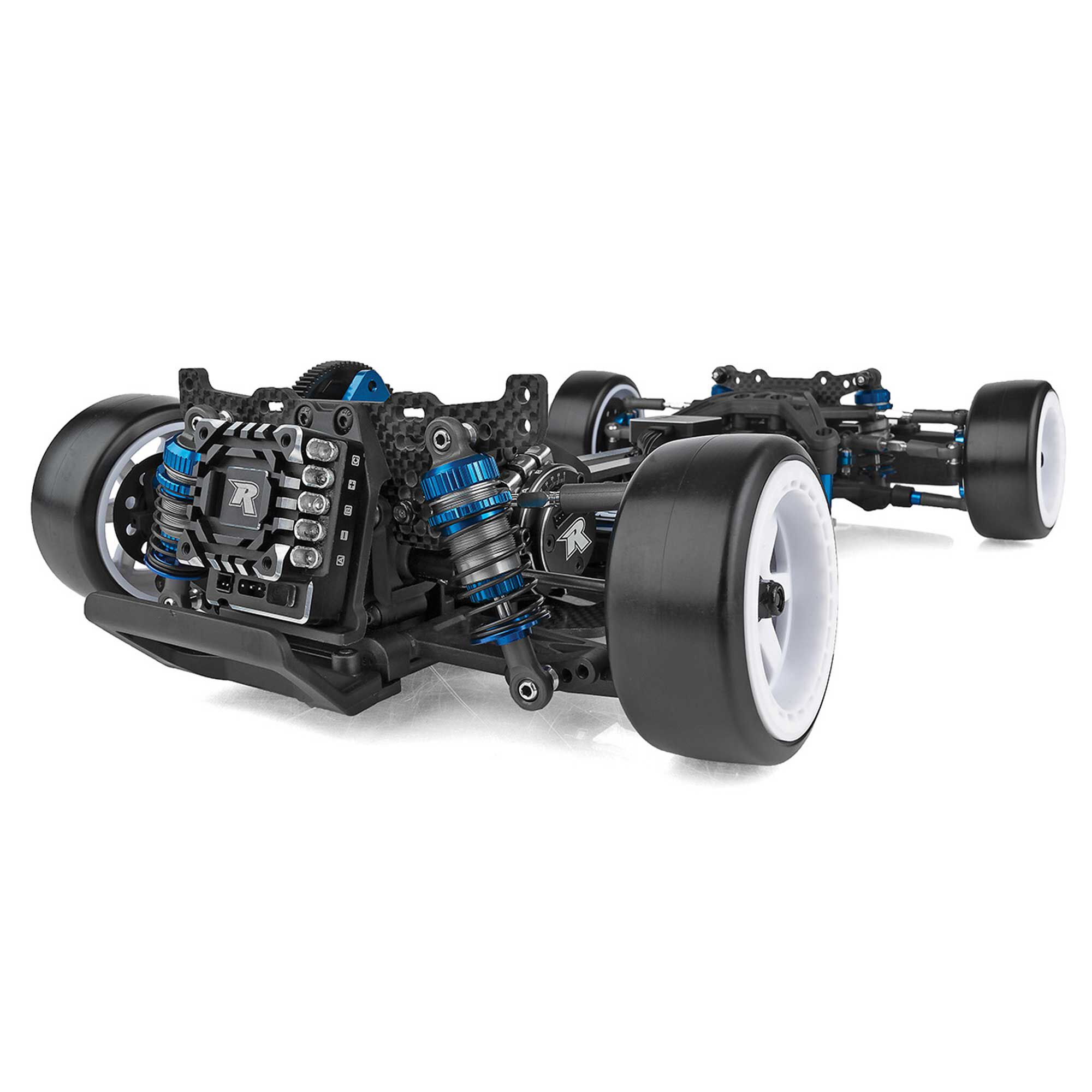

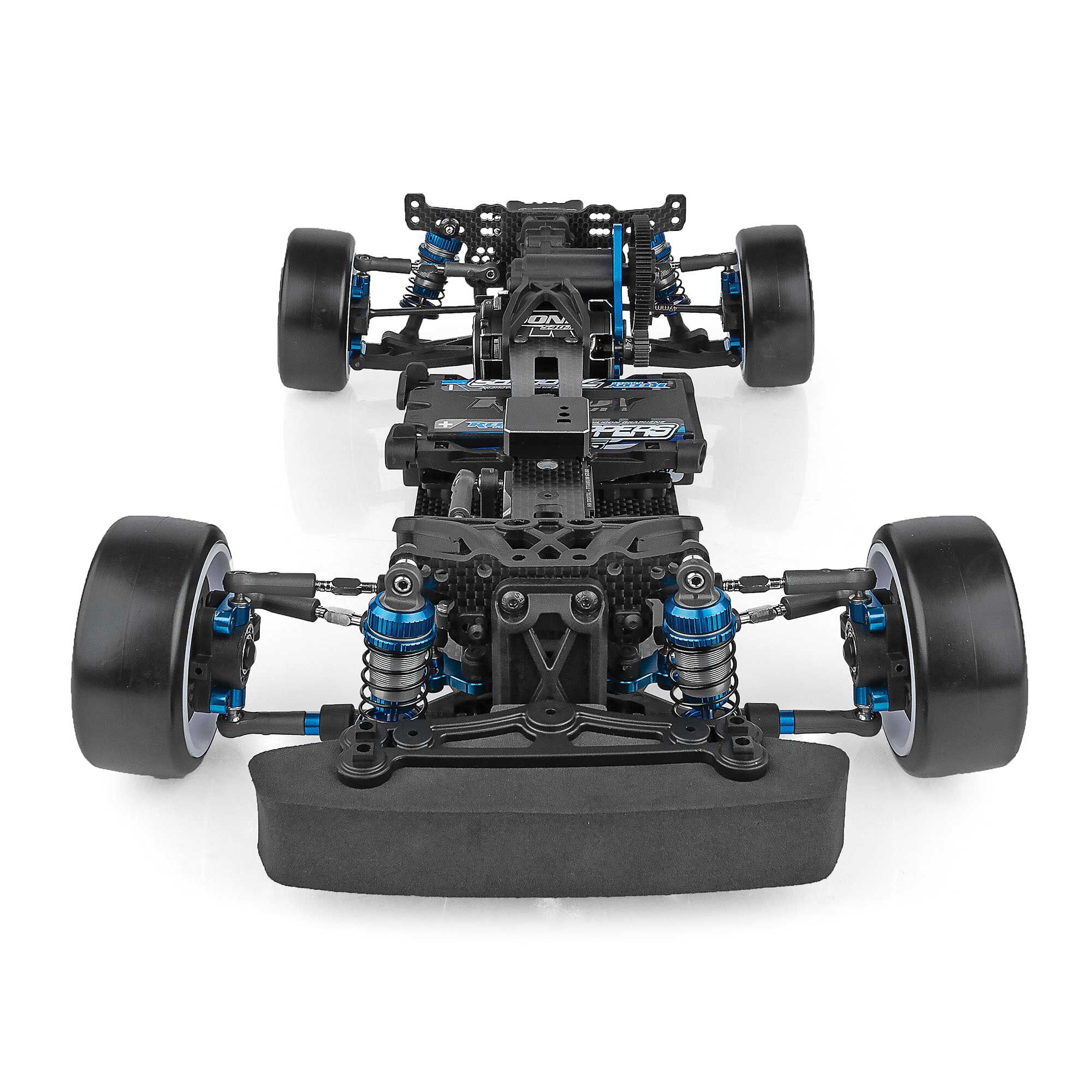

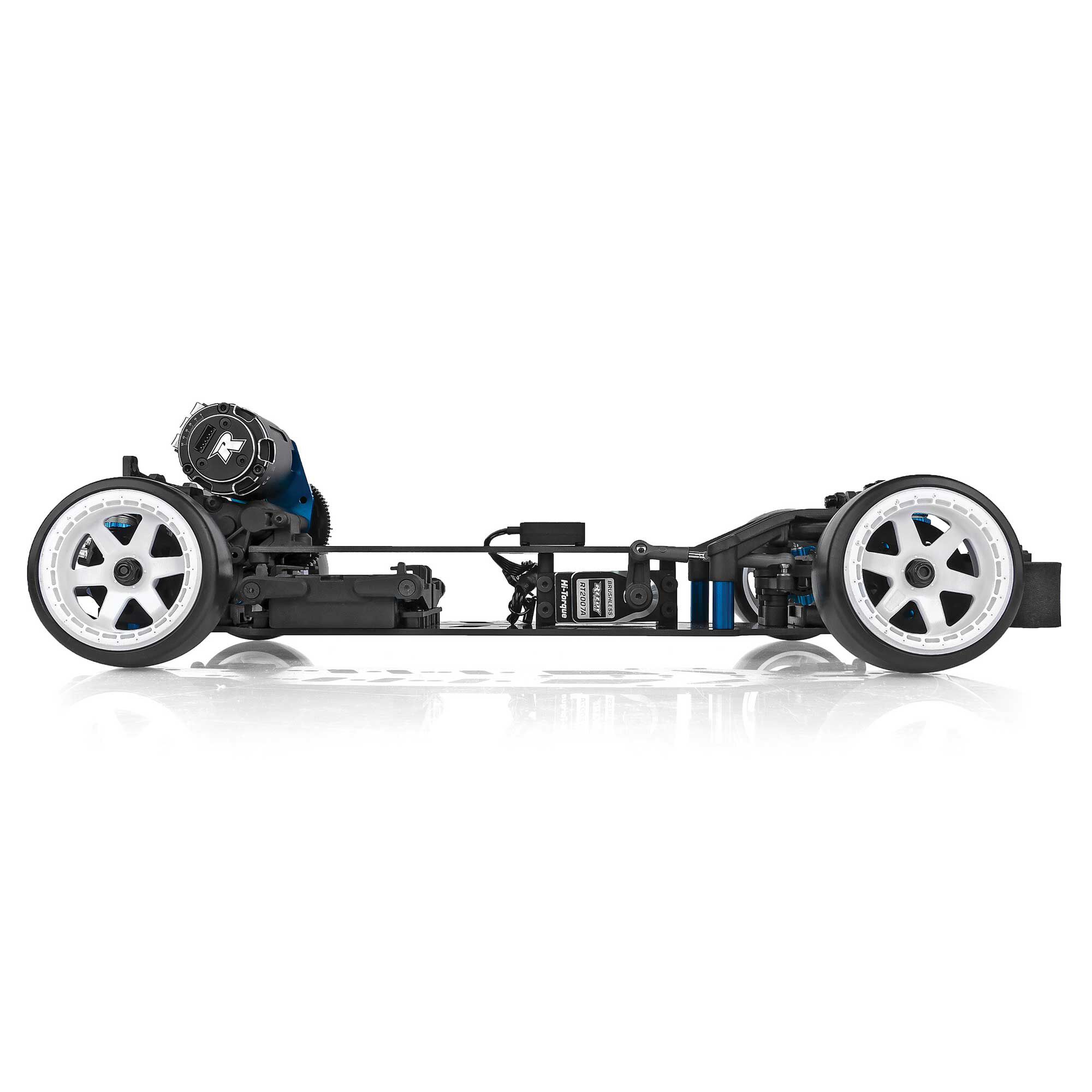

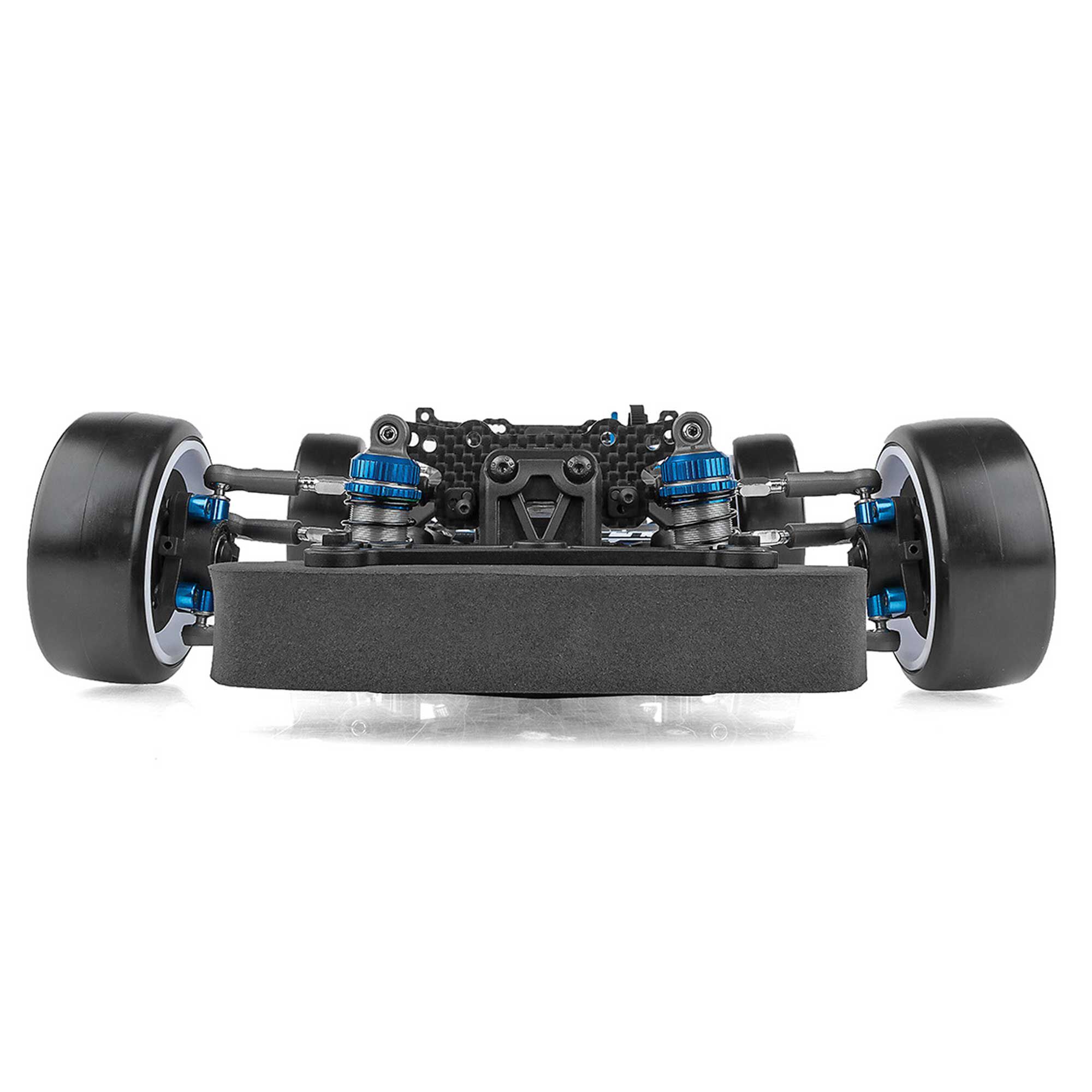

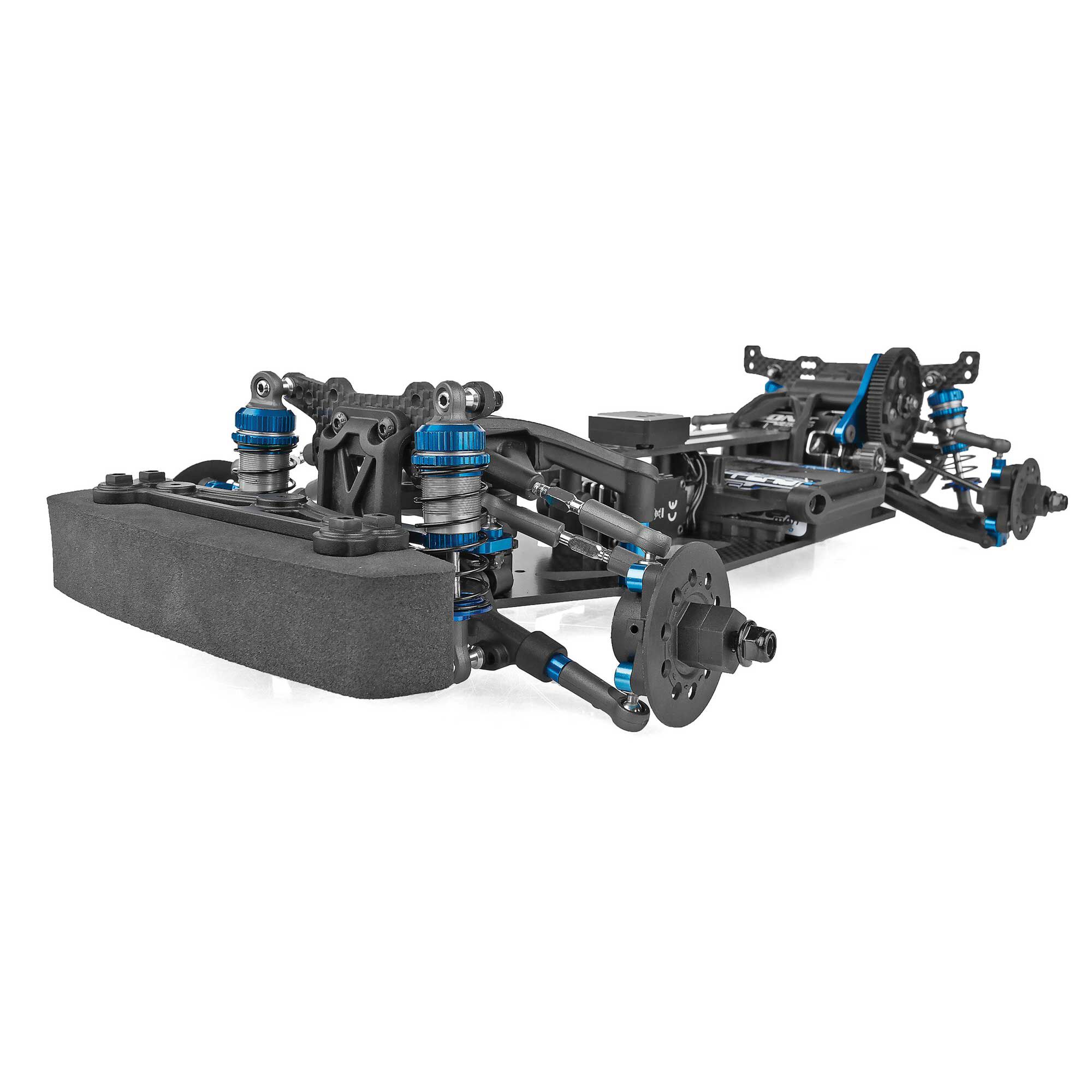

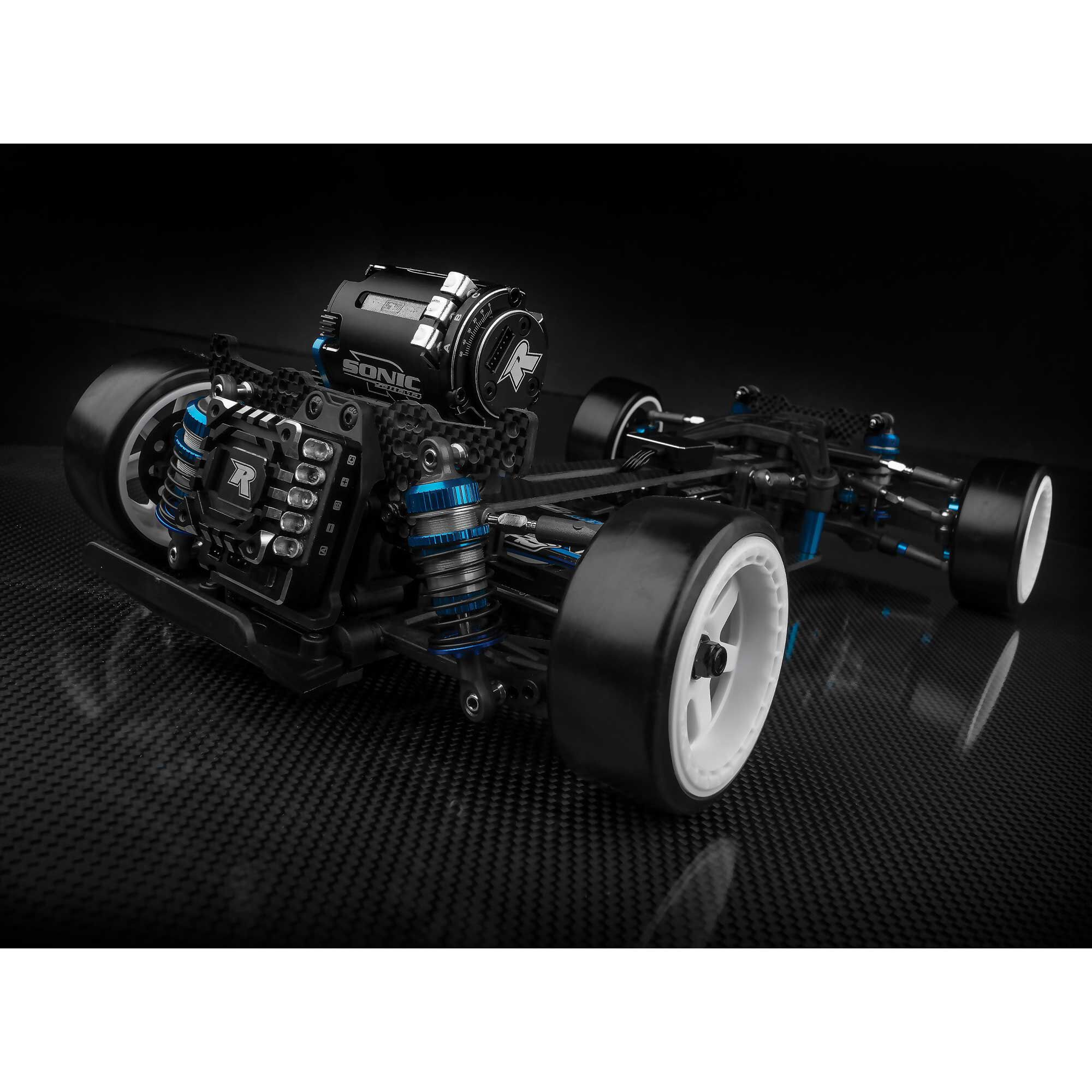

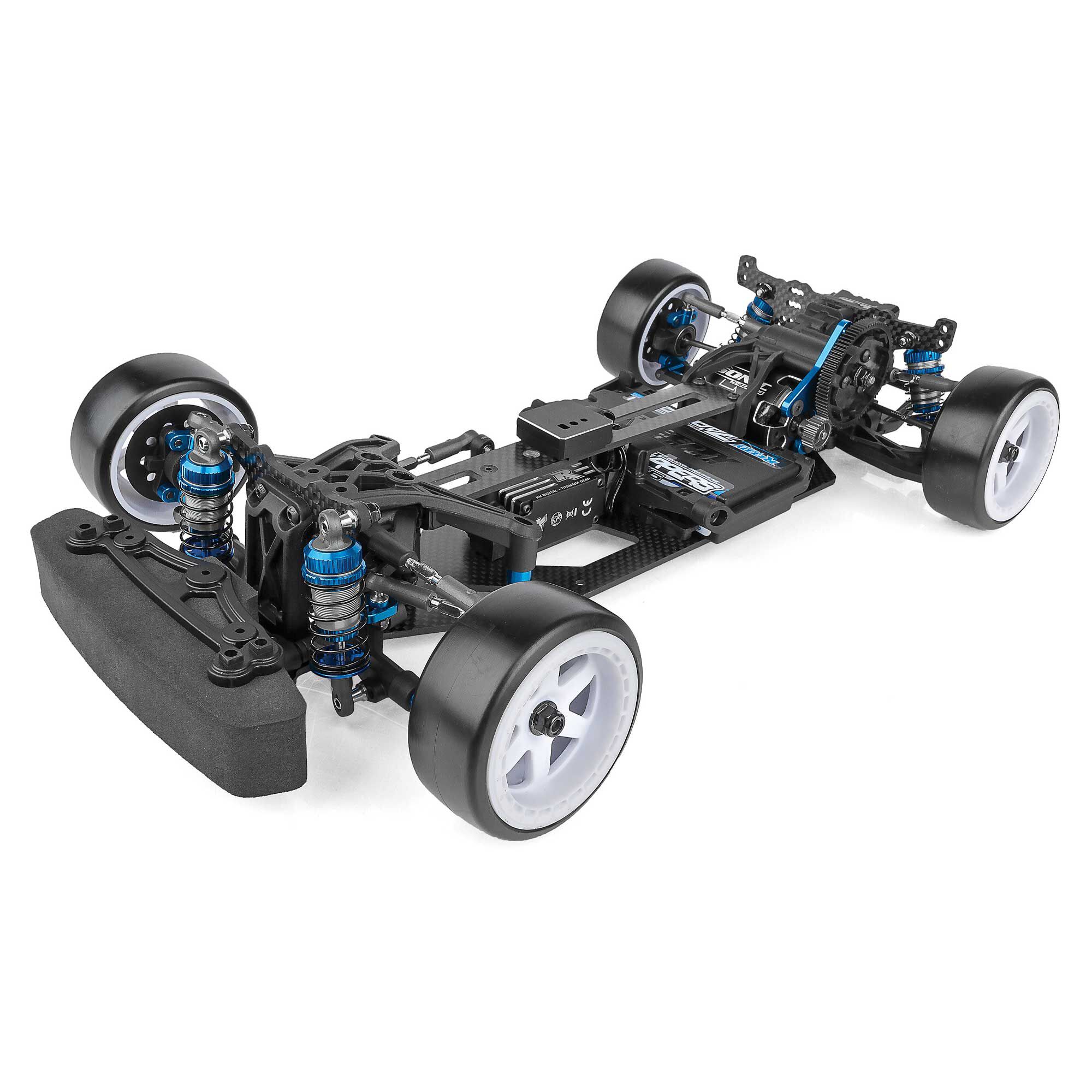

In RC drifting, vehicle balance is key. With the many suspension and chassis tuning options of the DC10, drivers can set up their car with precision. From camber, caster, and kingpin inclination (KPI), to motor and battery position, the Team Associated DC10 1/10 RWD Competition Drift Kit has it all!

  • Hard-Anodized Threaded Aluminum Shocks
  • High And Low Motor Mounting Options
  • Maximum Steering Throw For Optimal Control
  • Adjustable Battery Placement
  • Rear Mounted Electronic Speed Control

Features

  • Factory Team hard-anodized threaded aluminum shocks
  • Factory Team 2.5mm carbon-fiber drift chassis
  • Factory Team 2.5mm carbon-fiber shock towers
  • Two Factory Team 2.5mm carbon-fiber top plate options included
  • Factory Team blue-anodized aluminum chassis post
  • High and low motor mounting options
  • +6mm transmission height adjustment insert allows for higher roll center and larger spur gear
  • Maximum steering throw for optimal control drifting through turns
  • Easy-to-tune caster adjustments can be made without tools

  • Adjustable battery placement
  • Fully tunable, blue-anodized aluminum Ackermann plates
  • Easy-to-adjust camber
  • Adjustable offset wheels hexes
  • Adjustable servo mount locations
  • Precision rubber-sealed ball bearings throughout

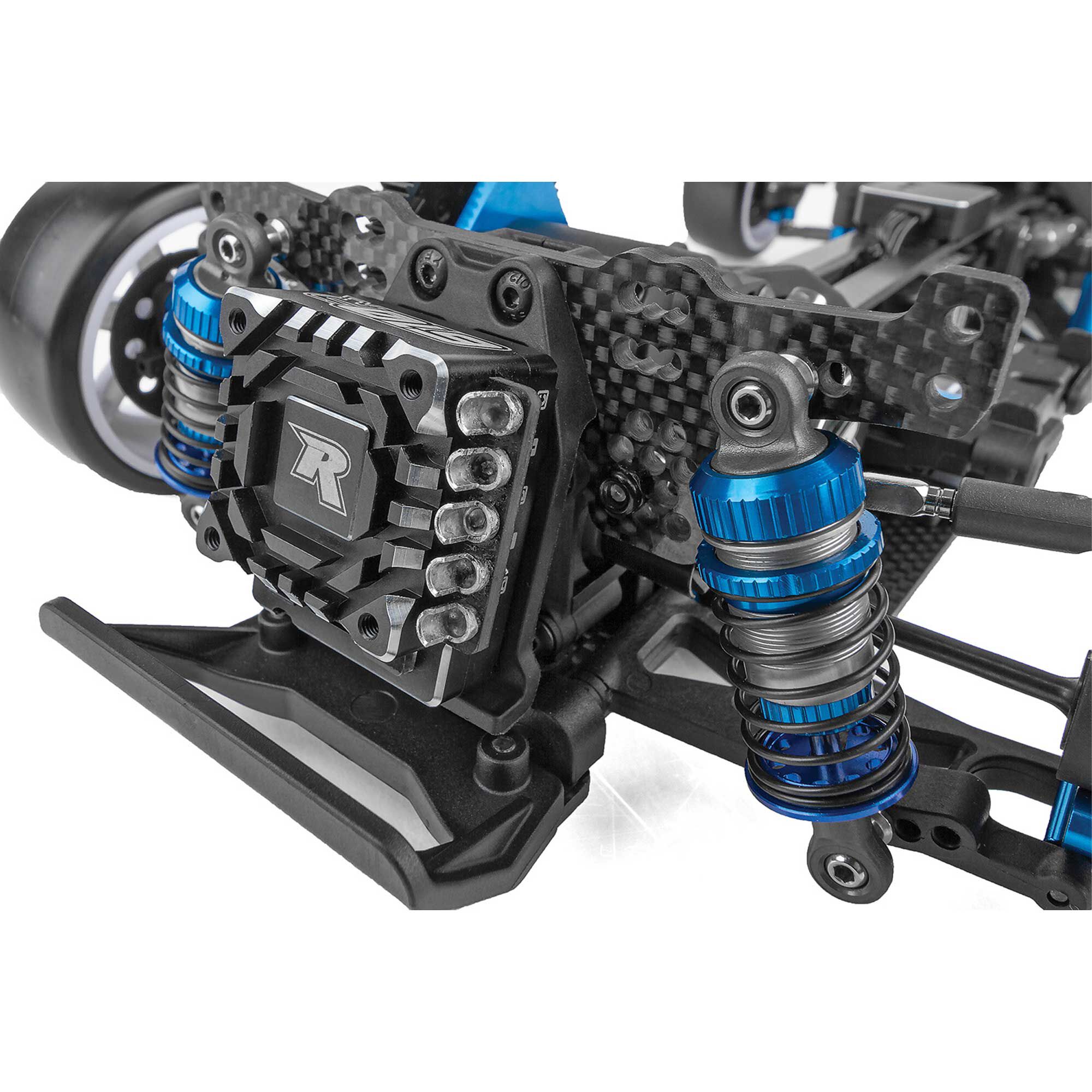

  • Rear mounted electronic speed control (ESC) plate
  • Adjustable rear anti-squat and toe-in

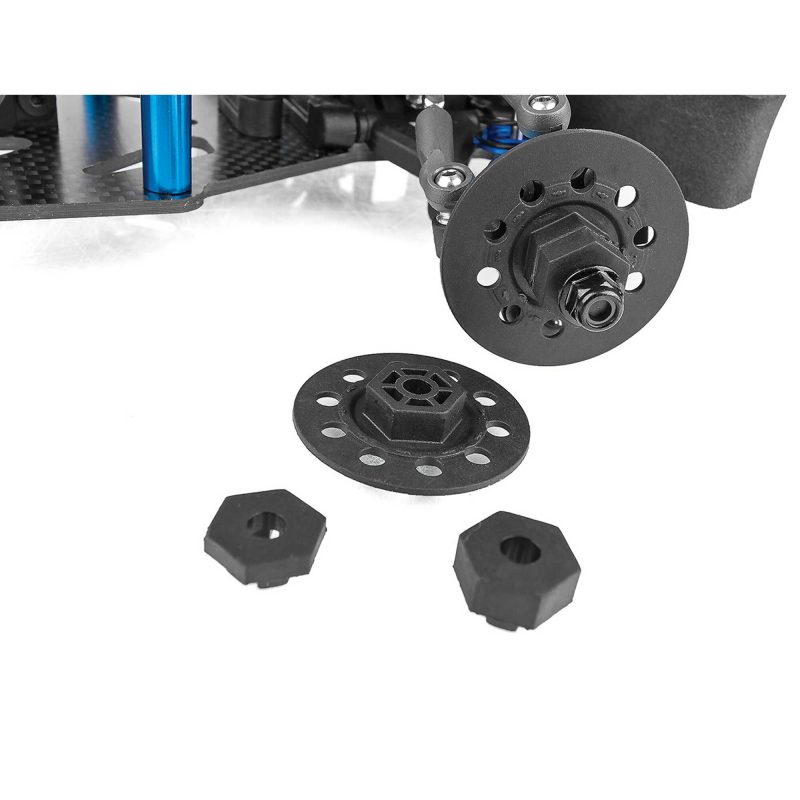

Wheel Hexes

Wheel Hexes

Adjustable wheel hexes allow the track width to accomidate any body or wheel combinations.

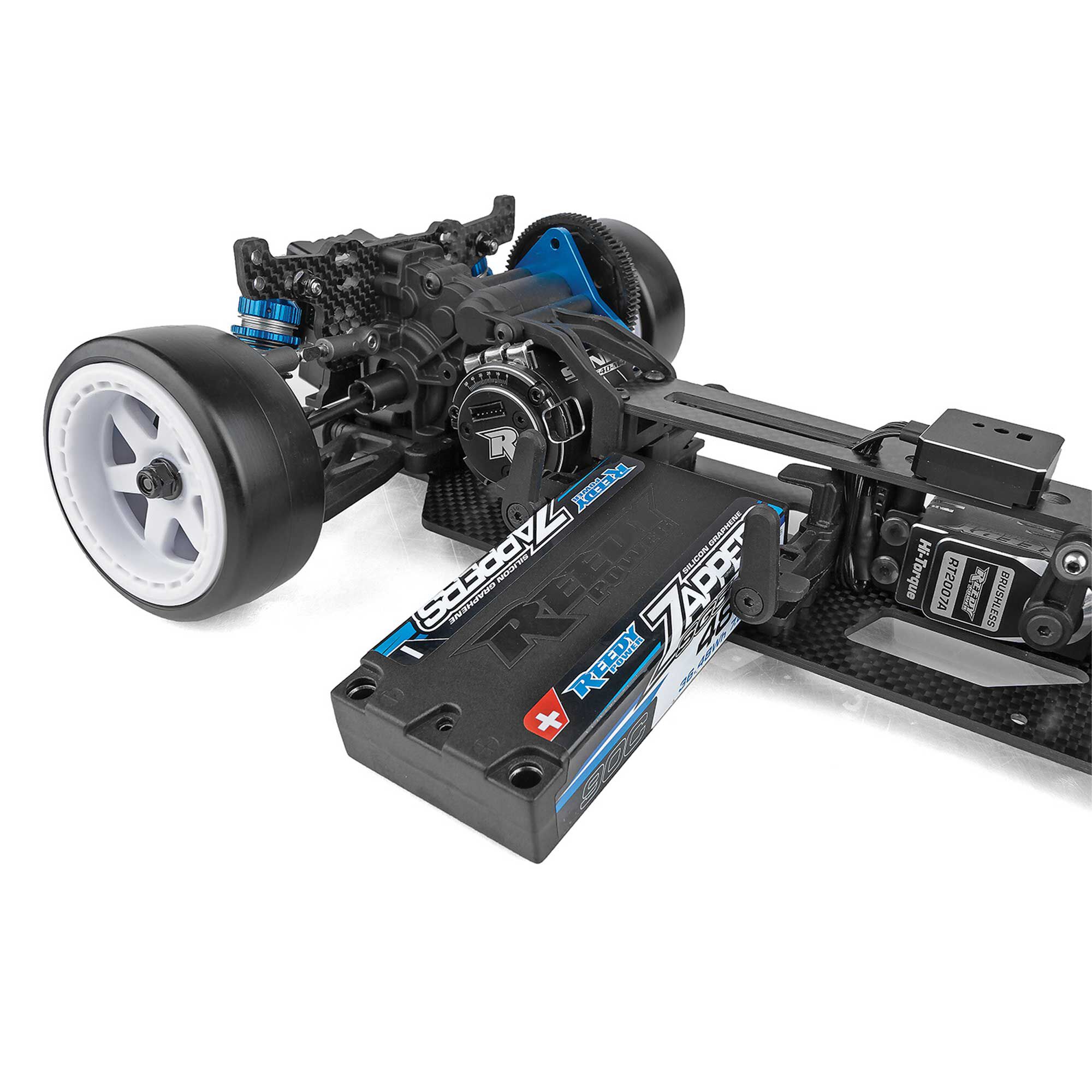

Battery Box

Battery Box

A convenient quick-release battery box gets you back into the door-to-door tandem action.

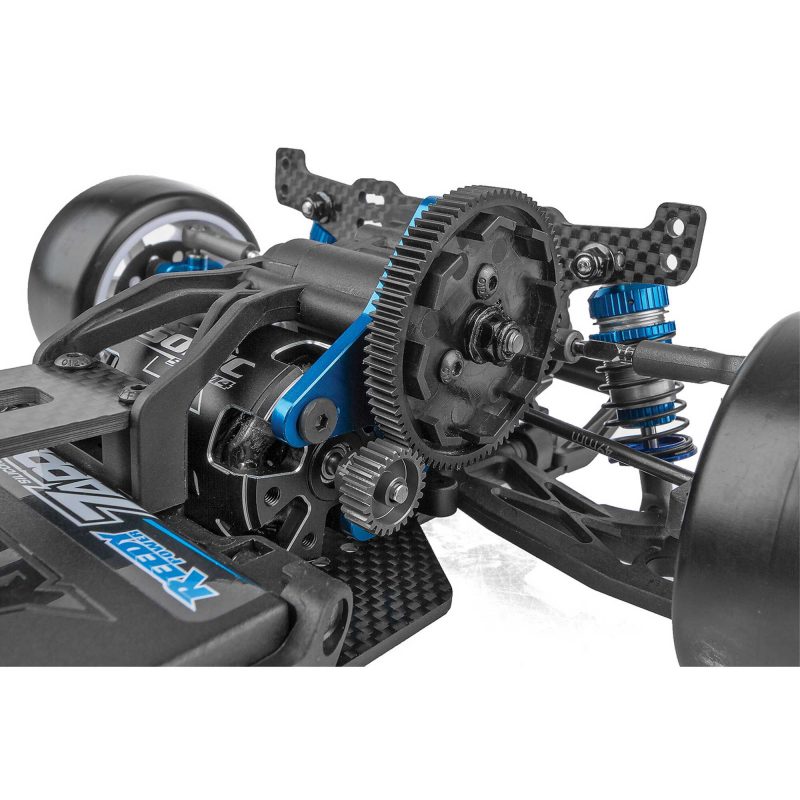

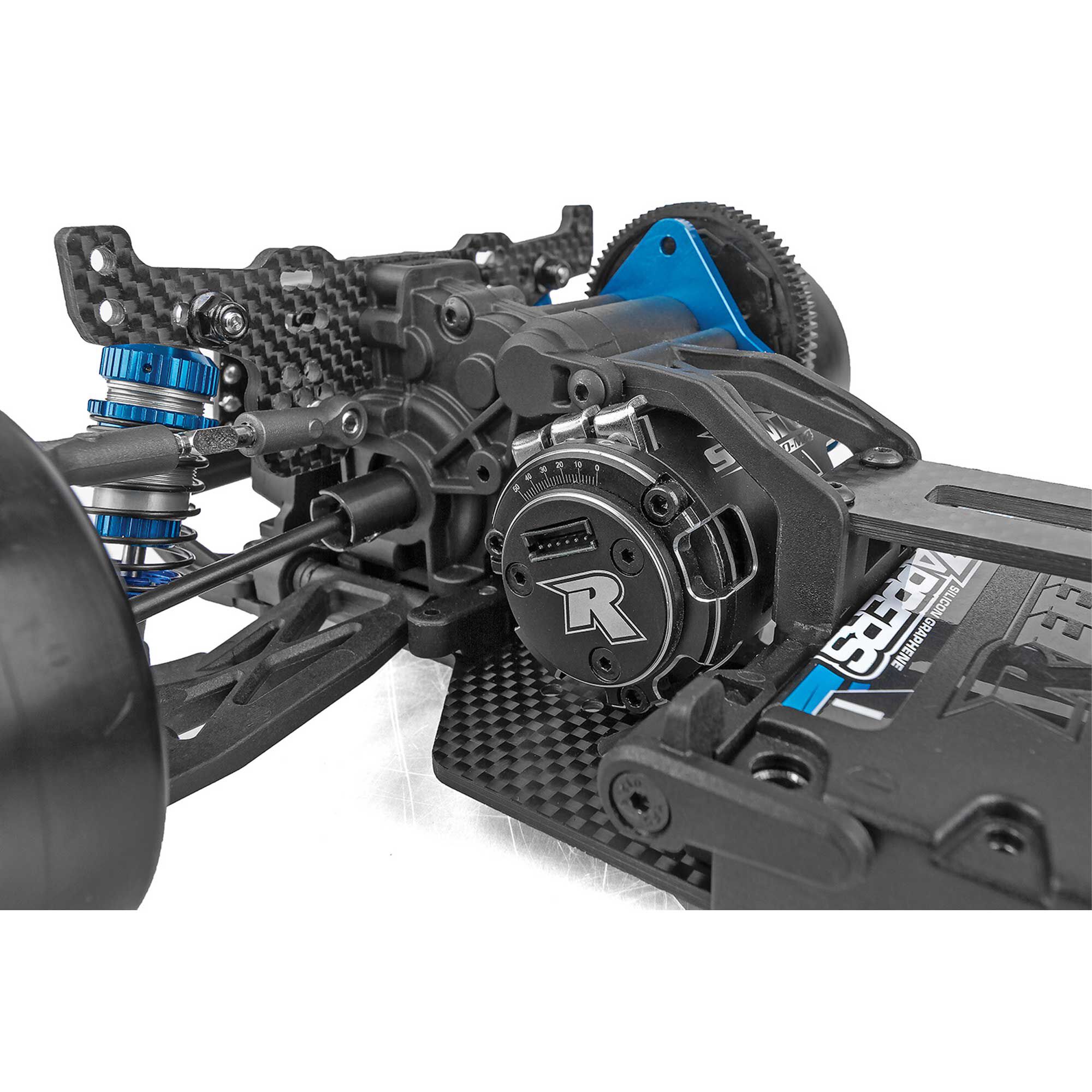

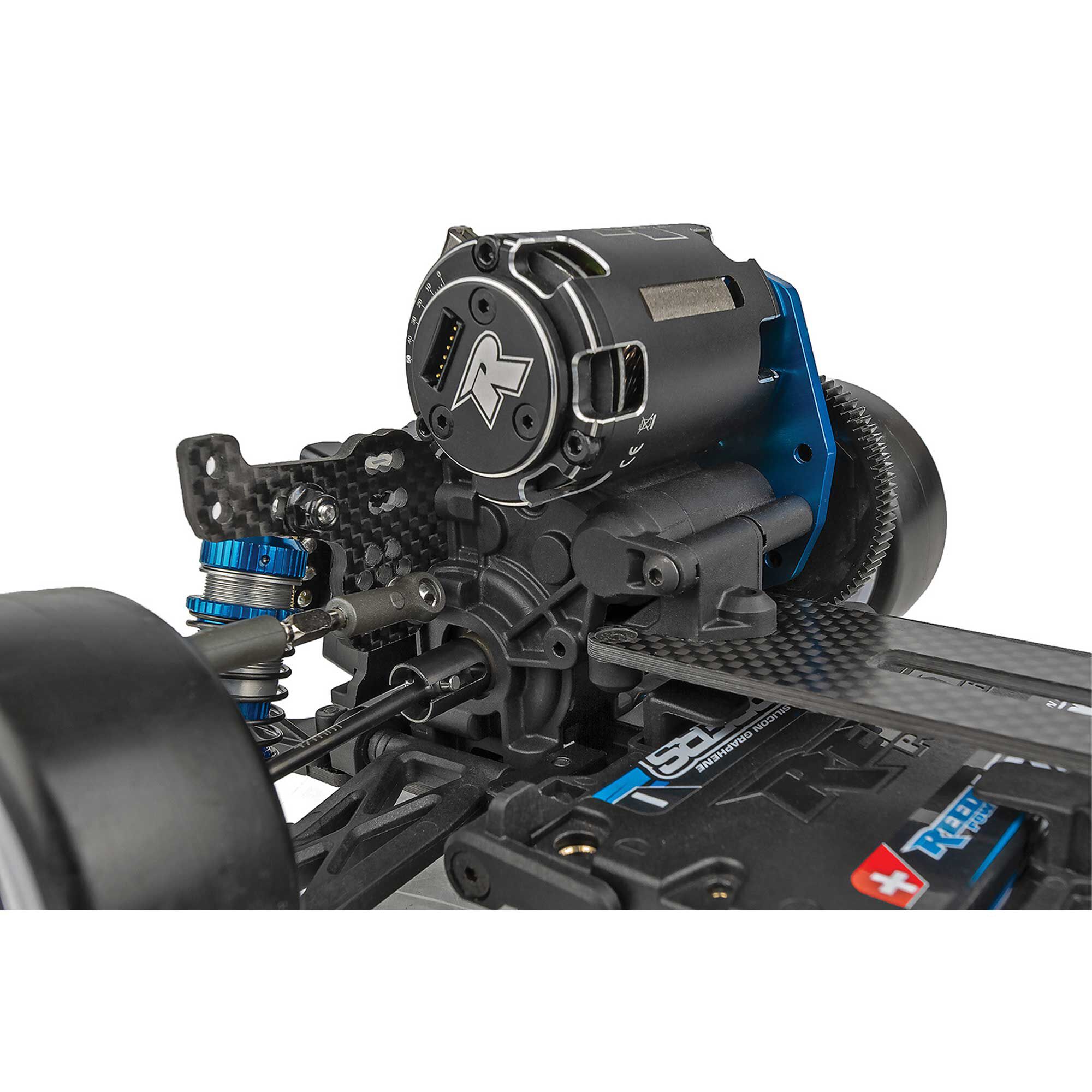

Motor Position

Motor Position

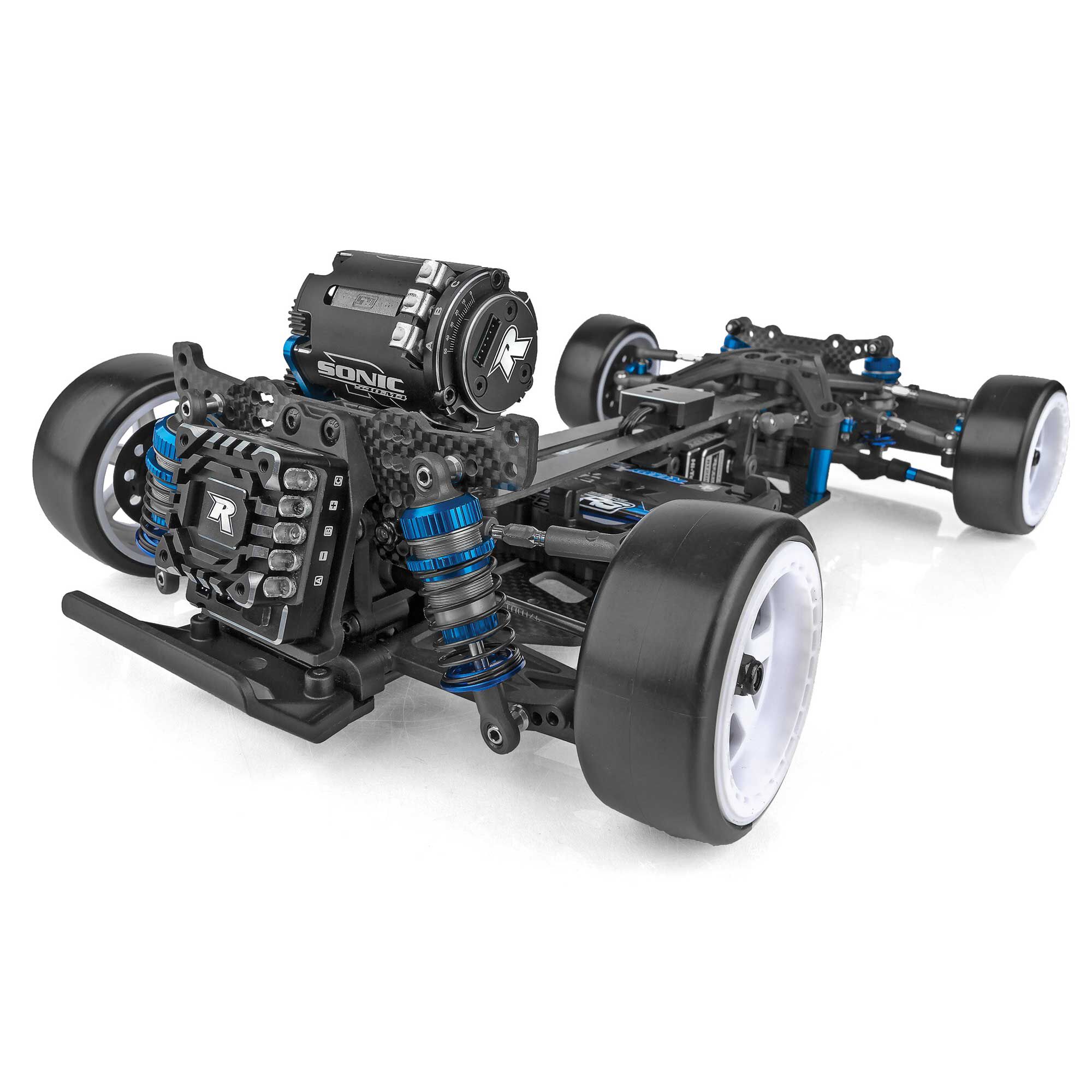

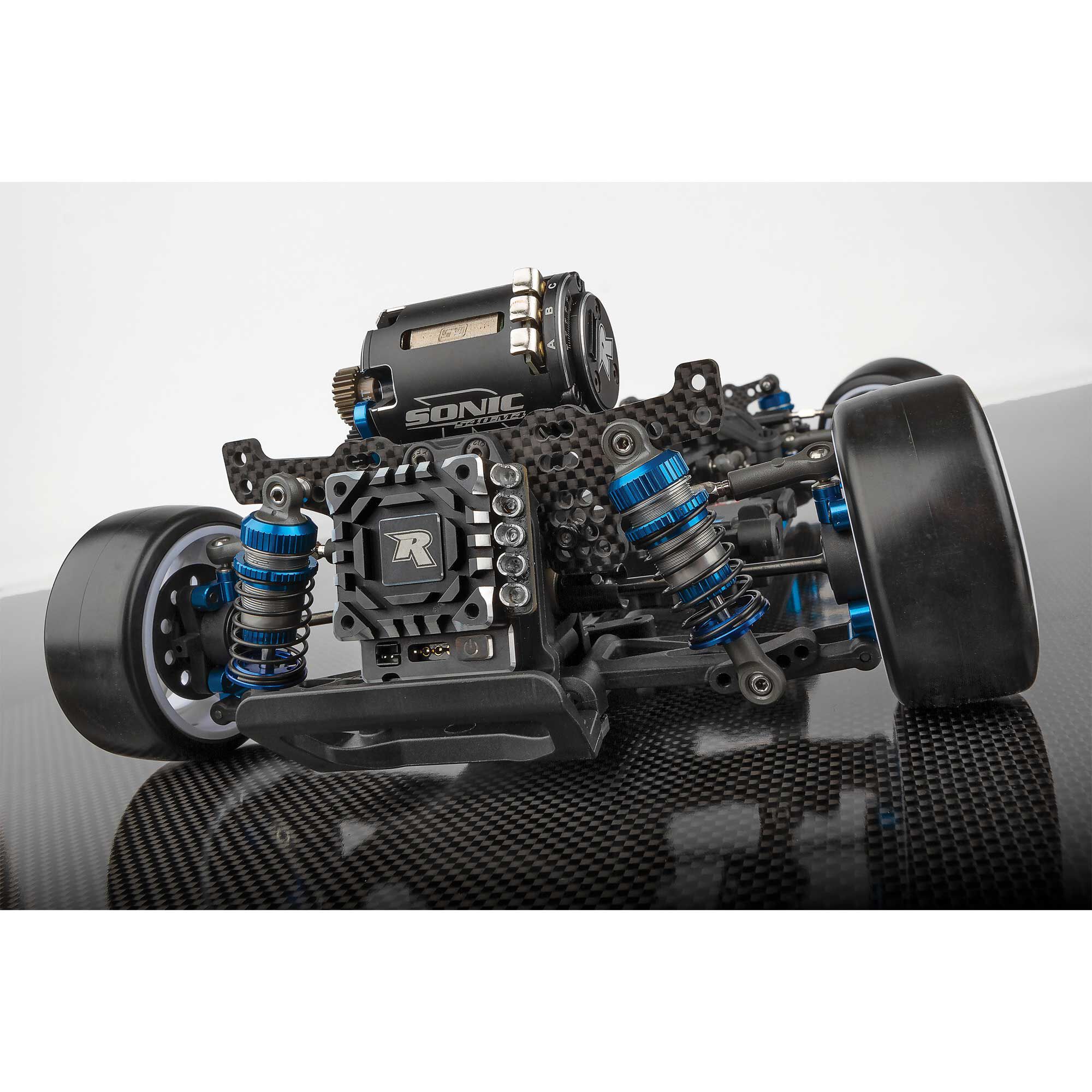

The motor position can be mounted high, and bettery moved back for more rear weight bias.

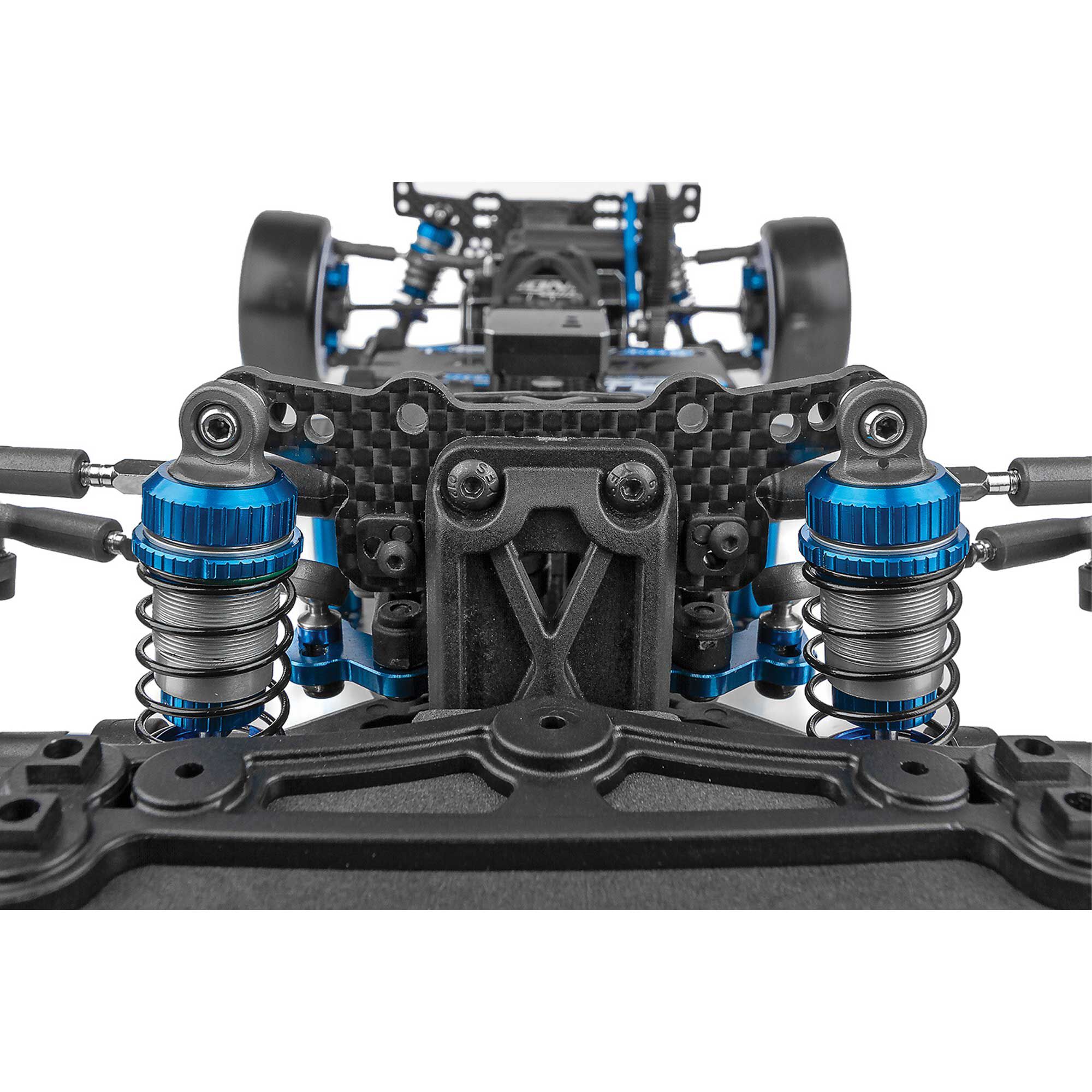

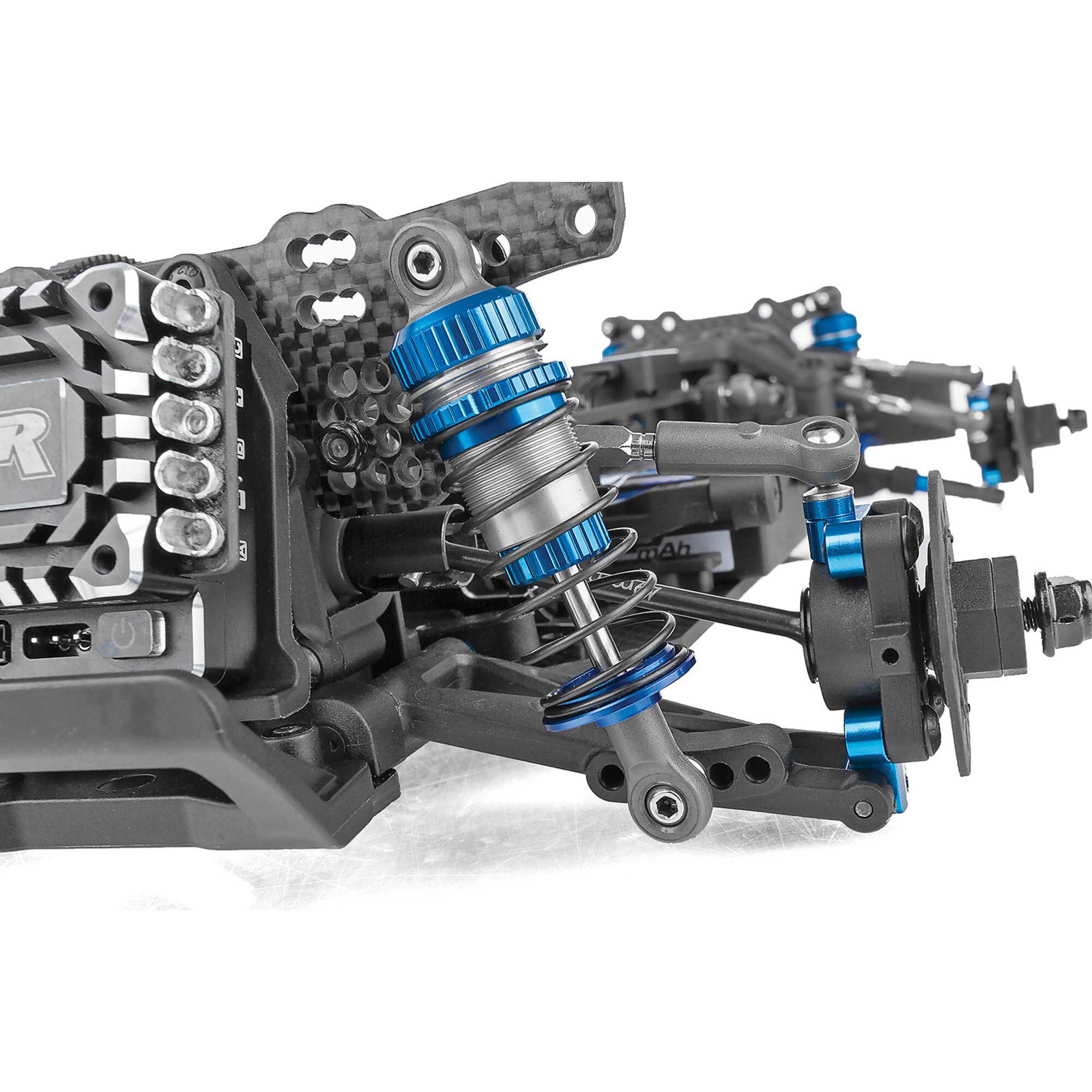

Oil-Filled Shocks

Oil-Filled Shocks

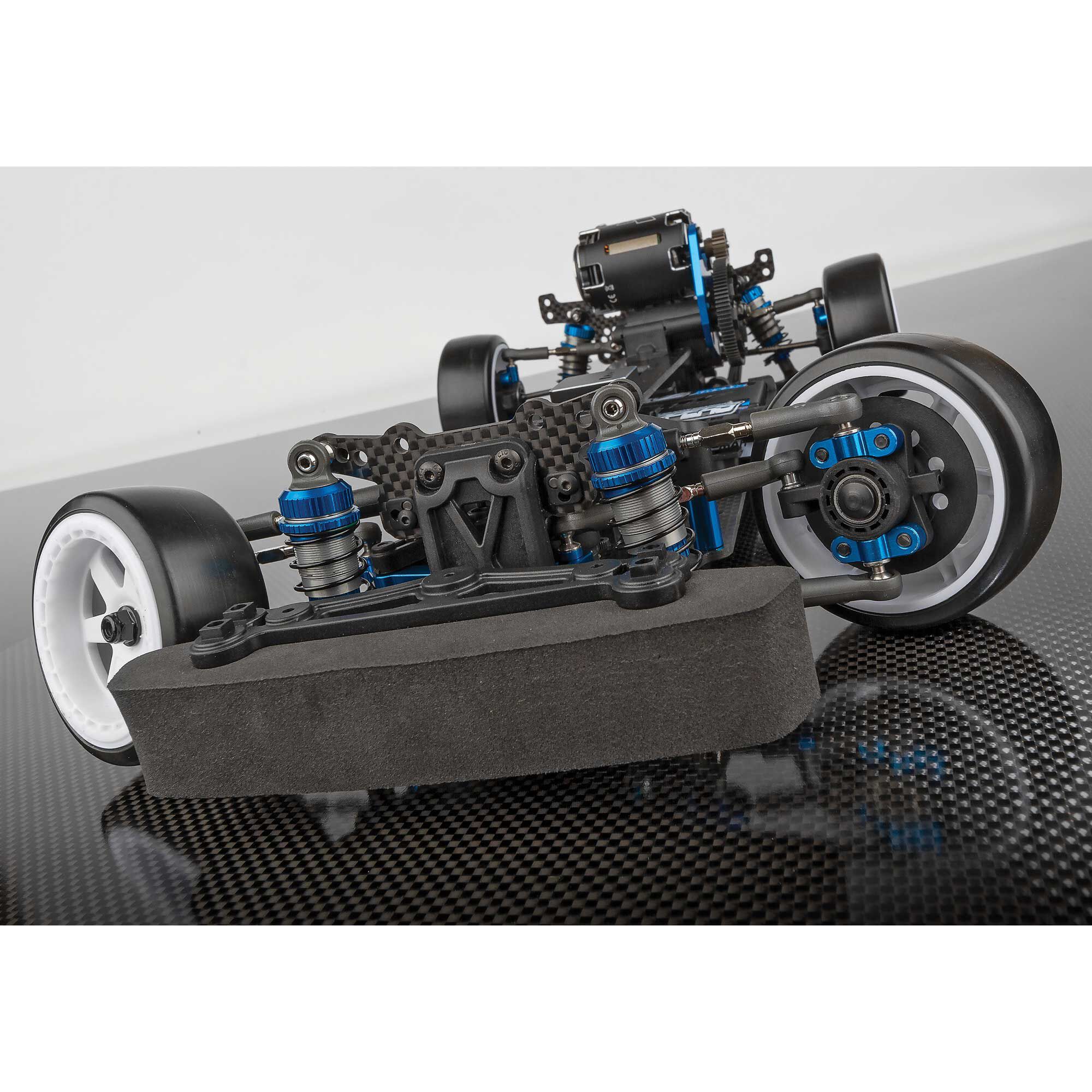

Race-proven threaded aluminum oil-filled shocks make transitions smooth and consistent.

Tuning Options

Tuning Options

With camer, caster, toe-in, KPI, and more, there are many suspension running options.

Upper Deck

Upper Deck

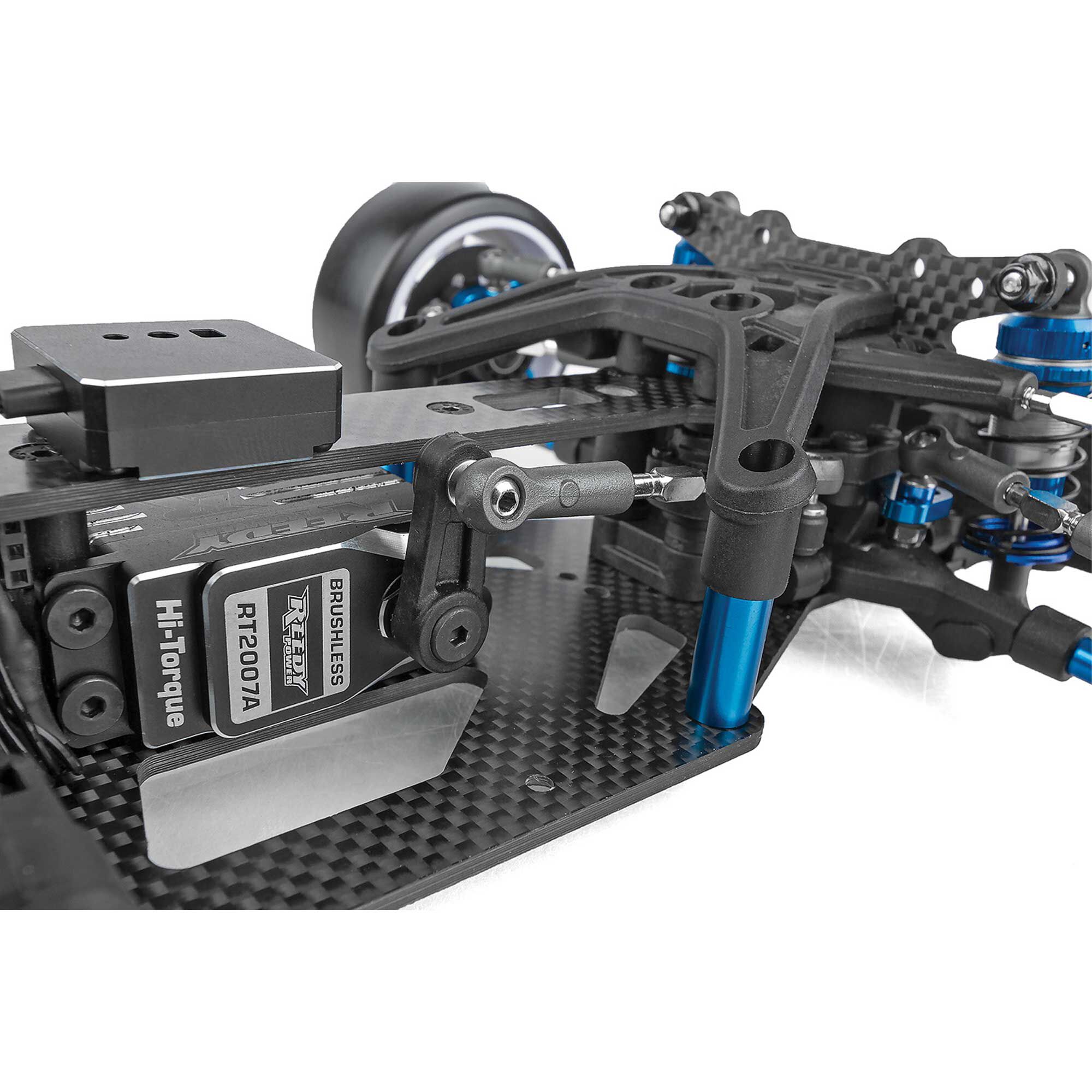

Carbon fiber upper deck provides two servo mounting options for adjustable weight balance.

Specs

Product Specs

Battery
Sold Separately
Body
Sold Separately
Charger
Sold Separately
Completion Level
Kit
Differential
Gear Diffs
Drive Type
Forward/Brake/Reverse
Drivetrain
2WD
Internal Gear Ratio
2.6:1
Manufacturer #
30134
Motor Size
540
Power Type
Electric
Product Width
6.7″ (170 mm)
Radio
Sold Separately
Receiver
Sold Separately
Scale
1/10
Servos
Sold Separately
Shock Type
Oil-Shocks
Speed Control
Sold Separately
Suspension
Independent Suspension
Vehicle Size
Standard
Vehicle Type
Drift Car
Wheelbase
10.1″ (257 mm)
Weight 5 kg
