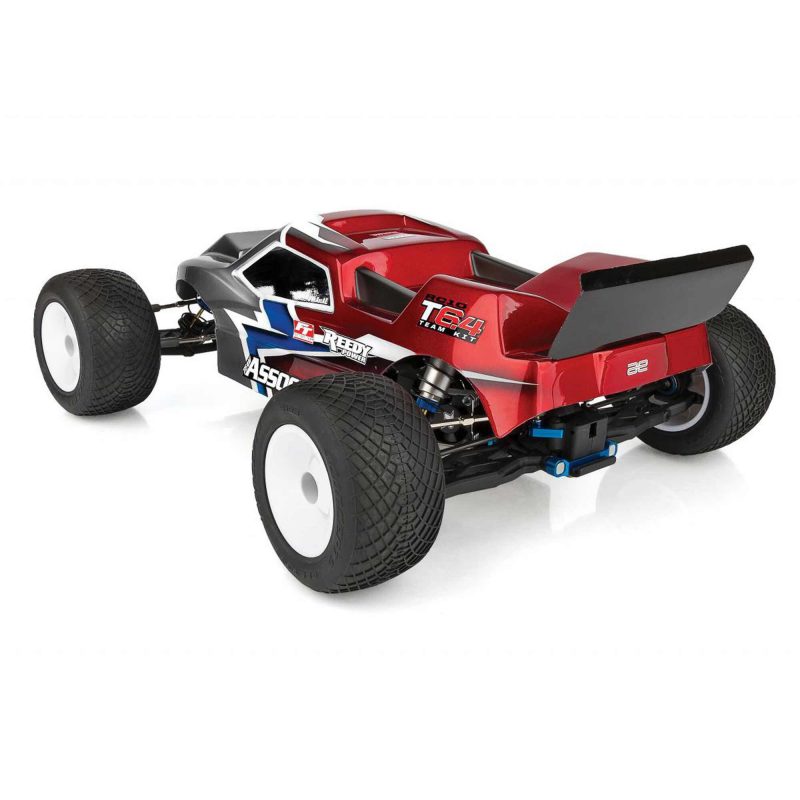

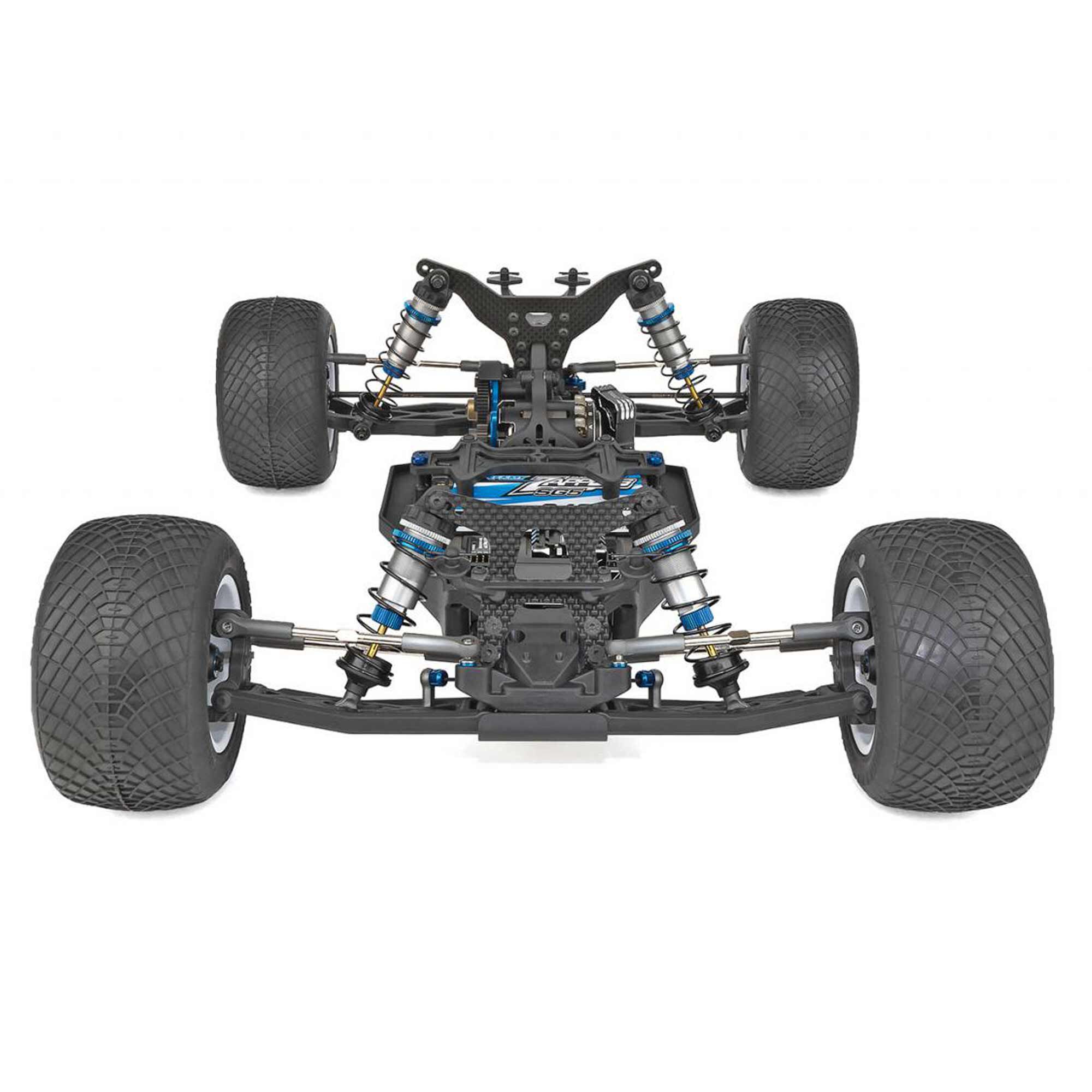

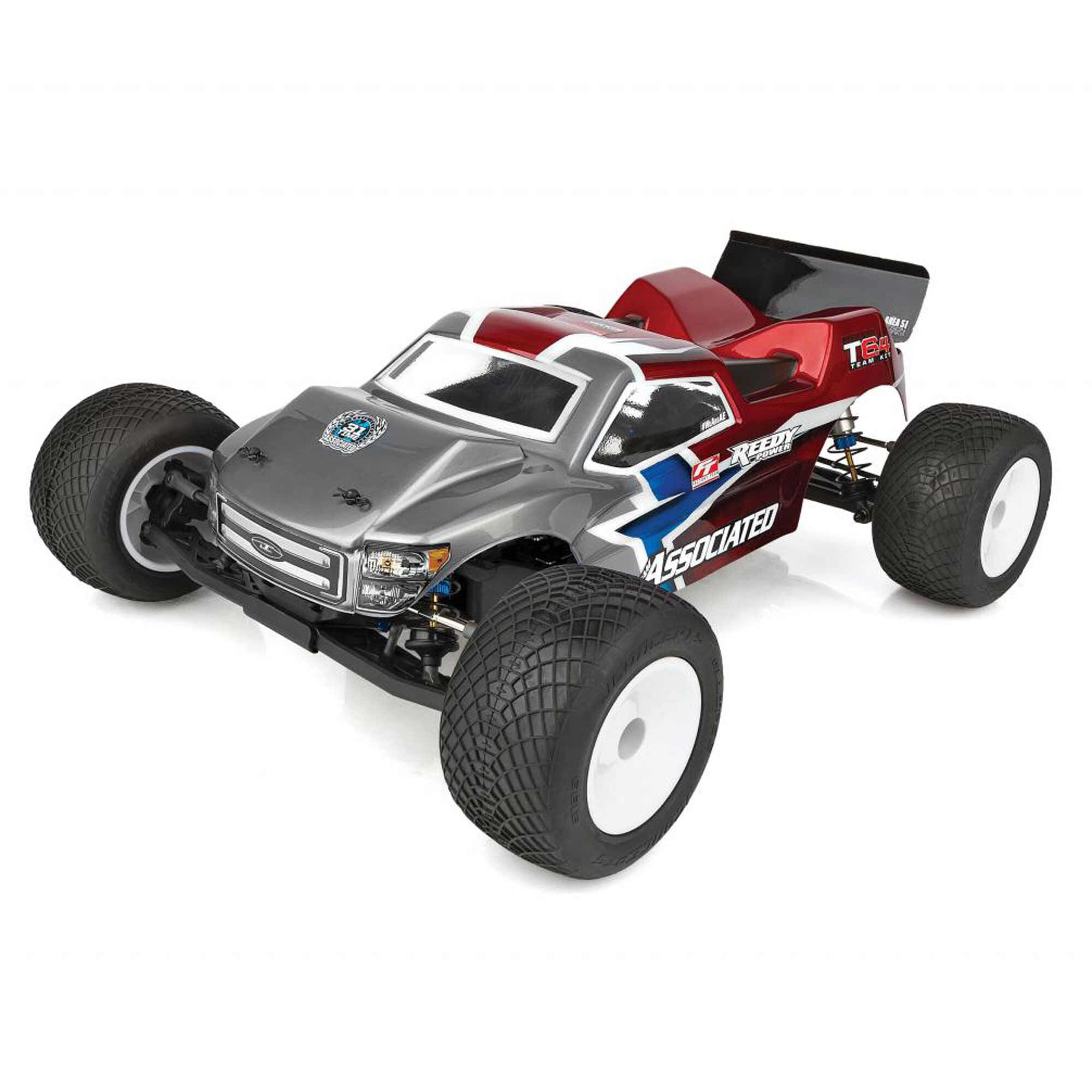

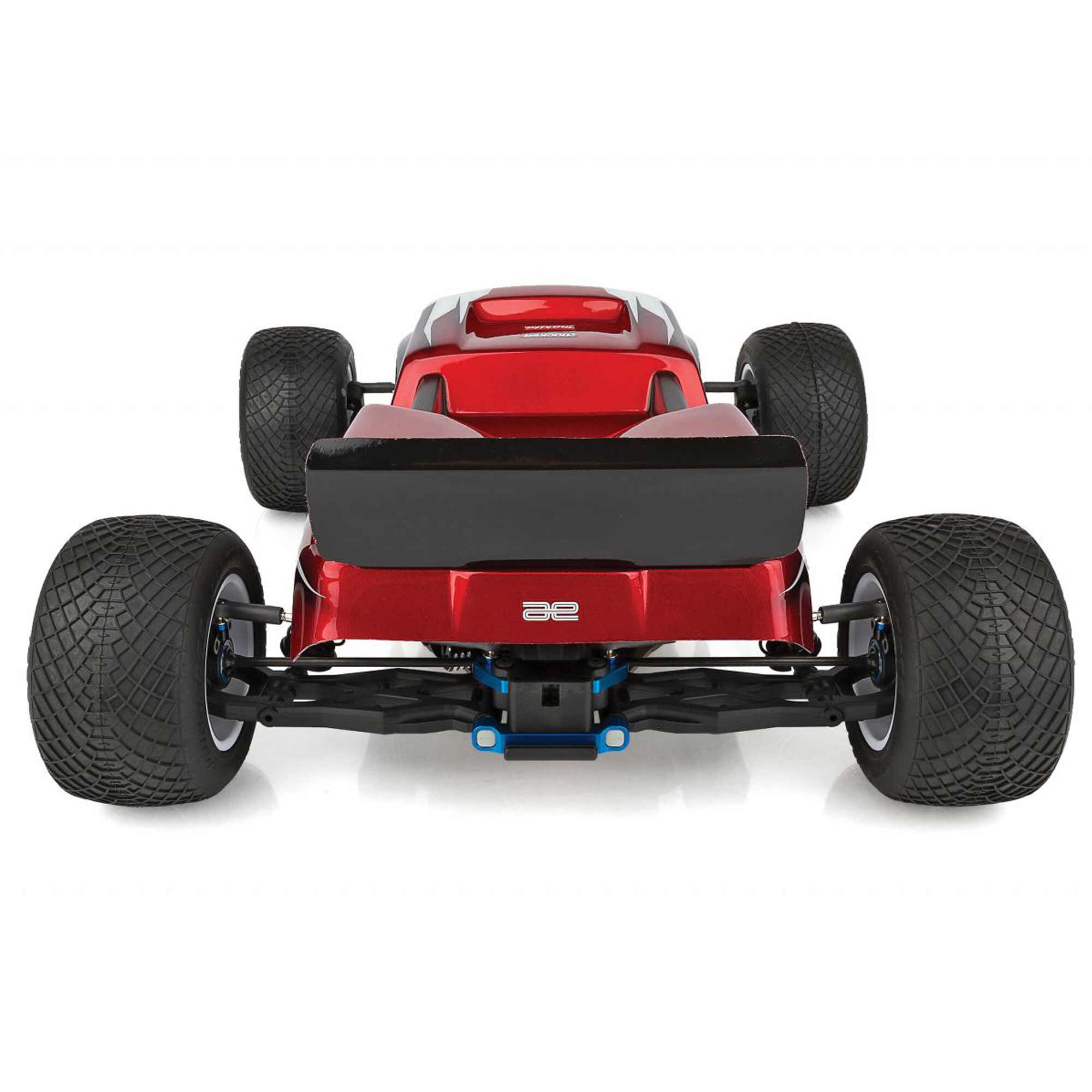

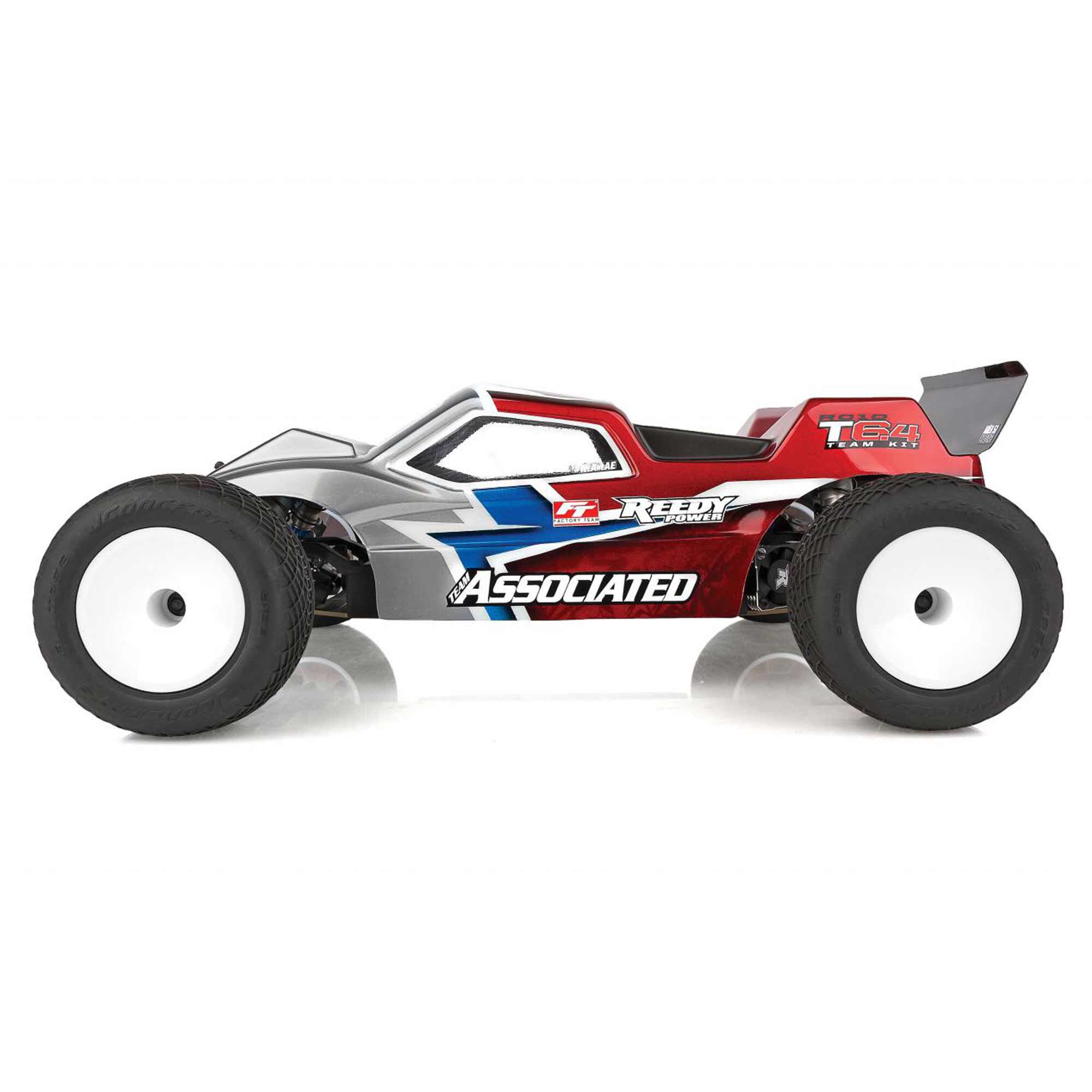

Team Associated 1/10 RC10T6.4 2WD Stadium Truck Team Kit

Name: Team Associated 1/10 RC10T6.4 2WD Stadium Truck Team Kit
SKU: hh-19215
Price: 78.00 USD
Availability: InStock

$78.00

In stock

SKU: hh-19215 Category: RC Cars & Trucks by Completion Level Tags: Kit RC Cars & Trucks, RC Cars & Trucks by Completion Level, RC Cars & Trucks by Size

Description
Additional information

Overview

Introduction

Suspension and jumping goes through the largevolume 13mm big bore shocks with new truck springs. The new chassis design is a truck version of the RC10B6.4 buggy design and gets a new ballstud mount and top plate system with an angled steering for improved consistency. On top of that, racers can tune the steering height, axle trail, and caster inserts for tuning the front end feel. The rear end grip is improved with the optional C and D mounts and 92.5mm CVA bones included in the kit. Suspension linkage rides on the new 3.5mm diameter rod ends and turnbuckles.

The RC10T6.4 is updated to the latest racing specs to give racers an edge over the competition.

New 13mm Big Bore Threaded Aluminum Shocks
New 3.5mm Heavy-Duty Ball Cups
New Longer 92.5mm CVA Driveshafts
New Truck Length Aluminum Chassis
20°, 22.5°, and 25° Molded Bulkheads

New features for RC10T6.4

New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.
13mm machined shock pistons, 2×1.6mm front and 2×1.8mm rear.

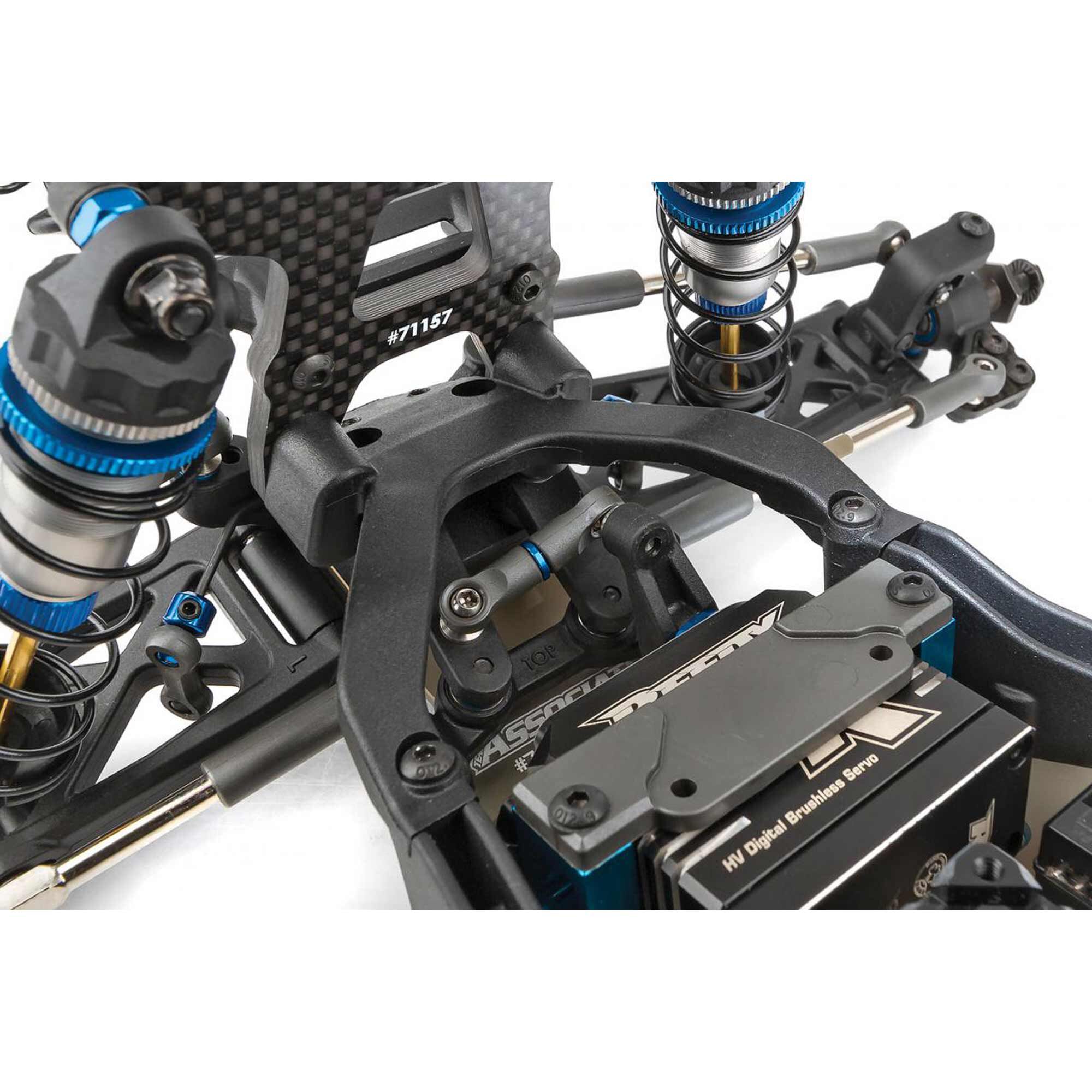

New front ballstud mount and top plate with angled steering system for improved steering consistency.
New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability.
Updated rear suspension with wider C and D mounts from the RC10B6.4 series.
New longer 92.5mm CVA driveshafts for more rear grip.

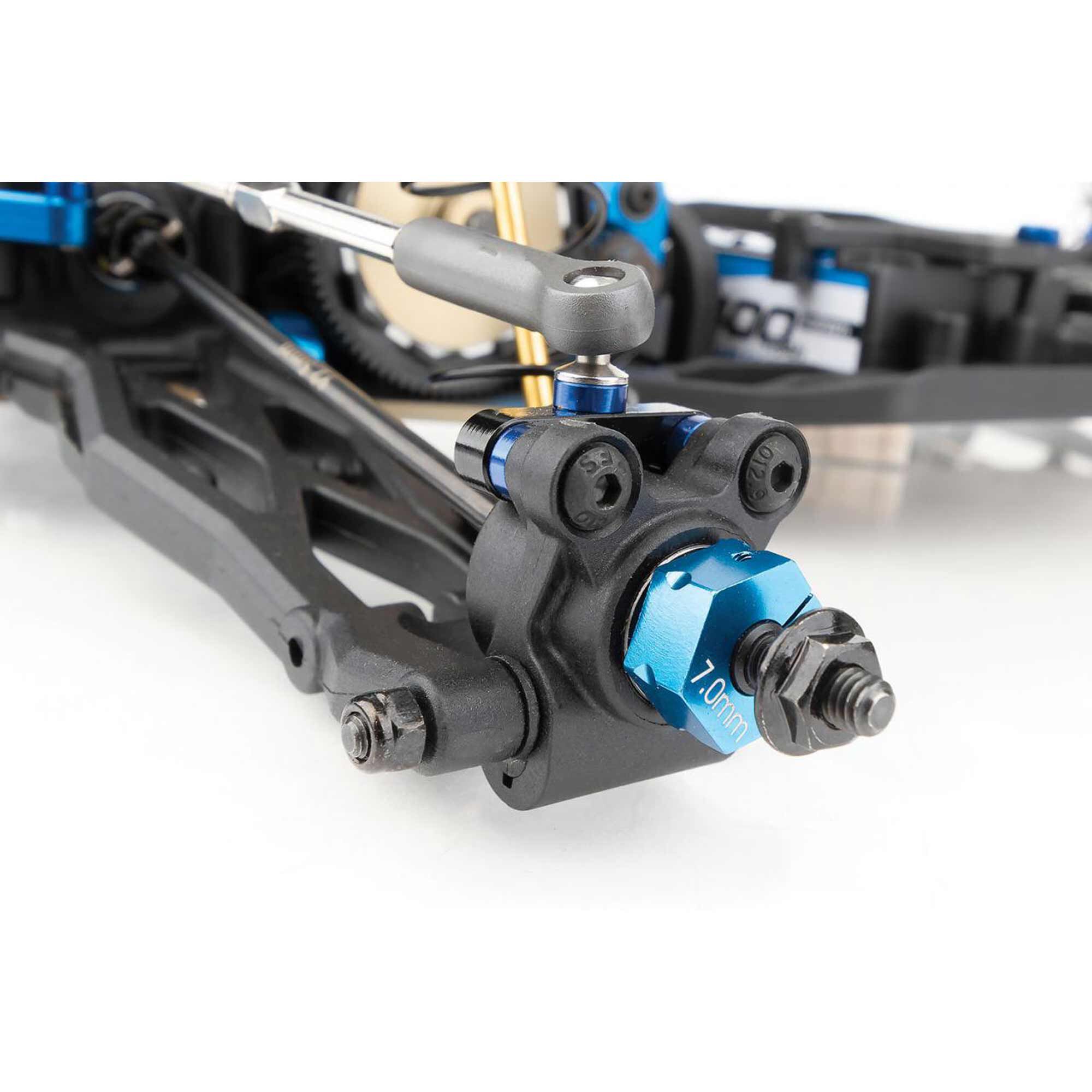

7.0mm blue aluminum rear clamping hexes with laser etching.

New chassis side rails with the RC10B6.4 fan mount system.
New truck length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface.
20°, 22.5°, and 25° molded bulkheads included for a complete range of caster and kickup options.
B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles.
B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw.
Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias placed further forward.
Factory Team RC10B6.4 11g aluminum ESC tray.

Legacy Features from RC10T6.2

Gull wing front and rear arms and shock towers for improved hightraction handling.
B74.1 two-piece rear hubs with aluminum upper caps for fine geometry adjustments.
1.3mm front anti-roll bar and hardware included for added highspeed stability.
Laydown Stealth? transmission included.
+1 carbon fiber steering block arms.
Updated front body mount is more rigid to protect body from cracking.
Lightweight, hard-anodized aluminum chassis with centralized mass and three mid-motor positions for improved handling on all track types.
Differential height adjustment with included 0, 1, 2, and 3mm inserts.
Easy access to differential.

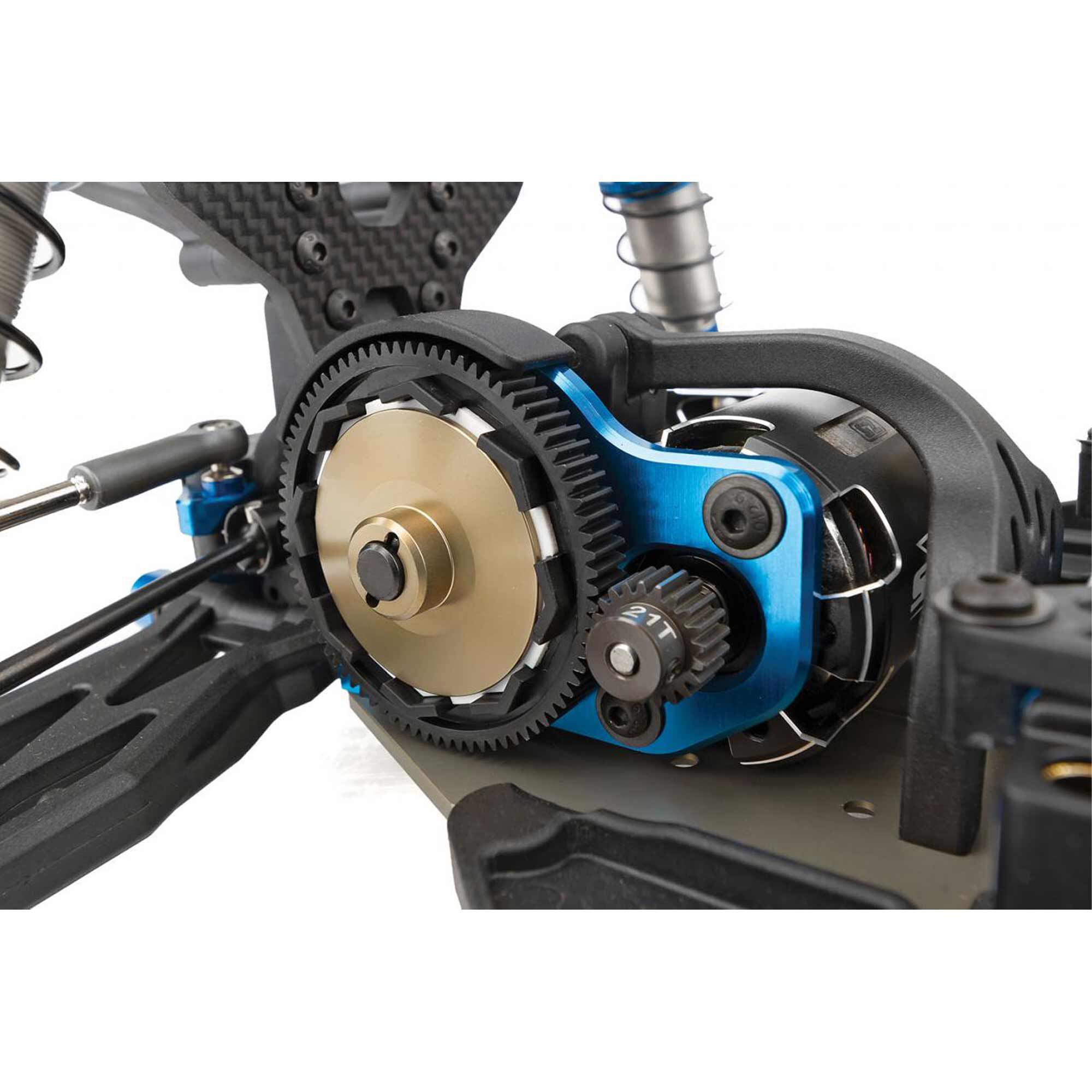

Split slipper assembly for better weight balance and shock clearance.

Heavy-duty routed 4.0mm carbon fiber shock towers.
Aluminum shocks with 3mm shafts and X-rings for improved smoothness.
Machined pistons included for better fit and smoother operation.
Reverse bellcrank steering allows more room for mounting electronics.
Bolt-on steering block arms for easy Ackermann adjustments.
Aluminum rear ballstud mount for added strength.
One-piece shock bushings to make assembly easier.
Lightweight aluminum top shaft.

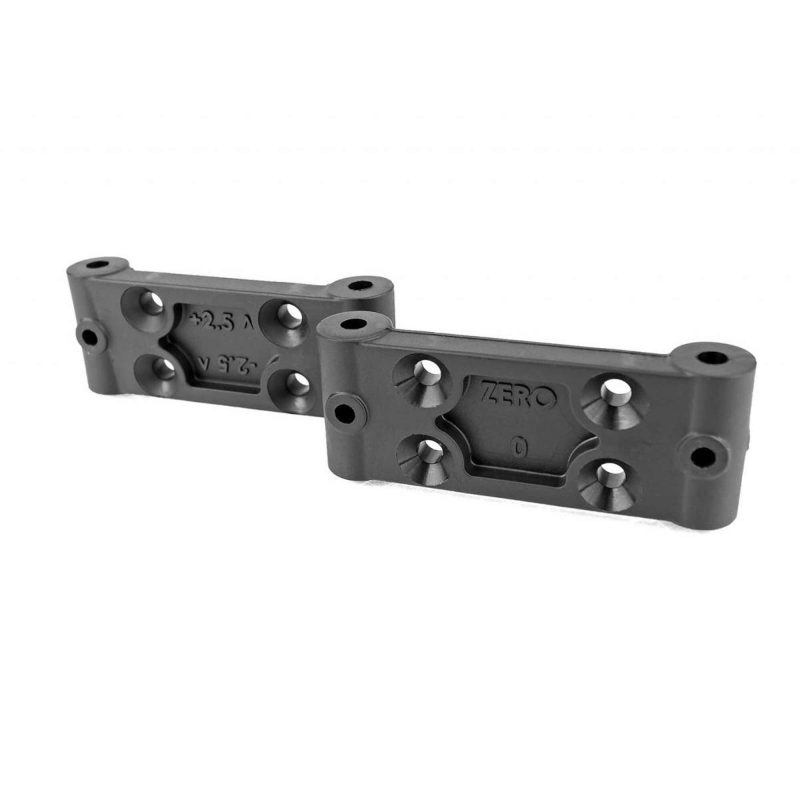

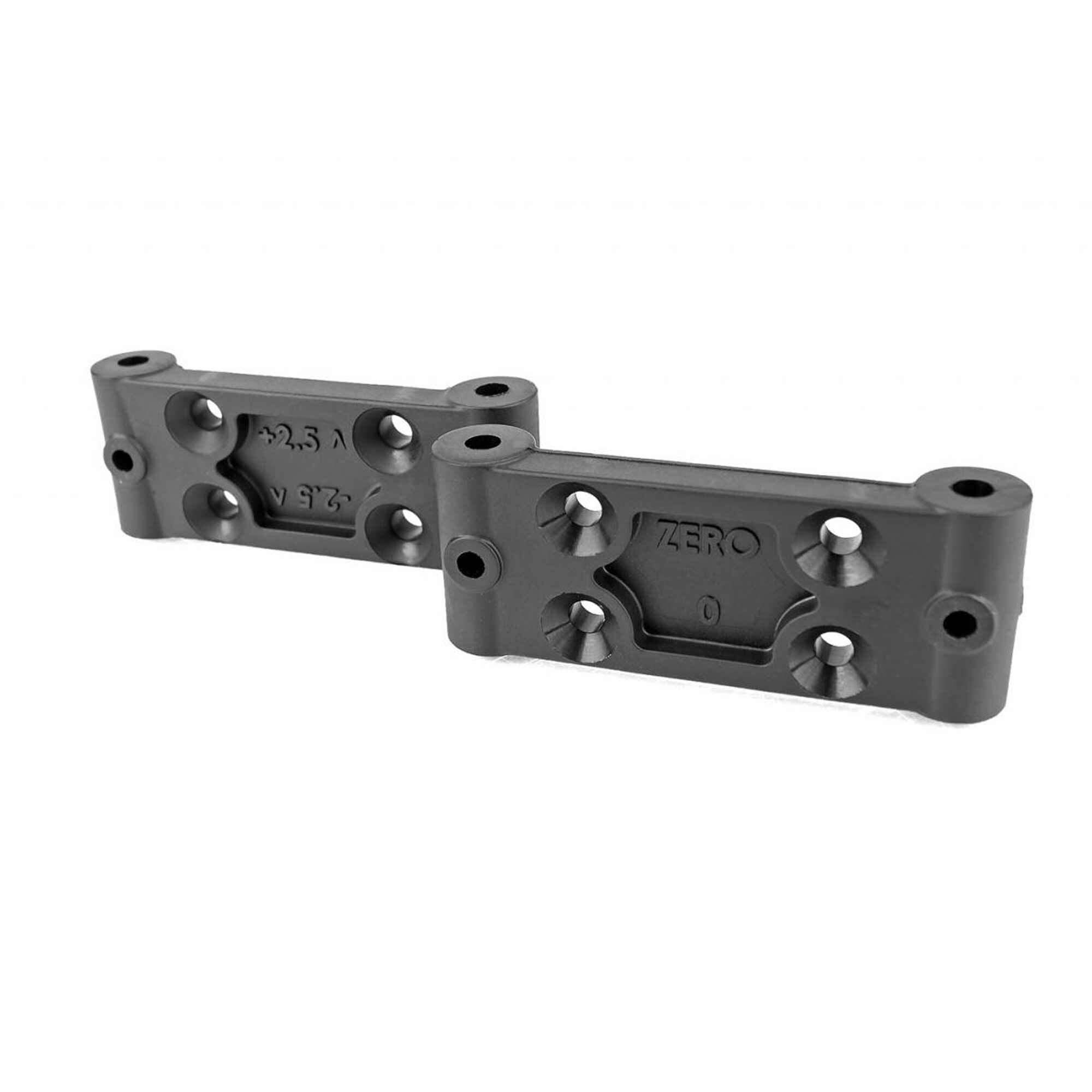

Aluminum C and D arm mounts included for large range of anti-squat and toe adjustments.
Factory Team upgraded ball bearing kit included.

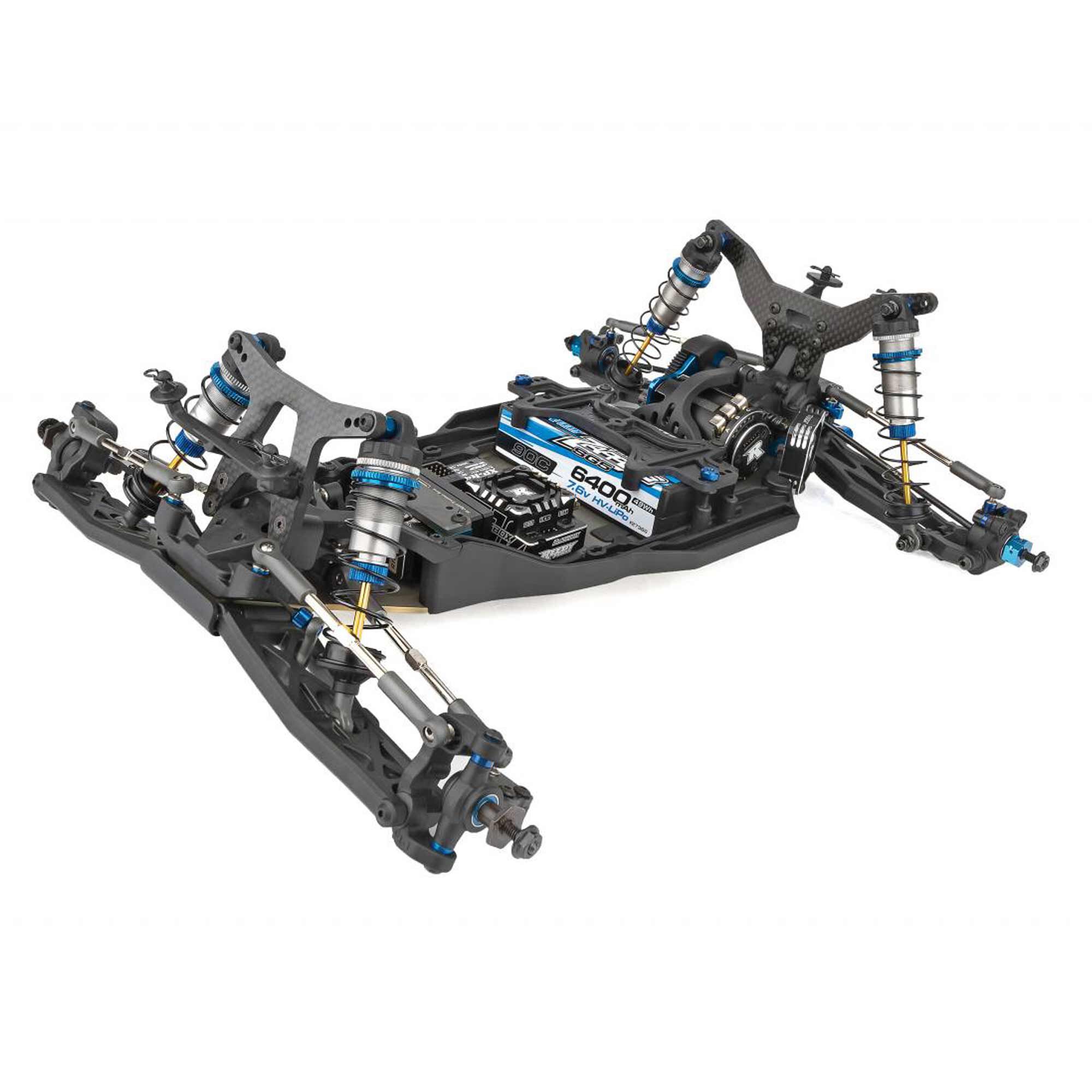

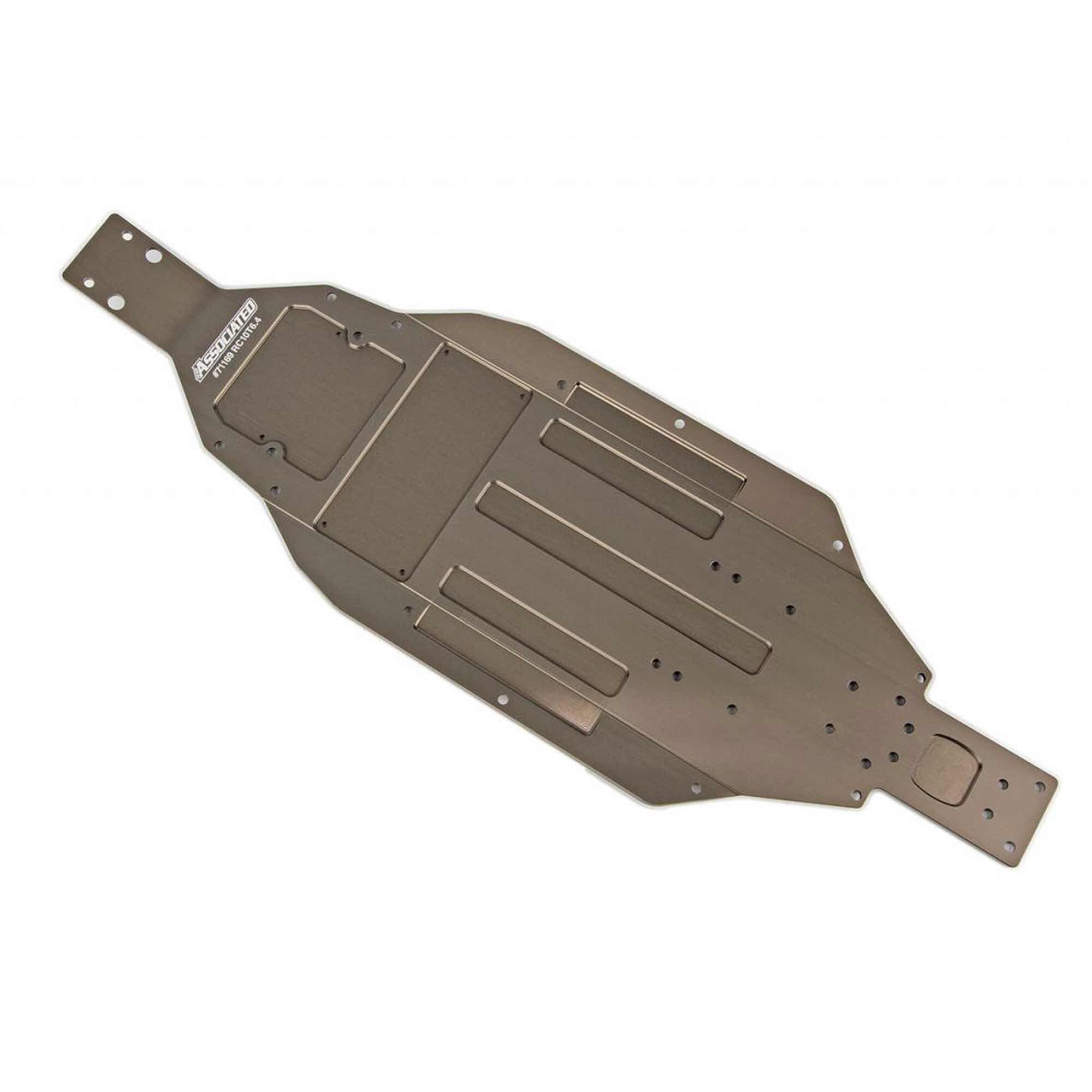

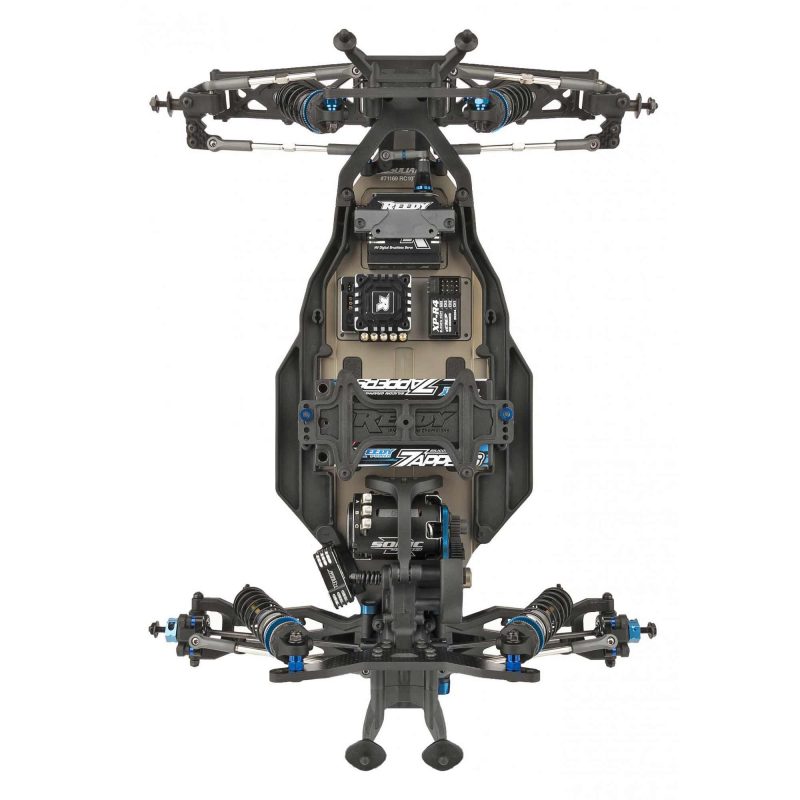

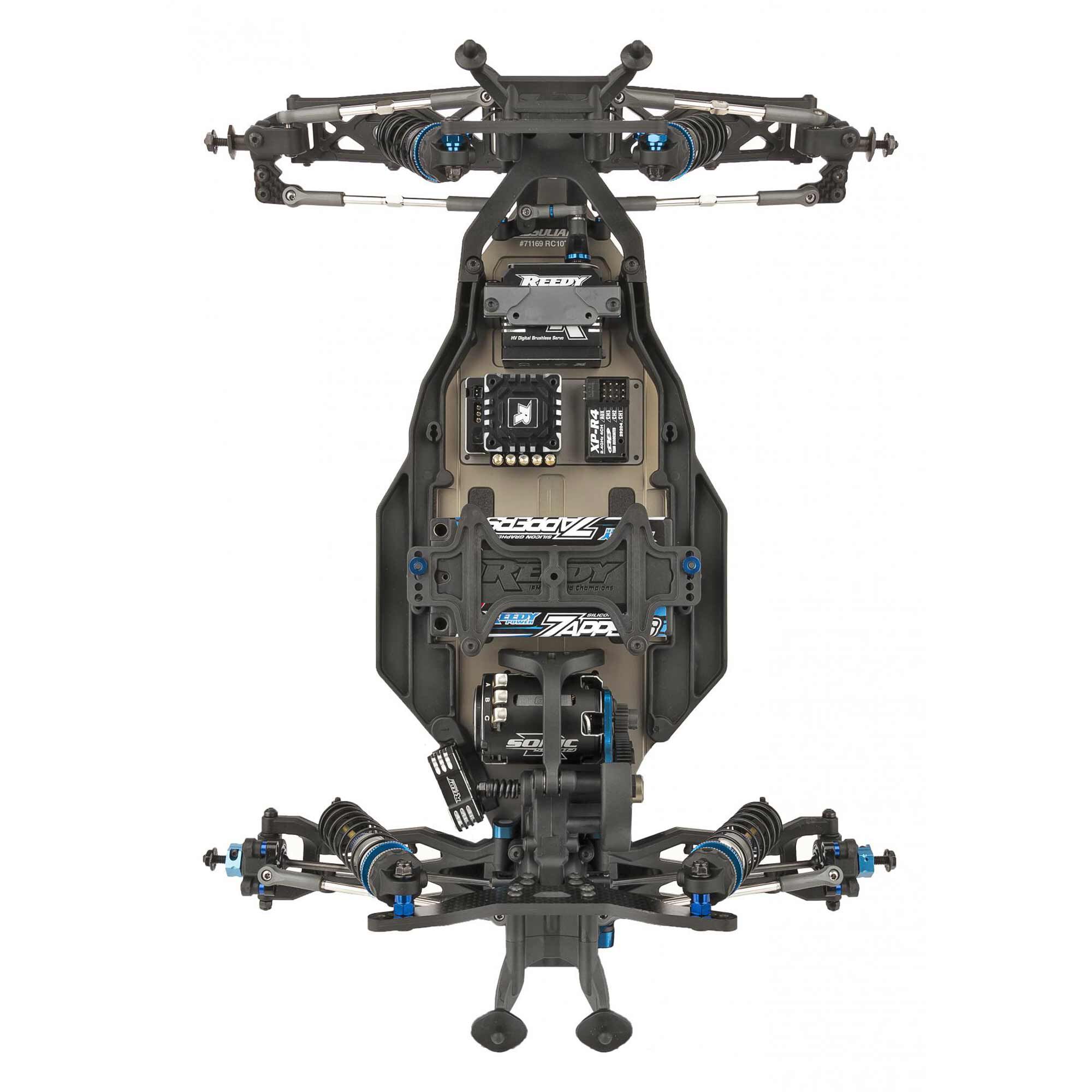

Aluminum Chassis

New truck length aluminum chassis with 22.5° kick-up to complement updated front-end geometry and with new shape to reduce chassis scrub with the track surface.

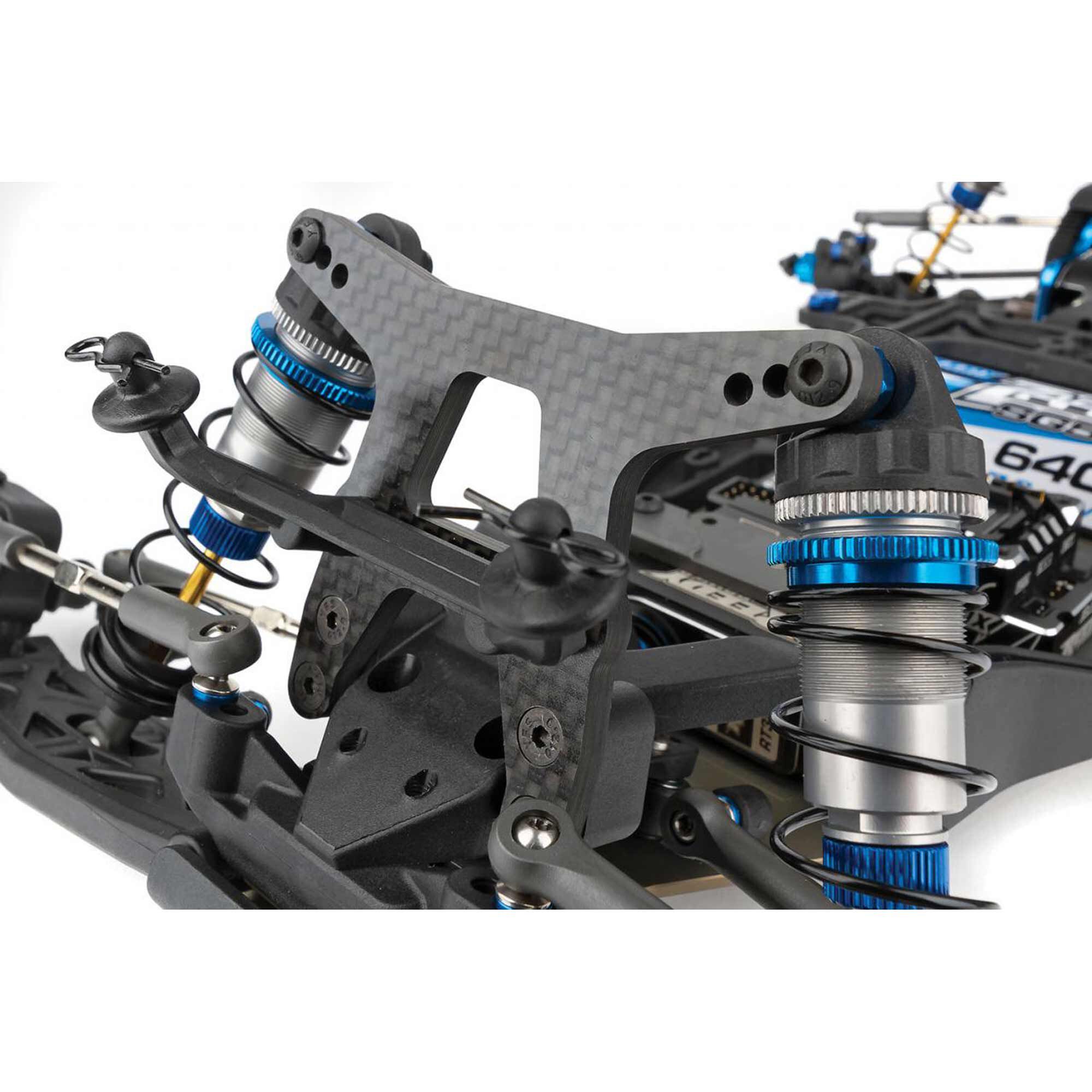

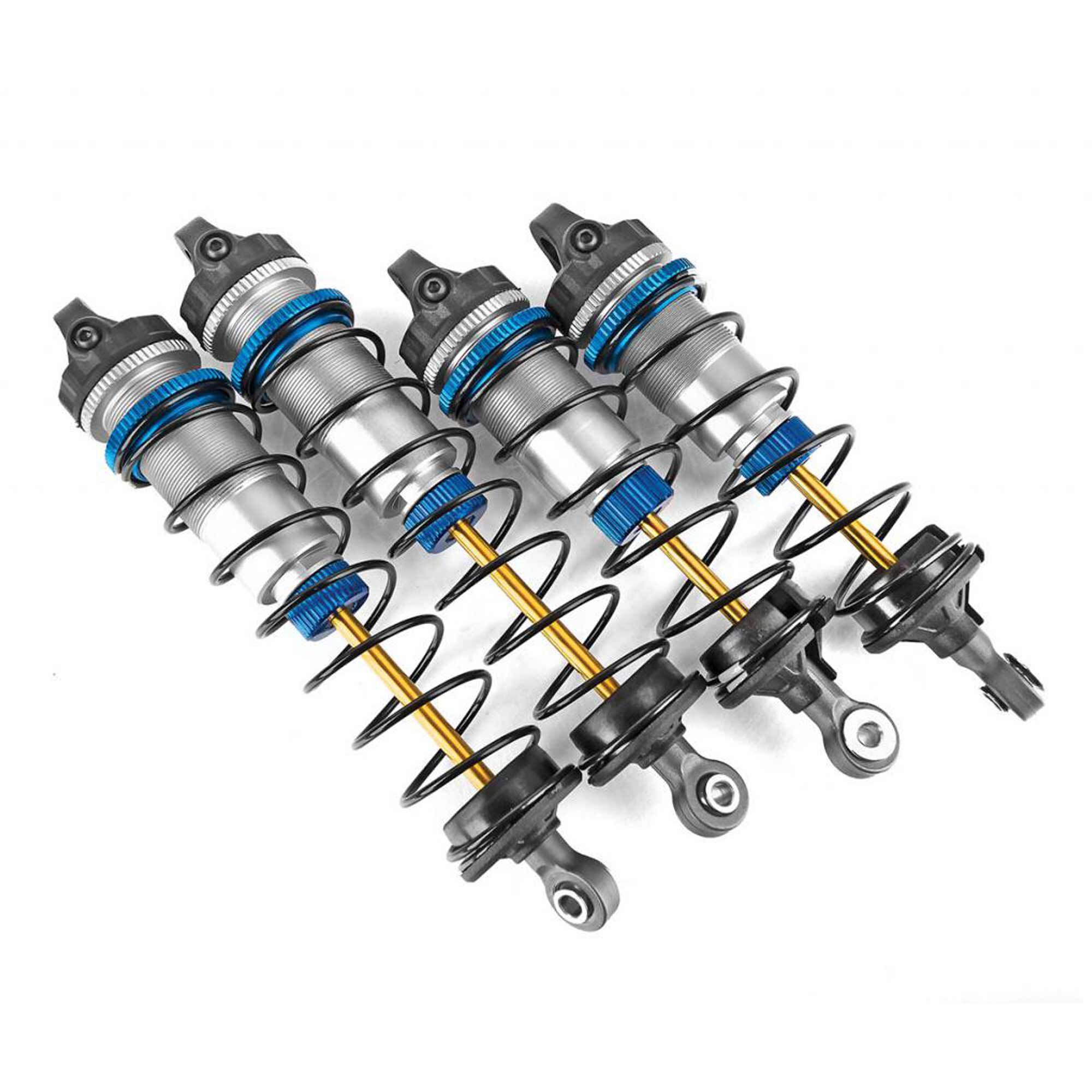

Big Bore Shocks

New 13mm big bore threaded aluminum shocks and springs with machined shock pistons for improved bump and jump handling.

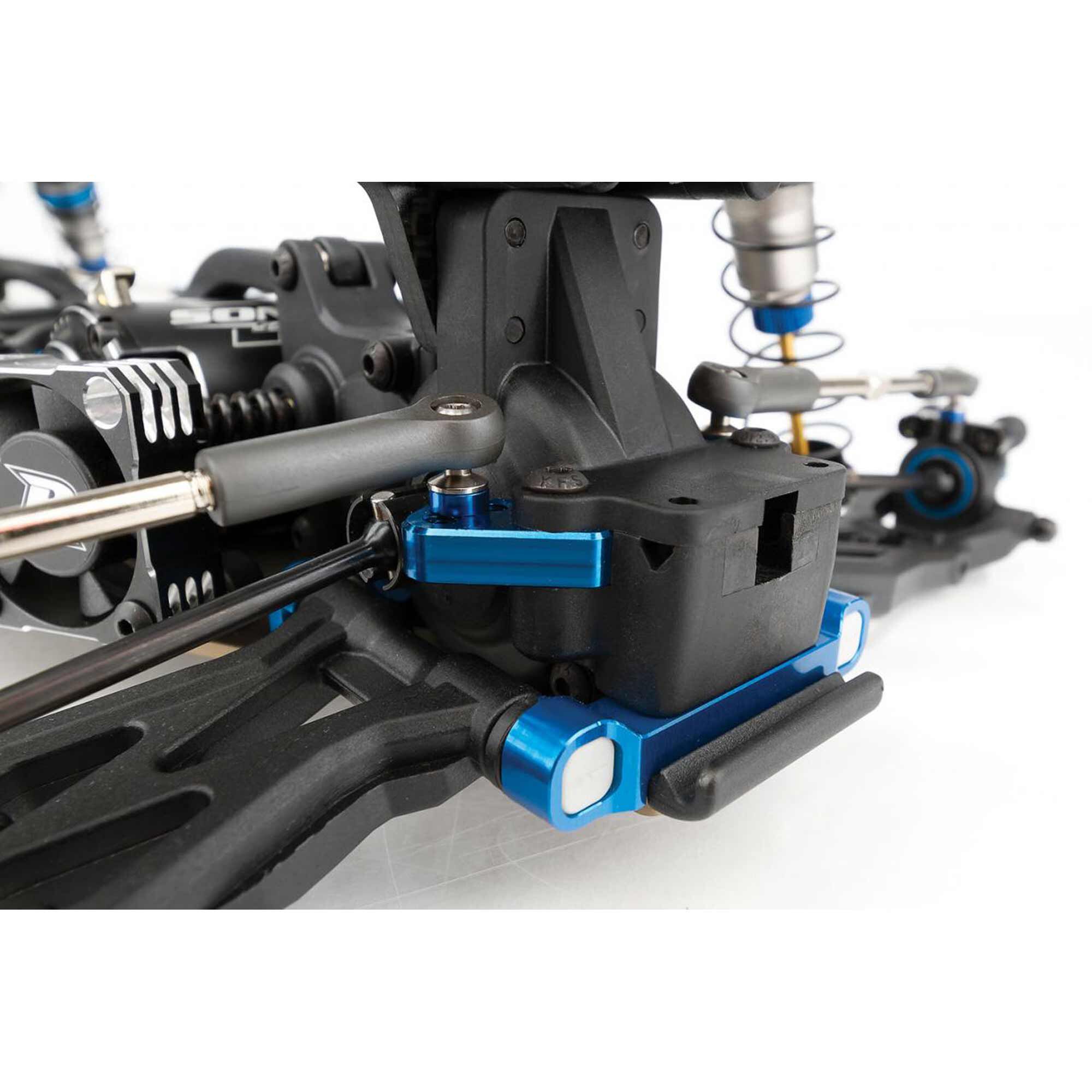

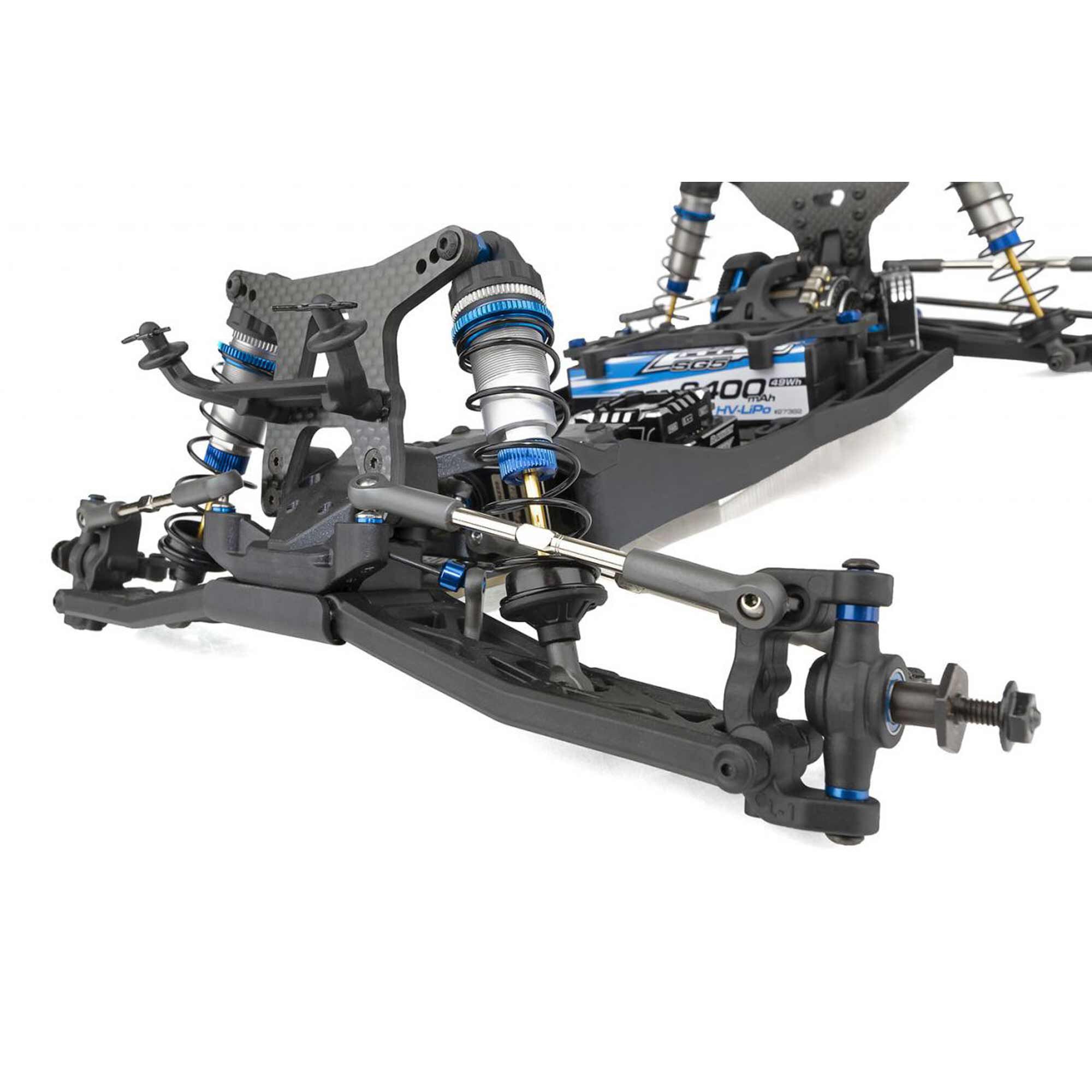

Updated Suspension

Updated rear suspension with wider C and D mounts from the RC10B6.4 series.

HD Ball Cups

New 3.5mm heavy-duty ball cups and turnbuckles for maximum durability.

ESC Mounting Tray

Aluminum RC10B6.4 ESC mounting tray shifted forward in the chassis and with a wider footprint to fit electronics, resulting in a weight bias placed further forward.

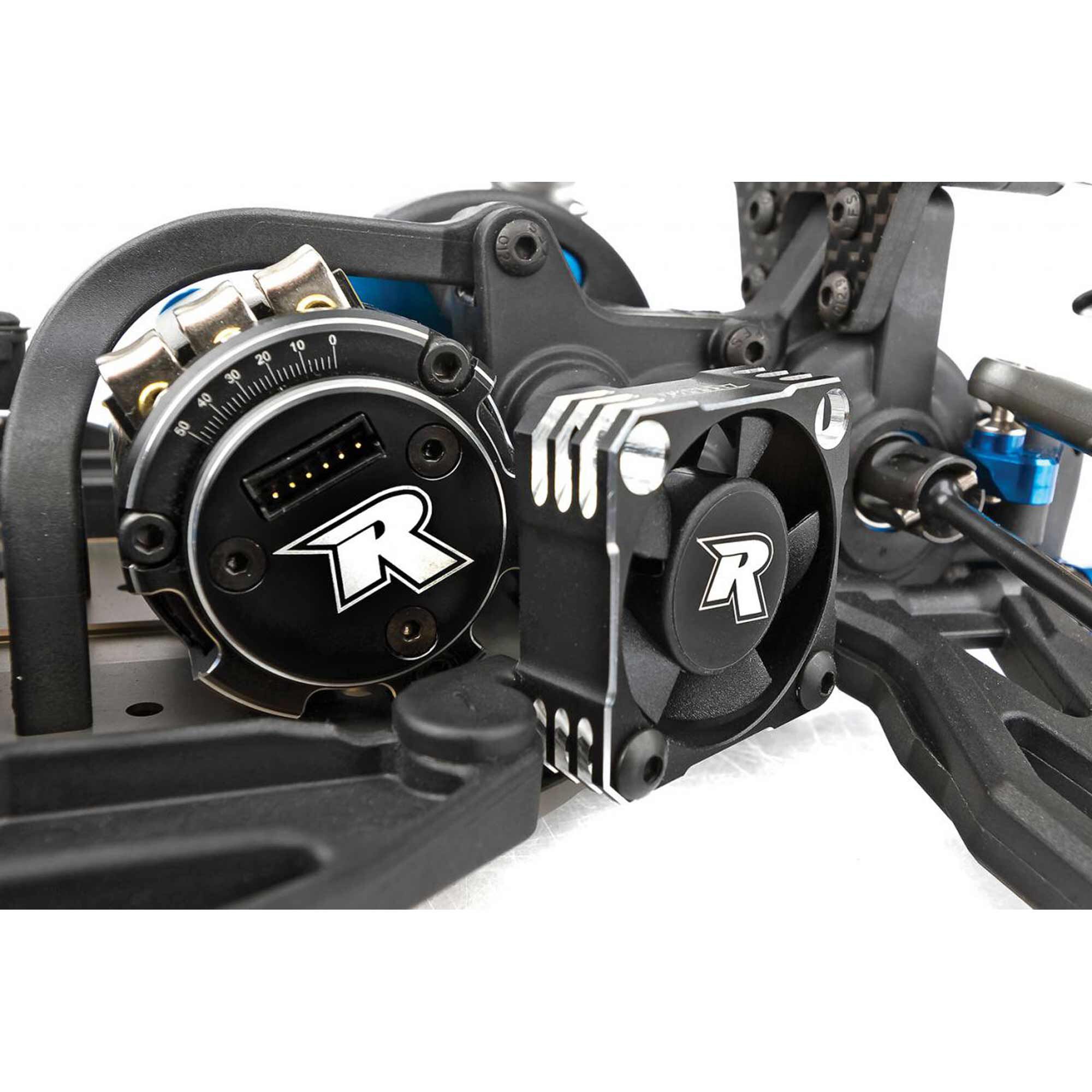

Chassis Rails

New chassis side rails with the RC10B6.4 fan mount system.

Gull Wing Arms

Gull wing front and rear arms and shock towers for improved hightraction handling.

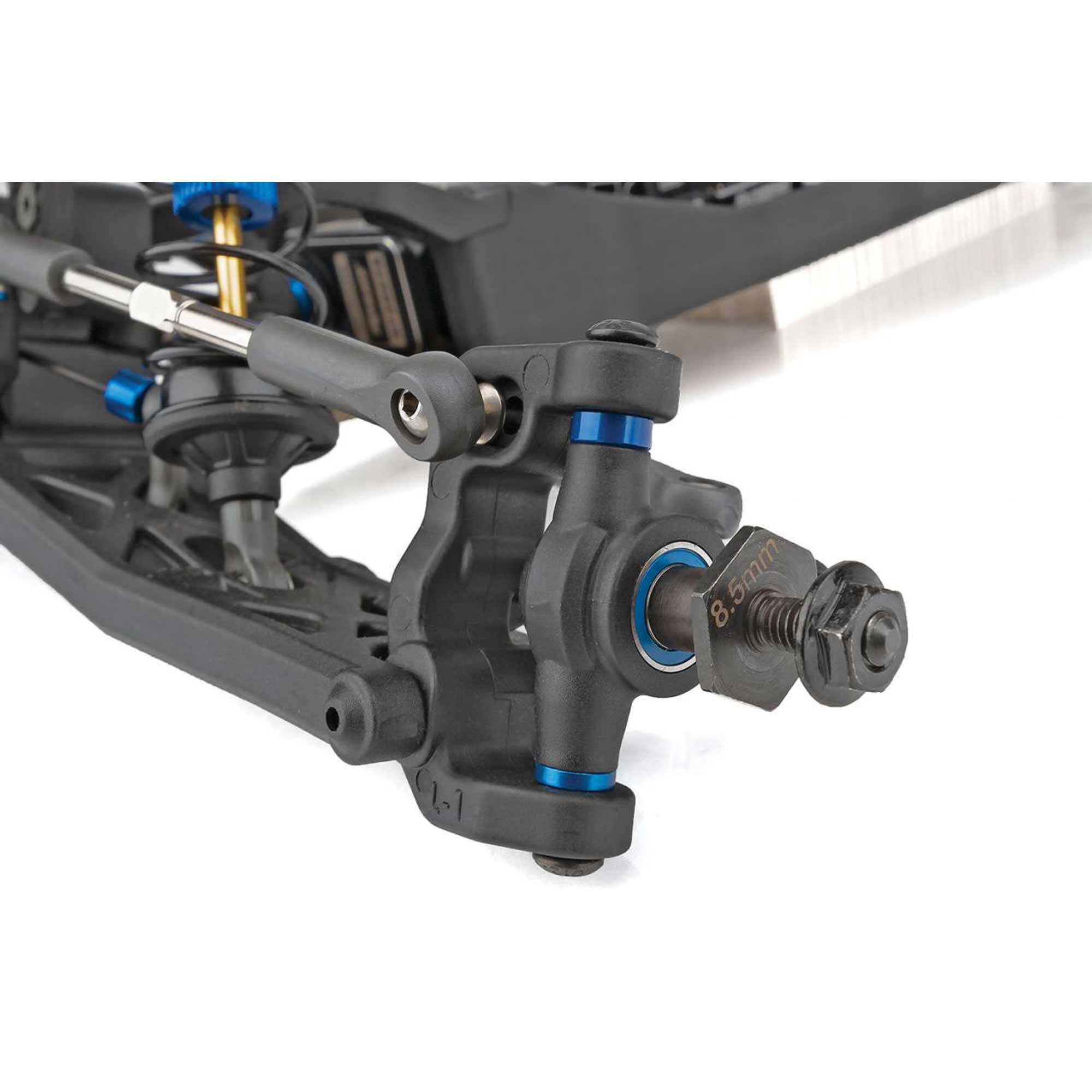

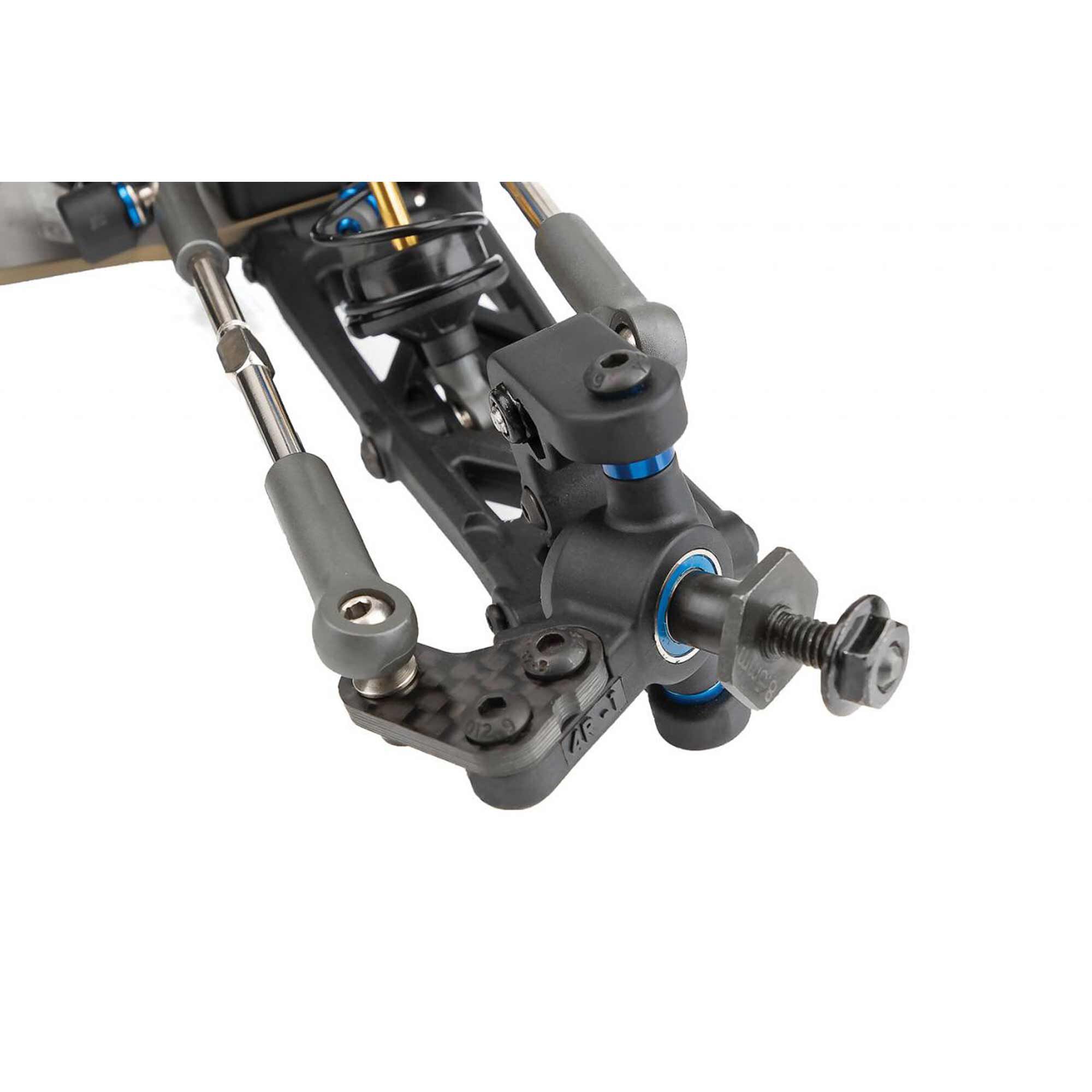

Offset Steering

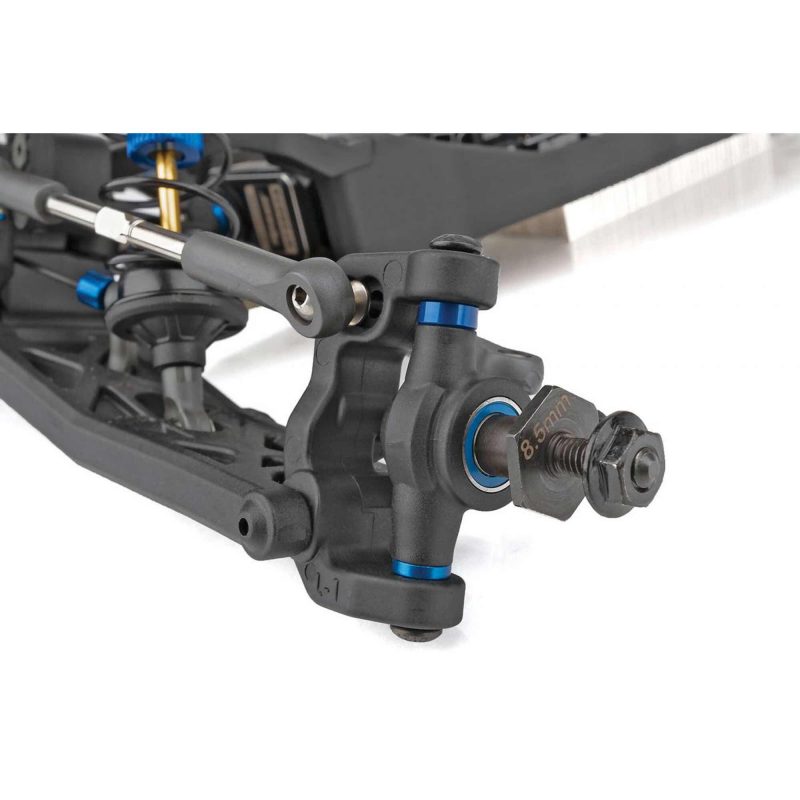

B6.4 -1mm kingpin offset steering and caster block set for smoother and more predictable steering through the entire wheel throw.

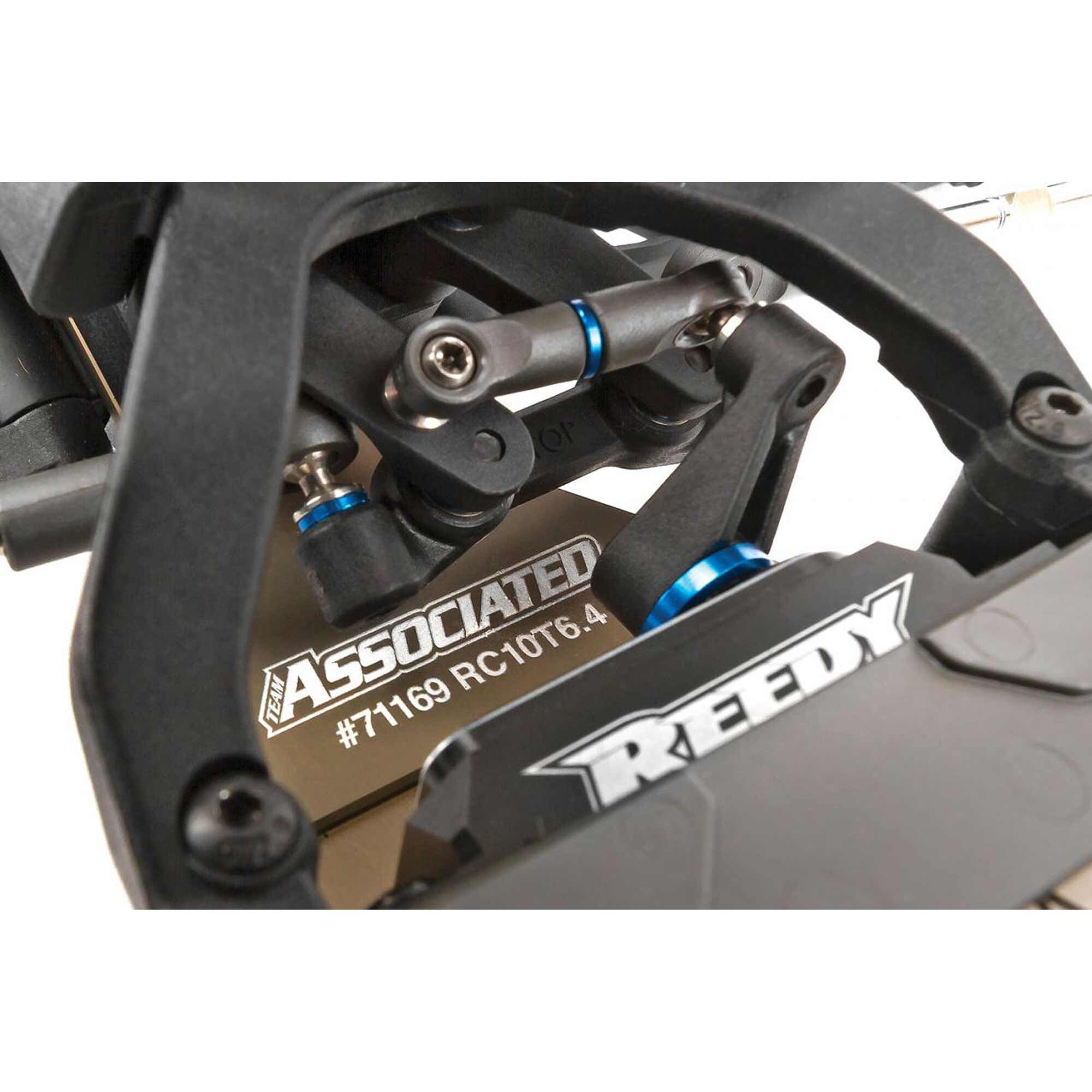

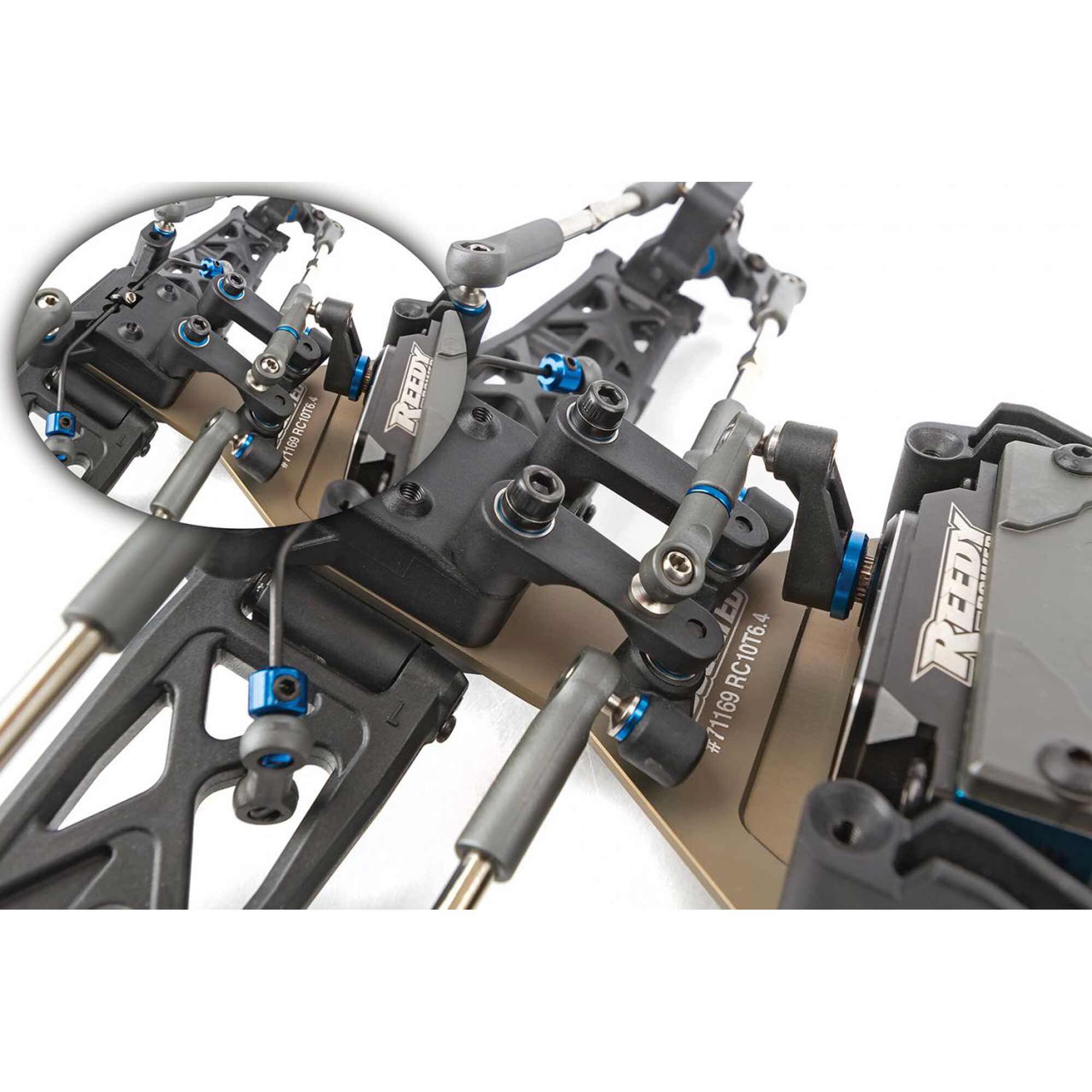

Adjustable Bellcrank

B6.4 adjustable height steering bellcrank and rack system for optimized bumpsteer at all ride heights and caster angles.

Molded Bulkheads

20°, 22.5°, and 25° molded bulkheads included for a complete range of caster and kickup options.

Specs

Product Specs

Battery

Sold Separately

Charger

Sold Separately

Completion Level

Kit

Differential

Gear Diff

Drive Type

Forward/Brake/Reverse

Drivetrain

2WD

Gear Ratio

2.6:1

Power Type

Electric

Product Length

14.49″ (368 mm)

Radio

Sold Separately

Receiver

Sold Separately

Scale

1/10

Servos

Sold Separately

Shock Type

13mm Big Bore Shocks

Speed Control

Sold Separately

Suspension

Independent

Vehicle Size

Standard

Vehicle Type

Stadium Truck

Wheelbase

11.34″ (288 mm)

Weight	5 kg
