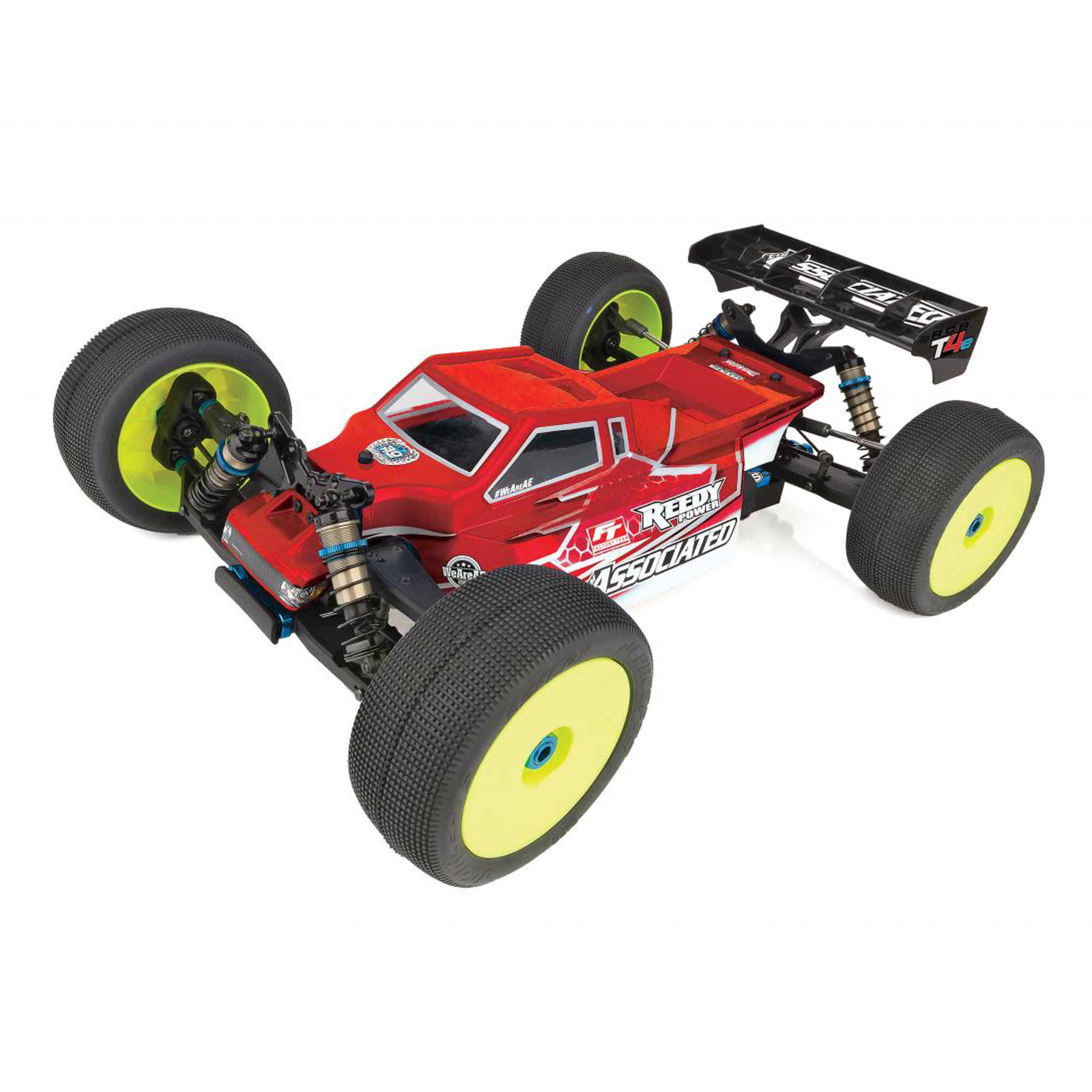

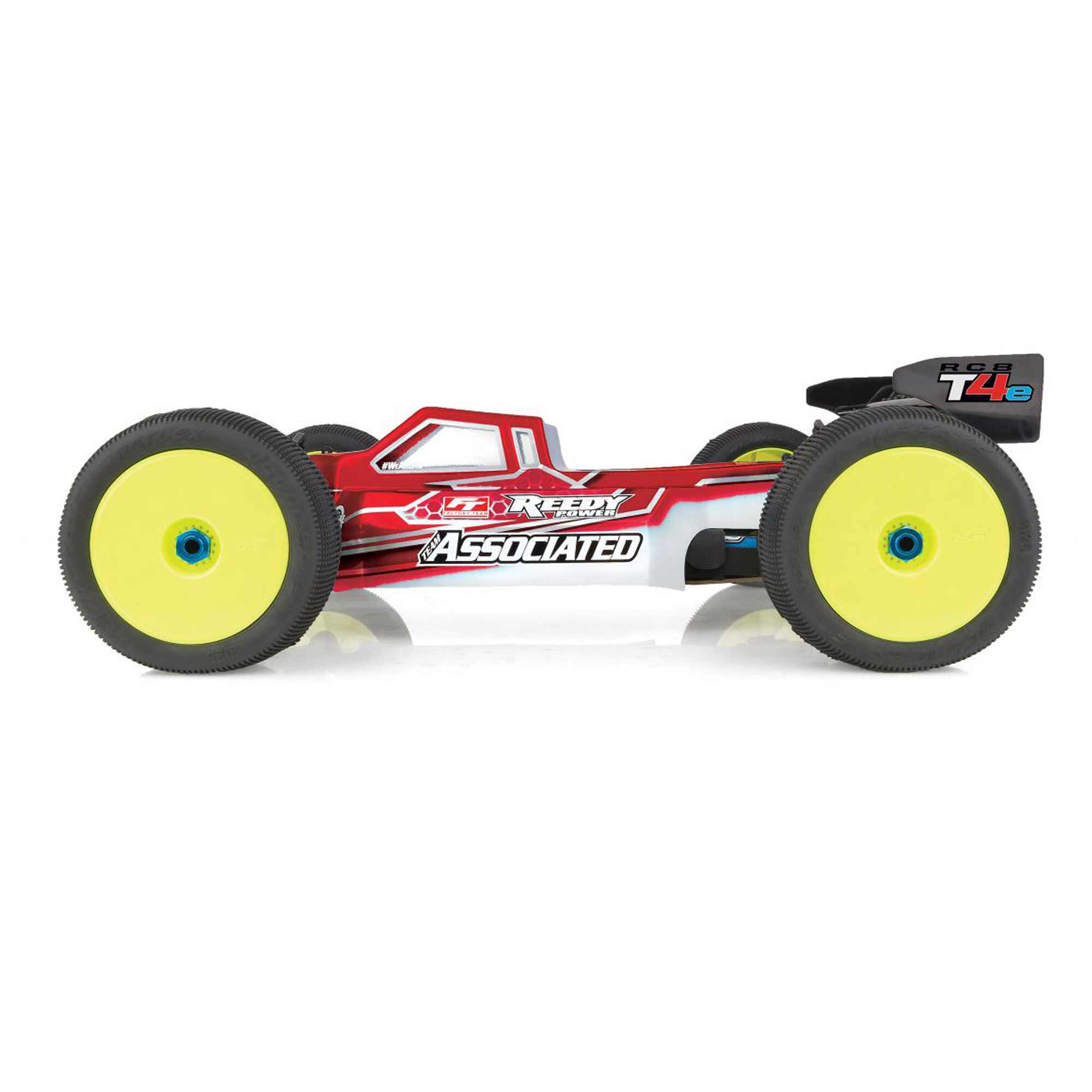

Team Associated 1/8 RC48T4e 4×4 Electric Buggy Team Kit

Name: Team Associated 1/8 RC48T4e 4x4 Electric Buggy Team Kit
SKU: hh-19686
Price: 137.20 USD
Availability: InStock

$137.20

In stock

SKU: hh-19686 Category: RC Cars & Trucks by Completion Level Tags: Kit RC Cars & Trucks, RC Cars & Trucks by Completion Level, RC Cars & Trucks by Size

Description
Additional information

Overview

PUSHING THE BOUNDARIES

The latest development to come from Associated Electrics’ Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

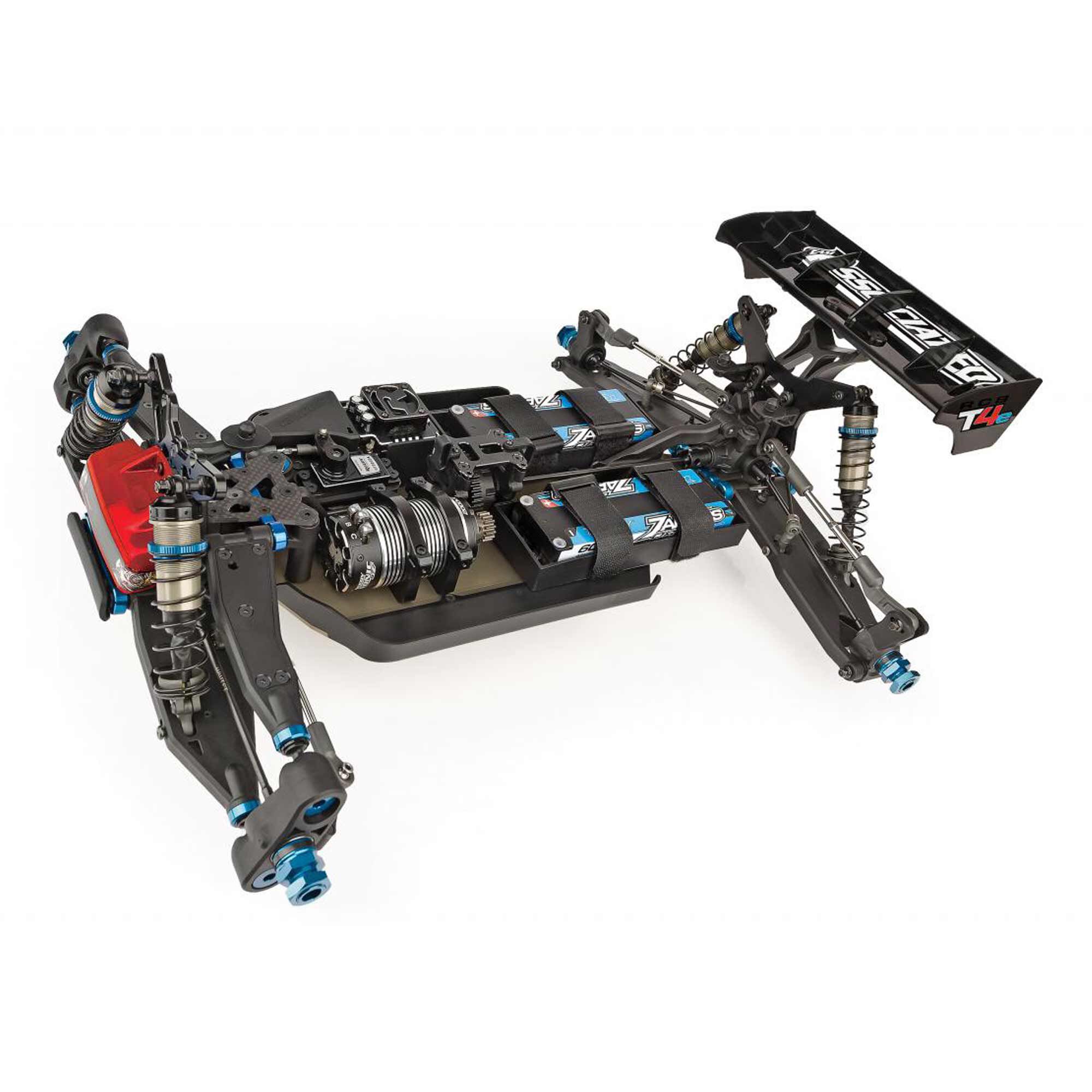

New Chassis Layout
Innovative Front-End Geometry
New Front Shock Tower Design With Updated Suspension Geometry
Front And Rear Center Dogbone Driveshafts
New Rear Wing Mount Has Adjustable Wing Angle Shims

RC8T4e Team Kit Features

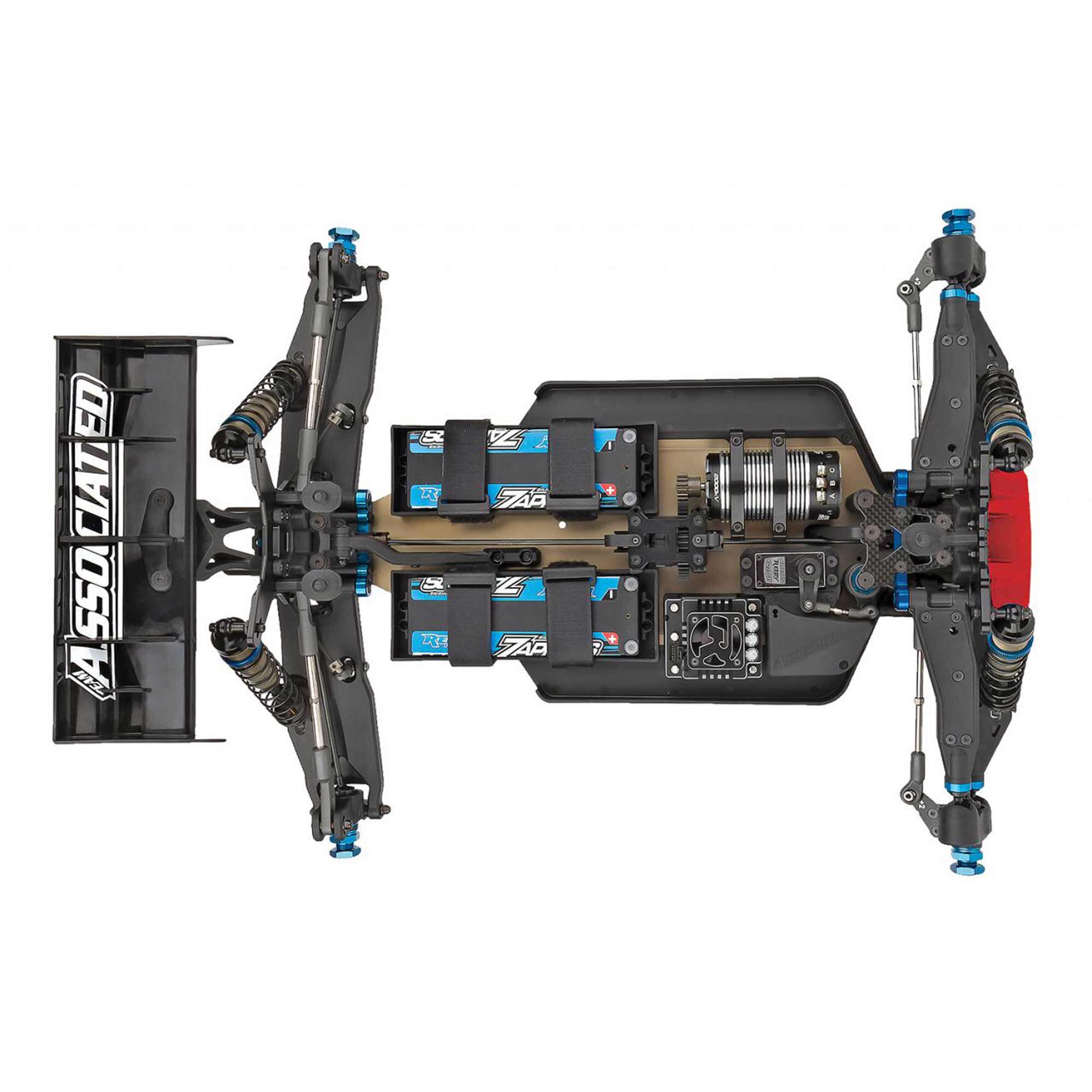

New chassis layout featuring two saddle pack-style battery configurations. Both configurations include a centrally mounted center differential and in-line center driveshafts for superior drivetrain efficiency and equalized chassis balance
Four battery configurations to choose from:
- Two 2S shorty LiPo batteries for lowest CG and exceptional weight bias
- Two full size ??saddle pack?? LiPo batteries for lowest CG and exceptional weight bias
- One 4S shorty LiPo battery for simplified setup and more centralized weight bias
- One full size LiPo battery for simplified setup and more centralized weight bias
Innovative front-end geometry with new 8° steering blocks are paired with a new wider upper suspension arm pivot for improved steering balance and predictable handling in all conditions.
New gearboxes are specific to front and rear with larger bearing sizes resulting in longer life of ring and pinion gears:
- Front gearbox is a 3.5° inclined pinion gear angle to straighten the center driveshaft for increased drivetrain efficiency and reduced phasing and vibration
- Rear gearbox is a 0° pinion gear angle and a center mounted rear chassis brace
New front shock tower design with updated suspension geometry and body mount positions for all styles of truck bodies
Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability
Front upper suspension arm updated to have bushing insert for improved fitment and performance

New rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue, centralizes shear forces, and improves the life of rear-end drivetrain parts
There are three different chassis flex options using two chassis hole mounting locations and an optional turnbuckle ball for flex in more degrees of freedom
New +2 mm and +4 mm shock rod ends for finer adjustment of droop and up-travel settings
New 35.5 mm front and 44.5 mm rear shock shafts for improved dampening

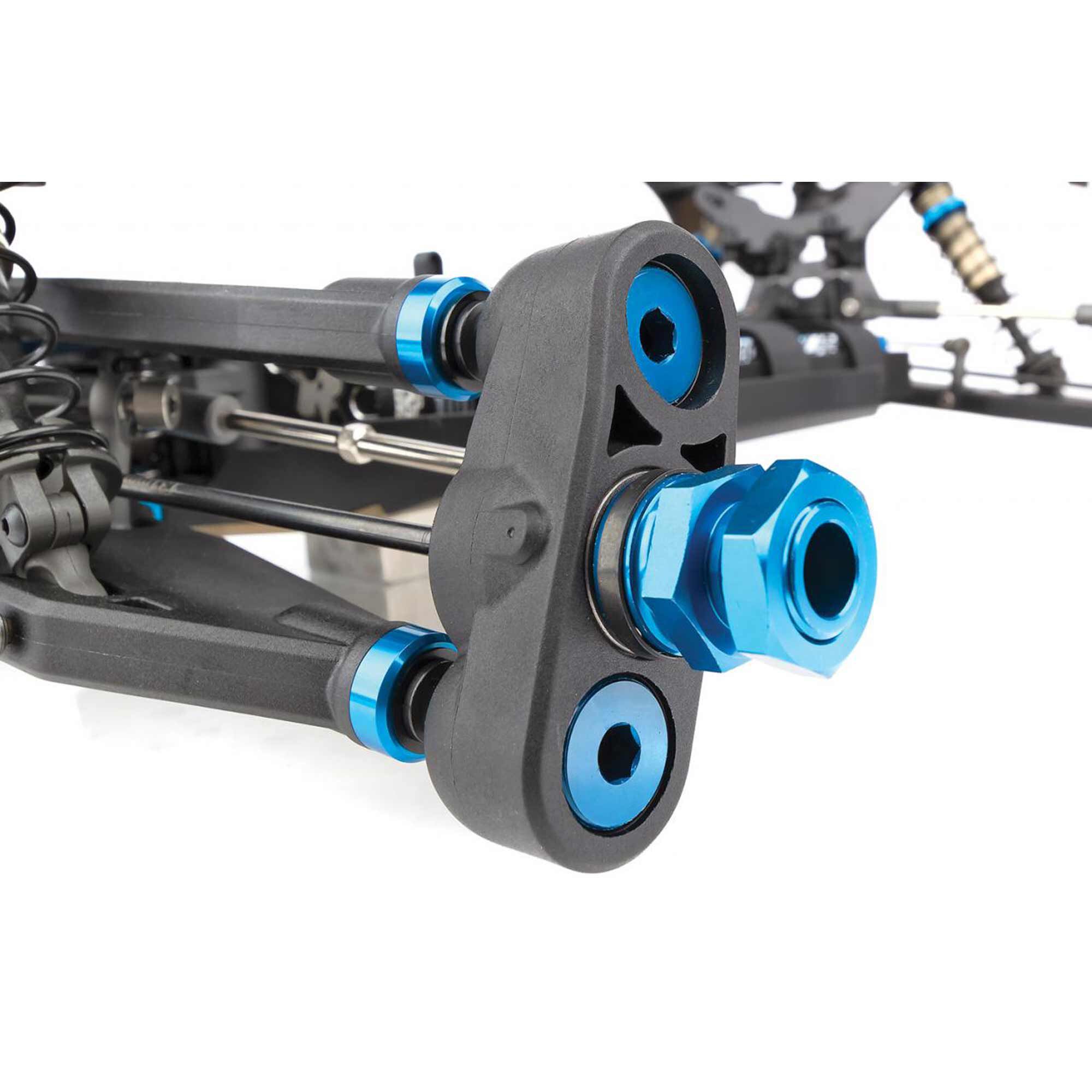

New rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning options
+2° steering block arm
V3 differentials with 46T ring and 10T pinion gears for improved gear ratios
RC8T3.2 split center diff mounts with aluminum center top plate
16mm shocks equipped with improved material locking spring cups and rod ends, V2 springs, ??stiff?? style shock bladder, combination bleeder/emulsion caps, and blue aluminum threaded collars
RC8B3.2 narrow C and D arm mounts
New rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment
The adjustable rear wing has more vertical fins for increased straight-line stability, a taller rear lip height for increased downforce, and increased strength in various areas to reduce bending fatigue

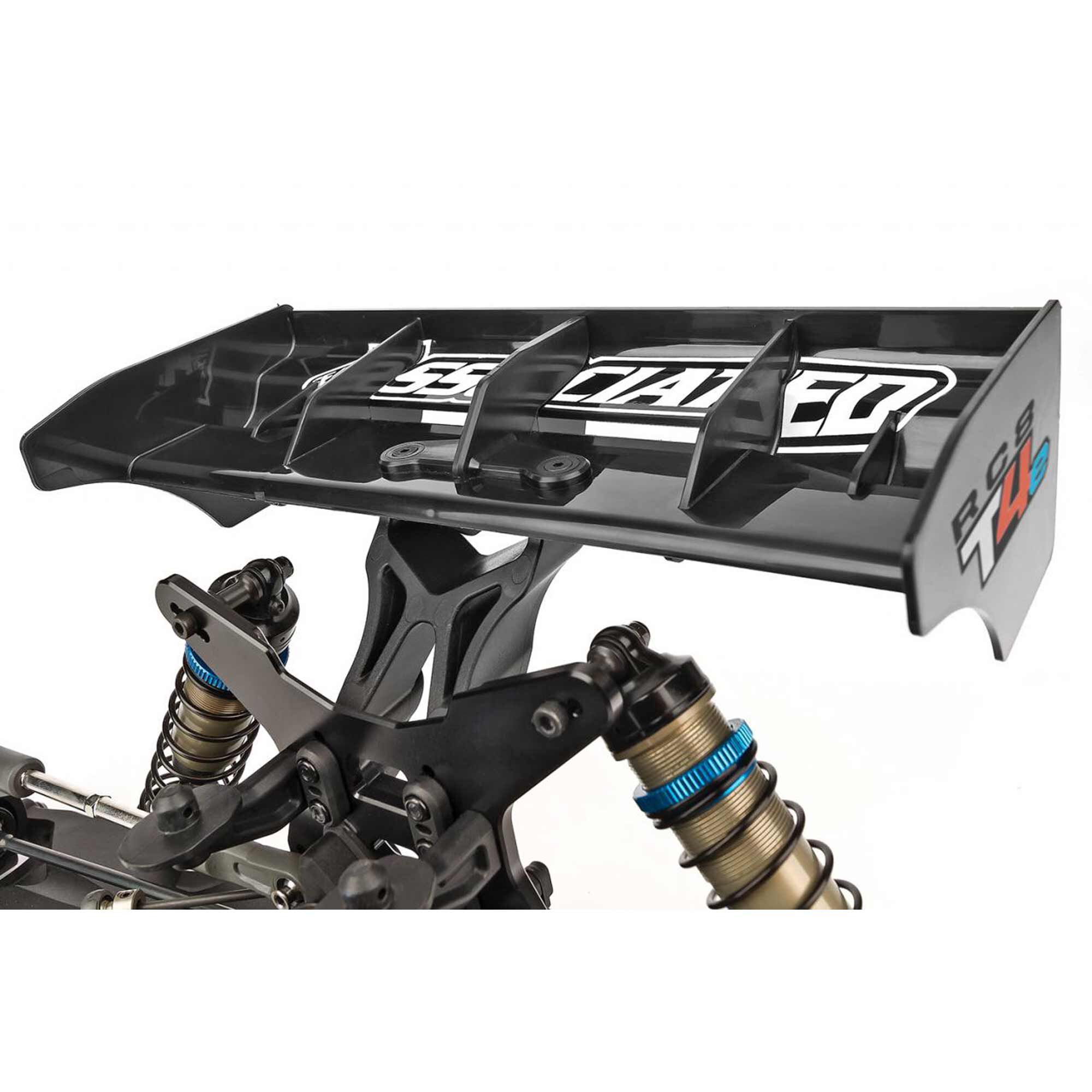

Rear Wing

Wing has verticle fins and a trailer rear lip for increased straight-line and down-force

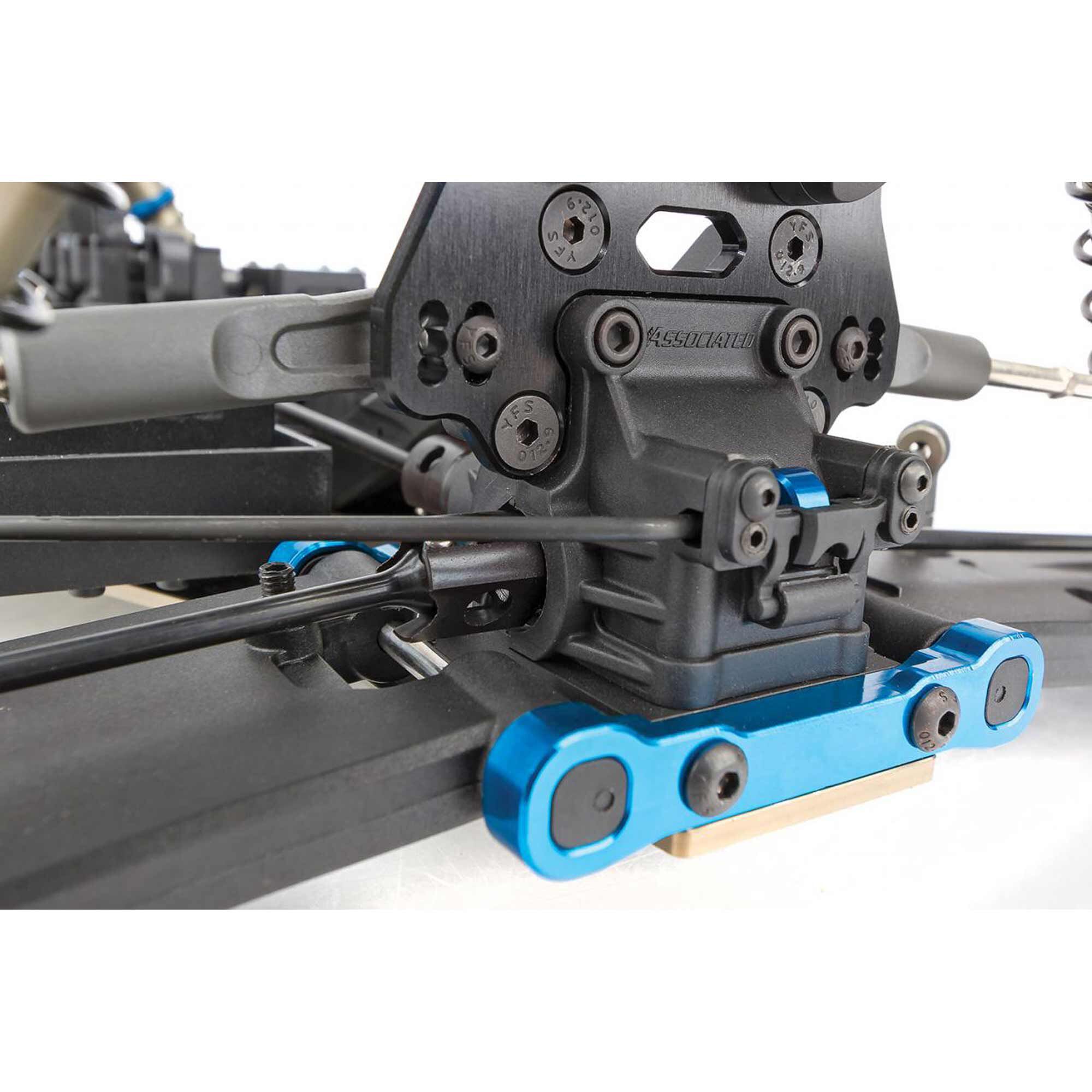

Chassis Brace

New Rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue

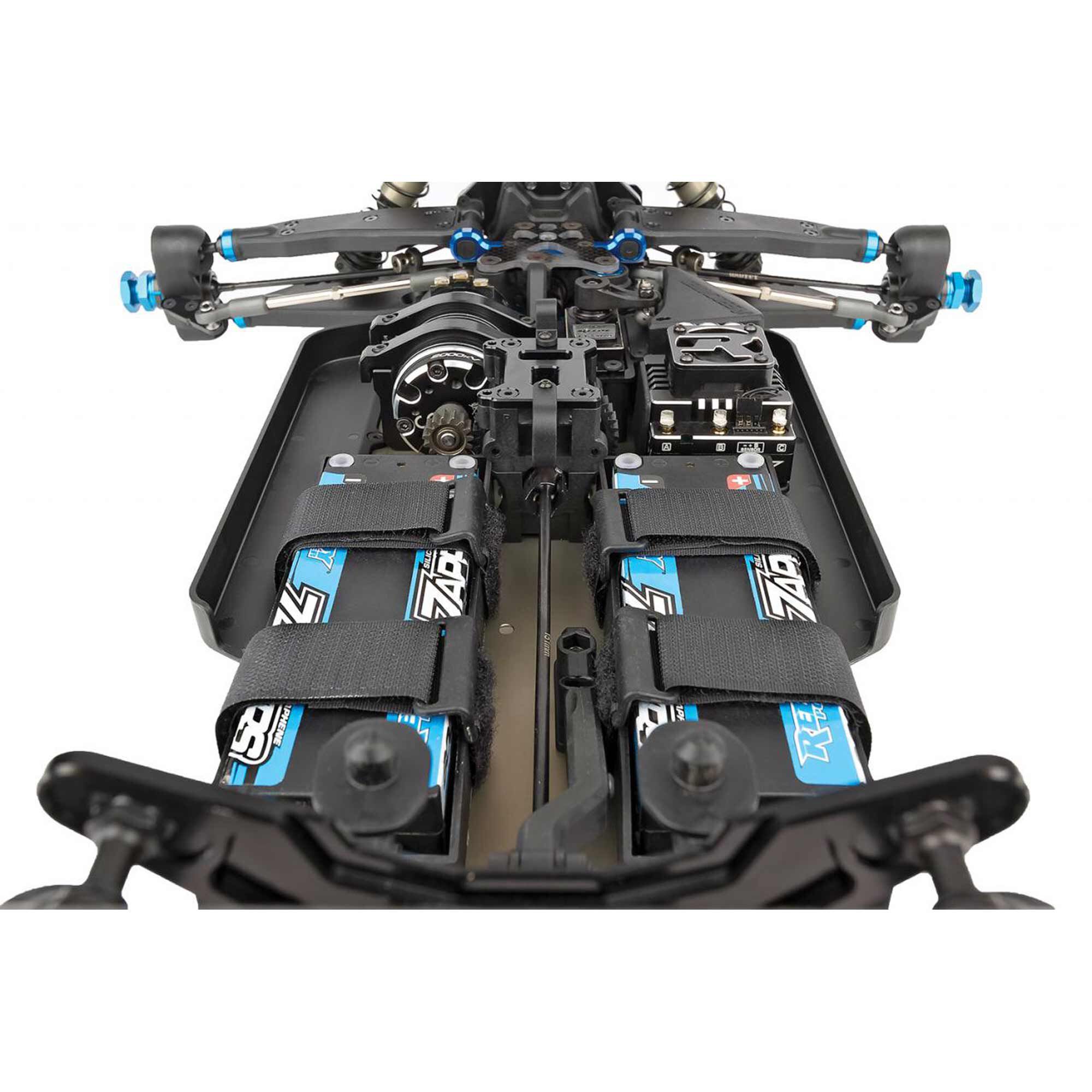

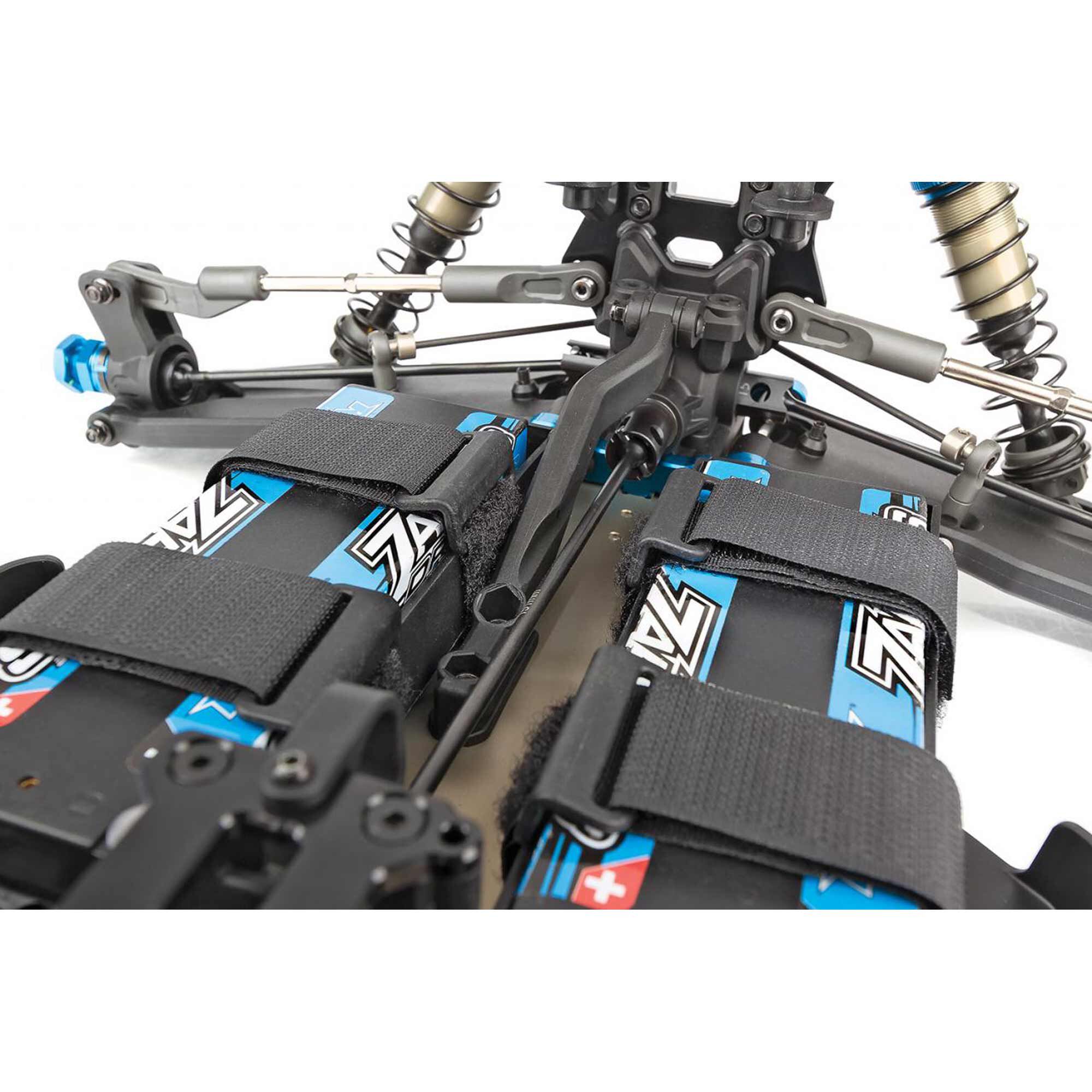

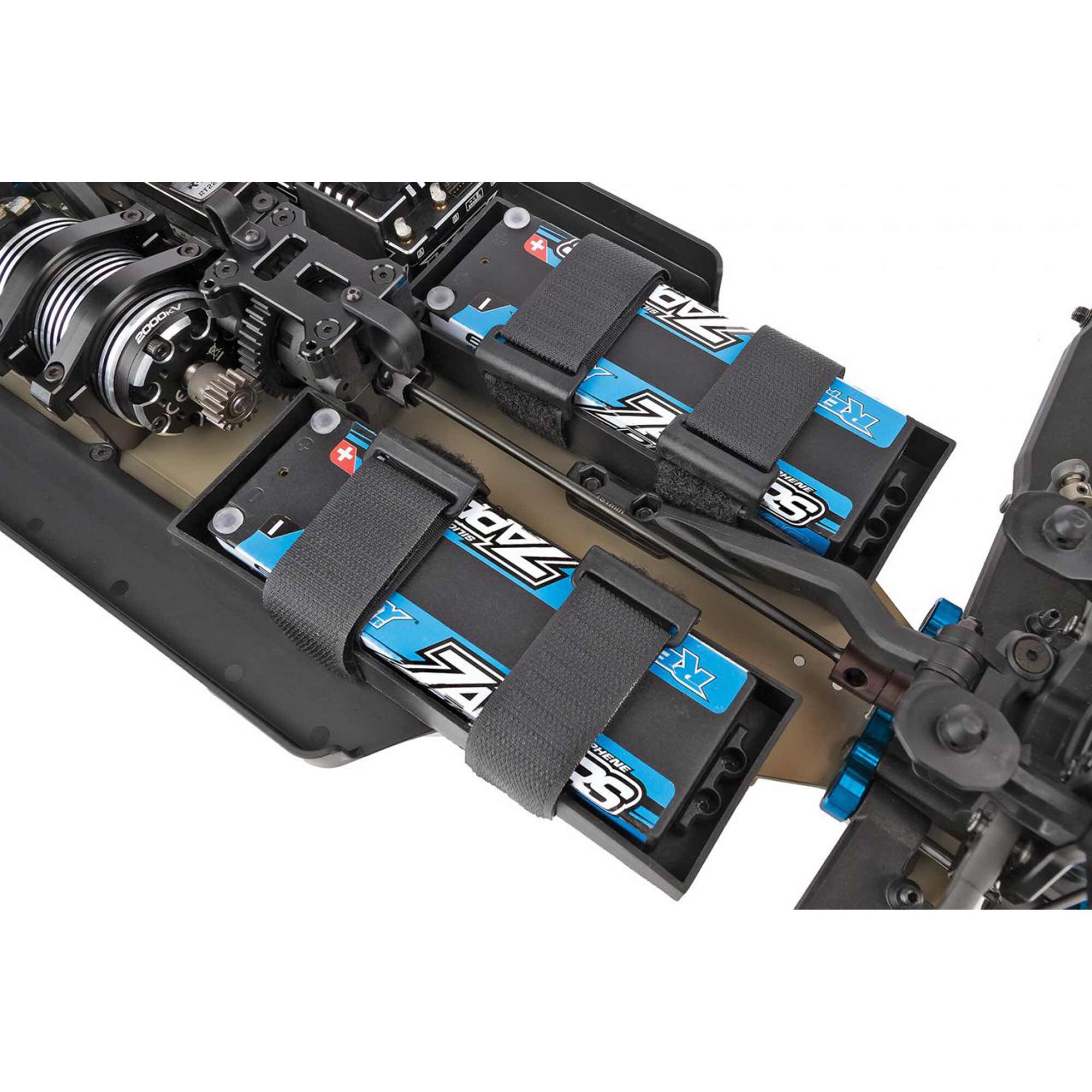

Battery Configuration

Chassis layout featuring saddle pack-style battery configurations: Two 2S shorty or one 4S shorty

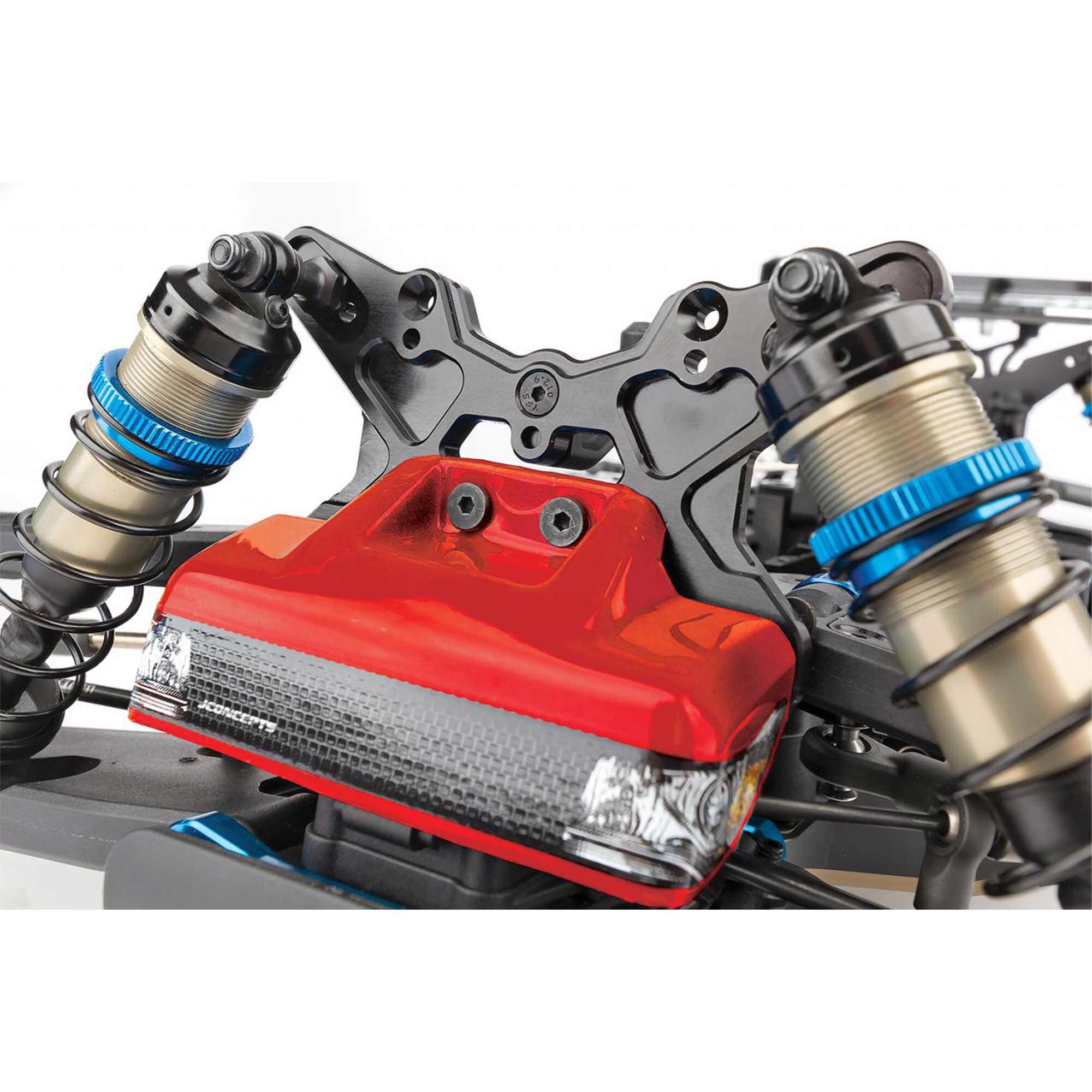

Front Shock Tower

New front shock tower design and body mount positions for all styles of truck bodies

16mm Shocks

16mm shocks equiped with improved material locking spring cups and rod ends

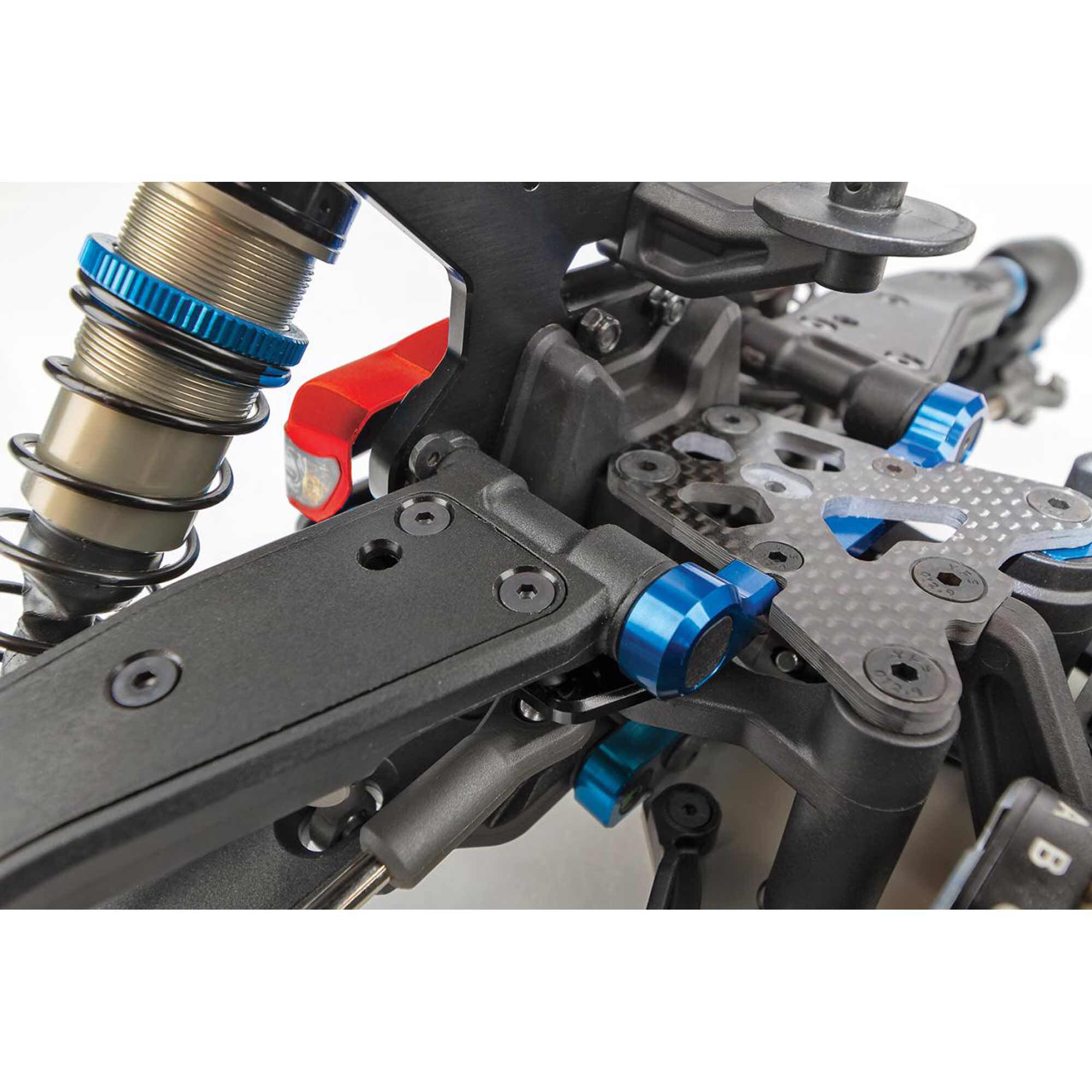

Upper Suspension Arms

Front upper suspension arms updated to have bushing insert for improved fit and performance

Front-End Geometry

Innovative front-end geometry with new 8″ steering blocks

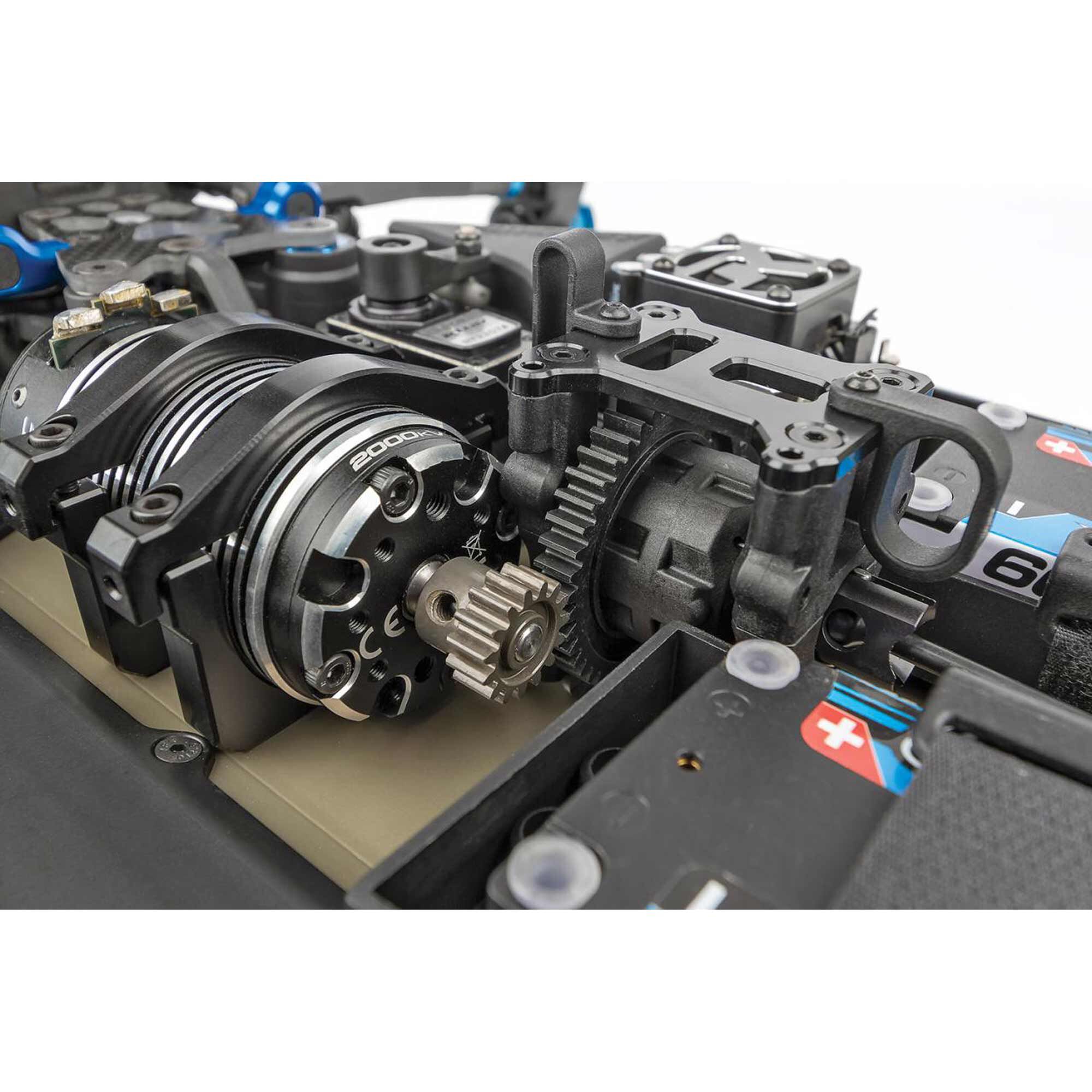

Clamping Motor Mount

New two-peice clamping motor mounts make for easy and secure gear mesh adjustments

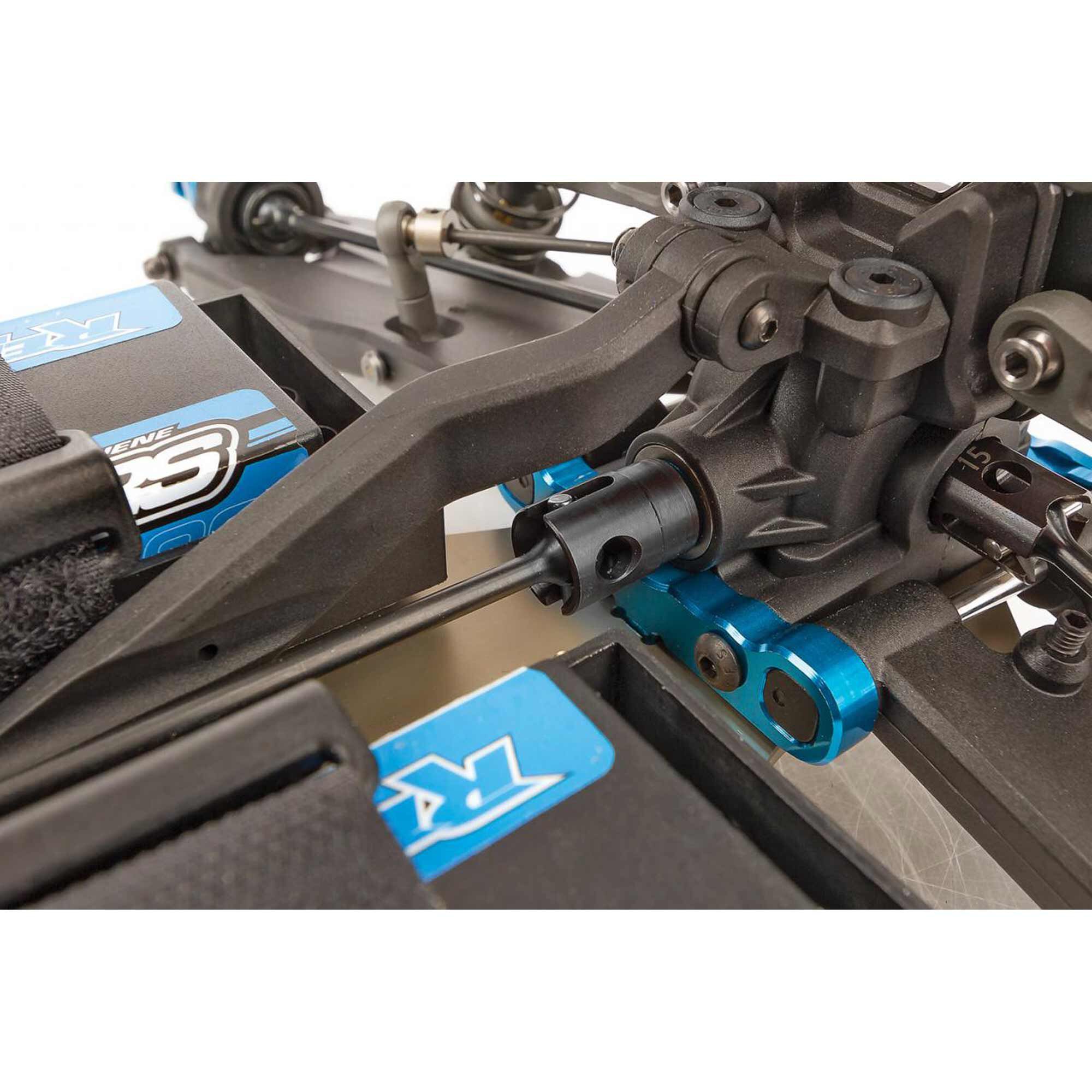

Dogbone Driveshafts

Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability

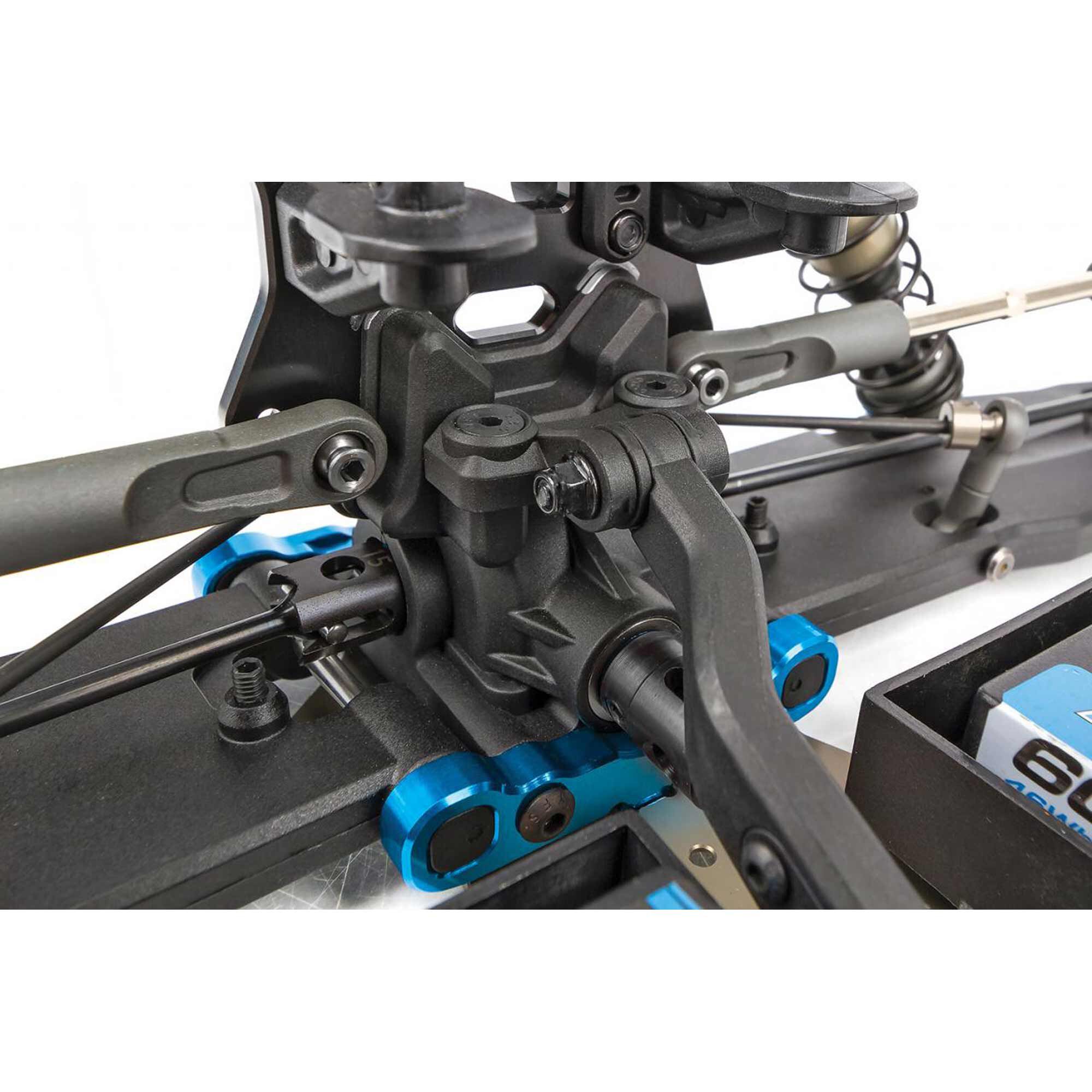

Gearbox

New front and rear gearbox designs are engineered for better drivetrain efficiency

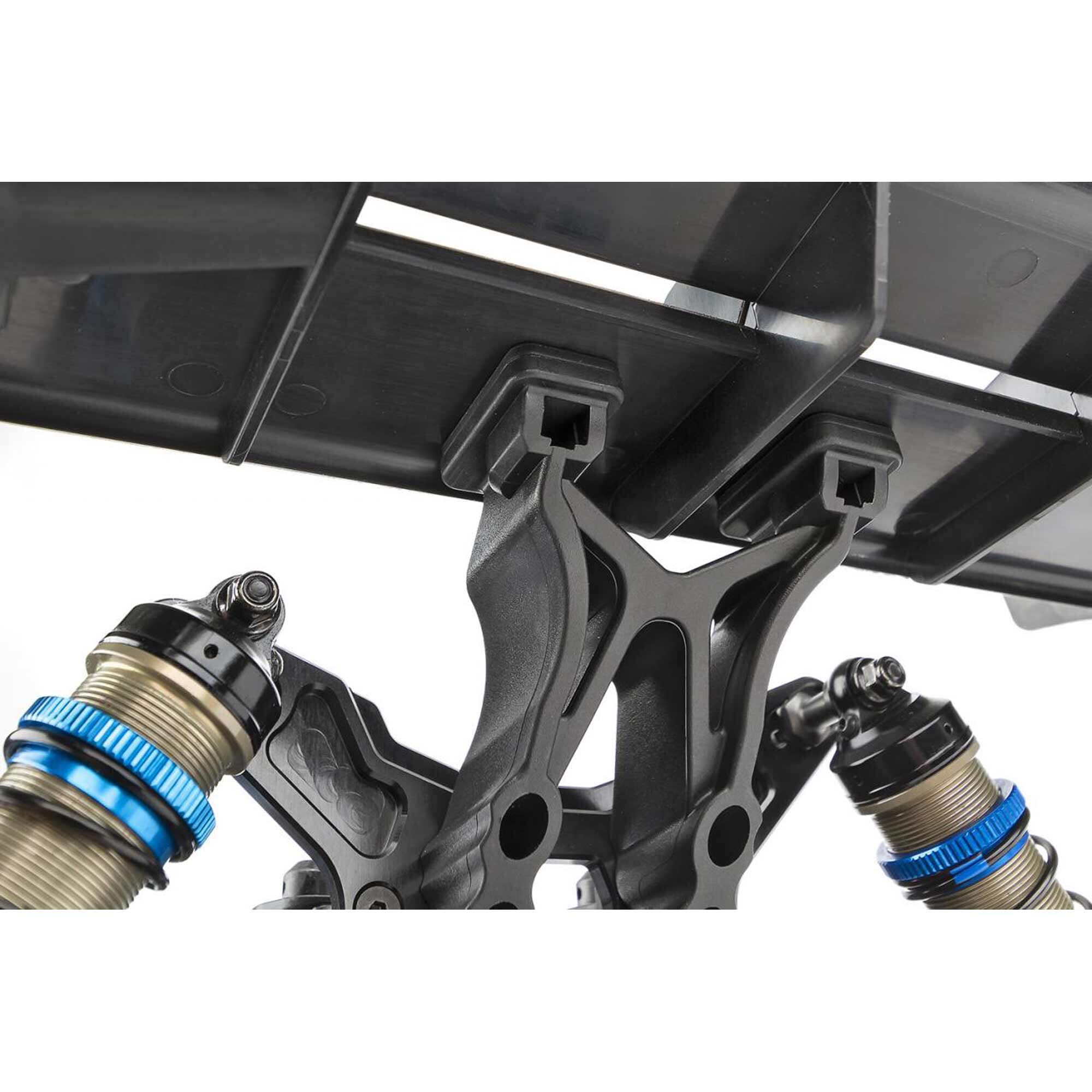

Wing Mount

Wing mount features adjustable wing angle shims, strength improvements, and aerodynamic strength

Specs

Product Specs

Battery

Sold Separately

Charger

Sold Separately

Completion Level

Kit

Drivetrain

4WD

Power Type

Electric

Product Length

22.05″ (560 mm)

Radio

Sold Separately

Receiver

Sold Separately

Scale

1/8

Servos

Sold Separately

Speed Control

Sold Separately

Vehicle Type

Truggy

Weight	5 kg
