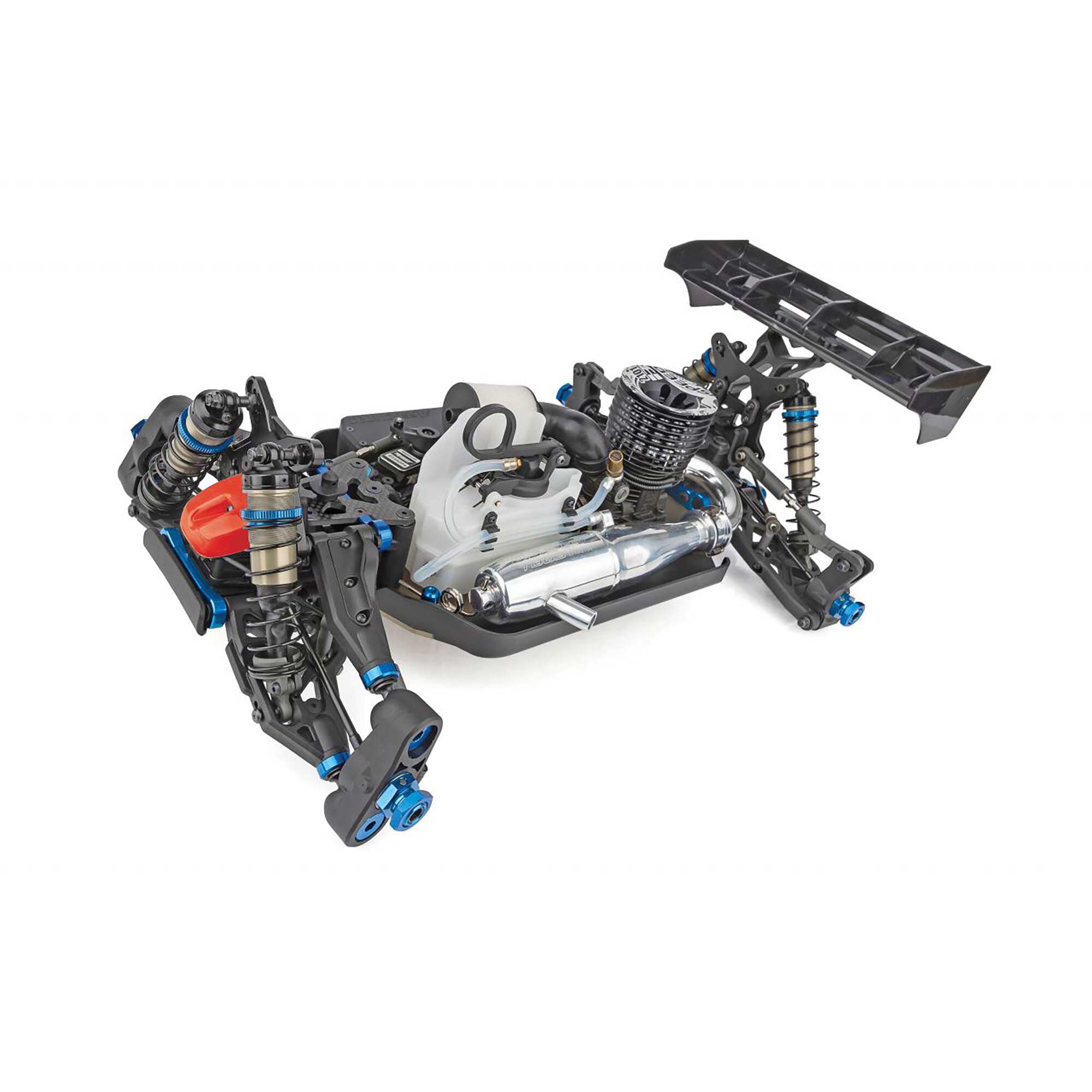

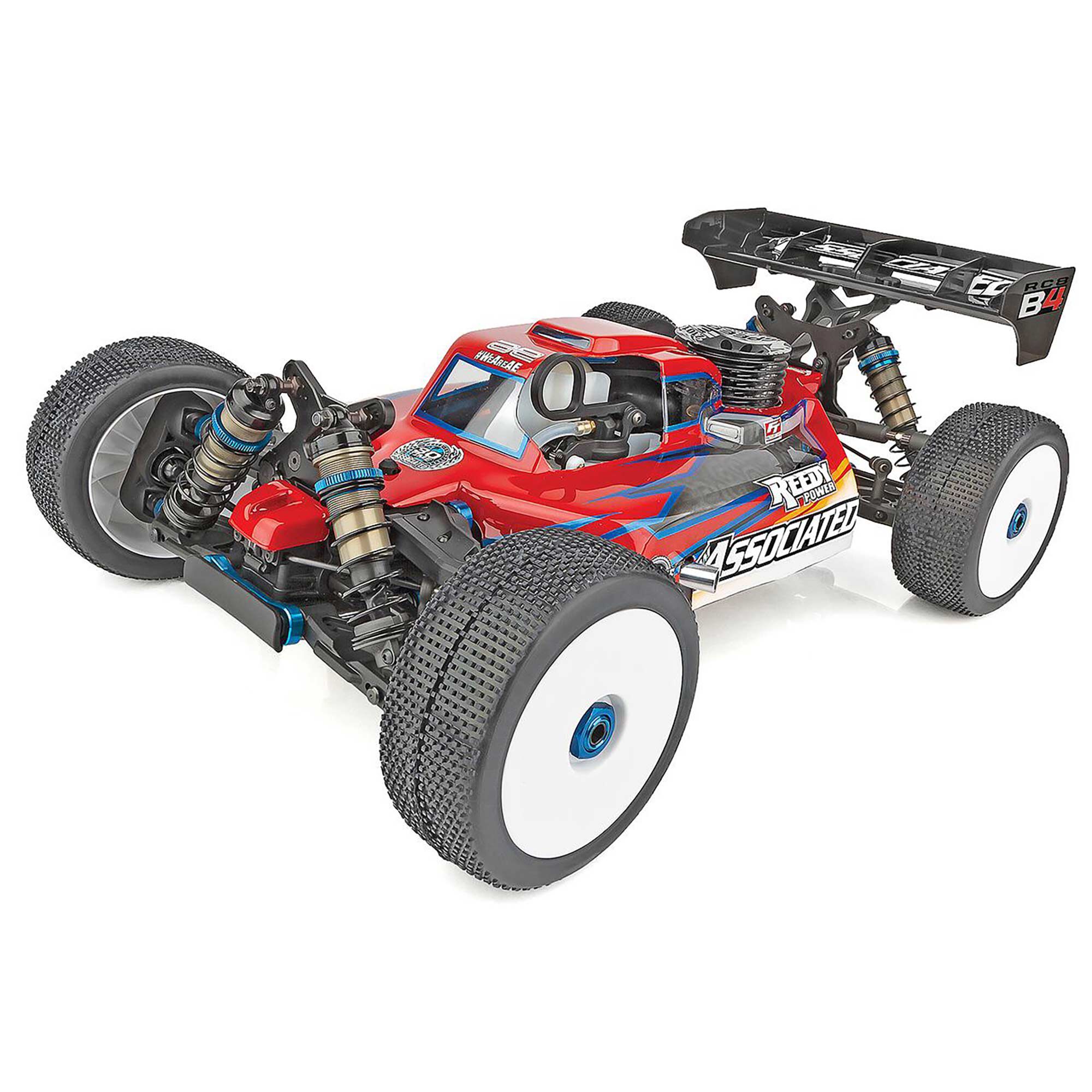

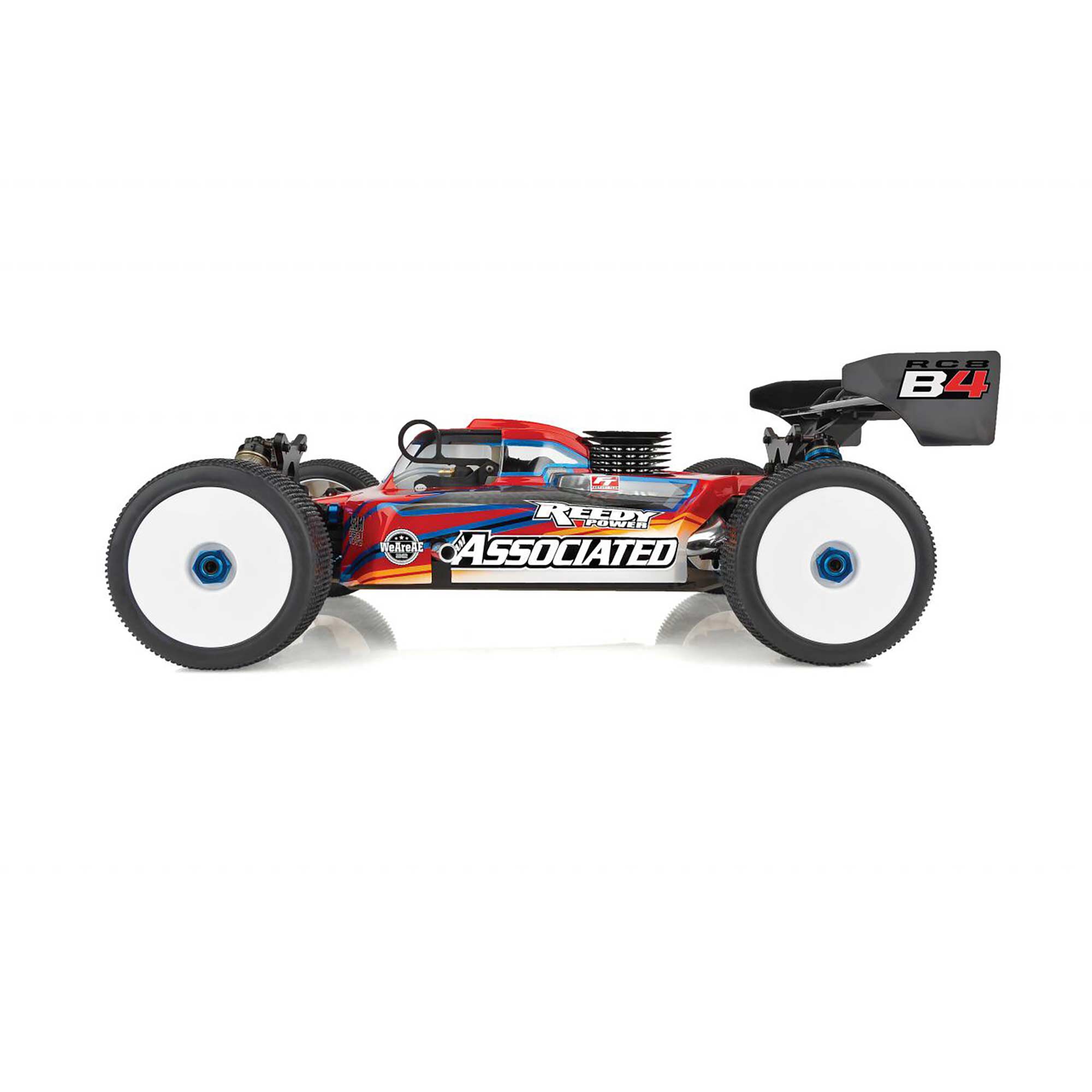

Team Associated 1/8 RC8B4 4×4 Nitro Buggy Team Kit

Name: Team Associated 1/8 RC8B4 4x4 Nitro Buggy Team Kit
SKU: hh-19740
Price: 140.00 USD
Availability: InStock

$140.00

In stock

SKU: hh-19740 Category: RC Cars & Trucks by Completion Level Tags: Kit RC Cars & Trucks, RC Cars & Trucks by Completion Level, RC Cars & Trucks by Size

Description
Additional information

Overview

PUSHING THE BOUNDARIES

1:8 scale off road racing is one of the hobby’s most challenging disciplines; it requires a high standard and demands attention to detail. The latest development to come from Associated Electrics’ Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

New rear hub design for adjustable roll centering
New captured CVA drive shafts design front and rear with center dogbone driveline
New body shell designed by Area 51 for aggressive looks, functional performance, and lasting durability
Fuel tank with an ergonomically designed lid puller

RC8B4e Kit Features

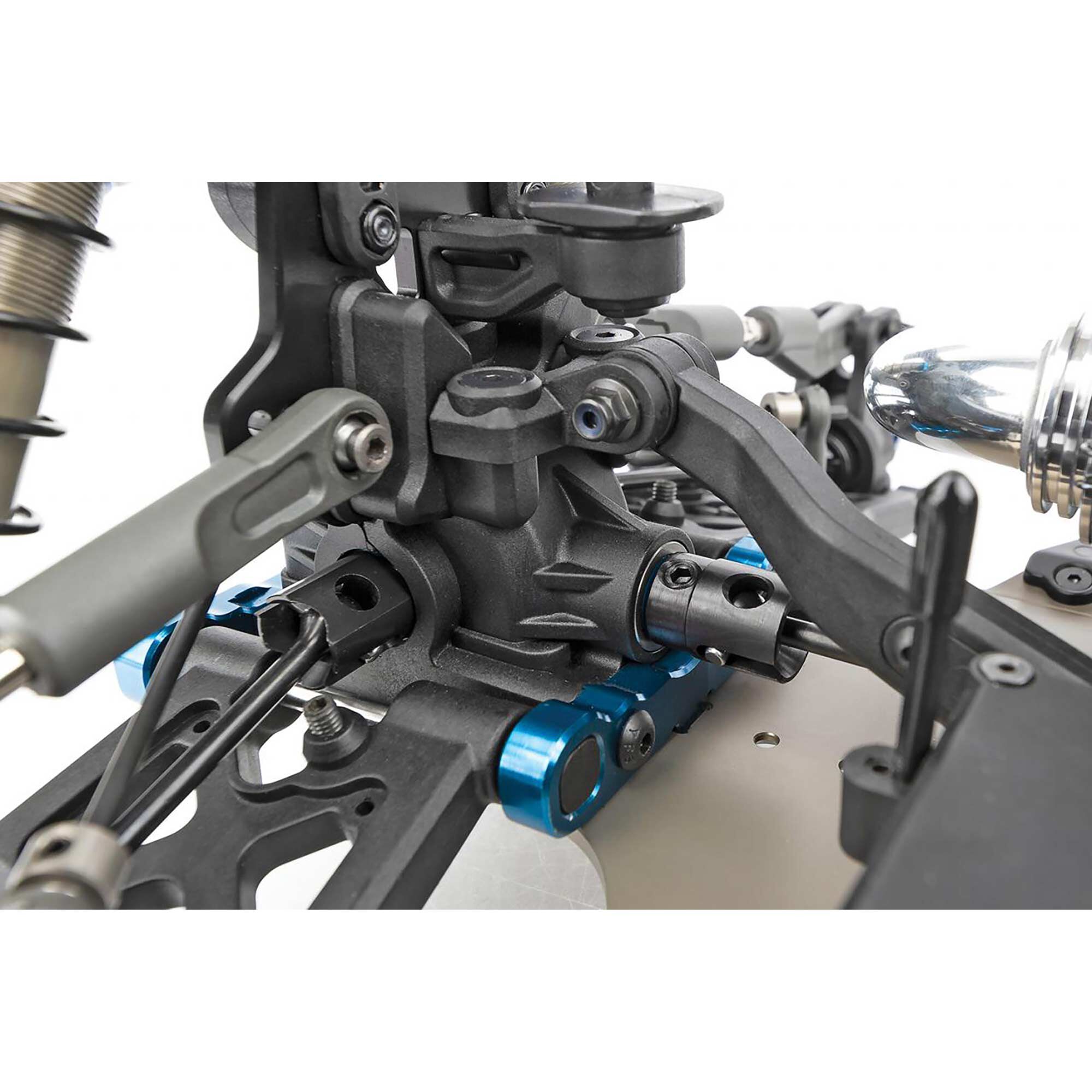

Innovative front-end geometry with reduced inclined kingpin steering blocks are paired with a new wider upper suspension arm pivot for improved steering balance and predictable handling in all conditions
New gearboxes are specific to front and rear with larger 6x13x5 mm flanged bearing sizes resulting in longer life of ring and pinion gears. The front gearbox has an inclined pinion gear angle to straighten the center driveshaft for increased drivetrain efficiency and reduced phasing and vibration while the rear gearbox remains flat.
Front and rear suspension arms engineered to accommodate a wide range of flex and stiffnesses
One-piece anti-roll bar links mounted in-line with anti-roll bar with BHC for simplified assembly

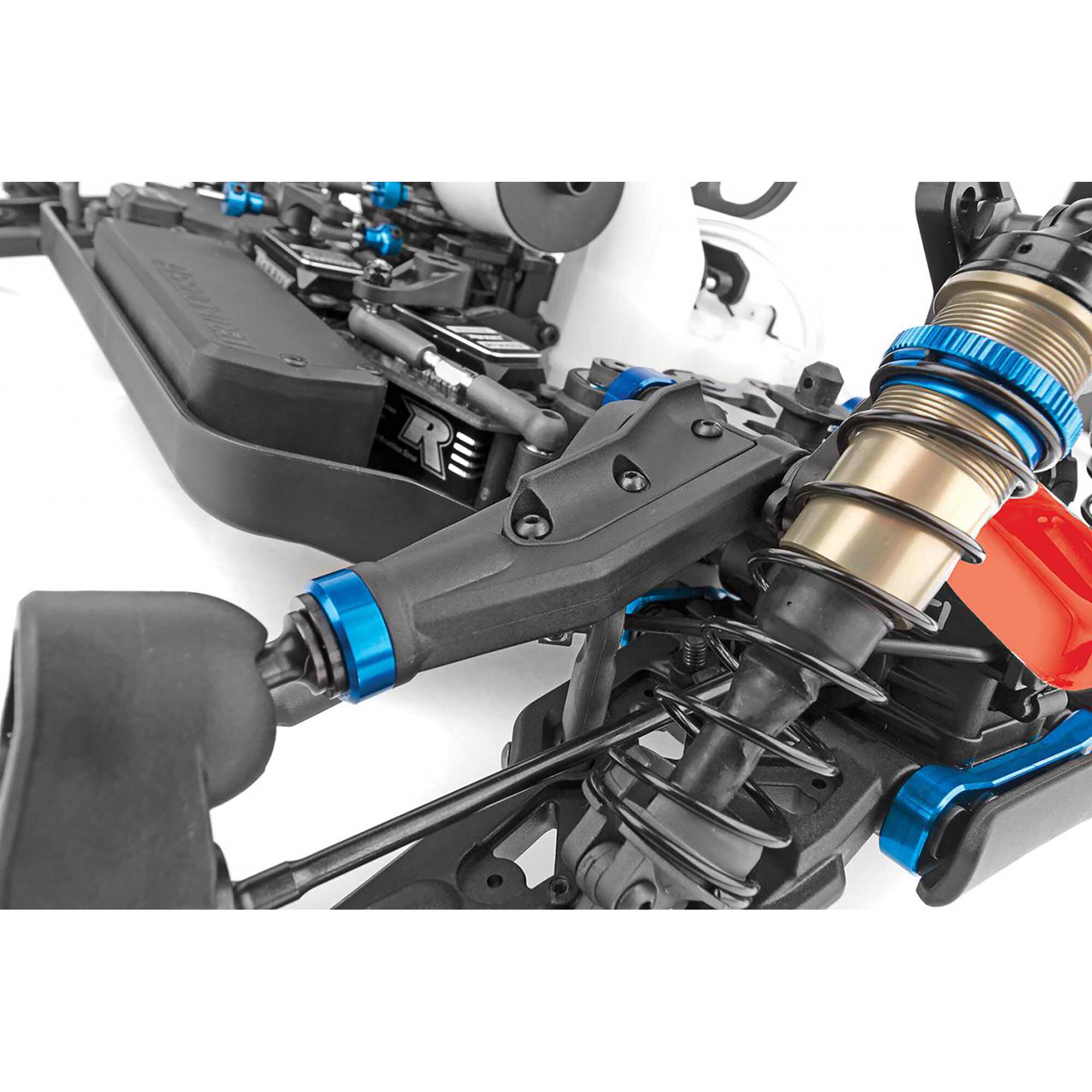

Front upper arms include a unique molded ??wing?? insert for increased front-end downforce
New rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment
The adjustable rear wing has more vertical fins for increased straight-line stability, a taller rear wicker lip height for increased downforce and increased strength in various areas to reduce bending fatigue

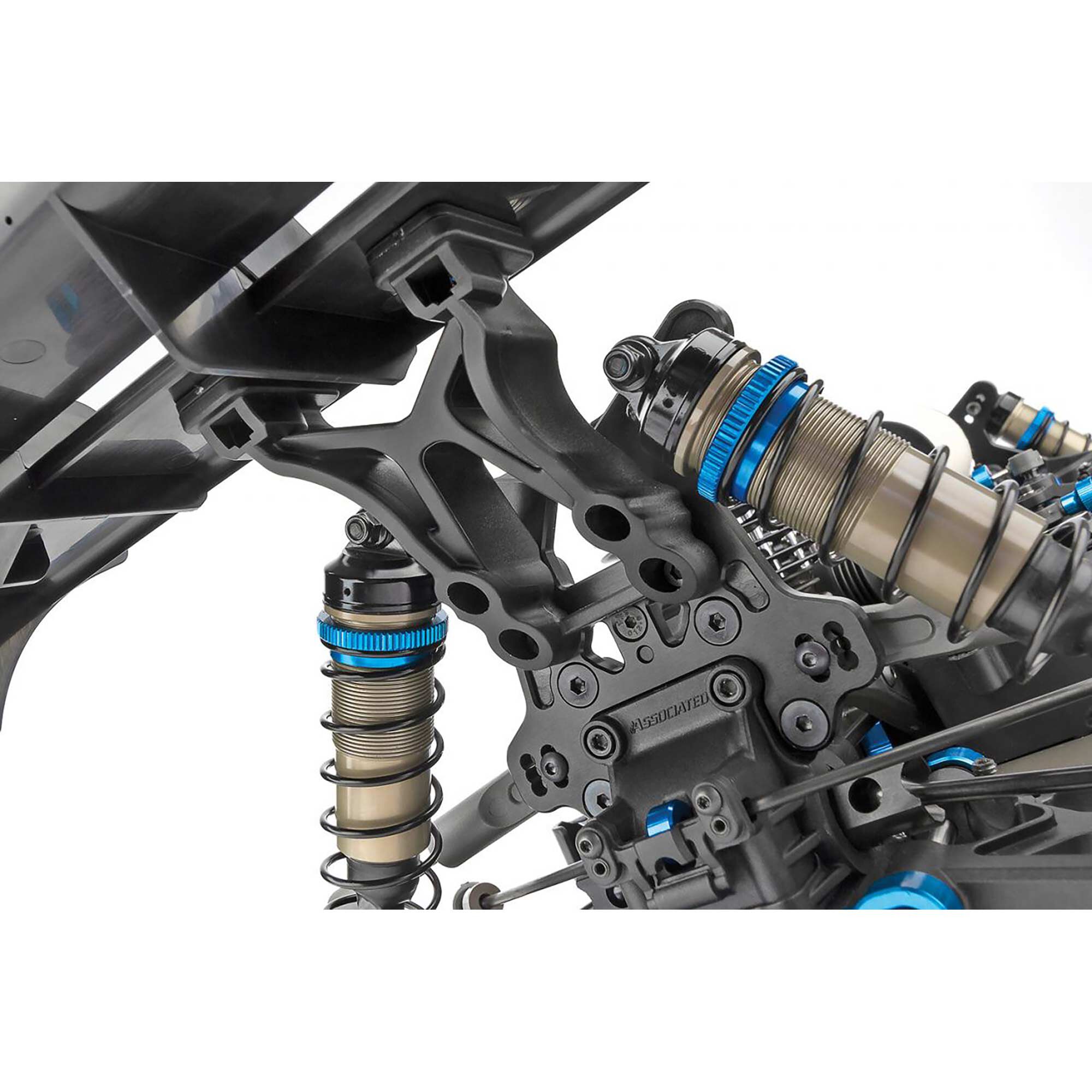

New rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue, centralizes shear forces, and improves the life of rear end drivetrain parts while allowing for three different chassis flex options

New rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning
New captured CVA drive shafts design front and rear with center dogbone driveline
Fuel tank with an ergonomically designed lid puller, quick reference fuel markings and 1-, 2-, and 3cc stackable inserts for volume adjustment at sanctioned events
Carbon fiber front top plate centralizes the front chassis brace for balanced flex in all directions
New body shell designed by Area 51 for aggressive looks, functional performance, and lasting durability
V3 differentials with 42T ring and 12T pinion gears for improved gear ratios
RC8B3.2 side guards that thread into the chassis from the top side of the car

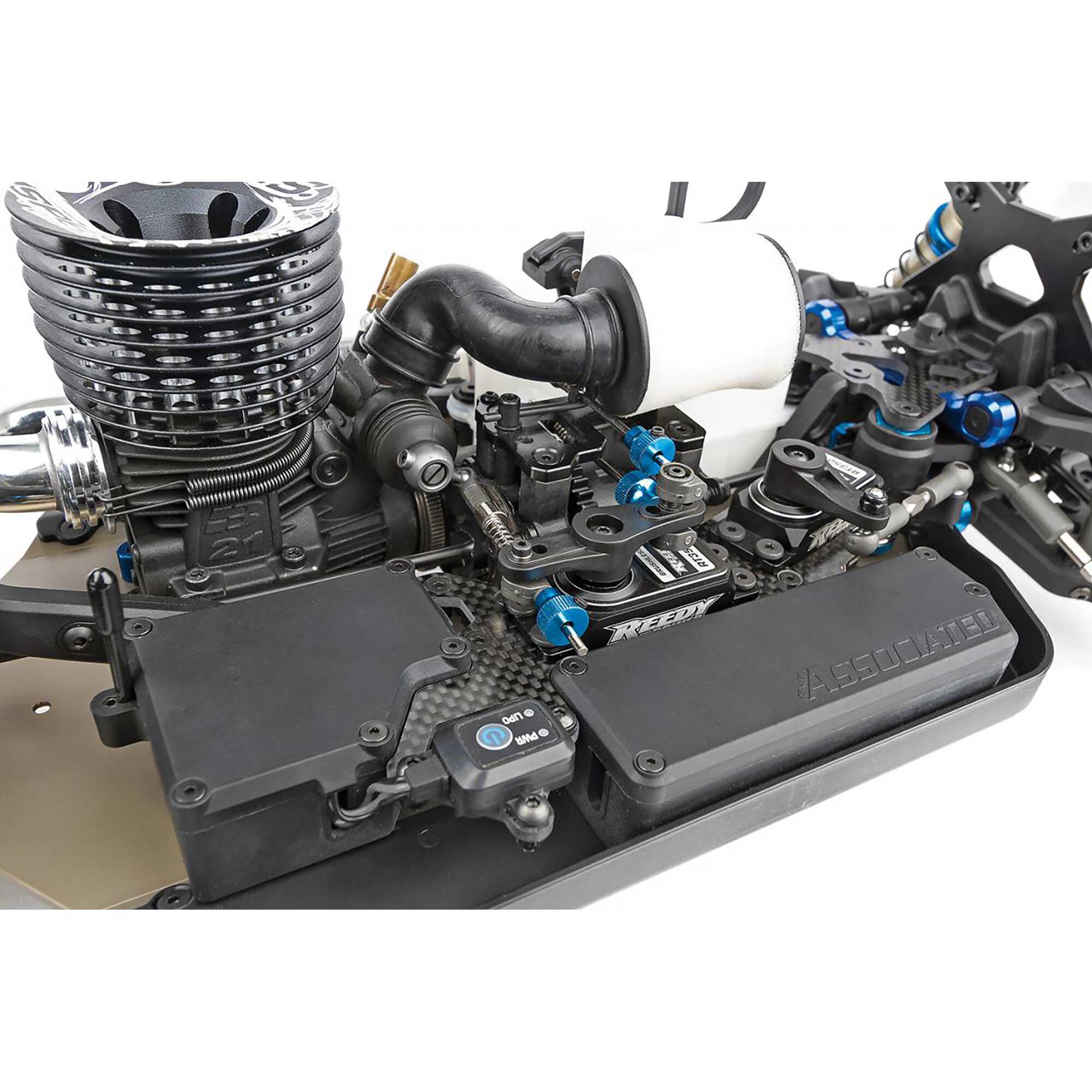

RC8B3.2 radio tray: battery and receiver box with removable transponder mount
RC8B3.2 split center diff mounts with aluminum center top plate
16mm shocks equipped with locking spring cups and rod ends in improved material, V2 springs, ??stiff’ style shock bladder, combination bleeder/emulsion caps, and blue aluminum threaded collars
RC8B3.2 narrow C and D arm mounts
4-shoe aluminum clutch with two composite and two aluminum shoes, optimized clutch springs, and steel 13T clutch bell

Improved Wing

Wing has vertical fins and a taller rear lip for increased straightline stability and downforce.

Improved Wing Mount

Wing mount features adjustability with angle shims, strength improvements, and aerodynamic shape.

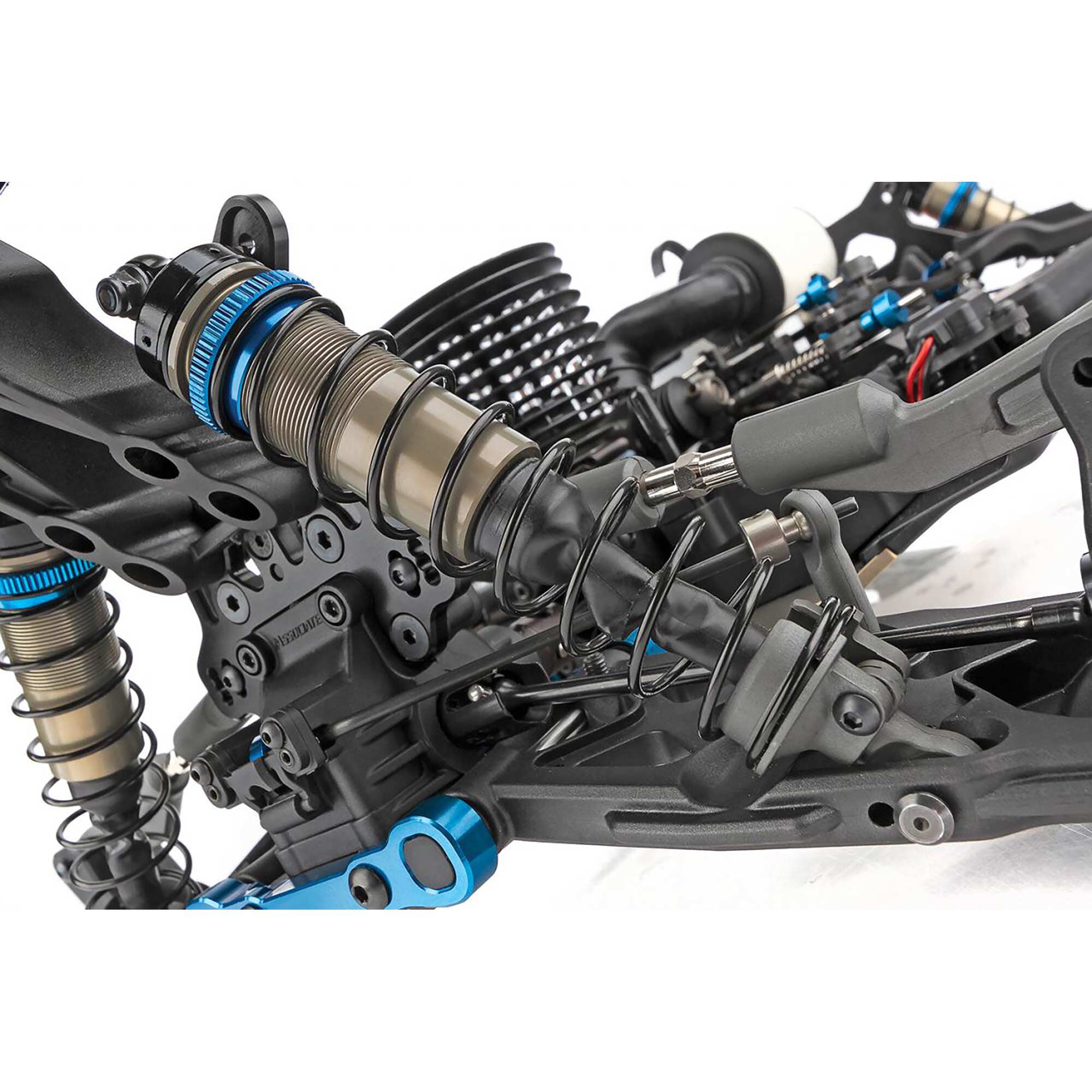

Improved Shocks

16mm shocks equipped with improved material for locking spring cups and camber link rod ends.

New Chassis Brace

New rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue.

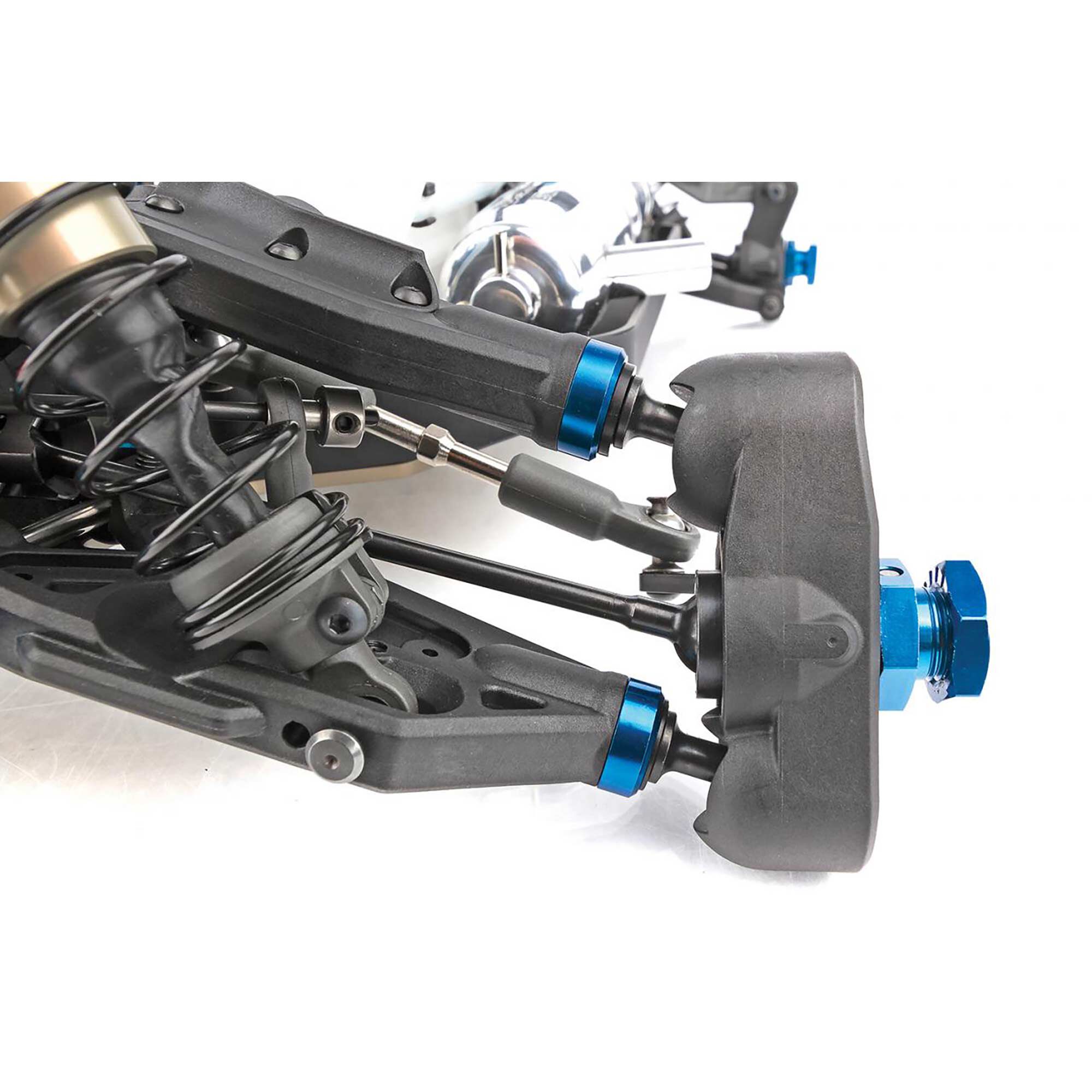

Improved Suspension Arms

Front and rear suspension arms engineered with optimal flex and stiffness.

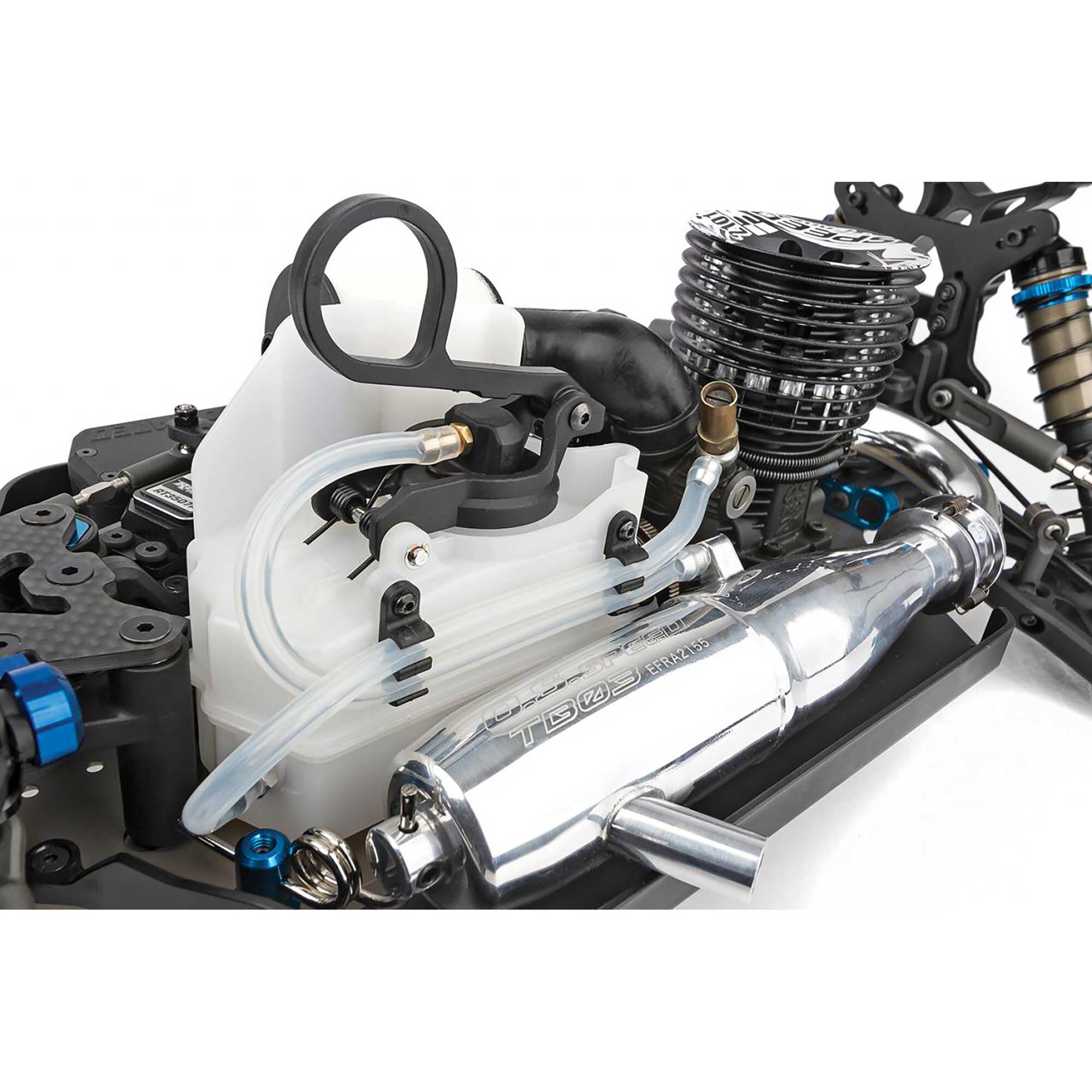

Racing Fuel Tank

Fuel tank with ergonomically designed lid puller, high capacity, and quick reference fuel markings.

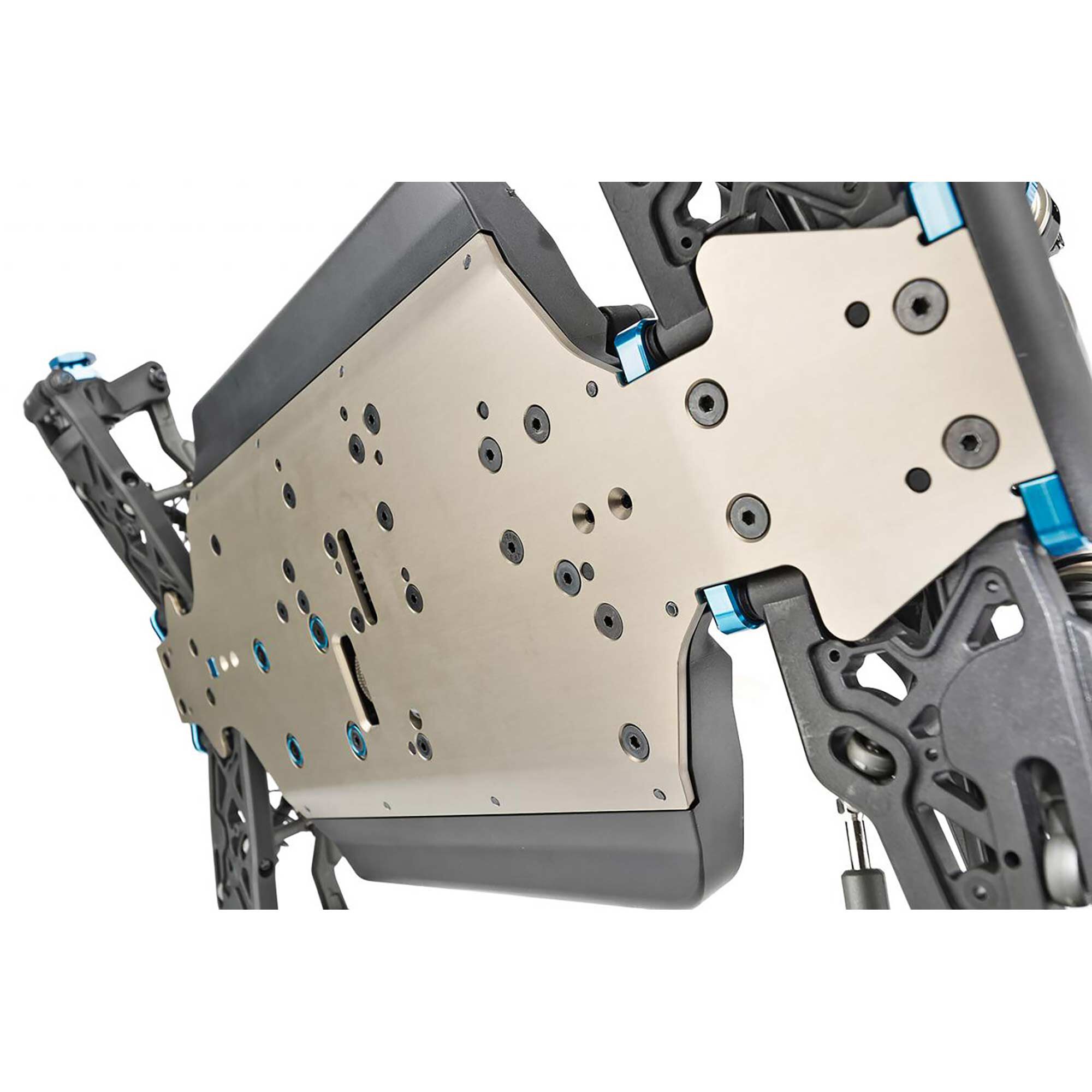

Anodized Aluminum Chassis

7075 aluminum hard anodized chassis features updates to strengthen the front and rear droop tab areas.

Improved Front Geometry

Innovative front-end geometry and new 8-Degree kingpin steering blocks.

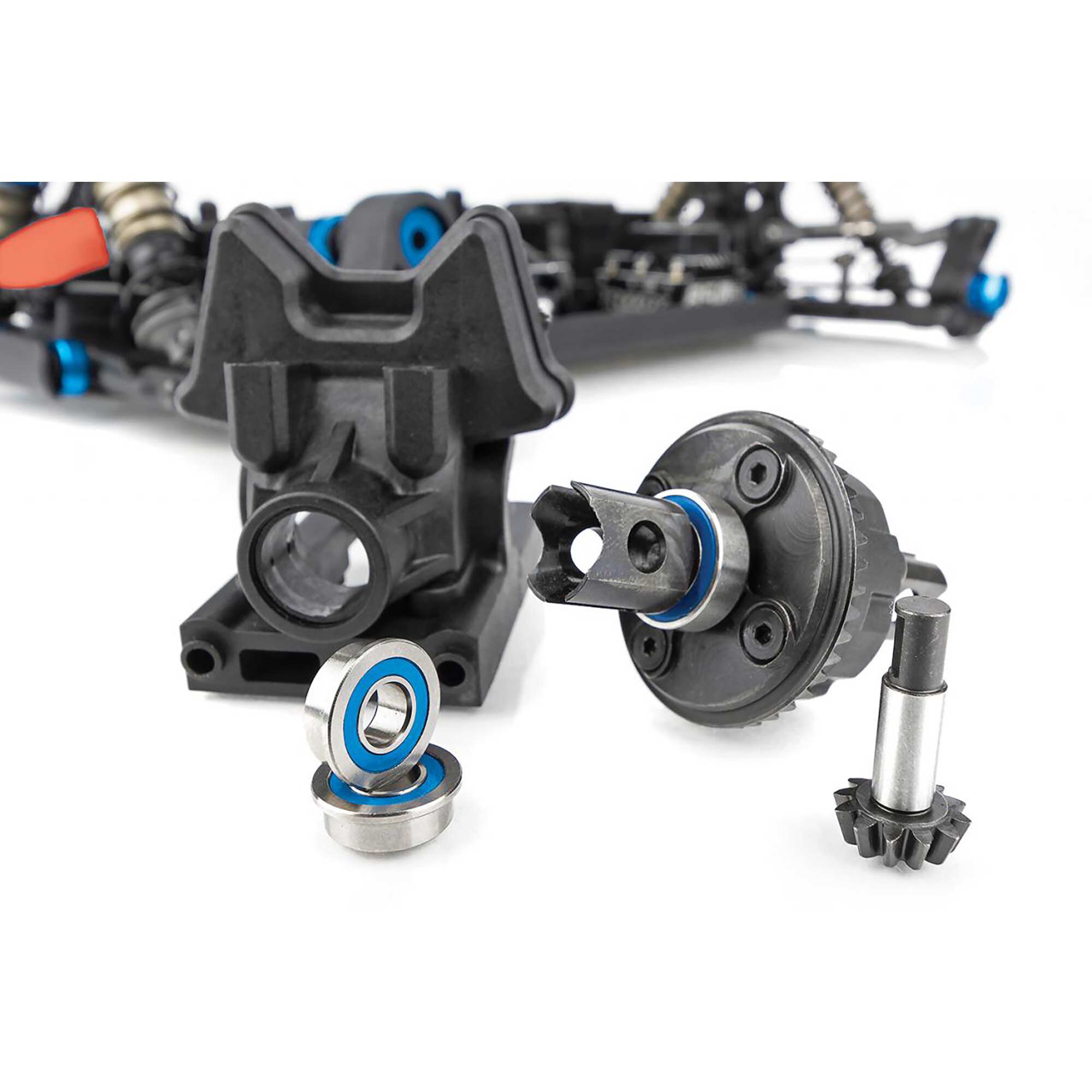

Improved Differentials

New front and rear gearbox designs are engineered for better drivetrain efficiency.

Innovative Design

Front upper arm includes a unique optional molded “wing” insert for increased front-end downforce.

Specs

Product Specs

Battery

Sold Separately

Body

Buggy, Unpainted, Uncut

Brakes

Disk

Charger

Sold Separately

Chassis

Aluminum

Completion Level

Kit

Drivetrain

4WD

Motor Size

.21 Class Rear Exhaust (Sold Separately)

Product Length

19.13″ (486 mm)

Product Width

11.99″ (305 mm)

Radio

Sold Separately

Receiver

Sold Separately

Scale

1/8

Servos

Sold Separately

Shock Type

Aluminum

Vehicle Type

Buggy

Wheel Hex Size

17mm

Weight	5 kg
