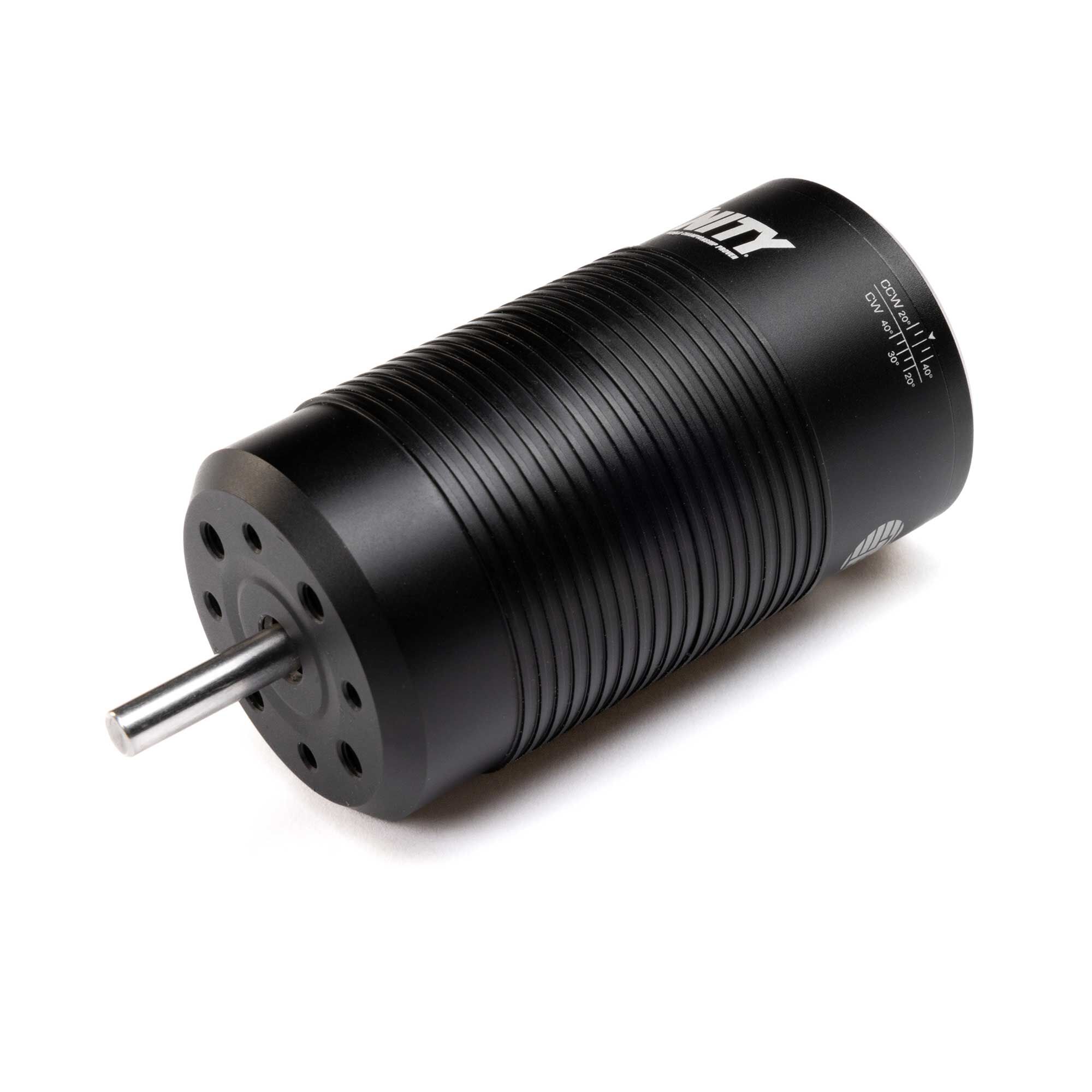

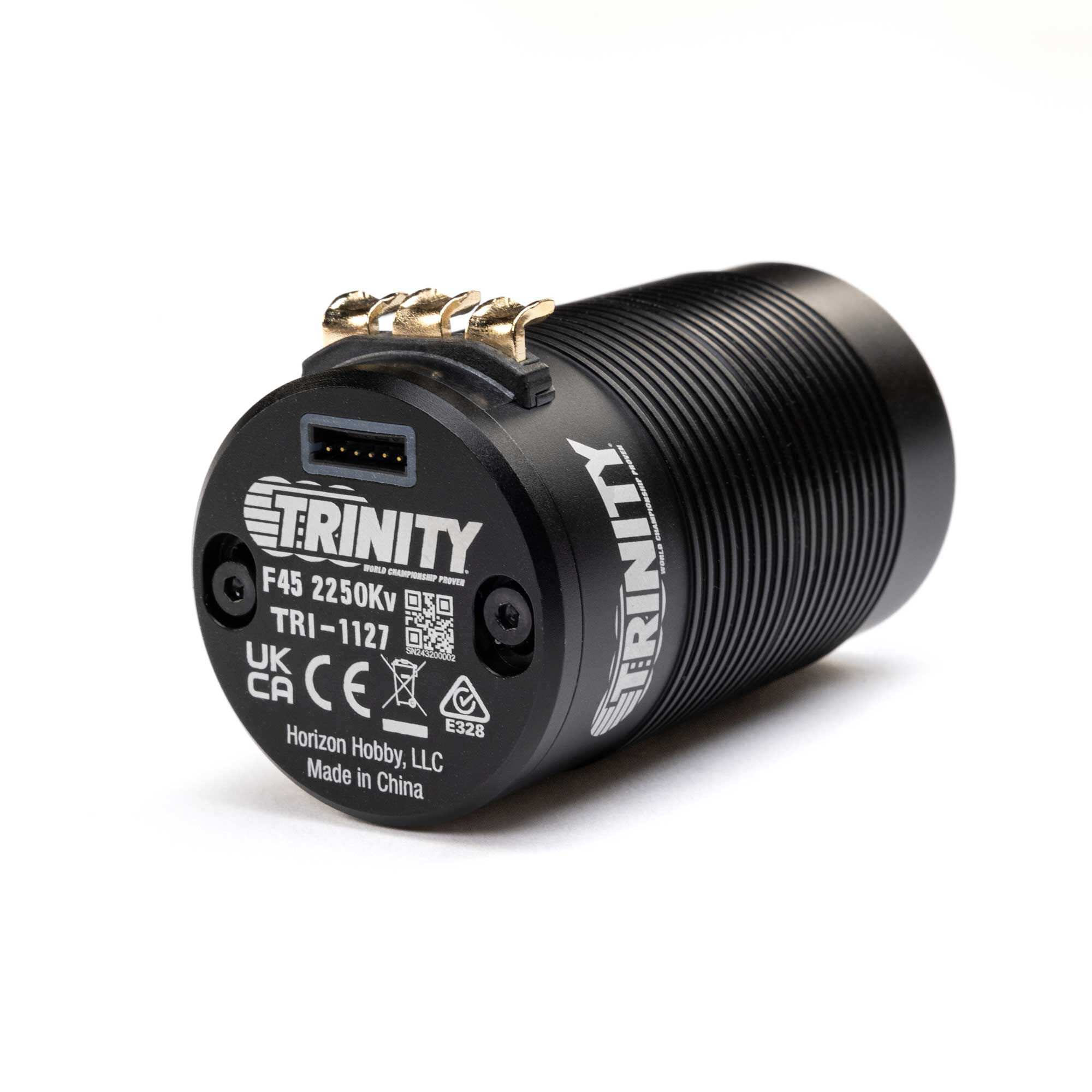

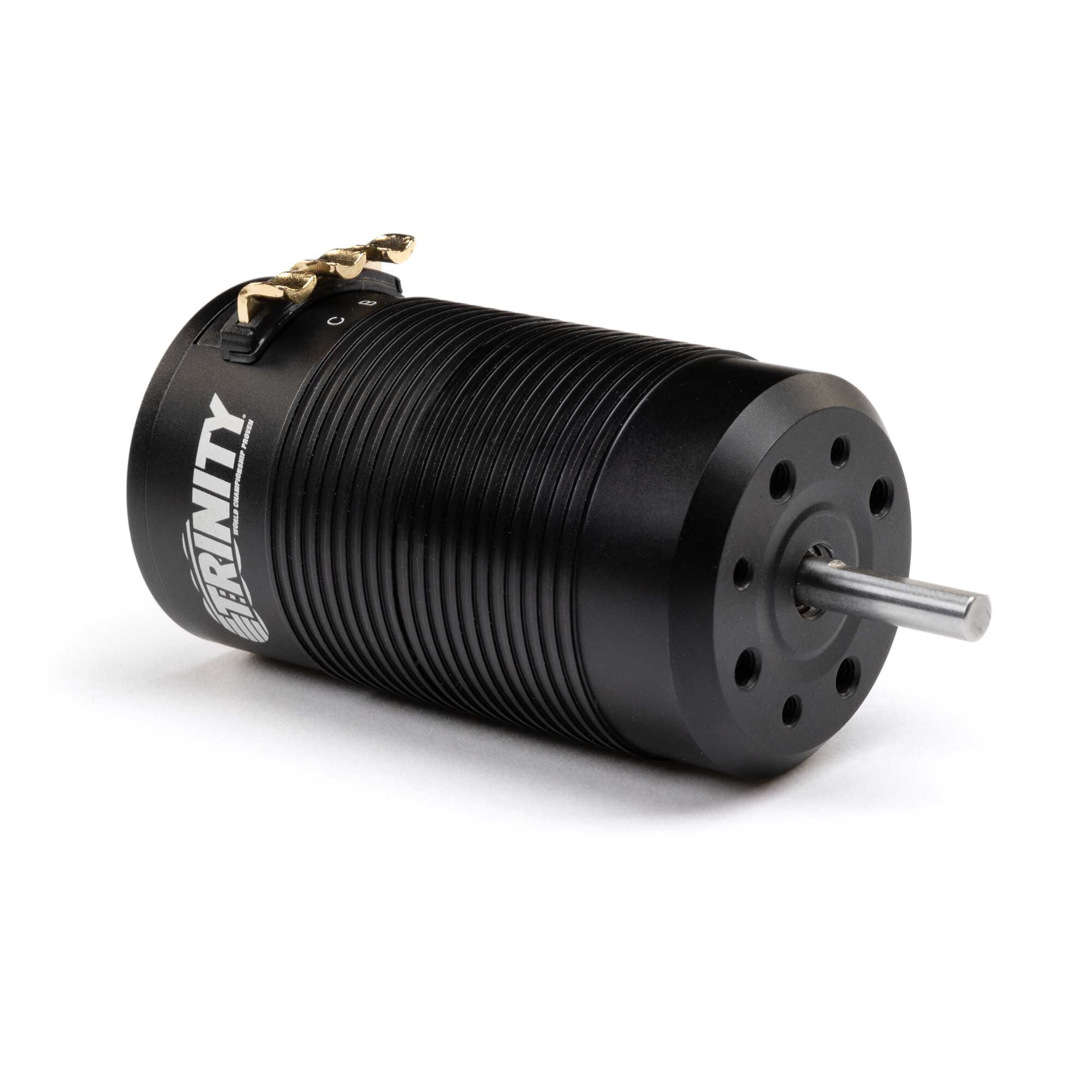

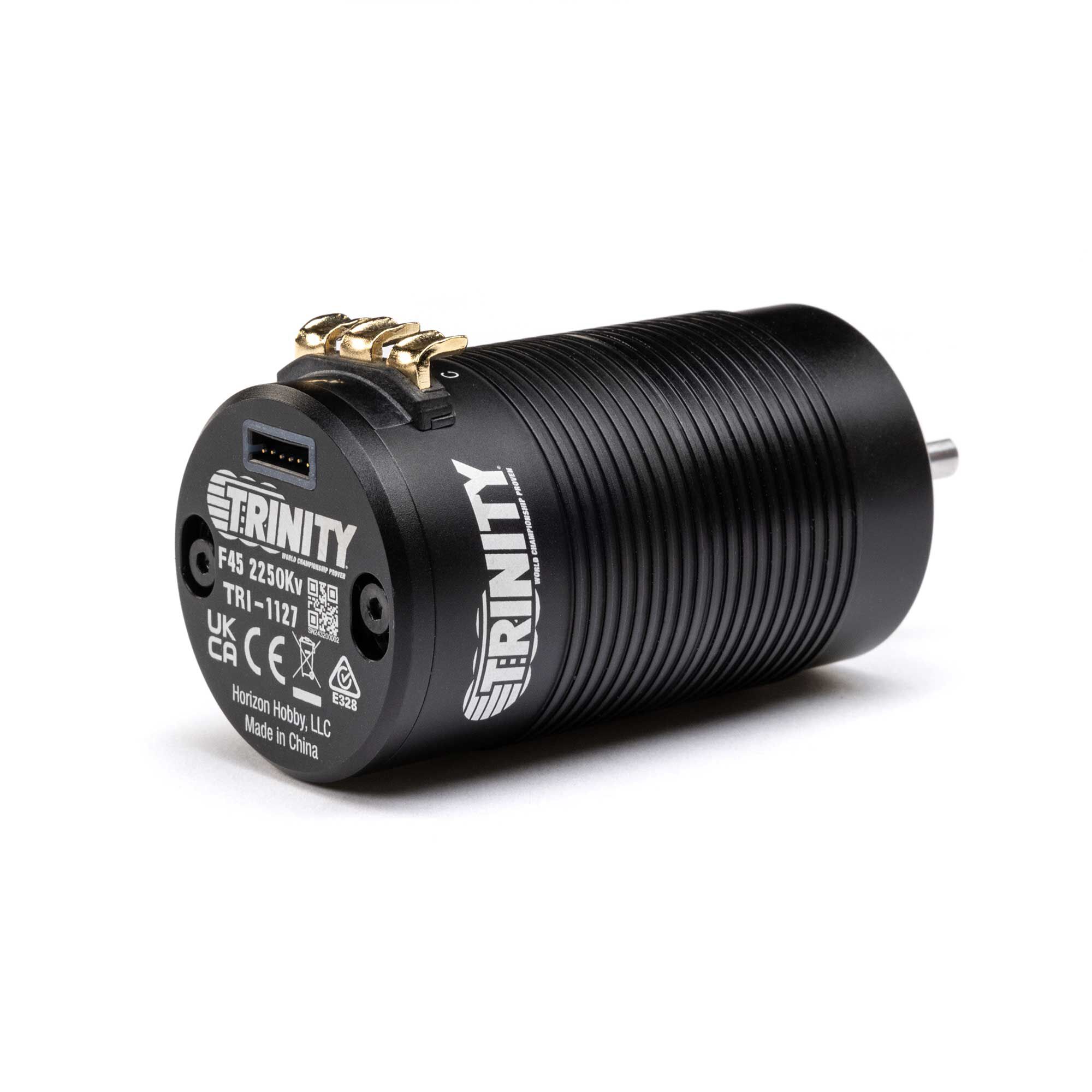

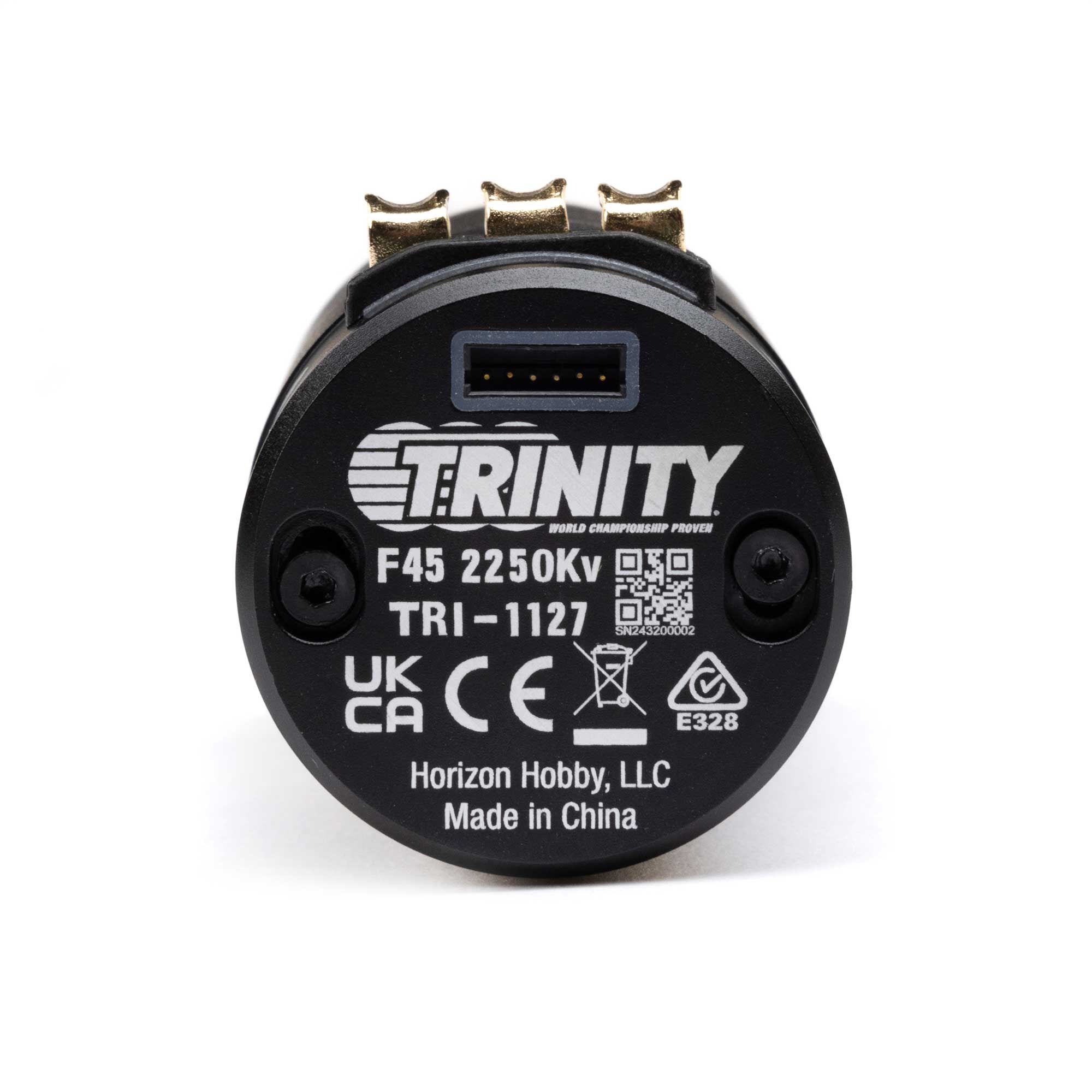

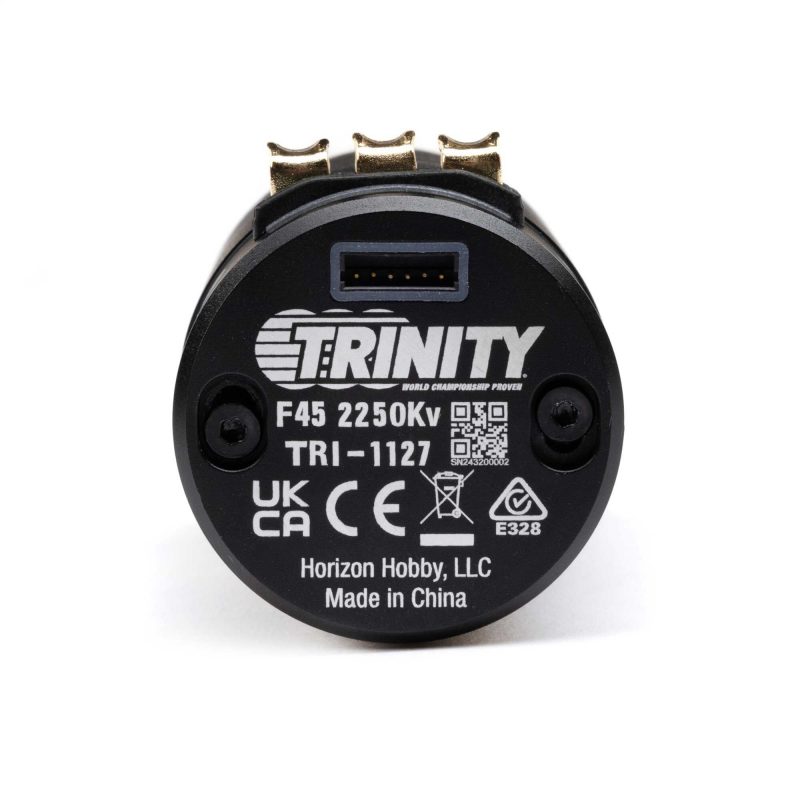

Trinity 1/8 F45 2250Kv Truggy Brushless Race Motor Introduction

Trinity F45 Brushless Race Motors deliver the muscle you need to make your 1/8 scale buggy or truggy perform like a champion. With 2S-6S LiPo power compatibility, these motors produce high rpm with exceptional efficiency. These power units also offer smooth acceleration and predictable low-speed drivability due to their sensored design.

F45 Brushless Race Motors offer a completely enclosed design, reducing your maintenance needs and giving them protection and durability to excel in demanding off-road environments. Other features include a 4-pole rotor for high torque, CNC-machined aluminum housing, insulated copper windings, steel 5mm output shaft, and smooth precision bearings.

  • Created specifically for racers demanding the most out of their 1/8 buggies and truggies
  • New Trinity motor design for increased durability
  • Efficient, high-performance operation
  • Sensored for smooth, precise control
  • Precision ball bearings and hardened steel 5mm shaft
  • High-quality 4-pole sintered rotor
  • One-year limited warranty protection

Specs

Product Specs

Application
1/8 Scale Off-Road Vehicle
Maximum Continuous Current
80A
Motor Type
Brushless
Number of Poles
4
Outer Diameter
1.61″ (41 mm)
Power (watts)
3100 watts
Product Length
2.91″ (74 mm)
Product Weight
12.7oz (360g)
RPM/Volt (Kv)
2250Kv
Shaft Diameter
0.19″ (5 mm)
Thread Size
4xM4 and 4xM3 @ 25.4 Spacing Center to Center
Voltage
2S ?C 6S LiPo (8.4V ?C25.2V)
Weight 5 kg
