Vanquish Products VRD Carbon Kit

Name: Vanquish Products VRD Carbon Kit
SKU: hh-20848
Price: 86.00 USD
Availability: InStock

$86.00

In stock

SKU: hh-20848 Category: RC Cars & Trucks by Completion Level Tags: Kit RC Cars & Trucks, RC Cars & Trucks by Completion Level, RC Cars & Trucks by Size

Description
Additional information

Overview

Introduction

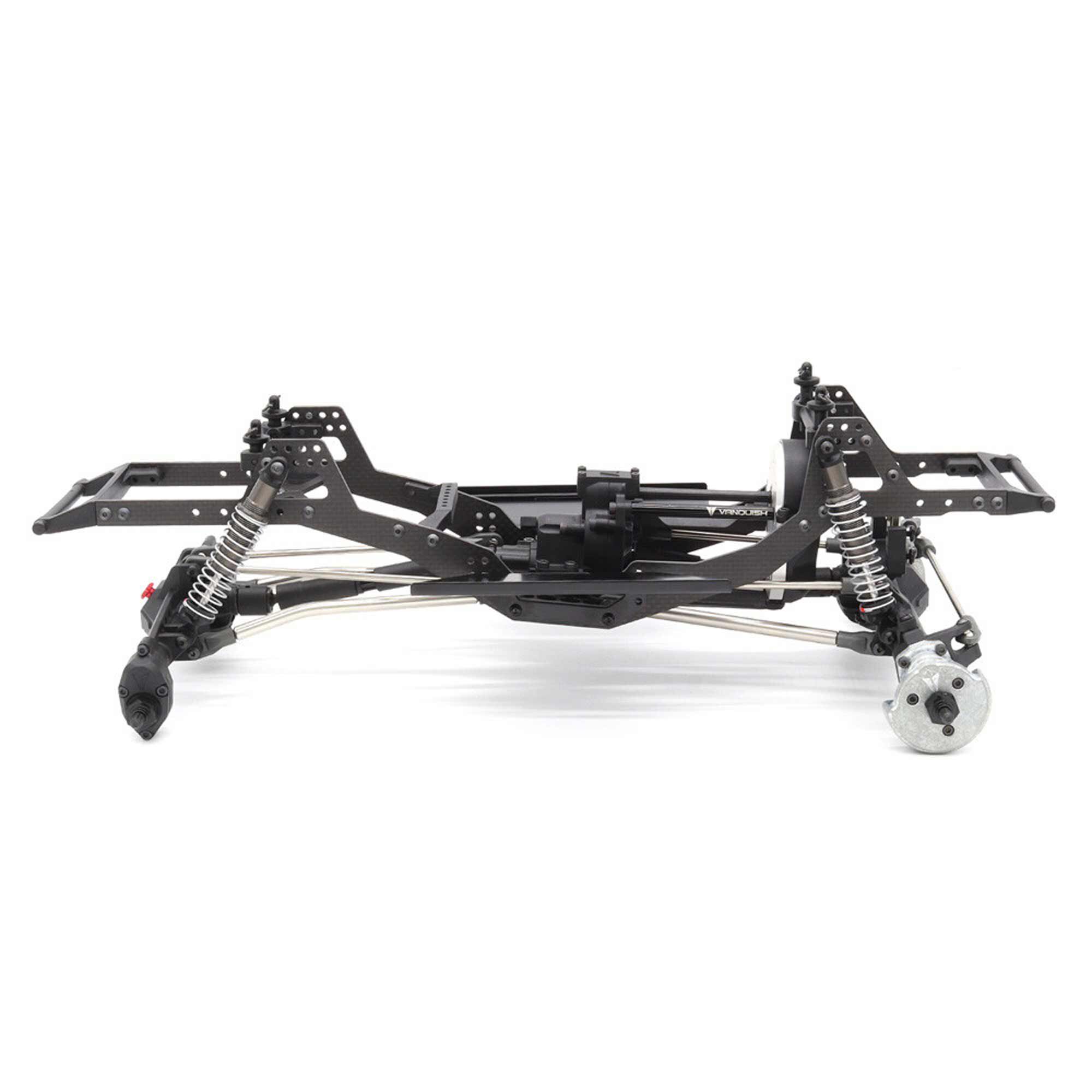

Utilizing an all new Lightweight Spec VFD Transmission and updated F10 competition inspired portal axles the VRD Carbon Kit is a highly competitive, predictable and versatile platform. The heart of the VRD Carbon Kit is a matte finish 3mm thick pair of carbon fiber frame rails mated to the 6 degree flat skid plate. The molded chassis components and skid plate place the lightweight spec VFD transmission as low as possible into the VRD chassis. For the first time the front F10 Portal axle is equipped with a servo on axle and 4-link. Front and rear axles include weighted brass tube inserts in addition to the front alloy knuckle weights to keep the center of gravity as low as possible, translating to a high performance driving experience.

Lightweight Spec VFD Transmission
Brass Weight Tubes In Axles
Front Axle Overdrive Portal Gears
Hard Anodized Shock Bodies
Incision Pro M4 Rod Ends

Features

Lightweight Spec VFD Transmission
3mm Matte Carbon Fiber Frame Rails – 6 degree flat skid plate
37% Overdrive

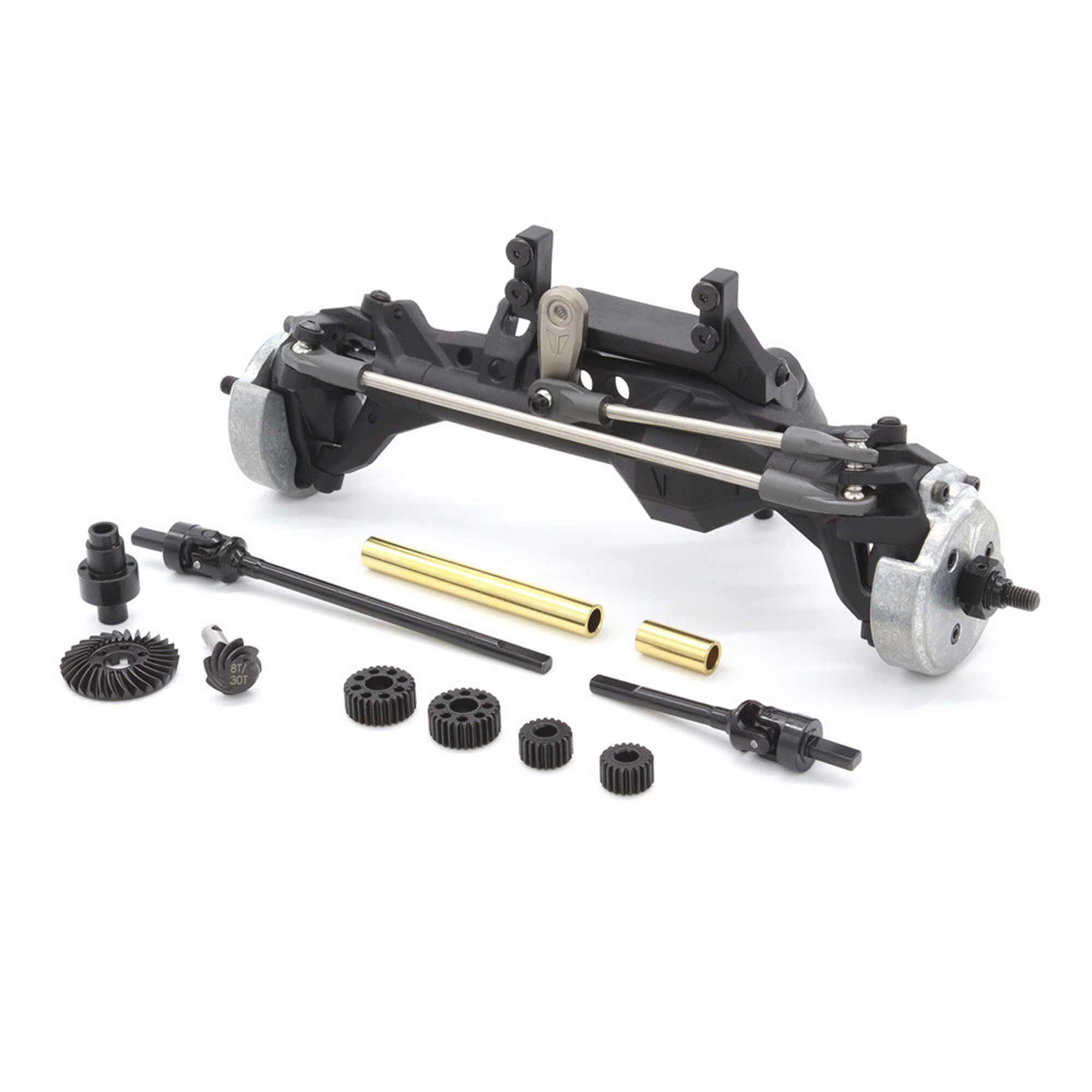

F10 Portal Axles
Brass weight tubes in axles
Alloy heavy portal knuckle weights
Front Axle Overdrive Portal gears
Rear Axle Standard Portal Gears

Lightweight Machined Chromoly VFD Transmission Gears
Machined Spool, Ring Gear, Pinion gear in axles
Chromoly Universal axle shafts
Hard Anodized Shock Bodies
Stainless Steel Links with HD Bent rear links
Incision Pro M4 Rod Ends
Stamped Aluminum Rock Sliders
Adjustable multi point body mounting system

Chassis

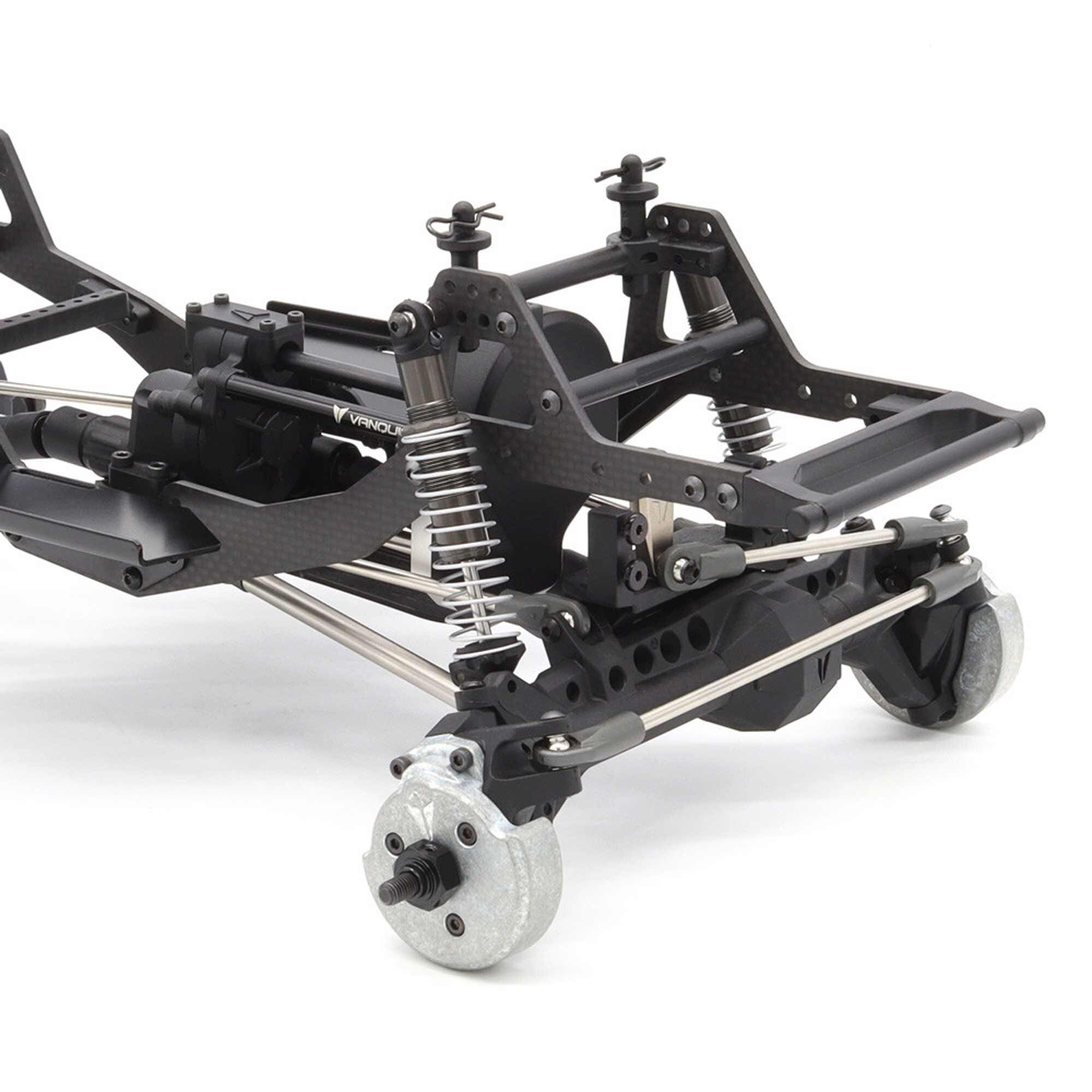

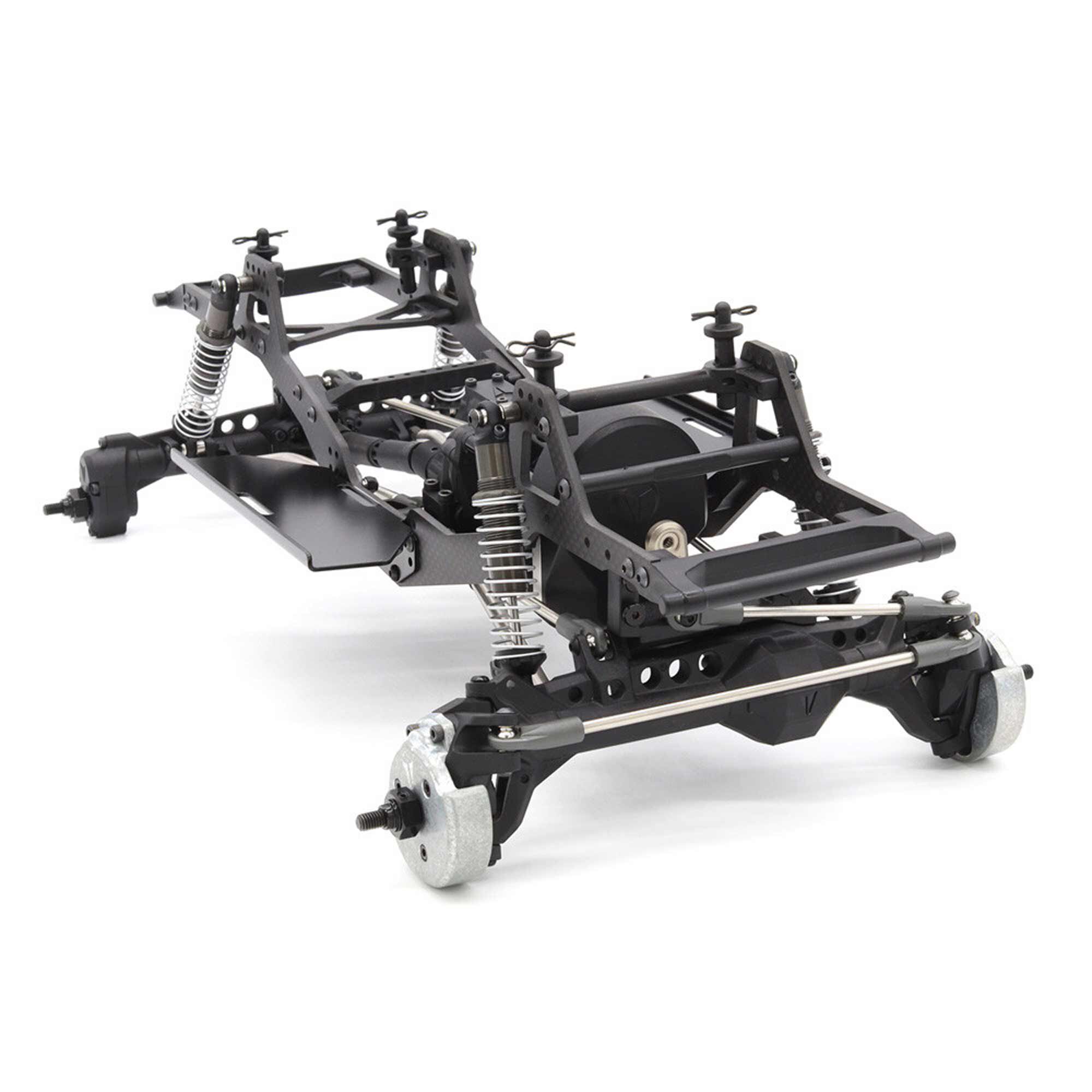

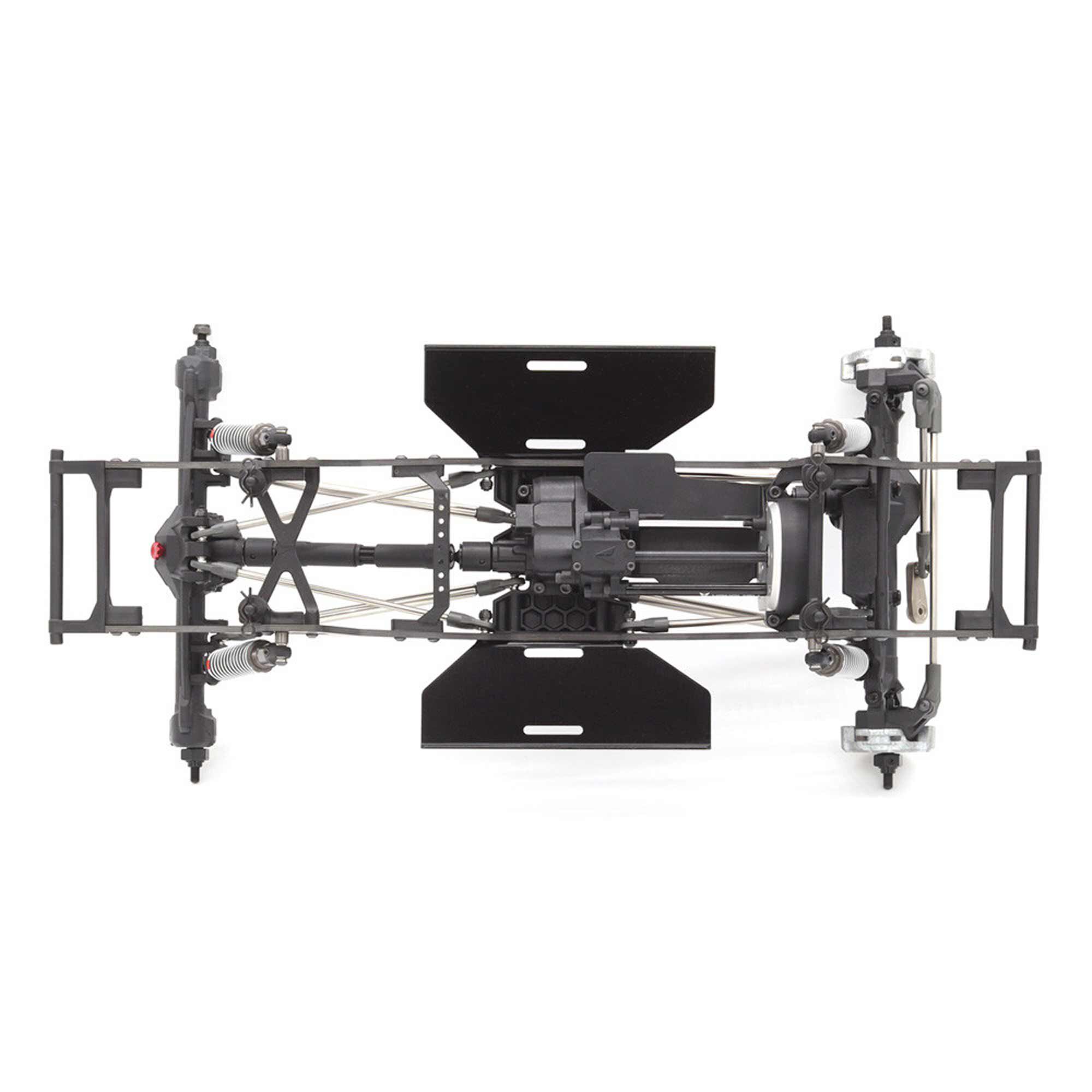

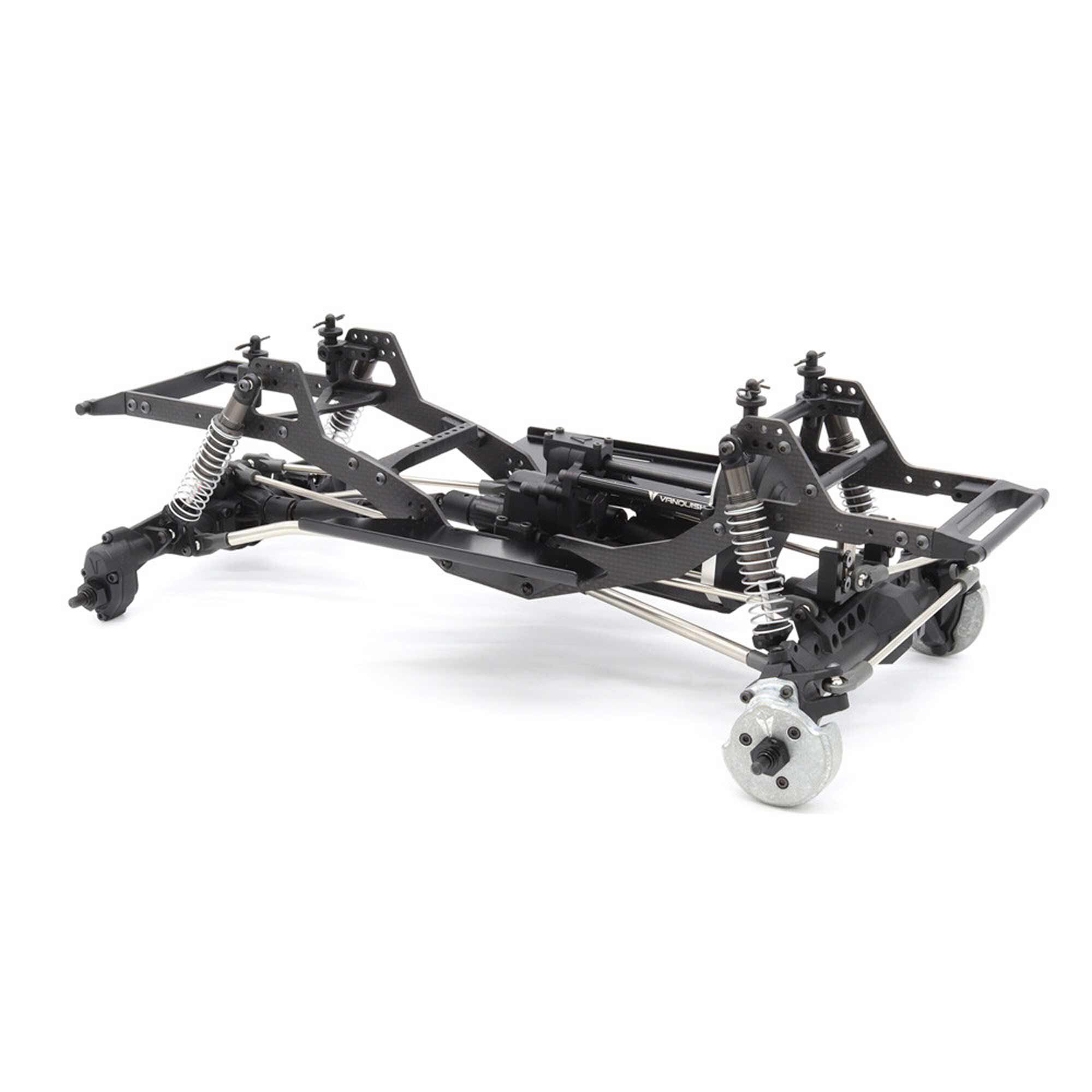

The Vanquish Products VRD Carbon chassis is equipped with all new molded chassis components that provide a tunable platform to adapt to the most demanding terrain. Multiple shock and body mounting positions combined with minimalistic front/rear interchangeable bumpers make body mounting and fitment straight forward. Stamped aluminum rock sliders provide a flat location for electronics and/or battery mounting and are able to support and protect your body.

Drivetrain

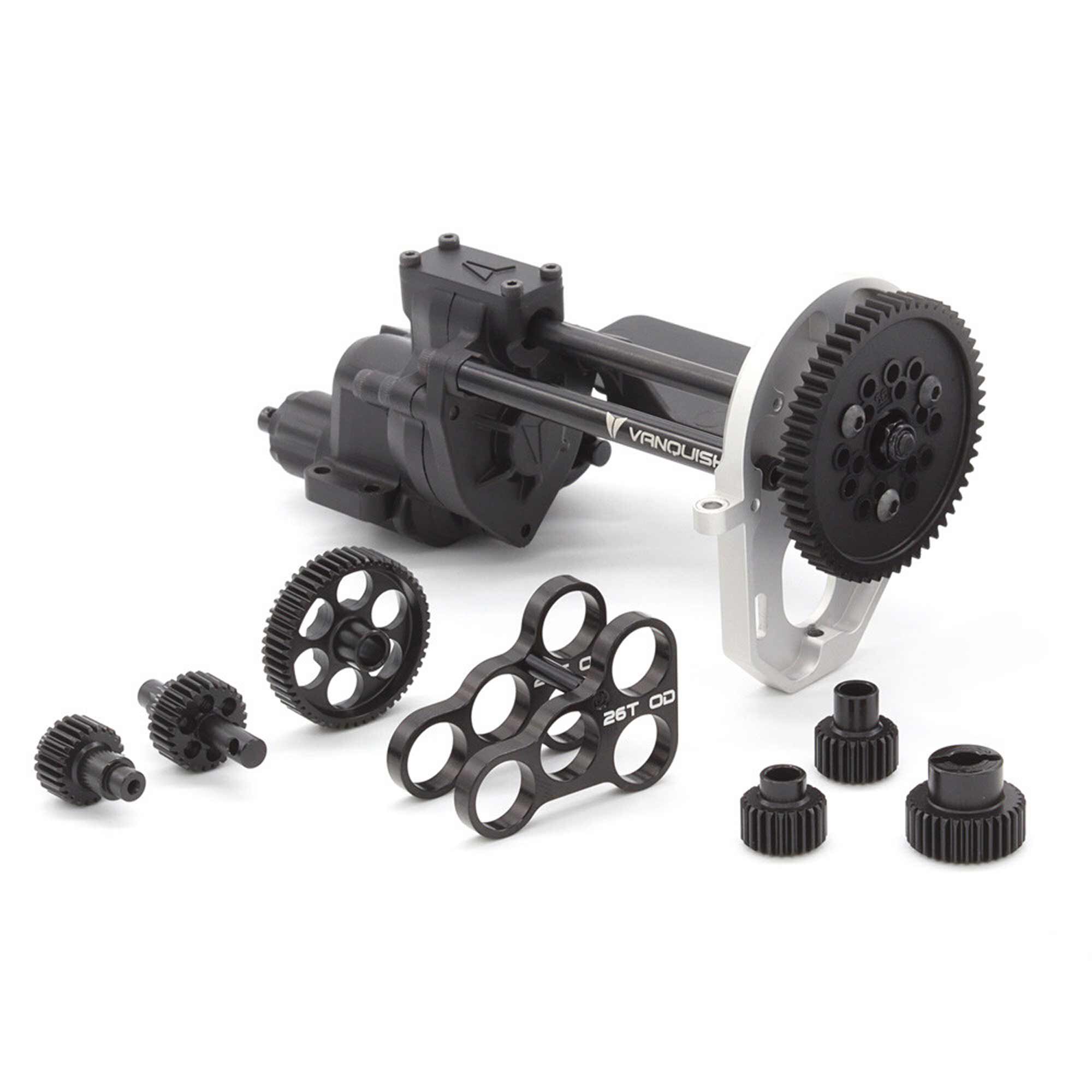

The center of the VRD Carbon Kit is the new lightweight spec VFD transmission. Equipped with a lightweight machined aluminum motor plate, aluminum motor plate standoffs, while omitting the cosmetic VFD tunnel for a high performance appearance. Internally the VFD is equipped with machined aluminum bearing plates and machined lightweight chromoly gears. Each internal gear has been re-designed to be as lightweight as possible dropping the weight of the overall transmission but maintaining a high level of durability. The T-Case has a built in 21% overdrive.

Suspension

The VRD Carbon Kit includes the Incision S8E shocks with hard anodized shock bodies and multiple length tuning rod ends for a final length range of 85-95mm. Heavy duty stainless steel lower suspension links and lightweight upper links connect the chassis to the axles with the new Incision Pro M4 rod ends. The rear lower links are bent for maximum breakover clearance. Multiple shock mounting locations and tunable shock length allow for a high range of ride height and breakover adjustment.

Specs

Product Specs

Battery

Sold Separately

Body

Sold Separately

Charger

Sold Separately

Chassis

Carbon Fiber

Completion Level

Kit

Differential

Gear Diffs

Drive Type

Forward/Brake/Reverse

Drivetrain

4WD

Gear Ratio

Front: 46.5:1/ Rear: 68:1

Pinion

15T

Power Type

Electric

Product Width

7.87″ (200 mm)

Radio

Sold Separately

Receiver

Sold Separately

Scale

1/10

Servos

Sold Separately

Shock Type

Oil-Filled Shocks

Speed Control

Sold Separately

Spur Gear

52T

Suspension

Solid Axle

Vehicle Size

Standard

Vehicle Type

Rock Crawler

Wheelbase

12.67″ (322 mm)

Weight	5 kg
